JEEP GRAND CHEROKEE 2017 WK2 / 4.G Owners Manual

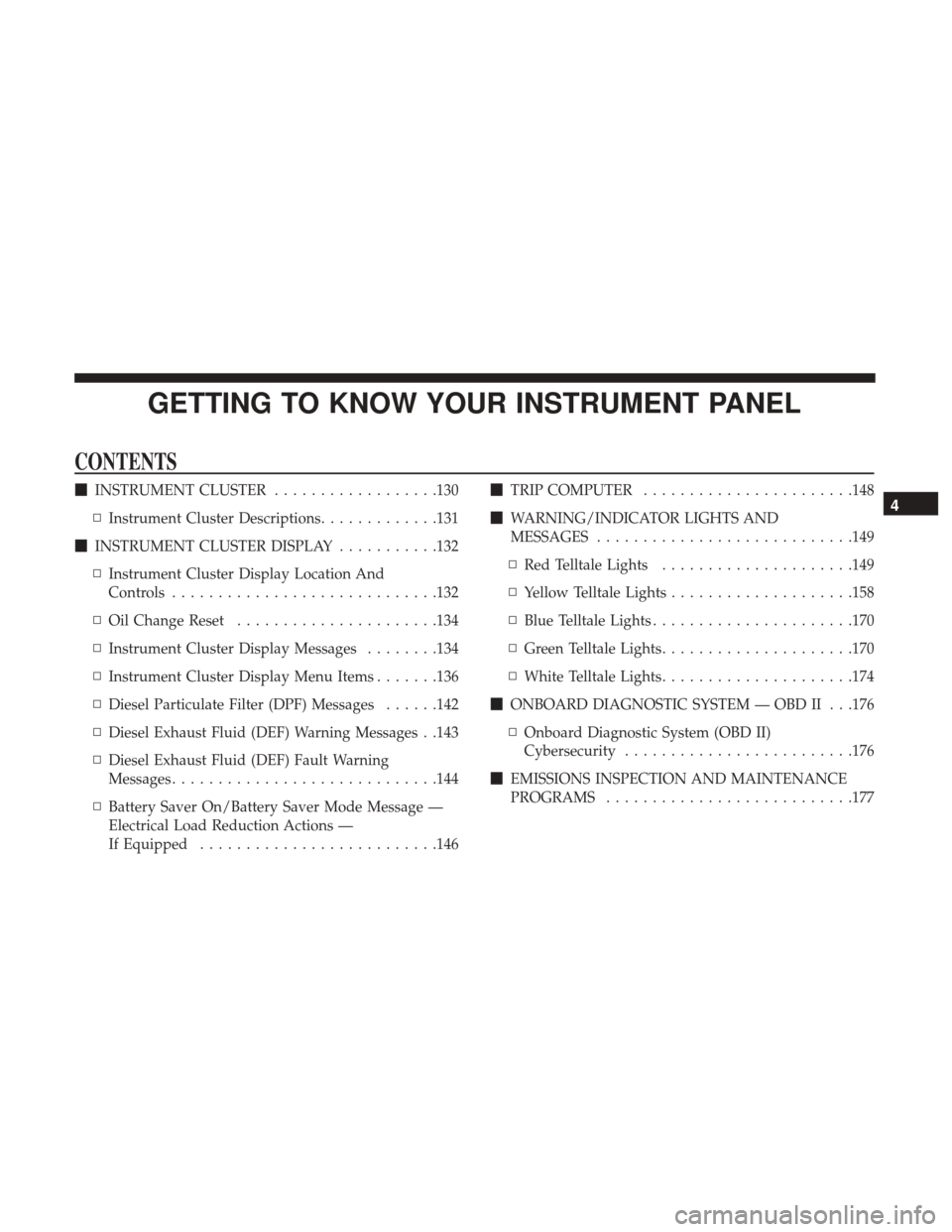

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ..................130
▫ Instrument Cluster Descriptions .............131
 INSTRUMENT CLUSTER DISPLAY ...........132
▫ Instrument Cluster Display Location And
Controls ............................ .132
▫ Oil Change Reset ..................... .134
▫ Instrument Cluster Display Messages ........134
▫ Instrument Cluster Display Menu Items .......136
▫ Diesel Particulate Filter (DPF) Messages ......142
▫ Diesel Exhaust Fluid (DEF) Warning Messages . .143
▫ Diesel Exhaust Fluid (DEF) Fault Warning
Messages ............................ .144
▫ Battery Saver On/Battery Saver Mode Message —
Electrical Load Reduction Actions —
If Equipped ......................... .146
TRIP COMPUTER ...................... .148
 WARNING/INDICATOR LIGHTS AND
MESSAGES ........................... .149
▫ Red Telltale Lights .....................149
▫ Yellow Telltale Lights ....................158
▫ Blue Telltale Lights ..................... .170
▫ Green Telltale Lights .....................170
▫ White Telltale Lights .....................174
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .176
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .176
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS .......................... .1774

INSTRUMENT CLUSTER
Base Instrument Cluster
130 GETTING TO KNOW YOUR INSTRUMENT PANEL

Instrument Cluster Descriptions
1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Speedometer •Indicates vehicle speed.
3. Temperature Gauge •The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.
• The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather or up mountain
grades. It should not be allowed to exceed the upper
limits of the normal operating range.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
service if your vehicle overheats.
CAUTION!
Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the ignition is in the ON/RUN position.
•
The fuel pump symbol points to the side of the
vehicle where the fuel door is located.
5. Instrument Cluster Display
•The instrument cluster display features a driver-
interactive display. Refer to “Instrument Cluster Dis-
play” in “Getting To Know Your Instrument Panel” for
further information.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 131

INSTRUMENT CLUSTER DISPLAY
Your vehicle may be equipped with an instrument cluster
display, which offers useful information to the driver. With
the ignition in the STOP/OFF position, opening/closing of
a door will activate the display for viewing, and display
the total miles, or kilometers, in the odometer. Your instru-
ment cluster display is designed to display important
information about your vehicle’s systems and features.
Using a driver interactive display located on the instru-
ment panel, your instrument cluster display can show you
how systems are working and give you warnings when
they aren’t. The steering wheel mounted controls allow
you to scroll through and enter the main menus and
submenus. You can access the specific information you
want and make selections and adjustments.
Instrument Cluster Display Location And Controls
The instrument cluster display is located in the center of
the instrument cluster.The Main Menu items consists of the following:
•
Speedometer Main Gauge
• Vehicle Info
• Terrain — If Equipped
• Driver Assist — If Equipped
• Fuel Economy
• Trip
• Stop/Start — If Equipped
Instrument Cluster Display Location And Controls
132 GETTING TO KNOW YOUR INSTRUMENT PANEL

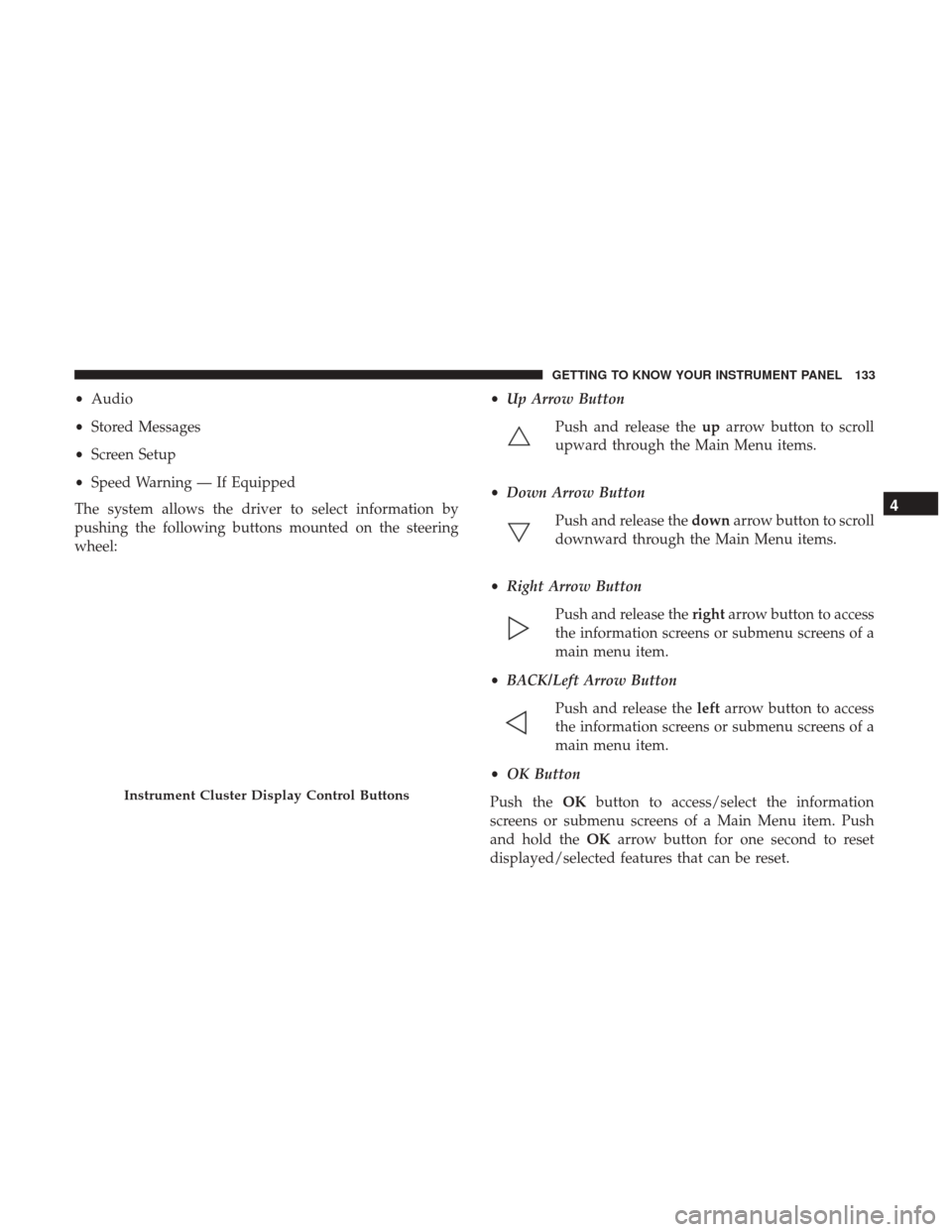

•Audio
• Stored Messages
• Screen Setup
• Speed Warning — If Equipped
The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel: •
Up Arrow Button
Push and release the uparrow button to scroll
upward through the Main Menu items.
• Down Arrow Button
Push and release the downarrow button to scroll
downward through the Main Menu items.
• Right Arrow Button
Push and release the rightarrow button to access
the information screens or submenu screens of a
main menu item.
• BACK/Left Arrow Button
Push and release the leftarrow button to access
the information screens or submenu screens of a
main menu item.
• OK Button
Push the OKbutton to access/select the information
screens or submenu screens of a Main Menu item. Push
and hold the OKarrow button for one second to reset
displayed/selected features that can be reset.
Instrument Cluster Display Control Buttons
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 133

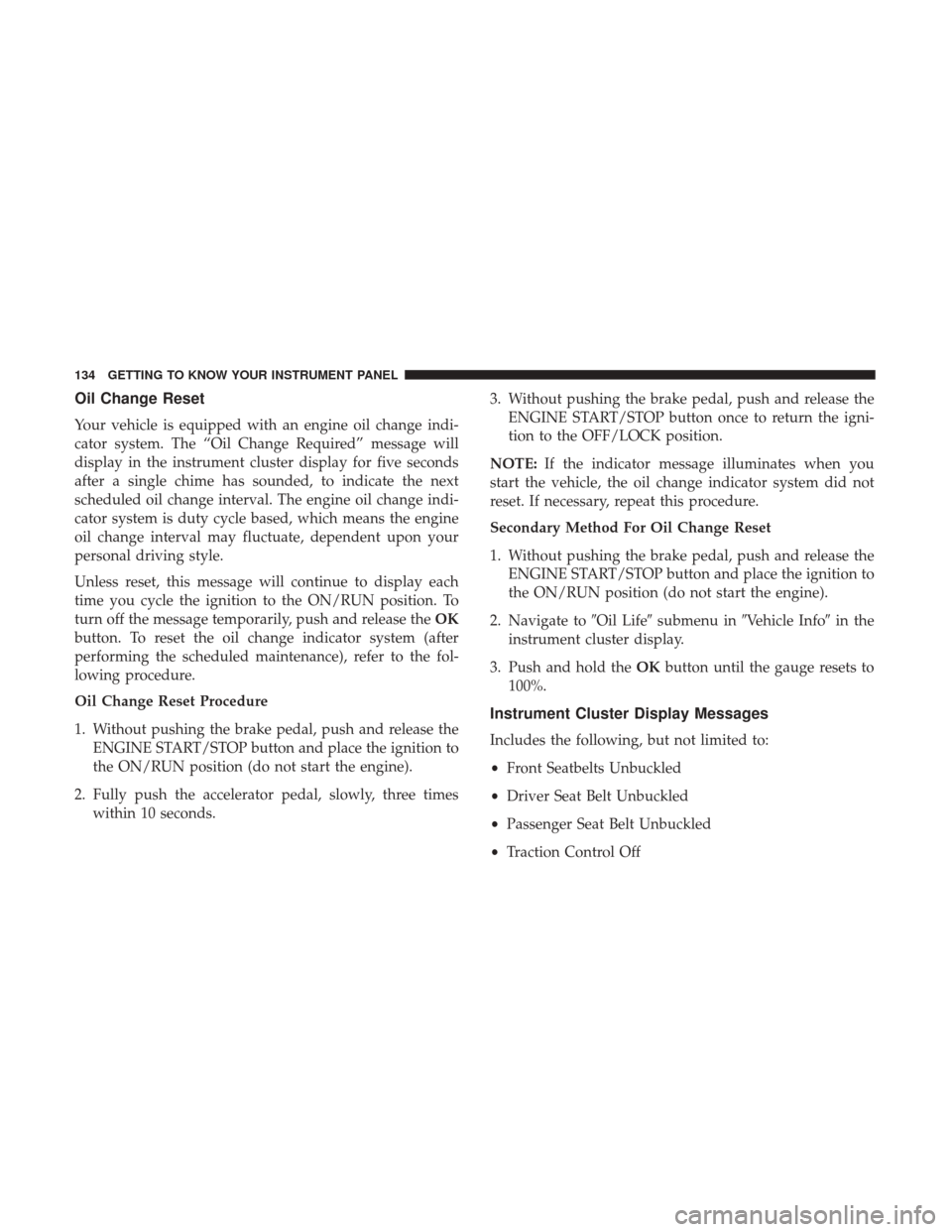

Oil Change Reset
Your vehicle is equipped with an engine oil change indi-
cator system. The “Oil Change Required” message will
display in the instrument cluster display for five seconds
after a single chime has sounded, to indicate the next
scheduled oil change interval. The engine oil change indi-
cator system is duty cycle based, which means the engine
oil change interval may fluctuate, dependent upon your
personal driving style.
Unless reset, this message will continue to display each
time you cycle the ignition to the ON/RUN position. To
turn off the message temporarily, push and release theOK
button. To reset the oil change indicator system (after
performing the scheduled maintenance), refer to the fol-
lowing procedure.
Oil Change Reset Procedure
1. Without pushing the brake pedal, push and release the ENGINE START/STOP button and place the ignition to
the ON/RUN position (do not start the engine).
2. Fully push the accelerator pedal, slowly, three times within 10 seconds. 3. Without pushing the brake pedal, push and release the
ENGINE START/STOP button once to return the igni-
tion to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
Secondary Method For Oil Change Reset
1. Without pushing the brake pedal, push and release the ENGINE START/STOP button and place the ignition to
the ON/RUN position (do not start the engine).
2. Navigate to Oil Lifesubmenu in Vehicle Info in the
instrument cluster display.
3. Push and hold the OKbutton until the gauge resets to
100%.
Instrument Cluster Display Messages
Includes the following, but not limited to:
• Front Seatbelts Unbuckled
• Driver Seat Belt Unbuckled
• Passenger Seat Belt Unbuckled
• Traction Control Off
134 GETTING TO KNOW YOUR INSTRUMENT PANEL

•Washer Fluid Low
• Oil Pressure Low
• Oil Change Due
• Fuel Low
• Service Anti-lock Brake System
• Service Electronic Throttle Control
• Service Power Steering
• Cruise Off
• Cruise Ready
• ACC Override
• Cruise Set To XXX MPH
• Tire Pressure Screen With Low Tire(s) “Inflate Tire to
XX”
• Service Tire Pressure System
• Speed Warning Set to XXX MPH
• Speed Warning Exceeded
• Parking Brake Engaged •
Brake Fluid Low
• Service Electronic Braking System
• Engine Temperature Hot
• Lights On
• Right Front Turn Signal Light Out
• Right Rear Turn Signal Light Out
• Left Front Turn Signal Light Out
• Left Rear Turn Signal Light Out
• Ignition or Accessory On
• Vehicle Not In Park
• Remote Start Active Push Start Button
• Remote Start Canceled Fuel Low
• Remote Start Canceled Too Cold
• Remote Start Canceled Door Open
• Remote Start Canceled Hood Open
• Remote Start Canceled Liftgate Open
• Remote Start Canceled Time Expired
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 135

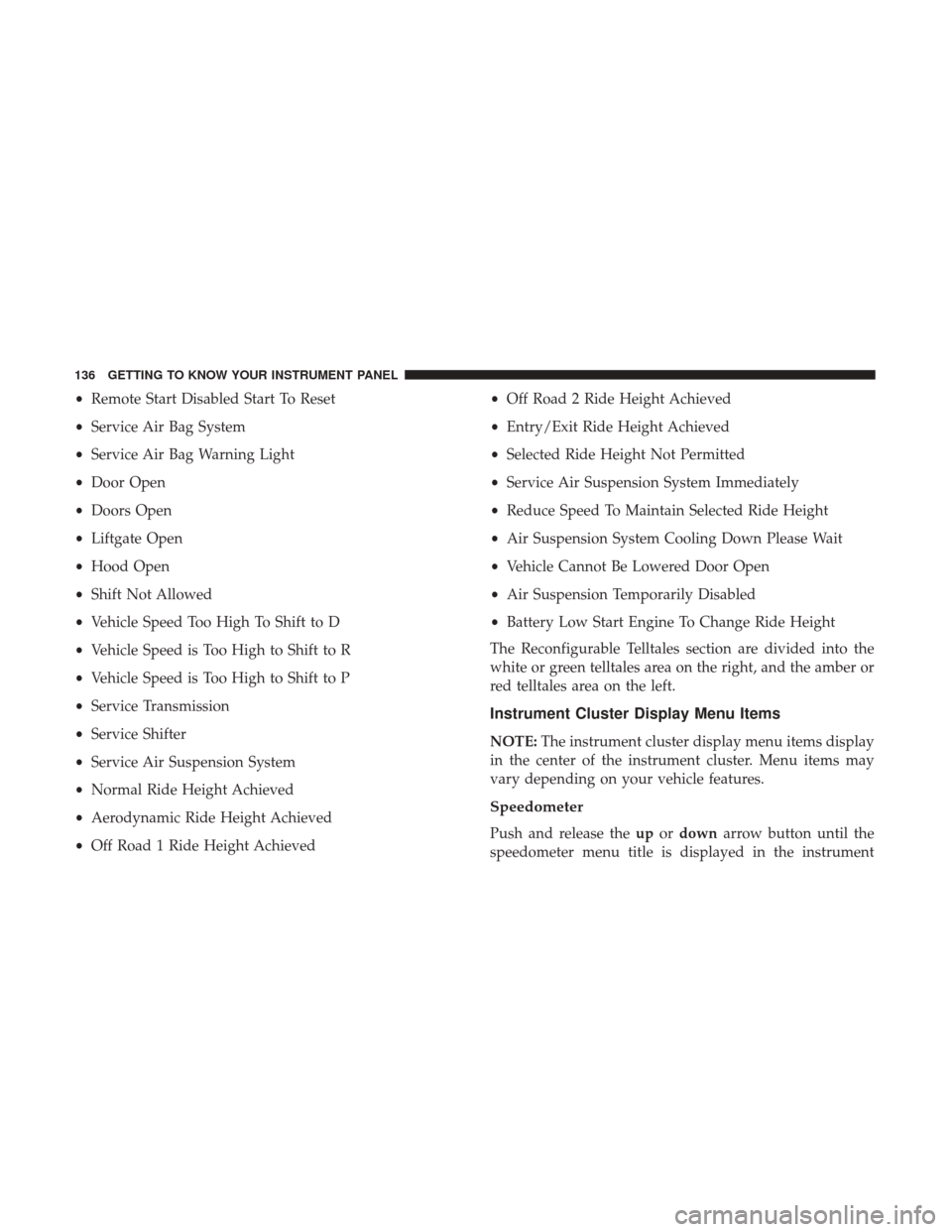

•Remote Start Disabled Start To Reset
• Service Air Bag System
• Service Air Bag Warning Light
• Door Open
• Doors Open
• Liftgate Open
• Hood Open
• Shift Not Allowed
• Vehicle Speed Too High To Shift to D
• Vehicle Speed is Too High to Shift to R
• Vehicle Speed is Too High to Shift to P
• Service Transmission
• Service Shifter
• Service Air Suspension System
• Normal Ride Height Achieved
• Aerodynamic Ride Height Achieved
• Off Road 1 Ride Height Achieved •
Off Road 2 Ride Height Achieved
• Entry/Exit Ride Height Achieved
• Selected Ride Height Not Permitted
• Service Air Suspension System Immediately
• Reduce Speed To Maintain Selected Ride Height
• Air Suspension System Cooling Down Please Wait
• Vehicle Cannot Be Lowered Door Open
• Air Suspension Temporarily Disabled
• Battery Low Start Engine To Change Ride Height
The Reconfigurable Telltales section are divided into the
white or green telltales area on the right, and the amber or
red telltales area on the left.
Instrument Cluster Display Menu Items
NOTE: The instrument cluster display menu items display
in the center of the instrument cluster. Menu items may
vary depending on your vehicle features.
Speedometer
Push and release the upordown arrow button until the
speedometer menu title is displayed in the instrument
136 GETTING TO KNOW YOUR INSTRUMENT PANEL

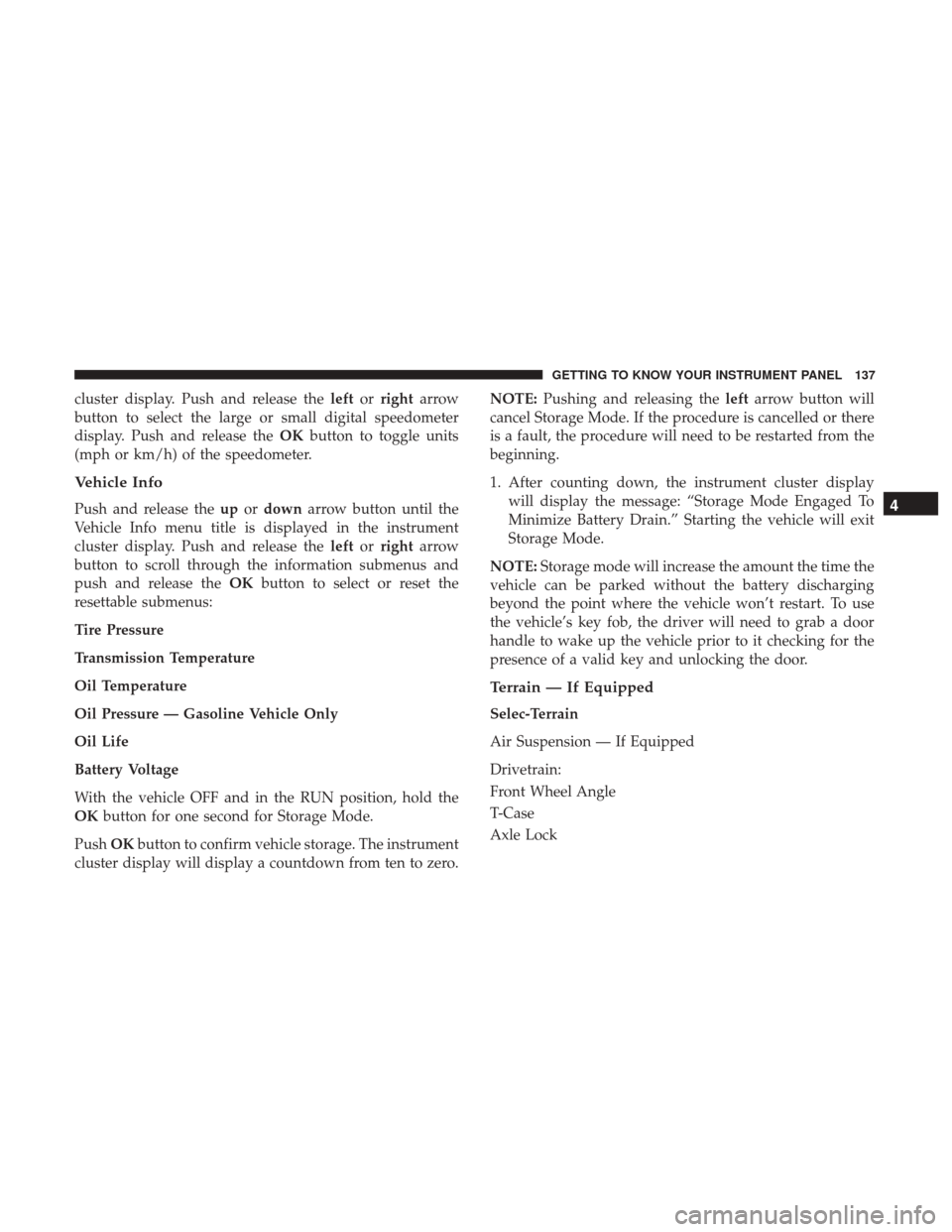

cluster display. Push and release theleftorright arrow
button to select the large or small digital speedometer
display. Push and release the OKbutton to toggle units
(mph or km/h) of the speedometer.
Vehicle Info
Push and release the upordown arrow button until the
Vehicle Info menu title is displayed in the instrument
cluster display. Push and release the leftorright arrow
button to scroll through the information submenus and
push and release the OKbutton to select or reset the
resettable submenus:
Tire Pressure
Transmission Temperature
Oil Temperature
Oil Pressure — Gasoline Vehicle Only
Oil Life
Battery Voltage
With the vehicle OFF and in the RUN position, hold the
OK button for one second for Storage Mode.
Push OKbutton to confirm vehicle storage. The instrument
cluster display will display a countdown from ten to zero. NOTE:
Pushing and releasing the leftarrow button will
cancel Storage Mode. If the procedure is cancelled or there
is a fault, the procedure will need to be restarted from the
beginning.
1. After counting down, the instrument cluster display will display the message: “Storage Mode Engaged To
Minimize Battery Drain.” Starting the vehicle will exit
Storage Mode.
NOTE: Storage mode will increase the amount the time the
vehicle can be parked without the battery discharging
beyond the point where the vehicle won’t restart. To use
the vehicle’s key fob, the driver will need to grab a door
handle to wake up the vehicle prior to it checking for the
presence of a valid key and unlocking the door.
Terrain — If Equipped
Selec-Terrain
Air Suspension — If Equipped
Drivetrain:
Front Wheel Angle
T-Case
Axle Lock
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 137

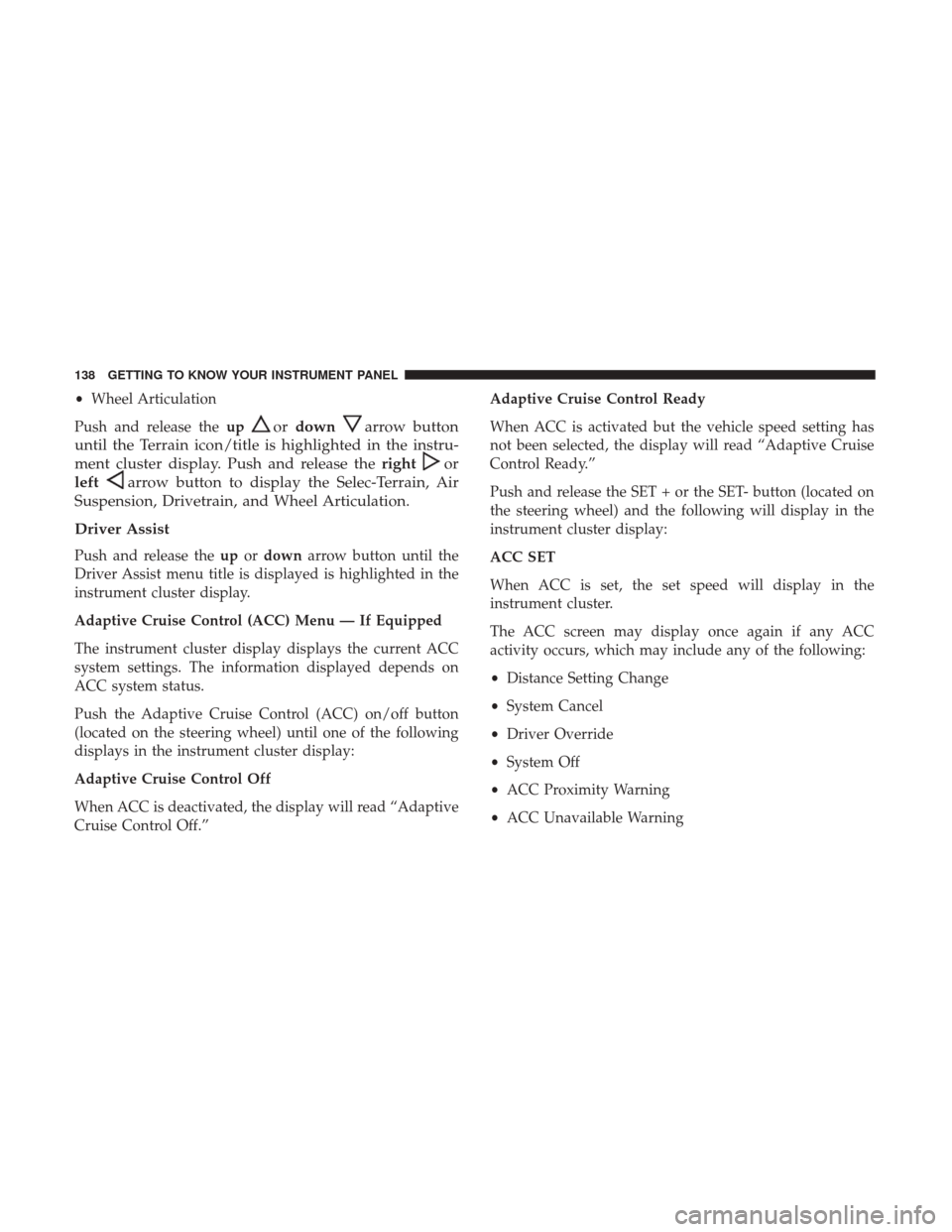

•Wheel Articulation
Push and release the up
ordownarrow button
until the Terrain icon/title is highlighted in the instru-
ment cluster display. Push and release the right
or
left
arrow button to display the Selec-Terrain, Air
Suspension, Drivetrain, and Wheel Articulation.
Driver Assist
Push and release the upordown arrow button until the
Driver Assist menu title is displayed is highlighted in the
instrument cluster display.
Adaptive Cruise Control (ACC) Menu — If Equipped
The instrument cluster display displays the current ACC
system settings. The information displayed depends on
ACC system status.
Push the Adaptive Cruise Control (ACC) on/off button
(located on the steering wheel) until one of the following
displays in the instrument cluster display:
Adaptive Cruise Control Off
When ACC is deactivated, the display will read “Adaptive
Cruise Control Off.” Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed setting has
not been selected, the display will read “Adaptive Cruise
Control Ready.”
Push and release the SET + or the SET- button (located on
the steering wheel) and the following will display in the
instrument cluster display:
ACC SET
When ACC is set, the set speed will display in the
instrument cluster.
The ACC screen may display once again if any ACC
activity occurs, which may include any of the following:
•
Distance Setting Change
• System Cancel
• Driver Override
• System Off
• ACC Proximity Warning
• ACC Unavailable Warning
138 GETTING TO KNOW YOUR INSTRUMENT PANEL
