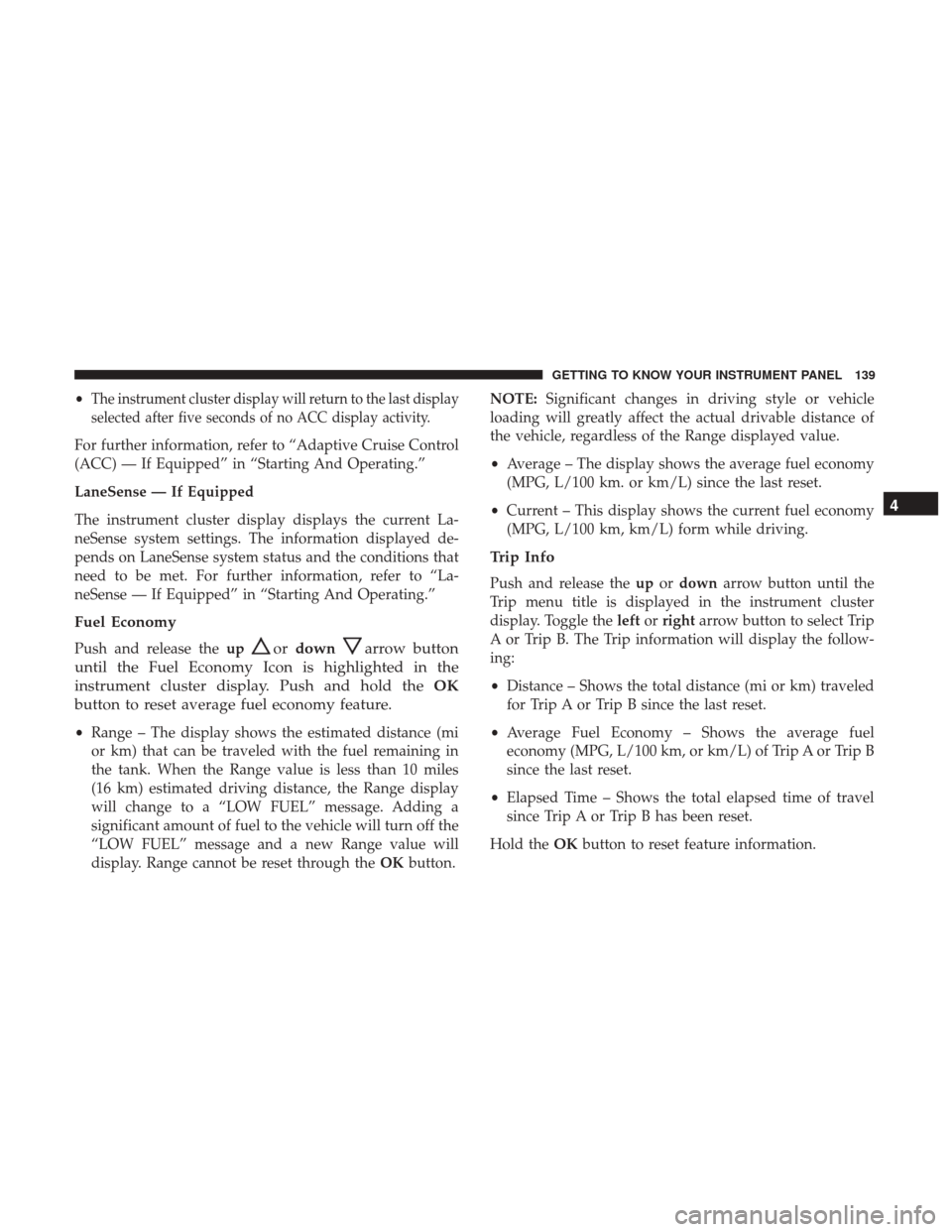

•The instrument cluster display will return to the last display
selected after five seconds of no ACC display activity.
For further information, refer to “Adaptive Cruise Control
(ACC) — If Equipped” in “Starting And Operating.”
LaneSense — If Equipped
The instrument cluster display displays the current La-
neSense system settings. The information displayed de-
pends on LaneSense system status and the conditions that
need to be met. For further information, refer to “La-
neSense — If Equipped” in “Starting And Operating.”
Fuel Economy
Push and release the upordownarrow button
until the Fuel Economy Icon is highlighted in the
instrument cluster display. Push and hold the OK
button to reset average fuel economy feature.
• Range – The display shows the estimated distance (mi
or km) that can be traveled with the fuel remaining in
the tank. When the Range value is less than 10 miles
(16 km) estimated driving distance, the Range display
will change to a “LOW FUEL” message. Adding a
significant amount of fuel to the vehicle will turn off the
“LOW FUEL” message and a new Range value will
display. Range cannot be reset through the OKbutton. NOTE:
Significant changes in driving style or vehicle
loading will greatly affect the actual drivable distance of
the vehicle, regardless of the Range displayed value.
• Average – The display shows the average fuel economy
(MPG, L/100 km. or km/L) since the last reset.
• Current – This display shows the current fuel economy
(MPG, L/100 km, km/L) form while driving.
Trip Info
Push and release the upordown arrow button until the
Trip menu title is displayed in the instrument cluster
display. Toggle the leftorright arrow button to select Trip
A or Trip B. The Trip information will display the follow-
ing:
• Distance – Shows the total distance (mi or km) traveled
for Trip A or Trip B since the last reset.
• Average Fuel Economy – Shows the average fuel
economy (MPG, L/100 km, or km/L) of Trip A or Trip B
since the last reset.
• Elapsed Time – Shows the total elapsed time of travel
since Trip A or Trip B has been reset.
Hold the OKbutton to reset feature information.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 139

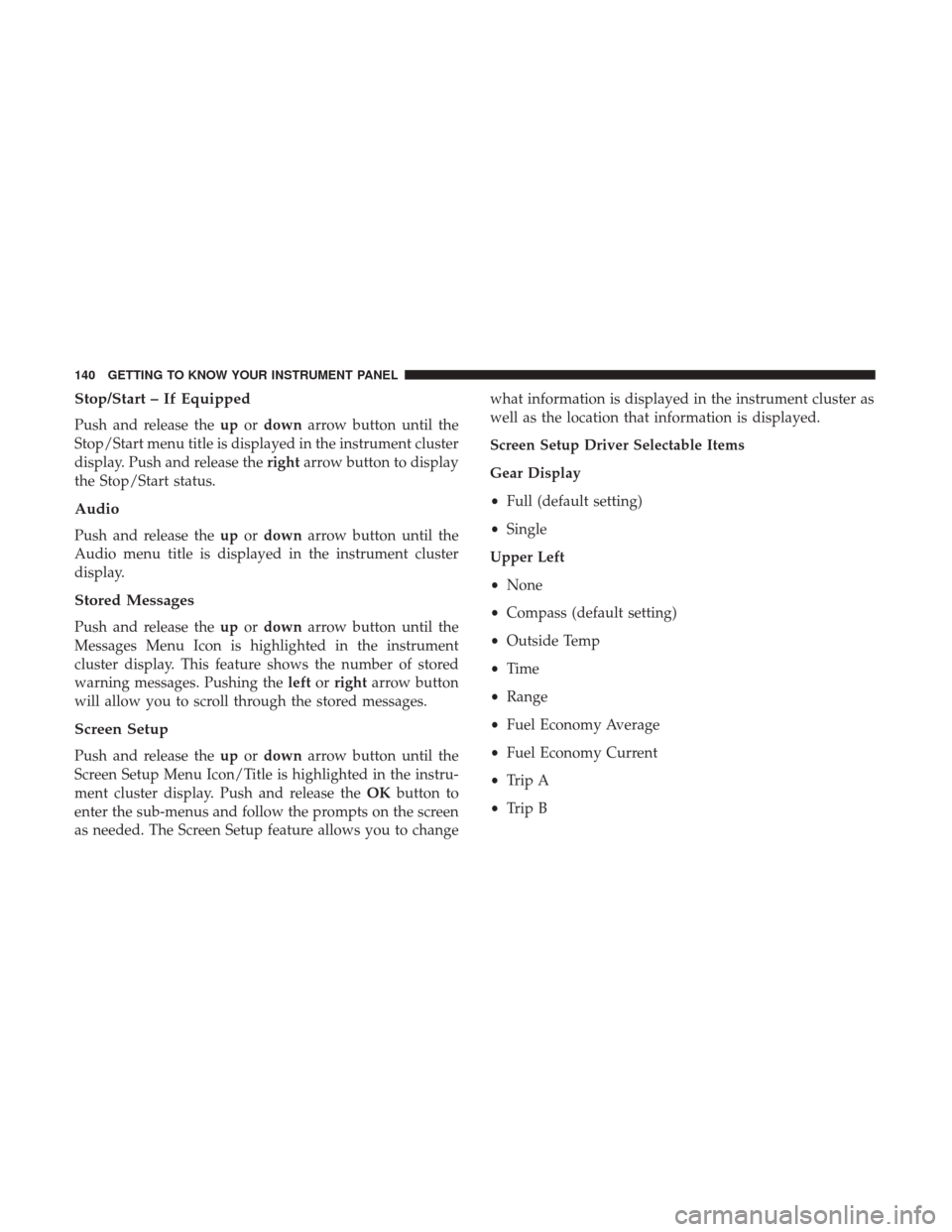

Stop/Start – If Equipped
Push and release theupordown arrow button until the
Stop/Start menu title is displayed in the instrument cluster
display. Push and release the rightarrow button to display
the Stop/Start status.
Audio
Push and release the upordown arrow button until the
Audio menu title is displayed in the instrument cluster
display.
Stored Messages
Push and release the upordown arrow button until the
Messages Menu Icon is highlighted in the instrument
cluster display. This feature shows the number of stored
warning messages. Pushing the leftorright arrow button
will allow you to scroll through the stored messages.
Screen Setup
Push and release the upordown arrow button until the
Screen Setup Menu Icon/Title is highlighted in the instru-
ment cluster display. Push and release the OKbutton to
enter the sub-menus and follow the prompts on the screen
as needed. The Screen Setup feature allows you to change what information is displayed in the instrument cluster as
well as the location that information is displayed.
Screen Setup Driver Selectable Items
Gear Display
•
Full (default setting)
• Single
Upper Left
• None
• Compass (default setting)
• Outside Temp
• Time
• Range
• Fuel Economy Average
• Fuel Economy Current
• Trip A
• Trip B
140 GETTING TO KNOW YOUR INSTRUMENT PANEL

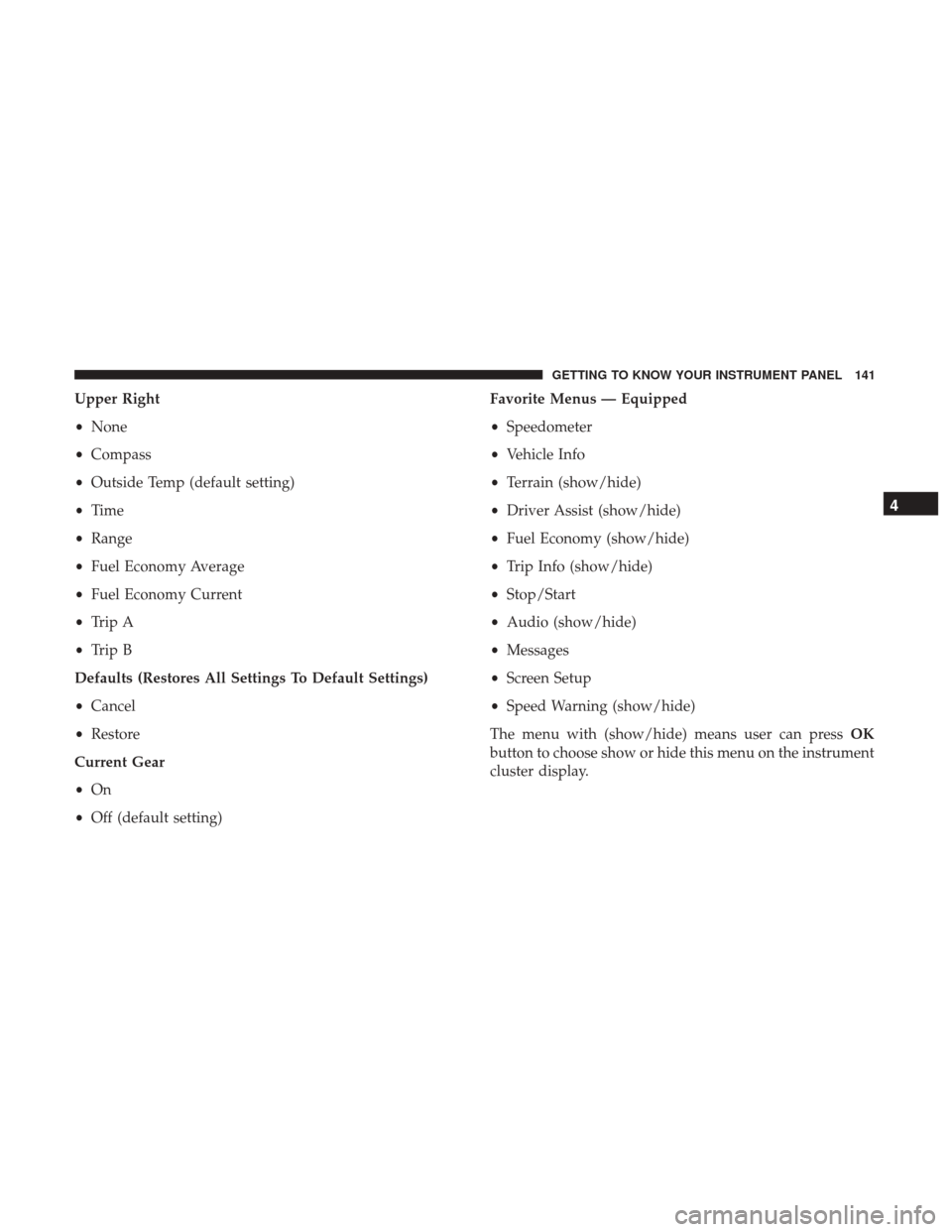

Upper Right
•None
• Compass
• Outside Temp (default setting)
• Time
• Range
• Fuel Economy Average
• Fuel Economy Current
• Trip A
• Trip B
Defaults (Restores All Settings To Default Settings)
• Cancel
• Restore
Current Gear
• On
• Off (default setting) Favorite Menus — Equipped
•
Speedometer
• Vehicle Info
• Terrain (show/hide)
• Driver Assist (show/hide)
• Fuel Economy (show/hide)
• Trip Info (show/hide)
• Stop/Start
• Audio (show/hide)
• Messages
• Screen Setup
• Speed Warning (show/hide)
The menu with (show/hide) means user can press OK
button to choose show or hide this menu on the instrument
cluster display.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 141

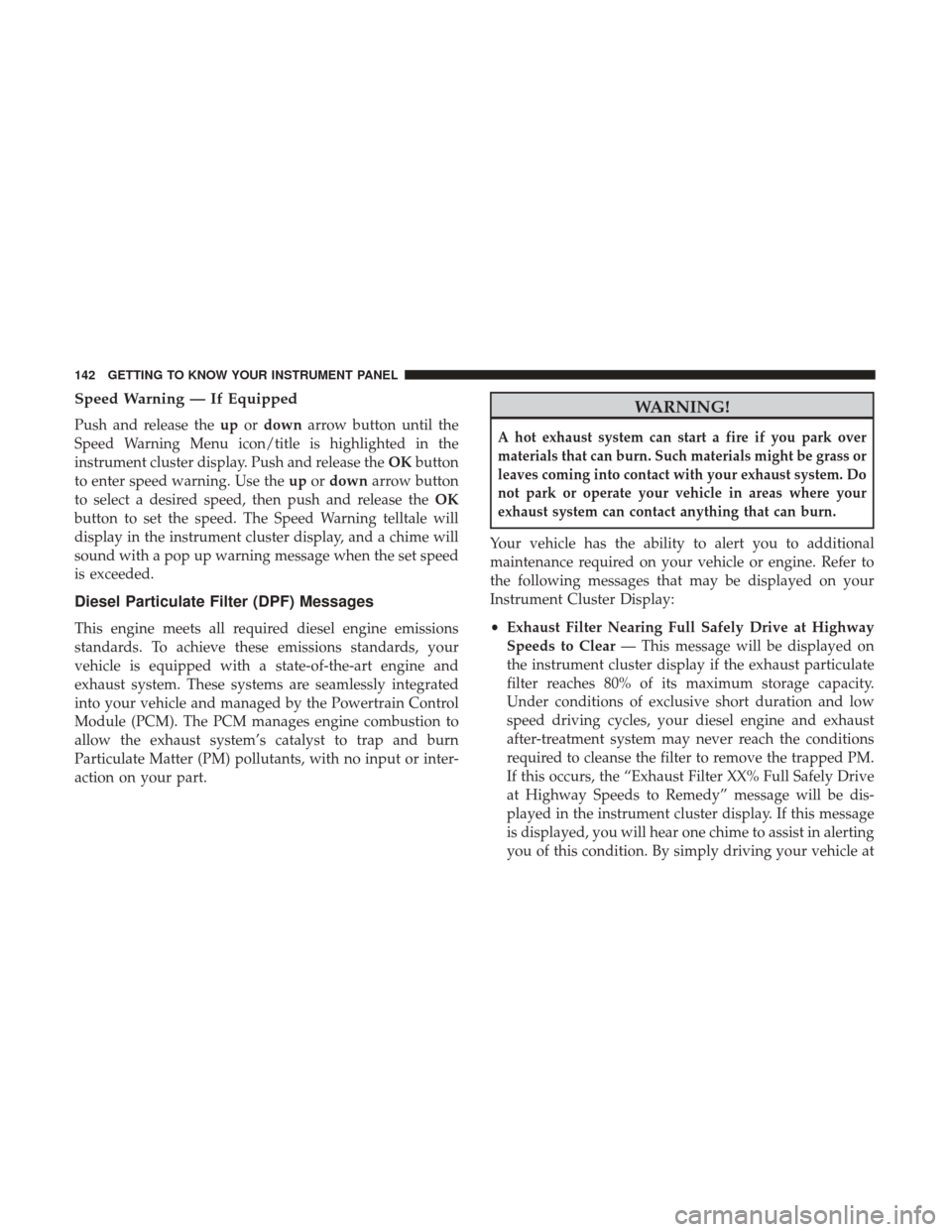

Speed Warning — If Equipped
Push and release theupordown arrow button until the
Speed Warning Menu icon/title is highlighted in the
instrument cluster display. Push and release the OKbutton
to enter speed warning. Use the upordown arrow button
to select a desired speed, then push and release the OK
button to set the speed. The Speed Warning telltale will
display in the instrument cluster display, and a chime will
sound with a pop up warning message when the set speed
is exceeded.
Diesel Particulate Filter (DPF) Messages
This engine meets all required diesel engine emissions
standards. To achieve these emissions standards, your
vehicle is equipped with a state-of-the-art engine and
exhaust system. These systems are seamlessly integrated
into your vehicle and managed by the Powertrain Control
Module (PCM). The PCM manages engine combustion to
allow the exhaust system’s catalyst to trap and burn
Particulate Matter (PM) pollutants, with no input or inter-
action on your part.
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be grass or
leaves coming into contact with your exhaust system. Do
not park or operate your vehicle in areas where your
exhaust system can contact anything that can burn.
Your vehicle has the ability to alert you to additional
maintenance required on your vehicle or engine. Refer to
the following messages that may be displayed on your
Instrument Cluster Display:
• Exhaust Filter Nearing Full Safely Drive at Highway
Speeds to Clear — This message will be displayed on
the instrument cluster display if the exhaust particulate
filter reaches 80% of its maximum storage capacity.
Under conditions of exclusive short duration and low
speed driving cycles, your diesel engine and exhaust
after-treatment system may never reach the conditions
required to cleanse the filter to remove the trapped PM.
If this occurs, the “Exhaust Filter XX% Full Safely Drive
at Highway Speeds to Remedy” message will be dis-
played in the instrument cluster display. If this message
is displayed, you will hear one chime to assist in alerting
you of this condition. By simply driving your vehicle at
142 GETTING TO KNOW YOUR INSTRUMENT PANEL

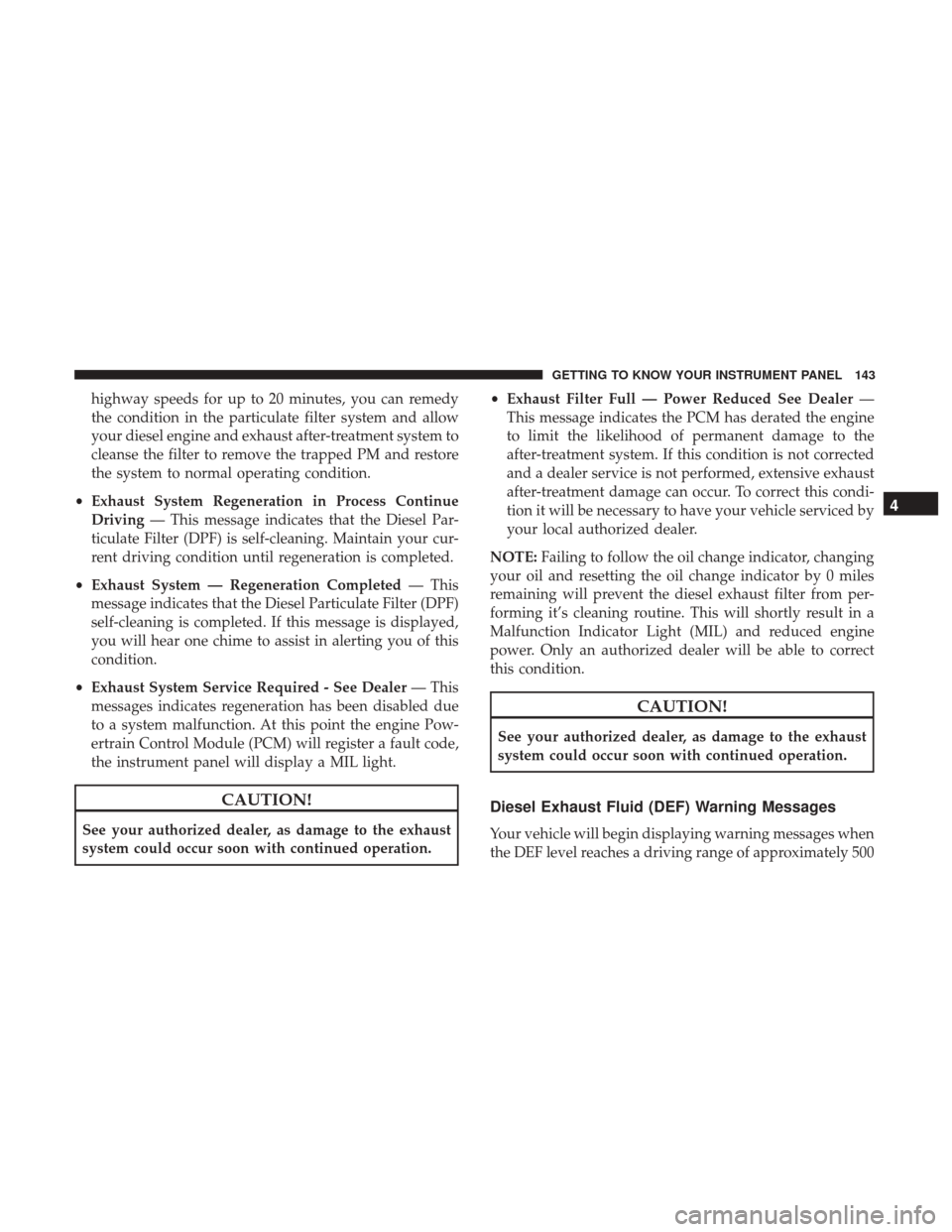

highway speeds for up to 20 minutes, you can remedy
the condition in the particulate filter system and allow
your diesel engine and exhaust after-treatment system to
cleanse the filter to remove the trapped PM and restore
the system to normal operating condition.
• Exhaust System Regeneration in Process Continue
Driving — This message indicates that the Diesel Par-
ticulate Filter (DPF) is self-cleaning. Maintain your cur-
rent driving condition until regeneration is completed.
• Exhaust System — Regeneration Completed — This
message indicates that the Diesel Particulate Filter (DPF)
self-cleaning is completed. If this message is displayed,
you will hear one chime to assist in alerting you of this
condition.
• Exhaust System Service Required - See Dealer — This
messages indicates regeneration has been disabled due
to a system malfunction. At this point the engine Pow-
ertrain Control Module (PCM) will register a fault code,
the instrument panel will display a MIL light.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation. •
Exhaust Filter Full — Power Reduced See Dealer —
This message indicates the PCM has derated the engine
to limit the likelihood of permanent damage to the
after-treatment system. If this condition is not corrected
and a dealer service is not performed, extensive exhaust
after-treatment damage can occur. To correct this condi-
tion it will be necessary to have your vehicle serviced by
your local authorized dealer.
NOTE: Failing to follow the oil change indicator, changing
your oil and resetting the oil change indicator by 0 miles
remaining will prevent the diesel exhaust filter from per-
forming it’s cleaning routine. This will shortly result in a
Malfunction Indicator Light (MIL) and reduced engine
power. Only an authorized dealer will be able to correct
this condition.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
Diesel Exhaust Fluid (DEF) Warning Messages
Your vehicle will begin displaying warning messages when
the DEF level reaches a driving range of approximately 500
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 143

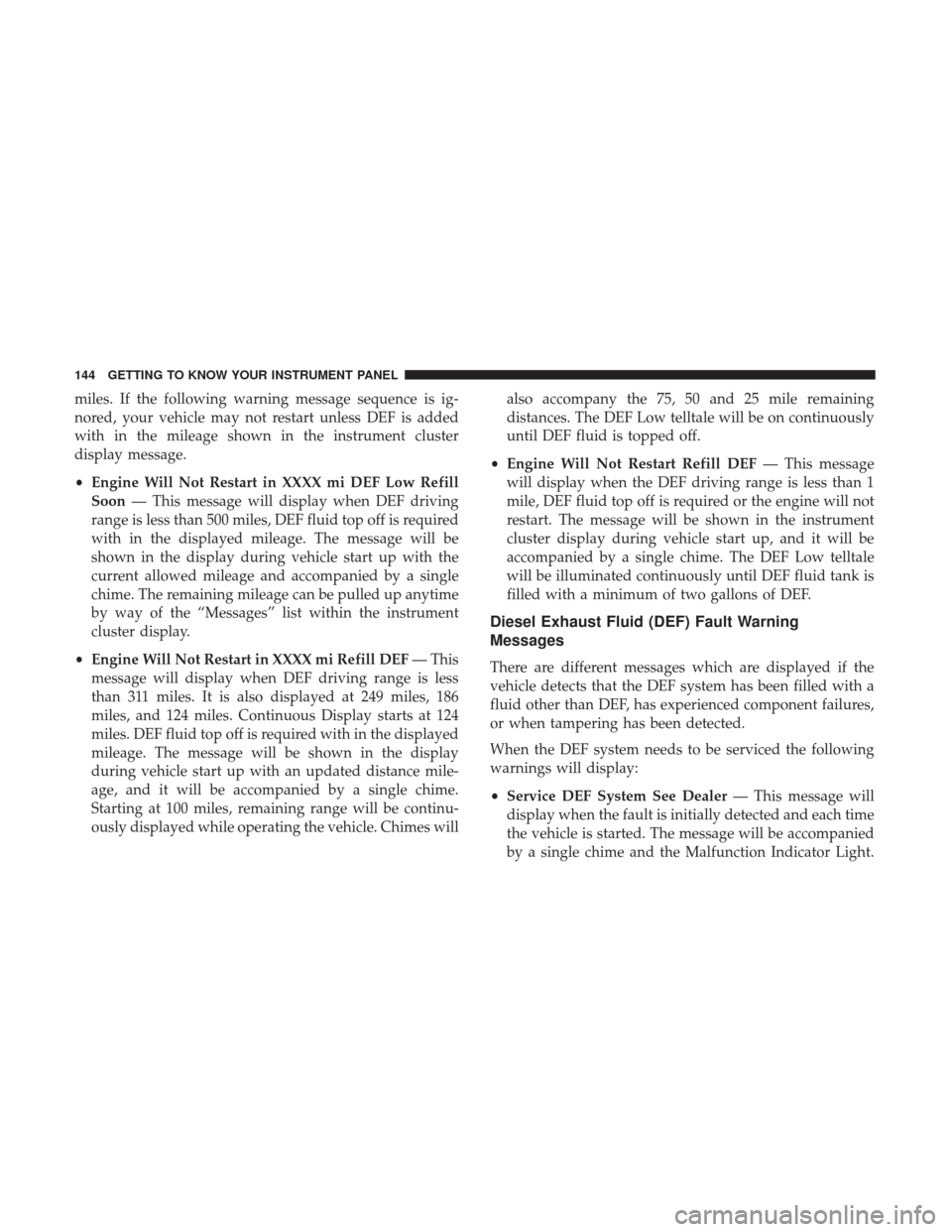

miles. If the following warning message sequence is ig-
nored, your vehicle may not restart unless DEF is added
with in the mileage shown in the instrument cluster
display message.
•Engine Will Not Restart in XXXX mi DEF Low Refill
Soon — This message will display when DEF driving
range is less than 500 miles, DEF fluid top off is required
with in the displayed mileage. The message will be
shown in the display during vehicle start up with the
current allowed mileage and accompanied by a single
chime. The remaining mileage can be pulled up anytime
by way of the “Messages” list within the instrument
cluster display.
• Engine Will Not Restart in XXXX mi Refill DEF — This
message will display when DEF driving range is less
than 311 miles. It is also displayed at 249 miles, 186
miles, and 124 miles. Continuous Display starts at 124
miles. DEF fluid top off is required with in the displayed
mileage. The message will be shown in the display
during vehicle start up with an updated distance mile-
age, and it will be accompanied by a single chime.
Starting at 100 miles, remaining range will be continu-
ously displayed while operating the vehicle. Chimes will also accompany the 75, 50 and 25 mile remaining
distances. The DEF Low telltale will be on continuously
until DEF fluid is topped off.
• Engine Will Not Restart Refill DEF — This message
will display when the DEF driving range is less than 1
mile, DEF fluid top off is required or the engine will not
restart. The message will be shown in the instrument
cluster display during vehicle start up, and it will be
accompanied by a single chime. The DEF Low telltale
will be illuminated continuously until DEF fluid tank is
filled with a minimum of two gallons of DEF.
Diesel Exhaust Fluid (DEF) Fault Warning
Messages
There are different messages which are displayed if the
vehicle detects that the DEF system has been filled with a
fluid other than DEF, has experienced component failures,
or when tampering has been detected.
When the DEF system needs to be serviced the following
warnings will display:
• Service DEF System See Dealer — This message will
display when the fault is initially detected and each time
the vehicle is started. The message will be accompanied
by a single chime and the Malfunction Indicator Light.
144 GETTING TO KNOW YOUR INSTRUMENT PANEL

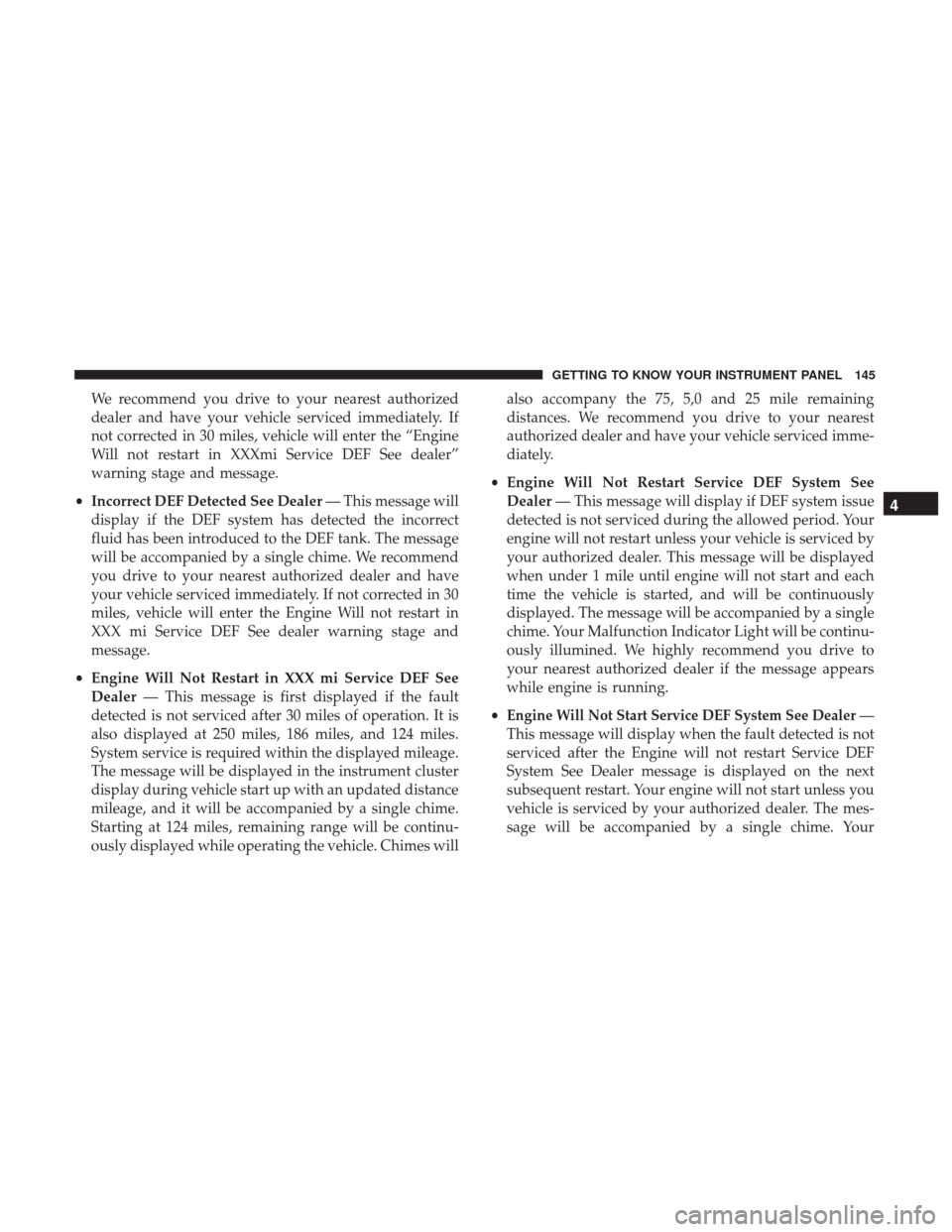

We recommend you drive to your nearest authorized
dealer and have your vehicle serviced immediately. If
not corrected in 30 miles, vehicle will enter the “Engine
Will not restart in XXXmi Service DEF See dealer”
warning stage and message.
• Incorrect DEF Detected See Dealer — This message will
display if the DEF system has detected the incorrect
fluid has been introduced to the DEF tank. The message
will be accompanied by a single chime. We recommend
you drive to your nearest authorized dealer and have
your vehicle serviced immediately. If not corrected in 30
miles, vehicle will enter the Engine Will not restart in
XXX mi Service DEF See dealer warning stage and
message.
• Engine Will Not Restart in XXX mi Service DEF See
Dealer — This message is first displayed if the fault
detected is not serviced after 30 miles of operation. It is
also displayed at 250 miles, 186 miles, and 124 miles.
System service is required within the displayed mileage.
The message will be displayed in the instrument cluster
display during vehicle start up with an updated distance
mileage, and it will be accompanied by a single chime.
Starting at 124 miles, remaining range will be continu-
ously displayed while operating the vehicle. Chimes will also accompany the 75, 5,0 and 25 mile remaining
distances. We recommend you drive to your nearest
authorized dealer and have your vehicle serviced imme-
diately.
• Engine Will Not Restart Service DEF System See
Dealer — This message will display if DEF system issue
detected is not serviced during the allowed period. Your
engine will not restart unless your vehicle is serviced by
your authorized dealer. This message will be displayed
when under 1 mile until engine will not start and each
time the vehicle is started, and will be continuously
displayed. The message will be accompanied by a single
chime. Your Malfunction Indicator Light will be continu-
ously illumined. We highly recommend you drive to
your nearest authorized dealer if the message appears
while engine is running.
•
Engine Will Not Start Service DEF System See Dealer—
This message will display when the fault detected is not
serviced after the Engine will not restart Service DEF
System See Dealer message is displayed on the next
subsequent restart. Your engine will not start unless you
vehicle is serviced by your authorized dealer. The mes-
sage will be accompanied by a single chime. Your
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 145

Malfunction Indicator Light will be continuously illumi-
nated. If the message appears and you can not start the
engine, we recommend you have your vehicle towed to
your nearest authorized dealer immediately.
NOTE:
• The gauge may take up to five seconds to update after
adding a gallon or more of Diesel Exhaust Fluid (DEF) to
the DEF tank. If you have a fault related to the DEF
system, the gauge may not update to the new level. See
your authorized dealer for service.
• The DEF gauge may also not immediately update after a
refill if the temperature of the DEF fluid is below 12F
(-11C). The DEF line heater will possibly warm up the
DEF fluid and allow the gauge to update after a period
of run time. Under very cold conditions, it is possible
that the gauge may not reflect the new fill level for
several drives.
Battery Saver On/Battery Saver Mode Message —
Electrical Load Reduction Actions — If Equipped
This vehicle is equipped with an Intelligent Battery Sensor
(IBS) to perform additional monitoring of the electrical
system and status of the vehicle battery. In cases when the IBS detects charging system failure, or
the vehicle battery conditions are deteriorating, electrical
load reduction actions will take place to extend the driving
time and distance of the vehicle. This is done by reducing
power to or turning off non-essential electrical loads.
Load reduction is only active when the engine is running.
It will display a message if there is a risk of battery
depletion to the point where the vehicle may stall due to
lack of electrical supply, or will not restart after the current
drive cycle.
When load reduction is activated, the message “Battery
Saver On” or “Battery Saver Mode” will appear in the
instrument cluster display.
These messages indicate the vehicle battery has a low state
of charge and continues to lose electrical charge at a rate
that the charging system cannot sustain.
NOTE:
•
The charging system is independent from load reduc-
tion. The charging system performs a diagnostic on the
charging system continuously.
• If the Battery Charge Warning Light is on it may indicate
a problem with the charging system. Refer to “Battery
Charge Warning Light” in “Warning And Indicator
146 GETTING TO KNOW YOUR INSTRUMENT PANEL

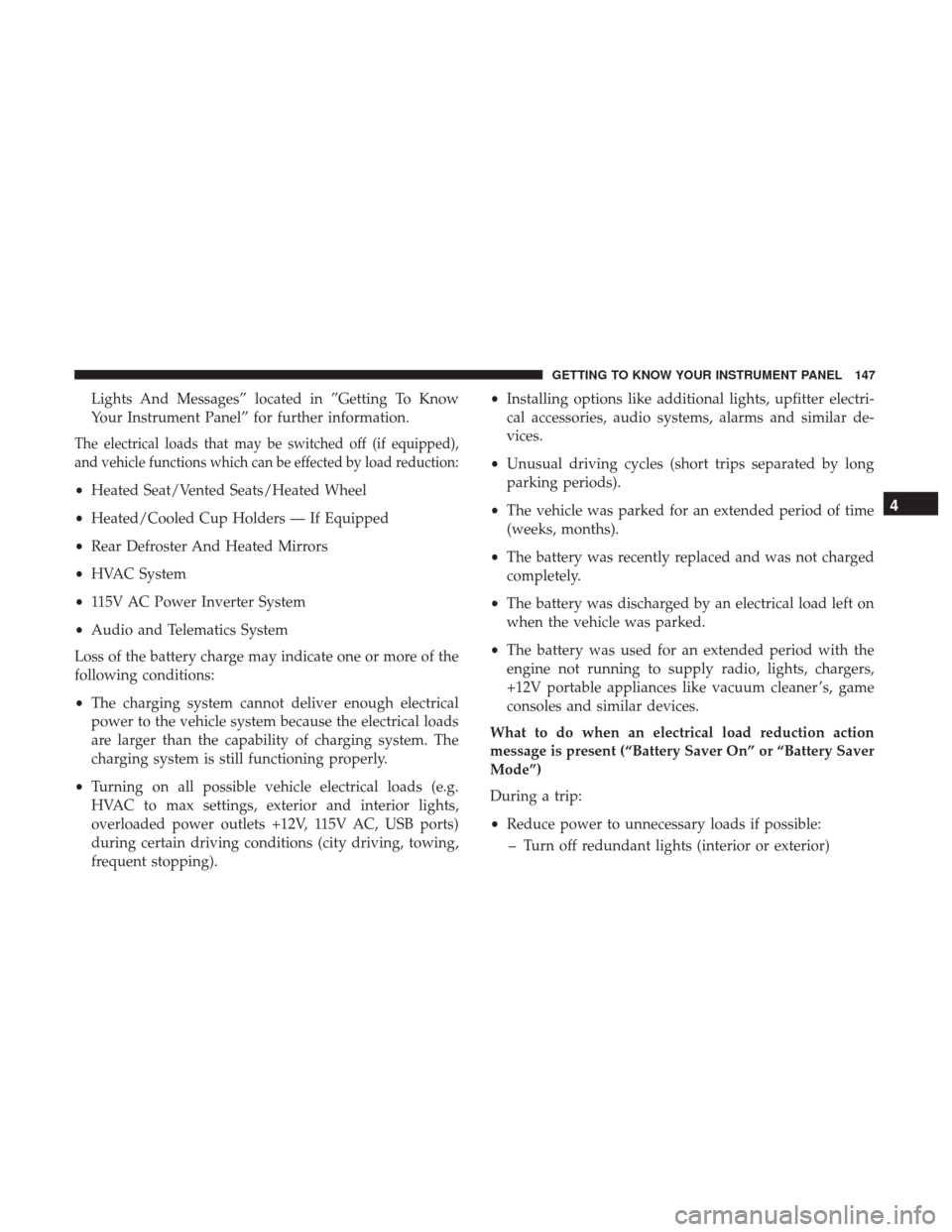

Lights And Messages” located in ”Getting To Know
Your Instrument Panel” for further information.
The electrical loads that may be switched off (if equipped),
and vehicle functions which can be effected by load reduction:
•Heated Seat/Vented Seats/Heated Wheel
• Heated/Cooled Cup Holders — If Equipped
• Rear Defroster And Heated Mirrors
• HVAC System
• 115V AC Power Inverter System
• Audio and Telematics System
Loss of the battery charge may indicate one or more of the
following conditions:
• The charging system cannot deliver enough electrical
power to the vehicle system because the electrical loads
are larger than the capability of charging system. The
charging system is still functioning properly.
• Turning on all possible vehicle electrical loads (e.g.
HVAC to max settings, exterior and interior lights,
overloaded power outlets +12V, 115V AC, USB ports)
during certain driving conditions (city driving, towing,
frequent stopping). •
Installing options like additional lights, upfitter electri-
cal accessories, audio systems, alarms and similar de-
vices.
• Unusual driving cycles (short trips separated by long
parking periods).
• The vehicle was parked for an extended period of time
(weeks, months).
• The battery was recently replaced and was not charged
completely.
• The battery was discharged by an electrical load left on
when the vehicle was parked.
• The battery was used for an extended period with the
engine not running to supply radio, lights, chargers,
+12V portable appliances like vacuum cleaner ’s, game
consoles and similar devices.
What to do when an electrical load reduction action
message is present (“Battery Saver On” or “Battery Saver
Mode”)
During a trip:
• Reduce power to unnecessary loads if possible:
– Turn off redundant lights (interior or exterior)4
GETTING TO KNOW YOUR INSTRUMENT PANEL 147

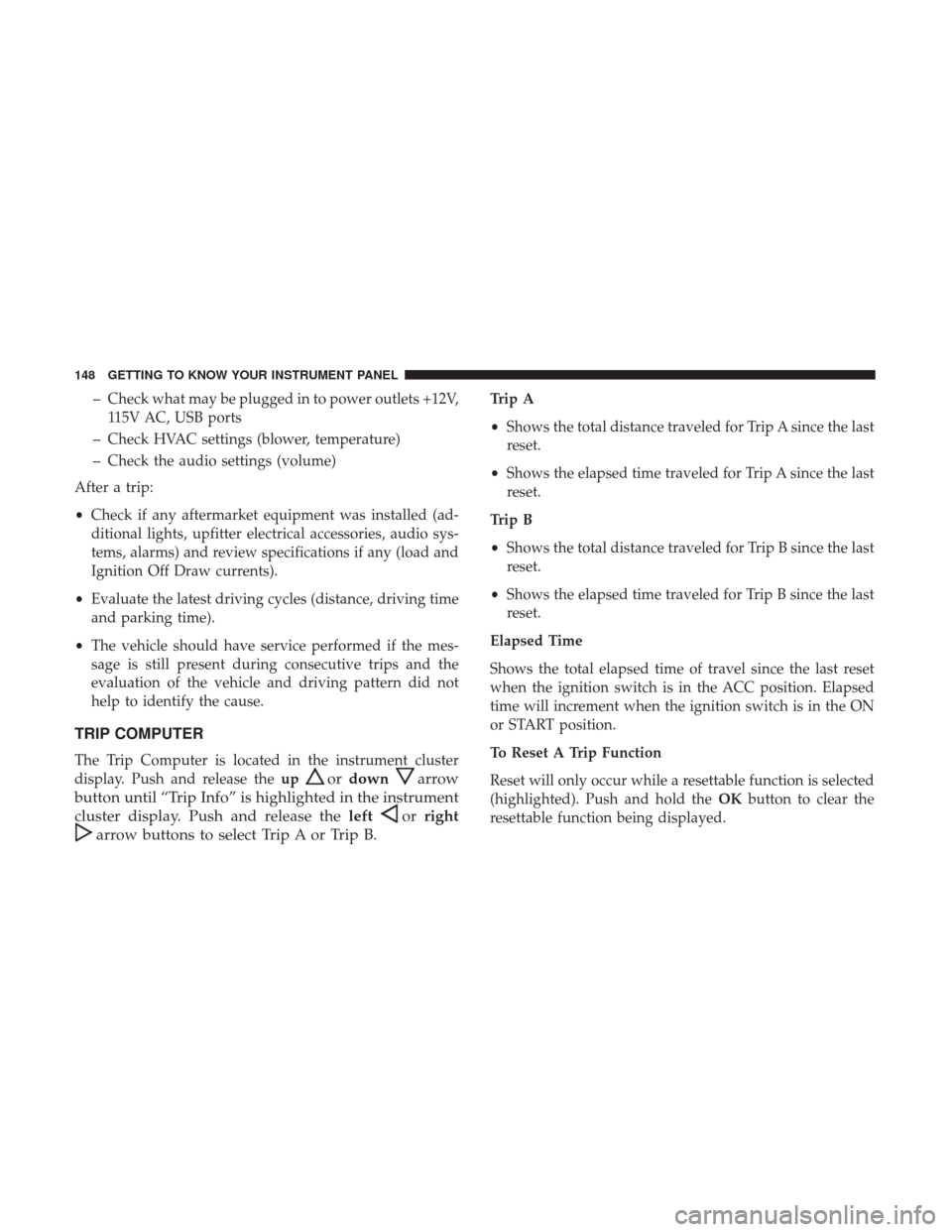

– Check what may be plugged in to power outlets +12V,115V AC, USB ports
– Check HVAC settings (blower, temperature)
– Check the audio settings (volume)
After a trip:
• Check if any aftermarket equipment was installed (ad-
ditional lights, upfitter electrical accessories, audio sys-
tems, alarms) and review specifications if any (load and
Ignition Off Draw currents).
• Evaluate the latest driving cycles (distance, driving time
and parking time).
• The vehicle should have service performed if the mes-
sage is still present during consecutive trips and the
evaluation of the vehicle and driving pattern did not
help to identify the cause.
TRIP COMPUTER
The Trip Computer is located in the instrument cluster
display. Push and release the up
ordownarrow
button until “Trip Info” is highlighted in the instrument
cluster display. Push and release the left
orright
arrow buttons to select Trip A or Trip B.
Trip A
•Shows the total distance traveled for Trip A since the last
reset.
• Shows the elapsed time traveled for Trip A since the last
reset.
Trip B
• Shows the total distance traveled for Trip B since the last
reset.
• Shows the elapsed time traveled for Trip B since the last
reset.
Elapsed Time
Shows the total elapsed time of travel since the last reset
when the ignition switch is in the ACC position. Elapsed
time will increment when the ignition switch is in the ON
or START position.
To Reset A Trip Function
Reset will only occur while a resettable function is selected
(highlighted). Push and hold the OKbutton to clear the
resettable function being displayed.
148 GETTING TO KNOW YOUR INSTRUMENT PANEL
