JEEP GRAND CHEROKEE 2017 WK2 / 4.G Owners Manual

Ignition Off Operation
NOTE:
•The power sunroof switch can remain active in Acces-
sory Delay for up to approximately ten minutes after the
vehicle’s ignition is placed to the OFF position. Opening
either front door will cancel this feature.
• This feature is programmable using the Uconnect Sys-
tem. Refer to “Uconnect Settings” in “Multimedia” for
further information.
HOOD
To Open The Hood
To open the hood, two latches must be released.
1. Pull the release lever located below the instrument panel and in front of the driver’s door.
Hood Release
3
GETTING TO KNOW YOUR VEHICLE 99

2. Reach under the hood, move safety latch to the left andlift the hood.Closing The Hood
1. Hold up the hood with one hand and with the otherhand remove the support rod from its seat and reinsert
it into the locking tab.
2. Lower the hood to approximately 12 inches (30 cm) from the engine compartment and drop it. Make sure that the
hood is completely closed.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower hood to approximately 12 inches (30 cm)
and drop the hood to close. Make sure hood is fully
closed for both latches. Never drive vehicle unless
hood is fully closed, with both latches engaged.
Safety Latch Location
100 GETTING TO KNOW YOUR VEHICLE

LIFTGATE
Opening
The liftgate can be opened from inside the vehicle using the
Power Liftgate button on the overhead console, using the
key fob outside of the vehicle or the Electronic Liftgate
Release.
To Unlock/Enter The Liftgate
The liftgate may be released in several ways:
•Key fob
• Outside handle
• Button on Overhead Console
The liftgate passive entry unlock feature is built into the
electronic liftgate release. With a valid Passive Entry Key
Fob within 5 ft (1.5 m) of the liftgate, push the electronic
liftgate release to open with one fluid motion. Push the
button on the key fob twice within five seconds to release
the liftgate. NOTE:
If “Unlock All Doors 1st Press” is programmed in
the instrument cluster display, all doors will unlock when
you push the electronic release on the liftgate. If Unlock
Driver Door 1st Press is programmed in Uconnect, the
liftgate will unlock when you push the electronic release on
the liftgate. Refer to “Uconnect Settings” in “Multimedia”
for further information.
Passive Entry/Lock Button Location
1 — Electronic Liftgate Release 2 — Lock Button Location
3
GETTING TO KNOW YOUR VEHICLE 101

NOTE:Use the power door lock switch on either front
door trim panel or the key fob to lock and unlock the
liftgate. The manual door locks on the doors and the
driver’s door lock cylinder will not lock and unlock the
liftgate.
WARNING!
Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your passen-
gers could be injured by these fumes. Keep the liftgate
closed when you are operating the vehicle.
Closing
Grasp the liftgate closing handle and initiate lowering the
liftgate. Release the handle when the liftgate takes over the
closing effort. NOTE:
Before closing the liftgate, make sure to be in
possession of the key because the liftgate may be locked.
To Lock The Liftgate
With a valid Passive Entry key fob within 5 ft (1.5 m) of the
liftgate, pushing the Keyless Enter-N-Go — Passive Entry
lock button located to the right of the outside handle
release will lock the vehicle.
NOTE: The liftgate unlock feature is built into the elec-
tronic liftgate release.
1 — Liftgate Pull Handle
102 GETTING TO KNOW YOUR VEHICLE

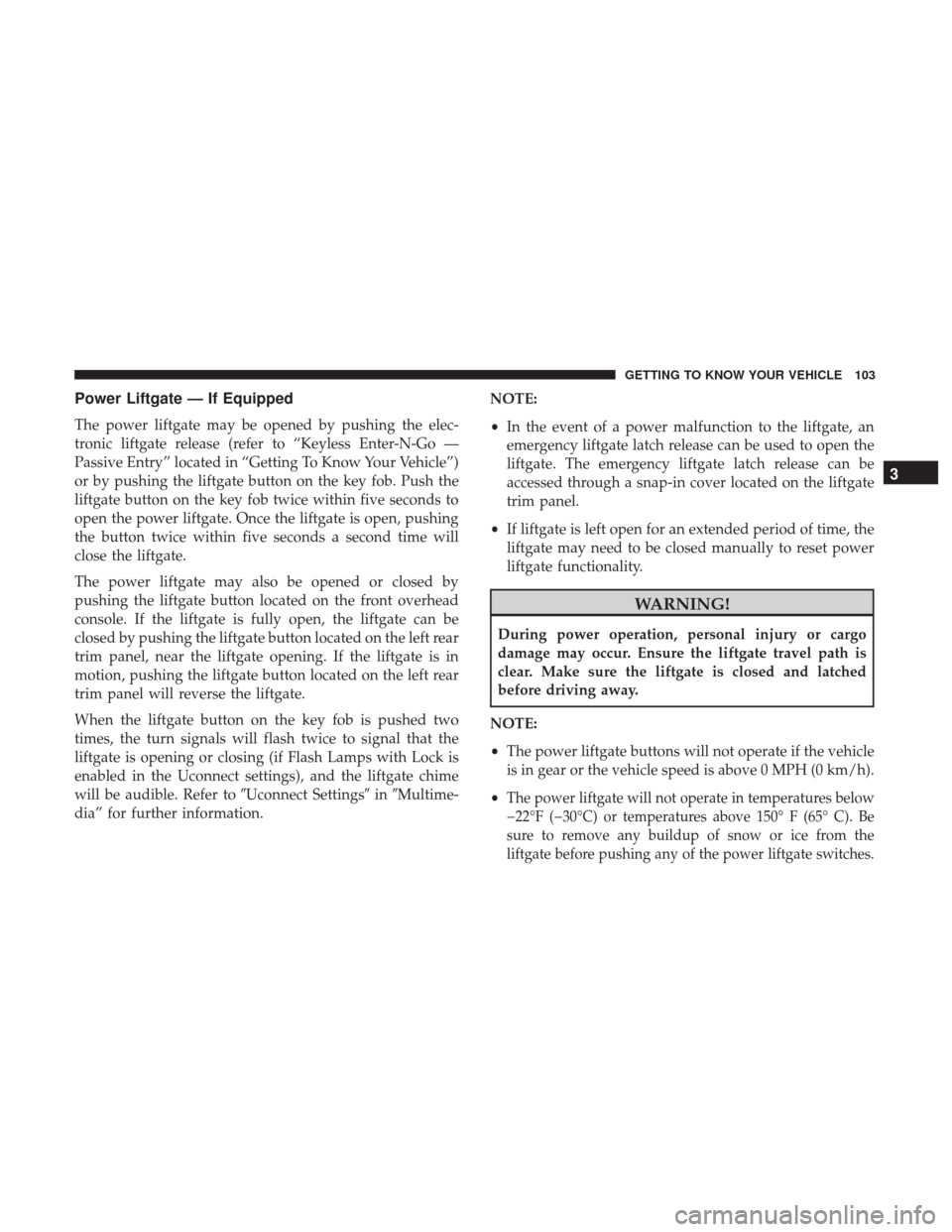

Power Liftgate — If Equipped
The power liftgate may be opened by pushing the elec-
tronic liftgate release (refer to “Keyless Enter-N-Go —
Passive Entry” located in “Getting To Know Your Vehicle”)
or by pushing the liftgate button on the key fob. Push the
liftgate button on the key fob twice within five seconds to
open the power liftgate. Once the liftgate is open, pushing
the button twice within five seconds a second time will
close the liftgate.
The power liftgate may also be opened or closed by
pushing the liftgate button located on the front overhead
console. If the liftgate is fully open, the liftgate can be
closed by pushing the liftgate button located on the left rear
trim panel, near the liftgate opening. If the liftgate is in
motion, pushing the liftgate button located on the left rear
trim panel will reverse the liftgate.
When the liftgate button on the key fob is pushed two
times, the turn signals will flash twice to signal that the
liftgate is opening or closing (if Flash Lamps with Lock is
enabled in the Uconnect settings), and the liftgate chime
will be audible. Refer toUconnect SettingsinMultime-
dia” for further information. NOTE:
•
In the event of a power malfunction to the liftgate, an
emergency liftgate latch release can be used to open the
liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the liftgate
trim panel.
• If liftgate is left open for an extended period of time, the
liftgate may need to be closed manually to reset power
liftgate functionality.
WARNING!
During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.
NOTE:
• The power liftgate buttons will not operate if the vehicle
is in gear or the vehicle speed is above 0 MPH (0 km/h).
•
The power liftgate will not operate in temperatures below
22°F (30°C) or temperatures above 150° F (65° C). Be
sure to remove any buildup of snow or ice from the
liftgate before pushing any of the power liftgate switches.
3
GETTING TO KNOW YOUR VEHICLE 103

•If anything obstructs the power liftgate while it is
closing or opening, the liftgate will automatically re-
verse to the closed or open position, provided it meets
sufficient resistance.
• There are also pinch sensors attached to the side of the
liftgate. Light pressure anywhere along these strips will
cause the liftgate to return to the open position.
• If the liftgate is not fully open, push the liftgate button
on the key fob twice to operate the liftgate.
• If the electronic liftgate release is pushed while the
power liftgate is closing, the liftgate will reverse to the
full open position.
• If the electronic liftgate release is pushed while the
power liftgate is opening, the liftgate motor will disen-
gage to allow manual operation. •
If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and the liftgate must be opened or closed manually.
WARNING!
• Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.
• If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed. Do
not use the recirculation mode.
104 GETTING TO KNOW YOUR VEHICLE

Cargo Area Features
Rechargeable Flashlight
The rechargeable flashlight is mounted on the left side of
the cargo area. The flashlight snaps out of the bezel when
needed. The flashlight features two bright LED light bulbs
and is powered by rechargeable lithium batteries that
recharge when snapped back into place.
Push in on the flashlight to release it.To operate the flashlight, push the switch once for high,
twice for low, and a third time to return to off.
Push Flashlight To Release
Flashlight Power Switch
3
GETTING TO KNOW YOUR VEHICLE 105

Cargo Storage Bins
There are up to four removable storage bins located in the
rear cargo area. There are two storage bins located on either
side of the cargo area.
NOTE:If your vehicle is equipped with a rear subwoofer,
the passenger side cargo area will not be available. Two additional storage bins are located under the load
floor. To access the lower storage bins, raise the load floor
and attach the tether strap (attached to the bottom of the
load floor) to the liftgate opening.
Rear Storage Bin
Tether Strap
106 GETTING TO KNOW YOUR VEHICLE

Retractable Cargo Area Cover — If Equipped
NOTE:The purpose of this cover is for privacy, not to
secure loads. It will not prevent cargo from shifting or
protect passengers from loose cargo.
To cover the cargo area:
1. Grasp the cover at the center handle. Pull it over the cargo area.
2. Insert the pins on the ends of the cover into the slots in the pillar trim cover. 3. The liftgate may be opened with the cargo cover in
place.
WARNING!
In a collision, a loose cargo cover in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store it in the vehicle.
Rear Lower Storage Bins
Rear Cargo Cover
3
GETTING TO KNOW YOUR VEHICLE 107

Rear Cargo Tie-Downs
The rear cargo tie-downs, located on the cargo area floor,
should be used to safely secure loads when the vehicle is
moving.
WARNING!
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
(Continued)
WARNING! (Continued)
only, not for passengers, who should sit in seats and
use seat belts.
• Cargo tie-down hooks are not safe anchors for a child
seat tether strap. In a sudden stop or accident, a hook
could pull loose and allow the child seat to come
loose. A child could be badly injured. Use only the
anchors provided for child seat tethers.
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle han-
dling. To avoid loss of control resulting in personal
injury, follow these guidelines for loading your vehicle:
• Do not carry loads which exceed the load limits
described on the label attached to the left door or left
door center pillar.
• Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as possible.
• Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of the
vehicle to sway.
• Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or become
a dangerous projectile in a sudden stop or accident.
Rear Cargo Tie-Downs
