JEEP PATRIOT 2008 1.G Owners Manual

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.

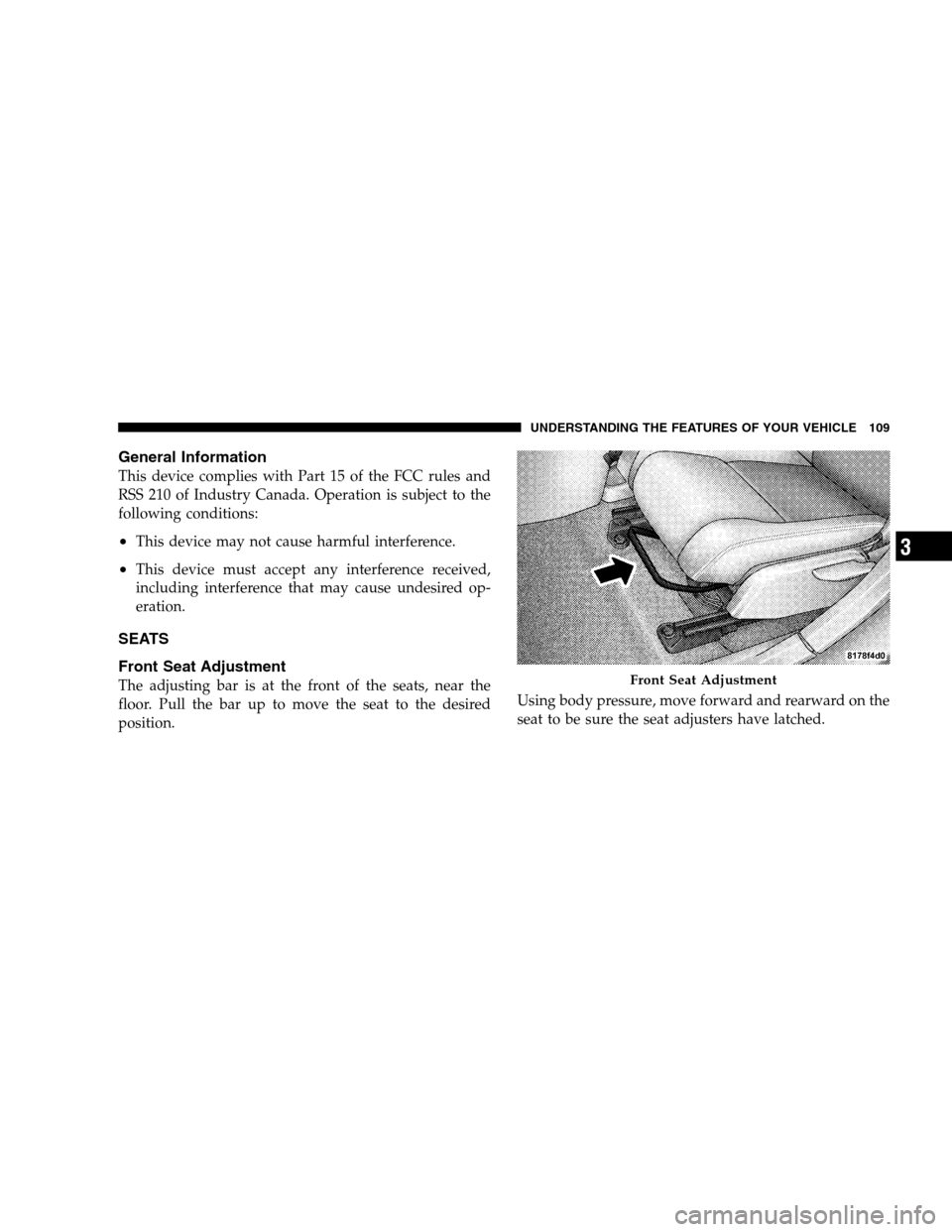

SEATS
Front Seat Adjustment
The adjusting bar is at the front of the seats, near the
floor. Pull the bar up to move the seat to the desired
position.Using body pressure, move forward and rearward on the
seat to be sure the seat adjusters have latched.Front Seat Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
3

WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.

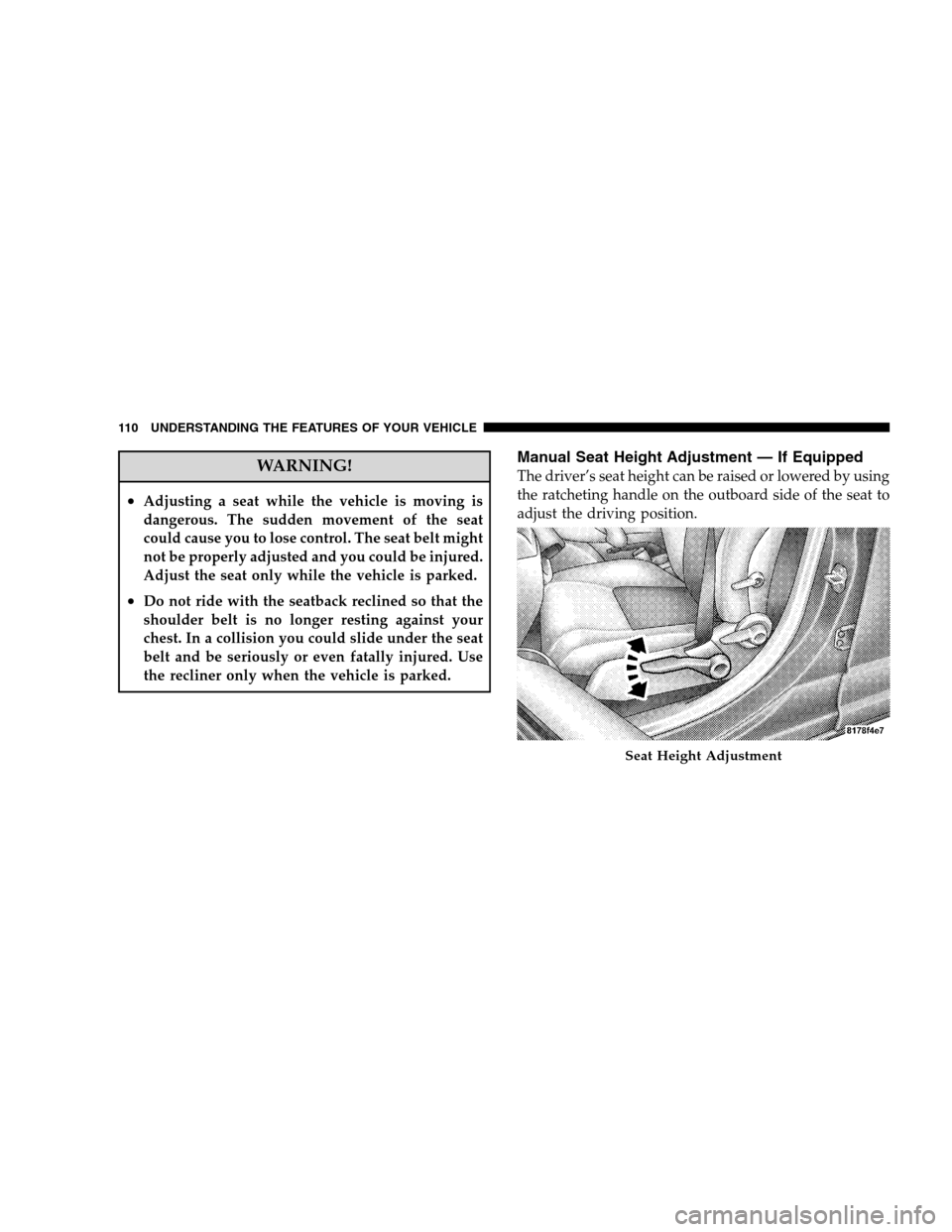

Manual Seat Height Adjustment — If Equipped
The driver’s seat height can be raised or lowered by using
the ratcheting handle on the outboard side of the seat to
adjust the driving position.
Seat Height Adjustment
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

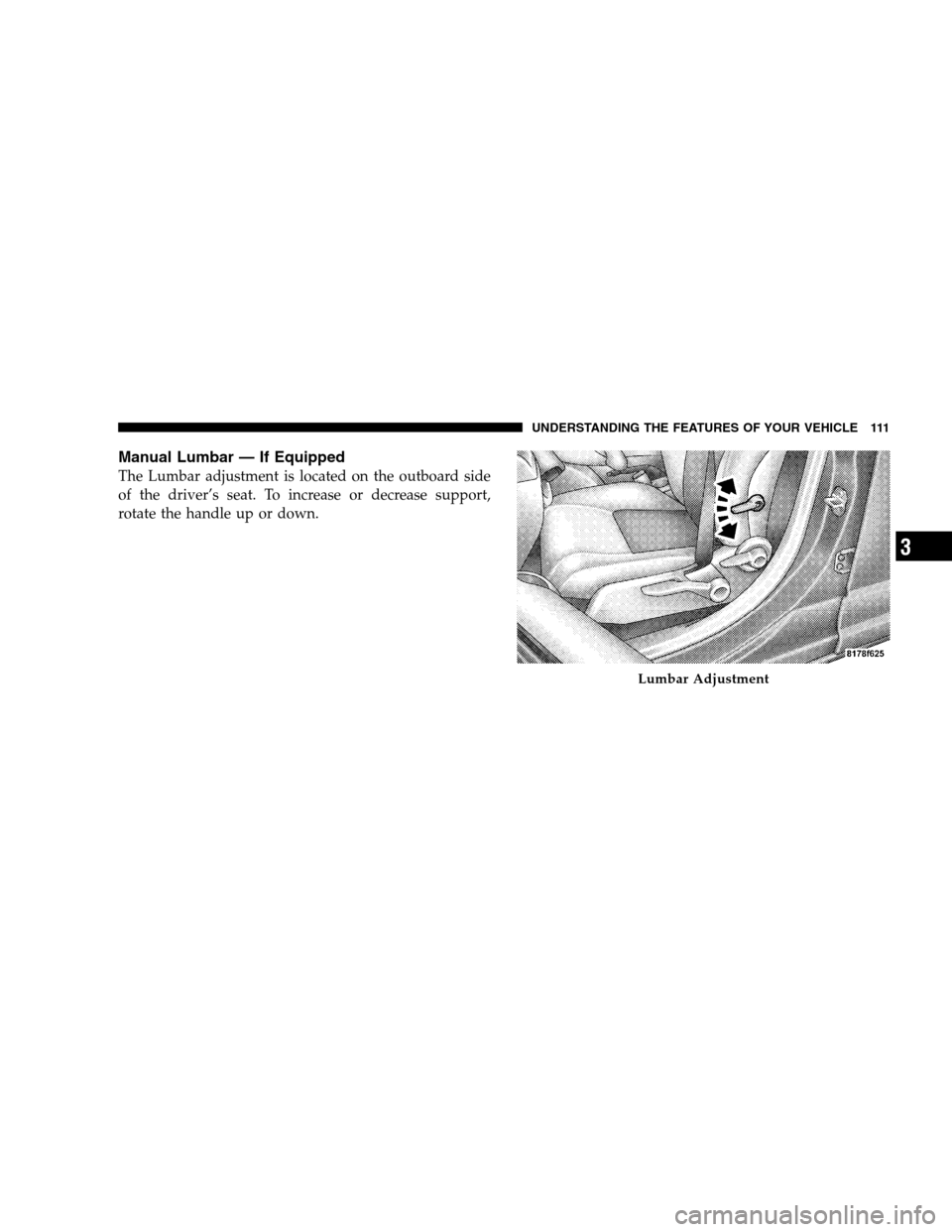

Manual Lumbar — If Equipped
The Lumbar adjustment is located on the outboard side
of the driver’s seat. To increase or decrease support,
rotate the handle up or down.
Lumbar Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111
3

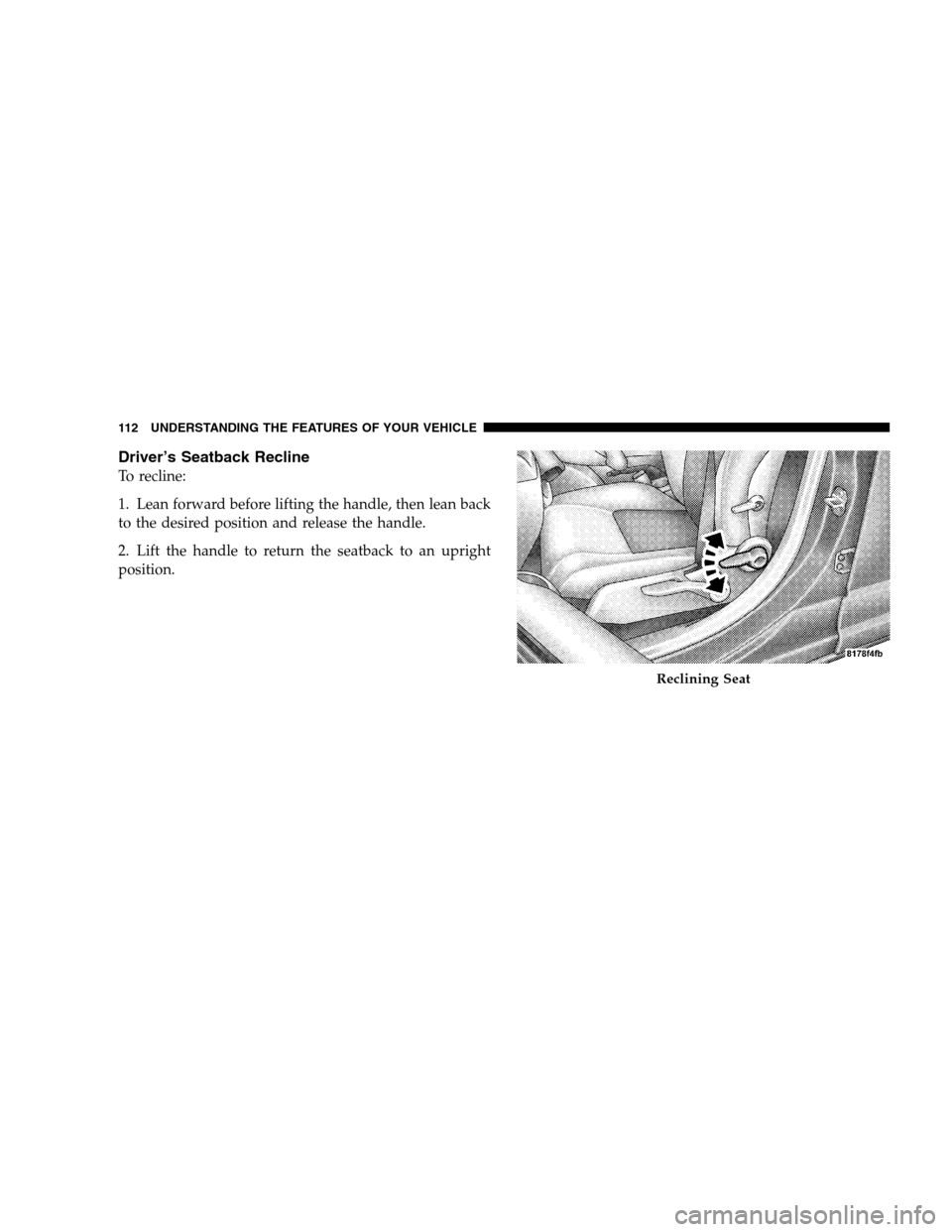

Driver’s Seatback Recline
To recline:
1. Lean forward before lifting the handle, then lean back
to the desired position and release the handle.
2. Lift the handle to return the seatback to an upright
position.
Reclining Seat
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

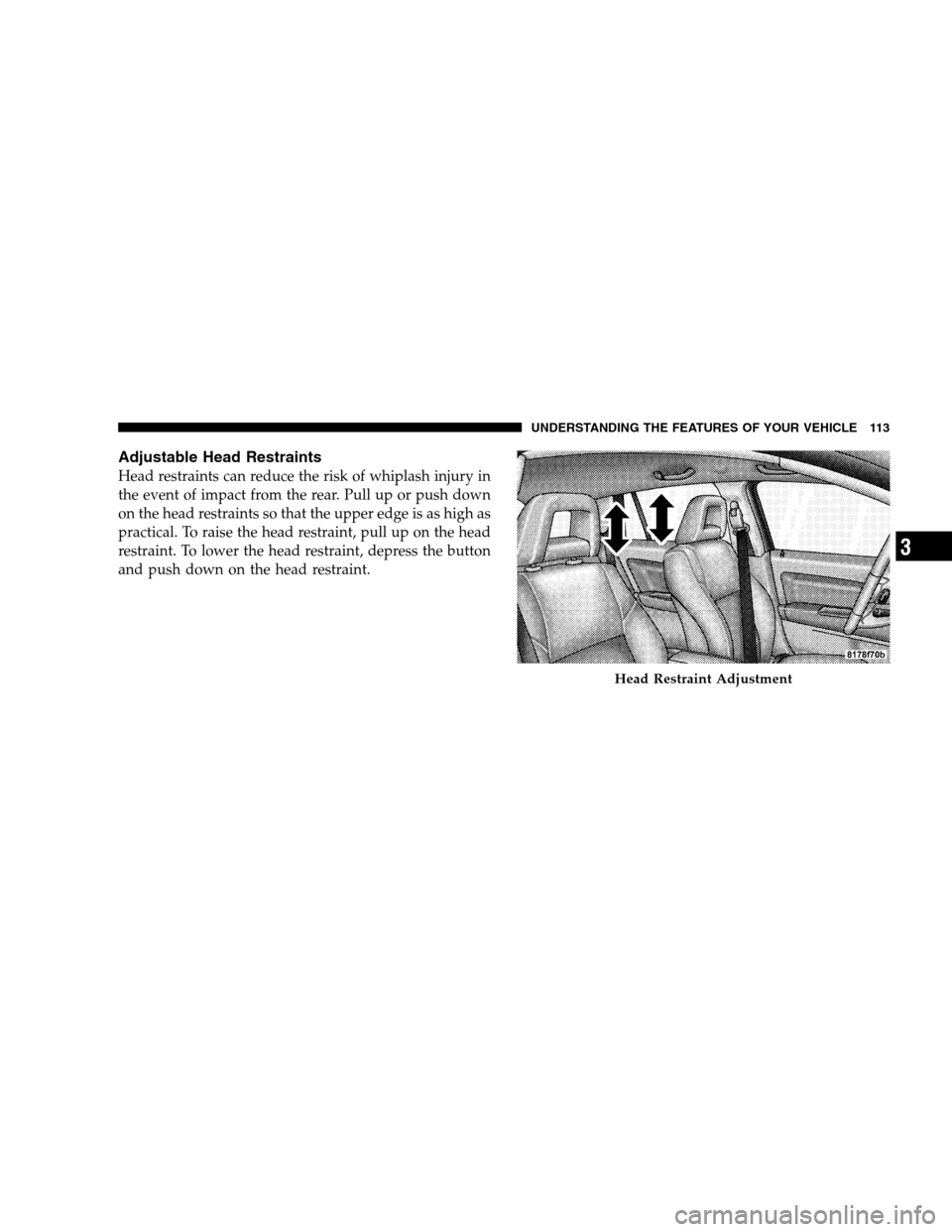

Adjustable Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Pull up or push down
on the head restraints so that the upper edge is as high as
practical. To raise the head restraint, pull up on the head
restraint. To lower the head restraint, depress the button
and push down on the head restraint.
Head Restraint Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113
3

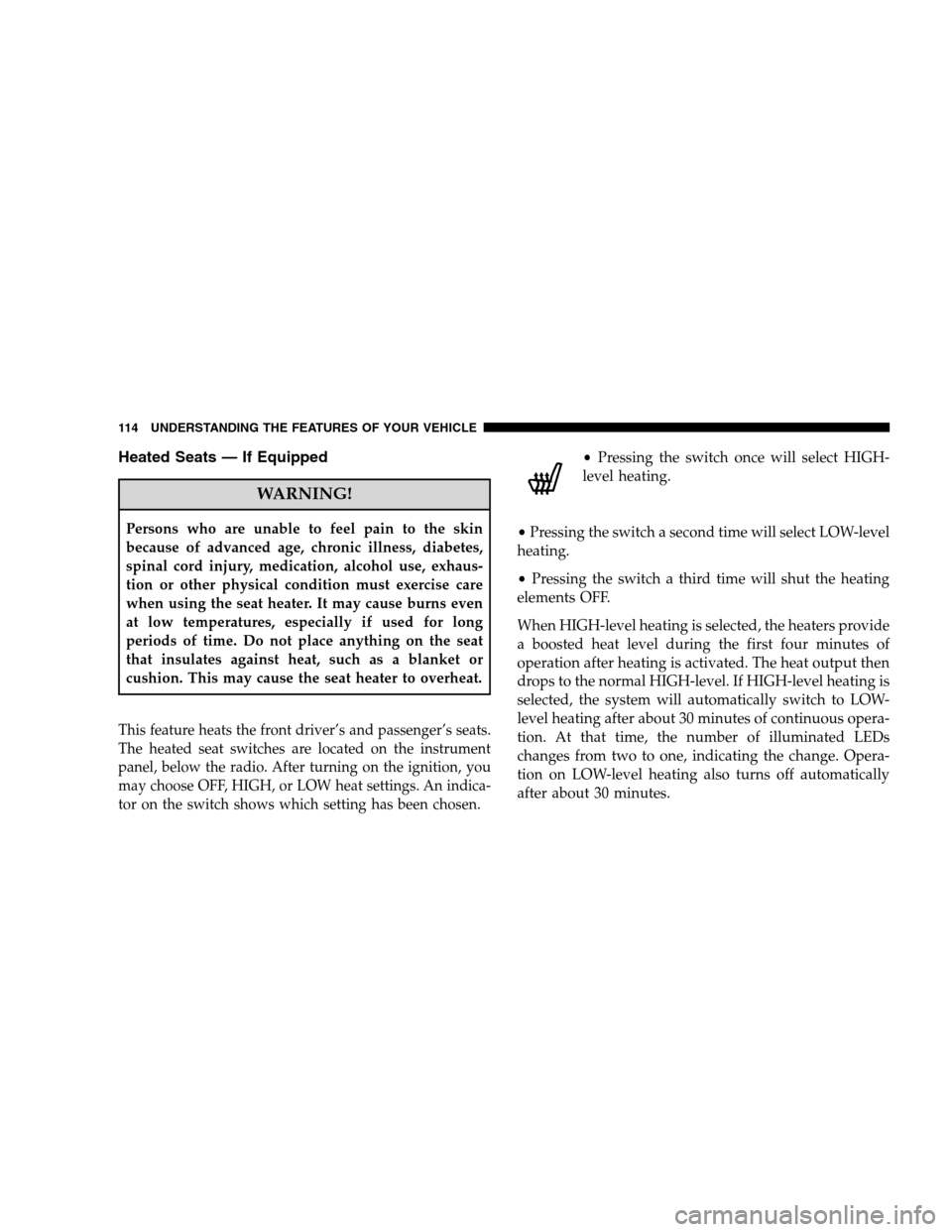

Heated Seats — If Equipped
WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time. Do not place anything on the seat
that insulates against heat, such as a blanket or
cushion. This may cause the seat heater to overheat.
This feature heats the front driver’s and passenger’s seats.
The heated seat switches are located on the instrument
panel, below the radio. After turning on the ignition, you
may choose OFF, HIGH, or LOW heat settings. An indica-
tor on the switch shows which setting has been chosen.
•Pressing the switch once will select HIGH-
level heating.
•Pressing the switch a second time will select LOW-level
heating.
•Pressing the switch a third time will shut the heating
elements OFF.
When HIGH-level heating is selected, the heaters provide
a boosted heat level during the first four minutes of
operation after heating is activated. The heat output then
drops to the normal HIGH-level. If HIGH-level heating is
selected, the system will automatically switch to LOW-
level heating after about 30 minutes of continuous opera-
tion. At that time, the number of illuminated LEDs
changes from two to one, indicating the change. Opera-
tion on LOW-level heating also turns off automatically
after about 30 minutes.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:If HIGH-level heating is selected, heat will be
felt within two to three minutes.

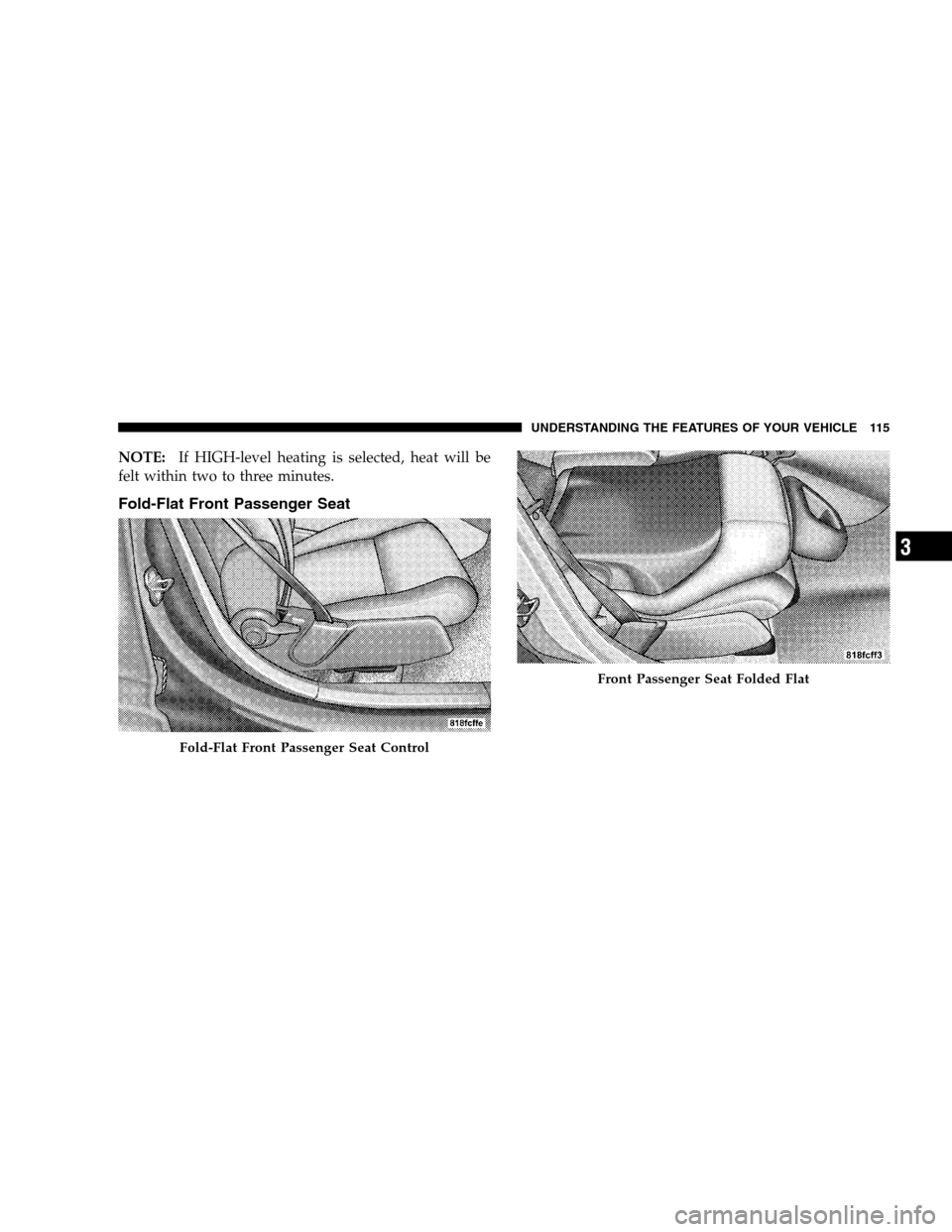

Fold-Flat Front Passenger Seat
Fold-Flat Front Passenger Seat Control
Front Passenger Seat Folded Flat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
3

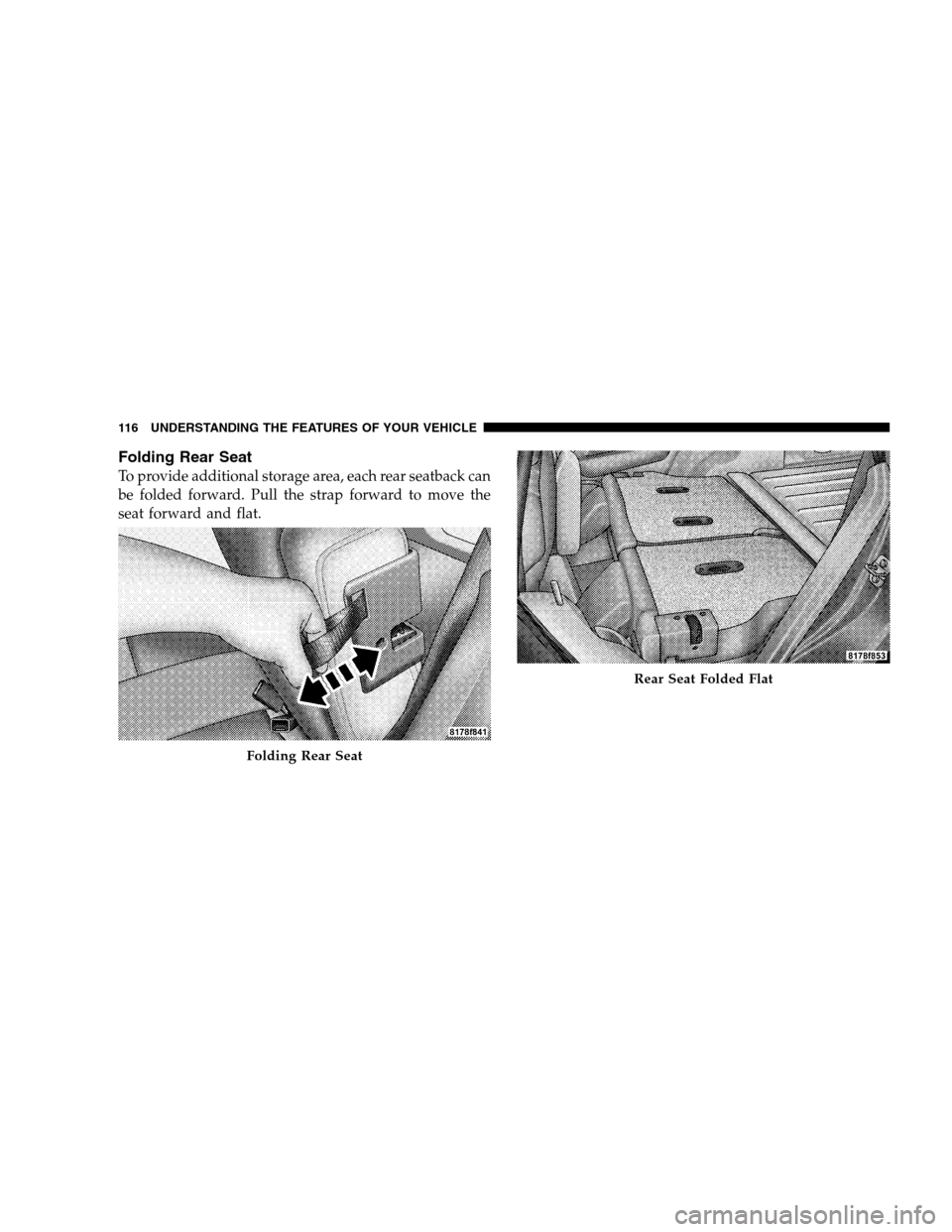

Folding Rear Seat
To provide additional storage area, each rear seatback can
be folded forward. Pull the strap forward to move the
seat forward and flat.
Folding Rear Seat
Rear Seat Folded Flat
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

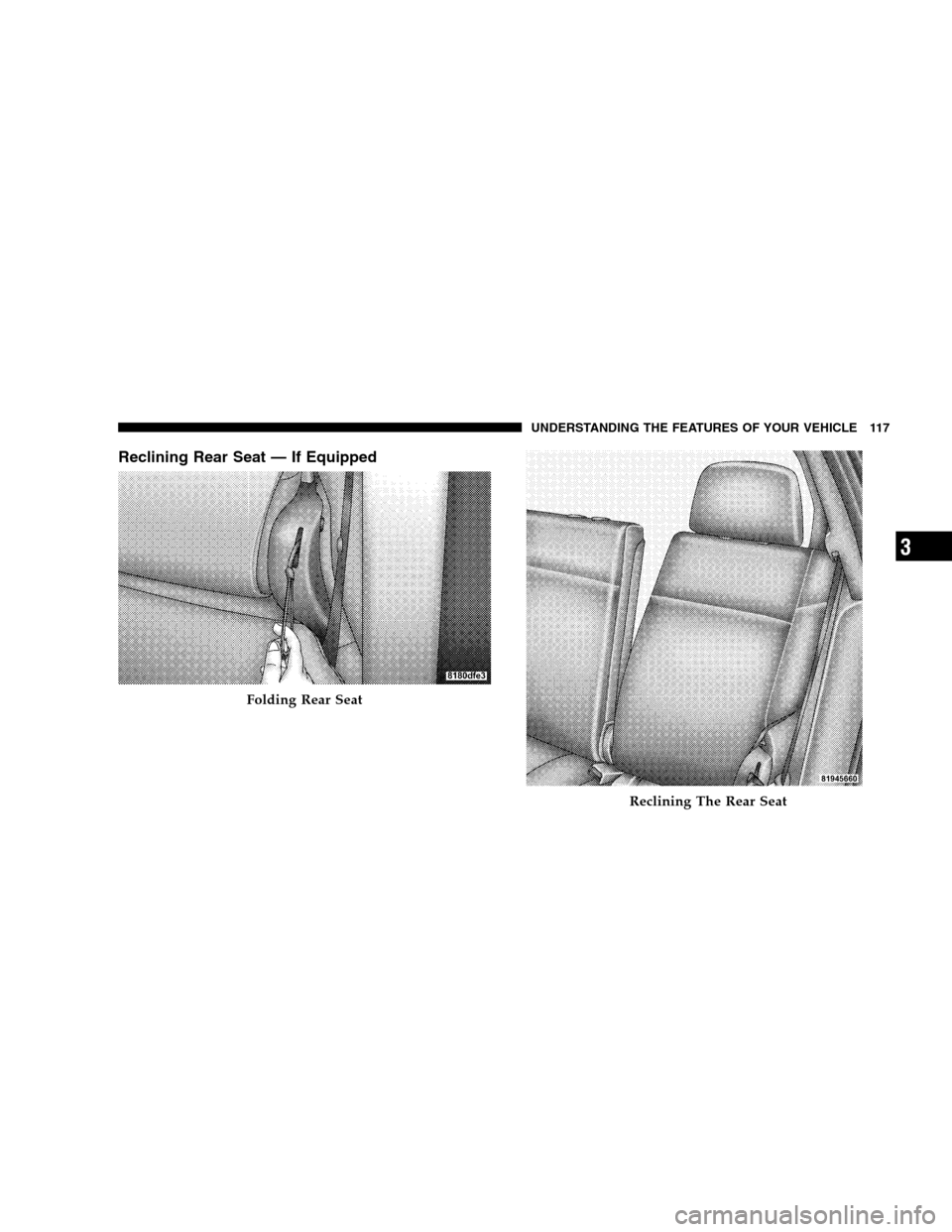

Reclining Rear Seat — If Equipped
Folding Rear Seat
Reclining The Rear Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
3

For additional comfort, pull the strap forward just
enough to release the seatback latch. Then push the
seatback to a reclined position, approximately 35 degrees
maximum, and release the strap.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure that everyone in your vehicle is in a seat
and using a seat belt properly.

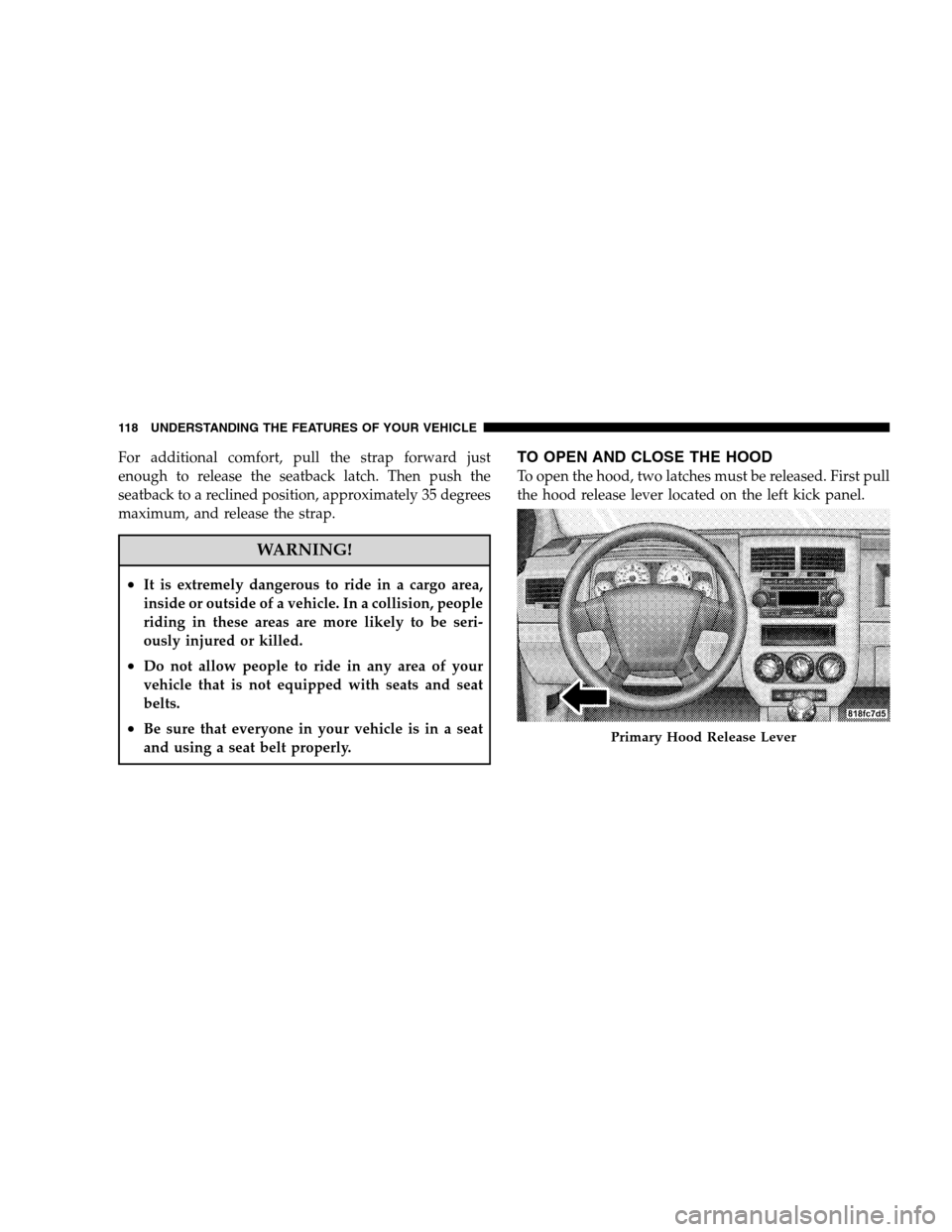

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released. First pull
the hood release lever located on the left kick panel.
Primary Hood Release Lever
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
