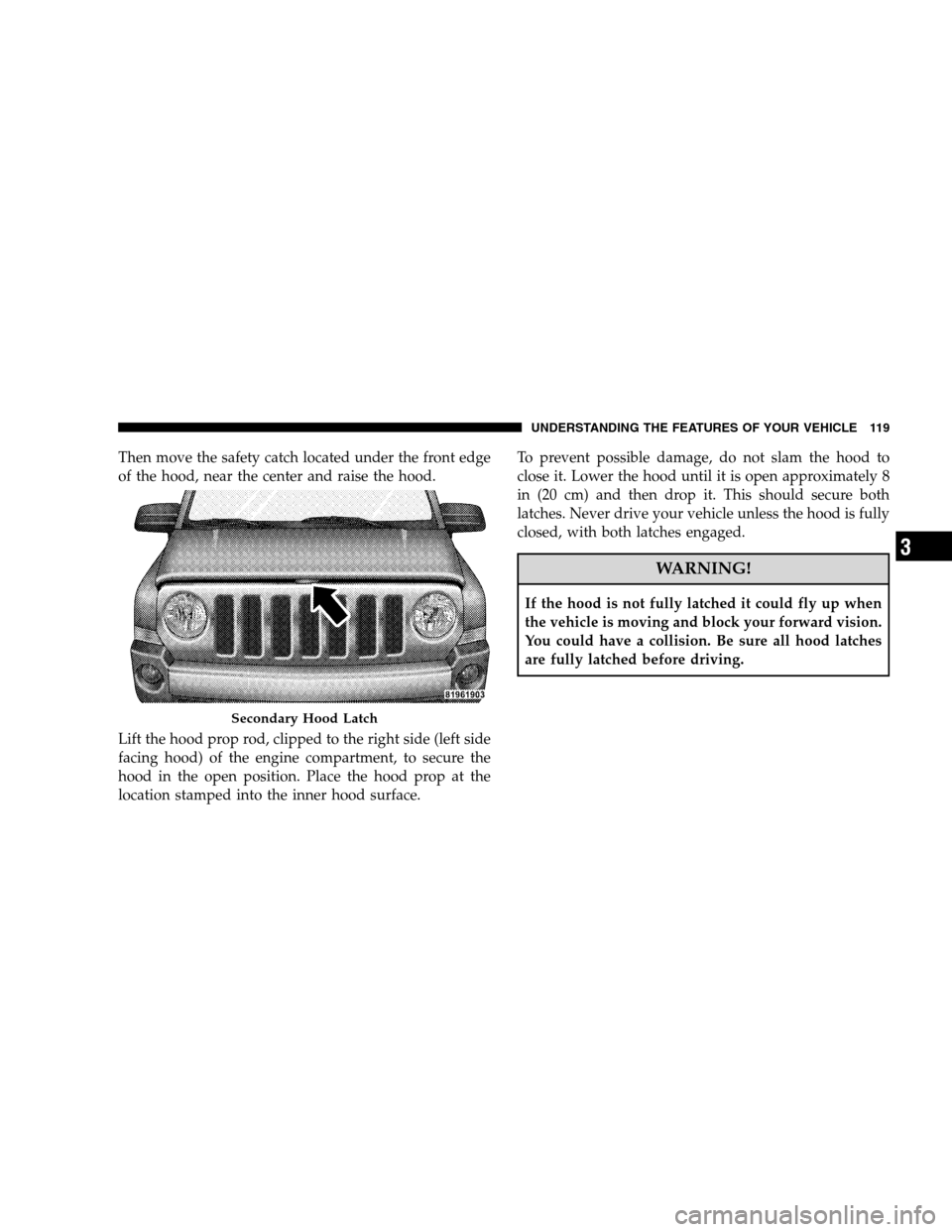

Then move the safety catch located under the front edge
of the hood, near the center and raise the hood.
Lift the hood prop rod, clipped to the right side (left side
facing hood) of the engine compartment, to secure the
hood in the open position. Place the hood prop at the
location stamped into the inner hood surface.To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approximately 8
in (20 cm) and then drop it. This should secure both
latches. Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
Secondary Hood Latch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

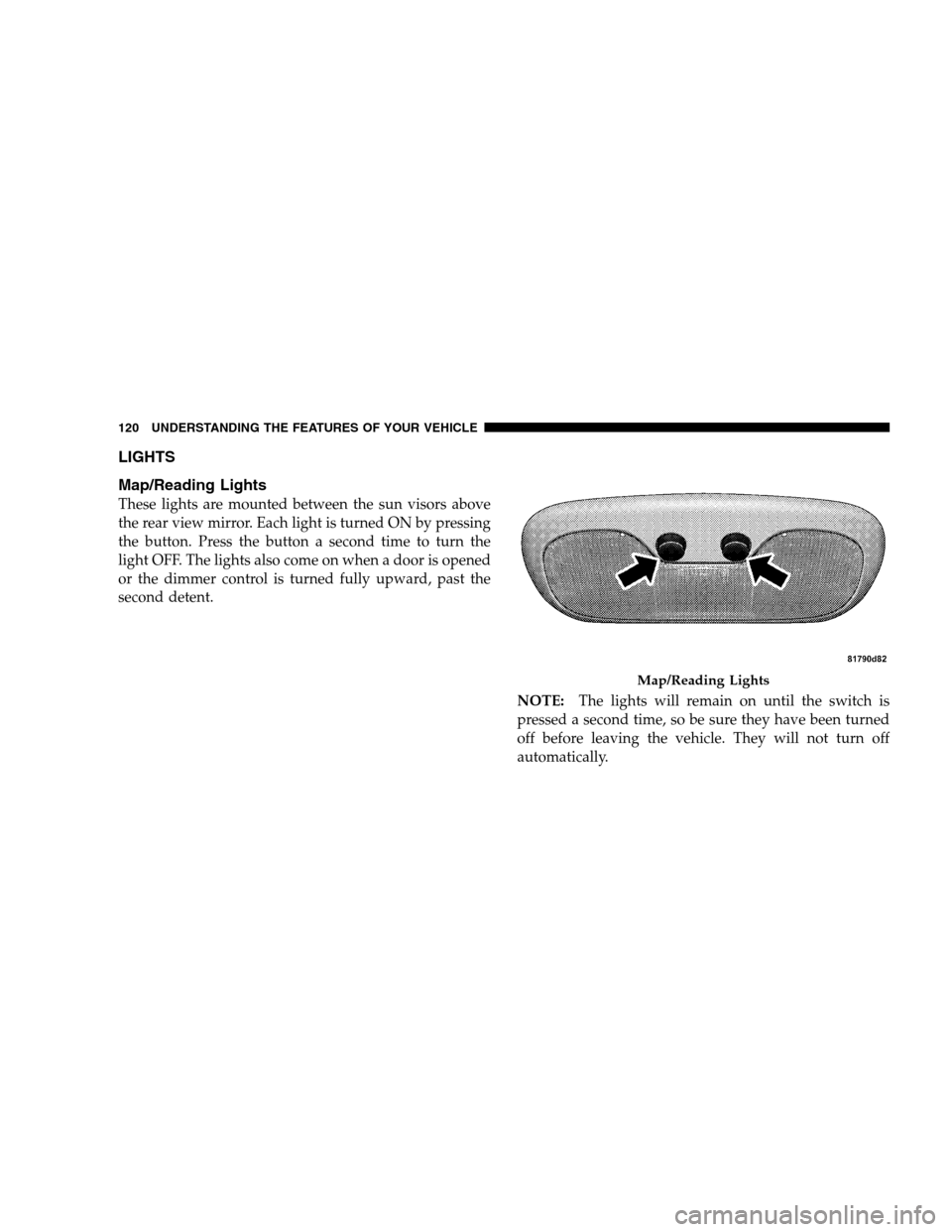

LIGHTS
Map/Reading Lights
These lights are mounted between the sun visors above
the rear view mirror. Each light is turned ON by pressing
the button. Press the button a second time to turn the
light OFF. The lights also come on when a door is opened
or the dimmer control is turned fully upward, past the
second detent.
NOTE:The lights will remain on until the switch is
pressed a second time, so be sure they have been turned
off before leaving the vehicle. They will not turn off
automatically.
Map/Reading Lights
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

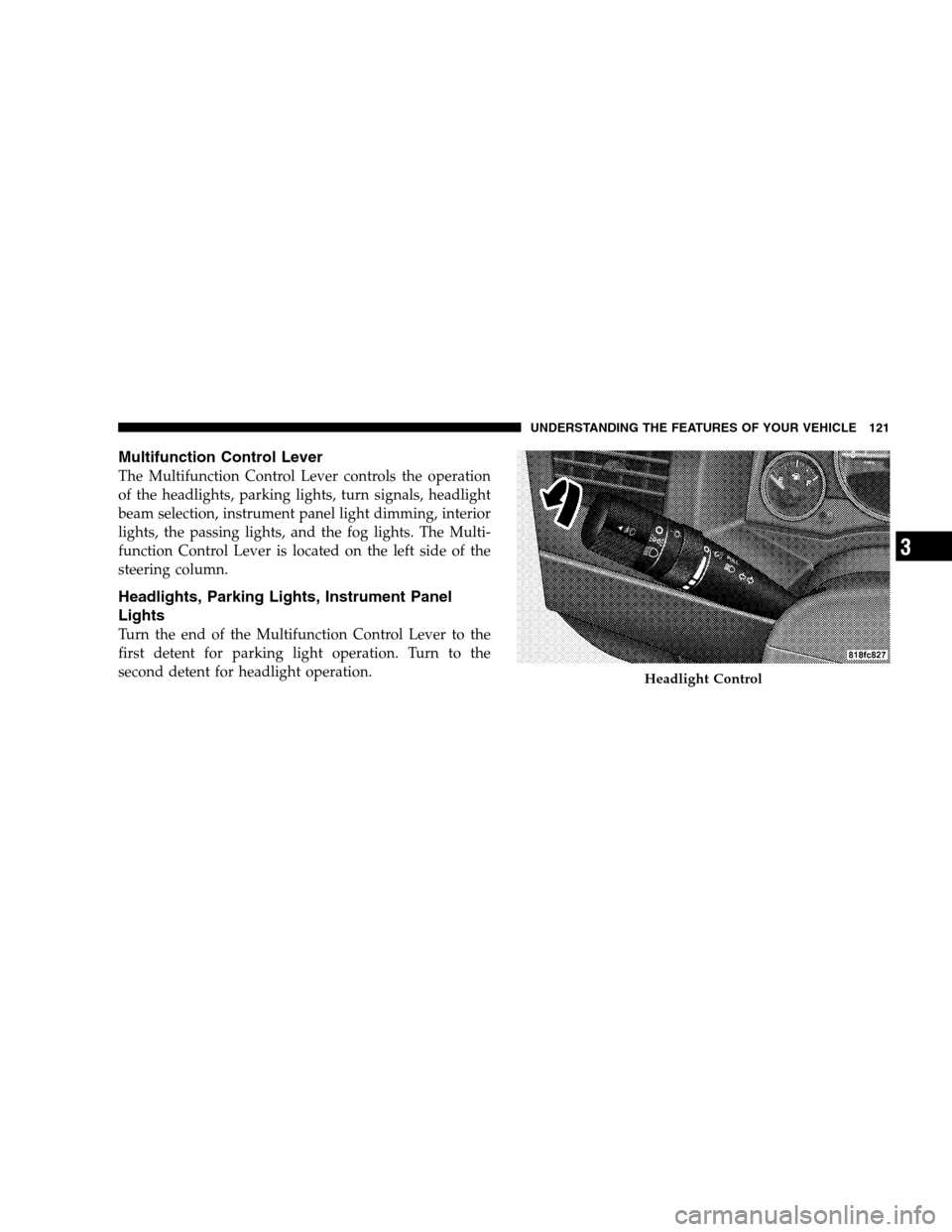

Multifunction Control Lever
The Multifunction Control Lever controls the operation
of the headlights, parking lights, turn signals, headlight
beam selection, instrument panel light dimming, interior
lights, the passing lights, and the fog lights. The Multi-
function Control Lever is located on the left side of the
steering column.
Headlights, Parking Lights, Instrument Panel
Lights
Turn the end of the Multifunction Control Lever to the
first detent for parking light operation. Turn to the
second detent for headlight operation.
Headlight Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

To change the brightness of the instrument panel lights,
rotate the center portion of the Multifunction Control
Lever up or down.Daytime Running Lights (DRL) — If Equipped
The high beam lights will come on as Daytime Running
Lights (DRL) at DRL intensity (lower), whenever the
ignition is on, the engine is running, the headlight switch
is off, the parking brake is off, the turn signal is off, and
the shift lever is in any position except park.
Lights-On Reminder
If the headlights or parking lights are left on after the
ignition is turned OFF, a chime will sound to alert the
driver when the driver’s door is opened.
Dimmer Control
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

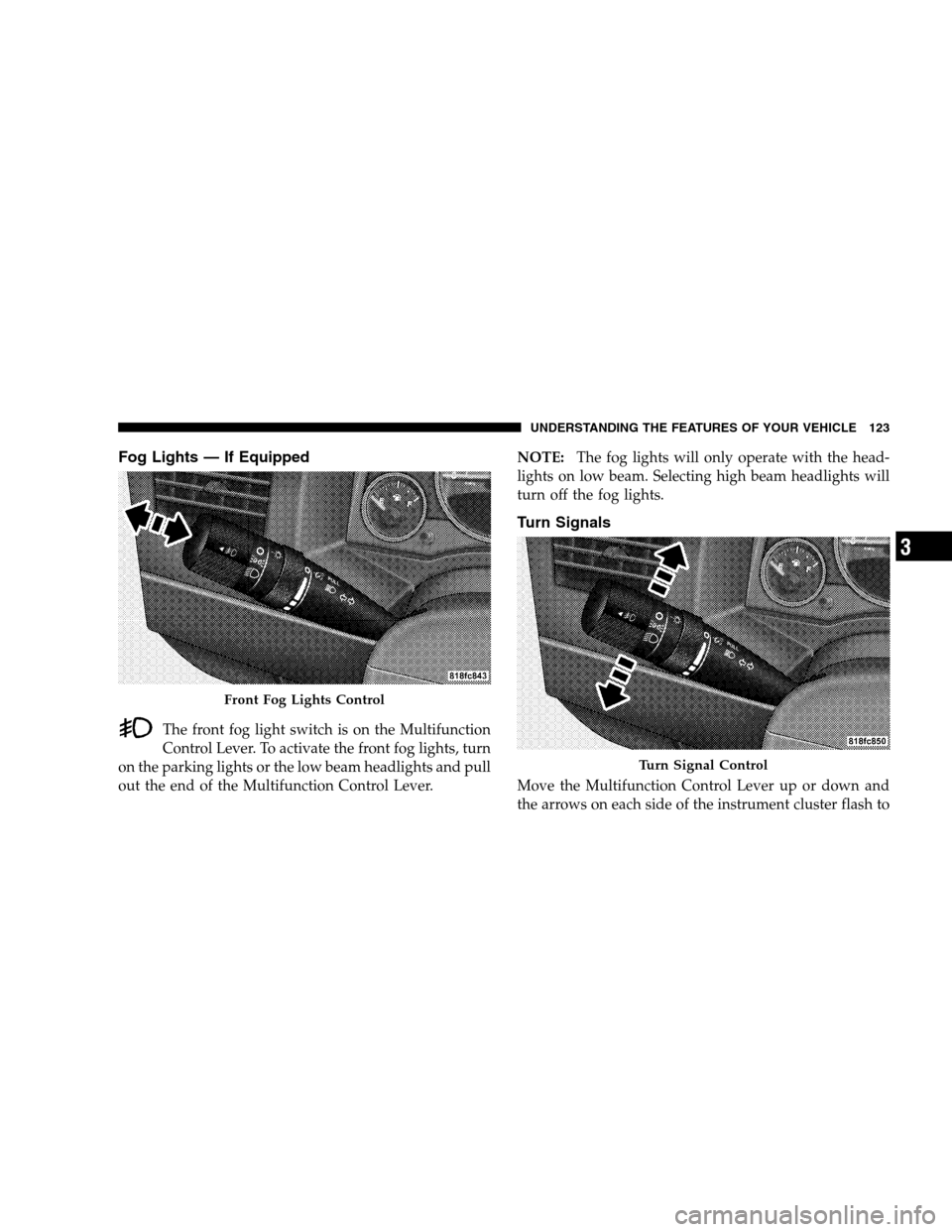

Fog Lights — If Equipped
The front fog light switch is on the Multifunction
Control Lever. To activate the front fog lights, turn
on the parking lights or the low beam headlights and pull
out the end of the Multifunction Control Lever.NOTE:The fog lights will only operate with the head-
lights on low beam. Selecting high beam headlights will
turn off the fog lights.
Turn Signals
Move the Multifunction Control Lever up or down and
the arrows on each side of the instrument cluster flash to
Front Fog Lights Control
Turn Signal Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3

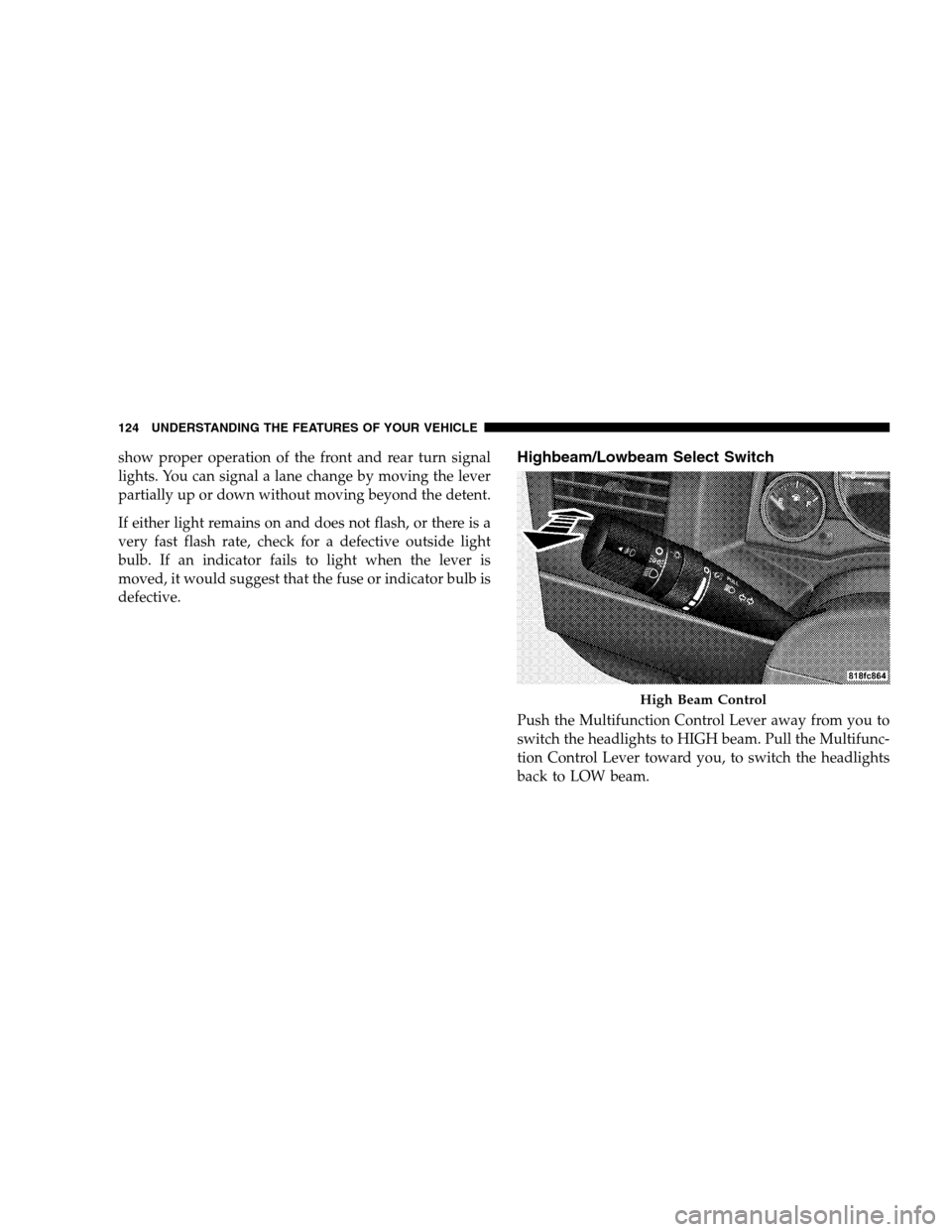

show proper operation of the front and rear turn signal
lights. You can signal a lane change by moving the lever
partially up or down without moving beyond the detent.
If either light remains on and does not flash, or there is a
very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the fuse or indicator bulb is
defective.Highbeam/Lowbeam Select Switch
Push the Multifunction Control Lever away from you to
switch the headlights to HIGH beam. Pull the Multifunc-
tion Control Lever toward you, to switch the headlights
back to LOW beam.
High Beam Control
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

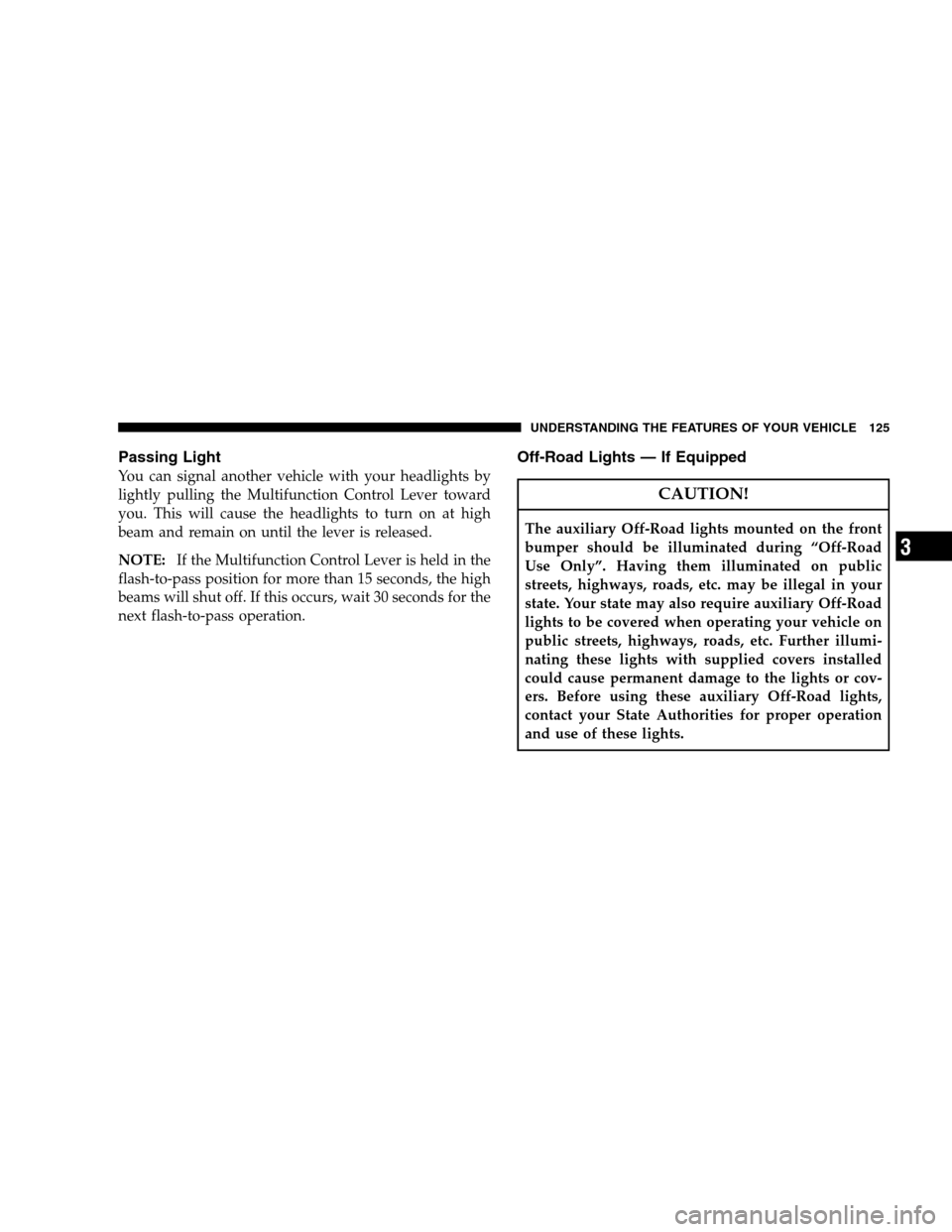

Passing Light
You can signal another vehicle with your headlights by
lightly pulling the Multifunction Control Lever toward
you. This will cause the headlights to turn on at high
beam and remain on until the lever is released.
NOTE:If the Multifunction Control Lever is held in the
flash-to-pass position for more than 15 seconds, the high
beams will shut off. If this occurs, wait 30 seconds for the
next flash-to-pass operation.
Off-Road Lights — If Equipped
CAUTION!
The auxiliary Off-Road lights mounted on the front
bumper should be illuminated during “Off-Road
Use Only”. Having them illuminated on public
streets, highways, roads, etc. may be illegal in your
state. Your state may also require auxiliary Off-Road
lights to be covered when operating your vehicle on
public streets, highways, roads, etc. Further illumi-
nating these lights with supplied covers installed
could cause permanent damage to the lights or cov-
ers. Before using these auxiliary Off-Road lights,
contact your State Authorities for proper operation
and use of these lights.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

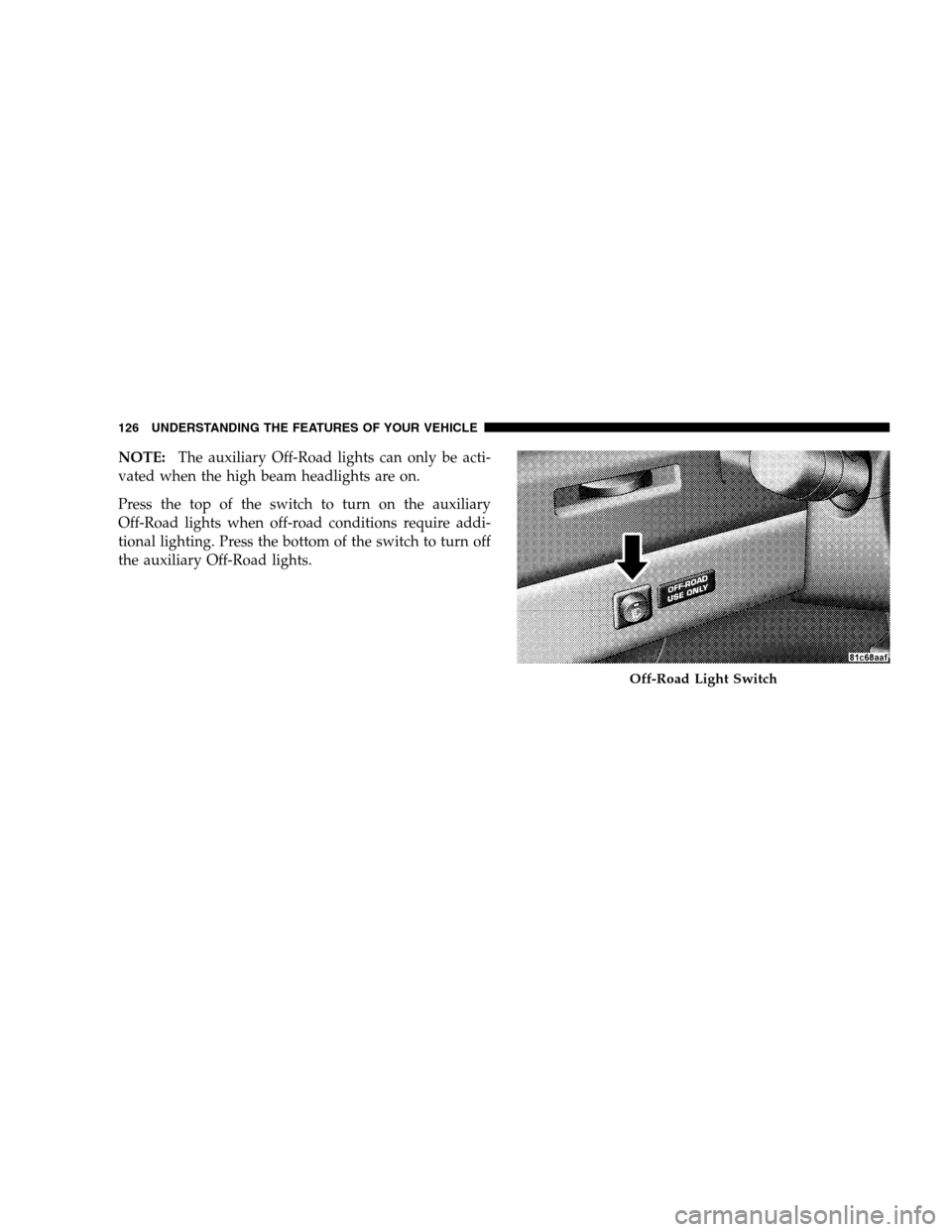

NOTE:The auxiliary Off-Road lights can only be acti-
vated when the high beam headlights are on.
Press the top of the switch to turn on the auxiliary
Off-Road lights when off-road conditions require addi-
tional lighting. Press the bottom of the switch to turn off
the auxiliary Off-Road lights.
Off-Road Light Switch
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

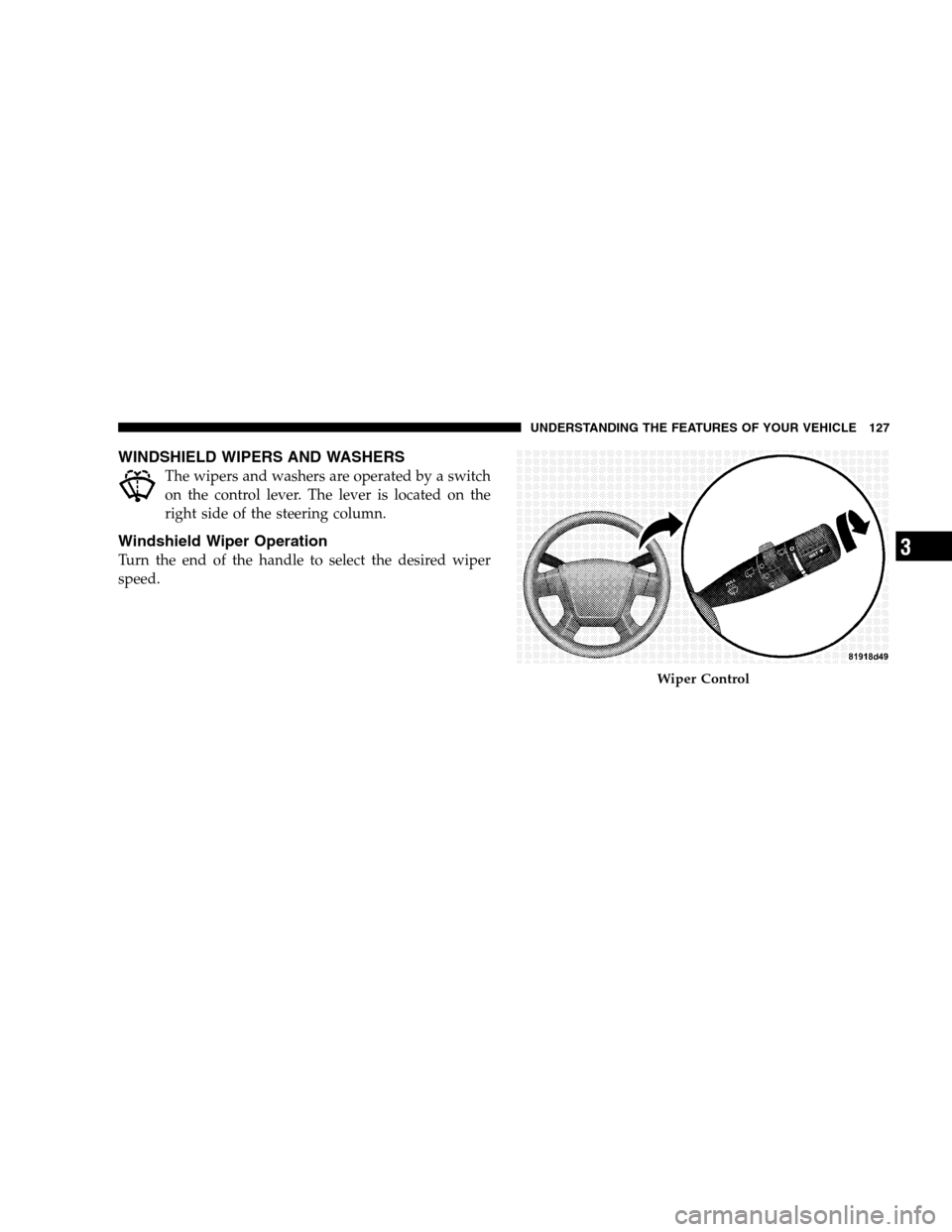

WINDSHIELD WIPERS AND WASHERS
The wipers and washers are operated by a switch
on the control lever. The lever is located on the
right side of the steering column.
Windshield Wiper Operation
Turn the end of the handle to select the desired wiper
speed.
Wiper Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

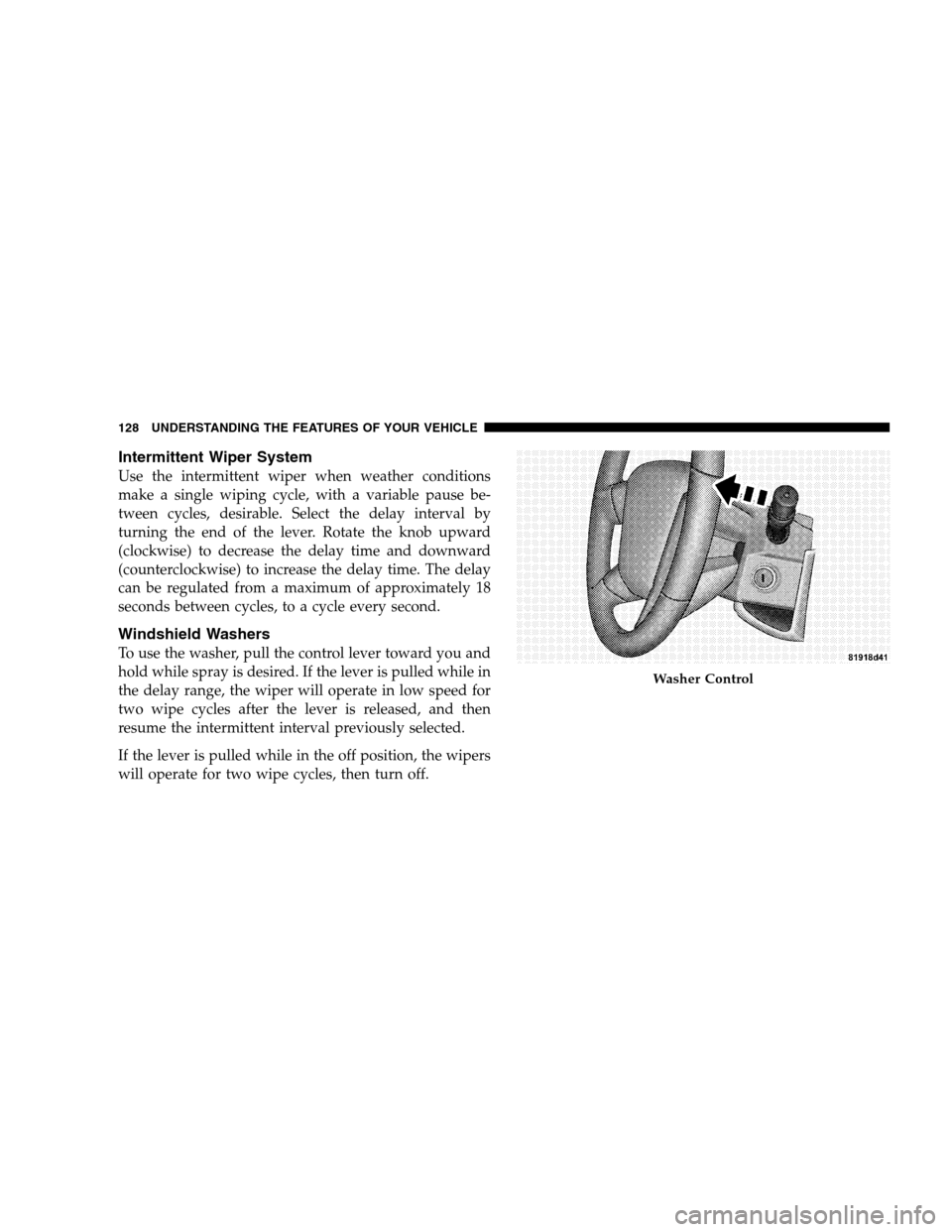

Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable. Select the delay interval by
turning the end of the lever. Rotate the knob upward
(clockwise) to decrease the delay time and downward
(counterclockwise) to increase the delay time. The delay
can be regulated from a maximum of approximately 18
seconds between cycles, to a cycle every second.
Windshield Washers
To use the washer, pull the control lever toward you and
hold while spray is desired. If the lever is pulled while in
the delay range, the wiper will operate in low speed for
two wipe cycles after the lever is released, and then
resume the intermittent interval previously selected.
If the lever is pulled while in the off position, the wipers
will operate for two wipe cycles, then turn off.
Washer Control
