JEEP PATRIOT 2008 1.G Owners Manual

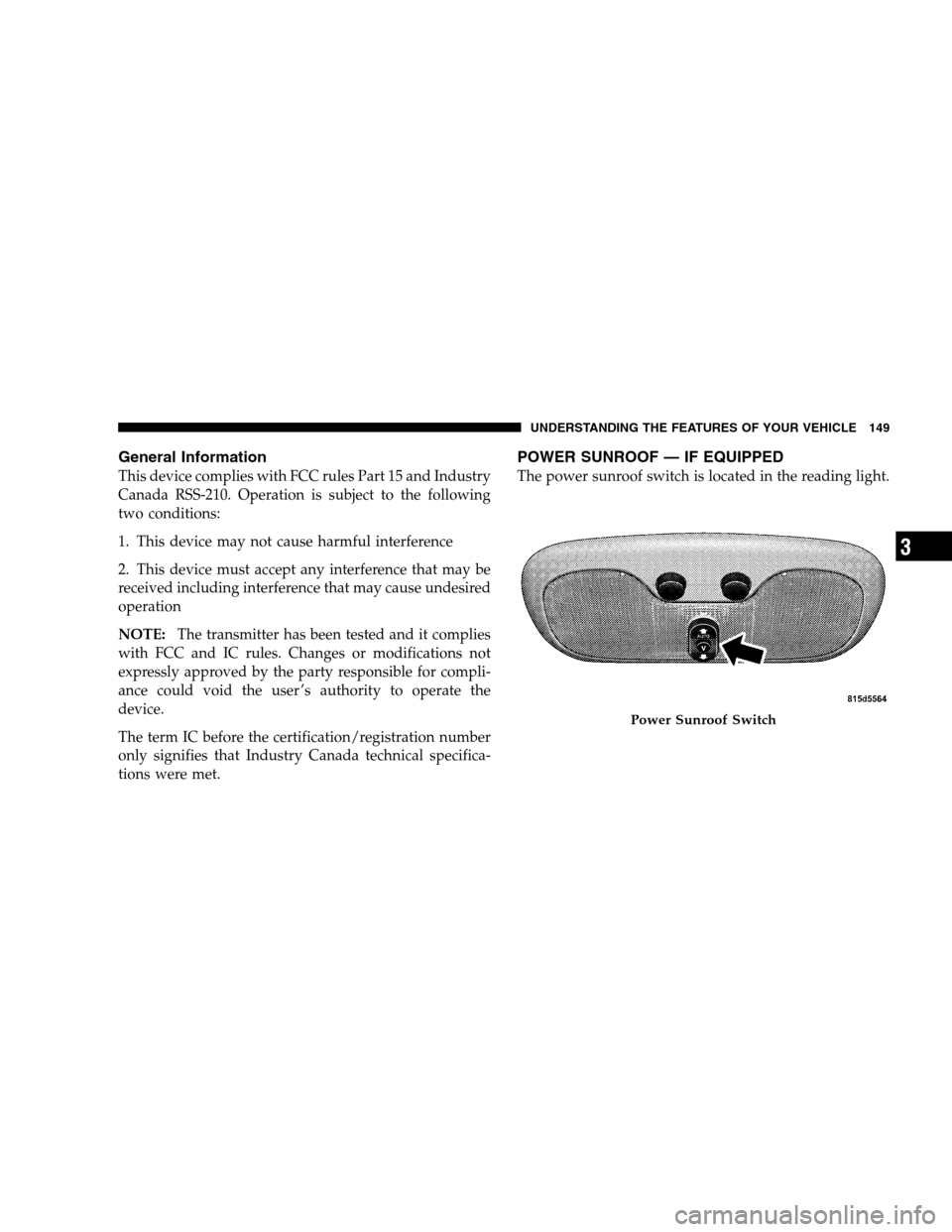

General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference that may be
received including interference that may cause undesired
operation
NOTE:The transmitter has been tested and it complies
with FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
The term IC before the certification/registration number
only signifies that Industry Canada technical specifica-
tions were met.
POWER SUNROOF — IF EQUIPPED
The power sunroof switch is located in the reading light.
Power Sunroof Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149
3

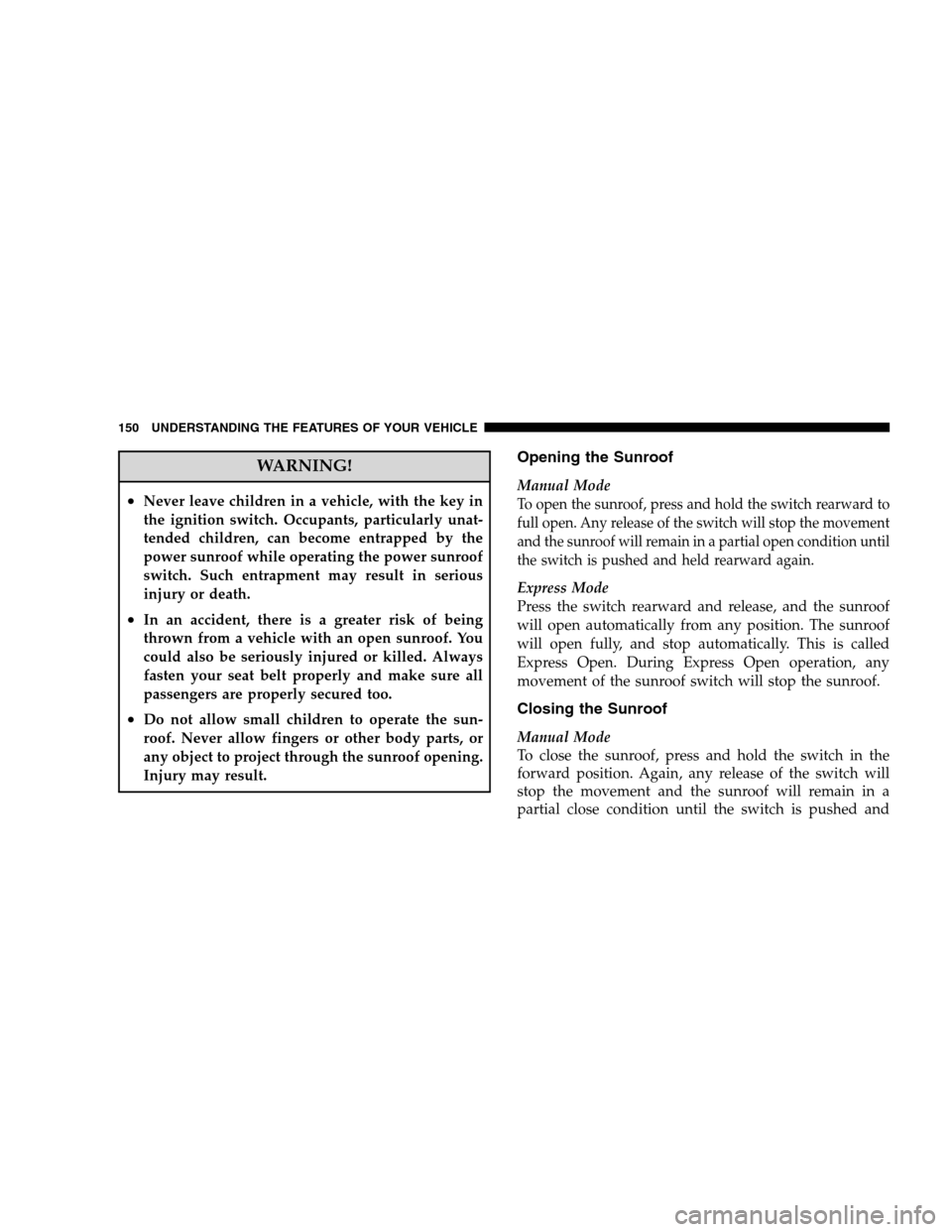

WARNING!
•Never leave children in a vehicle, with the key in
the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.
•In an accident, there is a greater risk of being
thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.
•Do not allow small children to operate the sun-
roof. Never allow fingers or other body parts, or
any object to project through the sunroof opening.
Injury may result.
Opening the Sunroof
Manual Mode
To open the sunroof, press and hold the switch rearward to
full open. Any release of the switch will stop the movement
and the sunroof will remain in a partial open condition until
the switch is pushed and held rearward again.
Express Mode
Press the switch rearward and release, and the sunroof
will open automatically from any position. The sunroof
will open fully, and stop automatically. This is called
Express Open. During Express Open operation, any
movement of the sunroof switch will stop the sunroof.
Closing the Sunroof
Manual Mode
To close the sunroof, press and hold the switch in the
forward position. Again, any release of the switch will
stop the movement and the sunroof will remain in a
partial close condition until the switch is pushed and
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

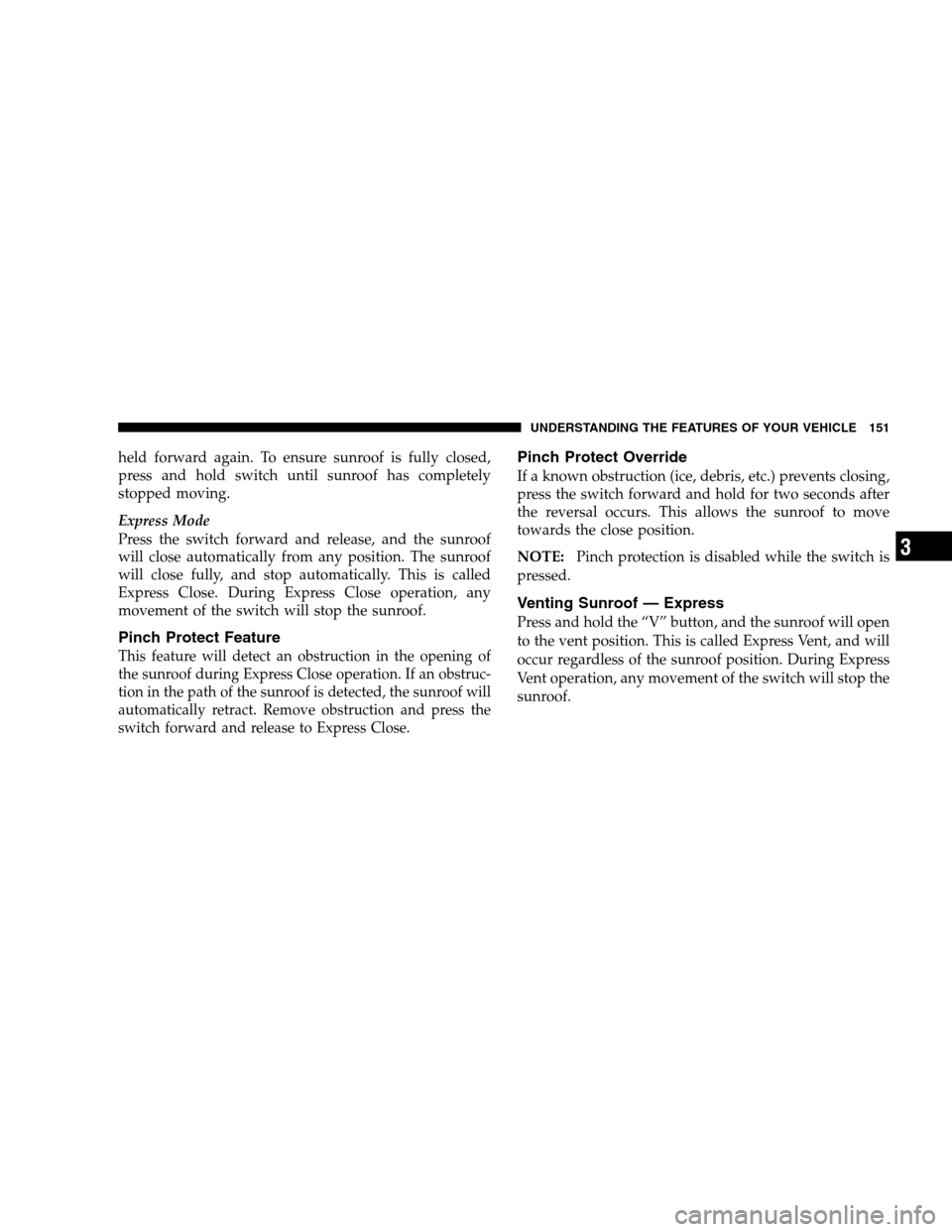

held forward again. To ensure sunroof is fully closed,
press and hold switch until sunroof has completely
stopped moving.
Express Mode
Press the switch forward and release, and the sunroof
will close automatically from any position. The sunroof
will close fully, and stop automatically. This is called
Express Close. During Express Close operation, any
movement of the switch will stop the sunroof.
Pinch Protect Feature
This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an obstruc-
tion in the path of the sunroof is detected, the sunroof will
automatically retract. Remove obstruction and press the
switch forward and release to Express Close.
Pinch Protect Override
If a known obstruction (ice, debris, etc.) prevents closing,
press the switch forward and hold for two seconds after
the reversal occurs. This allows the sunroof to move
towards the close position.
NOTE:Pinch protection is disabled while the switch is
pressed.
Venting Sunroof — Express
Press and hold the “V” button, and the sunroof will open
to the vent position. This is called Express Vent, and will
occur regardless of the sunroof position. During Express
Vent operation, any movement of the switch will stop the
sunroof.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
3

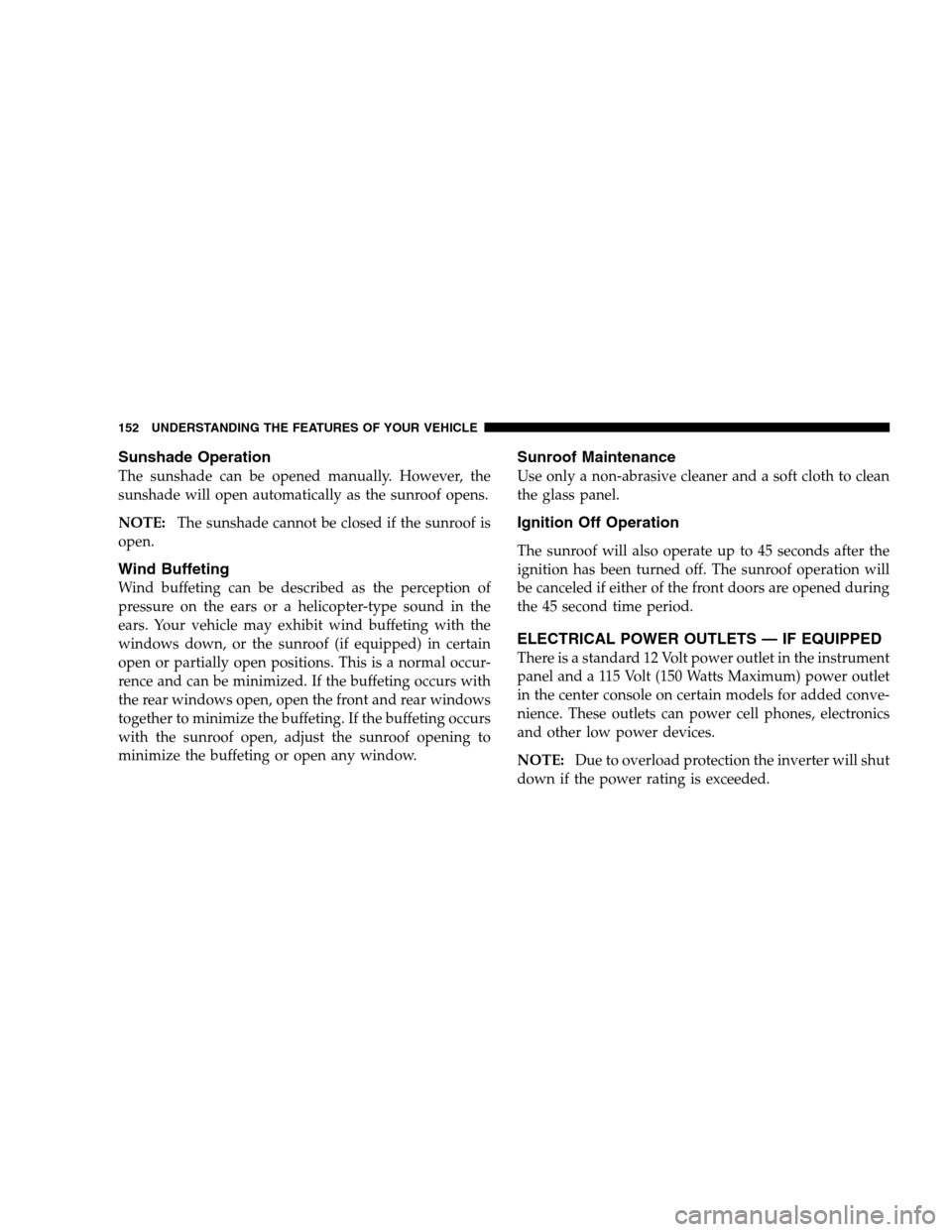

Sunshade Operation
The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.
NOTE:The sunshade cannot be closed if the sunroof is
open.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.
Ignition Off Operation
The sunroof will also operate up to 45 seconds after the
ignition has been turned off. The sunroof operation will
be canceled if either of the front doors are opened during
the 45 second time period.
ELECTRICAL POWER OUTLETS — IF EQUIPPED
There is a standard 12 Volt power outlet in the instrument
panel and a 115 Volt (150 Watts Maximum) power outlet
in the center console on certain models for added conve-
nience. These outlets can power cell phones, electronics
and other low power devices.
NOTE:Due to overload protection the inverter will shut
down if the power rating is exceeded.
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

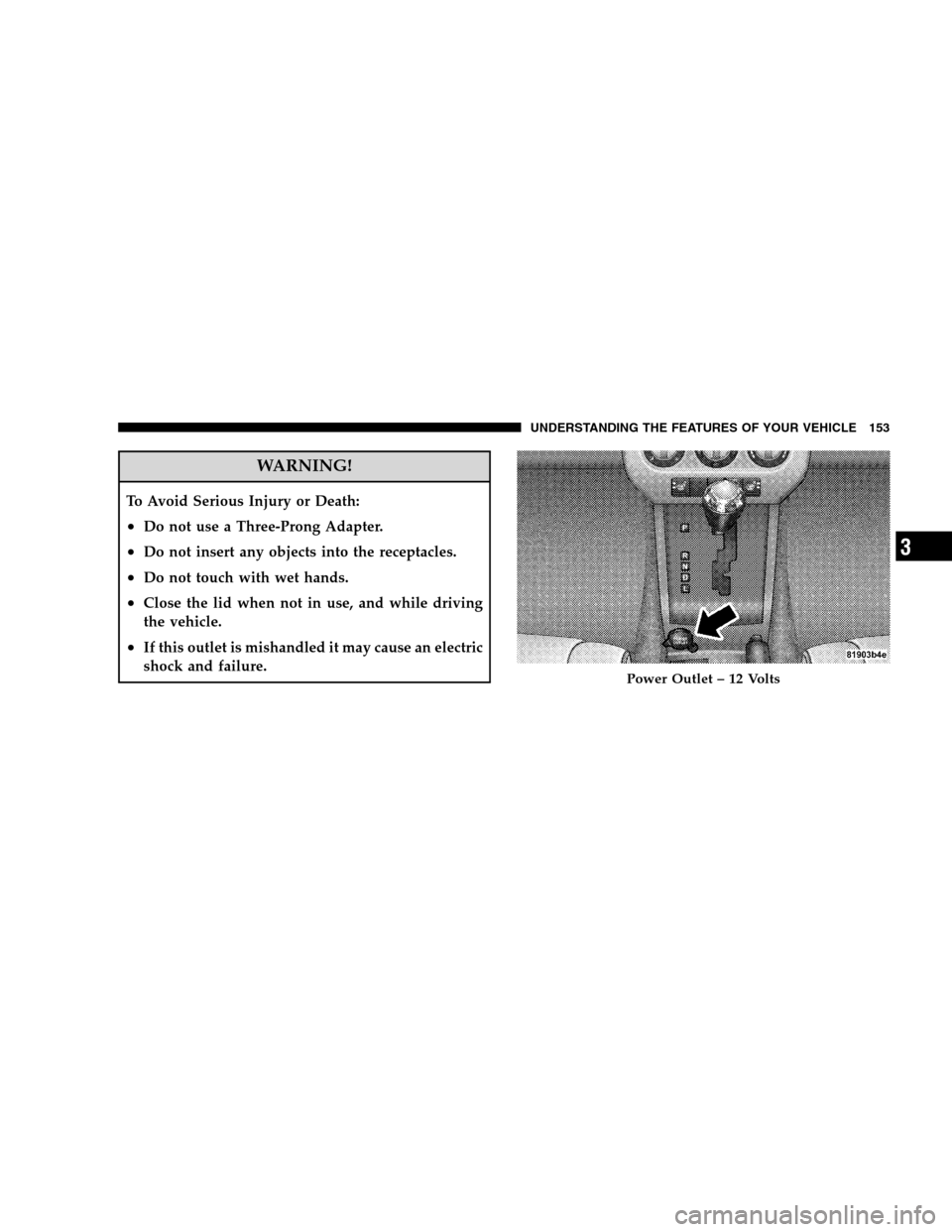

WARNING!
To Avoid Serious Injury or Death:
•Do not use a Three-Prong Adapter.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use, and while driving
the vehicle.
•If this outlet is mishandled it may cause an electric
shock and failure.
Power Outlet – 12 Volts
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
3

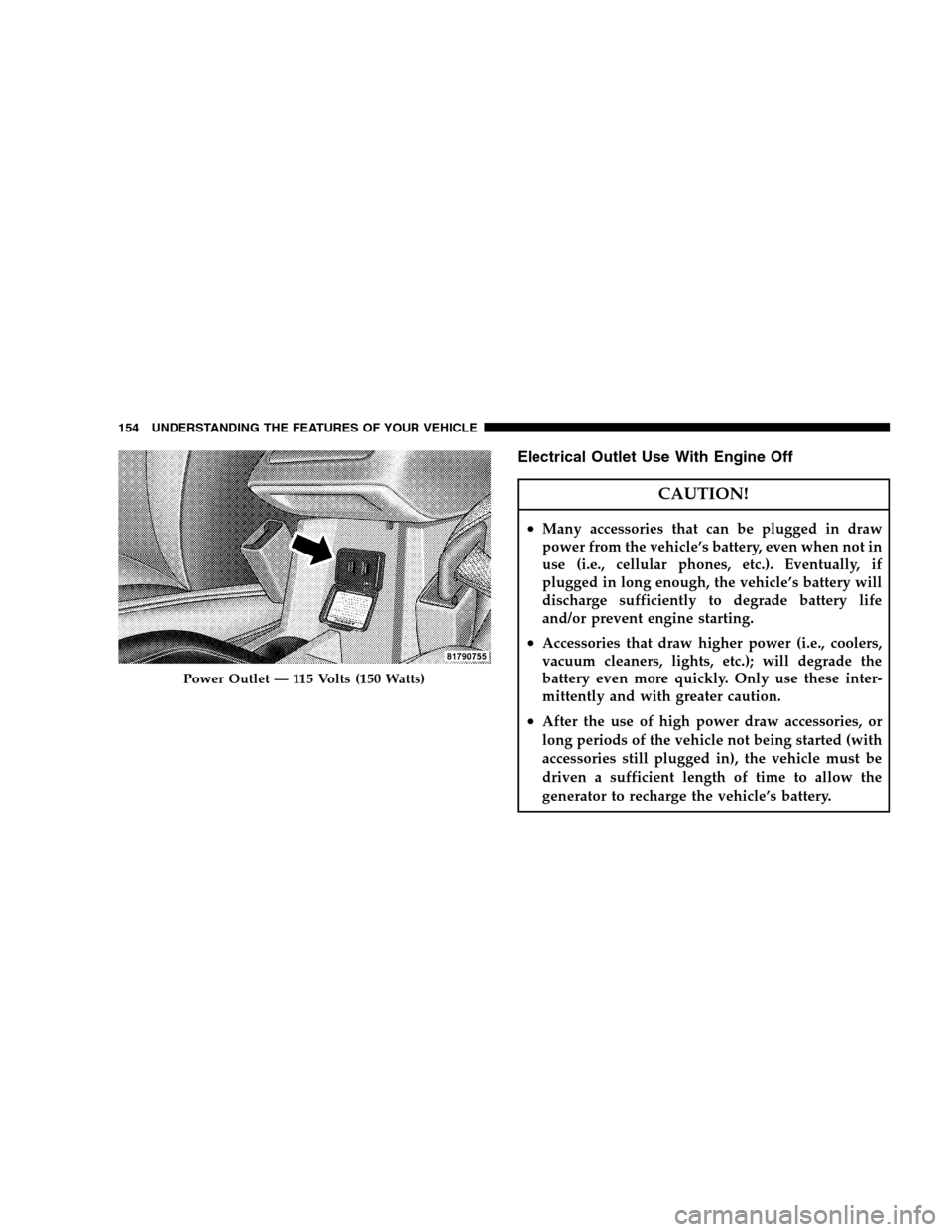

Electrical Outlet Use With Engine Off
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.); will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
Power Outlet — 115 Volts (150 Watts)
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

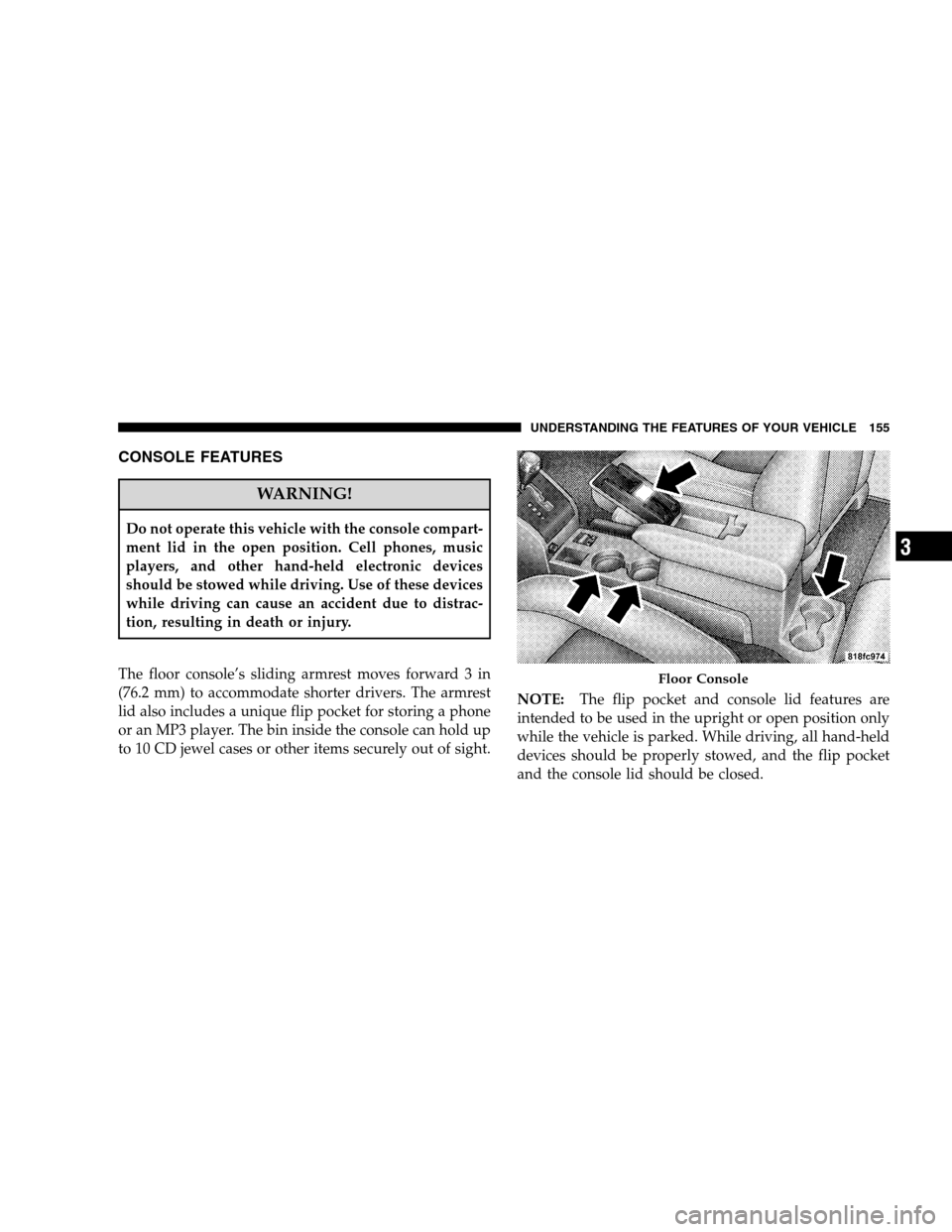

CONSOLE FEATURES
WARNING!
Do not operate this vehicle with the console compart-
ment lid in the open position. Cell phones, music
players, and other hand-held electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
The floor console’s sliding armrest moves forward 3 in
(76.2 mm) to accommodate shorter drivers. The armrest
lid also includes a unique flip pocket for storing a phone
or an MP3 player. The bin inside the console can hold up
to 10 CD jewel cases or other items securely out of sight.NOTE:The flip pocket and console lid features are
intended to be used in the upright or open position only
while the vehicle is parked. While driving, all hand-held
devices should be properly stowed, and the flip pocket
and the console lid should be closed.
Floor Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155
3

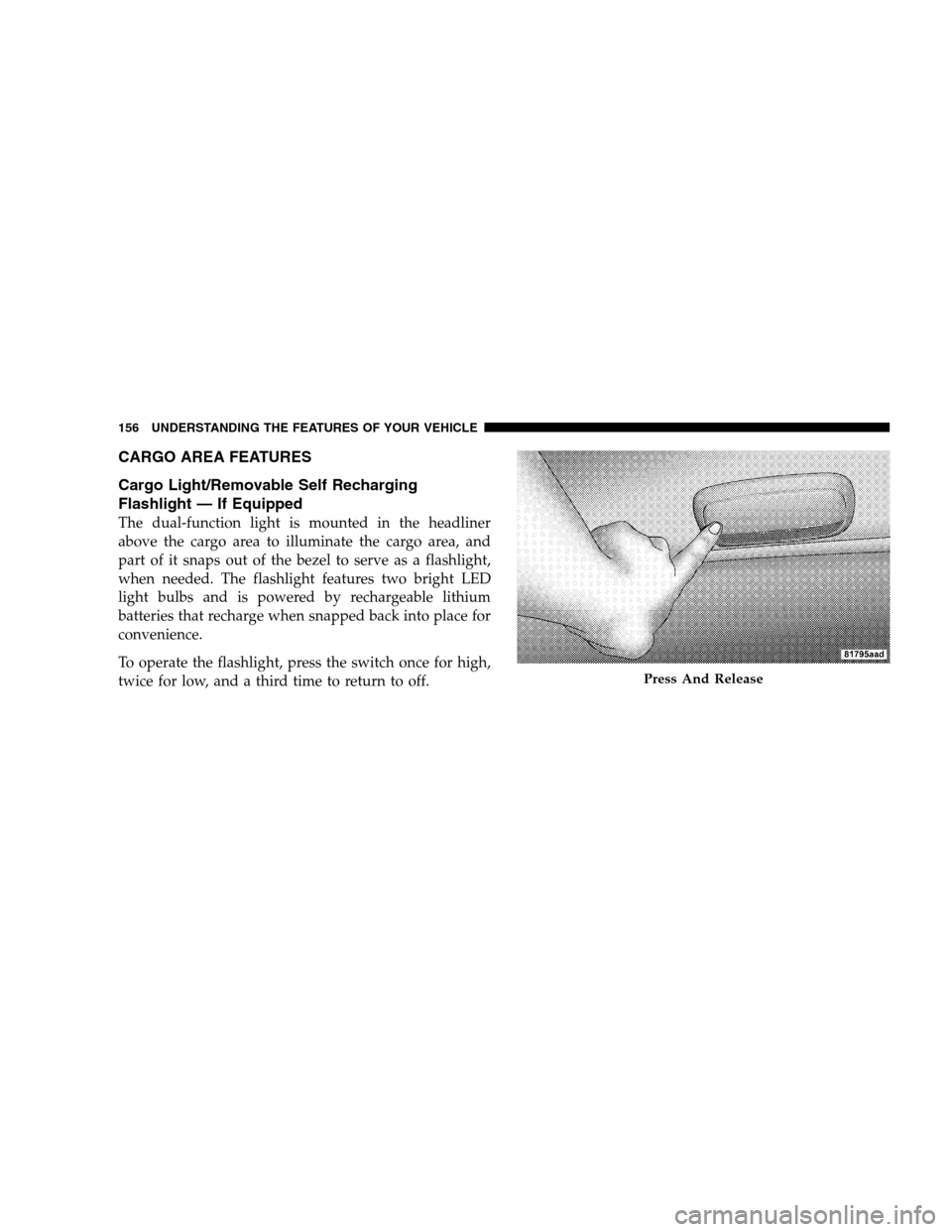

CARGO AREA FEATURES
Cargo Light/Removable Self Recharging
Flashlight — If Equipped
The dual-function light is mounted in the headliner
above the cargo area to illuminate the cargo area, and
part of it snaps out of the bezel to serve as a flashlight,
when needed. The flashlight features two bright LED
light bulbs and is powered by rechargeable lithium
batteries that recharge when snapped back into place for
convenience.
To operate the flashlight, press the switch once for high,
twice for low, and a third time to return to off.
Press And Release
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

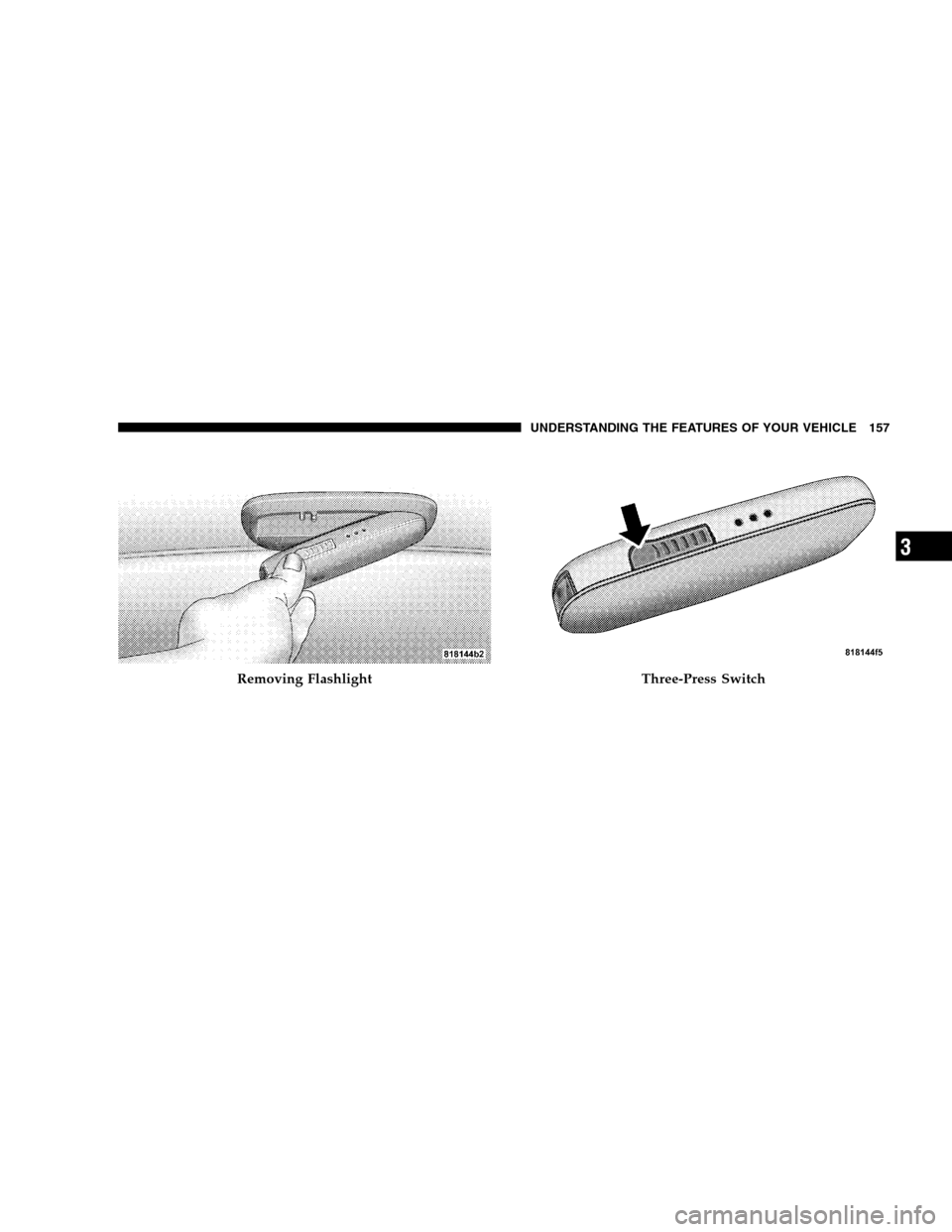

Removing FlashlightThree-Press Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157
3

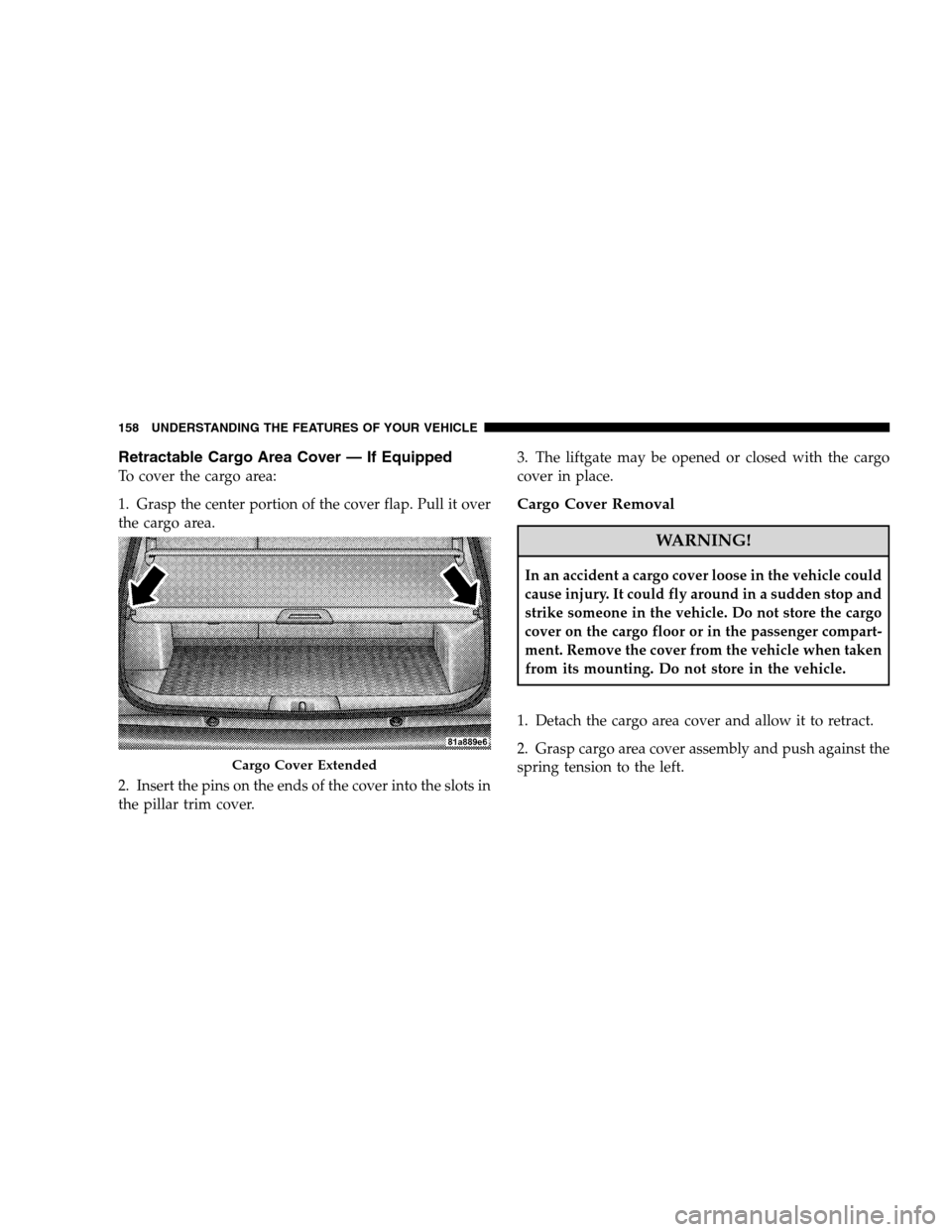

Retractable Cargo Area Cover — If Equipped
To cover the cargo area:
1. Grasp the center portion of the cover flap. Pull it over
the cargo area.
2. Insert the pins on the ends of the cover into the slots in
the pillar trim cover.3. The liftgate may be opened or closed with the cargo
cover in place.
Cargo Cover Removal
WARNING!
In an accident a cargo cover loose in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store in the vehicle.
1. Detach the cargo area cover and allow it to retract.
2. Grasp cargo area cover assembly and push against the
spring tension to the left.
Cargo Cover Extended
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
