JEEP PATRIOT 2008 1.G Owners Manual

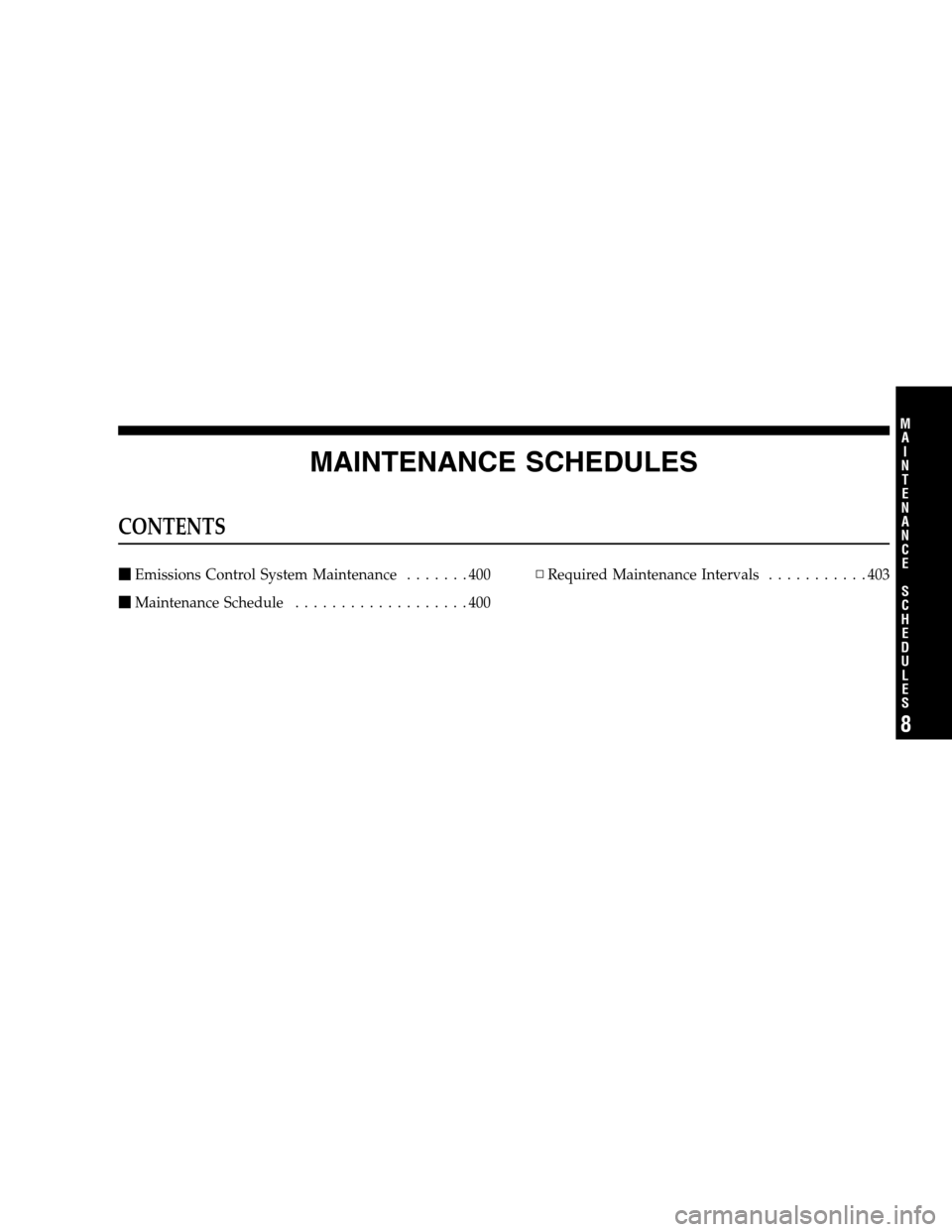

MAINTENANCE SCHEDULES
CONTENTS

Emissions Control System Maintenance.......400

Maintenance Schedule...................400▫Required Maintenance Intervals...........403
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type,
must be done at the times or mileages specified to ensure
the continued proper functioning of the Emissions Con-
trol System. These, and all other maintenance services
included in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE:Maintenance, replacement, or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation condition, the oil change
indicator message will illuminate; this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 mi (805 km).
400 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

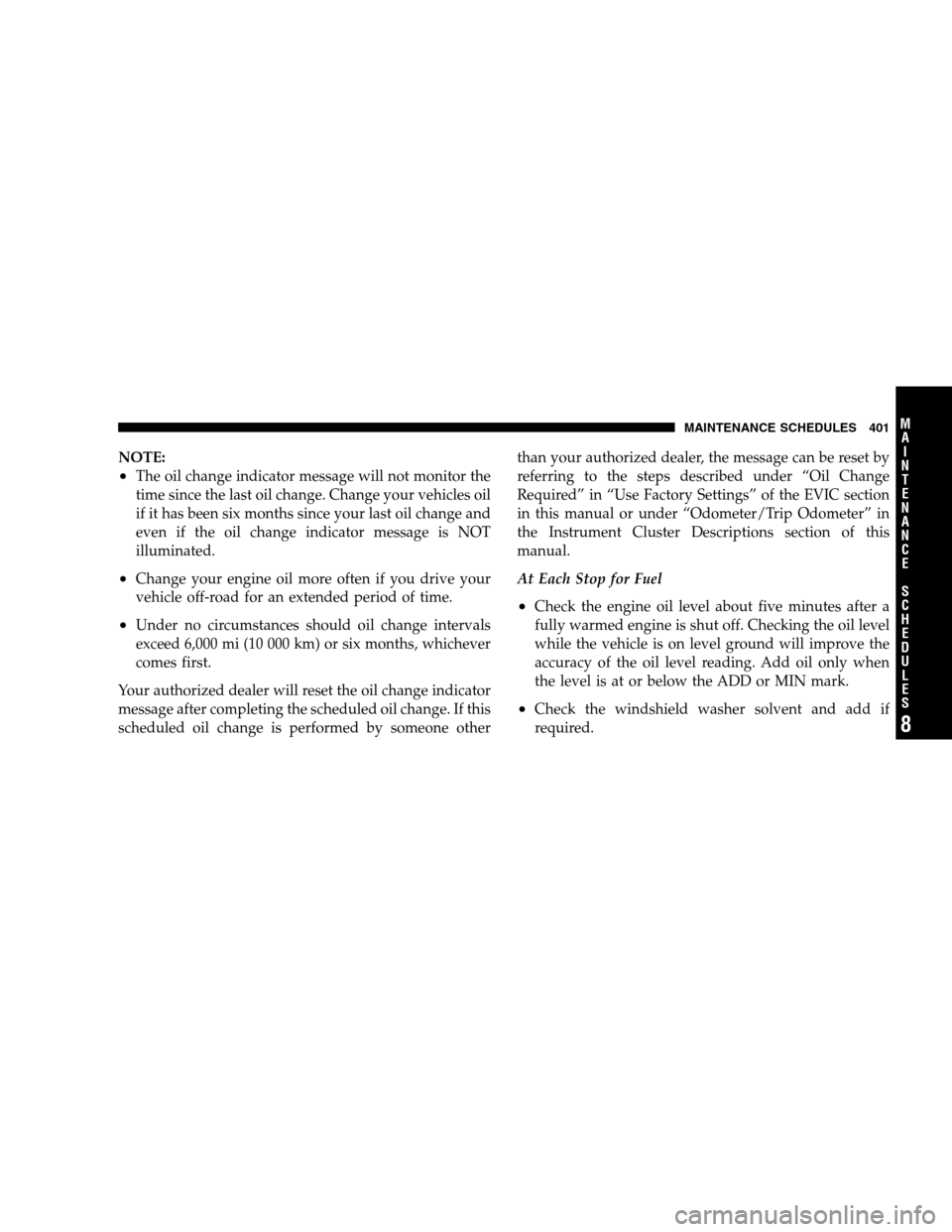

NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicles oil
if it has been six months since your last oil change and
even if the oil change indicator message is NOT
illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 6,000 mi (10 000 km) or six months, whichever
comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If this
scheduled oil change is performed by someone otherthan your authorized dealer, the message can be reset by
referring to the steps described under “Oil Change
Required” in “Use Factory Settings” of the EVIC section
in this manual or under “Odometer/Trip Odometer” in
the Instrument Cluster Descriptions section of this
manual.
At Each Stop for Fuel
•Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
MAINTENANCE SCHEDULES 401
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

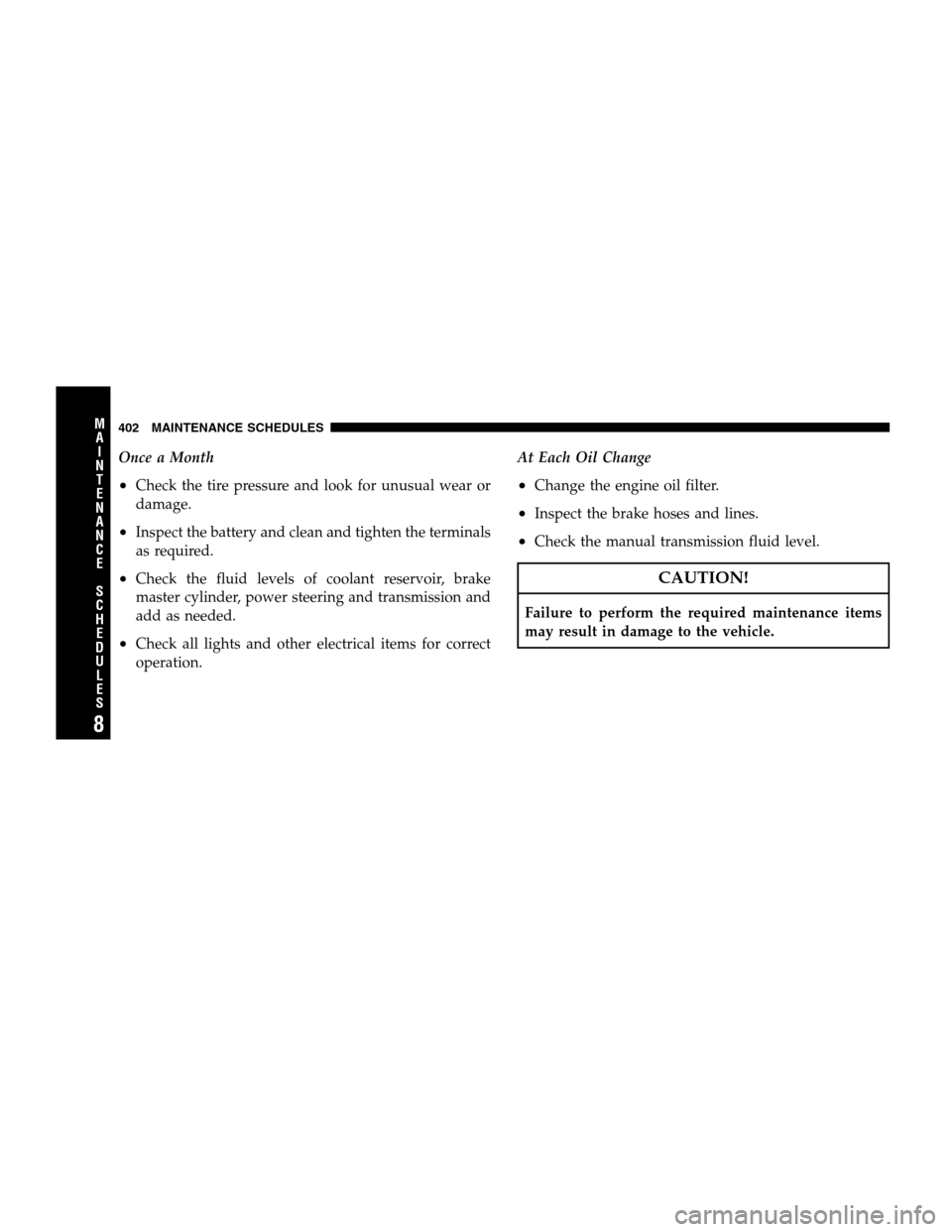

Once a Month
•Check the tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, power steering and transmission and
add as needed.
•Check all lights and other electrical items for correct
operation.At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
•Check the manual transmission fluid level.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
402 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

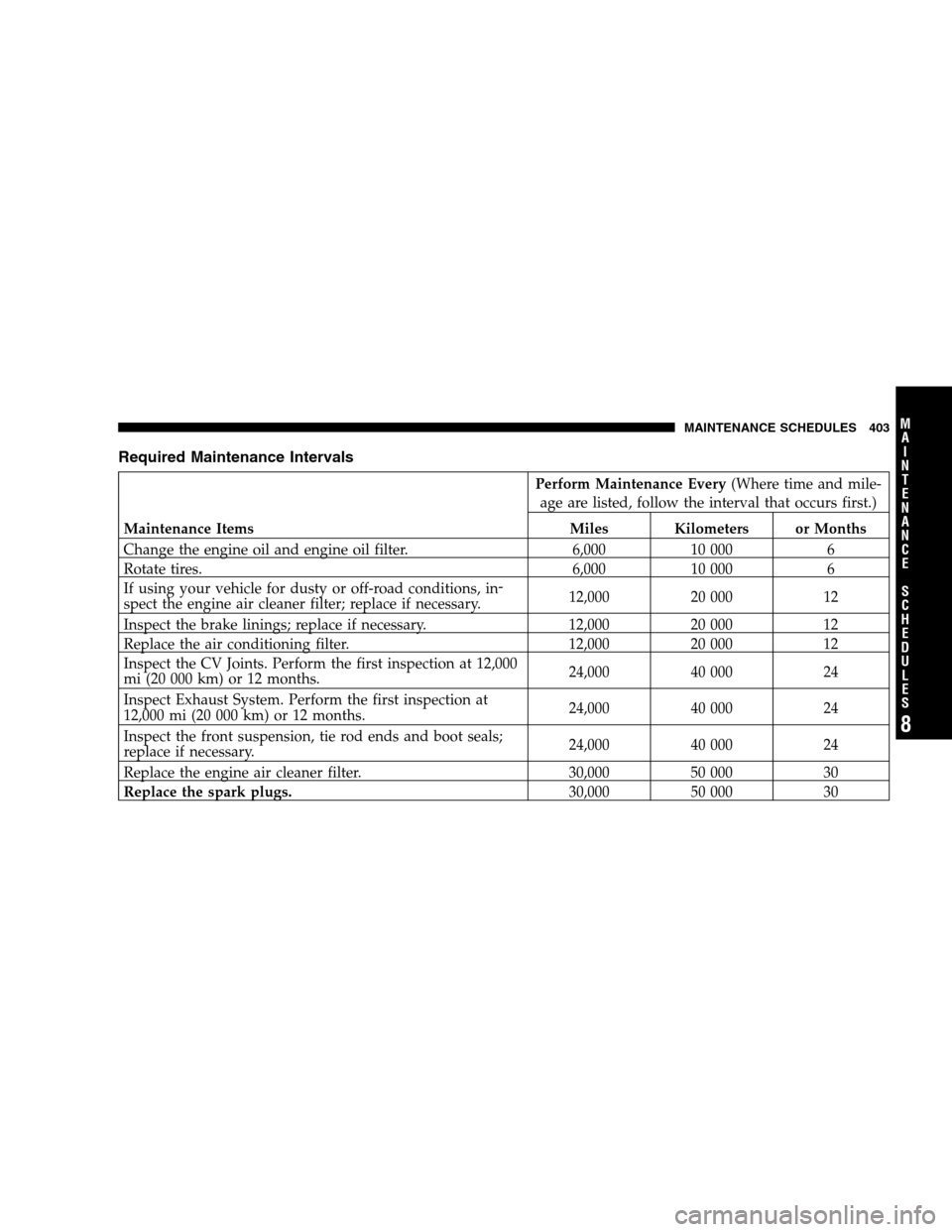

Required Maintenance Intervals
Perform Maintenance Every(Where time and mile-
age are listed, follow the interval that occurs first.)
Maintenance Items Miles Kilometers or Months
Change the engine oil and engine oil filter. 6,000 10 000 6
Rotate tires. 6,000 10 000 6
If using your vehicle for dusty or off-road conditions, in-
spect the engine air cleaner filter; replace if necessary.12,000 20 000 12
Inspect the brake linings; replace if necessary. 12,000 20 000 12
Replace the air conditioning filter. 12,000 20 000 12
Inspect the CV Joints. Perform the first inspection at 12,000
mi (20 000 km) or 12 months.24,000 40 000 24
Inspect Exhaust System. Perform the first inspection at
12,000 mi (20 000 km) or 12 months.24,000 40 000 24
Inspect the front suspension, tie rod ends and boot seals;
replace if necessary.24,000 40 000 24
Replace the engine air cleaner filter. 30,000 50 000 30
Replace the spark plugs.30,000 50 000 30
MAINTENANCE SCHEDULES 403
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

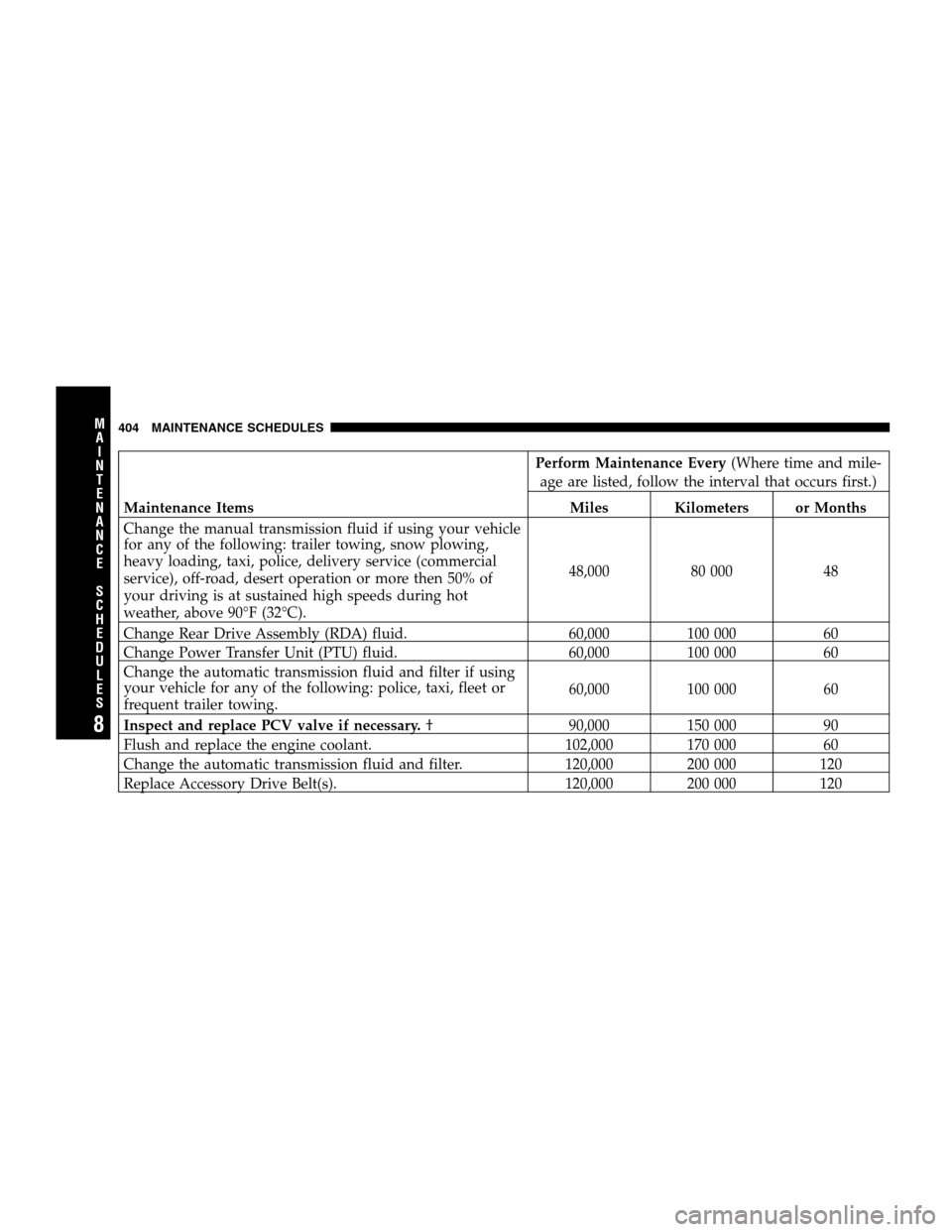

Perform Maintenance Every(Where time and mile-
age are listed, follow the interval that occurs first.)
Maintenance Items Miles Kilometers or Months
Change the manual transmission fluid if using your vehicle
for any of the following: trailer towing, snow plowing,
heavy loading, taxi, police, delivery service (commercial
service), off-road, desert operation or more then 50% of
your driving is at sustained high speeds during hot
weather, above 90°F (32°C).48,000 80 000 48
Change Rear Drive Assembly (RDA) fluid. 60,000 100 000 60
Change Power Transfer Unit (PTU) fluid. 60,000 100 000 60
Change the automatic transmission fluid and filter if using
your vehicle for any of the following: police, taxi, fleet or
frequent trailer towing.60,000 100 000 60
Inspect and replace PCV valve if necessary.† 90,000 150 000 90
Flush and replace the engine coolant. 102,000 170 000 60
Change the automatic transmission fluid and filter. 120,000 200 000 120
Replace Accessory Drive Belt(s). 120,000 200 000 120
404 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

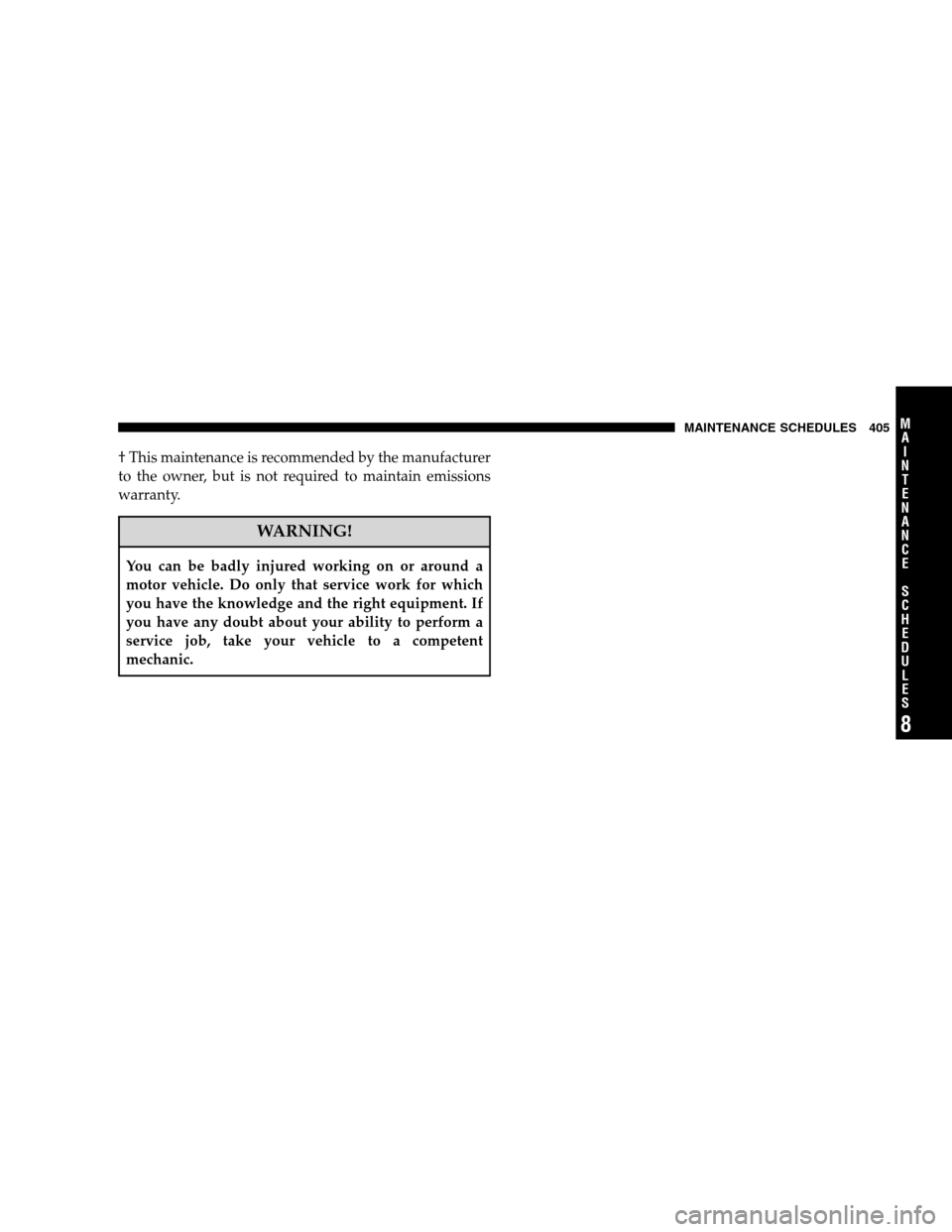

† This maintenance is recommended by the manufacturer
to the owner, but is not required to maintain emissions
warranty.
WARNING!
You can be badly injured working on or around a
motor vehicle. Do only that service work for which
you have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent
mechanic.
MAINTENANCE SCHEDULES 405
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

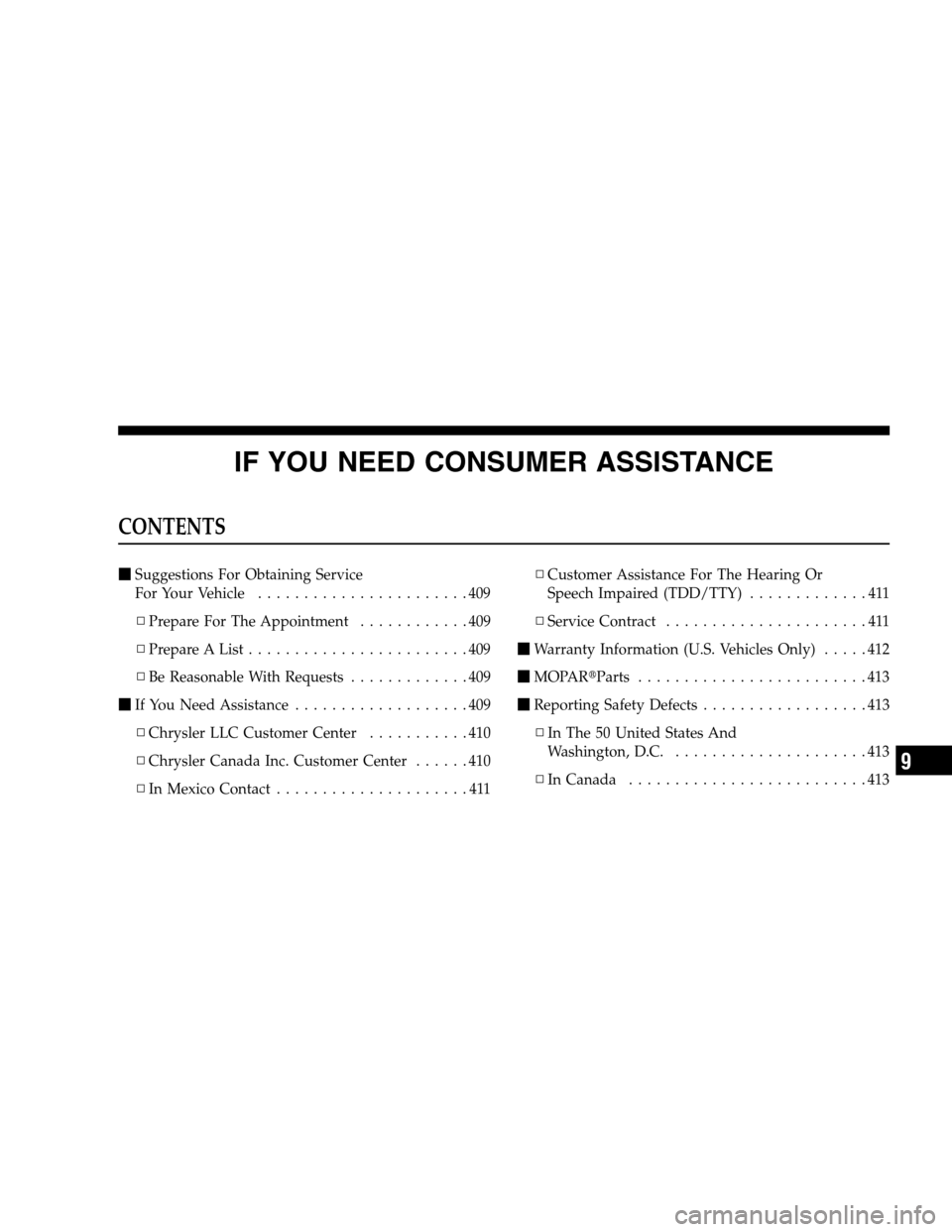

IF YOU NEED CONSUMER ASSISTANCE
CONTENTS

Suggestions For Obtaining Service
ForYourVehicle .......................409
▫Prepare For The Appointment............409
▫Prepare A List........................409
▫Be Reasonable With Requests.............409

If You Need Assistance...................409
▫Chrysler LLC Customer Center...........410
▫Chrysler Canada Inc. Customer Center......410
▫In Mexico Contact.....................411▫Customer Assistance For The Hearing Or
Speech Impaired (TDD/TTY).............411
▫Service Contract......................411

Warranty Information (U.S. Vehicles Only).....412

MOPARParts.........................413

Reporting Safety Defects..................413
▫In The 50 United States And
Washington, D.C......................413
▫In Canada..........................413
9

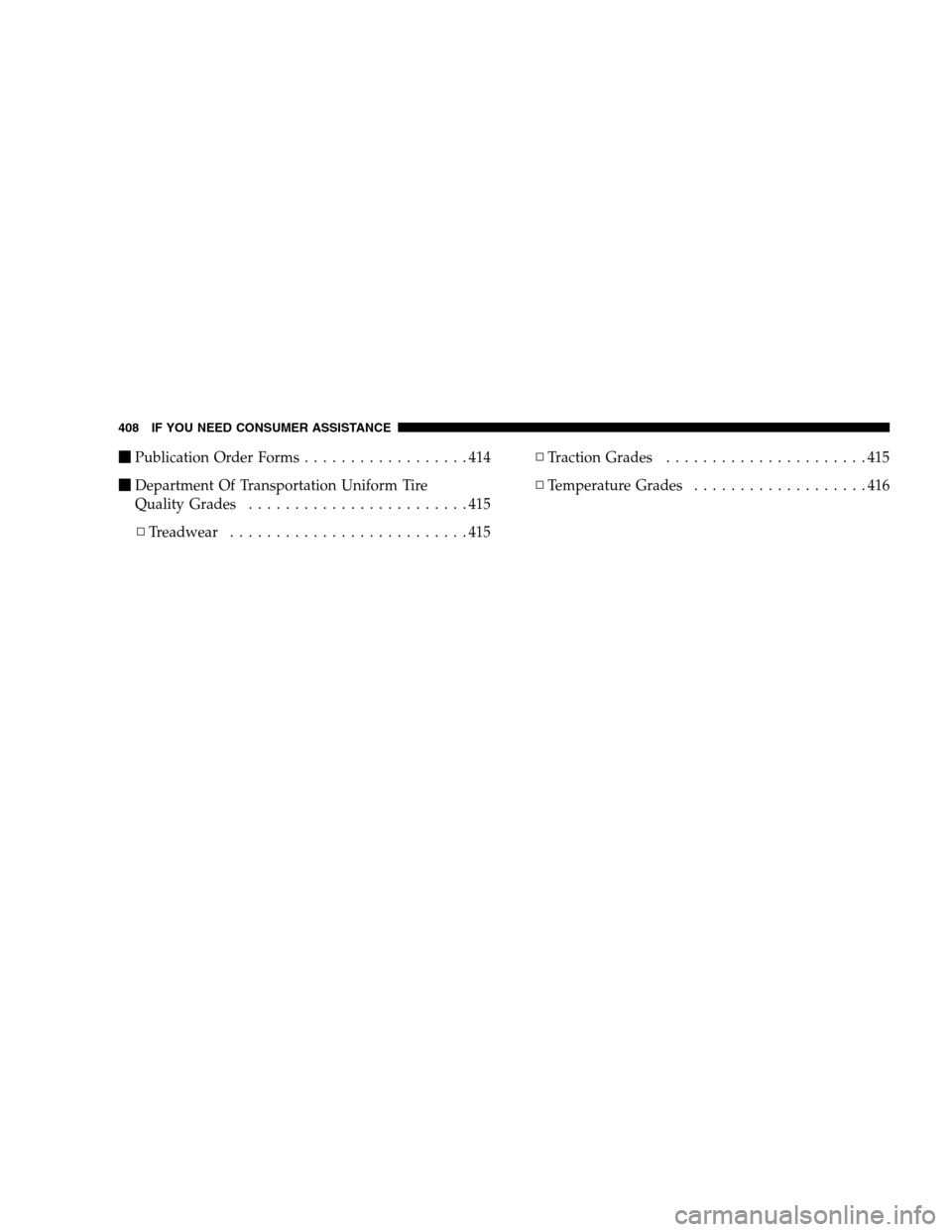

Publication Order Forms..................414

Department Of Transportation Uniform Tire
Quality Grades........................415
▫Treadwear..........................415▫Traction Grades......................415
▫Temperature Grades...................416
408 IF YOU NEED CONSUMER ASSISTANCE
