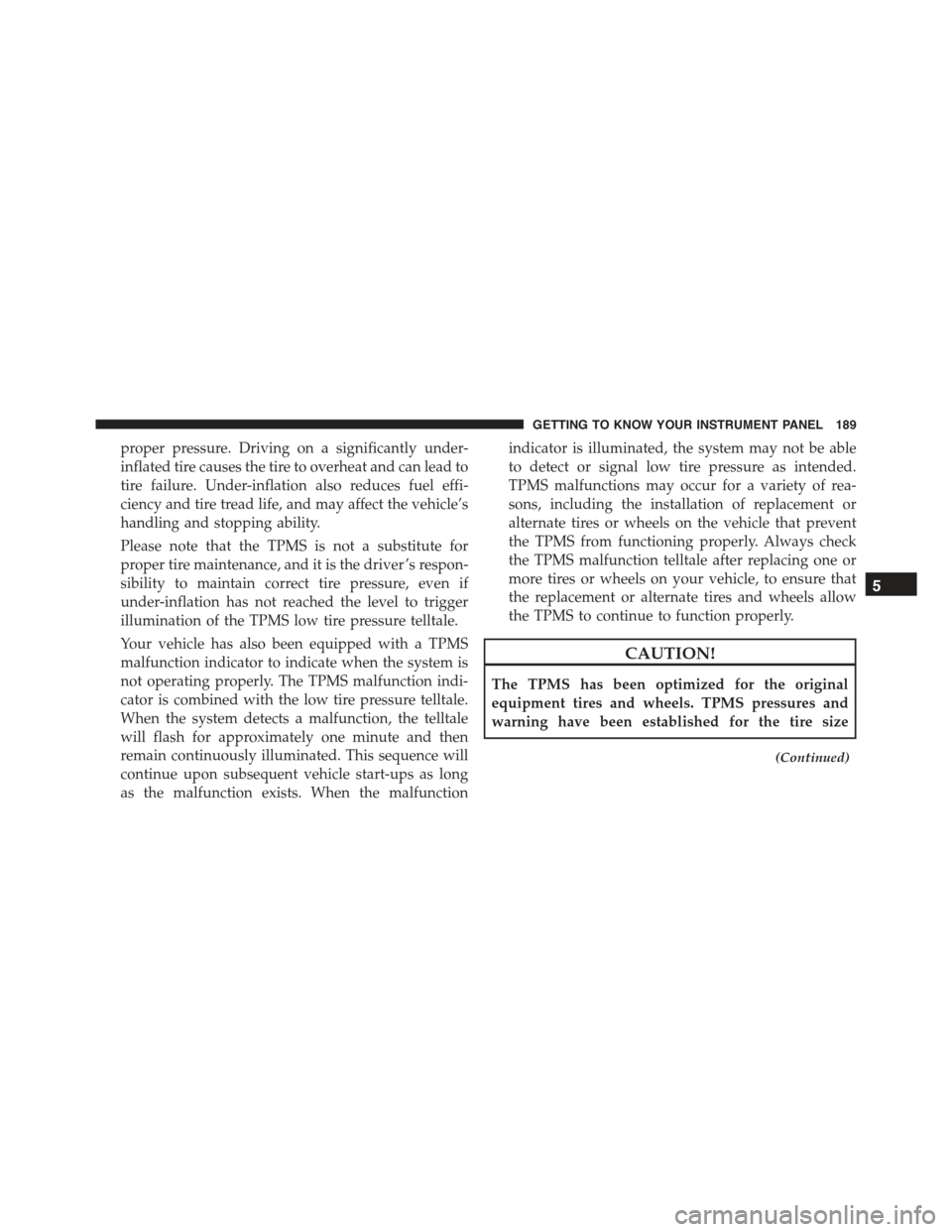

proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the vehicle’s
handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver ’s respon-
sibility to maintain correct tire pressure, even if
under-inflation has not reached the level to trigger
illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is
not operating properly. The TPMS malfunction indi-
cator is combined with the low tire pressure telltale.
When the system detects a malfunction, the telltale
will flash for approximately one minute and then
remain continuously illuminated. This sequence will
continue upon subsequent vehicle start-ups as long
as the malfunction exists. When the malfunction
indicator is illuminated, the system may not be able
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of rea-
sons, including the installation of replacement or
alternate tires or wheels on the vehicle that prevent
the TPMS from functioning properly. Always check
the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle, to ensure that
the replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
CAUTION!
The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
(Continued)
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 189

CAUTION!(Continued)
equipped on your vehicle. Undesirable system opera-
tion or sensor damage may result when using re-
placement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage. Using aftermarket tire sealants may
cause the Tire Pressure Monitoring System (TPMS)
sensor to become inoperable. After using an after-
market tire sealant it is recommended that you take
your vehicle to an authorized dealership to have your
sensor function checked.
•What To Do
Do not drive your vehicle with one or more tires
deflated because the driveability of the car could be
compromised. Stop the car and avoid braking and
sharp turns. Contact your authorized dealer as soon
as possible.
ESC System
•What Does It Mean
Intervention ESC System:The light will
start to flash as soon as the tires lose
traction and the ESC system becomes ac-
tive. If the “ESC Activation/Malfunction Indicator
Light” begins to flash during acceleration, ease up on
the accelerator and apply as little throttle as possible.
Be sure to adapt your speed and driving to the
prevailing road conditions.
Failure ESC System:If the light remains perma-
nently on after four second of the engine running,
there may be a failure in ESC system.
190 GETTING TO KNOW YOUR INSTRUMENT PANEL

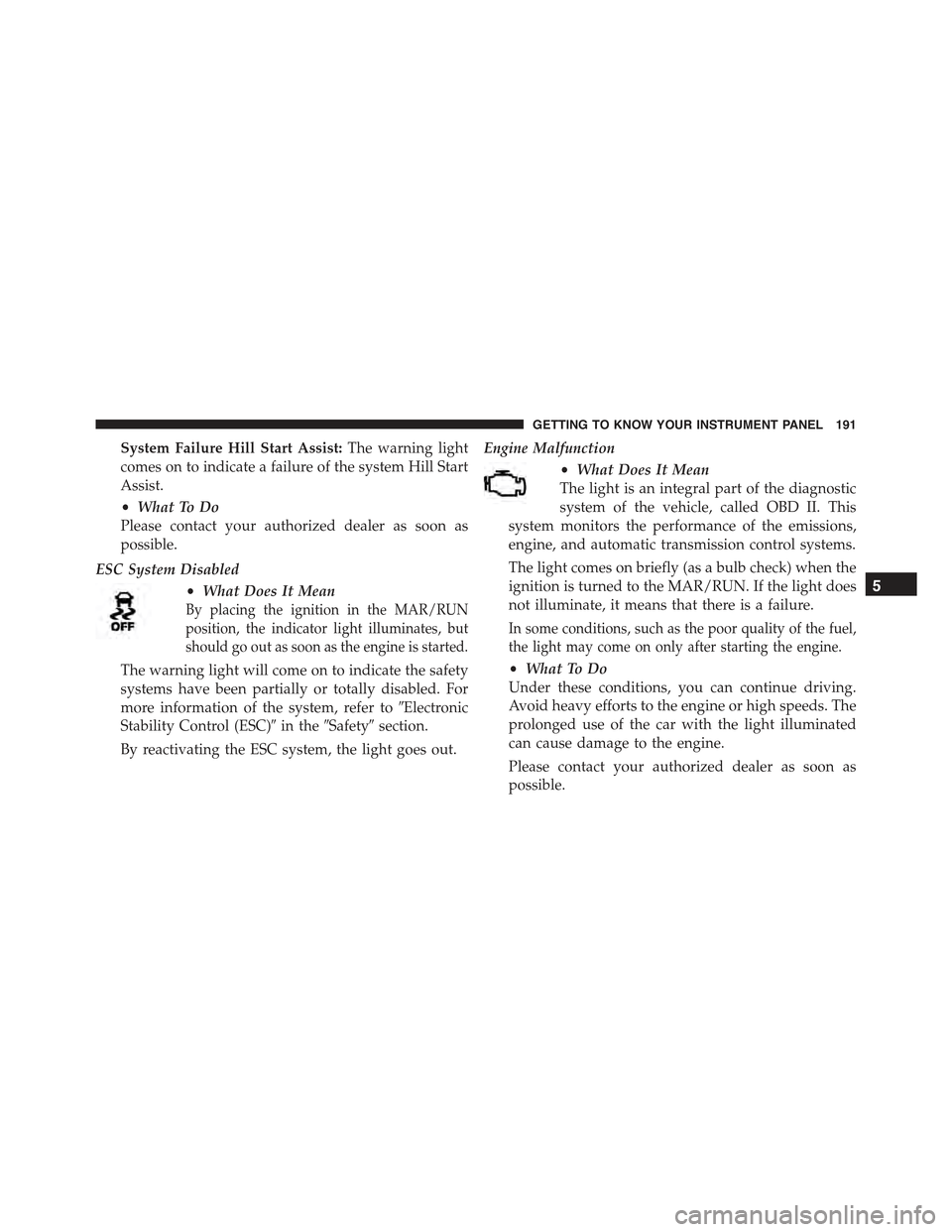

System Failure Hill Start Assist:The warning light
comes on to indicate a failure of the system Hill Start
Assist.
•What To Do
Please contact your authorized dealer as soon as
possible.
ESC System Disabled
•What Does It Mean
By placing the ignition in the MAR/RUN
position, the indicator light illuminates, but
should go out as soon as the engine is started.
The warning light will come on to indicate the safety
systems have been partially or totally disabled. For
more information of the system, refer to#Electronic
Stability Control (ESC)#in the#Safety#section.
By reactivating the ESC system, the light goes out.
Engine Malfunction
•What Does It Mean
The light is an integral part of the diagnostic
system of the vehicle, called OBD II. This
system monitors the performance of the emissions,
engine, and automatic transmission control systems.
The light comes on briefly (as a bulb check) when the
ignition is turned to the MAR/RUN. If the light does
not illuminate, it means that there is a failure.
In some conditions, such as the poor quality of the fuel,
the light may come on only after starting the engine.
•What To Do
Under these conditions, you can continue driving.
Avoid heavy efforts to the engine or high speeds. The
prolonged use of the car with the light illuminated
can cause damage to the engine.
Please contact your authorized dealer as soon as
possible.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 191

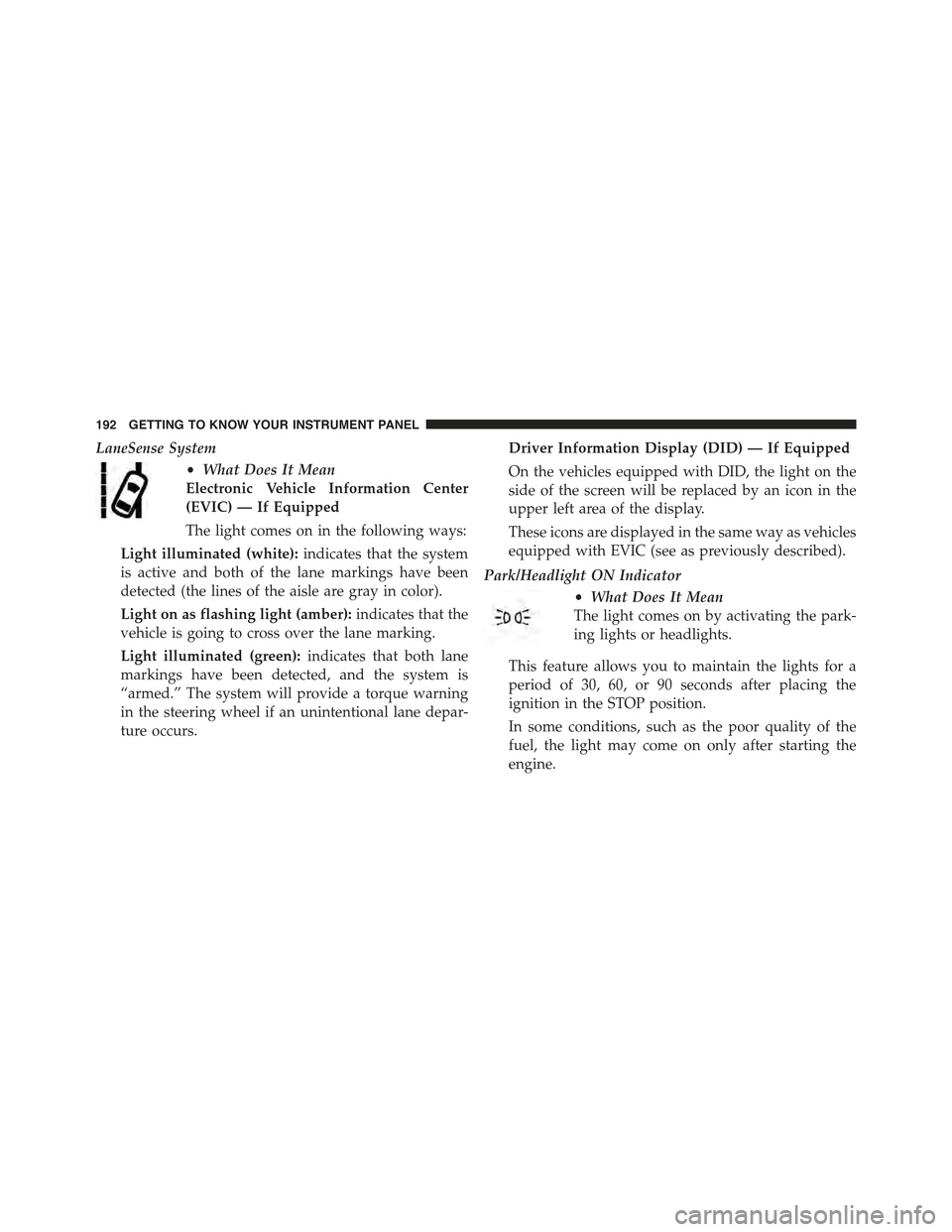

LaneSense System
•What Does It Mean
Electronic Vehicle Information Center
(EVIC) — If Equipped
The light comes on in the following ways:
Light illuminated (white):indicates that the system
is active and both of the lane markings have been
detected (the lines of the aisle are gray in color).
Light on as flashing light (amber):indicates that the
vehicle is going to cross over the lane marking.
Light illuminated (green):indicates that both lane
markings have been detected, and the system is
“armed.” The system will provide a torque warning
in the steering wheel if an unintentional lane depar-
ture occurs.
Driver Information Display (DID) — If Equipped
On the vehicles equipped with DID, the light on the
side of the screen will be replaced by an icon in the
upper left area of the display.
These icons are displayed in the same way as vehicles
equipped with EVIC (see as previously described).
Park/Headlight ON Indicator
•What Does It Mean
The light comes on by activating the park-
ing lights or headlights.
This feature allows you to maintain the lights for a
period of 30, 60, or 90 seconds after placing the
ignition in the STOP position.
In some conditions, such as the poor quality of the
fuel, the light may come on only after starting the
engine.
192 GETTING TO KNOW YOUR INSTRUMENT PANEL

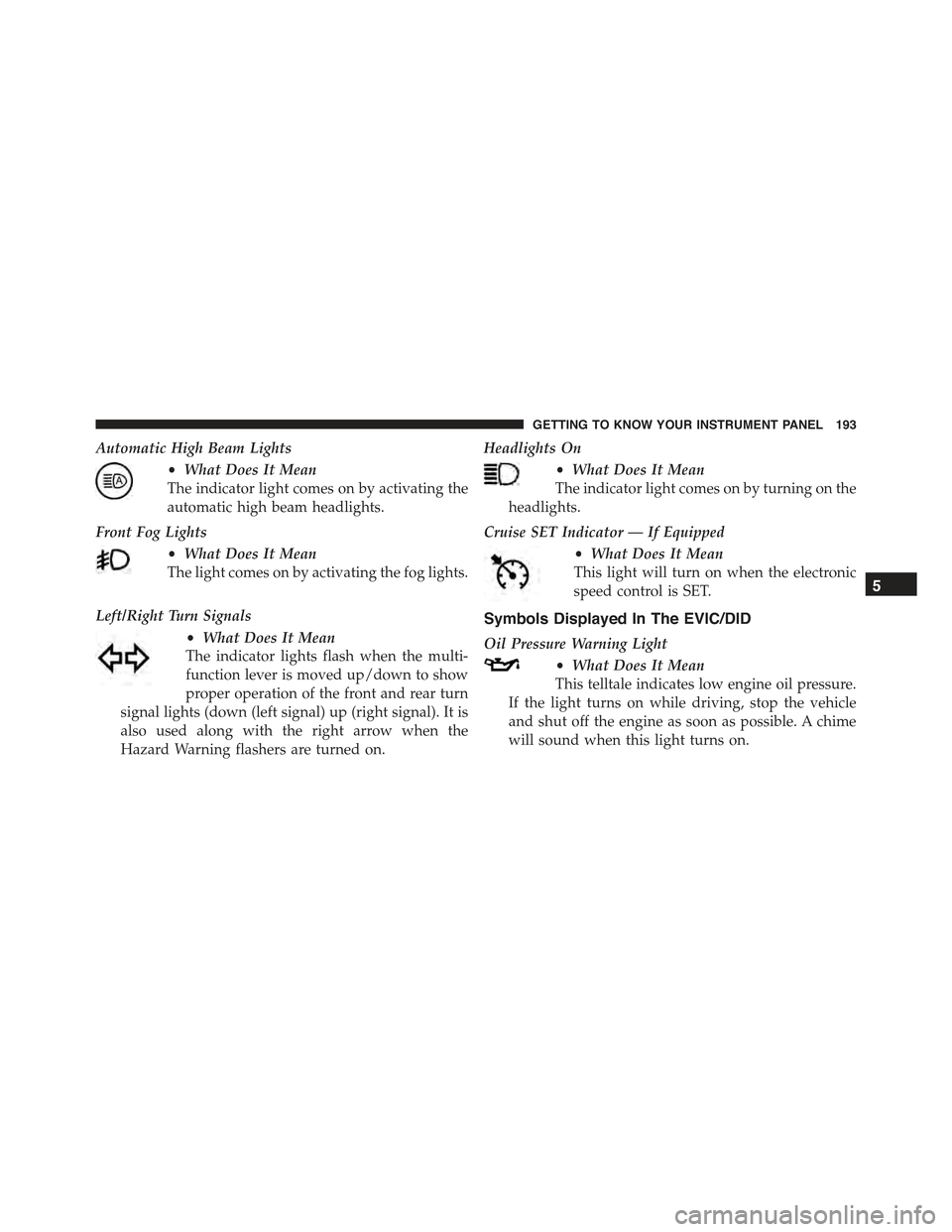

Automatic High Beam Lights
•What Does It Mean
The indicator light comes on by activating the
automatic high beam headlights.
Front Fog Lights
•What Does It Mean
The light comes on by activating the fog lights.
Left/Right Turn Signals
•What Does It Mean
The indicator lights flash when the multi-
function lever is moved up/down to show
proper operation of the front and rear turn
signal lights (down (left signal) up (right signal). It is
also used along with the right arrow when the
Hazard Warning flashers are turned on.
Headlights On
•What Does It Mean
The indicator light comes on by turning on the
headlights.
Cruise SET Indicator — If Equipped
•What Does It Mean
This light will turn on when the electronic
speed control is SET.
Symbols Displayed In The EVIC/DID
Oil Pressure Warning Light
•What Does It Mean
This telltale indicates low engine oil pressure.
If the light turns on while driving, stop the vehicle
and shut off the engine as soon as possible. A chime
will sound when this light turns on.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 193

Do not operate the vehicle until the cause is cor-
rected. This light does not show how much oil is in
the engine. The engine oil level must be checked
under the hood.
NOTE:If the symbol comes on while driving, stop the
engine immediately and see an authorized dealer as soon
as possible.
Air Bag Warning Light
•What Does It Mean
Illumination of the Air Bag Warning Light
indicates a failure of the air bag system
when the ignition switch is placed in the
MAR/RUN position.
The display shows the message dedicated.
•What To Do
If the light is either not on during starting, stays on,
or turns on while driving, have the system inspected
at an authorized dealer as soon as possible.
Charging System Light
•What Does It Mean
This light shows the status of the electrical
charging system. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-
essential electrical devices or increase engine speed
(if at idle). If the charging system light remains on, it
means that the vehicle is experiencing a problem with
the charging system.
•What To Do
Have your vehicle serviced immediately. See an au-
thorized dealer.
Door Ajar
•What Does It Mean
This light will illuminate to indicate that
one or more doors may be ajar. With the
doors open and the vehicle in motion, a
chime will sound.
194 GETTING TO KNOW YOUR INSTRUMENT PANEL

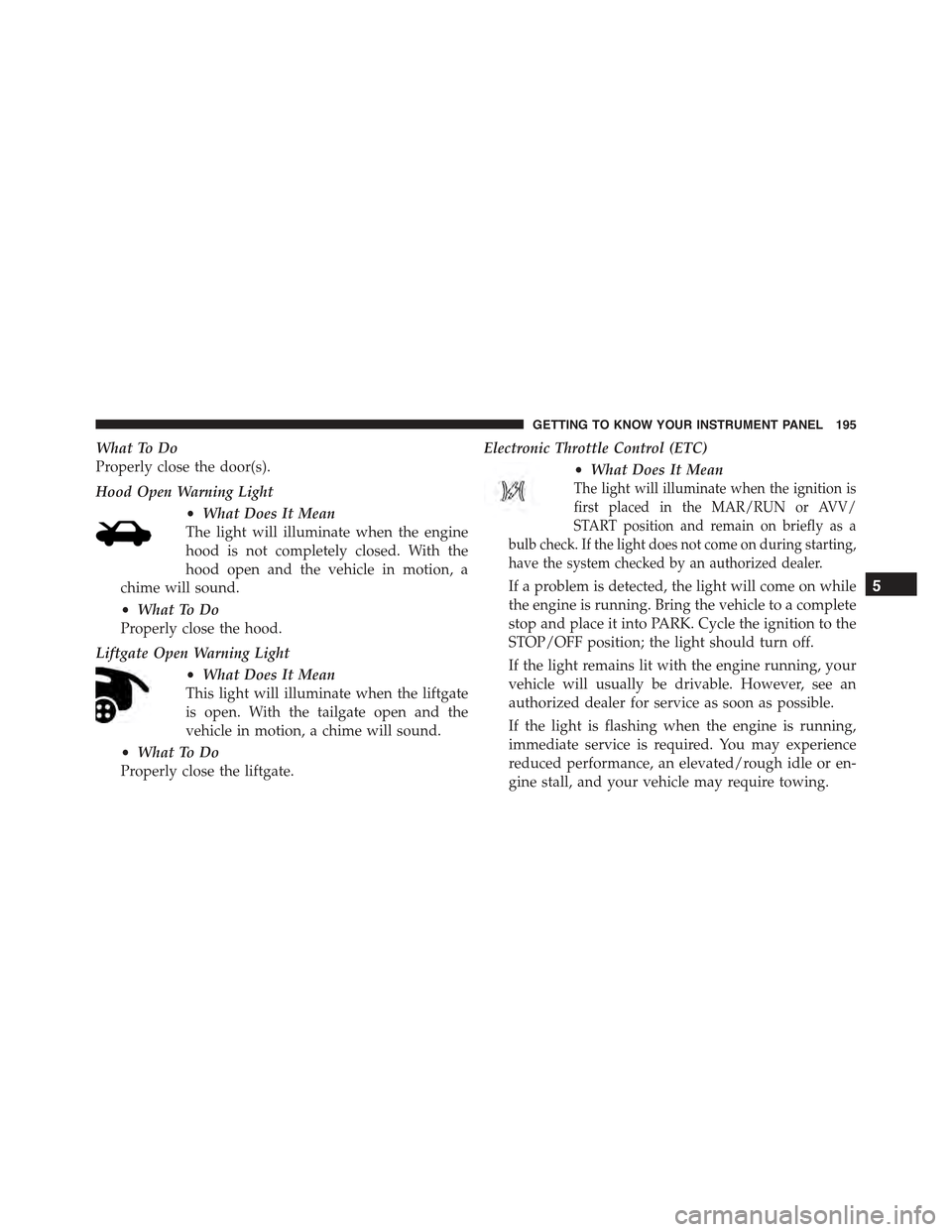

What To Do
Properly close the door(s).
Hood Open Warning Light
•What Does It Mean
The light will illuminate when the engine
hood is not completely closed. With the
hood open and the vehicle in motion, a
chime will sound.
•What To Do
Properly close the hood.
Liftgate Open Warning Light
•What Does It Mean
This light will illuminate when the liftgate
is open. With the tailgate open and the
vehicle in motion, a chime will sound.
•What To Do
Properly close the liftgate.
Electronic Throttle Control (ETC)
•What Does It Mean
The light will illuminate when the ignition is
first placed in the MAR/RUN or AVV/
START position and remain on briefly as a
bulb check. If the light does not come on during starting,
have the system checked by an authorized dealer.
If a problem is detected, the light will come on while
the engine is running. Bring the vehicle to a complete
stop and place it into PARK. Cycle the ignition to the
STOP/OFF position; the light should turn off.
If the light remains lit with the engine running, your
vehicle will usually be drivable. However, see an
authorized dealer for service as soon as possible.
If the light is flashing when the engine is running,
immediate service is required. You may experience
reduced performance, an elevated/rough idle or en-
gine stall, and your vehicle may require towing.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 195

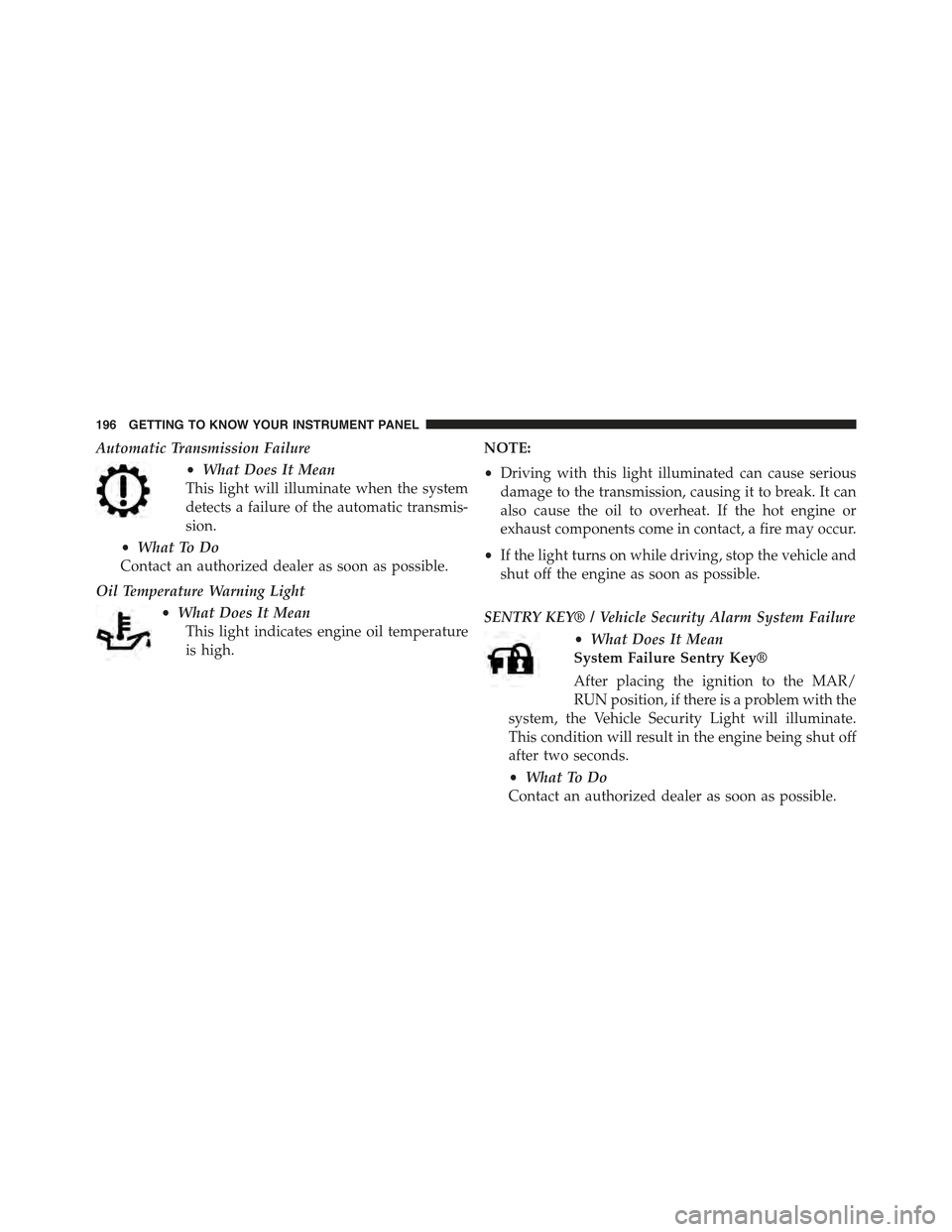

Automatic Transmission Failure
•What Does It Mean
This light will illuminate when the system
detects a failure of the automatic transmis-
sion.
•What To Do
Contact an authorized dealer as soon as possible.
Oil Temperature Warning Light
•What Does It Mean
This light indicates engine oil temperature
is high.
NOTE:
•Driving with this light illuminated can cause serious
damage to the transmission, causing it to break. It can
also cause the oil to overheat. If the hot engine or
exhaust components come in contact, a fire may occur.
•If the light turns on while driving, stop the vehicle and
shut off the engine as soon as possible.
SENTRY KEY® / Vehicle Security Alarm System Failure
•What Does It Mean
System Failure Sentry Key®
After placing the ignition to the MAR/
RUN position, if there is a problem with the
system, the Vehicle Security Light will illuminate.
This condition will result in the engine being shut off
after two seconds.
•What To Do
Contact an authorized dealer as soon as possible.
196 GETTING TO KNOW YOUR INSTRUMENT PANEL

Enhanced Accident Response System
•What Does It Mean
The light illuminates when there is a fuel
system shut off.
•What To Do
To reactivate the fuel system shut off, refer to#En-
hanced Accident Response System#in#In Case Of
Emergency#for more information. If you cannot
restore the supply of fuel, contact an authorized
dealer.
Ice Present On Road
•What Does It Mean
The light illuminates when the outside tem-
perature is less than or equal to 37 °F (3 °C).
If there is a failure of the external tempera-
ture sensor, dashes will replace the digits.
Engine Oil Pressure Sensor Failure
•What Does It Mean
This light indicates engine oil pressure sen-
sor failure. An oil change may be needed.
Forward Collision Telltale
•What Does It Mean
This light will illuminate to warn of a
possible collision with the vehicle in front
of you. If the light remains on, there may be
a fault in the system.
•What To Do
Please contact an authorized dealer.
Rain Sensor Failure
•What Does It Mean
The light illuminates in a rain sensor failure.
•What To Do
Please contact an authorized dealer.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 197

Light Sensor Failure
•What Does It Mean
The light illuminates in a the light sensor
failure.
•What To Do
Please contact an authorized dealer.
Exterior Light Failure
•What Does It Mean
This light illuminates to indicate a failure of
any of the following lights:
1. Daytime Running Lights (DRL)
2. Parking lights
3. Turn Signals for trailer (if equipped)
4. Trailer lights (if equipped)
5. Position lights
6. Turn Signals
7. Rear Fog light
8. Reverse light
9. Stop lights
10. License Plate lights
The failure could be due to the burning out of the
lamp or protection fuse, or the interruption of the
electrical connection.
•What To Do
Replace the lamp or its fuse. Please contact an autho-
rized dealer.
Keyless Enter-N-Go™ System Failure
•What Does It Mean
The light illuminates in case of failure of
the Keyless Enter-N-Go™.
•What To Do
Please contact an authorized dealer.
198 GETTING TO KNOW YOUR INSTRUMENT PANEL
