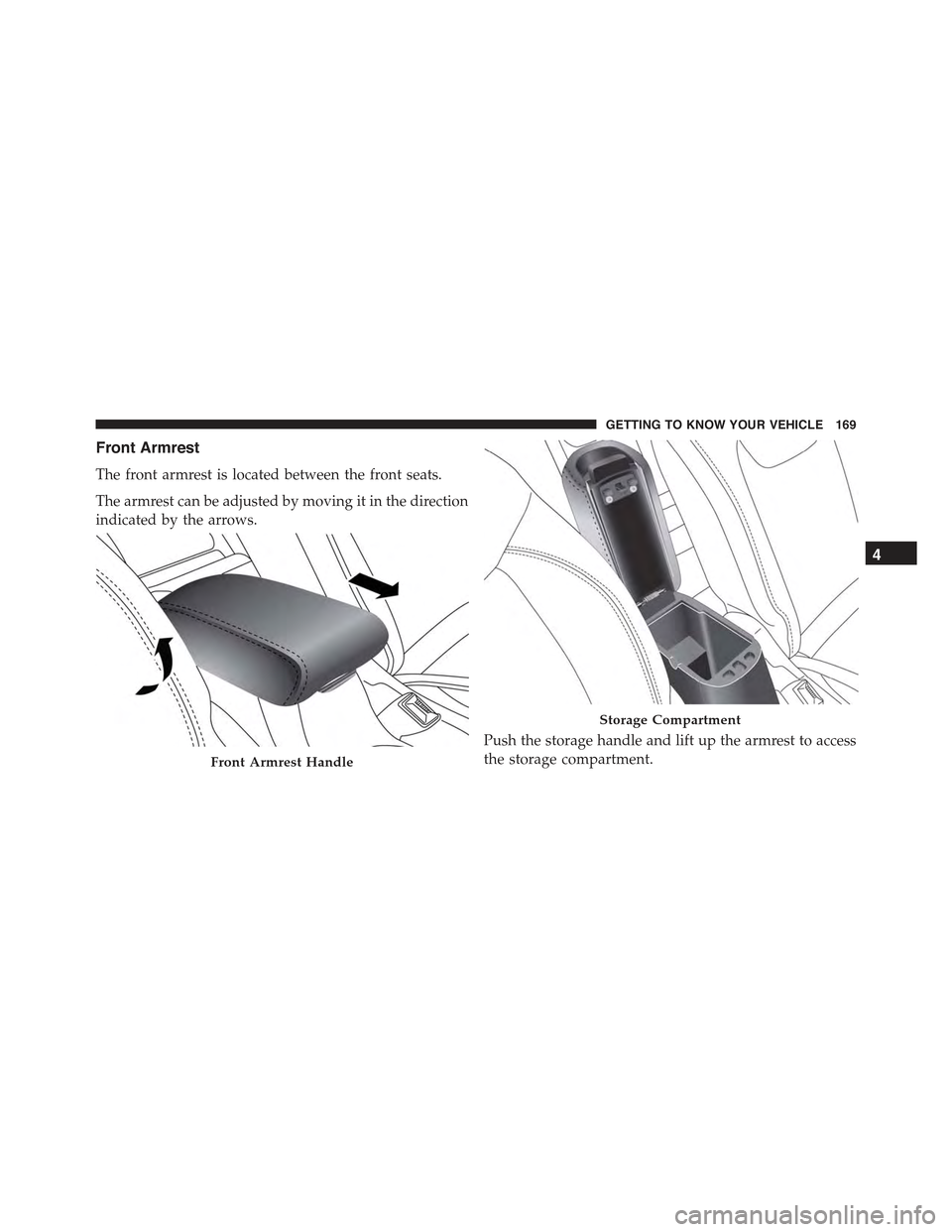

Front Armrest
The front armrest is located between the front seats.
The armrest can be adjusted by moving it in the direction
indicated by the arrows.
Push the storage handle and lift up the armrest to access
the storage compartment.Front Armrest Handle
Storage Compartment
4
GETTING TO KNOW YOUR VEHICLE 169

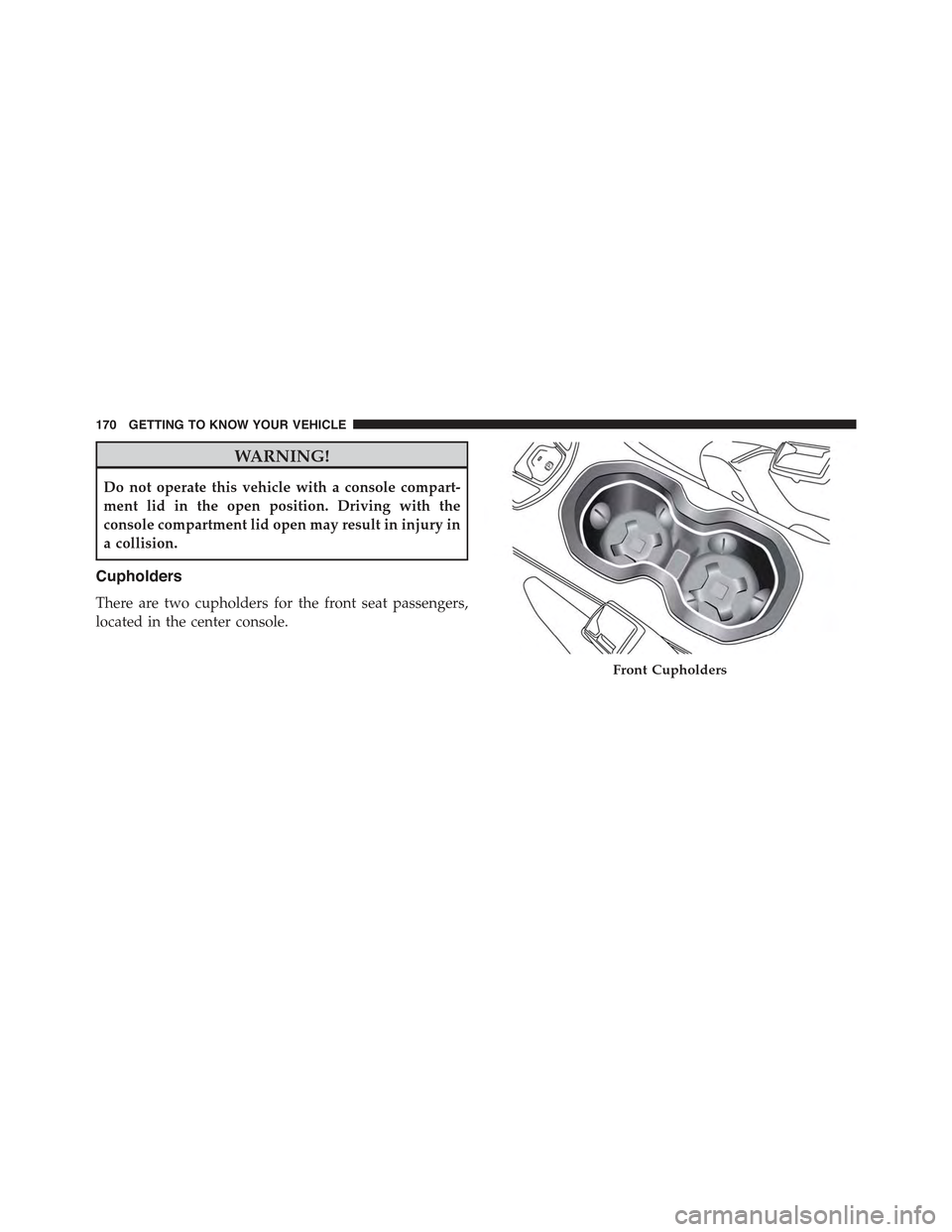

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.
Cupholders
There are two cupholders for the front seat passengers,
located in the center console.
Front Cupholders
170 GETTING TO KNOW YOUR VEHICLE

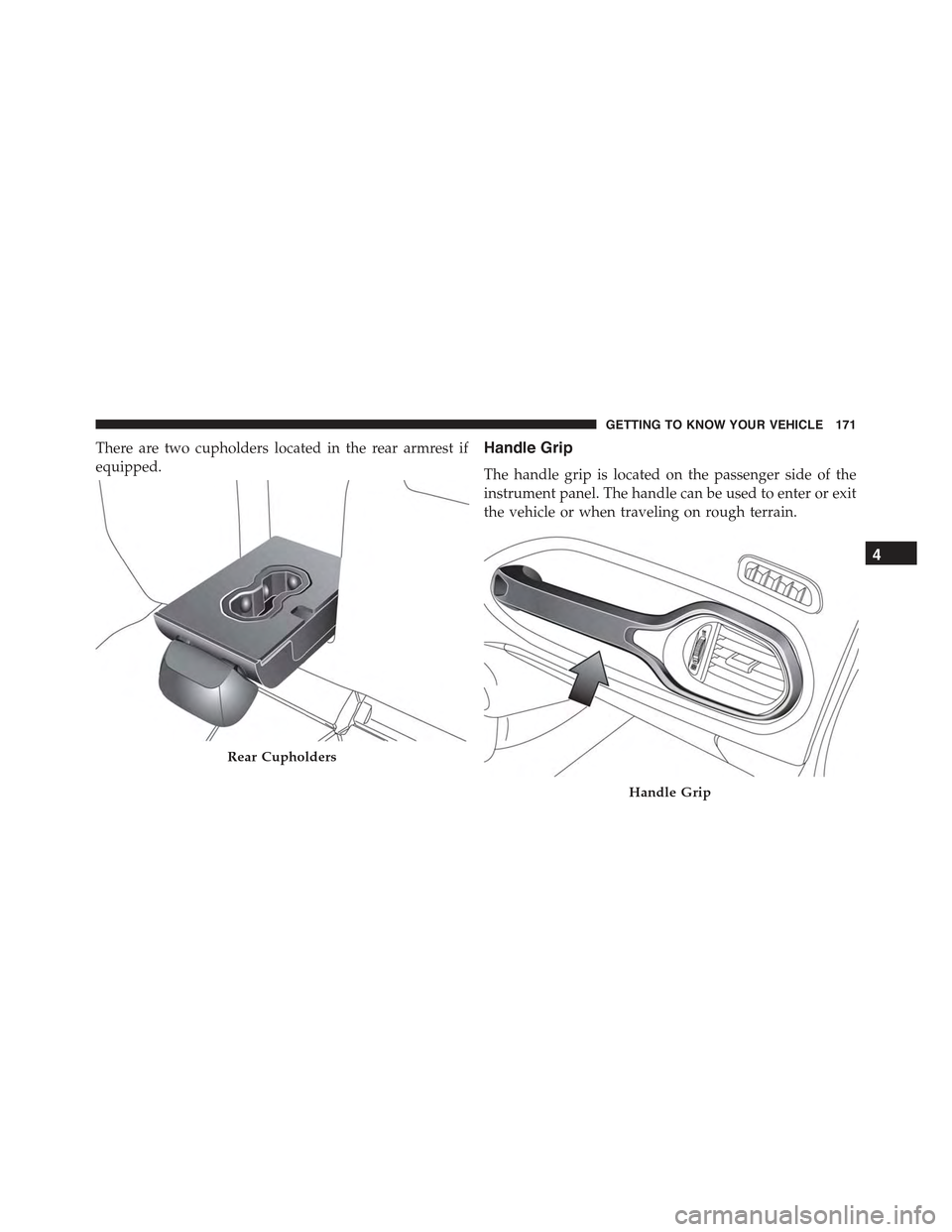

There are two cupholders located in the rear armrest if
equipped.
Handle Grip
The handle grip is located on the passenger side of the
instrument panel. The handle can be used to enter or exit
the vehicle or when traveling on rough terrain.
Rear Cupholders
Handle Grip
4
GETTING TO KNOW YOUR VEHICLE 171

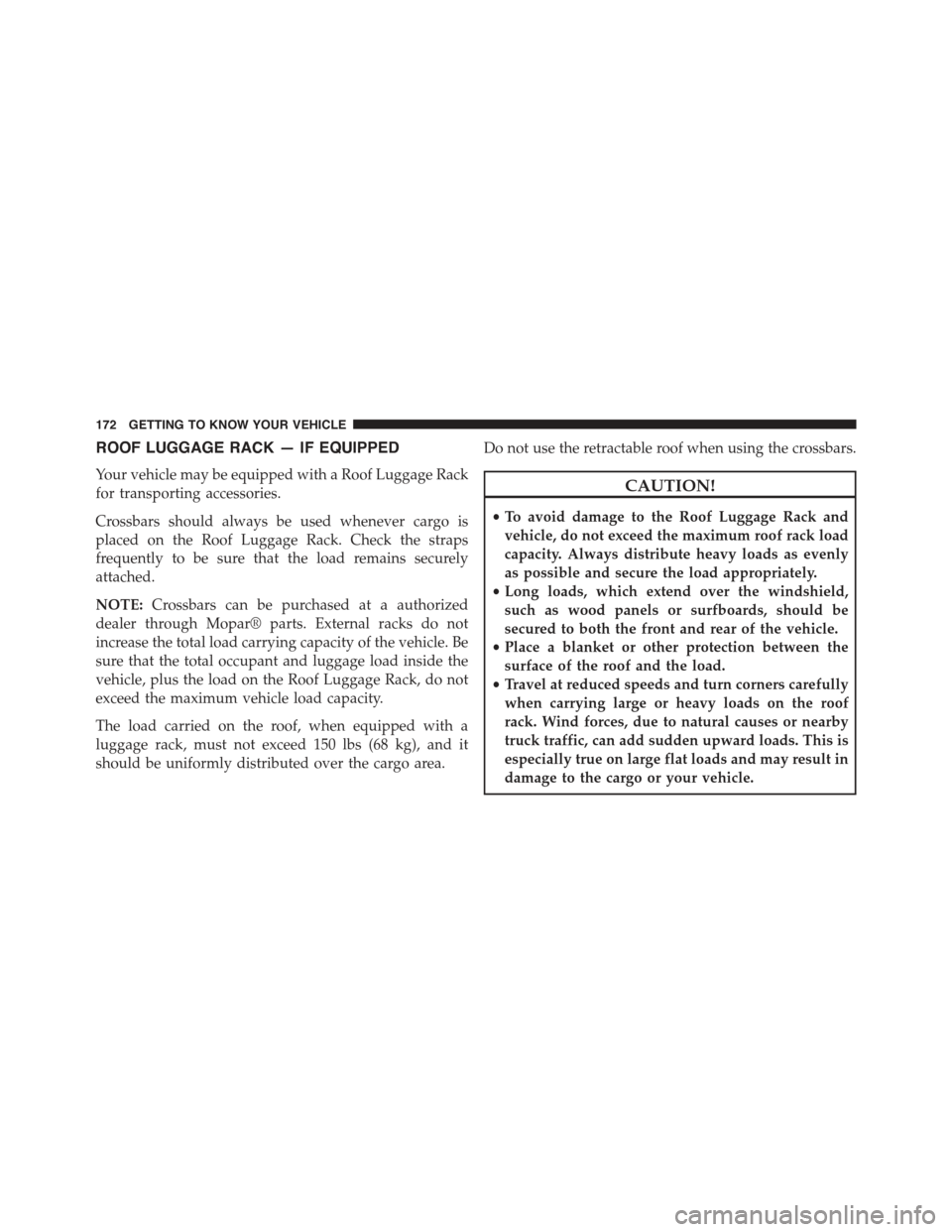

ROOF LUGGAGE RACK — IF EQUIPPED
Your vehicle may be equipped with a Roof Luggage Rack
for transporting accessories.
Crossbars should always be used whenever cargo is
placed on the Roof Luggage Rack. Check the straps
frequently to be sure that the load remains securely
attached.
NOTE:Crossbars can be purchased at a authorized
dealer through Mopar® parts. External racks do not
increase the total load carrying capacity of the vehicle. Be
sure that the total occupant and luggage load inside the
vehicle, plus the load on the Roof Luggage Rack, do not
exceed the maximum vehicle load capacity.
The load carried on the roof, when equipped with a
luggage rack, must not exceed 150 lbs (68 kg), and it
should be uniformly distributed over the cargo area.
Do not use the retractable roof when using the crossbars.
CAUTION!
•To avoid damage to the Roof Luggage Rack and
vehicle, do not exceed the maximum roof rack load
capacity. Always distribute heavy loads as evenly
as possible and secure the load appropriately.
•Long loads, which extend over the windshield,
such as wood panels or surfboards, should be
secured to both the front and rear of the vehicle.
•Place a blanket or other protection between the
surface of the roof and the load.
•Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward loads. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
172 GETTING TO KNOW YOUR VEHICLE

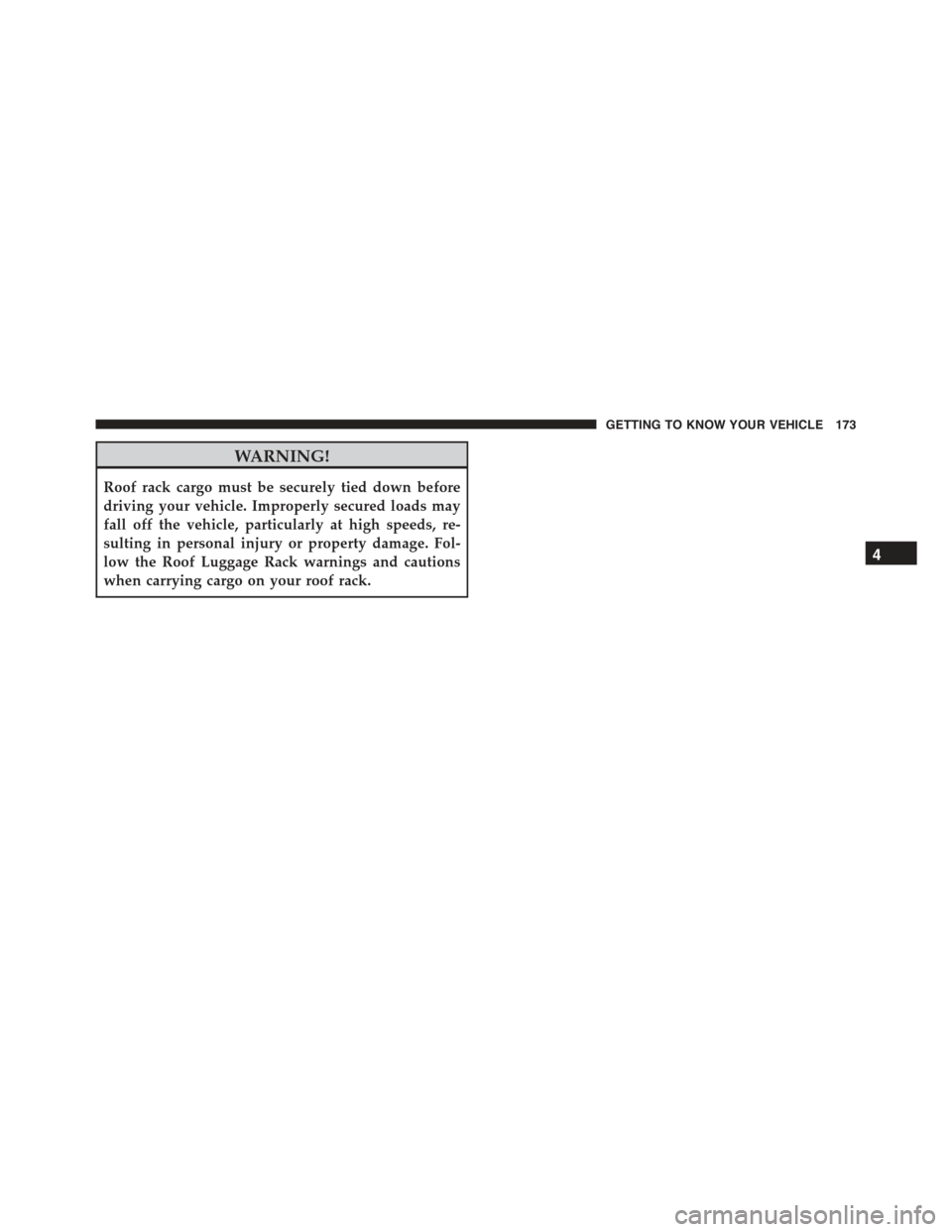

WARNING!
Roof rack cargo must be securely tied down before
driving your vehicle. Improperly secured loads may
fall off the vehicle, particularly at high speeds, re-
sulting in personal injury or property damage. Fol-
low the Roof Luggage Rack warnings and cautions
when carrying cargo on your roof rack.
4
GETTING TO KNOW YOUR VEHICLE 173

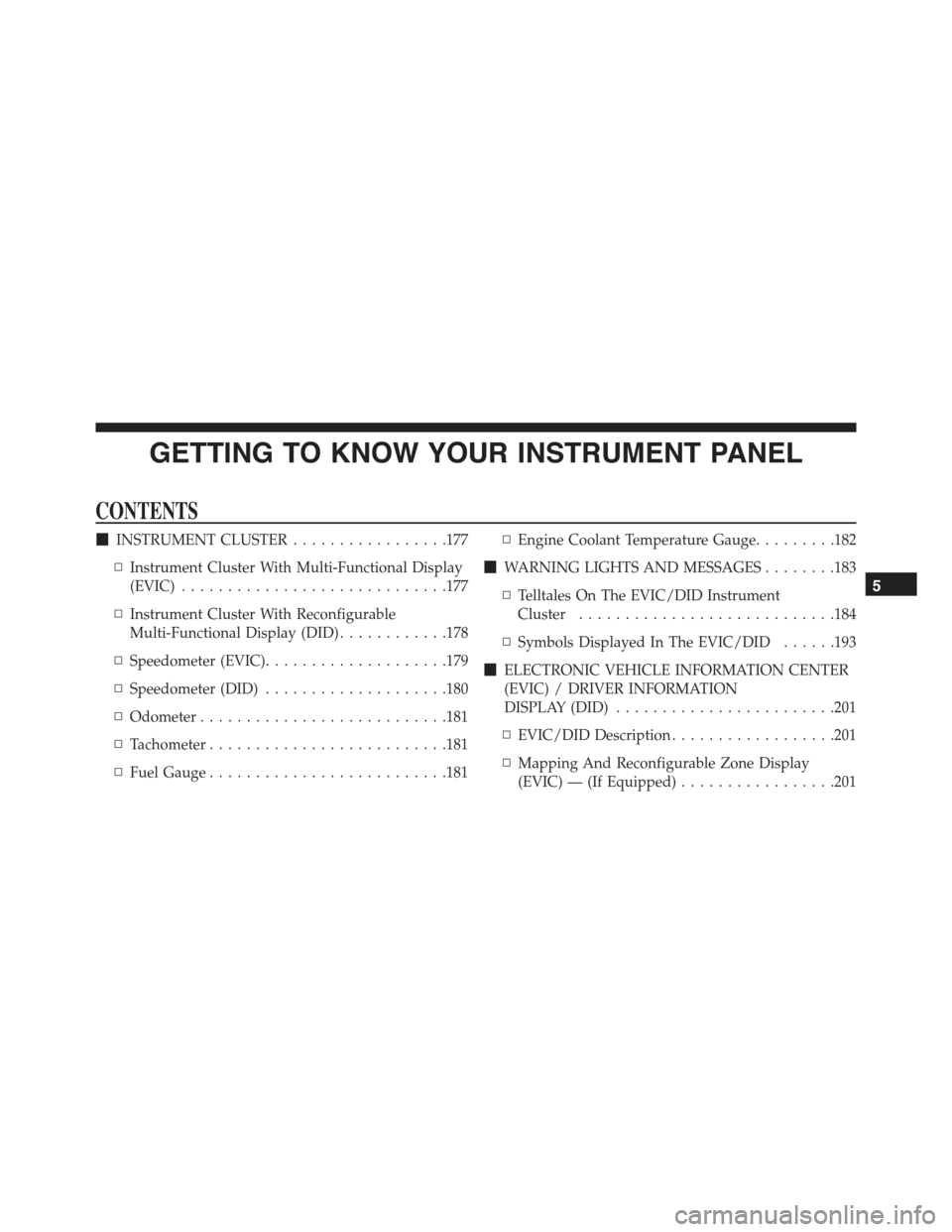

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
!INSTRUMENT CLUSTER.................177
▫Instrument Cluster With Multi-Functional Display
(EVIC).............................177
▫Instrument Cluster With Reconfigurable
Multi-Functional Display (DID)............178
▫Speedometer (EVIC)....................179
▫Speedometer (DID)....................180
▫Odometer...........................181
▫Tachometer..........................181
▫Fuel Gauge..........................181
▫Engine Coolant Temperature Gauge.........182
!WARNING LIGHTS AND MESSAGES........183
▫Telltales On The EVIC/DID Instrument
Cluster............................184
▫Symbols Displayed In The EVIC/DID......193
!ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) / DRIVER INFORMATION
DISPLAY (DID)........................201
▫EVIC/DID Description..................201

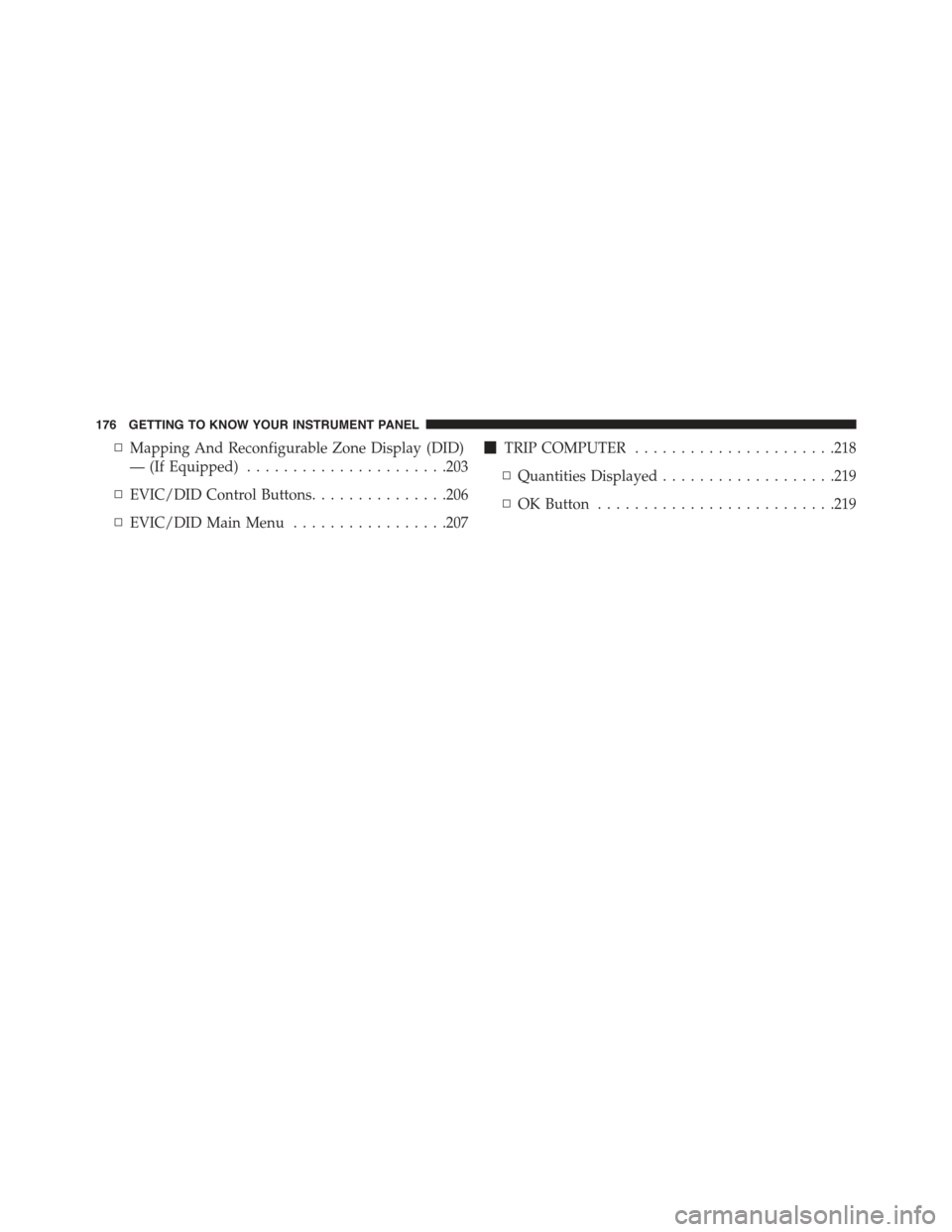

▫Mapping And Reconfigurable Zone Display
(EVIC) — (If Equipped).................201
5

▫Mapping And Reconfigurable Zone Display (DID)
— (If Equipped)......................203
▫EVIC/DID Control Buttons...............206
▫EVIC/DID Main Menu.................207
!TRIP COMPUTER......................218
▫Quantities Displayed...................219
▫OK Button..........................219
176 GETTING TO KNOW YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER

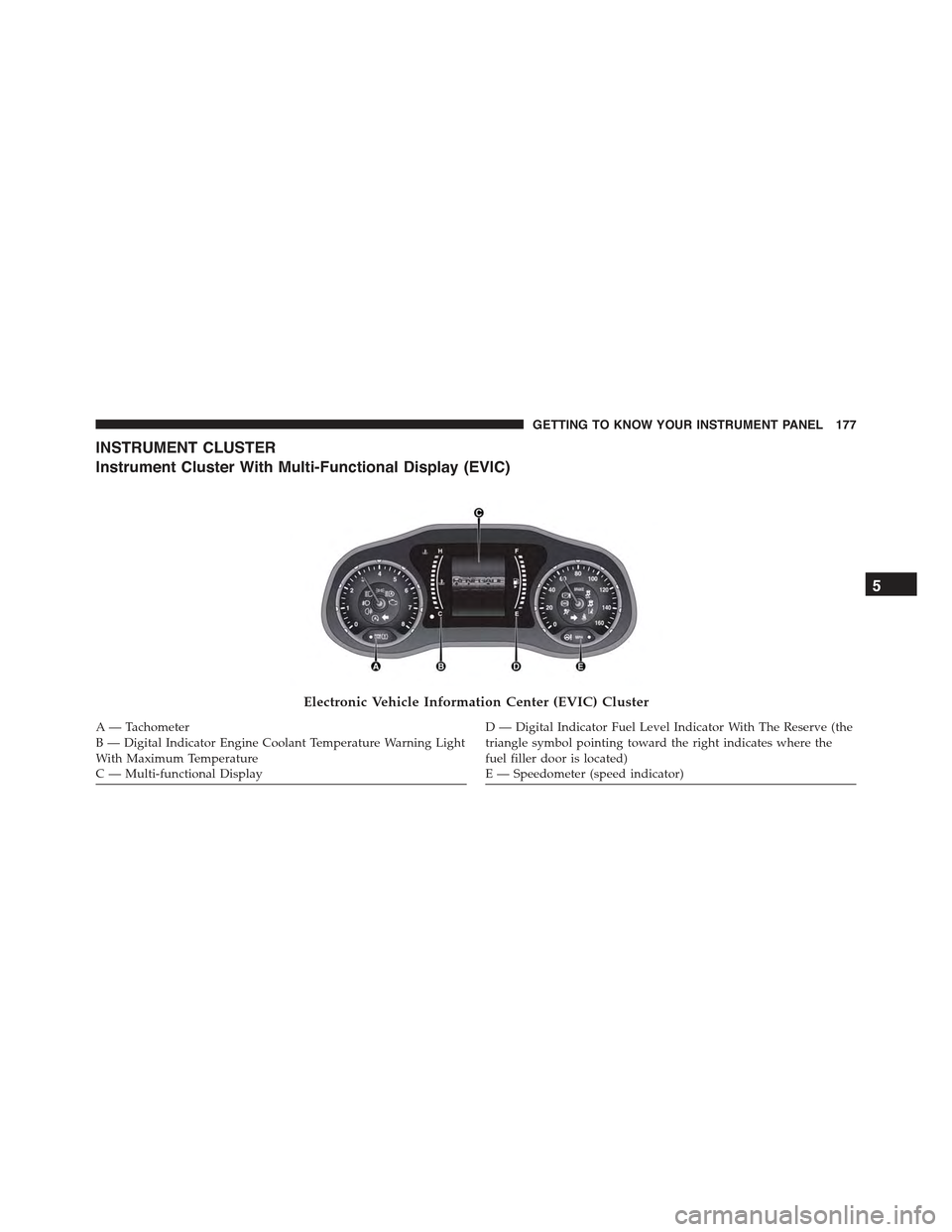

Instrument Cluster With Multi-Functional Display (EVIC)
Electronic Vehicle Information Center (EVIC) Cluster
A — TachometerB—DigitalIndicatorEngineCoolantTemperatureWarningLightWith Maximum TemperatureC — Multi-functional Display
D — Digital Indicator Fuel Level Indicator With The Reserve (thetriangle symbol pointing toward the right indicates where thefuel filler door is located)E — Speedometer (speed indicator)
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 177

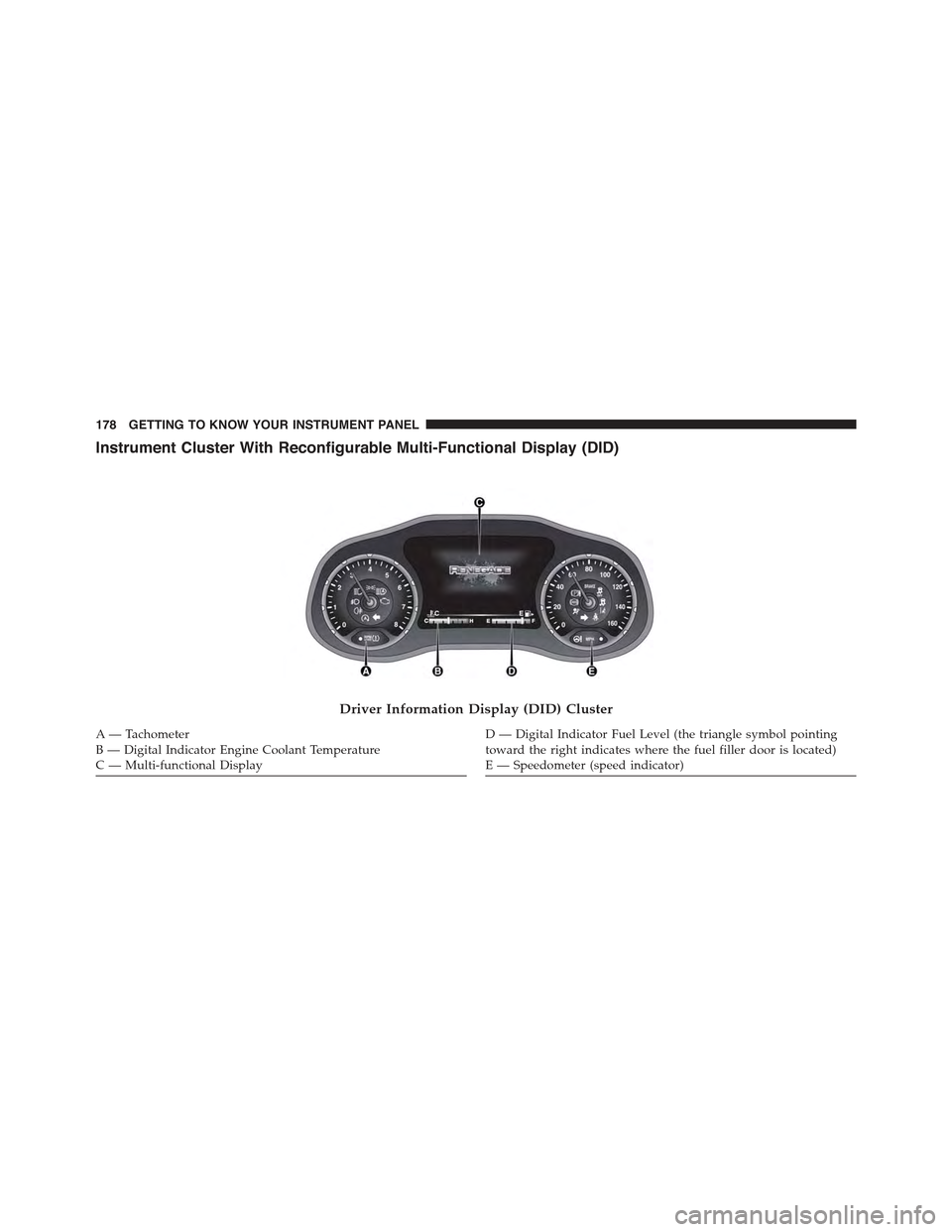

Instrument Cluster With Reconfigurable Multi-Functional Display (DID)
Driver Information Display (DID) Cluster
A — TachometerB—DigitalIndicatorEngineCoolantTemperatureC — Multi-functional Display
D — Digital Indicator Fuel Level (the triangle symbol pointingtoward the right indicates where the fuel filler door is located)E — Speedometer (speed indicator)
