JEEP RENEGADE 2015 1.G Owners Manual

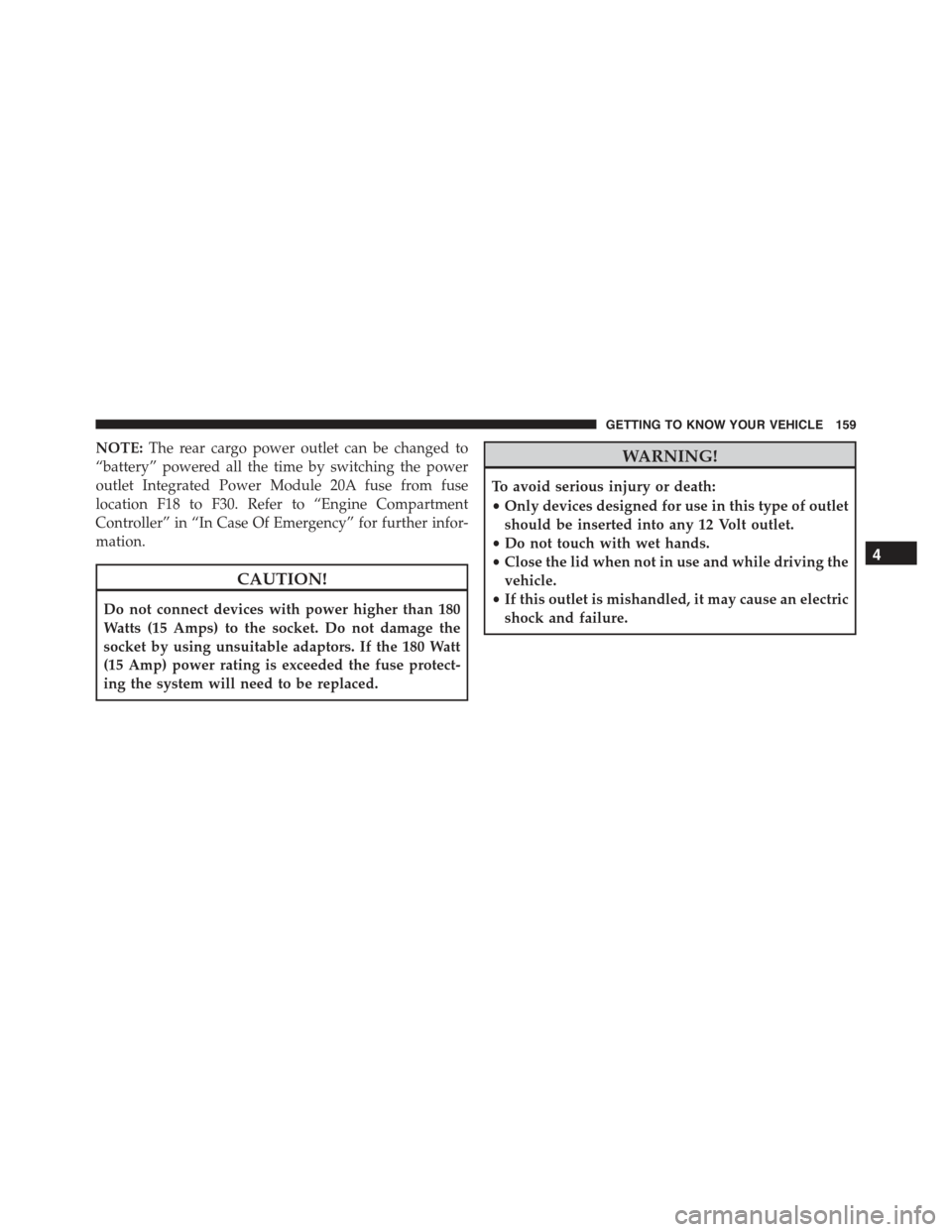

NOTE:The rear cargo power outlet can be changed to
“battery” powered all the time by switching the power
outlet Integrated Power Module 20A fuse from fuse
location F18 to F30. Refer to “Engine Compartment
Controller” in “In Case Of Emergency” for further infor-
mation.
CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protect-
ing the system will need to be replaced.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.
4
GETTING TO KNOW YOUR VEHICLE 159

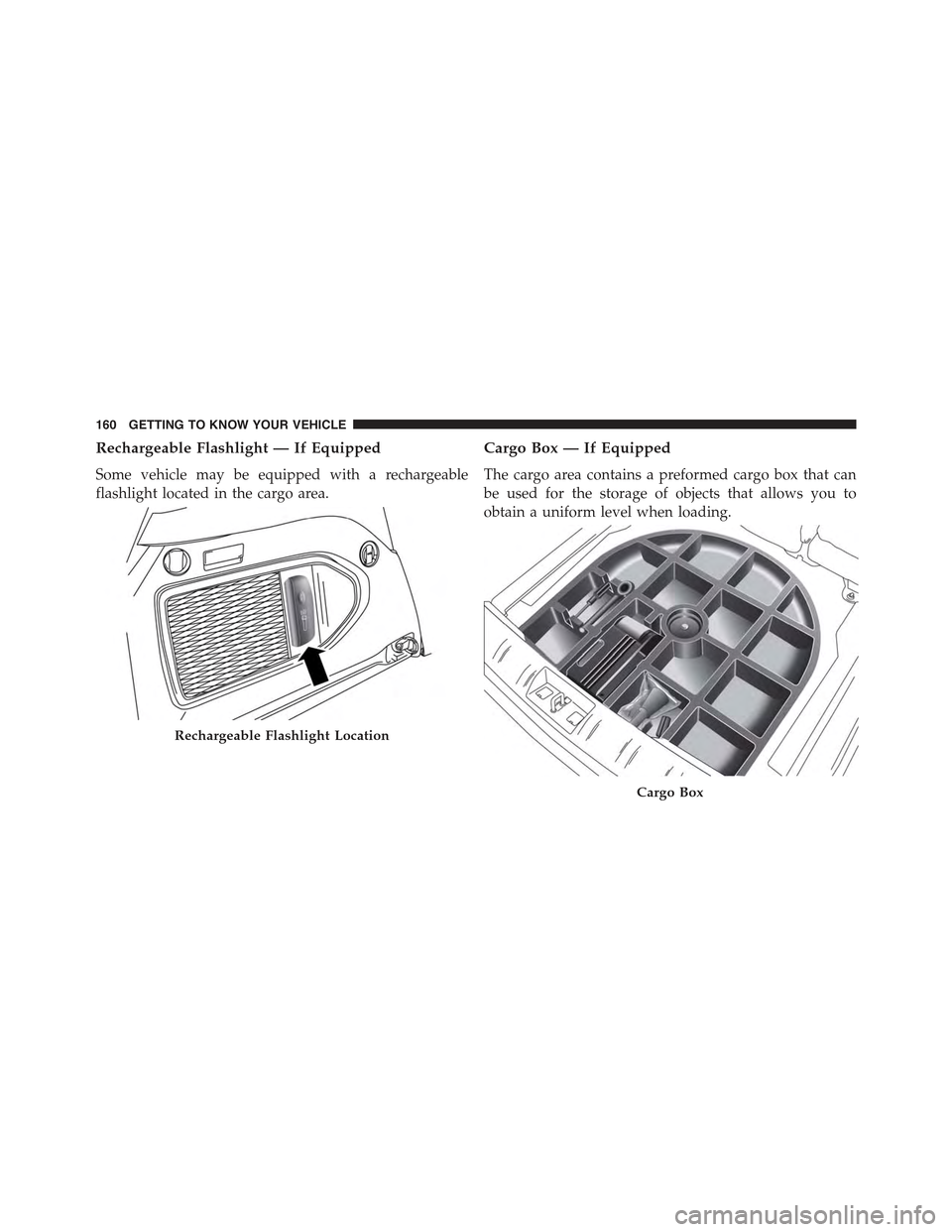

Rechargeable Flashlight — If Equipped
Some vehicle may be equipped with a rechargeable
flashlight located in the cargo area.
Cargo Box — If Equipped
The cargo area contains a preformed cargo box that can
be used for the storage of objects that allows you to
obtain a uniform level when loading.
Rechargeable Flashlight Location
Cargo Box
160 GETTING TO KNOW YOUR VEHICLE

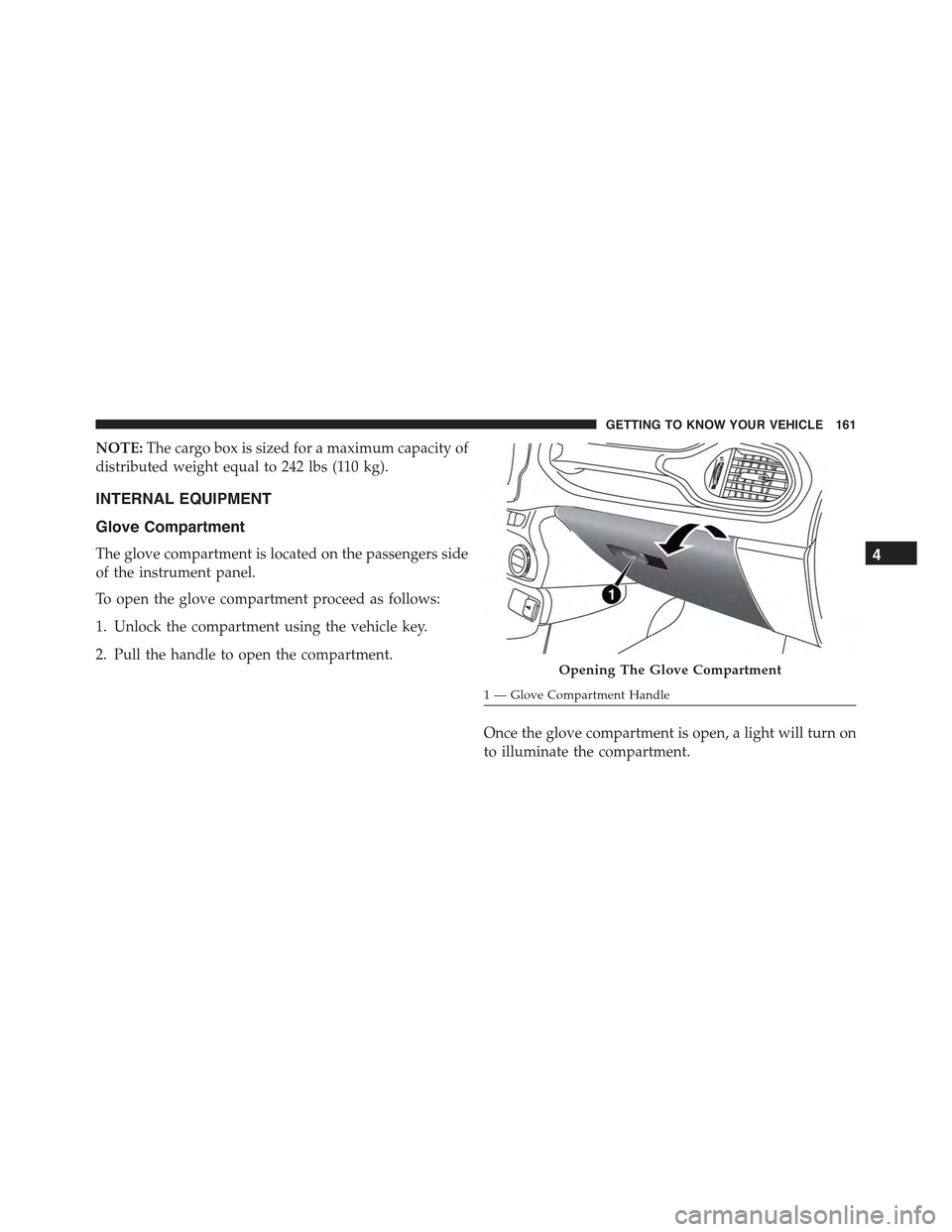

NOTE:The cargo box is sized for a maximum capacity of
distributed weight equal to 242 lbs (110 kg).
INTERNAL EQUIPMENT
Glove Compartment
The glove compartment is located on the passengers side
of the instrument panel.
To open the glove compartment proceed as follows:
1. Unlock the compartment using the vehicle key.
2. Pull the handle to open the compartment.
Once the glove compartment is open, a light will turn on
to illuminate the compartment.
Opening The Glove Compartment
1—GloveCompartmentHandle
4
GETTING TO KNOW YOUR VEHICLE 161

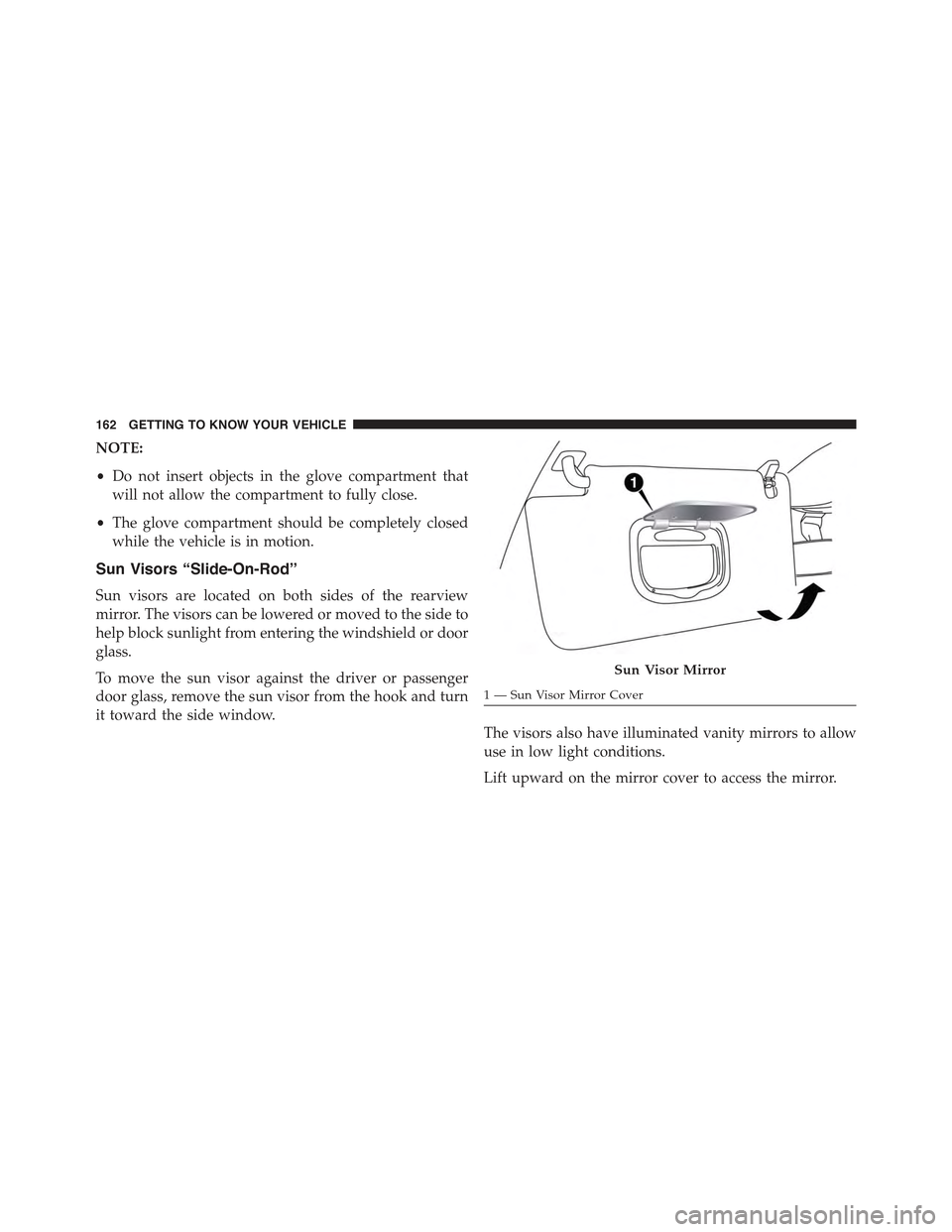

NOTE:
•Do not insert objects in the glove compartment that
will not allow the compartment to fully close.
•The glove compartment should be completely closed
while the vehicle is in motion.
Sun Visors “Slide-On-Rod”
Sun visors are located on both sides of the rearview
mirror. The visors can be lowered or moved to the side to
help block sunlight from entering the windshield or door
glass.
To move the sun visor against the driver or passenger
door glass, remove the sun visor from the hook and turn
it toward the side window.
The visors also have illuminated vanity mirrors to allow
use in low light conditions.
Lift upward on the mirror cover to access the mirror.
Sun Visor Mirror
1 — Sun Visor Mirror Cover
162 GETTING TO KNOW YOUR VEHICLE

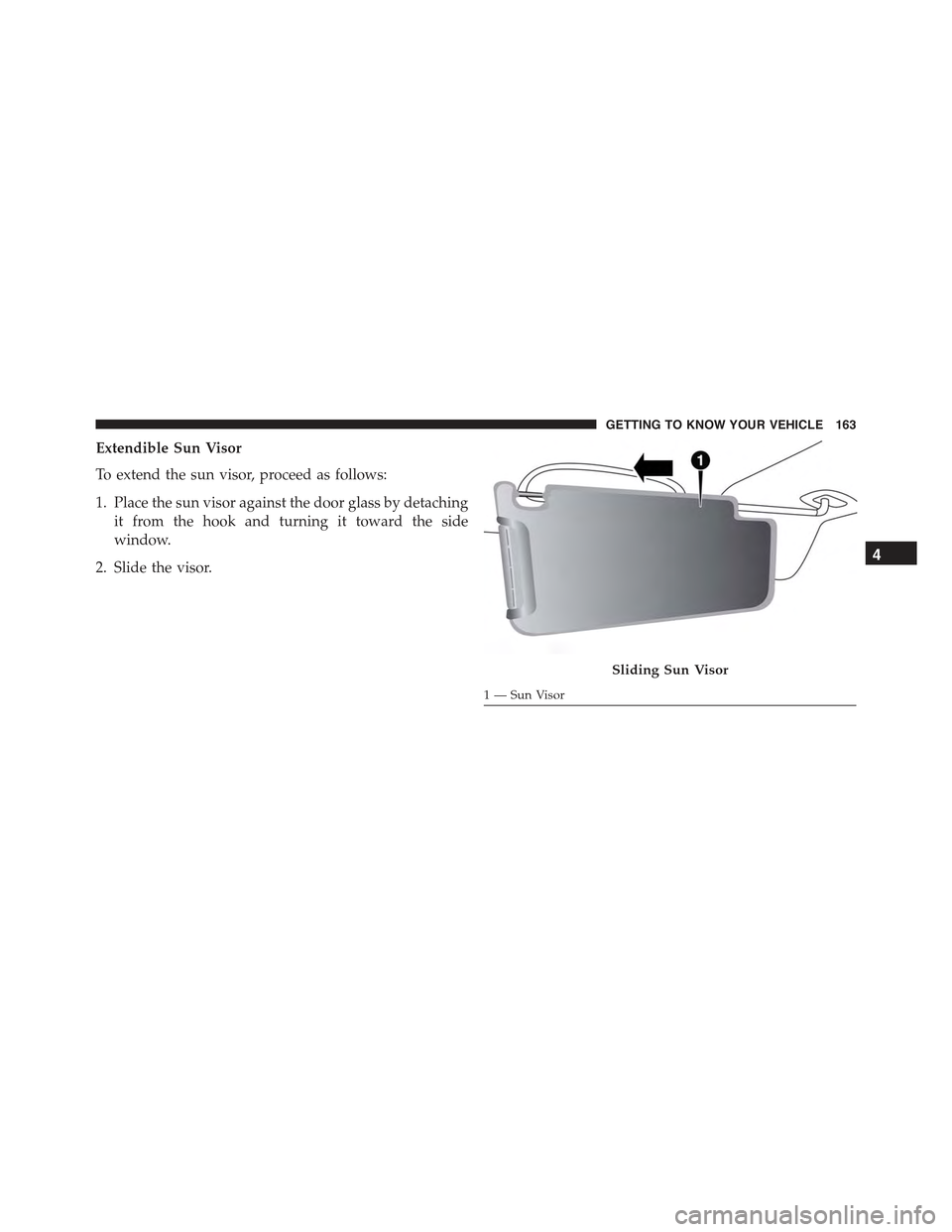

Extendible Sun Visor
To extend the sun visor, proceed as follows:
1. Place the sun visor against the door glass by detaching
it from the hook and turning it toward the side
window.
2. Slide the visor.
Sliding Sun Visor
1—SunVisor
4
GETTING TO KNOW YOUR VEHICLE 163

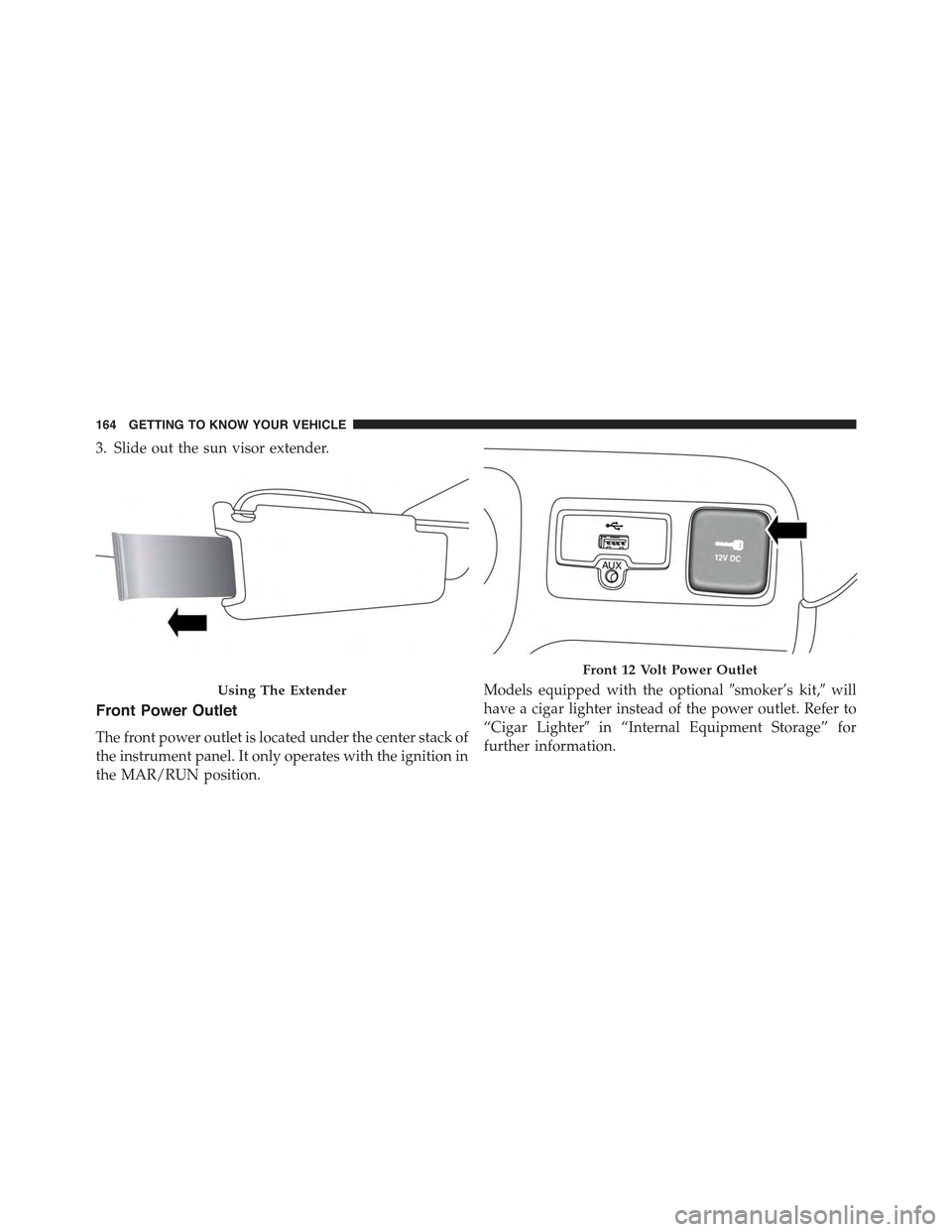

3. Slide out the sun visor extender.
Front Power Outlet
The front power outlet is located under the center stack of
the instrument panel. It only operates with the ignition in
the MAR/RUN position.
Models equipped with the optional#smoker’s kit,#will
have a cigar lighter instead of the power outlet. Refer to
“Cigar Lighter#in “Internal Equipment Storage” for
further information.
Using The Extender
Front 12 Volt Power Outlet
164 GETTING TO KNOW YOUR VEHICLE

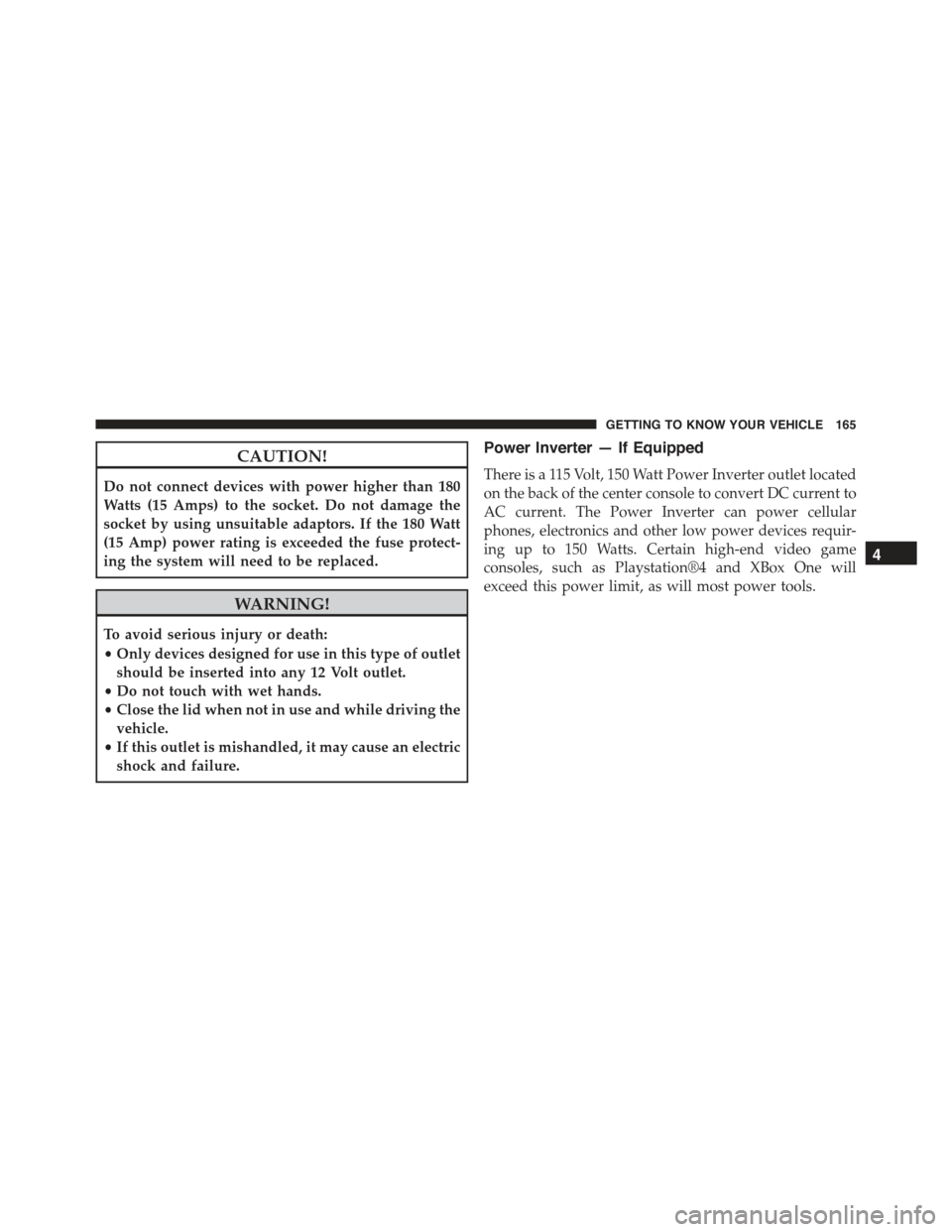

CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protect-
ing the system will need to be replaced.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.
Power Inverter — If Equipped
There is a 115 Volt, 150 Watt Power Inverter outlet located
on the back of the center console to convert DC current to
AC current. The Power Inverter can power cellular
phones, electronics and other low power devices requir-
ing up to 150 Watts. Certain high-end video game
consoles, such as Playstation®4 and XBox One will
exceed this power limit, as will most power tools.
4
GETTING TO KNOW YOUR VEHICLE 165

The Power Inverter will automatically turn on and off
when the device is plugged in or removed.
The Power Inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the Power Inverter will automatically shut down. Once
the electrical device has been removed from the Power
Inverter it will automatically reset. To avoid overloading
the circuit, check the power ratings on electrical devices
prior to using the Power Inverter.
WARNING!
To avoid serious injury or death:
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an electric
shock and failure.
Cigar Lighter — Optional
NOTE:Cigar lighters can be purchased at an authorized
dealer through MOPAR® parts. To ensure proper cigar
lighter operation, a MOPAR® knob and element must be
used.
115 Volt Power Inverter
166 GETTING TO KNOW YOUR VEHICLE

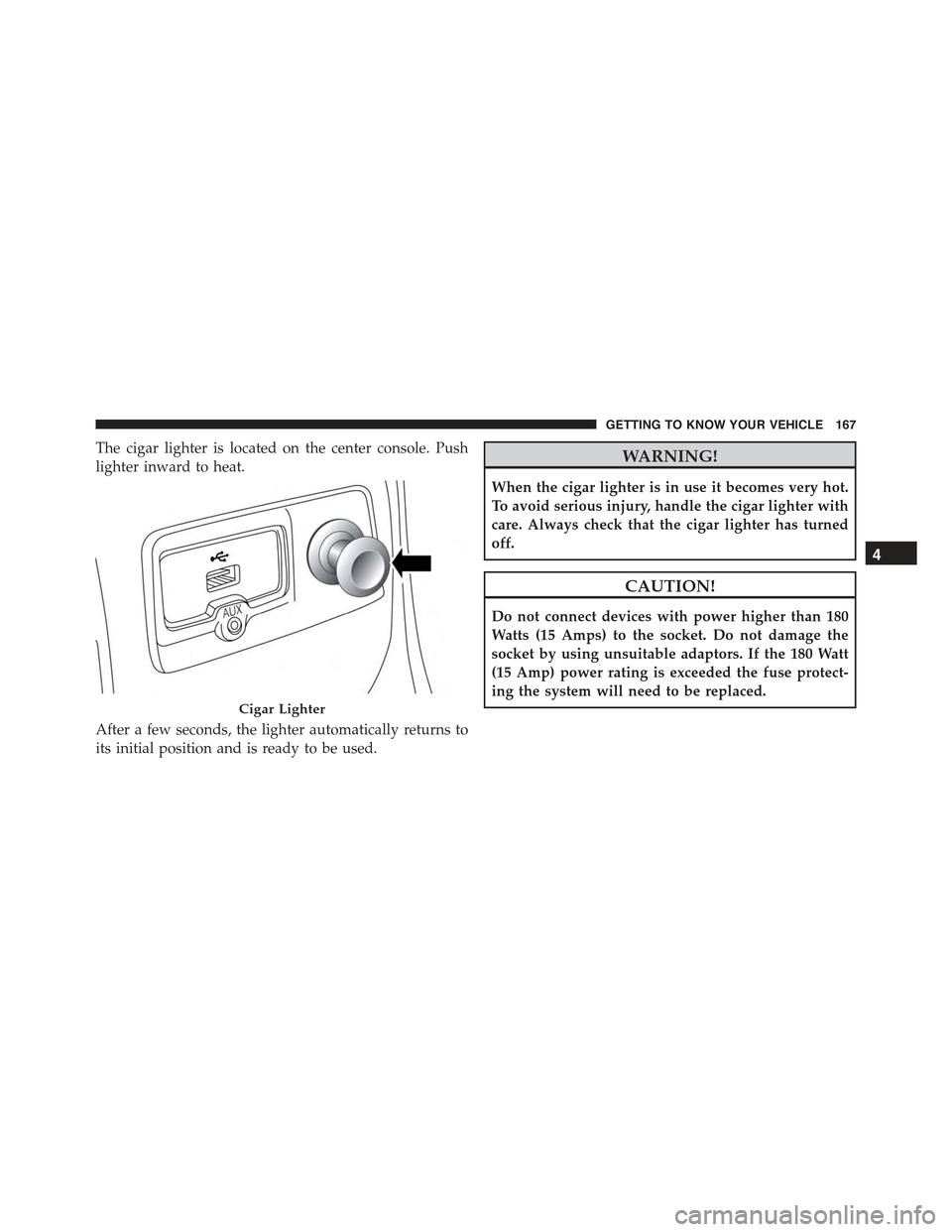

The cigar lighter is located on the center console. Push
lighter inward to heat.
After a few seconds, the lighter automatically returns to
its initial position and is ready to be used.
WARNING!
When the cigar lighter is in use it becomes very hot.
To avoid serious injury, handle the cigar lighter with
care. Always check that the cigar lighter has turned
off.
CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protect-
ing the system will need to be replaced.
Cigar Lighter
4
GETTING TO KNOW YOUR VEHICLE 167

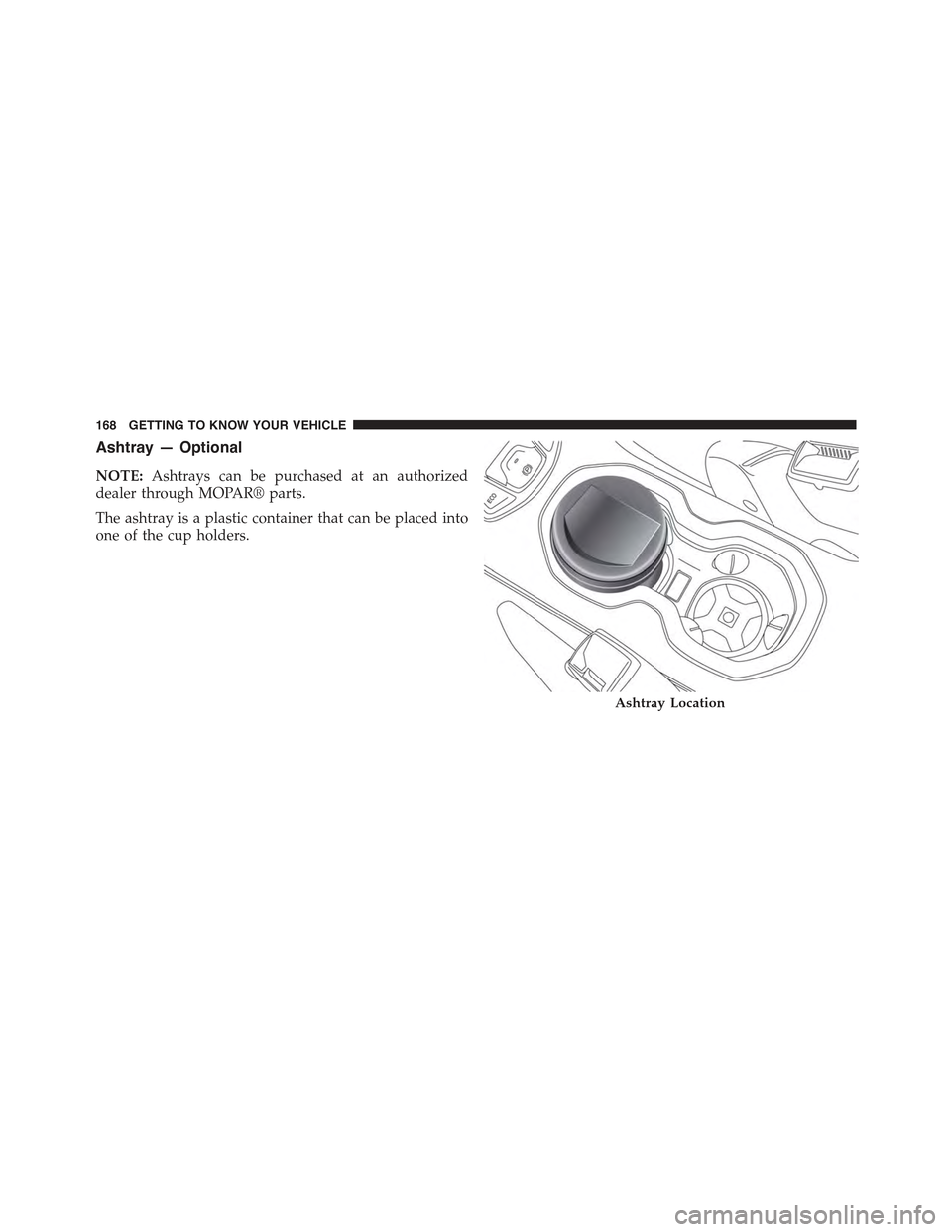

Ashtray — Optional
NOTE:Ashtrays can be purchased at an authorized
dealer through MOPAR® parts.
The ashtray is a plastic container that can be placed into
one of the cup holders.
Ashtray Location
168 GETTING TO KNOW YOUR VEHICLE
