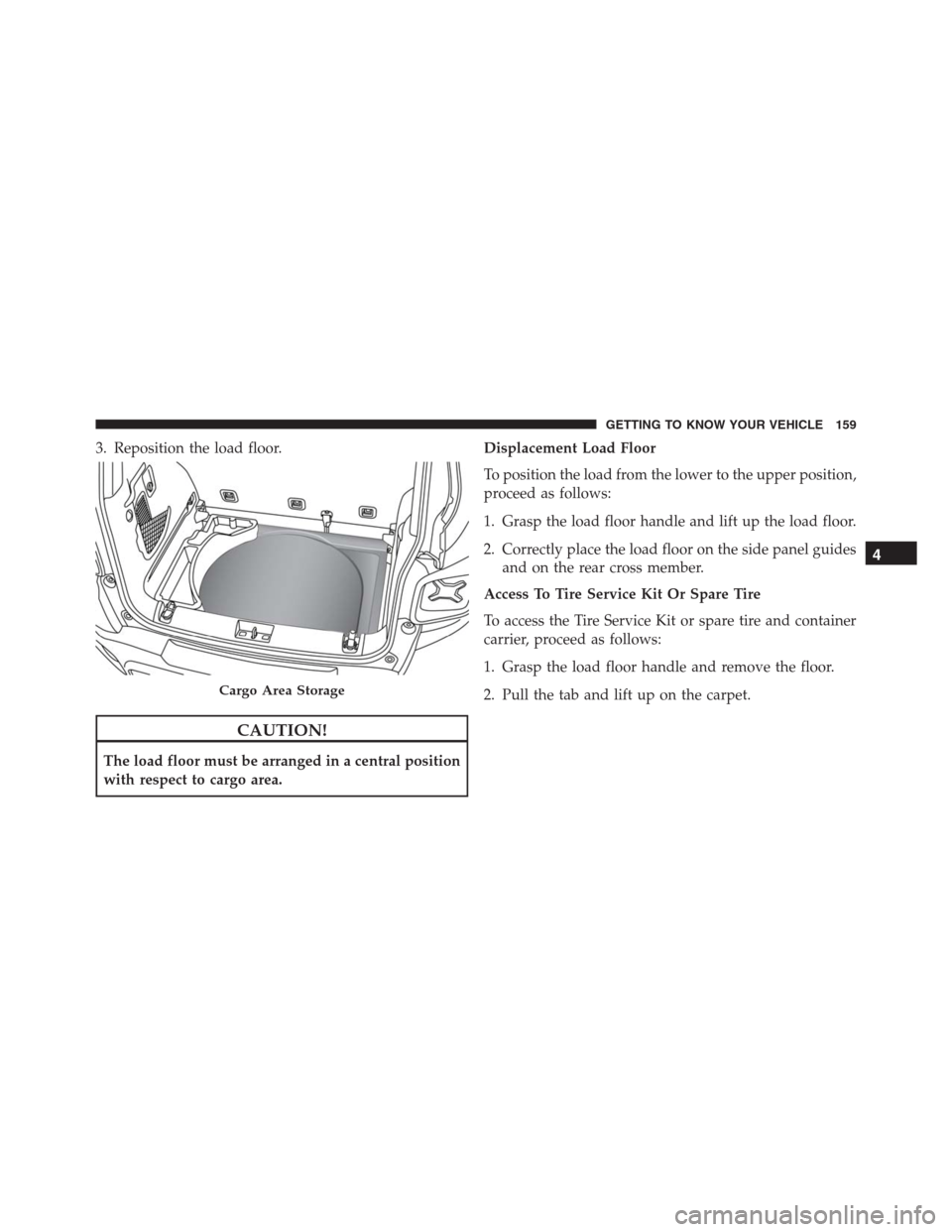

3. Reposition the load floor.
CAUTION!
The load floor must be arranged in a central position
with respect to cargo area.Displacement Load Floor
To position the load from the lower to the upper position,
proceed as follows:
1. Grasp the load floor handle and lift up the load floor.
2. Correctly place the load floor on the side panel guides
and on the rear cross member.
Access To Tire Service Kit Or Spare Tire
To access the Tire Service Kit or spare tire and container
carrier, proceed as follows:
1. Grasp the load floor handle and remove the floor.
2. Pull the tab and lift up on the carpet.
Cargo Area Storage
4
GETTING TO KNOW YOUR VEHICLE 159

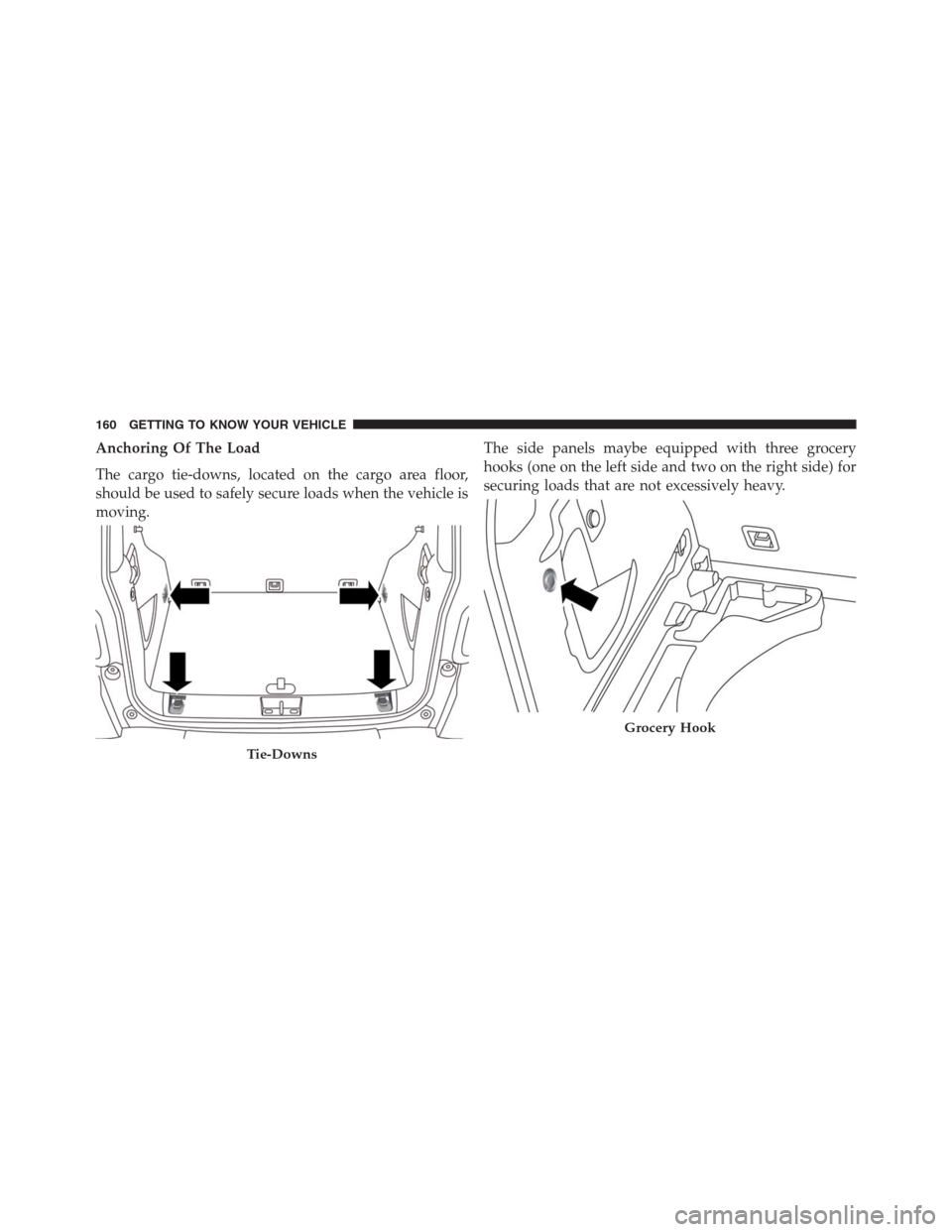

Anchoring Of The Load
The cargo tie-downs, located on the cargo area floor,
should be used to safely secure loads when the vehicle is
moving.The side panels maybe equipped with three grocery
hooks (one on the left side and two on the right side) for
securing loads that are not excessively heavy.
Tie-Downs
Grocery Hook
160 GETTING TO KNOW YOUR VEHICLE

Rear Power Outlet
The rear cargo power outlet is located on the left side of
the cargo area.
The outlet only works when the ignition is in the
MAR/RUN position.NOTE:The rear cargo power outlet can be changed to
“battery” powered all the time by switching the power
outlet Integrated Power Module 20A fuse from fuse
location F18 to F30. Refer to “Engine Compartment
Controller” in “In Case Of Emergency” for further infor-
mation.
Grocery HooksRear 12 Volt Cargo Power Outlet
4
GETTING TO KNOW YOUR VEHICLE 161

CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protect-
ing the system will need to be replaced.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.
Cargo Box — If Equipped
The cargo area contains a preformed cargo box that can
be used for the storage of objects that allows you to
obtain a uniform level when loading.
Cargo Box
162 GETTING TO KNOW YOUR VEHICLE

NOTE:The cargo box is sized for a maximum capacity of
distributed weight equal to 242 lbs (110 kg).
INTERNAL EQUIPMENT
Glove Compartment
The glove compartment is located on the passengers side
of the instrument panel.
To open the glove compartment proceed as follows:
1. Unlock the compartment using the vehicle key.
2. Pull the handle to open the compartment.
Once the glove compartment is open, a light will turn on
to illuminate the compartment.
Opening The Glove Compartment
1 — Glove Compartment Handle
4
GETTING TO KNOW YOUR VEHICLE 163

NOTE:
•Do not insert objects in the glove compartment that
will not allow the compartment to fully close.
•The glove compartment should be completely closed
while the vehicle is in motion.
Sun Visors
Sun visors are located on both sides of the rearview
mirror. The visors can be lowered or moved to the side to
help block sunlight from entering the windshield or door
glass.
To move the sun visor against the driver or passenger
door glass, remove the sun visor from the hook and turn
it toward the side window.
The visors also have illuminated vanity mirrors to allow
use in low light conditions.
Lift upward on the mirror cover to access the mirror.
Sun Visor Mirror
1 — Sun Visor Mirror Cover 164 GETTING TO KNOW YOUR VEHICLE

Extendible Sun Visor
To extend the sun visor, proceed as follows:
1. Place the sun visor against the door glass by detaching
it from the hook and turning it toward the side
window.
2. Slide the visor along the rod to provide coverage more
to the rear.
Sliding Sun Visor
1 — Sun Visor
4
GETTING TO KNOW YOUR VEHICLE 165

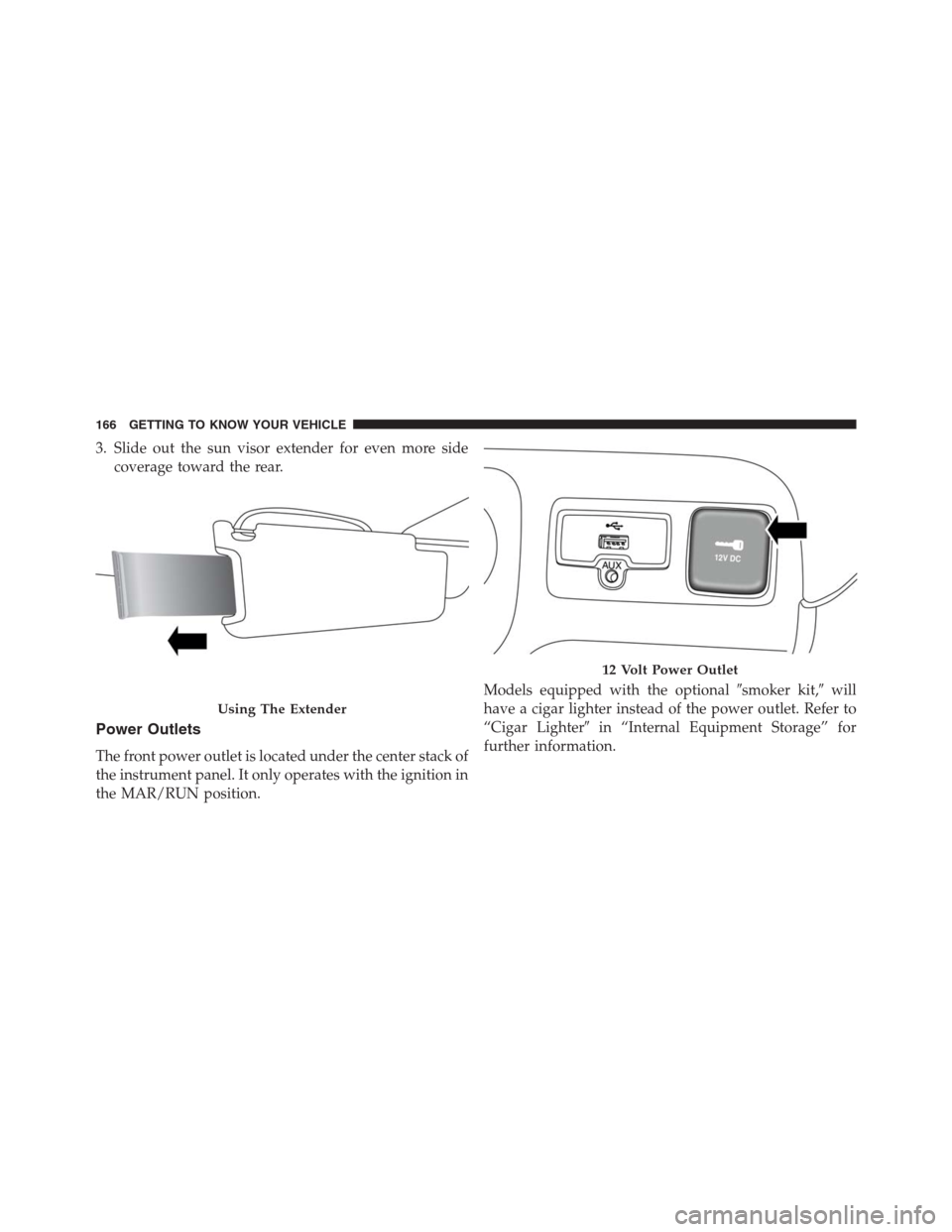

3. Slide out the sun visor extender for even more side
coverage toward the rear.
Power Outlets
The front power outlet is located under the center stack of
the instrument panel. It only operates with the ignition in
the MAR/RUN position.Models equipped with the optionalsmoker kit,will
have a cigar lighter instead of the power outlet. Refer to
“Cigar Lighterin “Internal Equipment Storage” for
further information.
Using The Extender
12 Volt Power Outlet
166 GETTING TO KNOW YOUR VEHICLE

CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protect-
ing the system will need to be replaced.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
4
GETTING TO KNOW YOUR VEHICLE 167

Power Inverter — If Equipped
There is a 115 Volt, 150 Watt Power Inverter outlet located
on the back of the center console to convert DC current to
AC current. The Power Inverter can power cellular
phones, electronics and other low power devices requir-
ing up to 150 Watts. Certain high-end video game
consoles, such as Playstation4 and XBox One will exceed
this power limit, as will most power tools.
The Power Inverter will automatically turn on and off
when the device is plugged in or removed.
The Power Inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the Power Inverter will automatically shut down. Once
the electrical device has been removed from the Power
115 Volt Power Inverter
