JEEP RENEGADE 2016 1.G Owners Manual

INSTRUMENT CLUSTER
Instrument Cluster With Multi-Functional Display (EVIC)
Electronic Vehicle Information Center (EVIC) Cluster
A — Tachometer
B — Digital Indicator Engine Coolant Temperature Warning Light
With Maximum Temperature
C — Multi-functional DisplayD — Digital Indicator Fuel Level Indicator With The Reserve (the
triangle symbol pointing toward the right indicates where the
fuel filler door is located)
E — Speedometer (speed indicator)
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 179

Instrument Cluster With Reconfigurable Multi-Functional Display (DID)
Driver Information Display (DID) Cluster
A — Tachometer
B — Digital Indicator Engine Coolant Temperature
C — Multi-functional DisplayD — Digital Indicator Fuel Level (the triangle symbol pointing
toward the right indicates where the fuel filler door is located)
E — Speedometer (speed indicator) 180 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

Speedometer (EVIC)
Indicates the speed of the vehicle in MPH or km/h.
Adjusting Instrument Panel Illumination (Light Sen-
sor)
Inside the speedometer, a light sensor detects ambient
light conditions and adjusts the brightness of the instru-
ment cluster.
Instrument Panel Light Sensor Zone
1 — Instrument Panel Light Sensor Zone
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 181

The instrument works as follows:
•Indaymode the display, the graphics, and all indexes
for the instrument cluster are fully illuminated and are
not adjustable
•Innightmode the display, the graphics, and the
indexes are adjusted accordingly. Even the light inten-
sity of the automatic dual zone climate control system
and the Uconnect system display
Speedometer (DID)
Indicates the speed of the vehicle in MPH or km/h.
Adjusting Instrument Panel Illumination (Light Sen-
sor)
Inside the speedometer, a light sensor detects ambient
light conditions and adjusts the brightness of the instru-
ment cluster.
Instrument Panel Light Sensor Zone
1 — Instrument Panel Light Sensor Zone 182 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

The instrument works as follows:
•Indaymode the display, the graphics, and all indexes
for the instrument cluster are fully illuminated and are
not adjustable
•Innightmode the display, the graphics, and the
indexes are adjusted accordingly. Even the light inten-
sity of the automatic dual zone climate control system
and the Uconnect system display
Odometer
The odometer display shows the total distance the ve-
hicle has been driven.
U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. If your
odometer needs to be repaired or serviced, the repair
technician should leave the odometer reading the same
as it was before the repair or service. If s/he cannot do so,then the odometer must be set at zero, and a sticker must
be placed in the door jamb stating what the mileage was
before the repair or service.
It is a good idea for you to make a record of the odometer
reading before the repair/service, so that you can be sure
that it is properly reset, or that the door jamb sticker is
accurate if the odometer must be reset at zero.
Tachometer
Reports the number of Revolutions Per Minute (RPM) of
the engine.
Fuel Gauge
The digital indicator on the display indicates the amount
of fuel in the fuel tank.
When the fuel tank level drops to 1.3-1.85 gallons (5-7
liters) remaining, a light will illuminate, a message will
display, and a chime will sound.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 183

Engine Coolant Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.
The gauge pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain grades,
or when towing a trailer. It should not be allowed to
exceed the upper limits of the normal operating range.
In the normal use of the car, the digital scale may move in
different positions.
Instrument Cluster With EVIC/DID
The indicator light will illuminate, a message will dis-
play, and a chime will sound to indicate an excessive rise
in the temperature of the engine coolant.In the case of excessive rises in the temperature of the
engine coolant, the engine may shut down. See an
authorized dealer.
CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“H” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on the “H”, turn the engine off immediately
and call an authorized dealer for service.
184 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide to
look under the hood yourself, see “Maintaining And
Caring For Your Vehicle.” Follow the warnings under
the “Cooling System Pressure Cap” paragraph.
WARNING AND INDICATOR LIGHTS
IMPORTANT:The warning / indicator light switches on
in the instrument panel together with a dedicated mes-
sage and/or acoustic signal when applicable. These
indications are indicative and precautionary and as such
must not be considered as exhaustive and/or alternative
to the information contained in the Owner Manual,
which you are advised to read carefully in all cases.
Always refer to the information in this chapter in the
event of a failure indication.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some
telltales are optional and may not appear.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 185

Red Telltale Indicator Lights

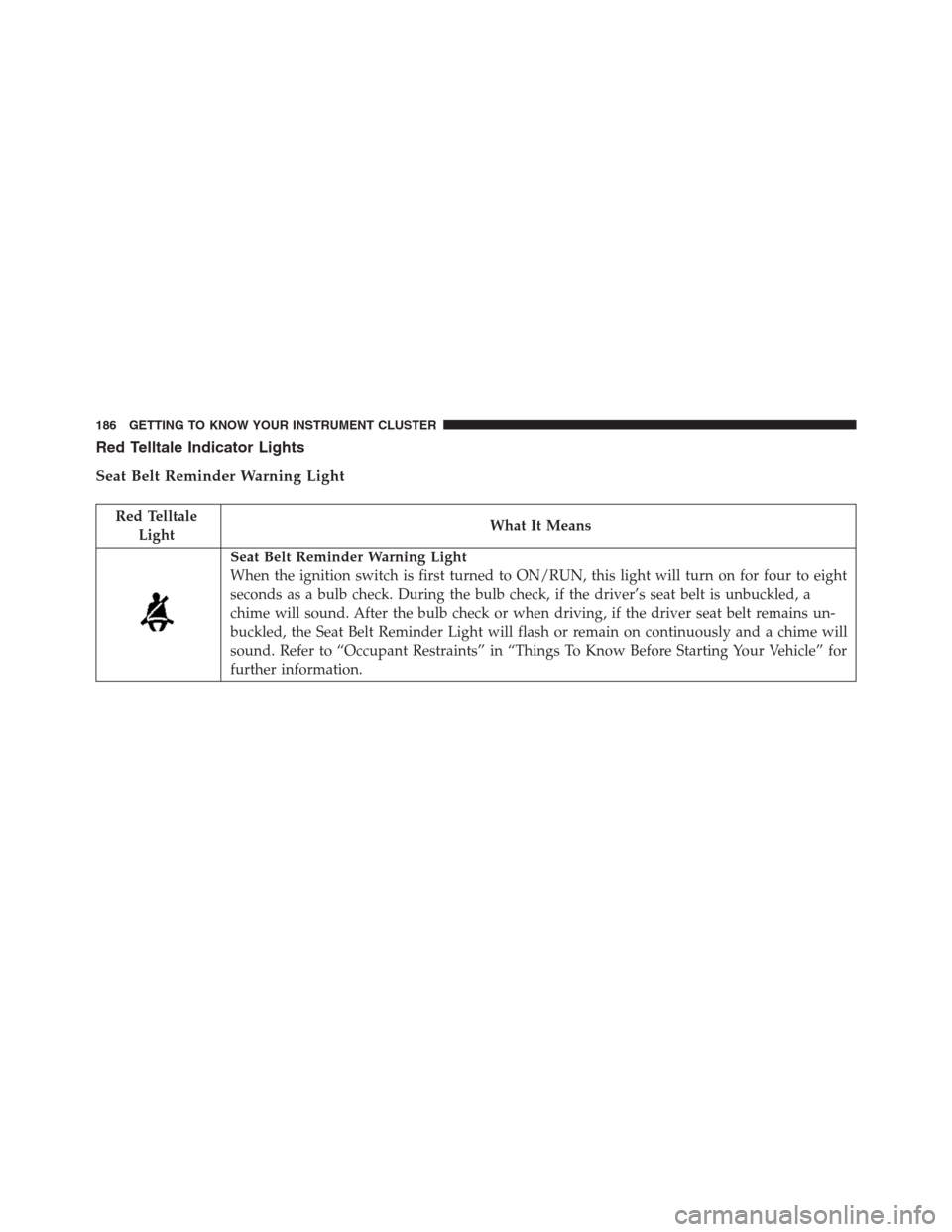

Seat Belt Reminder Warning Light
Red Telltale
LightWhat It Means
Seat Belt Reminder Warning Light
When the ignition switch is first turned to ON/RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if the driver’s seat belt is unbuckled, a
chime will sound. After the bulb check or when driving, if the driver seat belt remains un-
buckled, the Seat Belt Reminder Light will flash or remain on continuously and a chime will
sound. Refer to “Occupant Restraints” in “Things To Know Before Starting Your Vehicle” for
further information.
186 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

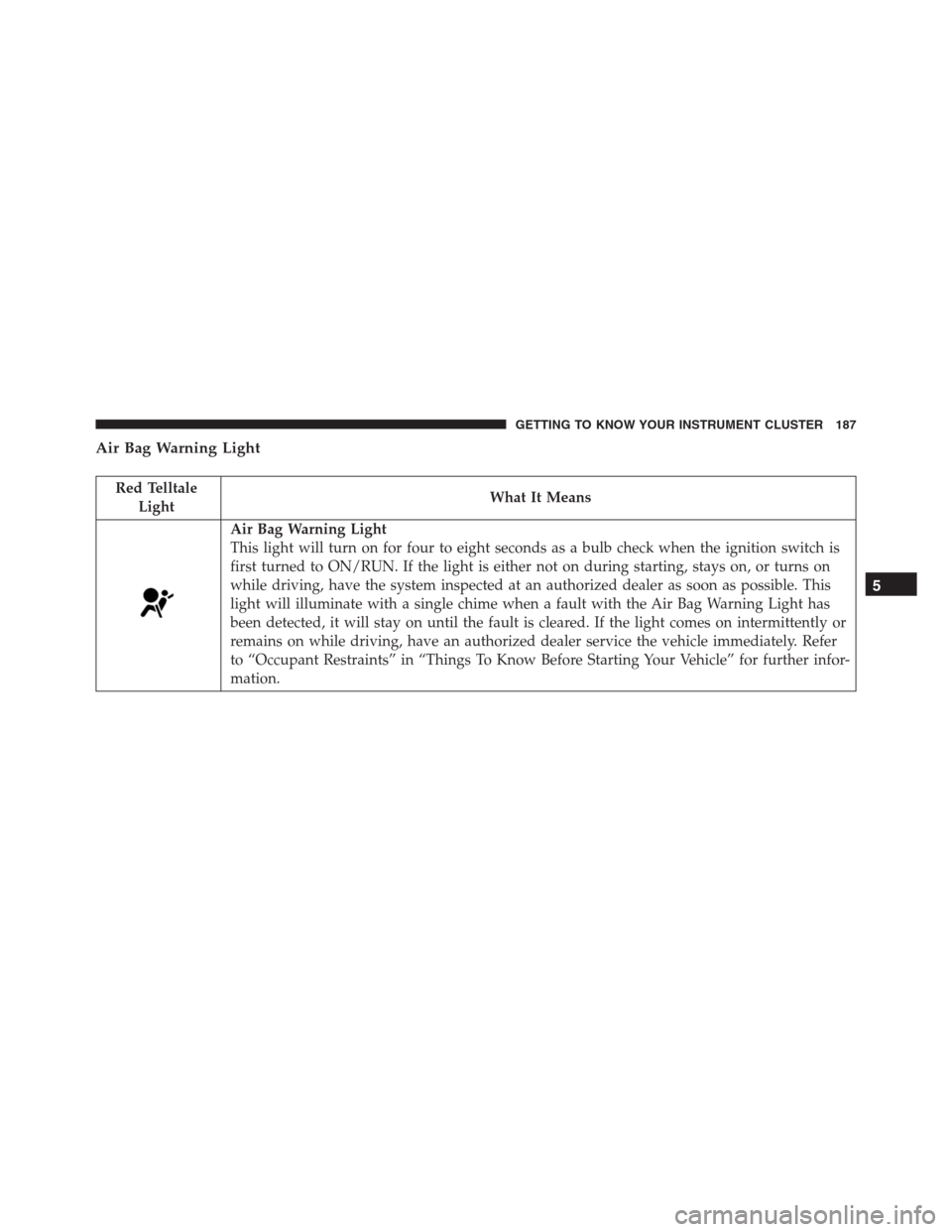

Air Bag Warning Light
Red Telltale
LightWhat It Means
Air Bag Warning Light
This light will turn on for four to eight seconds as a bulb check when the ignition switch is
first turned to ON/RUN. If the light is either not on during starting, stays on, or turns on
while driving, have the system inspected at an authorized dealer as soon as possible. This
light will illuminate with a single chime when a fault with the Air Bag Warning Light has
been detected, it will stay on until the fault is cleared. If the light comes on intermittently or
remains on while driving, have an authorized dealer service the vehicle immediately. Refer
to “Occupant Restraints” in “Things To Know Before Starting Your Vehicle” for further infor-
mation.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 187

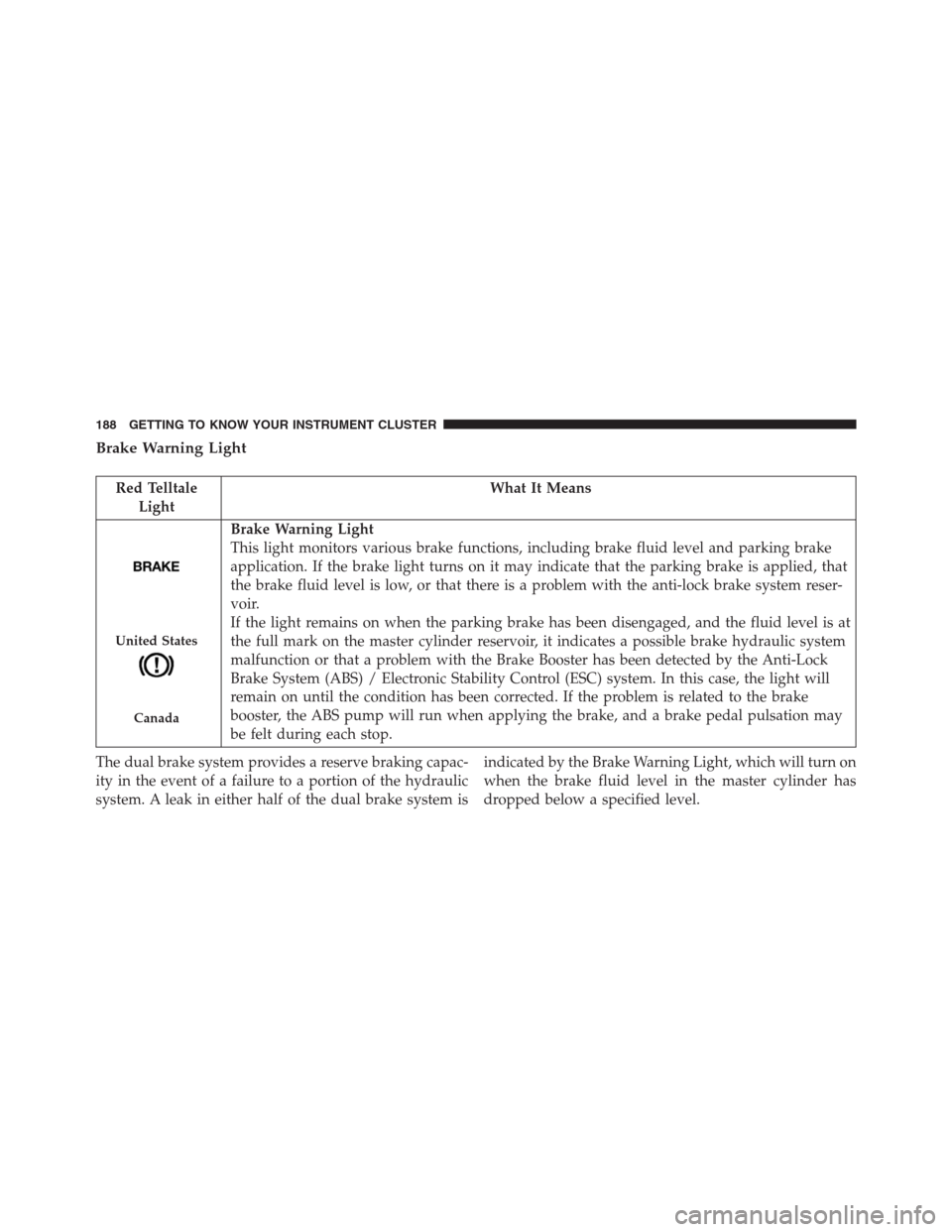

Brake Warning Light
Red Telltale
LightWhat It Means
United States
Canada
Brake Warning Light
This light monitors various brake functions, including brake fluid level and parking brake
application. If the brake light turns on it may indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with the anti-lock brake system reser-
voir.
If the light remains on when the parking brake has been disengaged, and the fluid level is at
the full mark on the master cylinder reservoir, it indicates a possible brake hydraulic system
malfunction or that a problem with the Brake Booster has been detected by the Anti-Lock
Brake System (ABS) / Electronic Stability Control (ESC) system. In this case, the light will
remain on until the condition has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake, and a brake pedal pulsation may
be felt during each stop.
The dual brake system provides a reserve braking capac-
ity in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system isindicated by the Brake Warning Light, which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.
