JEEP RENEGADE 2016 1.G Owners Manual

Inverter it will automatically reset. To avoid overloading
the circuit, check the power ratings on electrical devices
prior to using the Power Inverter.
WARNING!
To avoid serious injury or death:
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an electric
shock and failure.
Cigar Lighter — Optional
NOTE:Cigar lighters can be purchased at an authorized
dealer through MOPAR parts. To ensure proper cigar
lighter operation, a MOPAR knob and element must be
used.The cigar lighter is located on the center console. Push
lighter inward to heat.
After a few seconds, the lighter automatically returns to
its initial position and is ready to be used.Cigar Lighter
4
GETTING TO KNOW YOUR VEHICLE 169

WARNING!
When the cigar lighter is in use it becomes very hot.
To avoid serious injury, handle the cigar lighter with
care. Always check that the cigar lighter has turned
off.
CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protect-
ing the system will need to be replaced.

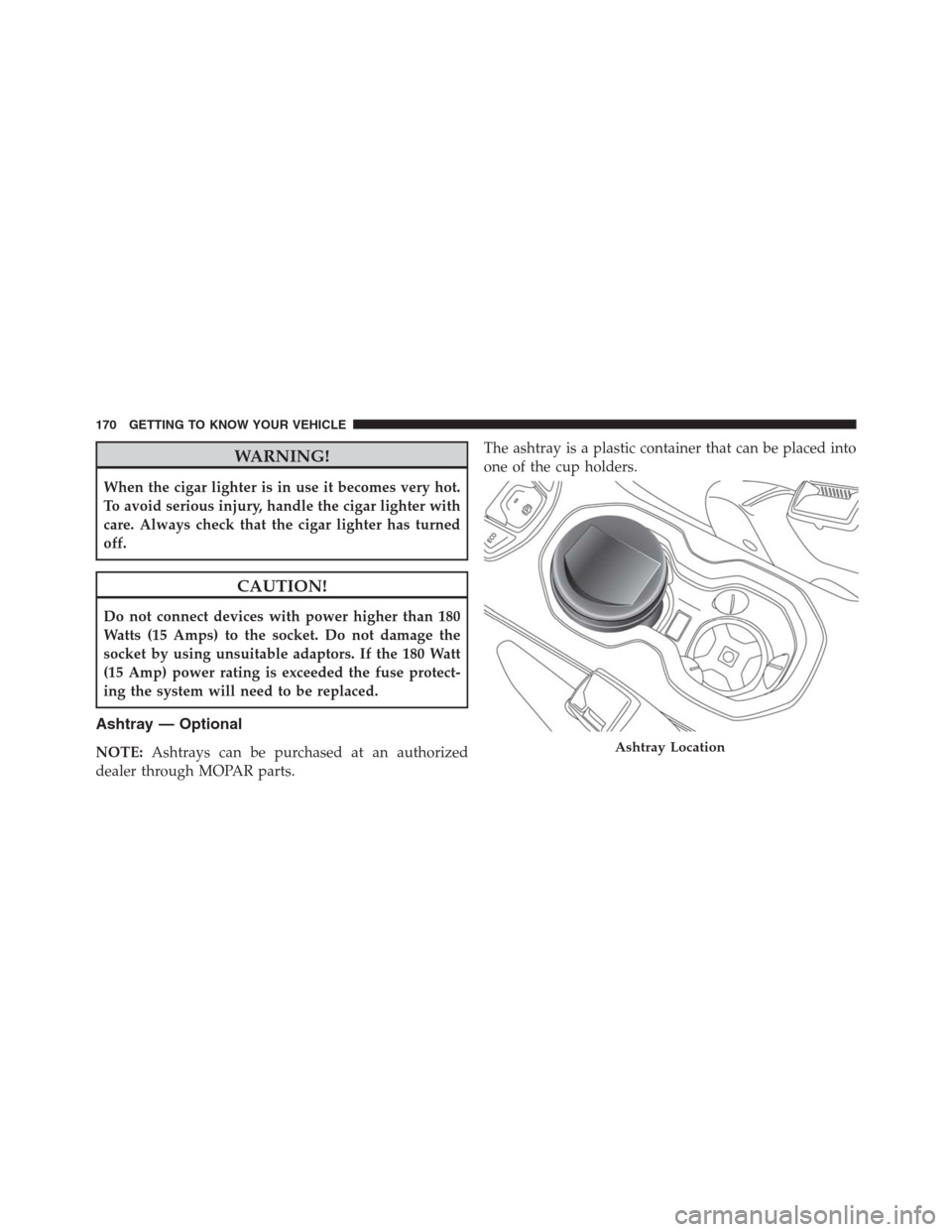

Ashtray — Optional
NOTE:Ashtrays can be purchased at an authorized
dealer through MOPAR parts.The ashtray is a plastic container that can be placed into
one of the cup holders.Ashtray Location
170 GETTING TO KNOW YOUR VEHICLE

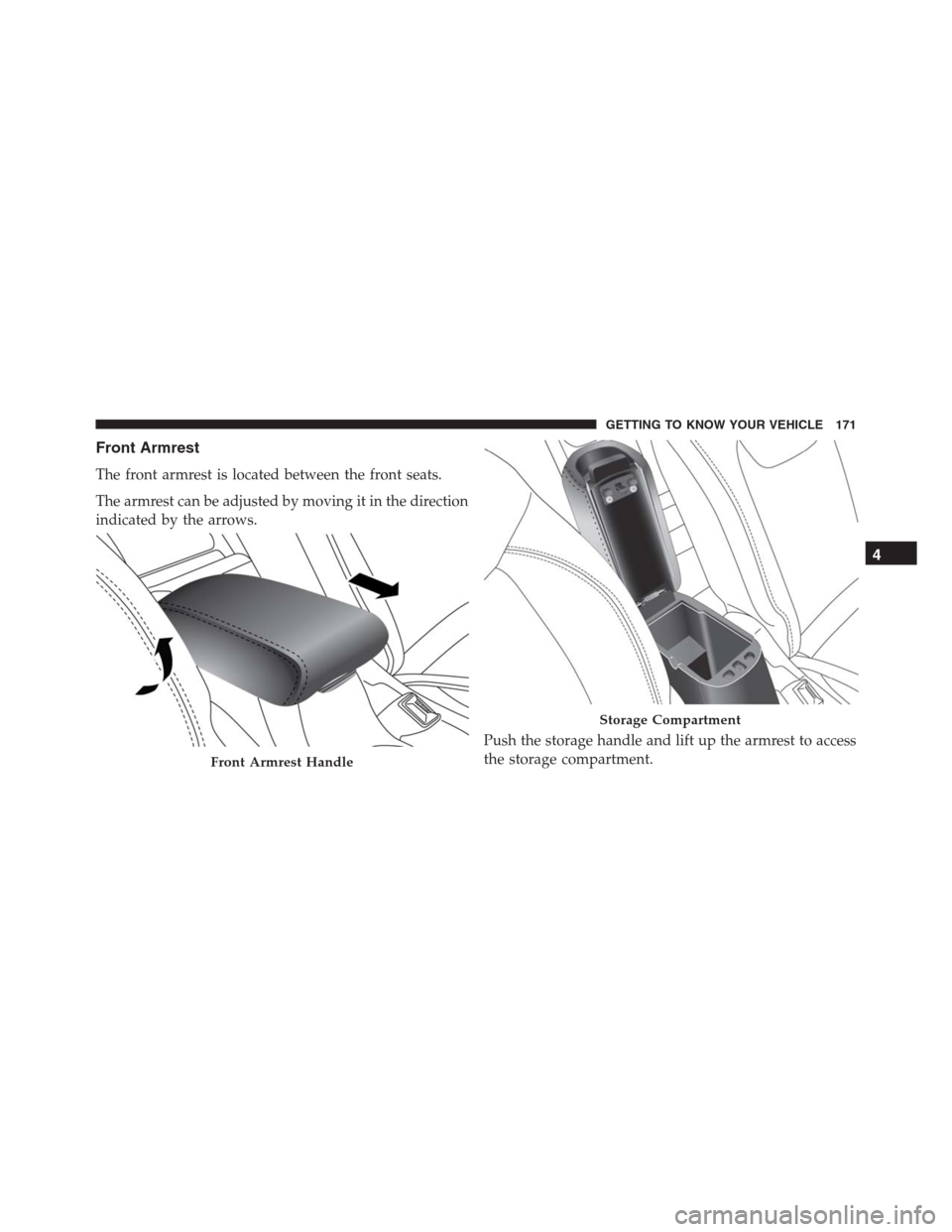

Front Armrest
The front armrest is located between the front seats.
The armrest can be adjusted by moving it in the direction
indicated by the arrows.
Push the storage handle and lift up the armrest to access
the storage compartment.
Front Armrest Handle
Storage Compartment
4
GETTING TO KNOW YOUR VEHICLE 171

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.

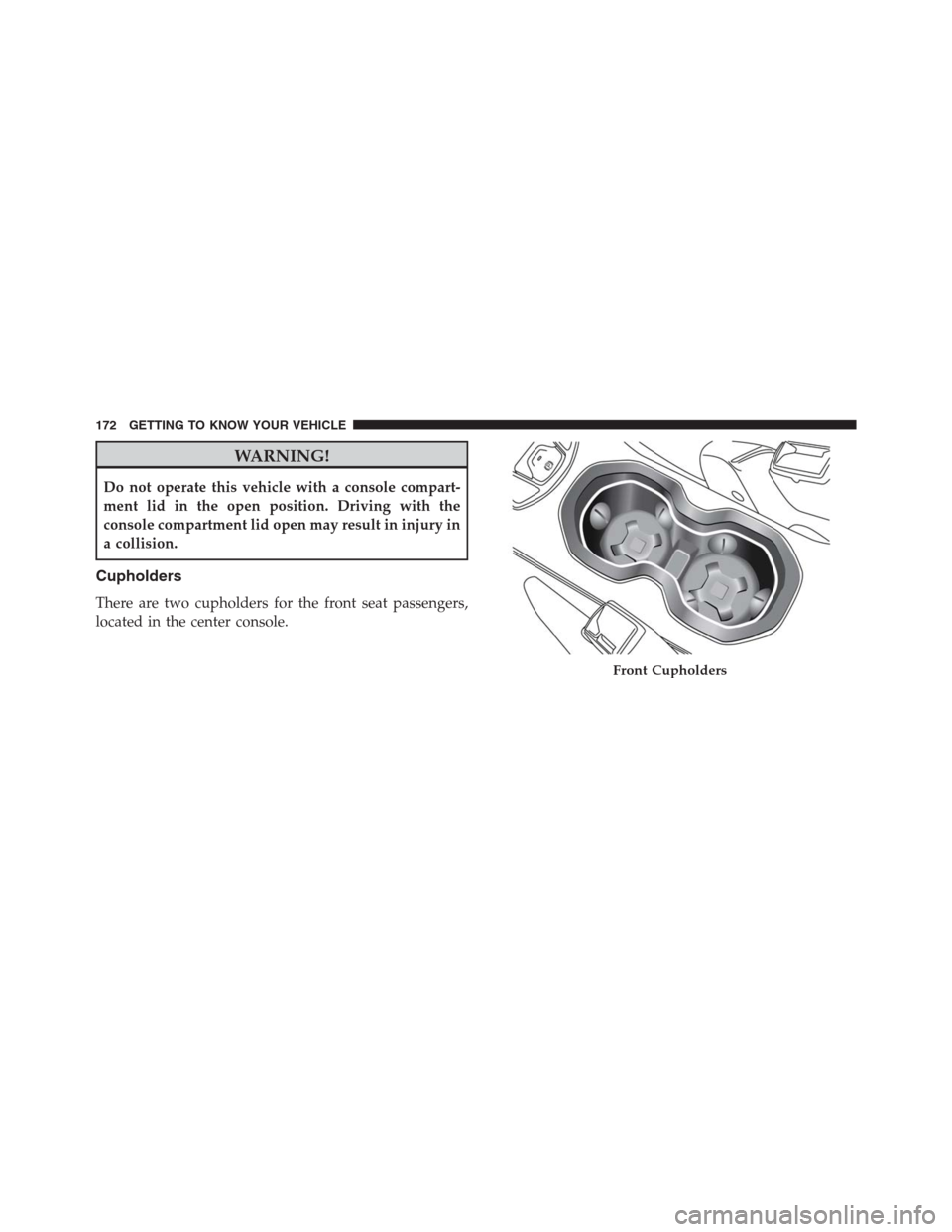

Cupholders
There are two cupholders for the front seat passengers,
located in the center console.
Front Cupholders
172 GETTING TO KNOW YOUR VEHICLE

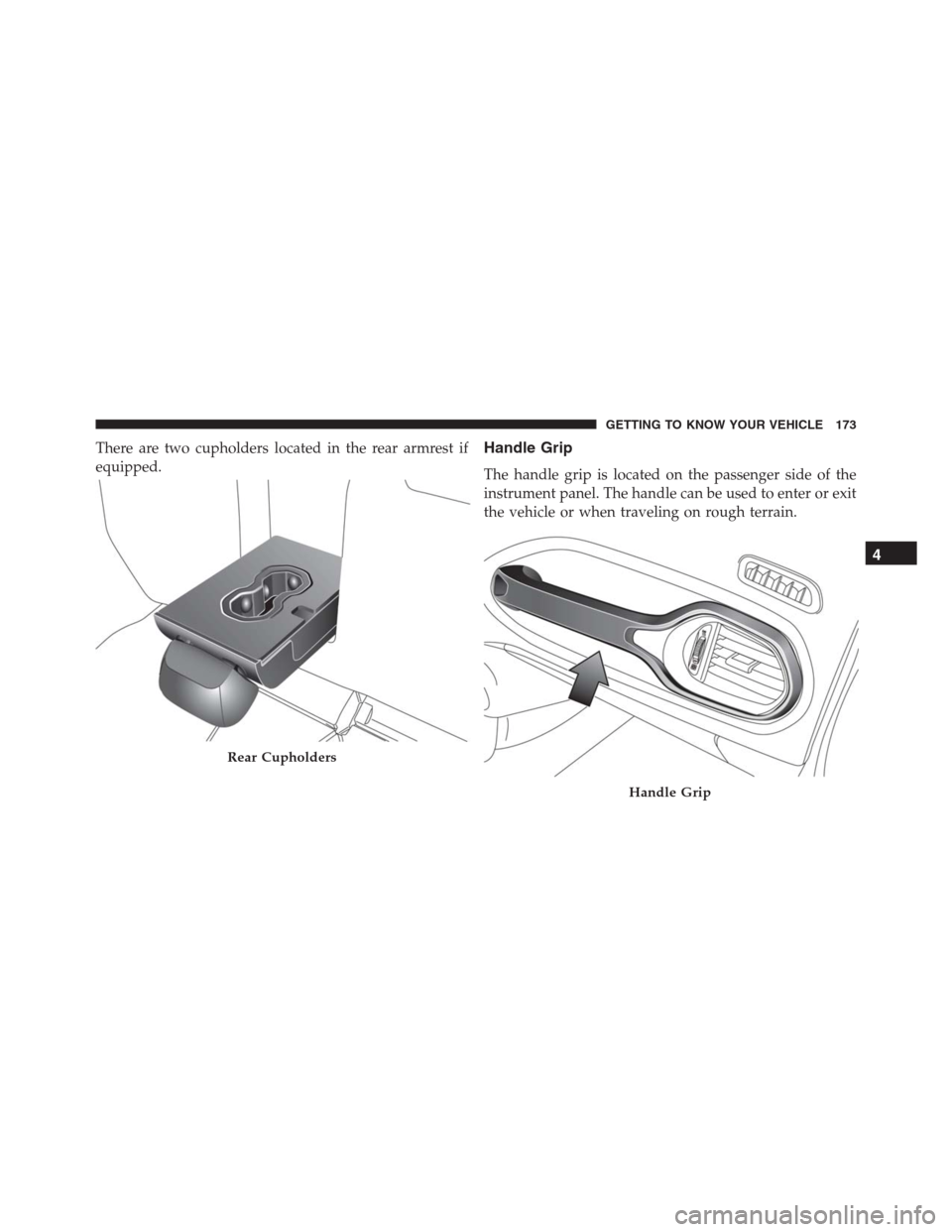

There are two cupholders located in the rear armrest if
equipped.Handle Grip
The handle grip is located on the passenger side of the
instrument panel. The handle can be used to enter or exit
the vehicle or when traveling on rough terrain.
Rear Cupholders
Handle Grip
4
GETTING TO KNOW YOUR VEHICLE 173

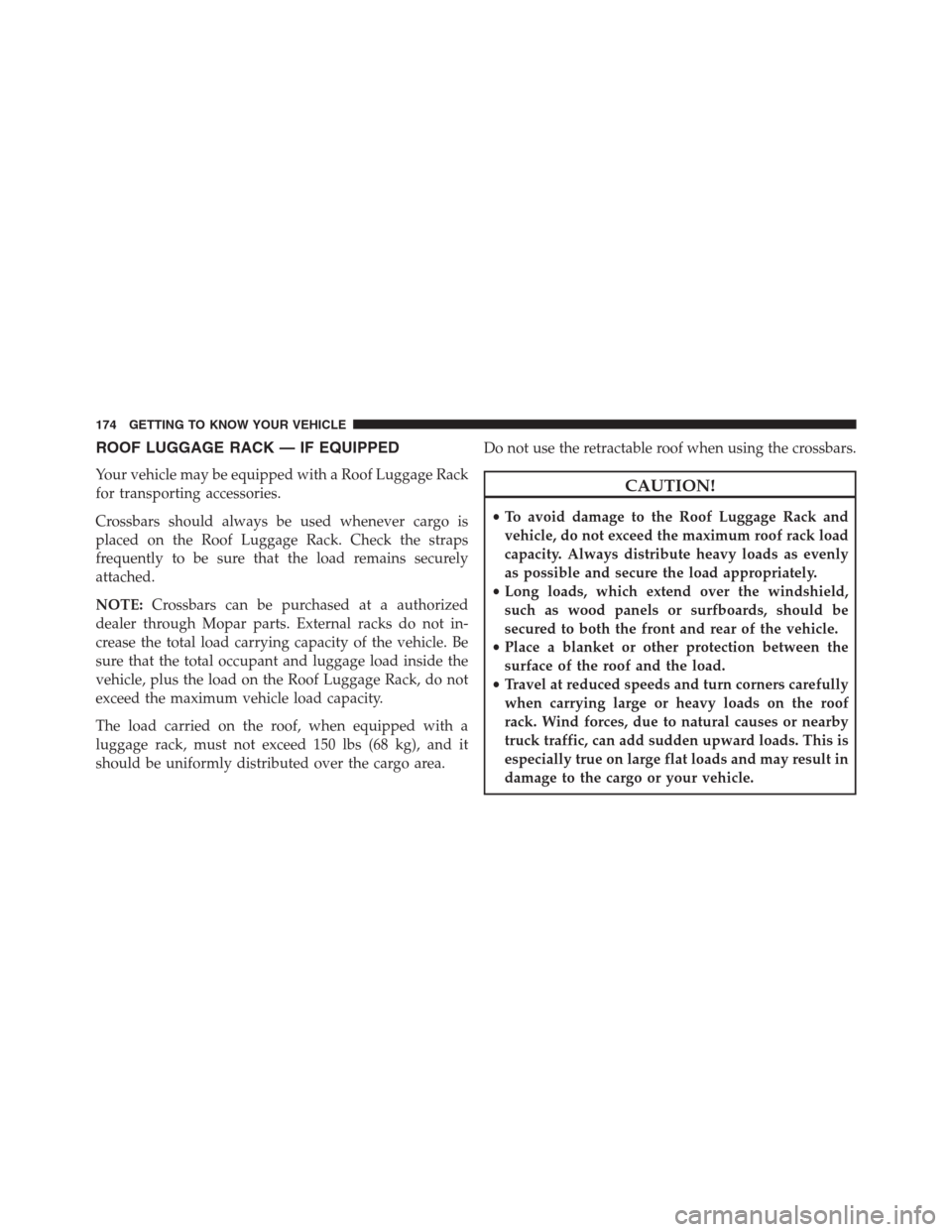

ROOF LUGGAGE RACK — IF EQUIPPED
Your vehicle may be equipped with a Roof Luggage Rack
for transporting accessories.
Crossbars should always be used whenever cargo is
placed on the Roof Luggage Rack. Check the straps
frequently to be sure that the load remains securely
attached.
NOTE:Crossbars can be purchased at a authorized
dealer through Mopar parts. External racks do not in-
crease the total load carrying capacity of the vehicle. Be
sure that the total occupant and luggage load inside the
vehicle, plus the load on the Roof Luggage Rack, do not
exceed the maximum vehicle load capacity.
The load carried on the roof, when equipped with a
luggage rack, must not exceed 150 lbs (68 kg), and it
should be uniformly distributed over the cargo area.Do not use the retractable roof when using the crossbars.CAUTION!
•To avoid damage to the Roof Luggage Rack and
vehicle, do not exceed the maximum roof rack load
capacity. Always distribute heavy loads as evenly
as possible and secure the load appropriately.
•Long loads, which extend over the windshield,
such as wood panels or surfboards, should be
secured to both the front and rear of the vehicle.
•Place a blanket or other protection between the
surface of the roof and the load.
•Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward loads. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
174 GETTING TO KNOW YOUR VEHICLE

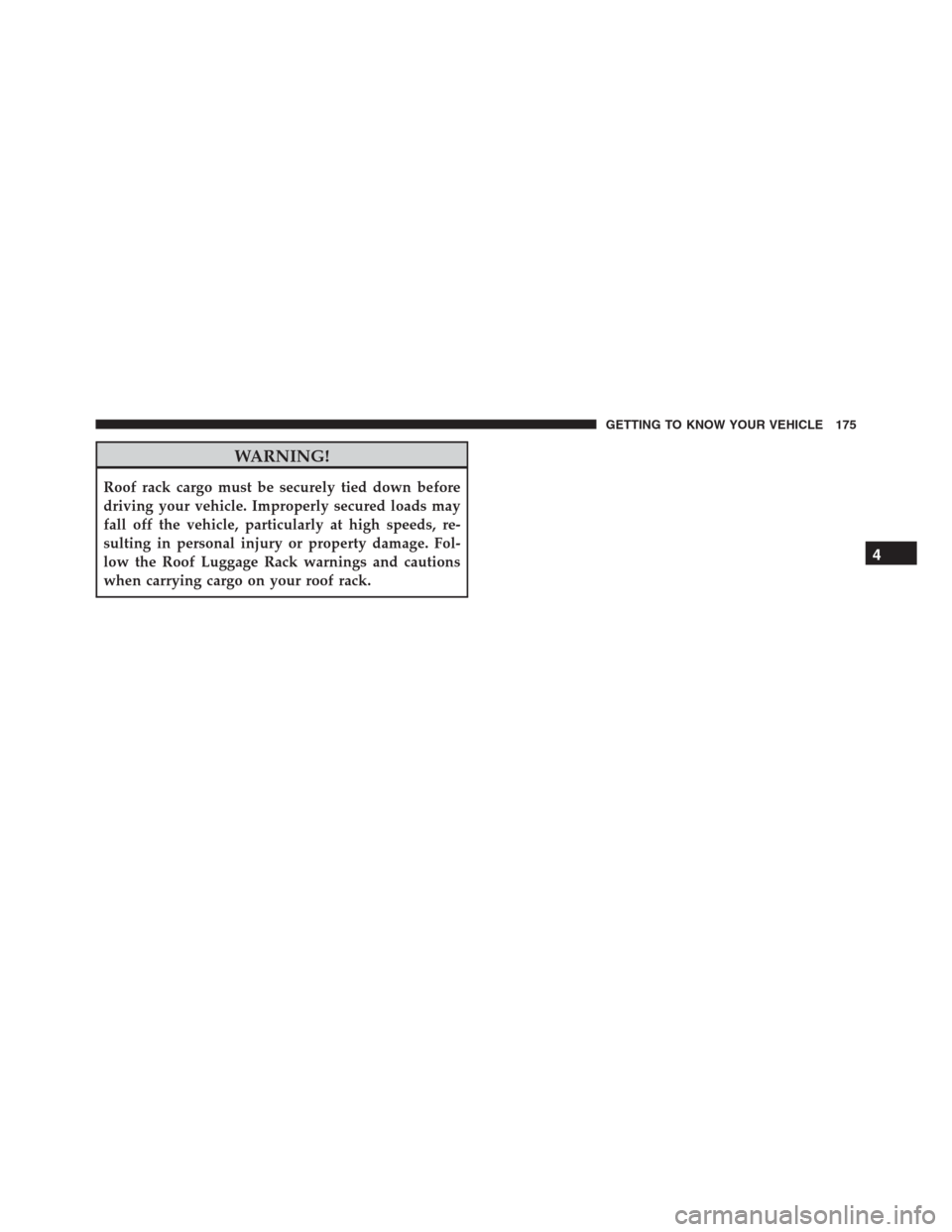

WARNING!
Roof rack cargo must be securely tied down before
driving your vehicle. Improperly secured loads may
fall off the vehicle, particularly at high speeds, re-
sulting in personal injury or property damage. Fol-
low the Roof Luggage Rack warnings and cautions
when carrying cargo on your roof rack.
4
GETTING TO KNOW YOUR VEHICLE 175

GETTING TO KNOW YOUR INSTRUMENT CLUSTER
CONTENTS
INSTRUMENT CLUSTER.................179
▫Instrument Cluster With Multi-Functional
Display (EVIC).......................179
▫Instrument Cluster With Reconfigurable
Multi-Functional Display (DID)............180
▫Speedometer (EVIC)....................181
▫Speedometer (DID)....................182
▫Odometer...........................183
▫Tachometer..........................183
▫Fuel Gauge..........................183▫Engine Coolant Temperature Gauge.........184
WARNING AND INDICATOR LIGHTS.......185
▫Red Telltale Indicator Lights..............186
▫Yellow Telltale Indicator Lights............198
▫Green Telltale Indicator Lights............211
▫Blue Telltale Indicator Light..............213
▫White Telltale Indicator Light.............214
ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .215
▫Onboard Diagnostic System (OBD II)
Cybersecurity........................215
5

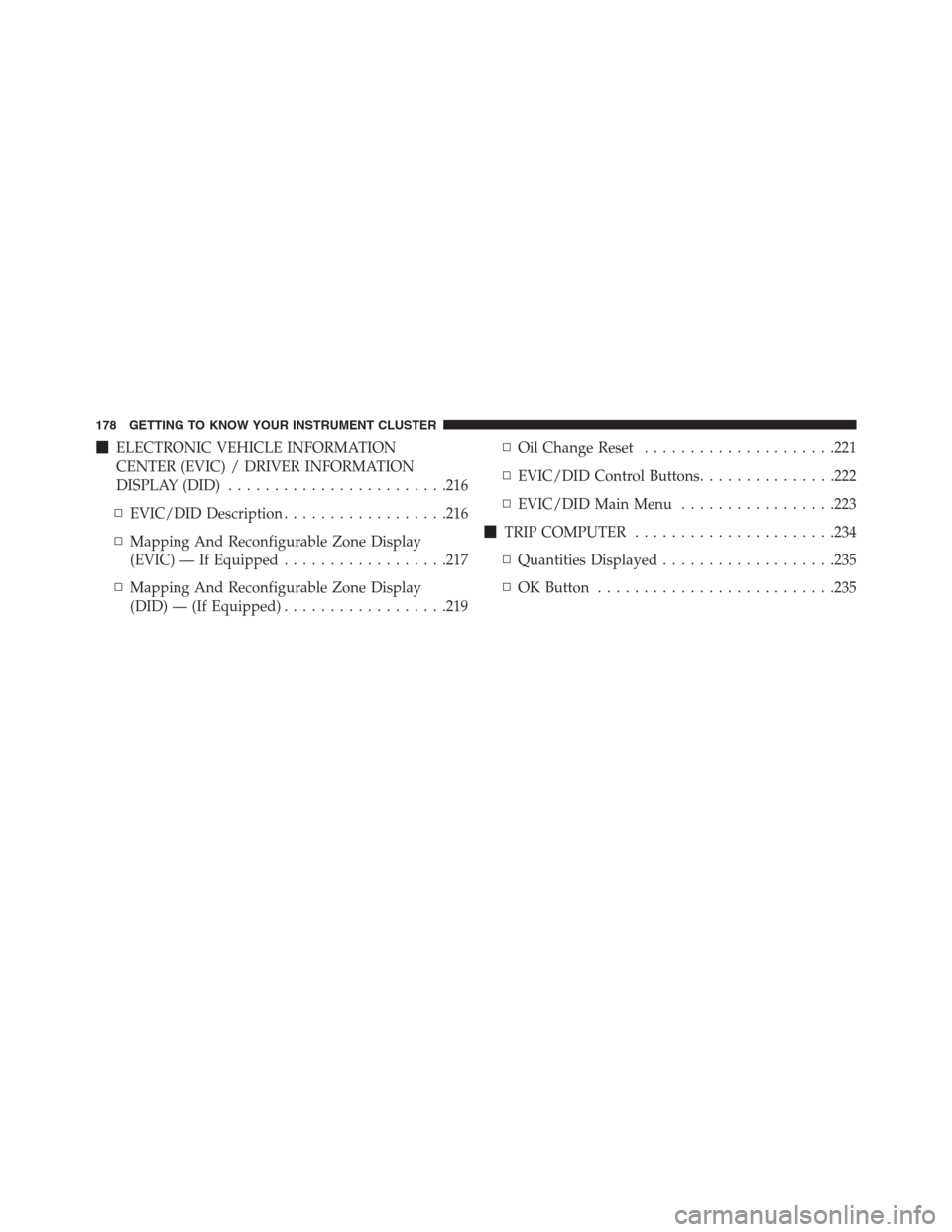

ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) / DRIVER INFORMATION
DISPLAY (DID)........................216
▫EVIC/DID Description..................216
▫Mapping And Reconfigurable Zone Display
(EVIC) — If Equipped..................217
▫Mapping And Reconfigurable Zone Display
(DID) — (If Equipped)..................219▫Oil Change Reset.....................221
▫EVIC/DID Control Buttons...............222
▫EVIC/DID Main Menu.................223
TRIP COMPUTER......................234
▫Quantities Displayed...................235
▫OK Button..........................235
178 GETTING TO KNOW YOUR INSTRUMENT CLUSTER
