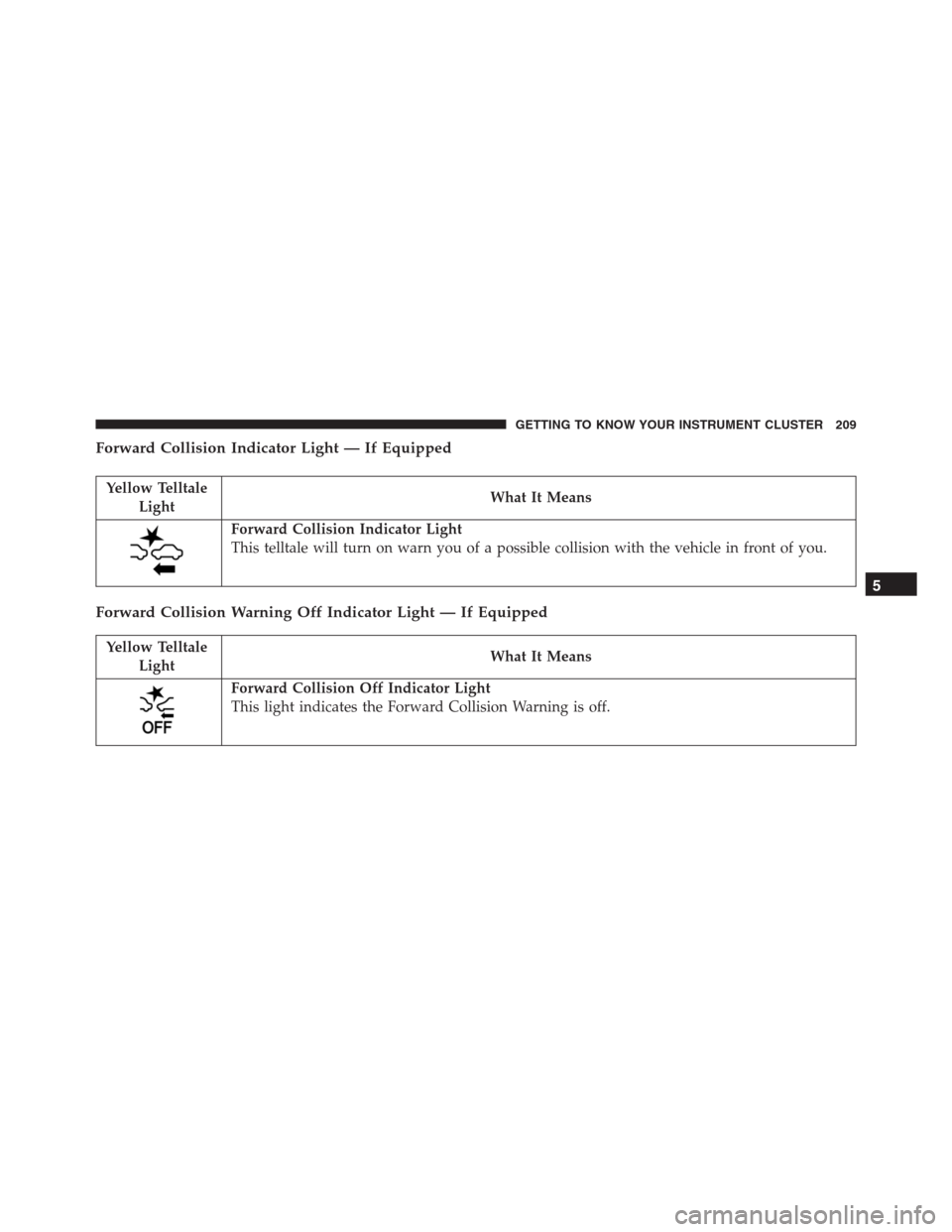

Forward Collision Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
Forward Collision Indicator Light
This telltale will turn on warn you of a possible collision with the vehicle in front of you.
Forward Collision Warning Off Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
Forward Collision Off Indicator Light
This light indicates the Forward Collision Warning is off.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 209

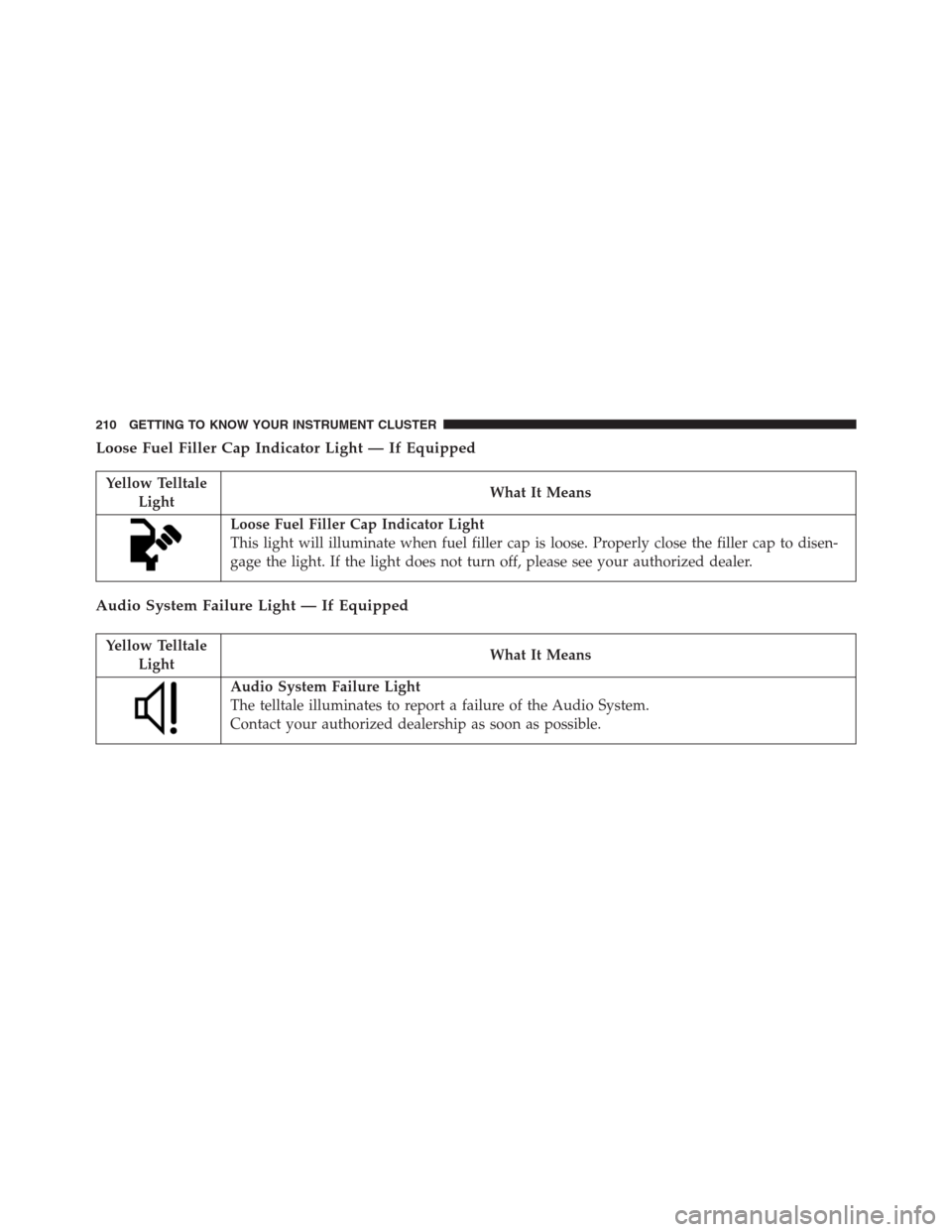

Loose Fuel Filler Cap Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
Loose Fuel Filler Cap Indicator Light
This light will illuminate when fuel filler cap is loose. Properly close the filler cap to disen-
gage the light. If the light does not turn off, please see your authorized dealer.
Audio System Failure Light — If Equipped
Yellow Telltale
LightWhat It Means
Audio System Failure Light
The telltale illuminates to report a failure of the Audio System.
Contact your authorized dealership as soon as possible.
210 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

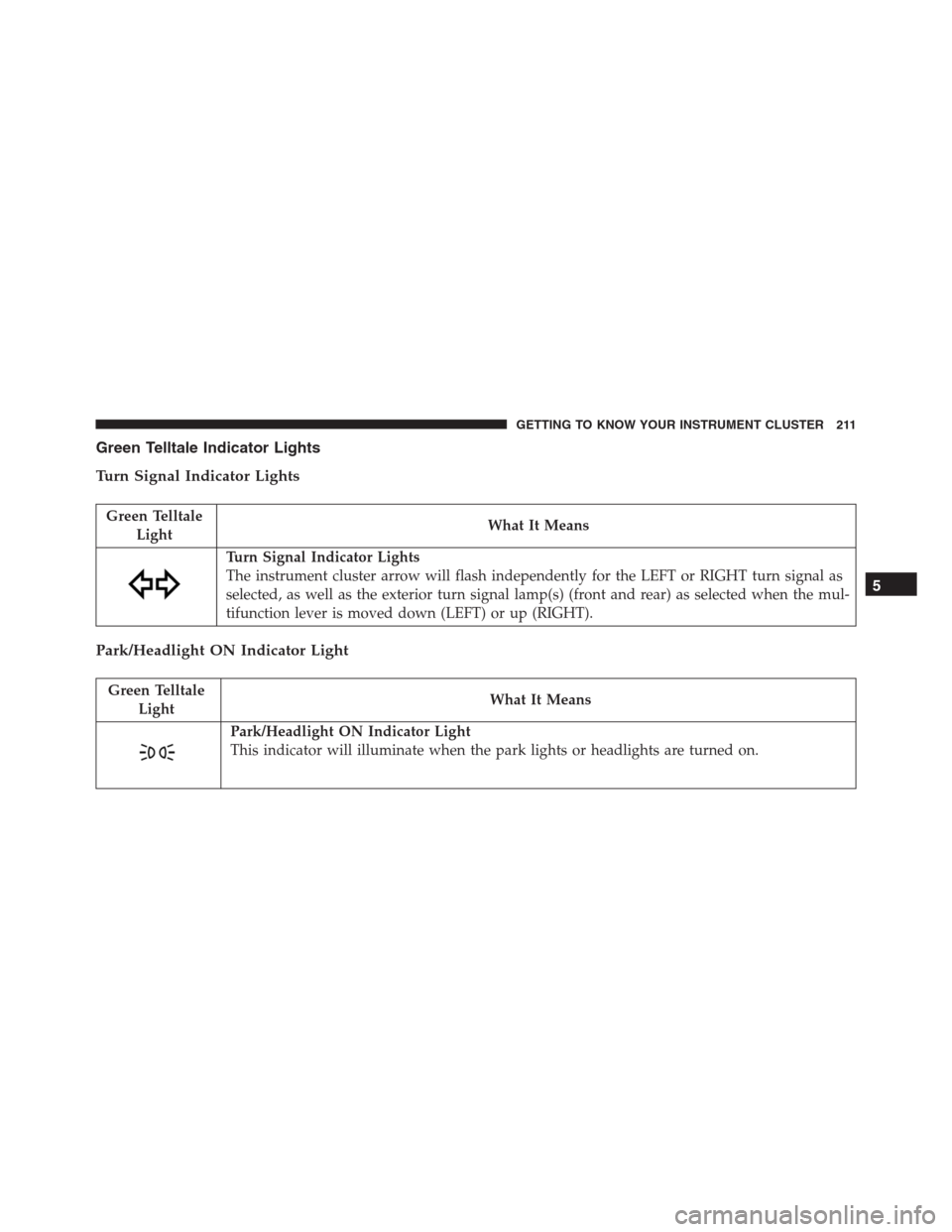

Green Telltale Indicator Lights
Turn Signal Indicator Lights
Green Telltale
LightWhat It Means
Turn Signal Indicator Lights
The instrument cluster arrow will flash independently for the LEFT or RIGHT turn signal as
selected, as well as the exterior turn signal lamp(s) (front and rear) as selected when the mul-
tifunction lever is moved down (LEFT) or up (RIGHT).
Park/Headlight ON Indicator Light
Green Telltale
LightWhat It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 211

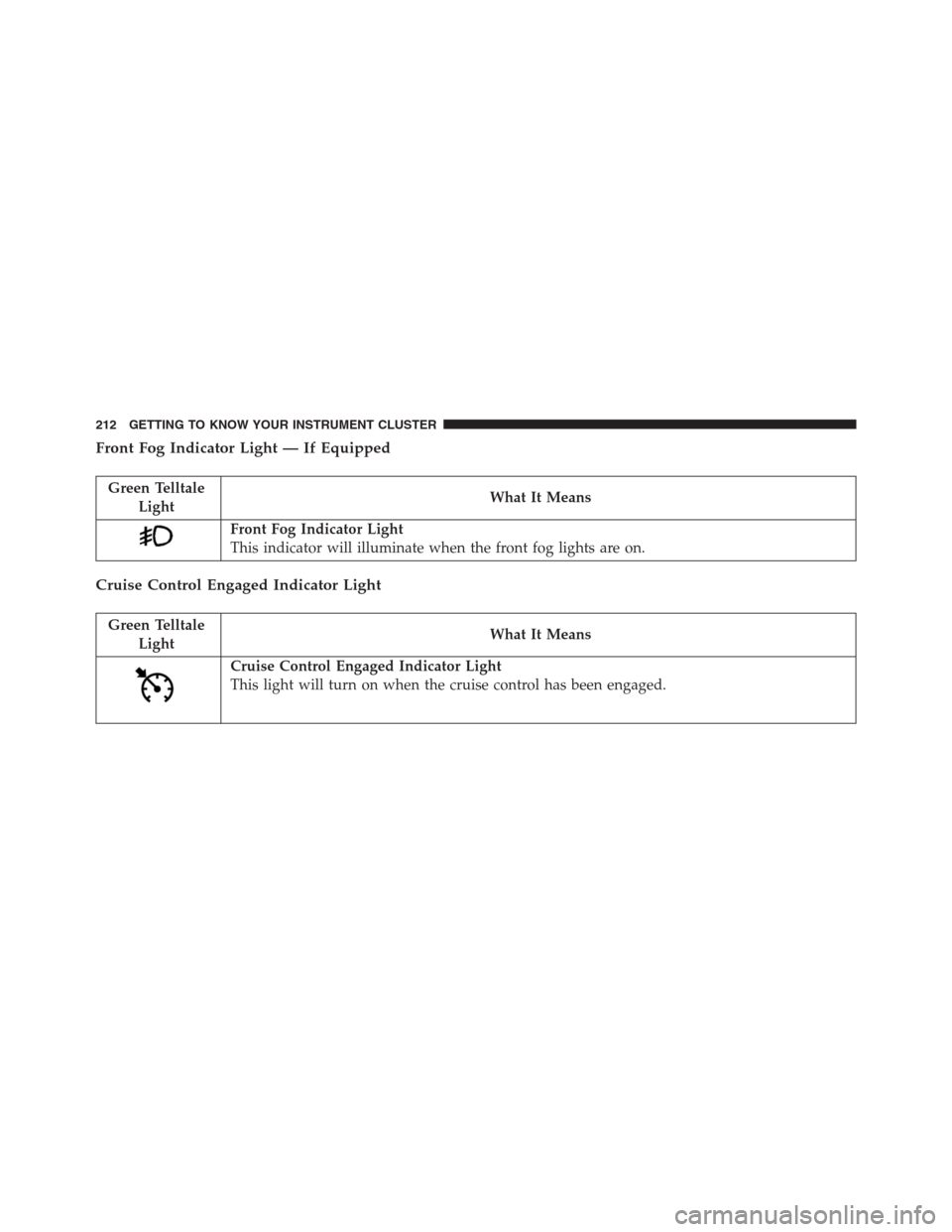

Front Fog Indicator Light — If Equipped
Green Telltale
LightWhat It Means
Front Fog Indicator Light
This indicator will illuminate when the front fog lights are on.
Cruise Control Engaged Indicator Light
Green Telltale
LightWhat It Means
Cruise Control Engaged Indicator Light
This light will turn on when the cruise control has been engaged.
212 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

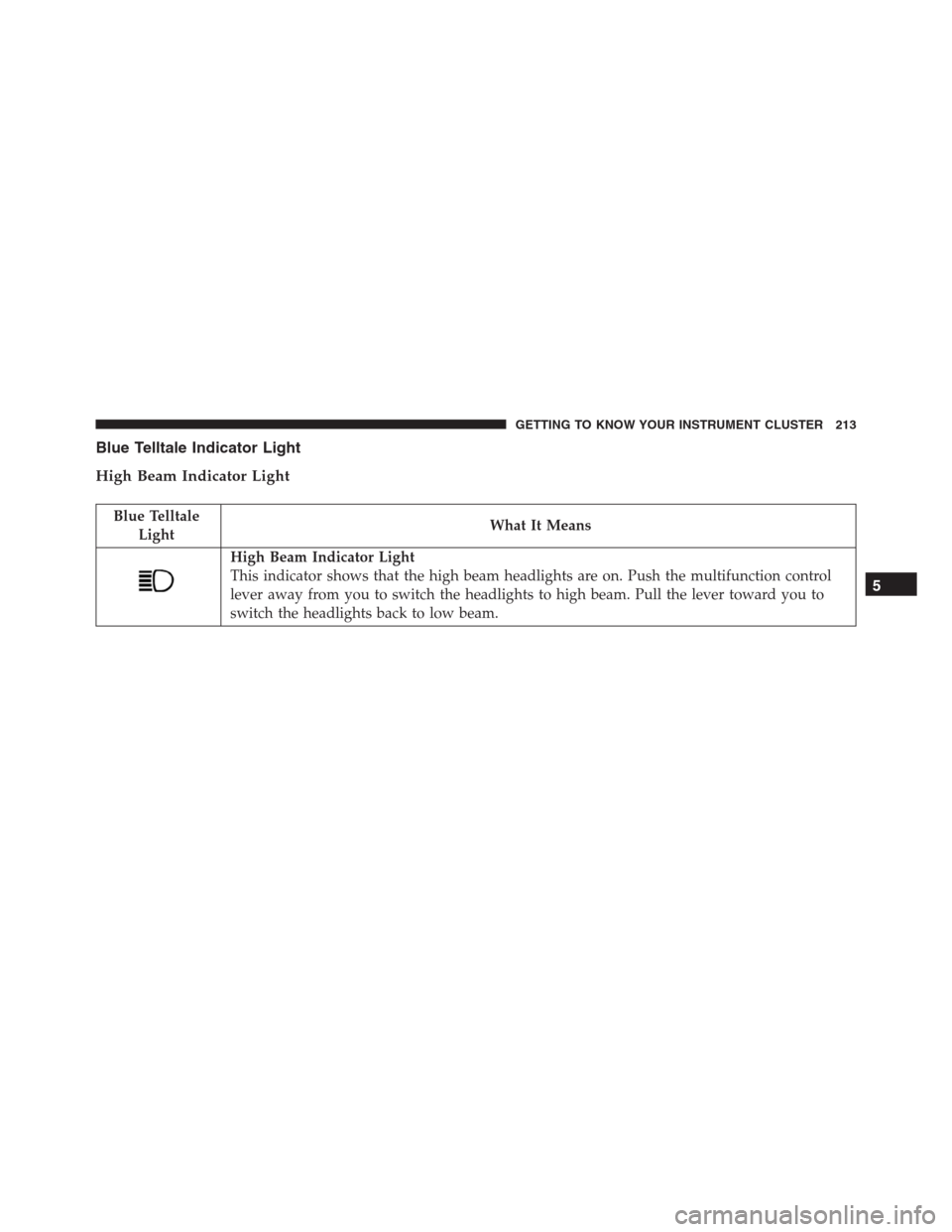

Blue Telltale Indicator Light
High Beam Indicator Light
Blue Telltale
LightWhat It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control
lever away from you to switch the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 213

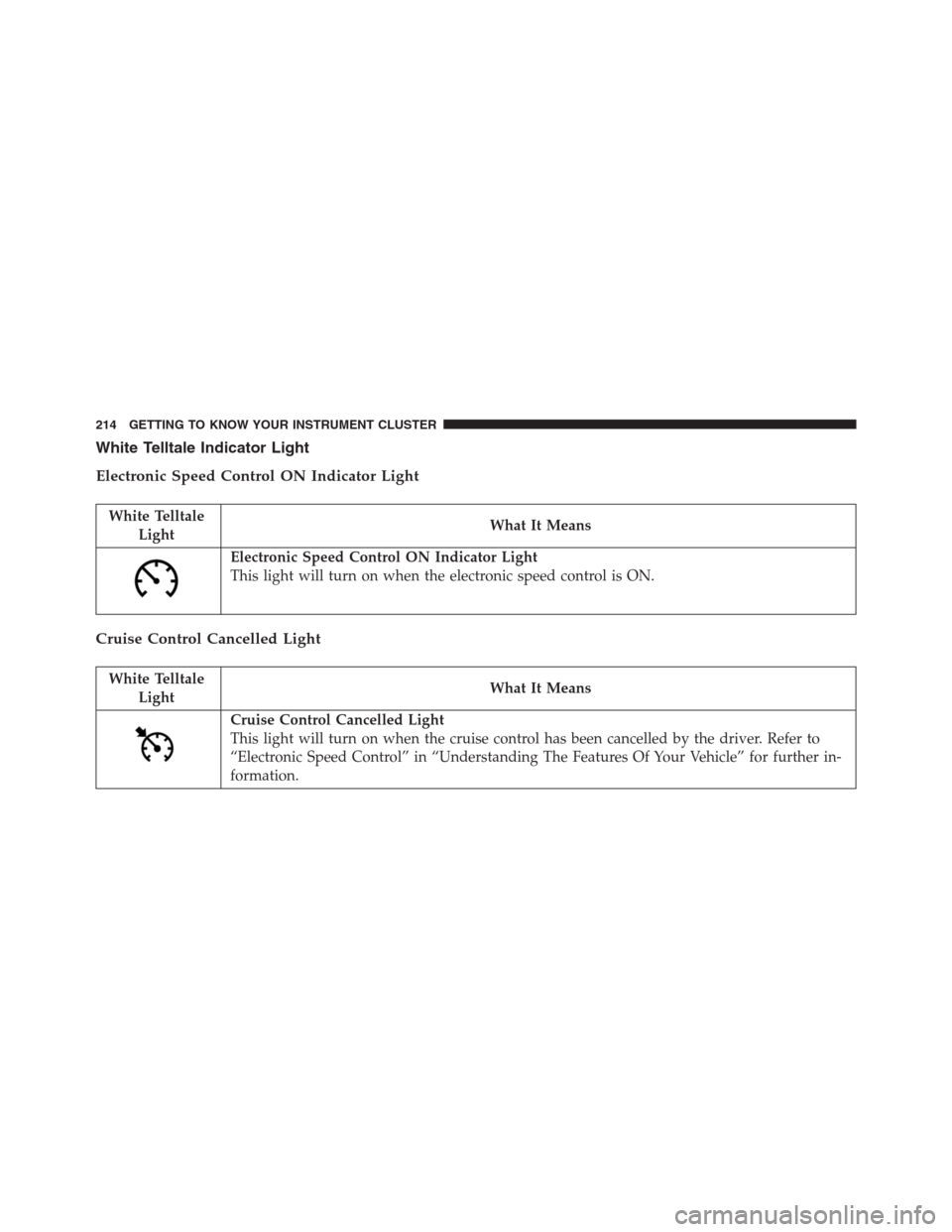

White Telltale Indicator Light
Electronic Speed Control ON Indicator Light
White Telltale
LightWhat It Means
Electronic Speed Control ON Indicator Light
This light will turn on when the electronic speed control is ON.
Cruise Control Cancelled Light
White Telltale
LightWhat It Means
Cruise Control Cancelled Light
This light will turn on when the cruise control has been cancelled by the driver. Refer to
“Electronic Speed Control” in “Understanding The Features Of Your Vehicle” for further in-
formation.
214 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

ONBOARD DIAGNOSTIC SYSTEM (OBD II)
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light (MIL).” It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.
CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing, while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Onboard Diagnostic System (OBD II)
Cybersecurity
Your vehicle is required to have an Onboard Diagnostic
system (OBD II) and a connection port to allow access to
information related to the performance of your emissions
controls. Authorized service technicians may need to
access this information to assist with the diagnosis and
service of your vehicle and emissions system.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 215

WARNING!
•ONLY an authorized service technician should con-
nect equipment to the OBD II connection port in
order to diagnose or service your vehicle.
•If unauthorized equipment is connected to the
OBD II connection port, such as a driver-behavior
tracking device, it may:
•Be possible that vehicle systems, including
safety related systems, could be impaired or a
loss of vehicle control could occur that may result
in an accident involving serious injury or death.
•Access, or allow others to access, information
stored in your vehicle systems, including per-
sonal information.For further information, refer to “Privacy Practices” and
“Uconnect CyberSecurity” in “ All About Uconnect Ac-
cess” in your Owner ’s Manual Radio Supplement and
“Cybersecurity” in “Multimedia” in your Owner ’s
Manual on the DVD.
ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) / DRIVER INFORMATION DISPLAY (DID)
EVIC/DID Description
The vehicle can be equipped with multifunctional dis-
play (EVIC), or a reconfigurable multifunctional display
(DID), which offers useful information to the driver.
With the ignition in the STOP/OFF position (and the key
removed, for vehicles with mechanical key), opening/
closing of a door will activate the display for viewing,
and display the total miles or kilometers in the odometer.
216 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

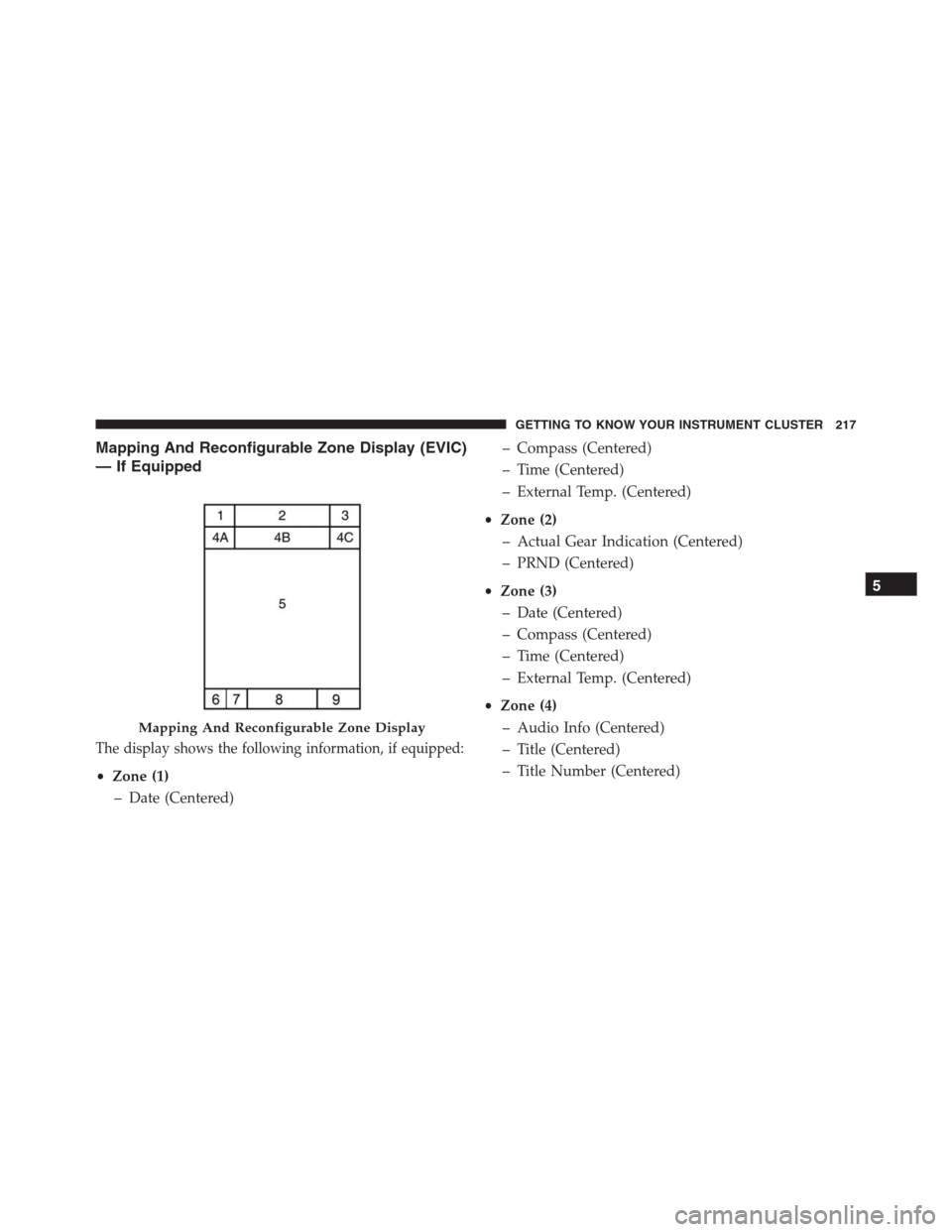

Mapping And Reconfigurable Zone Display (EVIC)
— If Equipped
The display shows the following information, if equipped:
•Zone (1)
– Date (Centered)– Compass (Centered)
– Time (Centered)
– External Temp. (Centered)
•Zone (2)
– Actual Gear Indication (Centered)
– PRND (Centered)
•Zone (3)
– Date (Centered)
– Compass (Centered)
– Time (Centered)
– External Temp. (Centered)
•Zone (4)
– Audio Info (Centered)
– Title (Centered)
– Title Number (Centered)
Mapping And Reconfigurable Zone Display
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 217

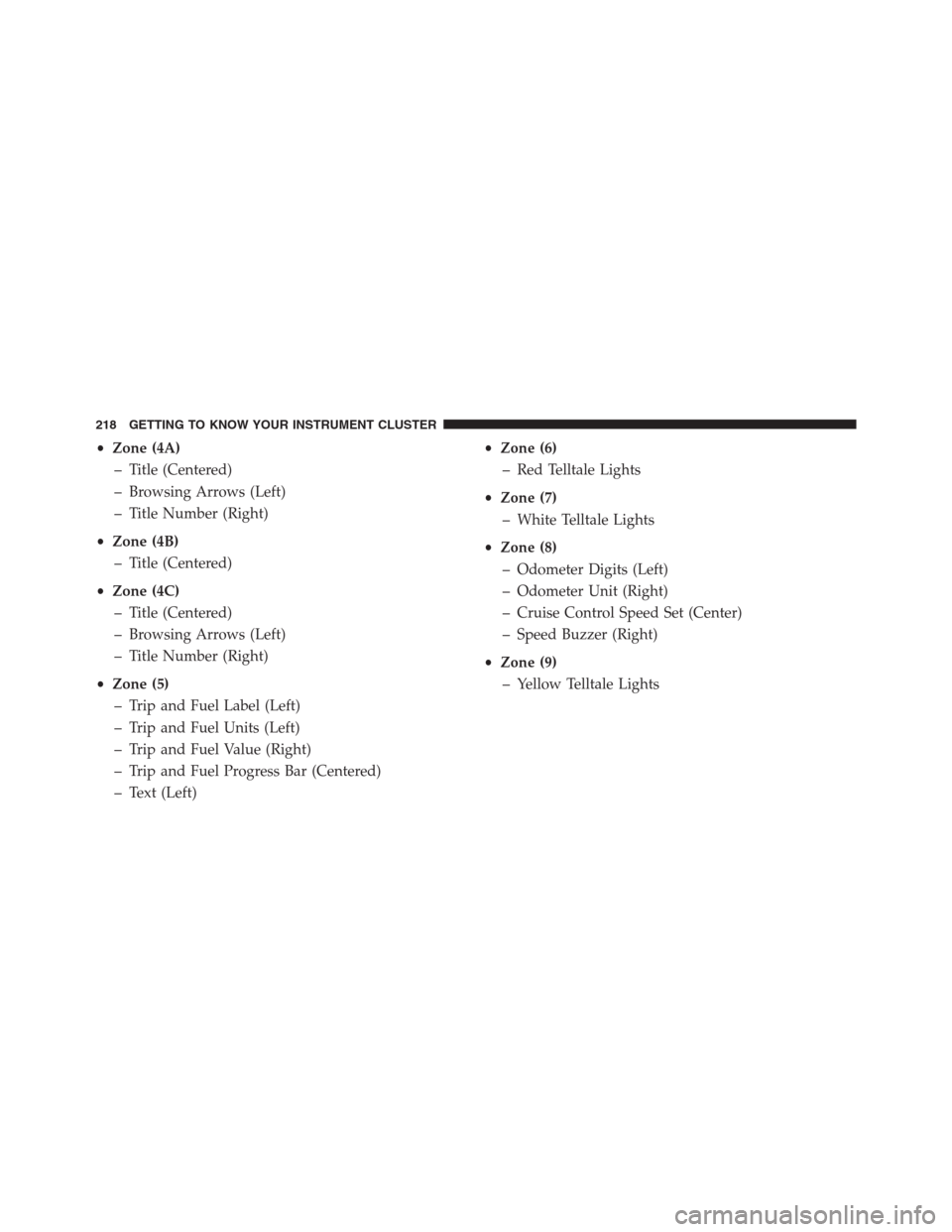

•Zone (4A)
– Title (Centered)
– Browsing Arrows (Left)
– Title Number (Right)
•Zone (4B)
– Title (Centered)
•Zone (4C)
– Title (Centered)
– Browsing Arrows (Left)
– Title Number (Right)
•Zone (5)
– Trip and Fuel Label (Left)
– Trip and Fuel Units (Left)
– Trip and Fuel Value (Right)
– Trip and Fuel Progress Bar (Centered)
– Text (Left)•Zone (6)
– Red Telltale Lights
•Zone (7)
– White Telltale Lights
•Zone (8)
– Odometer Digits (Left)
– Odometer Unit (Right)
– Cruise Control Speed Set (Center)
– Speed Buzzer (Right)
•Zone (9)
– Yellow Telltale Lights
