JEEP RENEGADE 2018 Owner handbook (in English)

Symbol What it means
SPEED LIMITER FAILURE
The symbol switches on in case of failure of the Speed Limiter device. Contact a Jeep Dealership to
have the failure solved.
89

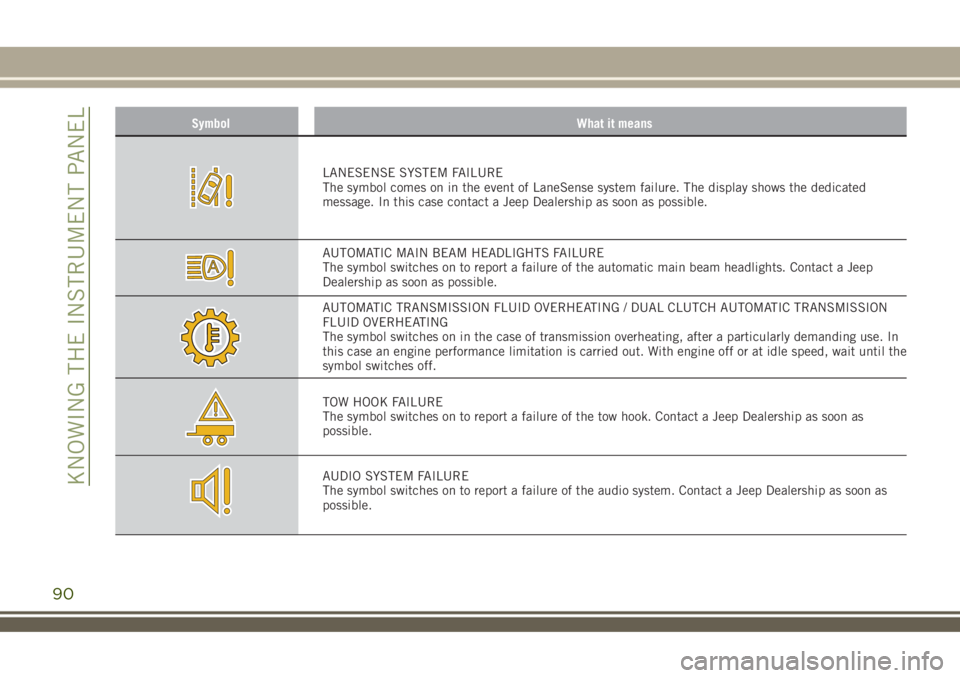

Symbol What it means
LANESENSE SYSTEM FAILURE
The symbol comes on in the event of LaneSense system failure. The display shows the dedicated
message. In this case contact a Jeep Dealership as soon as possible.
AUTOMATIC MAIN BEAM HEADLIGHTS FAILURE
The symbol switches on to report a failure of the automatic main beam headlights. Contact a Jeep
Dealership as soon as possible.
AUTOMATIC TRANSMISSION FLUID OVERHEATING / DUAL CLUTCH AUTOMATIC TRANSMISSION
FLUID OVERHEATING
The symbol switches on in the case of transmission overheating, after a particularly demanding use. In
this case an engine performance limitation is carried out. With engine off or at idle speed, wait until the
symbol switches off.
TOW HOOK FAILURE
The symbol switches on to report a failure of the tow hook. Contact a Jeep Dealership as soon as
possible.
AUDIO SYSTEM FAILURE
The symbol switches on to report a failure of the audio system. Contact a Jeep Dealership as soon as
possible.
90
KNOWING THE INSTRUMENT PANEL

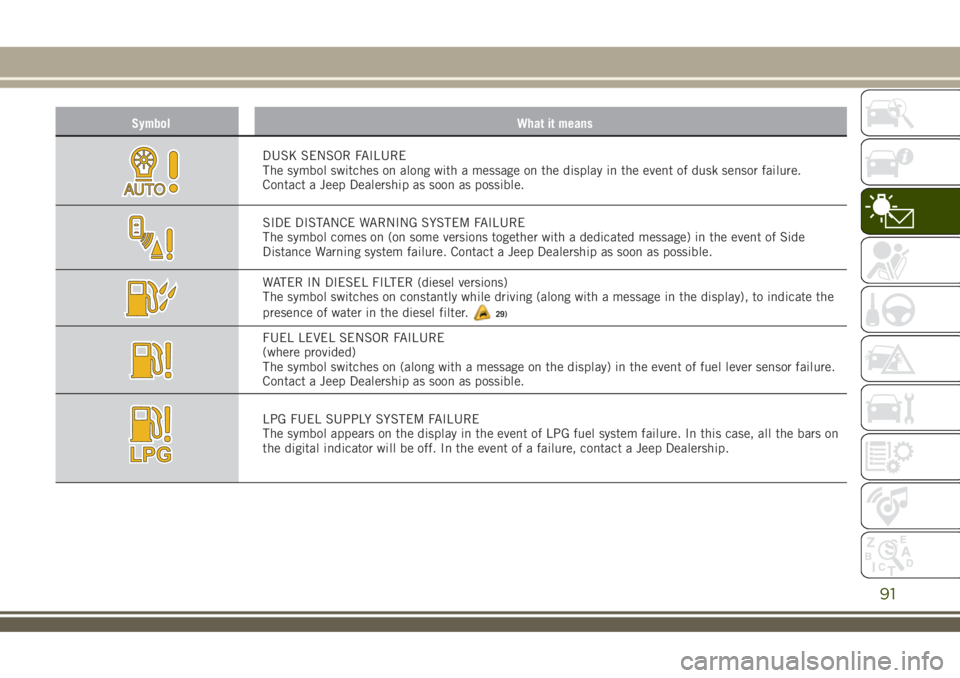

Symbol What it means
DUSK SENSOR FAILURE
The symbol switches on along with a message on the display in the event of dusk sensor failure.
Contact a Jeep Dealership as soon as possible.
SIDE DISTANCE WARNING SYSTEM FAILURE
The symbol comes on (on some versions together with a dedicated message) in the event of Side
Distance Warning system failure. Contact a Jeep Dealership as soon as possible.
WATER IN DIESEL FILTER (diesel versions)
The symbol switches on constantly while driving (along with a message in the display), to indicate the
presence of water in the diesel filter.
29)
FUEL LEVEL SENSOR FAILURE
(where provided)
The symbol switches on (along with a message on the display) in the event of fuel lever sensor failure.
Contact a Jeep Dealership as soon as possible.
LPG FUEL SUPPLY SYSTEM FAILURE
The symbol appears on the display in the event of LPG fuel system failure. In this case, all the bars on
the digital indicator will be off. In the event of a failure, contact a Jeep Dealership.
91

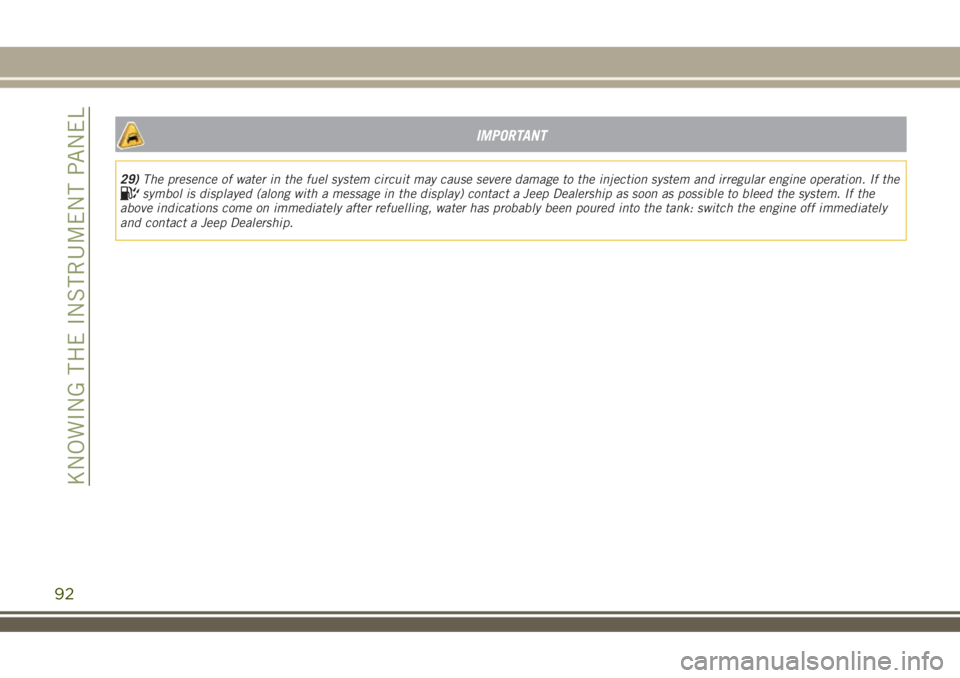

IMPORTANT
29)The presence of water in the fuel system circuit may cause severe damage to the injection system and irregular engine operation. If thesymbol is displayed (along with a message in the display) contact a Jeep Dealership as soon as possible to bleed the system. If the
above indications come on immediately after refuelling, water has probably been poured into the tank: switch the engine off immediately
and contact a Jeep Dealership.
92
KNOWING THE INSTRUMENT PANEL

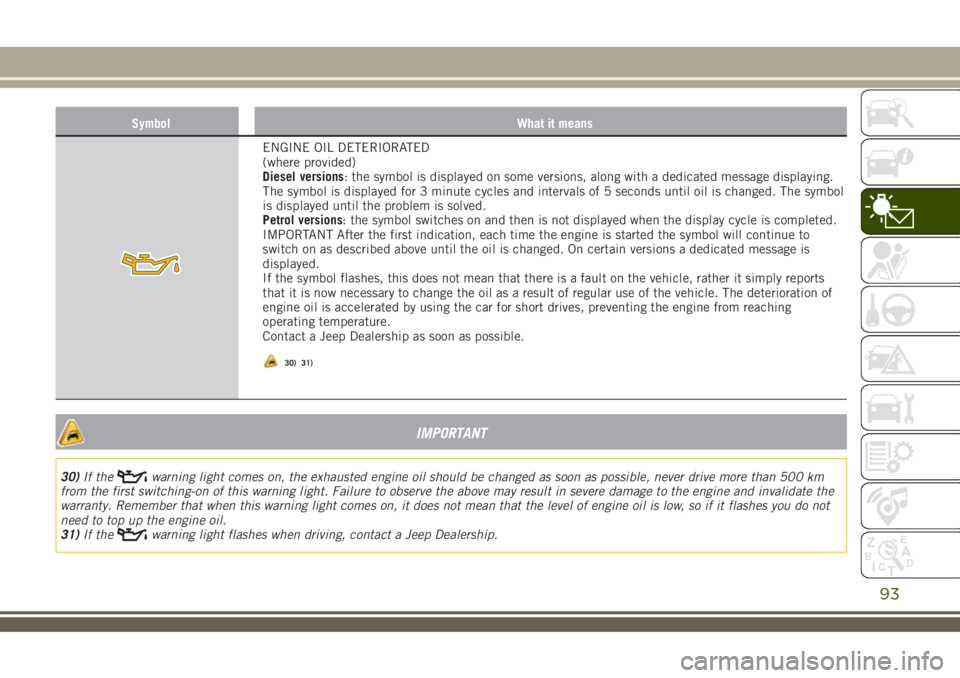

Symbol What it means
ENGINE OIL DETERIORATED
(where provided)
Diesel versions: the symbol is displayed on some versions, along with a dedicated message displaying.
The symbol is displayed for 3 minute cycles and intervals of 5 seconds until oil is changed. The symbol
is displayed until the problem is solved.
Petrol versions: the symbol switches on and then is not displayed when the display cycle is completed.
IMPORTANT After the first indication, each time the engine is started the symbol will continue to
switch on as described above until the oil is changed. On certain versions a dedicated message is
displayed.
If the symbol flashes, this does not mean that there is a fault on the vehicle, rather it simply reports
that it is now necessary to change the oil as a result of regular use of the vehicle. The deterioration of
engine oil is accelerated by using the car for short drives, preventing the engine from reaching
operating temperature.
Contact a Jeep Dealership as soon as possible.
IMPORTANT
30)If thewarning light comes on, the exhausted engine oil should be changed as soon as possible, never drive more than 500 km
from the first switching-on of this warning light. Failure to observe the above may result in severe damage to the engine and invalidate the
warranty. Remember that when this warning light comes on, it does not mean that the level of engine oil is low, so if it flashes you do not
need to top up the engine oil.
31)If the
warning light flashes when driving, contact a Jeep Dealership.
93
30)
31)

Symbol What it means

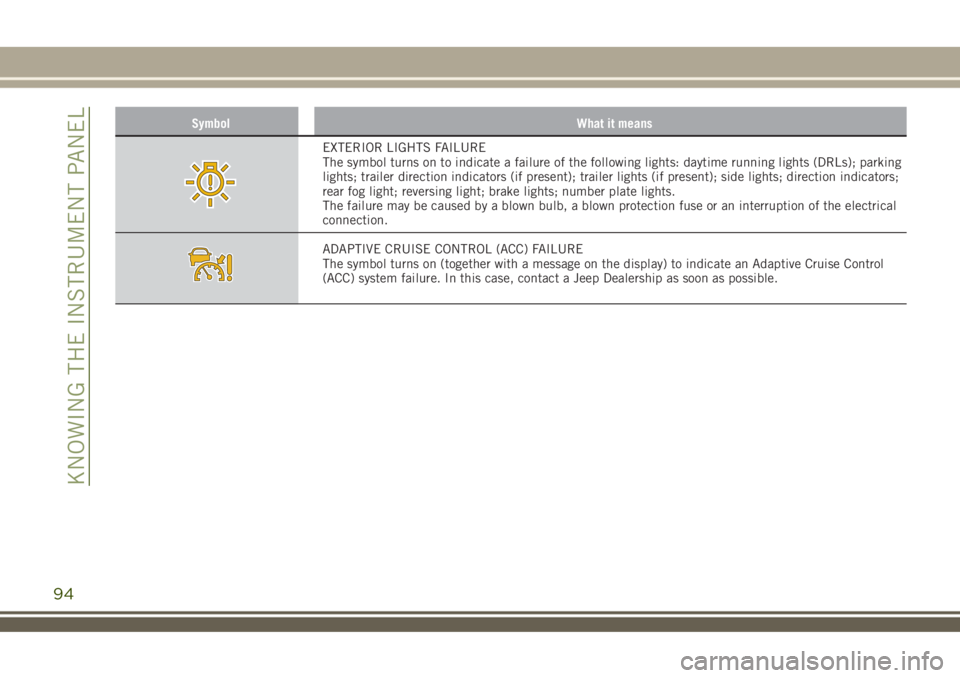

EXTERIOR LIGHTS FAILURE
The symbol turns on to indicate a failure of the following lights: daytime running lights (DRLs); parking
lights; trailer direction indicators (if present); trailer lights (if present); side lights; direction indicators;
rear fog light; reversing light; brake lights; number plate lights.
The failure may be caused by a blown bulb, a blown protection fuse or an interruption of the electrical
connection.
ADAPTIVE CRUISE CONTROL (ACC) FAILURE
The symbol turns on (together with a message on the display) to indicate an Adaptive Cruise Control
(ACC) system failure. In this case, contact a Jeep Dealership as soon as possible.
94
KNOWING THE INSTRUMENT PANEL

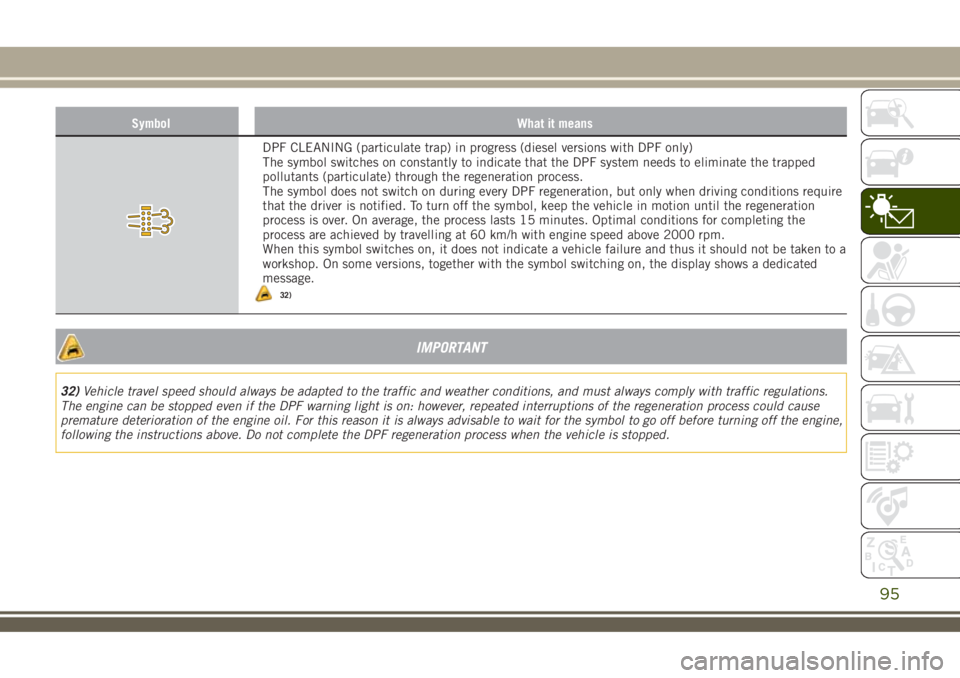

Symbol What it means
DPF CLEANING (particulate trap) in progress (diesel versions with DPF only)
The symbol switches on constantly to indicate that the DPF system needs to eliminate the trapped
pollutants (particulate) through the regeneration process.
The symbol does not switch on during every DPF regeneration, but only when driving conditions require
that the driver is notified. To turn off the symbol, keep the vehicle in motion until the regeneration
process is over. On average, the process lasts 15 minutes. Optimal conditions for completing the
process are achieved by travelling at 60 km/h with engine speed above 2000 rpm.
When this symbol switches on, it does not indicate a vehicle failure and thus it should not be taken to a
workshop. On some versions, together with the symbol switching on, the display shows a dedicated
message.
IMPORTANT
32)Vehicle travel speed should always be adapted to the traffic and weather conditions, and must always comply with traffic regulations.
The engine can be stopped even if the DPF warning light is on: however, repeated interruptions of the regeneration process could cause
premature deterioration of the engine oil. For this reason it is always advisable to wait for the symbol to go off before turning off the engine,
following the instructions above. Do not complete the DPF regeneration process when the vehicle is stopped.
95
32)

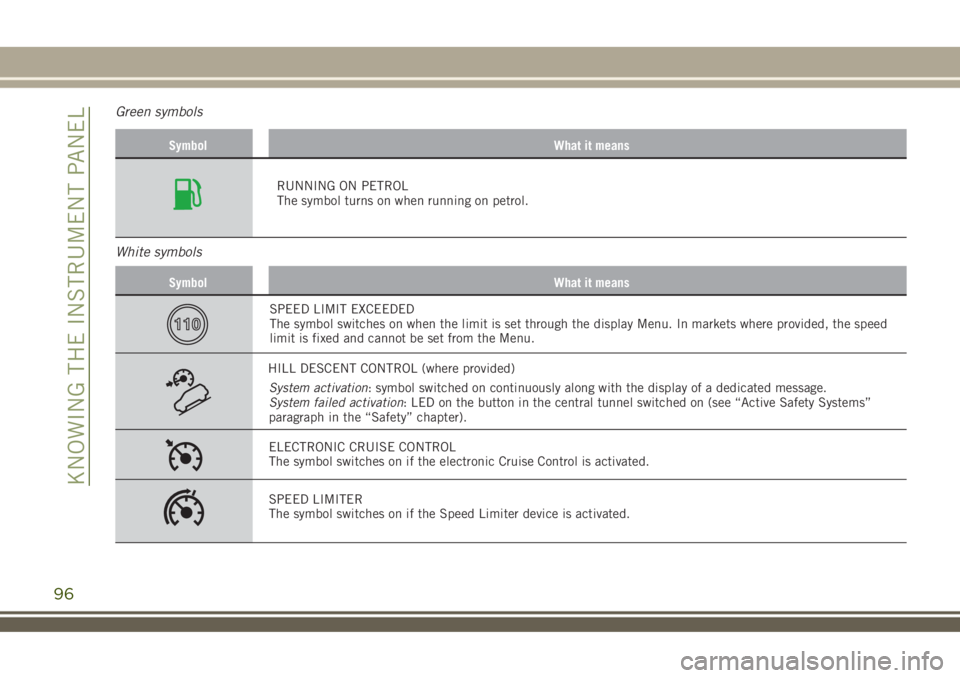

Green symbols
Symbol What it means
RUNNING ON PETROL
The symbol turns on when running on petrol.
White symbols
Symbol What it means
SPEED LIMIT EXCEEDED
The symbol switches on when the limit is set through the display Menu. In markets where provided, the speed
limit is fixed and cannot be set from the Menu.
HILL DESCENT CONTROL (where provided)
System activation: symbol switched on continuously along with the display of a dedicated message.
System failed activation: LED on the button in the central tunnel switched on (see “Active Safety Systems”
paragraph in the “Safety” chapter).
ELECTRONIC CRUISE CONTROL
The symbol switches on if the electronic Cruise Control is activated.
SPEED LIMITER
The symbol switches on if the Speed Limiter device is activated.
96
KNOWING THE INSTRUMENT PANEL

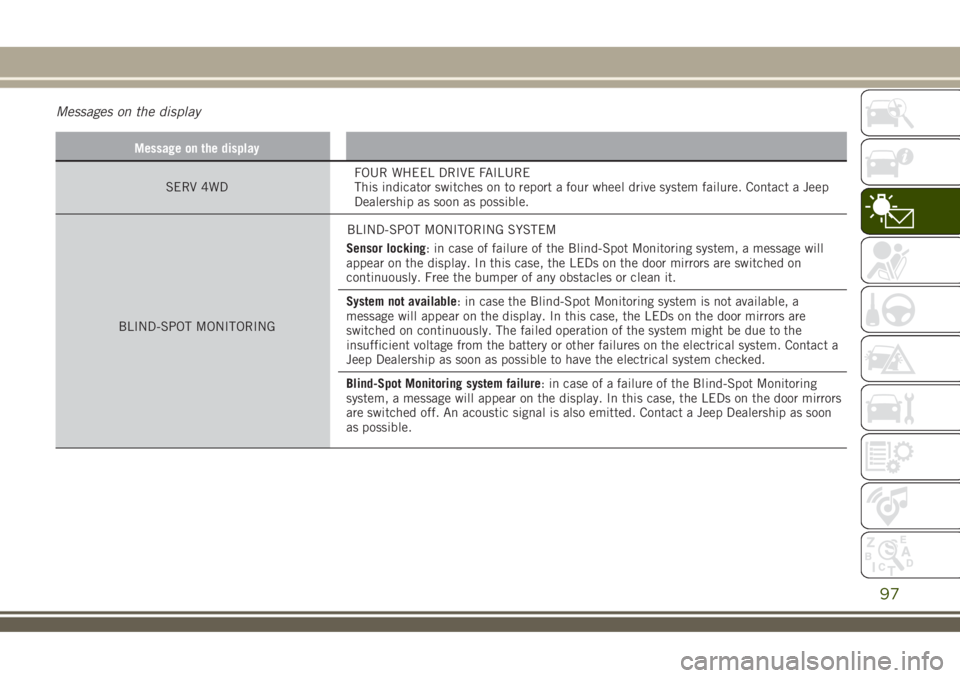

Messages on the display
Message on the display
SERV 4WDFOUR WHEEL DRIVE FAILURE
This indicator switches on to report a four wheel drive system failure. Contact a Jeep
Dealership as soon as possible.
BLIND-SPOT MONITORINGBLIND-SPOT MONITORING SYSTEM
Sensor locking: in case of failure of the Blind-Spot Monitoring system, a message will
appear on the display. In this case, the LEDs on the door mirrors are switched on
continuously. Free the bumper of any obstacles or clean it.
System not available: in case the Blind-Spot Monitoring system is not available, a
message will appear on the display. In this case, the LEDs on the door mirrors are
switched on continuously. The failed operation of the system might be due to the
insufficient voltage from the battery or other failures on the electrical system. Contact a
Jeep Dealership as soon as possible to have the electrical system checked.
Blind-Spot Monitoring system failure: in case of a failure of the Blind-Spot Monitoring
system, a message will appear on the display. In this case, the LEDs on the door mirrors
are switched off. An acoustic signal is also emitted. Contact a Jeep Dealership as soon
as possible.
97

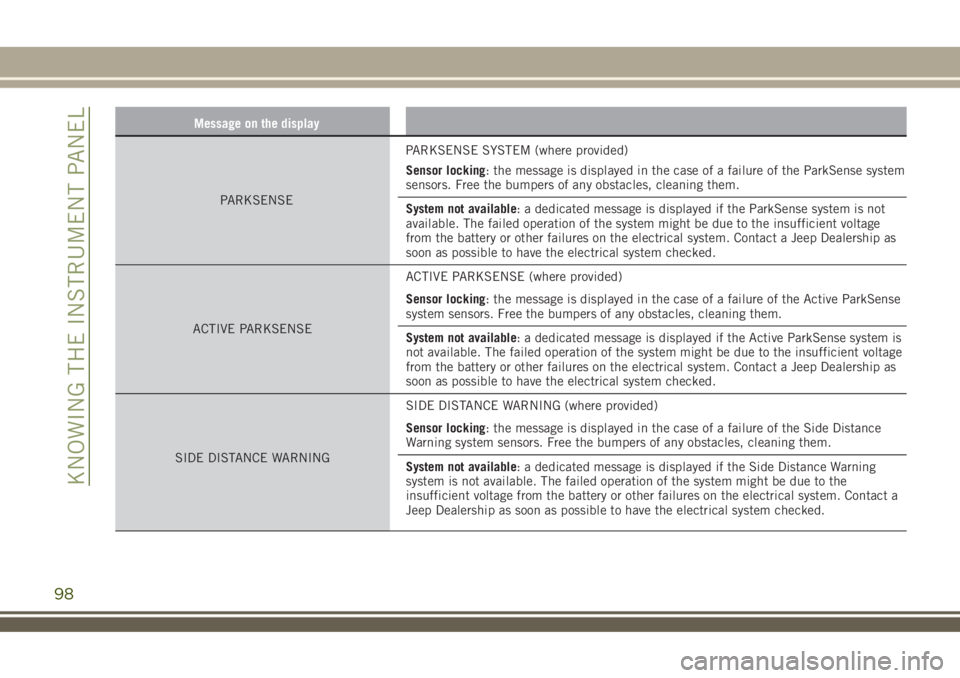

Message on the display
PARKSENSEPARKSENSE SYSTEM (where provided)
Sensor locking: the message is displayed in the case of a failure of the ParkSense system
sensors. Free the bumpers of any obstacles, cleaning them.
System not available: a dedicated message is displayed if the ParkSense system is not
available. The failed operation of the system might be due to the insufficient voltage
from the battery or other failures on the electrical system. Contact a Jeep Dealership as
soon as possible to have the electrical system checked.
ACTIVE PARKSENSEACTIVE PARKSENSE (where provided)
Sensor locking: the message is displayed in the case of a failure of the Active ParkSense
system sensors. Free the bumpers of any obstacles, cleaning them.
System not available: a dedicated message is displayed if the Active ParkSense system is
not available. The failed operation of the system might be due to the insufficient voltage
from the battery or other failures on the electrical system. Contact a Jeep Dealership as
soon as possible to have the electrical system checked.
SIDE DISTANCE WARNINGSIDE DISTANCE WARNING (where provided)
Sensor locking: the message is displayed in the case of a failure of the Side Distance
Warning system sensors. Free the bumpers of any obstacles, cleaning them.
System not available: a dedicated message is displayed if the Side Distance Warning
system is not available. The failed operation of the system might be due to the
insufficient voltage from the battery or other failures on the electrical system. Contact a
Jeep Dealership as soon as possible to have the electrical system checked.
98
