JEEP RENEGADE 2018 Owner handbook (in English)

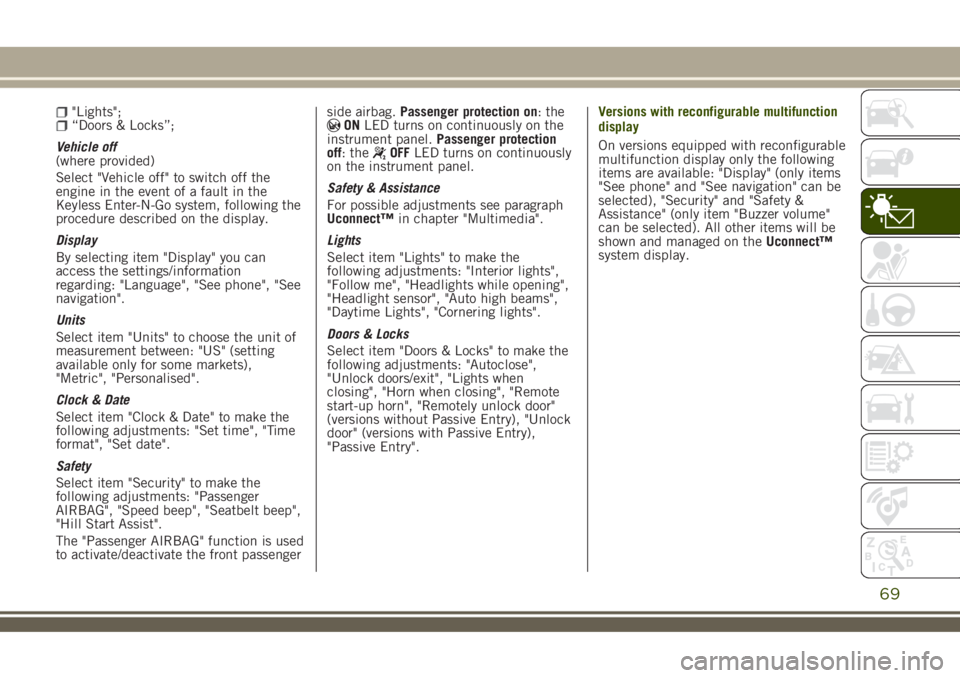

"Lights";“Doors & Locks”;
Vehicle off
(where provided)
Select "Vehicle off" to switch off the
engine in the event of a fault in the
Keyless Enter-N-Go system, following the
procedure described on the display.
Display
By selecting item "Display" you can
access the settings/information
regarding: "Language", "See phone", "See
navigation".
Units
Select item "Units" to choose the unit of
measurement between: "US" (setting
available only for some markets),
"Metric", "Personalised".
Clock & Date
Select item "Clock & Date" to make the
following adjustments: "Set time", "Time
format", "Set date".
Safety
Select item "Security" to make the
following adjustments: "Passenger
AIRBAG", "Speed beep", "Seatbelt beep",
"Hill Start Assist".
The "Passenger AIRBAG" function is used
to activate/deactivate the front passengerside airbag.Passenger protection on: theONLED turns on continuously on the
instrument panel.Passenger protection
off: the
OFFLED turns on continuously
on the instrument panel.
Safety & Assistance
For possible adjustments see paragraph
Uconnect™in chapter "Multimedia".
Lights
Select item "Lights" to make the
following adjustments: "Interior lights",
"Follow me", "Headlights while opening",
"Headlight sensor", "Auto high beams",
"Daytime Lights", "Cornering lights".
Doors & Locks
Select item "Doors & Locks" to make the
following adjustments: "Autoclose",
"Unlock doors/exit", "Lights when
closing", "Horn when closing", "Remote
start-up horn", "Remotely unlock door"
(versions without Passive Entry), "Unlock
door" (versions with Passive Entry),
"Passive Entry".Versions with reconfigurable multifunction
display
On versions equipped with reconfigurable
multifunction display only the following
items are available: "Display" (only items
"See phone" and "See navigation" can be
selected), "Security" and "Safety &
Assistance" (only item "Buzzer volume"
can be selected). All other items will be
shown and managed on theUconnect™
system display.
69

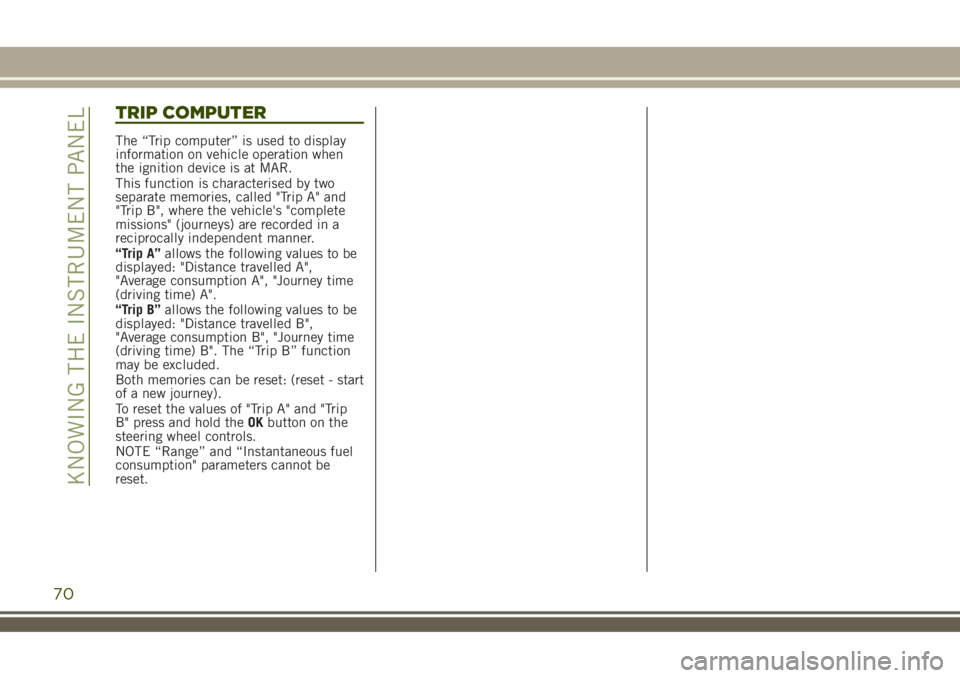

TRIP COMPUTER
The “Trip computer” is used to display
information on vehicle operation when
the ignition device is at MAR.
This function is characterised by two
separate memories, called "Trip A" and
"Trip B", where the vehicle's "complete
missions" (journeys) are recorded in a
reciprocally independent manner.
“Trip A”allows the following values to be
displayed: "Distance travelled A",
"Average consumption A", "Journey time
(driving time) A".
“Trip B”allows the following values to be
displayed: "Distance travelled B",
"Average consumption B", "Journey time
(driving time) B". The “Trip B” function
may be excluded.
Both memories can be reset: (reset - start
of a new journey).
To reset the values of "Trip A" and "Trip
B" press and hold theOKbutton on the
steering wheel controls.
NOTE “Range” and “Instantaneous fuel
consumption" parameters cannot be
reset.
70
KNOWING THE INSTRUMENT PANEL

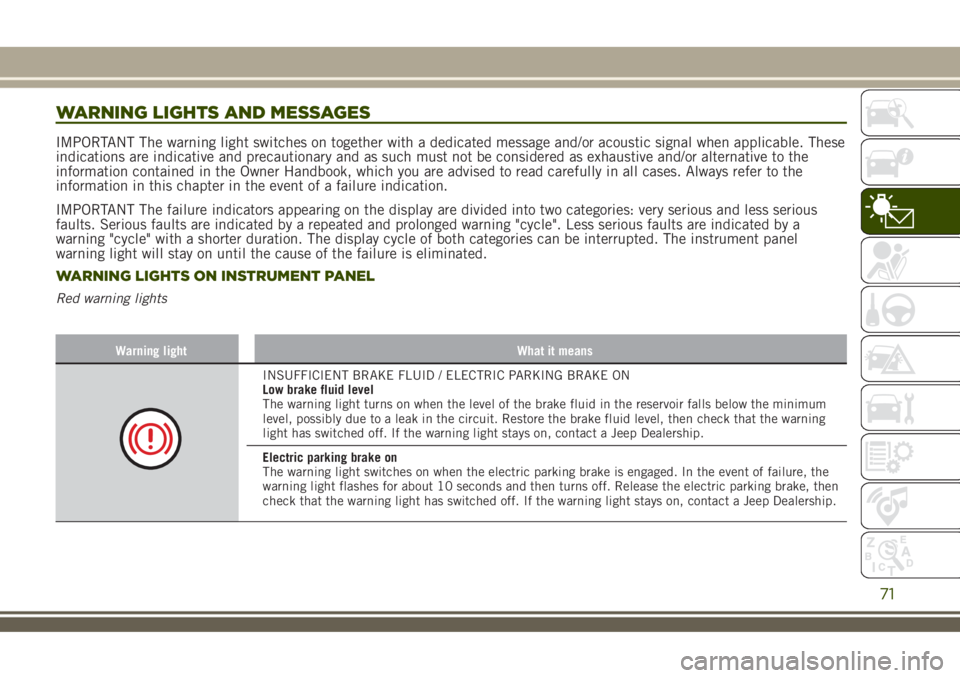

WARNING LIGHTS AND MESSAGES
IMPORTANT The warning light switches on together with a dedicated message and/or acoustic signal when applicable. These
indications are indicative and precautionary and as such must not be considered as exhaustive and/or alternative to the
information contained in the Owner Handbook, which you are advised to read carefully in all cases. Always refer to the
information in this chapter in the event of a failure indication.
IMPORTANT The failure indicators appearing on the display are divided into two categories: very serious and less serious
faults. Serious faults are indicated by a repeated and prolonged warning "cycle". Less serious faults are indicated by a
warning "cycle" with a shorter duration. The display cycle of both categories can be interrupted. The instrument panel
warning light will stay on until the cause of the failure is eliminated.
WARNING LIGHTS ON INSTRUMENT PANEL
Red warning lights
Warning light What it means
INSUFFICIENT BRAKE FLUID / ELECTRIC PARKING BRAKE ON
Low brake fluid level
The warning light turns on when the level of the brake fluid in the reservoir falls below the minimum
level, possibly due to a leak in the circuit. Restore the brake fluid level, then check that the warning
light has switched off. If the warning light stays on, contact a Jeep Dealership.
Electric parking brake on
The warning light switches on when the electric parking brake is engaged. In the event of failure, the
warning light flashes for about 10 seconds and then turns off. Release the electric parking brake, then
check that the warning light has switched off. If the warning light stays on, contact a Jeep Dealership.
71

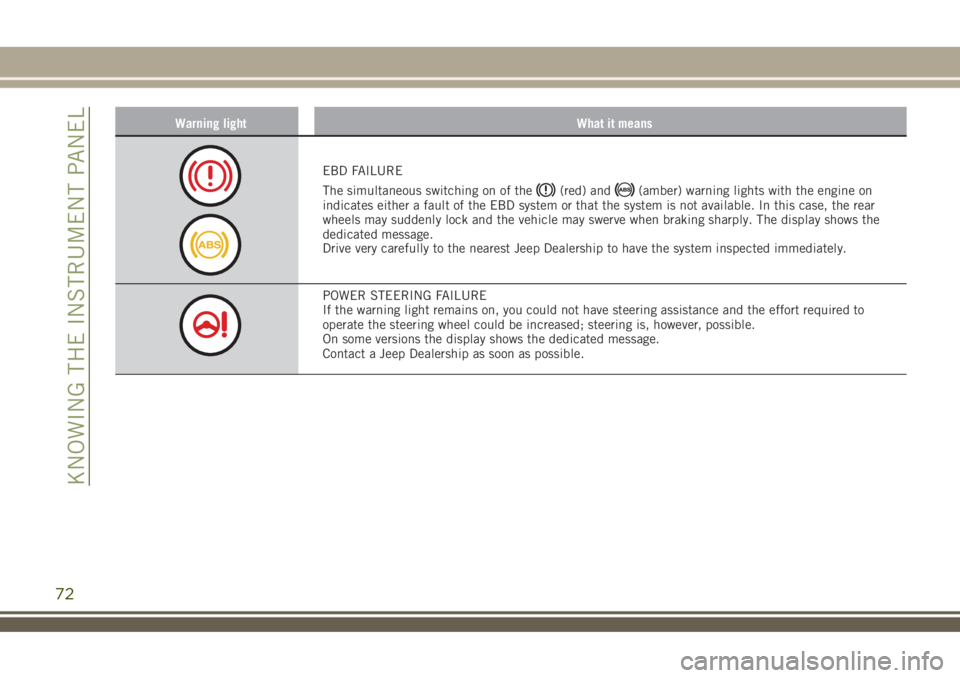

Warning light What it means
EBD FAILURE
The simultaneous switching on of the
(red) and(amber) warning lights with the engine on
indicates either a fault of the EBD system or that the system is not available. In this case, the rear
wheels may suddenly lock and the vehicle may swerve when braking sharply. The display shows the
dedicated message.
Drive very carefully to the nearest Jeep Dealership to have the system inspected immediately.
POWER STEERING FAILURE
If the warning light remains on, you could not have steering assistance and the effort required to
operate the steering wheel could be increased; steering is, however, possible.
On some versions the display shows the dedicated message.
Contact a Jeep Dealership as soon as possible.
72
KNOWING THE INSTRUMENT PANEL

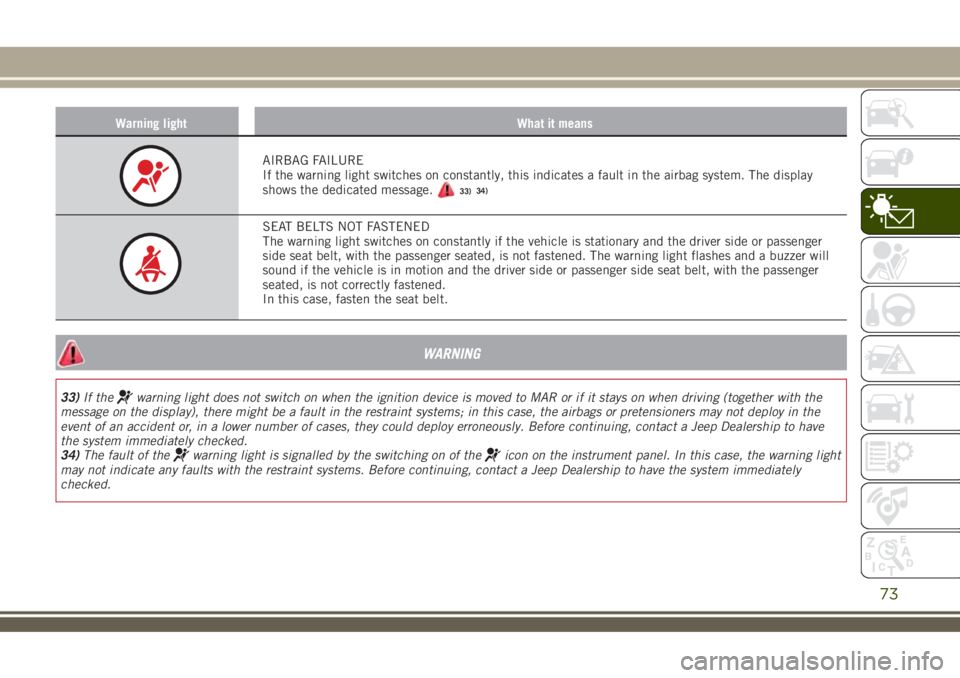

Warning light What it means
AIRBAG FAILURE
If the warning light switches on constantly, this indicates a fault in the airbag system. The display
shows the dedicated message.
33)
SEAT BELTS NOT FASTENED
The warning light switches on constantly if the vehicle is stationary and the driver side or passenger
side seat belt, with the passenger seated, is not fastened. The warning light flashes and a buzzer will
sound if the vehicle is in motion and the driver side or passenger side seat belt, with the passenger
seated, is not correctly fastened.
In this case, fasten the seat belt.
WARNING
33)If thewarning light does not switch on when the ignition device is moved to MAR or if it stays on when driving (together with the
message on the display), there might be a fault in the restraint systems; in this case, the airbags or pretensioners may not deploy in the
event of an accident or, in a lower number of cases, they could deploy erroneously. Before continuing, contact a Jeep Dealership to have
the system immediately checked.
34)The fault of the
warning light is signalled by the switching on of theicon on the instrument panel. In this case, the warning light
may not indicate any faults with the restraint systems. Before continuing, contact a Jeep Dealership to have the system immediately
checked.
73
34)

Warning light What it means

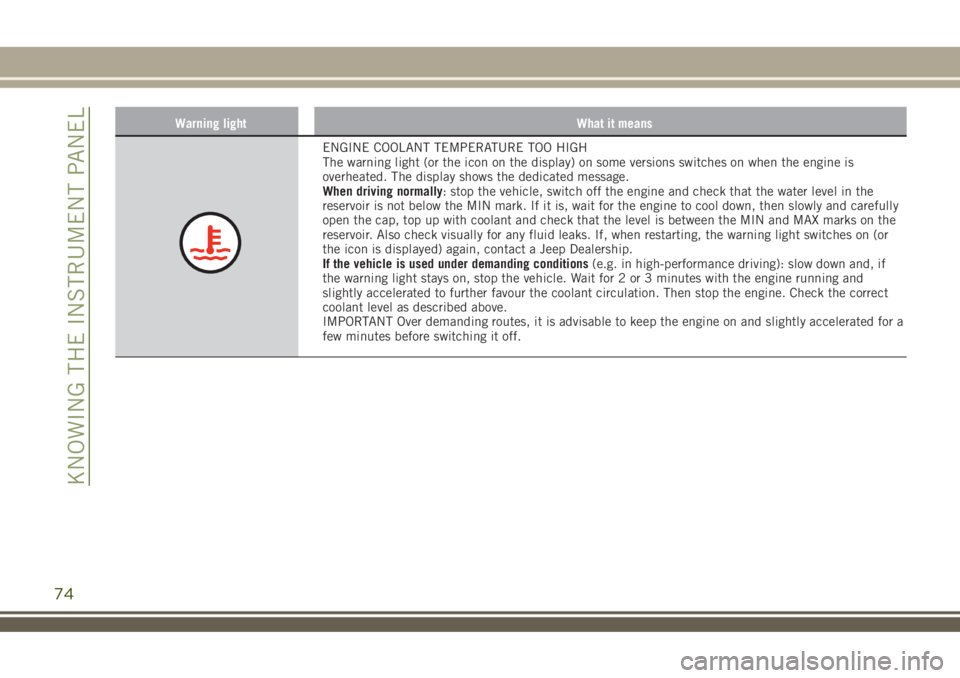

ENGINE COOLANT TEMPERATURE TOO HIGH
The warning light (or the icon on the display) on some versions switches on when the engine is
overheated. The display shows the dedicated message.
When driving normally: stop the vehicle, switch off the engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait for the engine to cool down, then slowly and carefully
open the cap, top up with coolant and check that the level is between the MIN and MAX marks on the
reservoir. Also check visually for any fluid leaks. If, when restarting, the warning light switches on (or
the icon is displayed) again, contact a Jeep Dealership.
If the vehicle is used under demanding conditions(e.g. in high-performance driving): slow down and, if
the warning light stays on, stop the vehicle. Wait for 2 or 3 minutes with the engine running and
slightly accelerated to further favour the coolant circulation. Then stop the engine. Check the correct
coolant level as described above.
IMPORTANT Over demanding routes, it is advisable to keep the engine on and slightly accelerated for a
few minutes before switching it off.
74
KNOWING THE INSTRUMENT PANEL

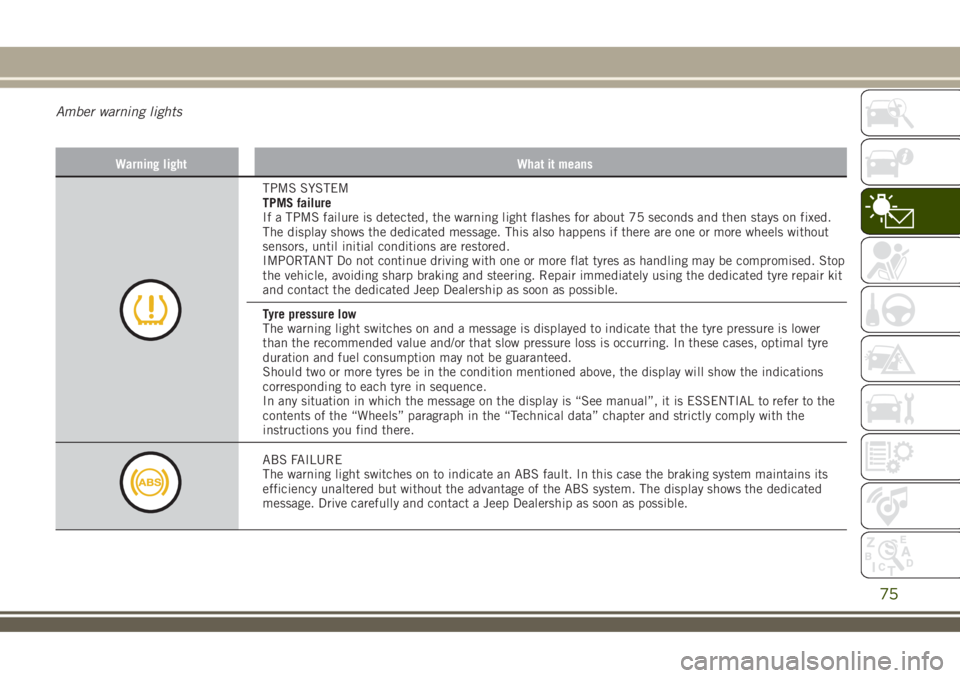

Amber warning lights
Warning light What it means
TPMS SYSTEM
TPMS failure
If a TPMS failure is detected, the warning light flashes for about 75 seconds and then stays on fixed.
The display shows the dedicated message. This also happens if there are one or more wheels without
sensors, until initial conditions are restored.
IMPORTANT Do not continue driving with one or more flat tyres as handling may be compromised. Stop
the vehicle, avoiding sharp braking and steering. Repair immediately using the dedicated tyre repair kit
and contact the dedicated Jeep Dealership as soon as possible.
Tyre pressure low
The warning light switches on and a message is displayed to indicate that the tyre pressure is lower
than the recommended value and/or that slow pressure loss is occurring. In these cases, optimal tyre
duration and fuel consumption may not be guaranteed.
Should two or more tyres be in the condition mentioned above, the display will show the indications
corresponding to each tyre in sequence.
In any situation in which the message on the display is “See manual”, it is ESSENTIAL to refer to the
contents of the “Wheels” paragraph in the “Technical data” chapter and strictly comply with the
instructions you find there.
ABS FAILURE
The warning light switches on to indicate an ABS fault. In this case the braking system maintains its
efficiency unaltered but without the advantage of the ABS system. The display shows the dedicated
message. Drive carefully and contact a Jeep Dealership as soon as possible.
75

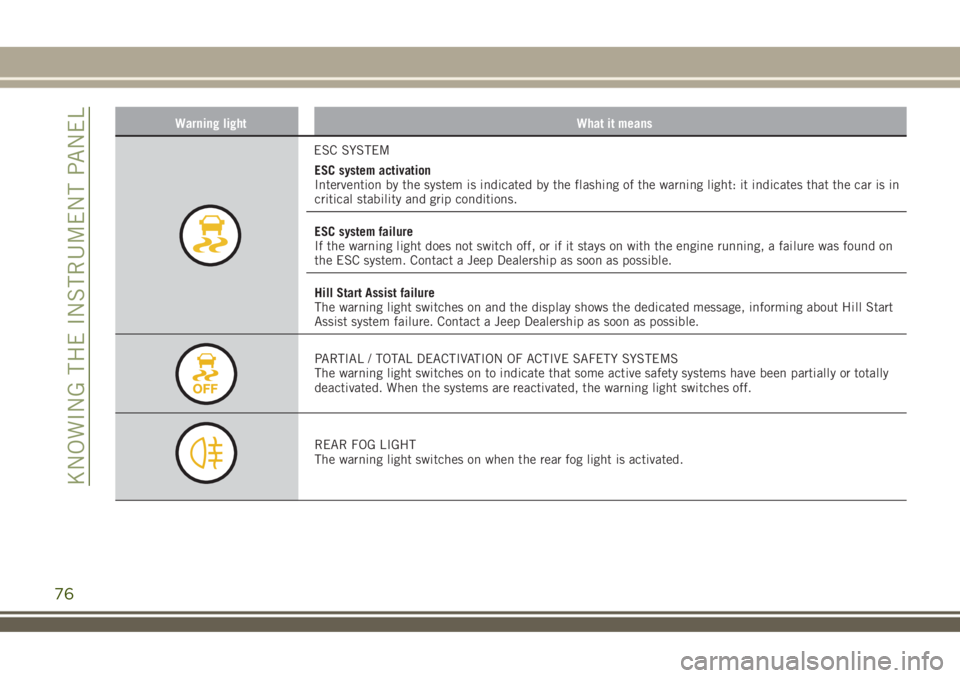

Warning light What it means
ESC SYSTEM
ESC system activation
Intervention by the system is indicated by the flashing of the warning light: it indicates that the car is in
critical stability and grip conditions.
ESC system failure
If the warning light does not switch off, or if it stays on with the engine running, a failure was found on
the ESC system. Contact a Jeep Dealership as soon as possible.
Hill Start Assist failure
The warning light switches on and the display shows the dedicated message, informing about Hill Start
Assist system failure. Contact a Jeep Dealership as soon as possible.
PARTIAL / TOTAL DEACTIVATION OF ACTIVE SAFETY SYSTEMS
The warning light switches on to indicate that some active safety systems have been partially or totally
deactivated. When the systems are reactivated, the warning light switches off.
REAR FOG LIGHT
The warning light switches on when the rear fog light is activated.
76
KNOWING THE INSTRUMENT PANEL

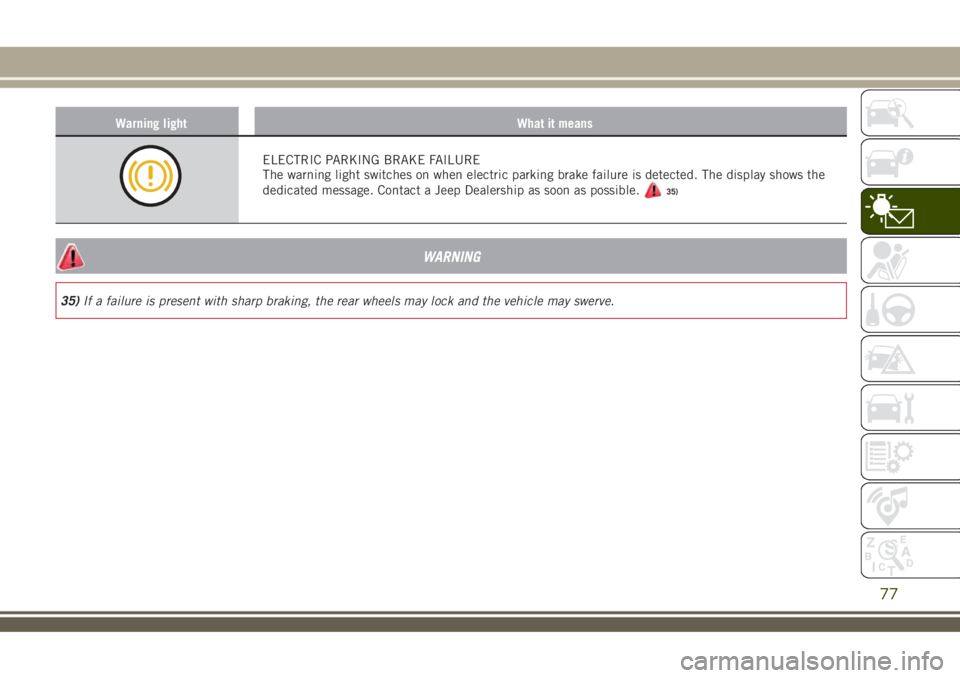

Warning light What it means
ELECTRIC PARKING BRAKE FAILURE
The warning light switches on when electric parking brake failure is detected. The display shows the
dedicated message. Contact a Jeep Dealership as soon as possible.
35)
WARNING
35)If a failure is present with sharp braking, the rear wheels may lock and the vehicle may swerve.
77

Warning light What it means

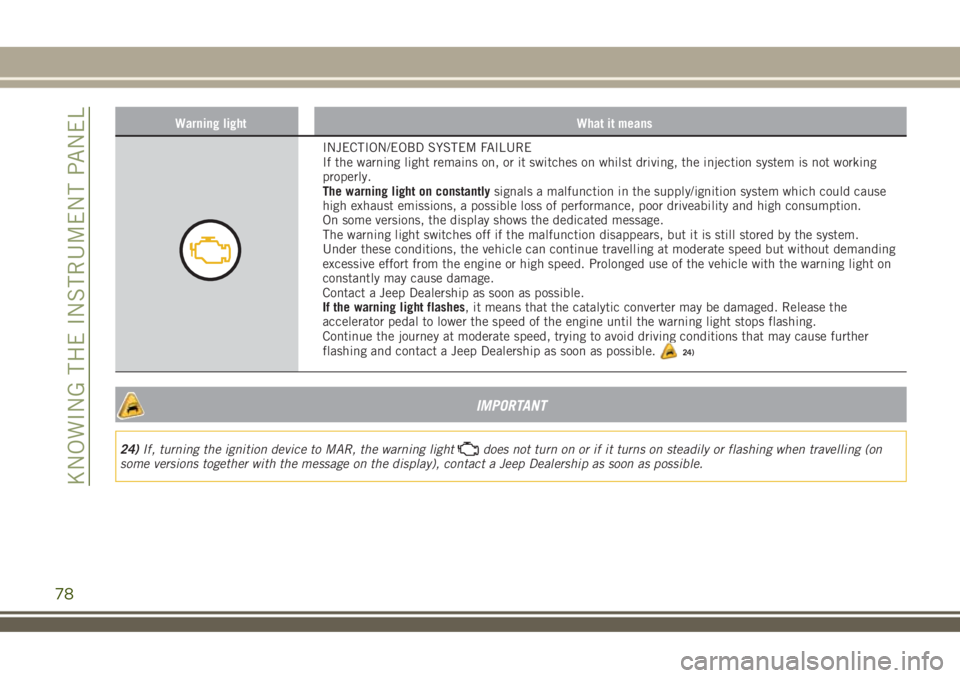

INJECTION/EOBD SYSTEM FAILURE
If the warning light remains on, or it switches on whilst driving, the injection system is not working
properly.
The warning light on constantlysignals a malfunction in the supply/ignition system which could cause
high exhaust emissions, a possible loss of performance, poor driveability and high consumption.
On some versions, the display shows the dedicated message.
The warning light switches off if the malfunction disappears, but it is still stored by the system.
Under these conditions, the vehicle can continue travelling at moderate speed but without demanding
excessive effort from the engine or high speed. Prolonged use of the vehicle with the warning light on
constantly may cause damage.
Contact a Jeep Dealership as soon as possible.
If the warning light flashes, it means that the catalytic converter may be damaged. Release the
accelerator pedal to lower the speed of the engine until the warning light stops flashing.
Continue the journey at moderate speed, trying to avoid driving conditions that may cause further
flashing and contact a Jeep Dealership as soon as possible.
24)
IMPORTANT
24)If, turning the ignition device to MAR, the warning lightdoes not turn on or if it turns on steadily or flashing when travelling (on
some versions together with the message on the display), contact a Jeep Dealership as soon as possible.
78
