technical data JEEP RENEGADE 2018 Owner handbook (in English)

AB C DE(*)FGH I
4255 /
4259(**)892 2570793 /
797(**)1667 /
1697(***)1551 /
1541(**)20231553 /
1541(**)1805
(*) Trailhawk versions: 1697 / 1727 (with roof bars)
(**) Trailhawk versions
(***) With roof rack bars
270
TECHNICAL DATA

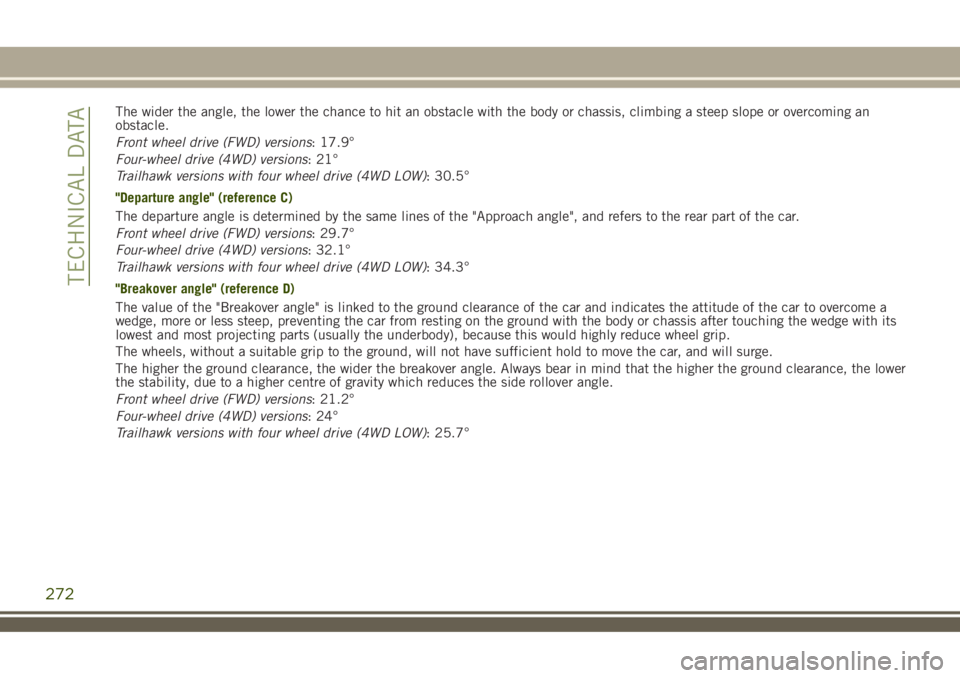

The wider the angle, the lower the chance to hit an obstacle with the body or chassis, climbing a steep slope or overcoming an
obstacle.
Front wheel drive (FWD) versions: 17.9°
Four-wheel drive (4WD) versions: 21°
Trailhawk versions with four wheel drive (4WD LOW): 30.5°
"Departure angle" (reference C)
The departure angle is determined by the same lines of the "Approach angle", and refers to the rear part of the car.
Front wheel drive (FWD) versions: 29.7°
Four-wheel drive (4WD) versions: 32.1°
Trailhawk versions with four wheel drive (4WD LOW): 34.3°
"Breakover angle" (reference D)
The value of the "Breakover angle" is linked to the ground clearance of the car and indicates the attitude of the car to overcome a
wedge, more or less steep, preventing the car from resting on the ground with the body or chassis after touching the wedge with its
lowest and most projecting parts (usually the underbody), because this would highly reduce wheel grip.
The wheels, without a suitable grip to the ground, will not have sufficient hold to move the car, and will surge.
The higher the ground clearance, the wider the breakover angle. Always bear in mind that the higher the ground clearance, the lower
the stability, due to a higher centre of gravity which reduces the side rollover angle.
Front wheel drive (FWD) versions: 21.2°
Four-wheel drive (4WD) versions: 24°
Trailhawk versions with four wheel drive (4WD LOW): 25.7°
272
TECHNICAL DATA

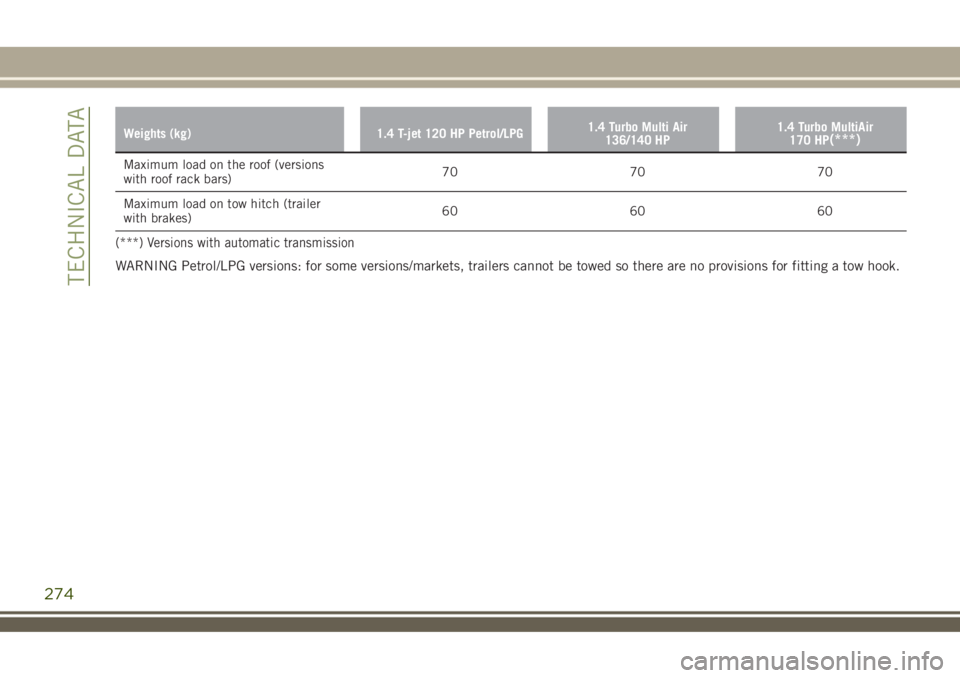

Weights (kg) 1.4 T-jet 120 HP Petrol/LPG1.4 Turbo Multi Air
136/140 HP1.4 Turbo MultiAir
170 HP(***)
Maximum load on the roof (versions
with roof rack bars)70 70 70
Maximum load on tow hitch (trailer
with brakes)60 60 60
(***) Versions with automatic transmission
WARNING Petrol/LPG versions: for some versions/markets, trailers cannot be towed so there are no provisions for fitting a tow hook.
274
TECHNICAL DATA

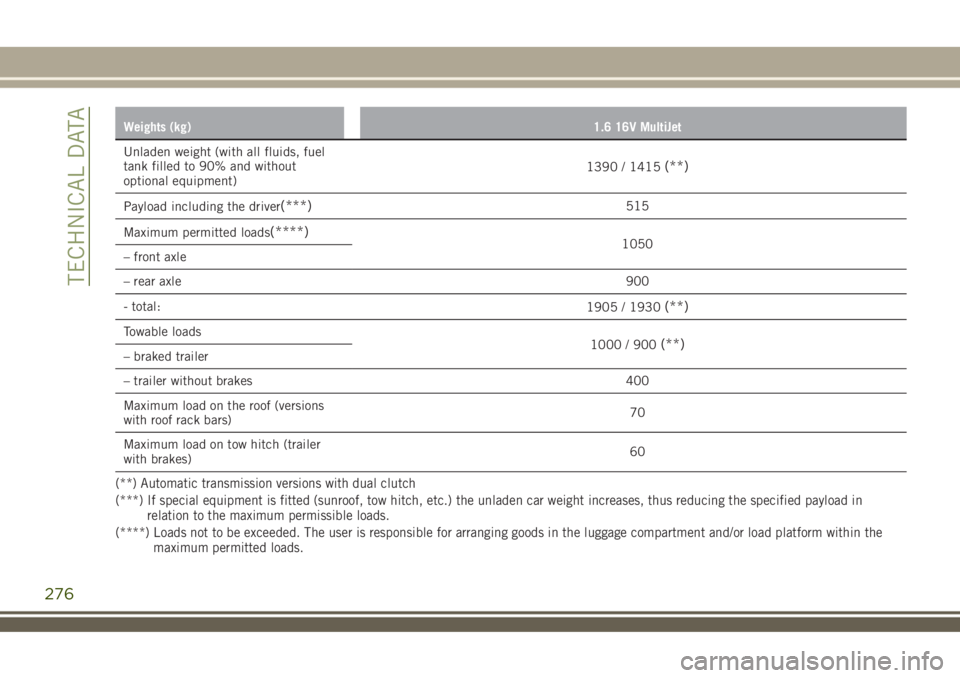

Weights (kg) 1.6 16V MultiJet
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1390 / 1415(**)
Payload including the driver(***)515
Maximum permitted loads
(****)1050
– front axle
– rear axle900
- total:
1905 / 1930
(**)
Towable loads
1000 / 900(**)– braked trailer
– trailer without brakes 400
Maximum load on the roof (versions
with roof rack bars)70
Maximum load on tow hitch (trailer
with brakes)60
(**) Automatic transmission versions with dual clutch
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the
maximum permitted loads.
276
TECHNICAL DATA

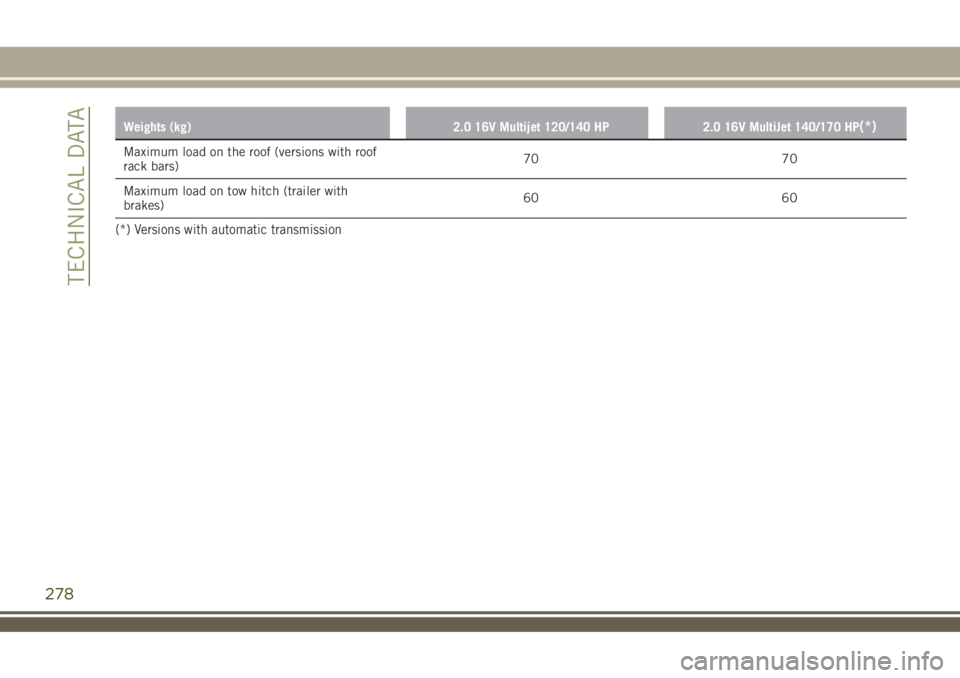

Weights (kg) 2.0 16V Multijet 120/140 HP 2.0 16V MultiJet 140/170 HP(*)
Maximum load on the roof (versions with roof
rack bars)70 70
Maximum load on tow hitch (trailer with
brakes)60 60
(*) Versions with automatic transmission
278
TECHNICAL DATA

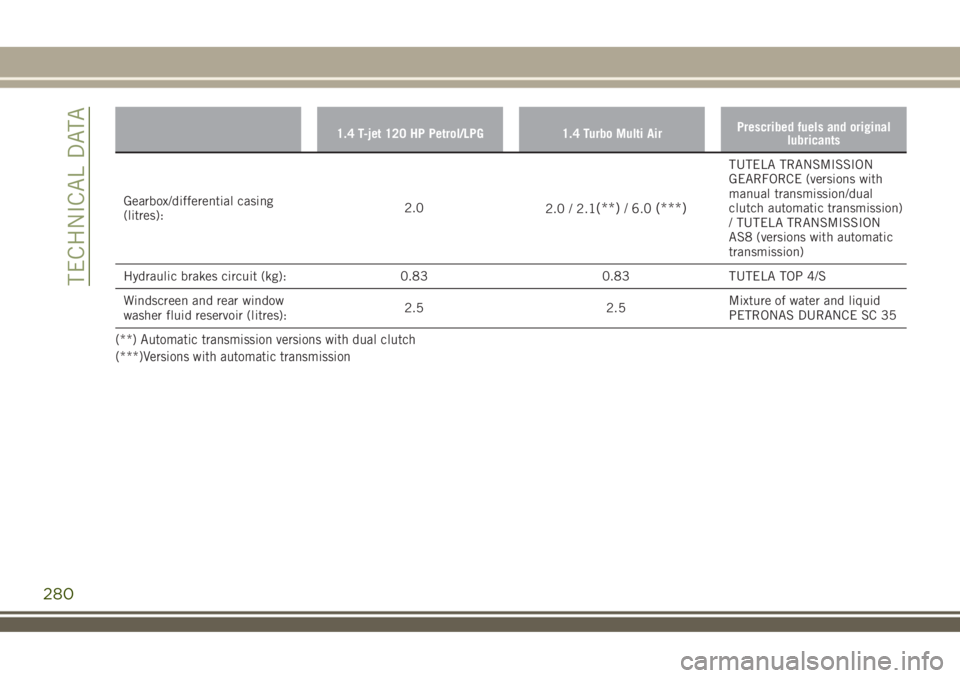

1.4 T-jet 120 HP Petrol/LPG 1.4 Turbo Multi AirPrescribed fuels and original
lubricants
Gearbox/differential casing
(litres):2.0
2.0 / 2.1(**)/ 6.0(***)
TUTELA TRANSMISSION
GEARFORCE (versions with
manual transmission/dual
clutch automatic transmission)
/ TUTELA TRANSMISSION
AS8 (versions with automatic
transmission)
Hydraulic brakes circuit (kg): 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres):2.5 2.5Mixture of water and liquid
PETRONAS DURANCE SC 35
(**) Automatic transmission versions with dual clutch
(***)Versions with automatic transmission
280
TECHNICAL DATA

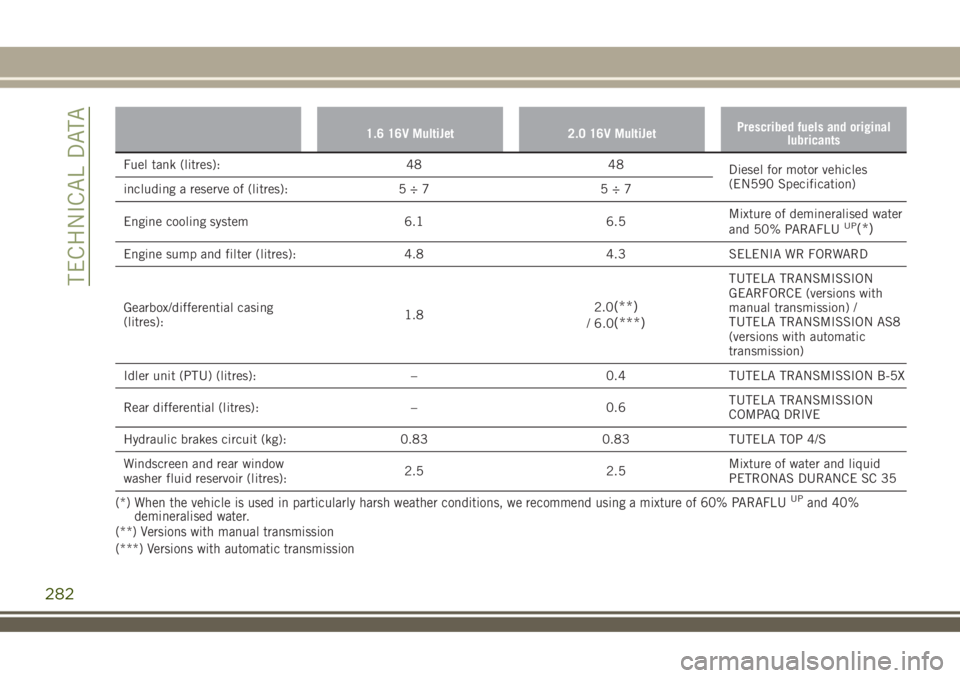

1.6 16V MultiJet 2.0 16V MultiJetPrescribed fuels and original
lubricants
Fuel tank (litres): 48 48
Diesel for motor vehicles
(EN590 Specification)
including a reserve of (litres): 5 ÷ 7 5 ÷ 7
Engine cooling system 6.1 6.5Mixture of demineralised water
and 50% PARAFLU
UP(*)
Engine sump and filter (litres): 4.8 4.3 SELENIA WR FORWARD
Gearbox/differential casing
(litres):1.82.0
(**)/ 6.0(***)
TUTELA TRANSMISSION
GEARFORCE (versions with
manual transmission) /
TUTELA TRANSMISSION AS8
(versions with automatic
transmission)
Idler unit (PTU) (litres): – 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres): – 0.6TUTELA TRANSMISSION
COMPAQ DRIVE
Hydraulic brakes circuit (kg): 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres):2.5 2.5Mixture of water and liquid
PETRONAS DURANCE SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40%
demineralised water.
(**) Versions with manual transmission
(***) Versions with automatic transmission
282
TECHNICAL DATA

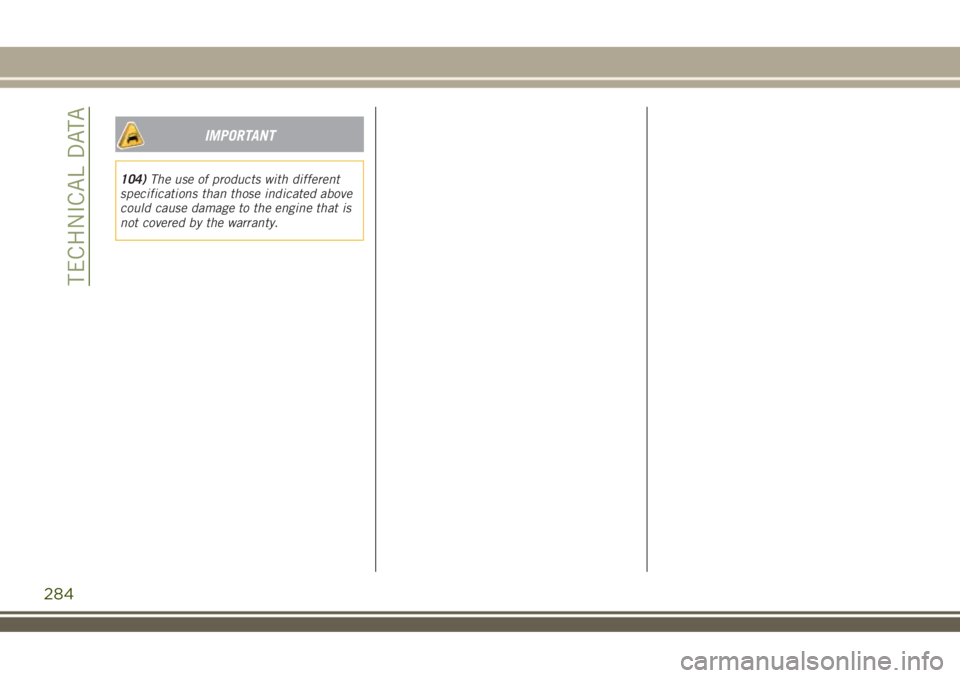

IMPORTANT
104)The use of products with different
specifications than those indicated above
could cause damage to the engine that is
not covered by the warranty.
284
TECHNICAL DATA

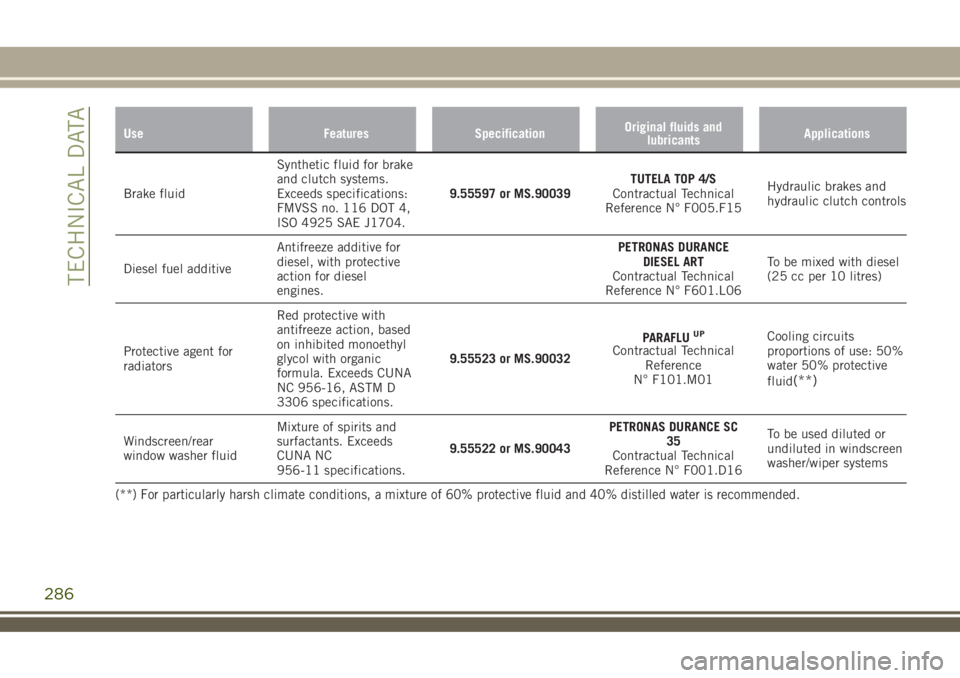

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Diesel fuel additiveAntifreeze additive for
diesel, with protective
action for diesel
engines.PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference N° F601.L06To be mixed with diesel
(25 cc per 10 litres)
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UP
Contractual Technical
Reference
N° F101.M01Cooling circuits
proportions of use: 50%
water 50% protective
fluid
(**)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.9.55522 or MS.90043PETRONAS DURANCE SC
35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
(**) For particularly harsh climate conditions, a mixture of 60% protective fluid and 40% distilled water is recommended.
286
TECHNICAL DATA

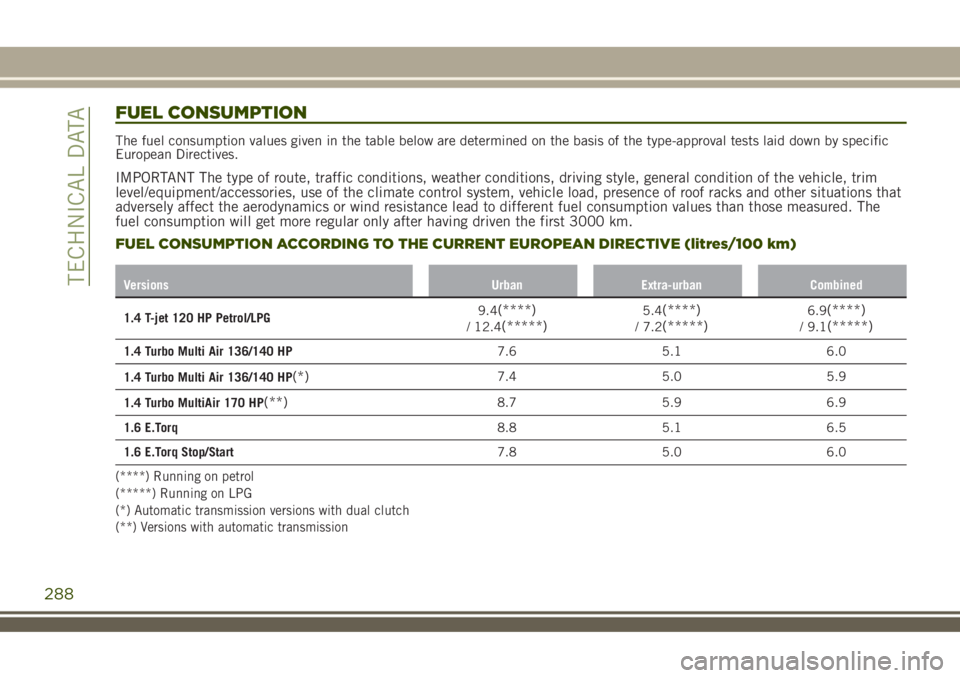

FUEL CONSUMPTION
The fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by specific
European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the vehicle, trim
level/equipment/accessories, use of the climate control system, vehicle load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The
fuel consumption will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
Versions Urban Extra-urban Combined
1.4 T-jet 120 HP Petrol/LPG9.4(****)/ 12.4(*****)5.4(****)/ 7.2(*****)6.9(****)/ 9.1(*****)
1.4 Turbo Multi Air 136/140 HP7.6 5.1 6.0
1.4 Turbo Multi Air 136/140 HP
(*)7.4 5.0 5.9
1.4 Turbo MultiAir 170 HP
(**)8.7 5.9 6.9
1.6 E.Torq8.8 5.1 6.5
1.6 E.Torq Stop/Start7.8 5.0 6.0
(****) Running on petrol
(*****) Running on LPG
(*) Automatic transmission versions with dual clutch
(**) Versions with automatic transmission
288
