fog light JEEP RENEGADE 2018 Owner handbook (in English)

WARNING
18)As the driver's door mirror is curved, it
may slightly alter the perception of
distance.
EXTERIOR LIGHTS
LIGHT SWITCH
Light switch A fig. 31, located on the left
side of the instrument panel (left hand
drive versions) or on the right side (right
hand drive versions), controls the
headlamp operations, parking lights,
daytime lights, low beams, fog lights,
rear fog lights, and regulates the
instrument panel lighting and the
symbols on the control buttons.
Outside lighting can happen only when
the starter is in position MAR.
The instrument panel and the variouscontrols on the dashboard will be lit up
when the exterior lights are switched on.
AUTO FUNCTION(Dusk sensor)
(where provided)
This is an infrared LED sensor that works
in conjunction with the rain sensor and is
located on the windscreen. It is able to
detect variations in outside lighting
based on the light sensitivity and adjusts
the display Menu or theUconnect™
system.
The higher the sensitivity, the lower the
amount of external light needed to switch
the lights on.
Function activation: turn the light switch
to AUTO.
Function deactivation: turn the light
switch to a position other than AUTO.
IMPORTANT This function can only be
activated with the ignition device at
MAR.
DIPPED BEAM HEADLIGHTS
With the ignition device on MAR, turn
the switch to. If the dipped beam
headlights are activated, the daytime
lights are switched off and the dipped
beam headlights, side lights and number
plate lights are switched on. The
30J0A0209C
31J0A0888C
31

warning light switches on in the
instrument panel.
DAYTIME RUNNING LIGHTS
(DRL)
"Daytime Running Lights"
(where provided)
19) 20)
With the ignition device turned to MAR
and the light switch turned to positionO
the daytime running/side lights are
automatically activated; the other lights
and interior lighting remain off.
The daytime running lights are
temporarily deactivated when the
direction indicators are activated. When
the direction indicators are deactivated,
the daylight running lights are
reactivated.
FRONT FOG LIGHTS(where provided)
With the ignition device in MAR, with the
side lights and dipped beam headlights
on, press switch
to turn on the fog
lights.
To switch off the fog lights press the
switch again or turn it to positionO.
“Cornering Lights” function
The function activates with the main
beam headlights switched on with a
speed lower than 40 km/h - For widewheel rotation angles or at the switching
on the direction indicator, a light will
turn on (built in the front fog light)
referring to the turning side which will
extend the night visibility angle.
REAR FOG LIGHT
With ignition device in MAR, press thebutton to switch the light on/off.
The rear fog light switches on only when
the dipped beam headlights or fog lights
are switched on. The light switches off by
pressing the
button or by switching off
the main beam headlights or the fog
lights.
PARKING LIGHTS
These can be turned on by turning the
light switch ring to theposition. Thewarning light on the instrument
panel turns on.
IMPORTANT NOTE Do not select this
light switch position when the car is
moving, but only to indicate that the car
is parked when prescribed by the
regulations in force in the country where
you are driving (Highway Code).
To turn the lights off, turn the light
switch ring to theOposition
HEADLIGHTS OFF TIMER
Function activation
It is possible to enable switching on the
lights for the preset time by turning the
ignition device to STOP, with the light
switch ring nut in position
and then
turning the ring nut to positionO.
IMPORTANT To activate this function
the headlights must be deactivated
within 2 minutes after the ignition
device has been taken to STOP.
Automatic function activation
(where provided)
If the car is equipped with a dusk sensor,
it is possible to enable the function
automatically: with the ignition device in
MAR, turn the light switch ring nut to
AUTO, if the sensor reports low light
levels, it will enable the dipped beam
headlights.
The headlights off delay is enabled
automatically when the ignition device is
turned to STOP with the headlights on
for the time selected in the Menu.
Function deactivation
This function is disabled by waiting for
the time set from the Menu, or by turning
the ignition device to the MAR position.
32
GETTING TO KNOW YOUR CAR

Warning light What it means
ESC SYSTEM
ESC system activation
Intervention by the system is indicated by the flashing of the warning light: it indicates that the car is in
critical stability and grip conditions.
ESC system failure
If the warning light does not switch off, or if it stays on with the engine running, a failure was found on
the ESC system. Contact a Jeep Dealership as soon as possible.
Hill Start Assist failure
The warning light switches on and the display shows the dedicated message, informing about Hill Start
Assist system failure. Contact a Jeep Dealership as soon as possible.
PARTIAL / TOTAL DEACTIVATION OF ACTIVE SAFETY SYSTEMS
The warning light switches on to indicate that some active safety systems have been partially or totally
deactivated. When the systems are reactivated, the warning light switches off.
REAR FOG LIGHT
The warning light switches on when the rear fog light is activated.
76
KNOWING THE INSTRUMENT PANEL

Green warning lights
Warning light What it means
SIDE LIGHTS AND DIPPED BEAM HEADLIGHTS
The warning light switches on when side lights or dipped beam headlights are turned on.
This function allows the headlights to remain on for 30, 60 or 90 seconds after the ignition device was
placed in STOP position ("Follow me" function).
AUTOMATIC MAIN BEAM HEADLIGHTS
This warning light comes on when the automatic main beam headlights turned on.
FOG LIGHTS
The warning light switches on when the fog lights are turned on.
81

Symbol What it means
EXTERIOR LIGHTS FAILURE
The symbol turns on to indicate a failure of the following lights: daytime running lights (DRLs); parking
lights; trailer direction indicators (if present); trailer lights (if present); side lights; direction indicators;
rear fog light; reversing light; brake lights; number plate lights.
The failure may be caused by a blown bulb, a blown protection fuse or an interruption of the electrical
connection.
ADAPTIVE CRUISE CONTROL (ACC) FAILURE
The symbol turns on (together with a message on the display) to indicate an Adaptive Cruise Control
(ACC) system failure. In this case, contact a Jeep Dealership as soon as possible.
94
KNOWING THE INSTRUMENT PANEL

72)If the car must be placed on a roller
bench for maintenance interventions or if
it is washed in an automatic roller washing
tunnel with an obstacle in the front part
(e.g. another car, a wall or another
obstacle), the system may detect its
presence and activate. In this case the
system must be deactivated through the
settings of theUconnect™system.
73)The presence of the TPMS does not
permit the driver to neglect regular checks
of the tyre pressure, including for the
spare wheel, and correct maintenance: the
system is not used to signal a possible
fault to a tyre.
74)Tyre pressure must be checked with
tyres rested and cold. Should it become
necessary for whatever reason to check
pressure with warm tyres, do not reduce
pressure even though it is higher than the
prescribed value. Repeat the check when
the tyres are cold.
75)Should one or more wheels be fitted
without sensors (e.g. if the spare wheel is
fitted), the system will no longer be
available for the replaced wheel and a
warning message will be shown on the
display, until the wheels with sensors are
fitted again.76)The TPMS cannot indicate sudden
tyre pressure drops (e.g. if a tyre bursts).
In this case, stop the vehicle, braking with
caution and avoiding abrupt steering.
77)Replacing standard tyres with winter
tyres and vice versa requires TPMS system
adjustment that must only be performed
by Jeep Dealerships.
78)Changes in outside temperature may
cause tyre pressures to vary. The system
may temporarily indicate insufficient
pressure. In this case, check the tyre
pressure when cold and, if necessary,
restore the inflation values.
79)When a tyre is removed, it is advisable
to replace the rubber valve seal as well:
contact a Jeep Dealership. The
fitting/removal of the tyres and/or rims
require special care. To avoid damaging or
fitting the sensors incorrectly, tyre and/or
rim fitting/removal operations should only
be carried out by specialised staff.
Contact a Jeep Dealership.
IMPORTANT
33)The system may have limited or absent
operation due to weather conditions such
as: heavy rain, hail, thick fog, heavy snow.34)The section of the bumper before the
sensor must not be covered with
adhesives, auxiliary headlights or any other
object.
35)System intervention might be
unexpected or delayed when other vehicles
transport loads projecting from the side,
above or from the rear, with respect to the
normal size of the vehicle.
36)Operation can be adversely affected by
any structural change made to the vehicle,
such as a modification to the front
geometry, tyre change, or a heavier load
than the standard load of the vehicle.
37)Incorrect repairs made on the front
part of the vehicle (e.g. bumper, chassis)
may alter the position of the radar sensor,
and adversely affect its operation. Go to a
Jeep Dealership for any operation of this
type.
38)Do not tamper with nor carry out any
intervention on the radar sensor or on the
camera on the windscreen. In the event of
a sensor failure, contact a Jeep
Dealership.
39)When towing a trailer (with modules
installed after purchasing the vehicle), a
vehicle or during loading manoeuvres on a
vehicle transporter (or in vehicle for
transport), the system must be deactivated
via theUconnect™system.
114
SAFETY

the device keeps working if the radar
sensor is obstructed.
Before returning to the previously set
speed, bring the speed close to that
value, then press the RES button and
release it.
WARNING
134)Pay the utmost attention while
driving at all times and be always ready to
press the brakes if needed.
135)The system is an aid for the driver,
who must always pay full attention while
driving. The responsibility always rests
with the driver, who must take into
account the traffic conditions in order to
drive in complete safety. The driver must
always maintain a safe distance from the
vehicle in front.
136)The device is not activated in
presence of pedestrians, oncoming
vehicles in the opposite direction of travel
or moving in the crosswise direction and
stationary objects (e.g. a vehicle standing
in a queue or a broken down vehicle).
137)The device cannot take account of
road, traffic and weather conditions, and
conditions of poor visibility (e.g. fog).138)The device does not always fully
recognise complex driving conditions that
could cause it to determine the safe
distance to be held incorrectly or not at
all.
139)The device cannot apply the
maximum braking force: the car will not
be stopped completely.IMPORTANT
54)The system may have limited or absent
operation due to weather conditions such
as: heavy rain, hail, thick fog, heavy snow.
55)The section of the bumper before the
sensor must not be covered with
adhesives, auxiliary headlights or any other
object.
56)Operation can be adversely affected by
any structural change made to the vehicle,
such as a modification to the front
geometry, tyre change, or a heavier load
than the standard load of the vehicle.
57)Incorrect repairs made on the front
part of the vehicle (e.g. bumper, chassis)
may alter the position of the radar sensor,
and adversely affect its operation. Go to a
Jeep Dealership for any operation of this
type.58)Do not tamper with nor carry out any
intervention on the radar sensor or on the
camera on the windscreen. In the event of
a sensor failure, contact a Jeep
Dealership.
59)Do not wash with high-pressure jets in
the bumper lower area: in particular do not
operate on the system's electrical
connector.
60)Be careful in the case of repairs and
new paintings in the area around the
sensor (panel covering the sensor on the
left side of the bumper). In the event of a
frontal impact the sensor may
automatically deactivate and display a
warning to indicate that the sensor needs
to be repaired. Even without a malfunction
warning, deactivate the system operation if
you think that the position of the radar
sensor has changed (e.g. due to low-speed
frontal impact as during parking
manoeuvres). In these cases, go to a Jeep
Dealership to have the radar sensor
realigned or replaced.
167

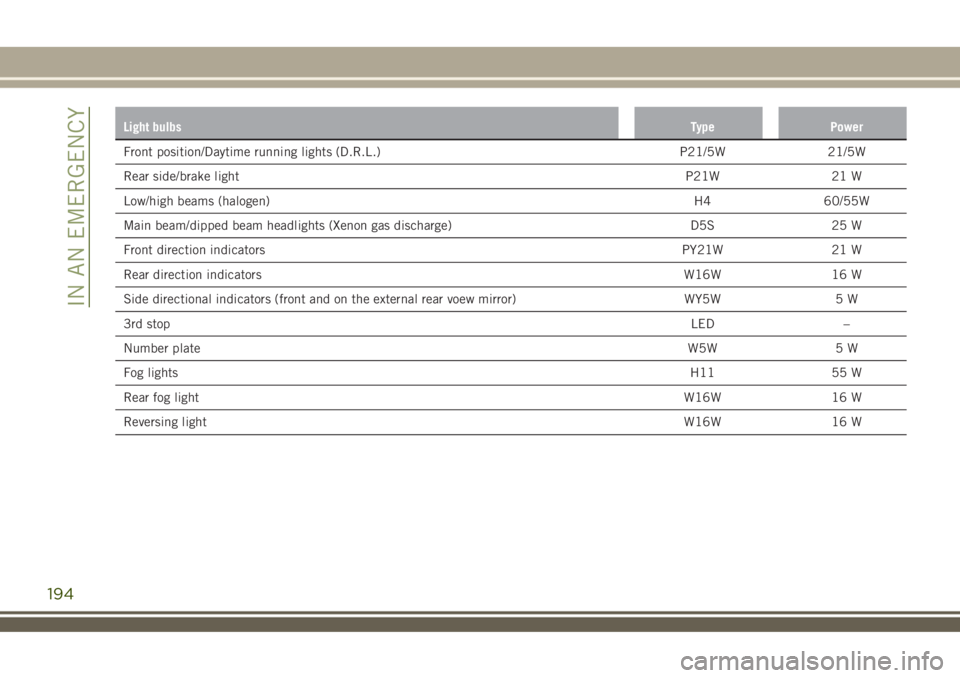

Light bulbsType Power
Front position/Daytime running lights (D.R.L.) P21/5W 21/5W
Rear side/brake lightP21W 21 W
Low/high beams (halogen)H4 60/55W
Main beam/dipped beam headlights (Xenon gas discharge) D5S 25 W
Front direction indicatorsPY21W 21 W
Rear direction indicatorsW16W 16 W
Side directional indicators (front and on the external rear voew mirror) WY5W 5 W
3rd stopLED –
Number plateW5W 5 W
Fog lightsH11 55 W
Rear fog lightW16W 16 W
Reversing lightW16W 16 W
194
IN AN EMERGENCY

remove electrical connectors C
fig. 146;
turn anticlockwise (on the left device)
or clockwise (on the right device) and
remove the bulb and bulb holder
assemblies fig. 147: D = side
lights/daytime running lights (DRLs), E =
direction indicators;
replace the burnt bulb: to extract it,
press lightly on it (1 fig. 148 ) and at the
same time turn it counter-clockwise (2);
insert the new bulb, by pressing it
fig. 148 and turning it clockwise, making
sure that it locks correctly;
then insert the bulb and bulb holder
assemblies in their respective housings
and turn them anticlockwise (right side)
and clockwise (left side), ensuring that
they are locked correctly;
reconnect the electrical connectors;finally, refit flap B fig. 145, fully
tightening fixing screws A.
Front fog lights
To replace the bulbs, proceed as follows:
steer the wheels completely;using the screwdriver, undo screws A
fig. 149 and remove flap B;
145J0A0211C
146J0A0306C
147J0A0263C
148J0A0264C
197

Rear lower light cluster
These contain the rear fog light bulbs
(left side) and reversing light bulbs (right
side).
To replace the bulbs, proceed as follows:
using the screwdriver, unscrew screws
A fig. 156 and B and remove flap C;
upper screw A is easy to access,
whereas for lower screw B it is necessary
to incline the blade of the screwdriver
appropriately as illustrated in fig. 157;
turn bulb holder D
fig. 158 anticlockwise and replace the
bulb concerned;
fit the new bulb, making sure it is
correctly locked;
refit the bulb holder in its housing and
turn it clockwise, making sure that it
locks correctly;
refit flap C correctly, completely
tightening the screws.
3
rdbrake lights
The 3rdbrake lights are LED-based. To
replace them, contact a Jeep Dealership.
Number plate lights
To replace the bulbs, proceed as follows:
remove lenses A fig. 159;turn the bulb holder clockwise and
remove the bulb;
156J0A0212C157J0A0213C
158J0A0302C
200
IN AN EMERGENCY
