JEEP RENEGADE LATITUDE 2017 Owners Manual

Red TelltaleLight What It Means
Oil Pressure Sensor Fail Warning Light
This light indicates that the oil pressure sensor has failed.
Do not operate the vehicle until the cause is corrected. Contact your authorized dealer as soon as
possible.
Oil Temperature Warning Light
Red Telltale
Light What It Means
Oil Temperature Warning Light
This telltale indicates vehicle oil temperature is high. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 139

Red TelltaleLight What It Means

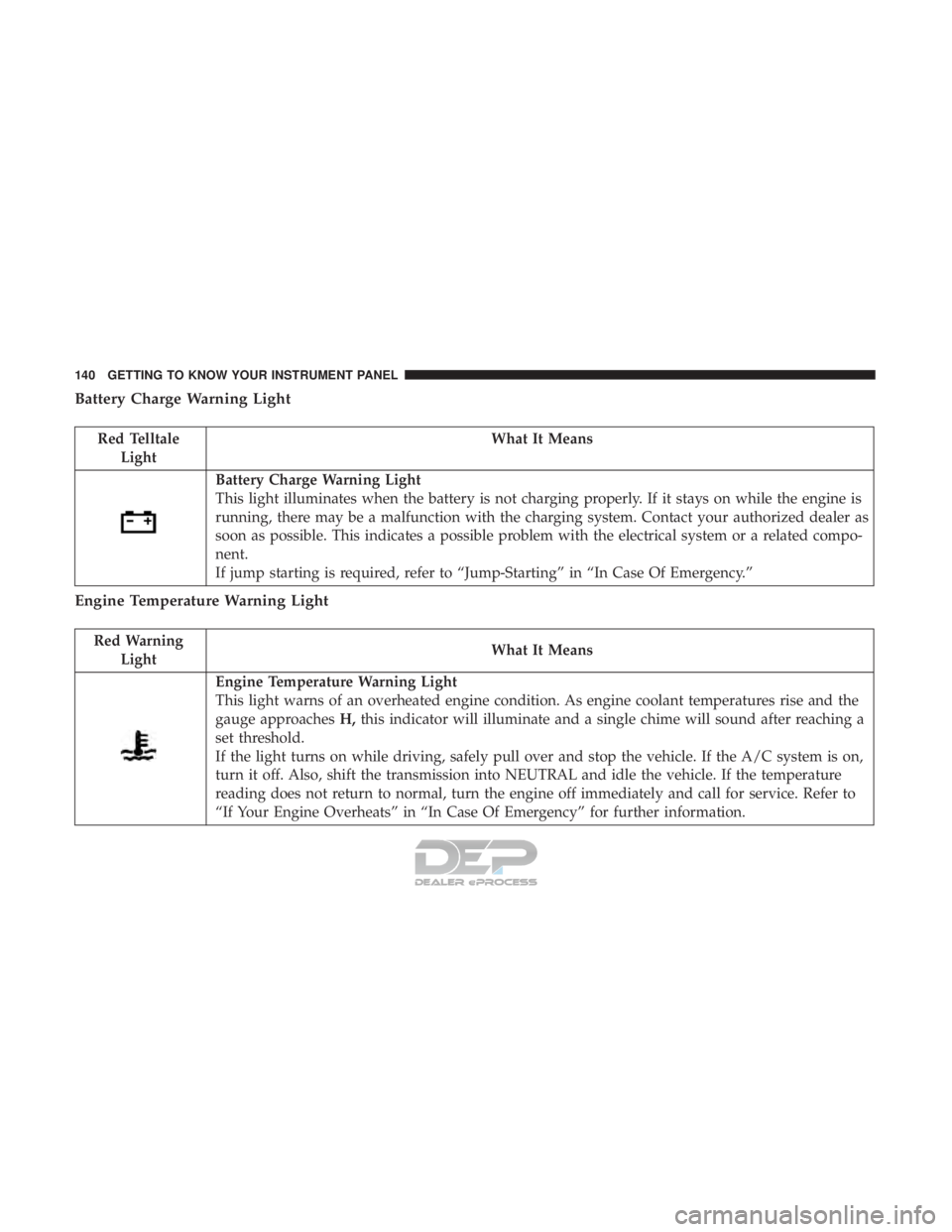

Battery Charge Warning Light
This light illuminates when the battery is not charging properly. If it stays on while the engine is
running, there may be a malfunction with the charging system. Contact your authorized dealer as
soon as possible. This indicates a possible problem with the electrical system or a related compo-
nent.
If jump starting is required, refer to “Jump-Starting” in “In Case Of Emergency.”
Engine Temperature Warning Light
Red Warning
Light What It Means
Engine Temperature Warning Light
This light warns of an overheated engine condition. As engine coolant temperatures rise and the
gauge approaches
H,this indicator will illuminate and a single chime will sound after reaching a
set threshold.
If the light turns on while driving, safely pull over and stop the vehicle. If the A/C system is on,
turn it off. Also, shift the transmission into NEUTRAL and idle the vehicle. If the temperature
reading does not return to normal, turn the engine off immediately and call for service. Refer to
“If Your Engine Overheats” in “In Case Of Emergency” for further information.
140 GETTING TO KNOW YOUR INSTRUMENT PANEL

Red TelltaleLight What It Means

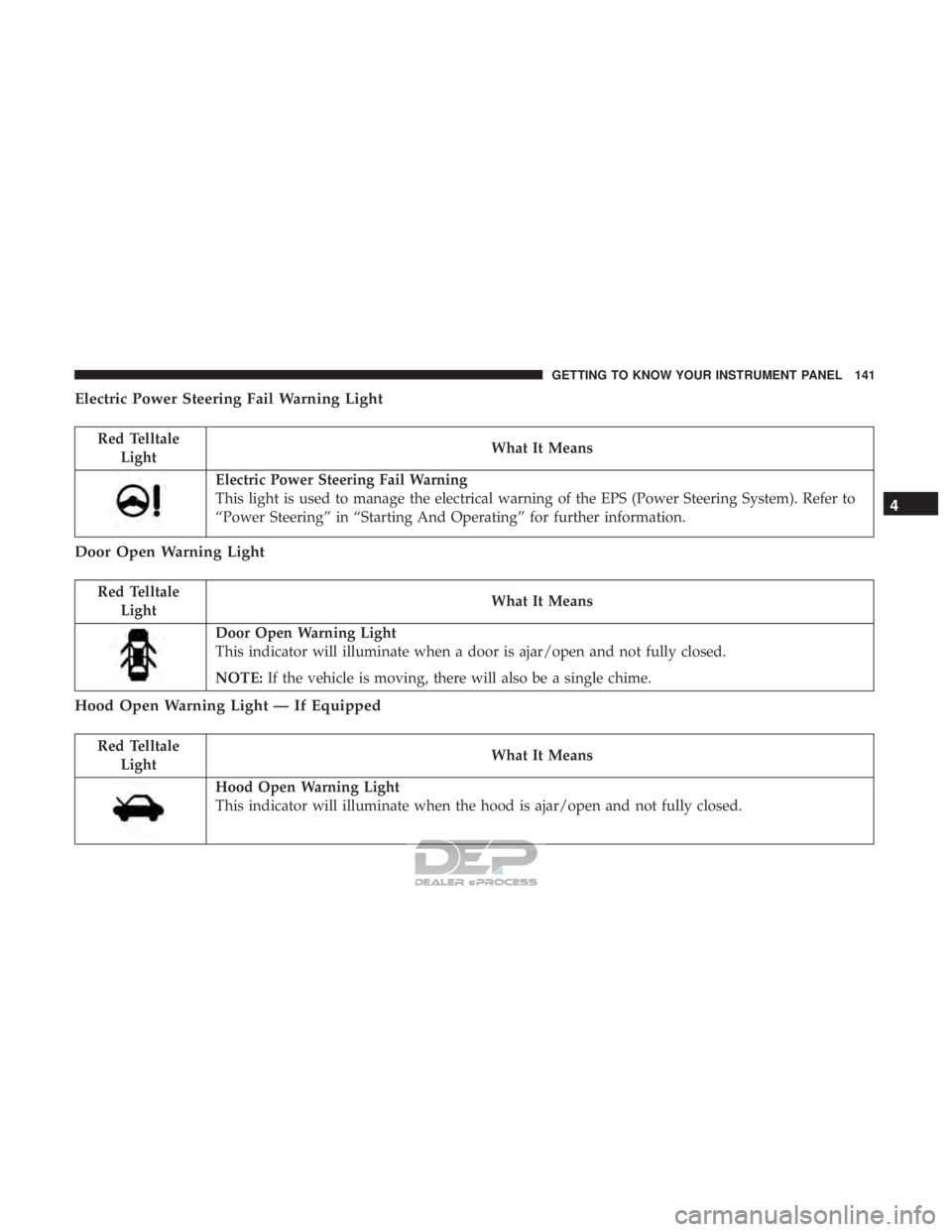

Electric Power Steering Fail Warning
This light is used to manage the electrical warning of the EPS (Power Steering System). Refer to
“Power Steering” in “Starting And Operating” for further information.
Door Open Warning Light
Red Telltale
Light What It Means
Door Open Warning Light
This indicator will illuminate when a door is ajar/open and not fully closed.
NOTE:
If the vehicle is moving, there will also be a single chime.
Hood Open Warning Light — If Equipped
Red Telltale
Light What It Means
Hood Open Warning Light
This indicator will illuminate when the hood is ajar/open and not fully closed.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 141

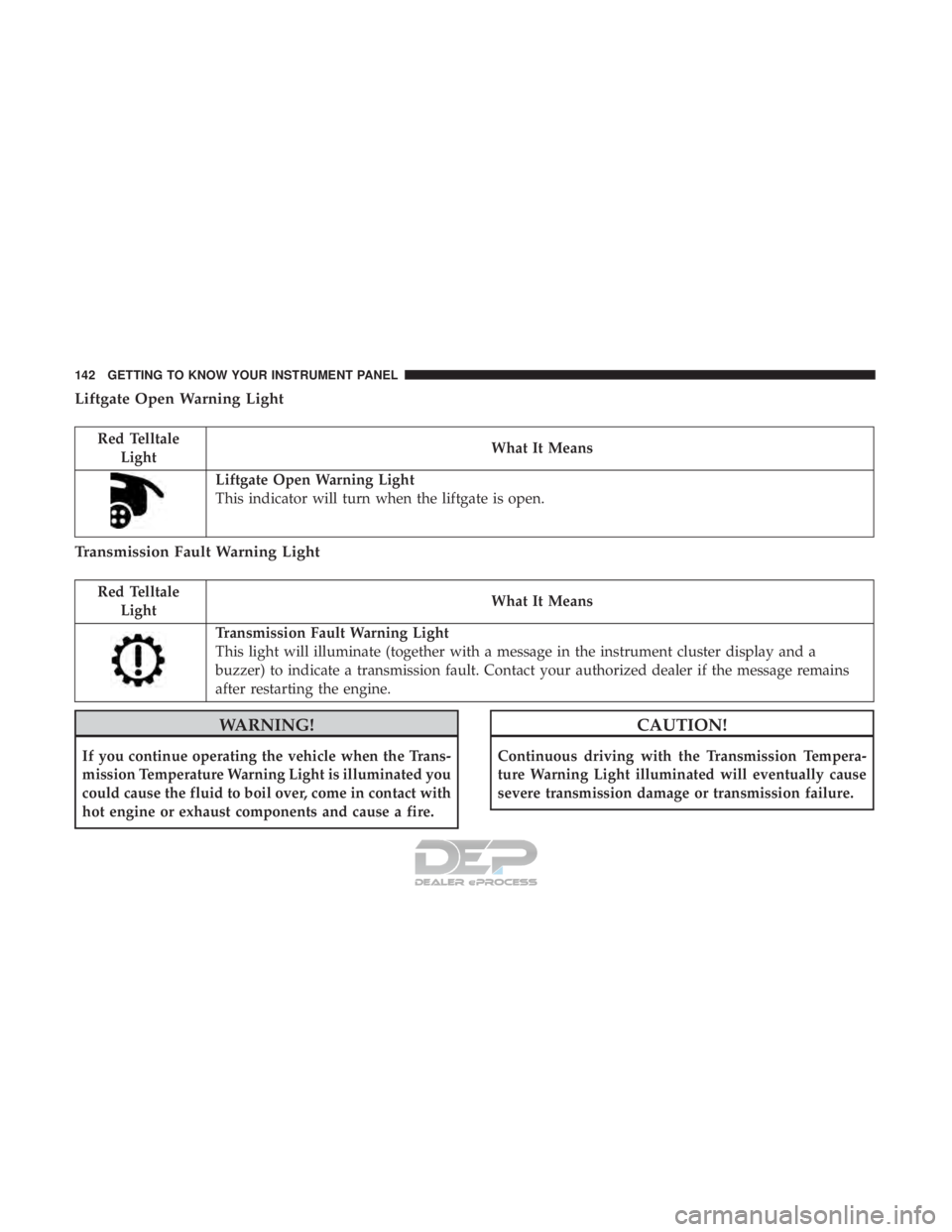

Liftgate Open Warning Light
Red TelltaleLight What It Means
Liftgate Open Warning Light
This indicator will turn when the liftgate is open.
Transmission Fault Warning Light
Red Telltale
Light What It Means
Transmission Fault Warning Light
This light will illuminate (together with a message in the instrument cluster display and a
buzzer) to indicate a transmission fault. Contact your authorized dealer if the message remains
after restarting the engine.
CAUTION!
Continuous driving with the Transmission Tempera-
ture Warning Light illuminated will eventually cause
severe transmission damage or transmission failure.
142 GETTING TO KNOW YOUR INSTRUMENT PANEL

Red TelltaleLight What It Means

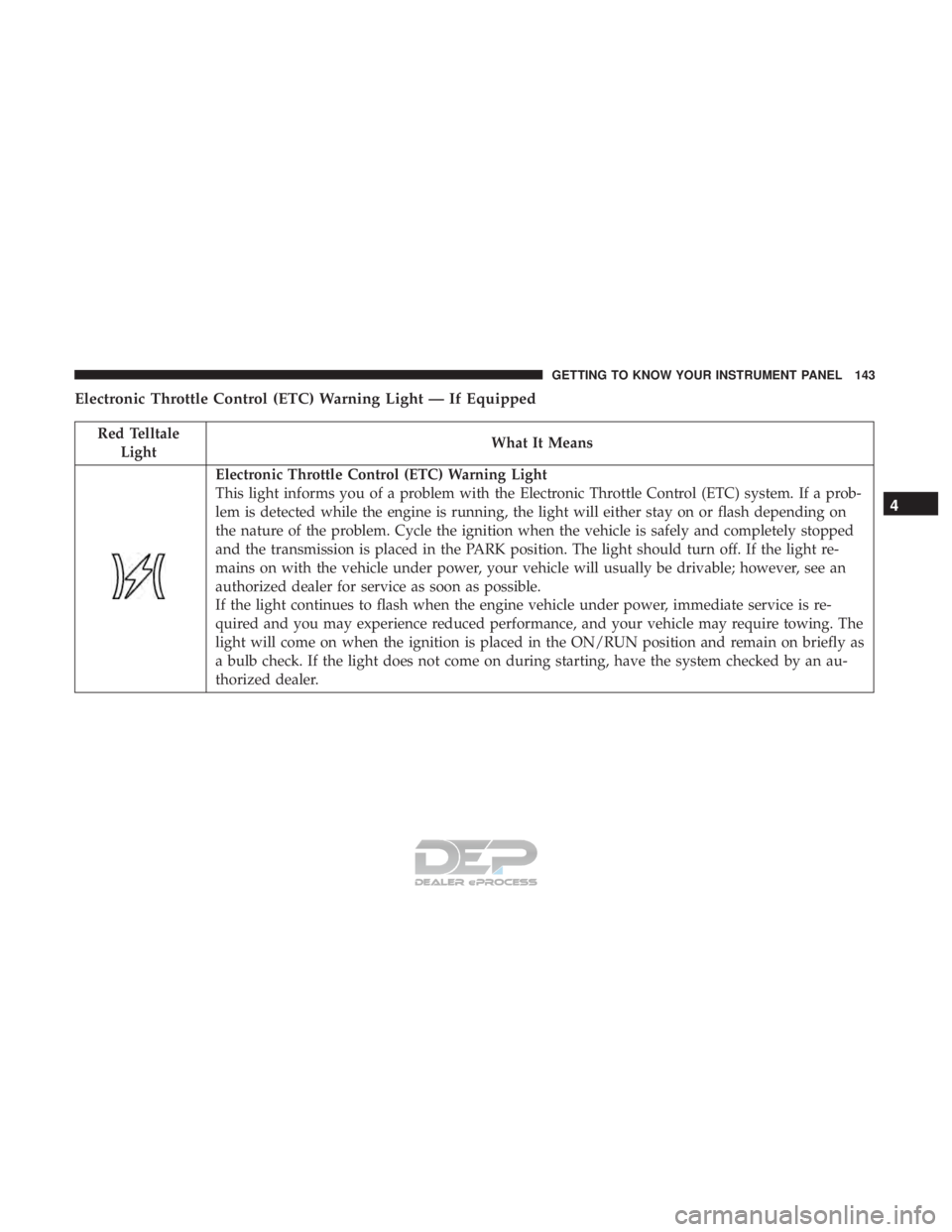

Electronic Throttle Control (ETC) Warning Light
This light informs you of a problem with the Electronic Throttle Control (ETC) system. If a prob-
lem is detected while the engine is running, the light will either stay on or flash depending on
the nature of the problem. Cycle the ignition when the vehicle is safely and completely stopped
and the transmission is placed in the PARK position. The light should turn off. If the light re-
mains on with the vehicle under power, your vehicle will usually be drivable; however, see an
authorized dealer for service as soon as possible.
If the light continues to flash when the engine vehicle under power, immediate service is re-
quired and you may experience reduced performance, and your vehicle may require towing. The
light will come on when the ignition is placed in the ON/RUN position and remain on briefly as
a bulb check. If the light does not come on during starting, have the system checked by an au-
thorized dealer.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 143

Yellow TelltaleLight What It Means

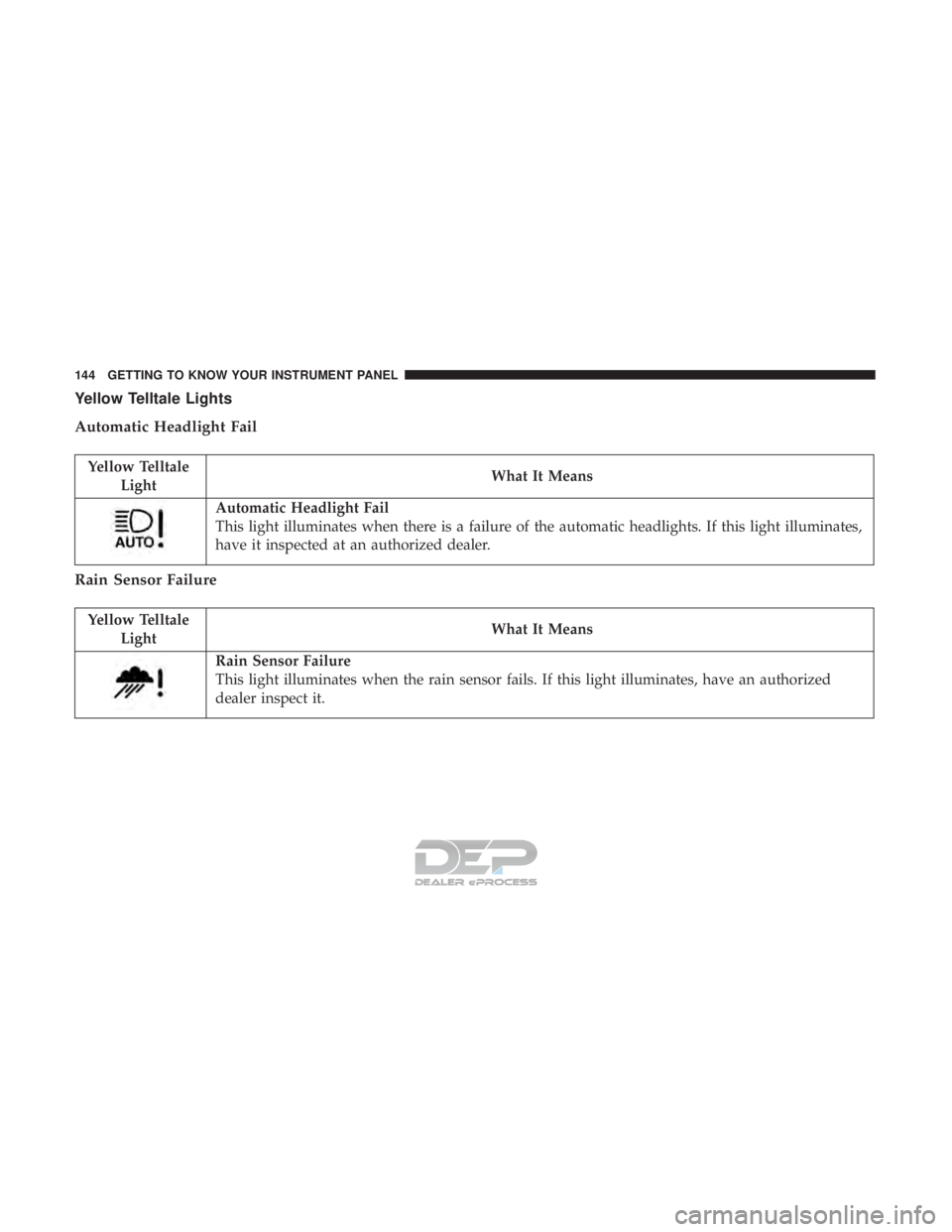

Automatic Headlight Fail
This light illuminates when there is a failure of the automatic headlights. If this light illuminates,
have it inspected at an authorized dealer.
Rain Sensor Failure
Yellow Telltale
Light What It Means
Rain Sensor Failure
This light illuminates when the rain sensor fails. If this light illuminates, have an authorized
dealer inspect it.
144 GETTING TO KNOW YOUR INSTRUMENT PANEL

Yellow TelltaleLight What It Means

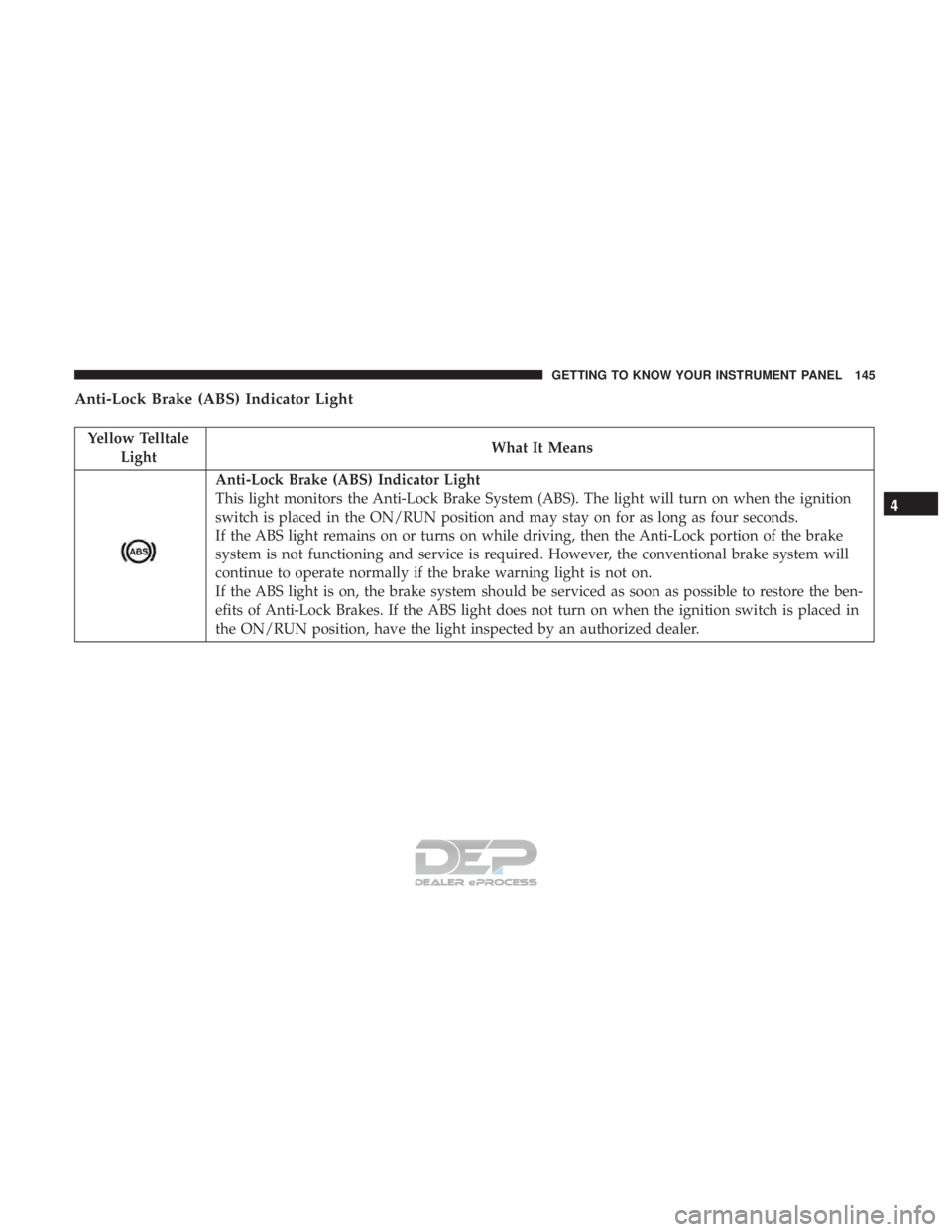

Anti-Lock Brake (ABS) Indicator Light
This light monitors the Anti-Lock Brake System (ABS). The light will turn on when the ignition
switch is placed in the ON/RUN position and may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, then the Anti-Lock portion of the brake
system is not functioning and service is required. However, the conventional brake system will
continue to operate normally if the brake warning light is not on.
If the ABS light is on, the brake system should be serviced as soon as possible to restore the ben-
efits of Anti-Lock Brakes. If the ABS light does not turn on when the ignition switch is placed in
the ON/RUN position, have the light inspected by an authorized dealer.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 145

Yellow TelltaleLight What It Means
Electronic Stability Control (ESC) Indicator Light

Yellow TelltaleLight What It Means
Electronic Stability Control (ESC) OFF Indicator Light

Yellow TelltaleLight What It Means

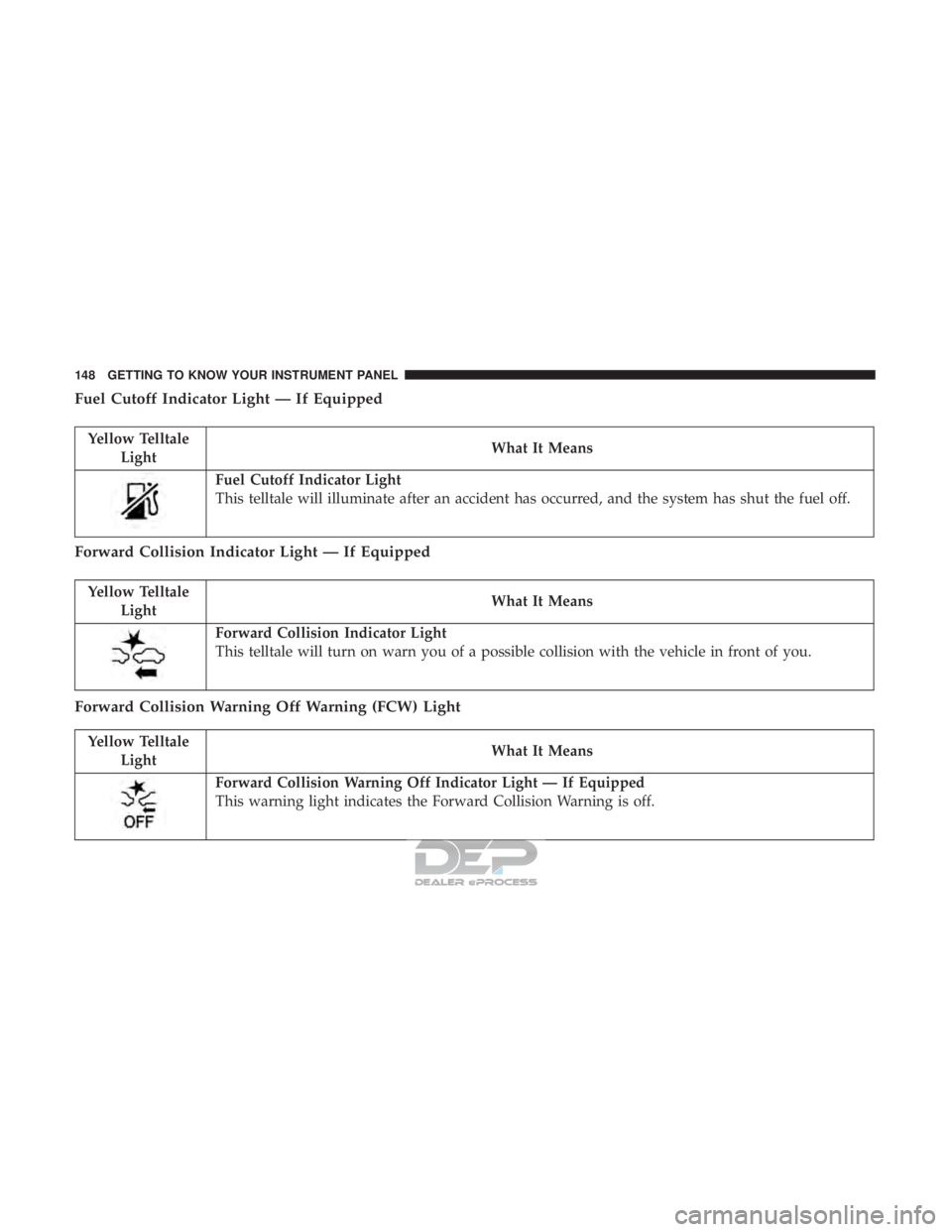

Fuel Cutoff Indicator Light
This telltale will illuminate after an accident has occurred, and the system has shut the fuel off.
Forward Collision Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Forward Collision Indicator Light
This telltale will turn on warn you of a possible collision with the vehicle in front of you.
Forward Collision Warning Off Warning (FCW) Light
Yellow Telltale
Light What It Means
Forward Collision Warning Off Indicator Light — If Equipped
This warning light indicates the Forward Collision Warning is off.
148 GETTING TO KNOW YOUR INSTRUMENT PANEL
