JEEP RENEGADE LATITUDE 2017 Owners Manual

Yellow TelltaleLight What It Means

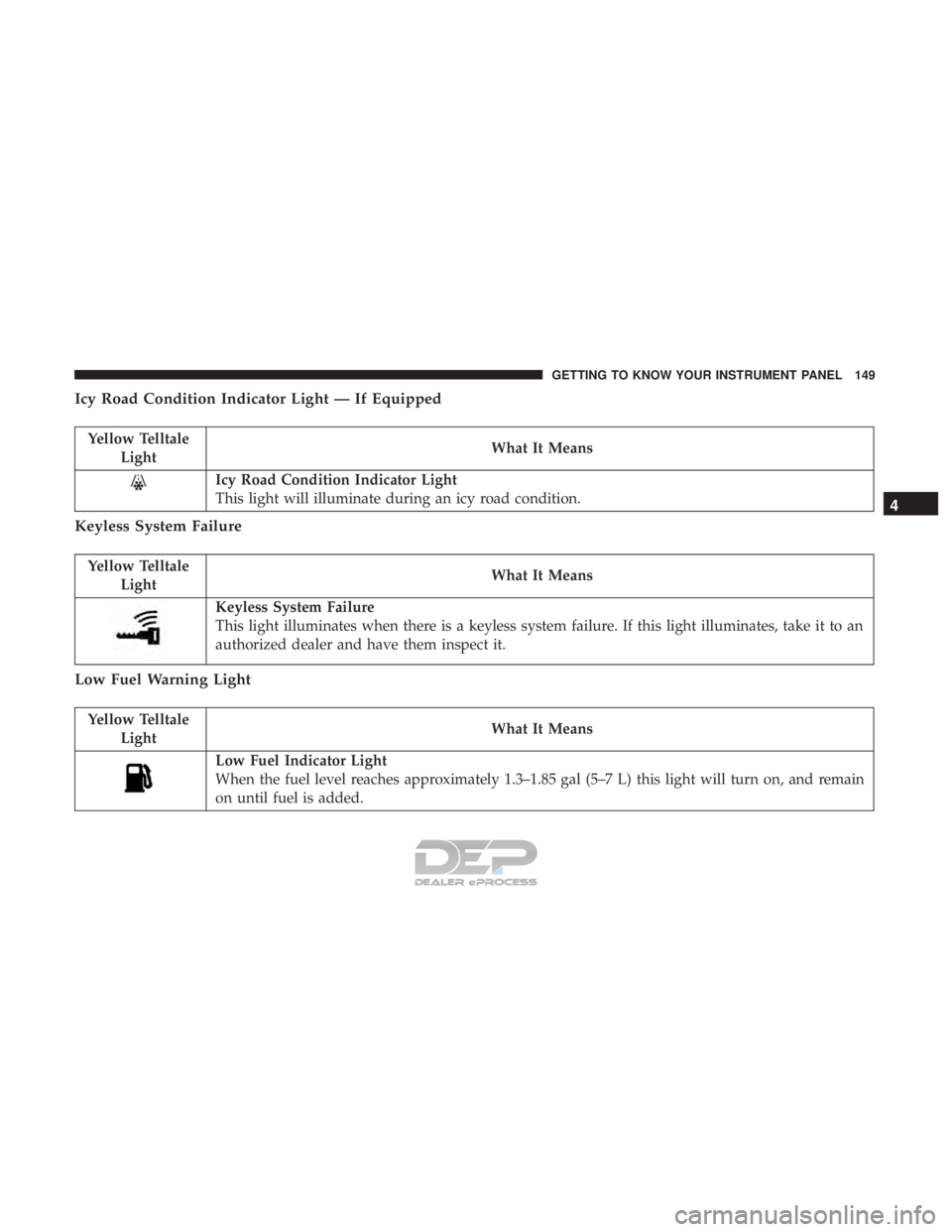

Icy Road Condition Indicator Light
This light will illuminate during an icy road condition.
Keyless System Failure
Yellow Telltale
Light What It Means
Keyless System Failure
This light illuminates when there is a keyless system failure. If this light illuminates, take it to an
authorized dealer and have them inspect it.
Low Fuel Warning Light
Yellow Telltale
Light What It Means
Low Fuel Indicator Light
When the fuel level reaches approximately 1.3–1.85 gal (5–7 L) this light will turn on, and remain
on until fuel is added.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 149

Yellow TelltaleLight What It Means
LaneSense Indicator Light

Yellow TelltaleLight What It Means

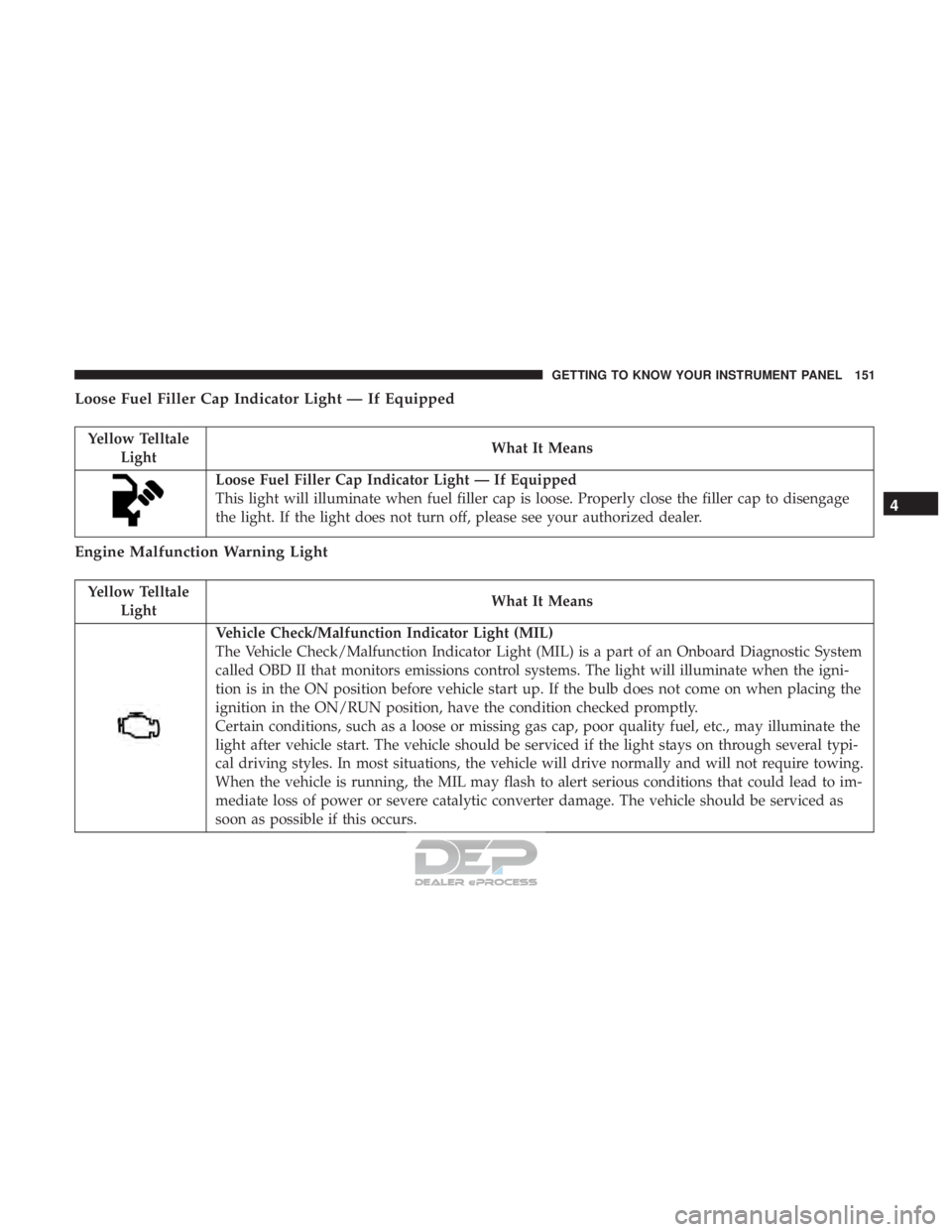

Loose Fuel Filler Cap Indicator Light

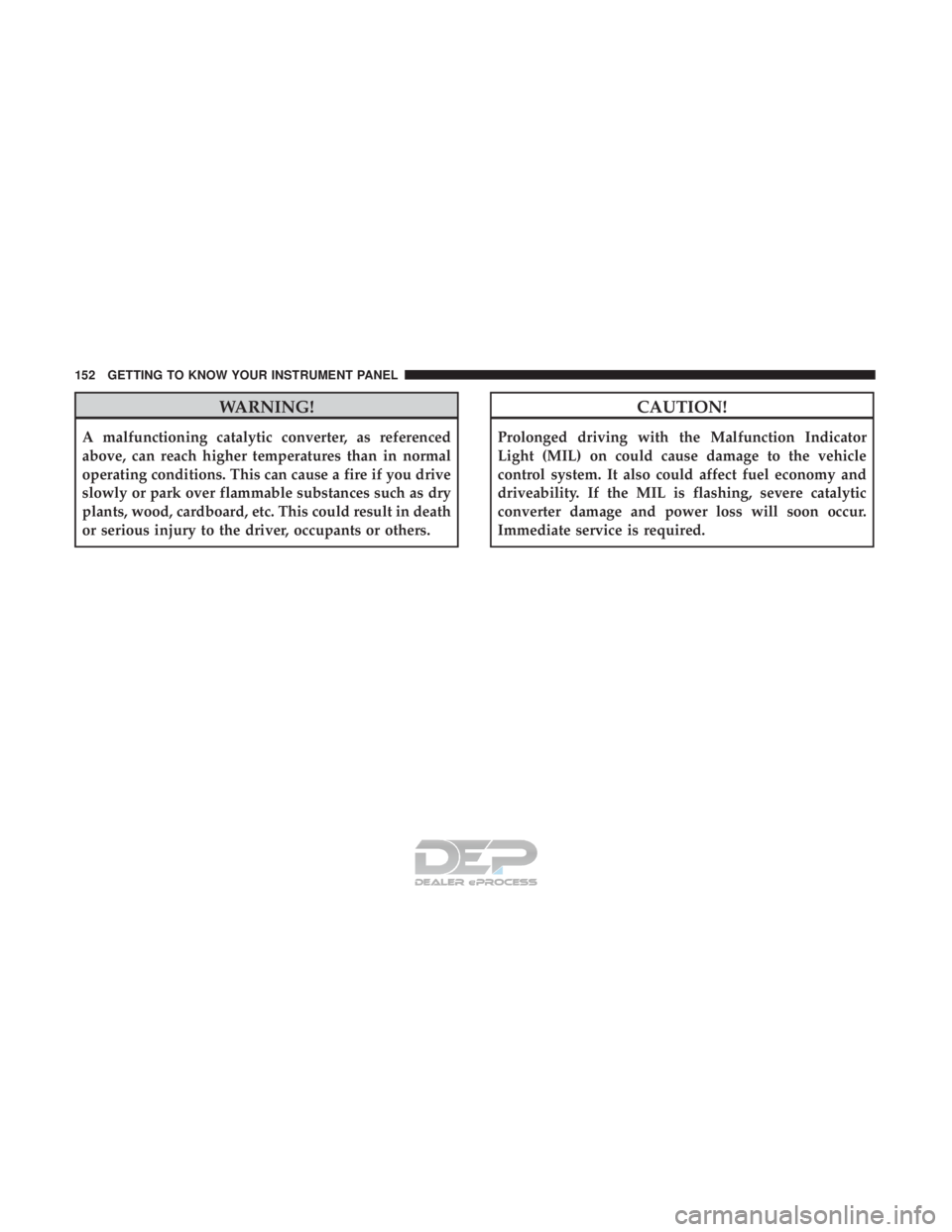

WARNING!
A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in normal
operating conditions. This can cause a fire if you drive
slowly or park over flammable substances such as dry
plants, wood, cardboard, etc. This could result in death
or serious injury to the driver, occupants or others.
CAUTION!
Prolonged driving with the Malfunction Indicator
Light (MIL) on could cause damage to the vehicle
control system. It also could affect fuel economy and
driveability. If the MIL is flashing, severe catalytic
converter damage and power loss will soon occur.
Immediate service is required.
152 GETTING TO KNOW YOUR INSTRUMENT PANEL

Yellow TelltaleLight What It Means

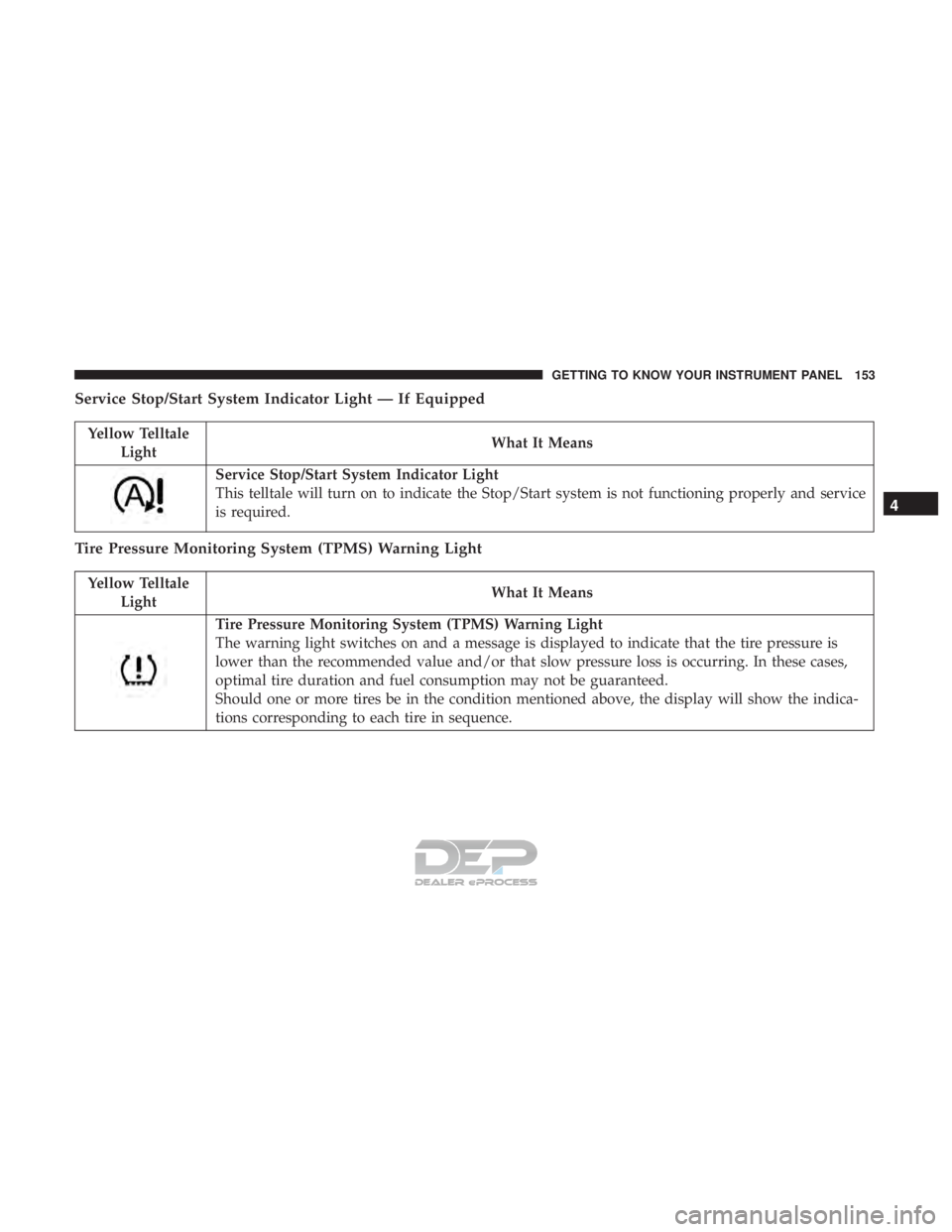

Service Stop/Start System Indicator Light
This telltale will turn on to indicate the Stop/Start system is not functioning properly and service
is required.
Tire Pressure Monitoring System (TPMS) Warning Light
Yellow Telltale
Light What It Means
Tire Pressure Monitoring System (TPMS) Warning Light
The warning light switches on and a message is displayed to indicate that the tire pressure is
lower than the recommended value and/or that slow pressure loss is occurring. In these cases,
optimal tire duration and fuel consumption may not be guaranteed.
Should one or more tires be in the condition mentioned above, the display will show the indica-
tions corresponding to each tire in sequence.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 153

Yellow TelltaleLight What It Means

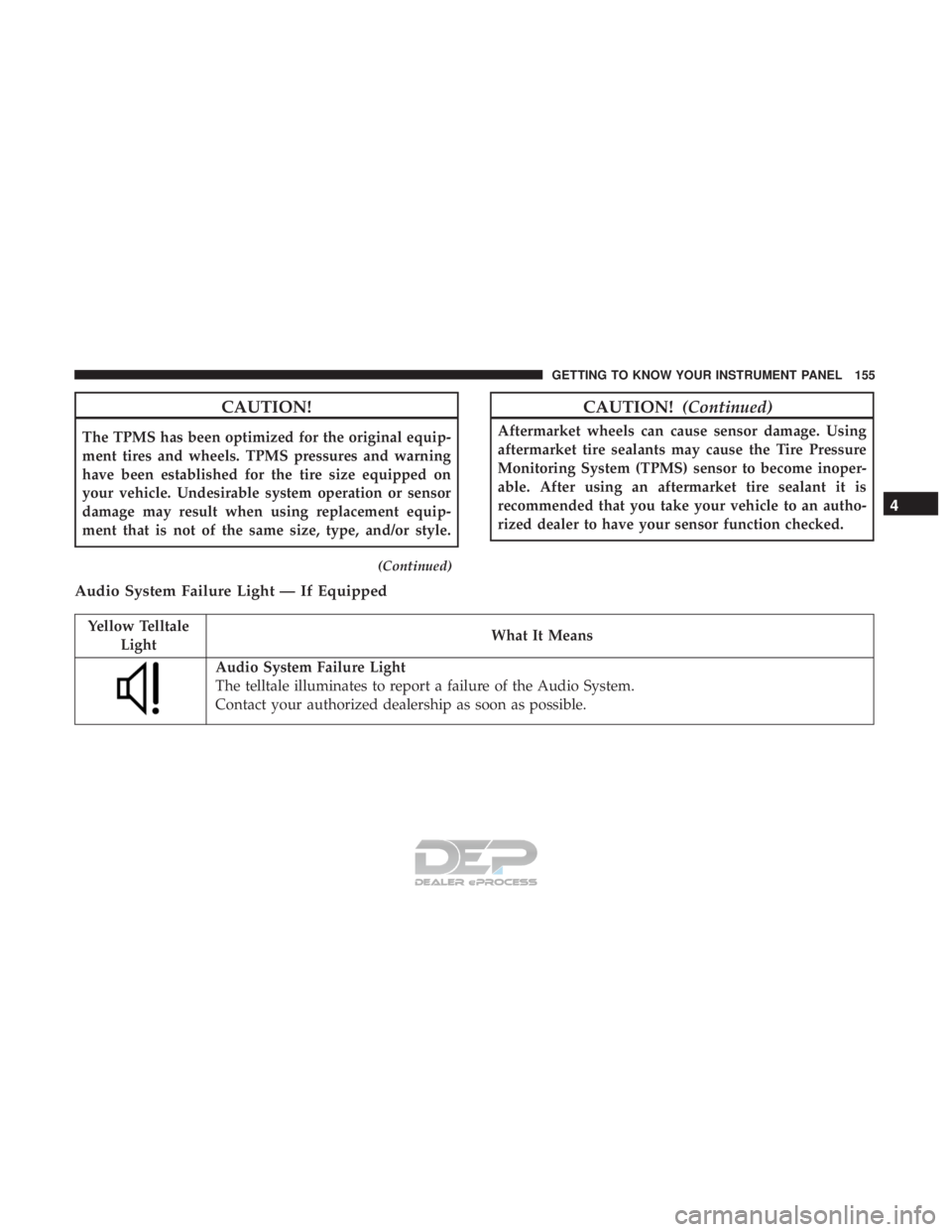

Audio System Failure Light
The telltale illuminates to report a failure of the Audio System.
Contact your authorized dealership as soon as possible.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 155

Yellow TelltaleLight What It Means

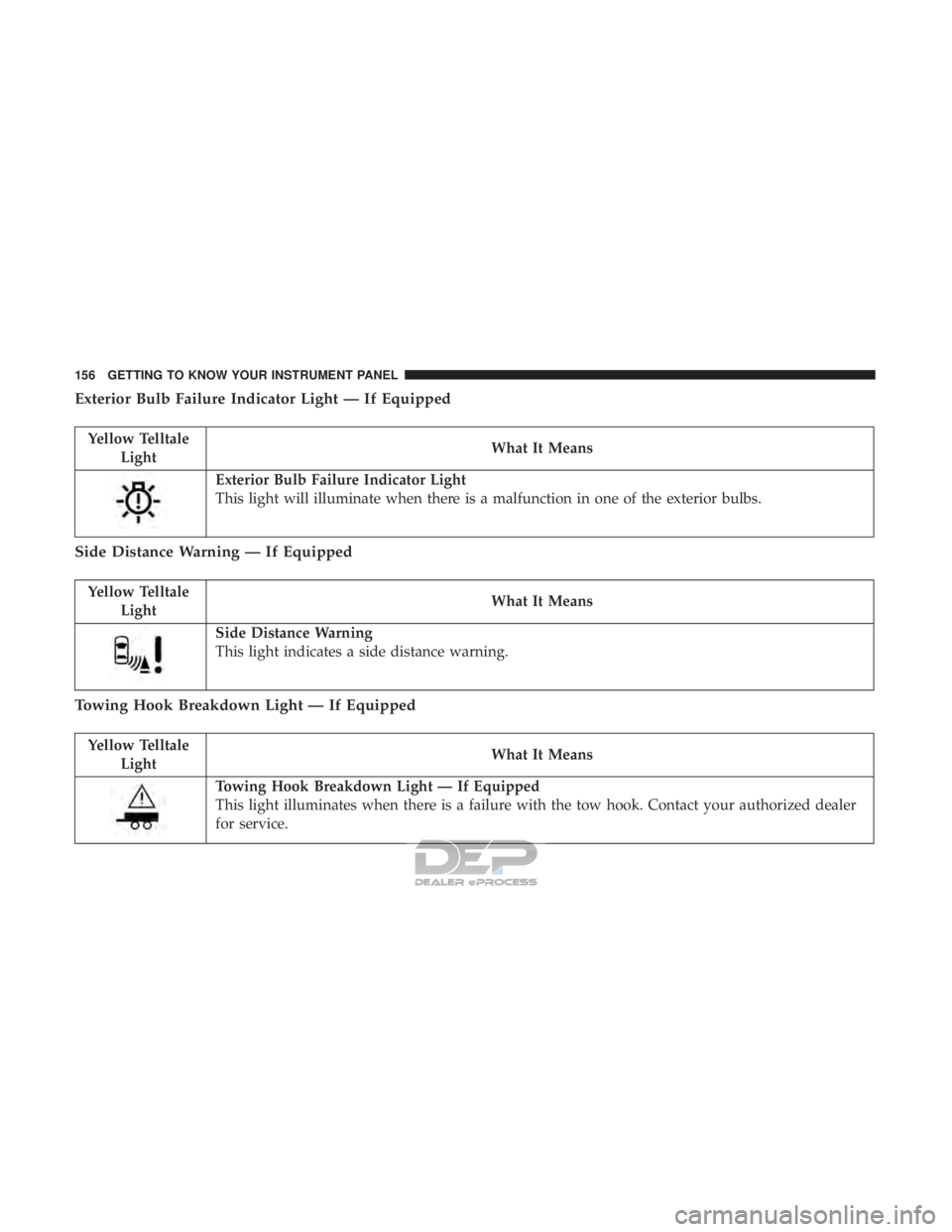

Exterior Bulb Failure Indicator Light
This light will illuminate when there is a malfunction in one of the exterior bulbs.
Side Distance Warning — If Equipped
Yellow Telltale
Light What It Means
Side Distance Warning
This light indicates a side distance warning.
Towing Hook Breakdown Light — If Equipped
Yellow Telltale
Light What It Means
Towing Hook Breakdown Light — If Equipped
This light illuminates when there is a failure with the tow hook. Contact your authorized dealer
for service.
156 GETTING TO KNOW YOUR INSTRUMENT PANEL

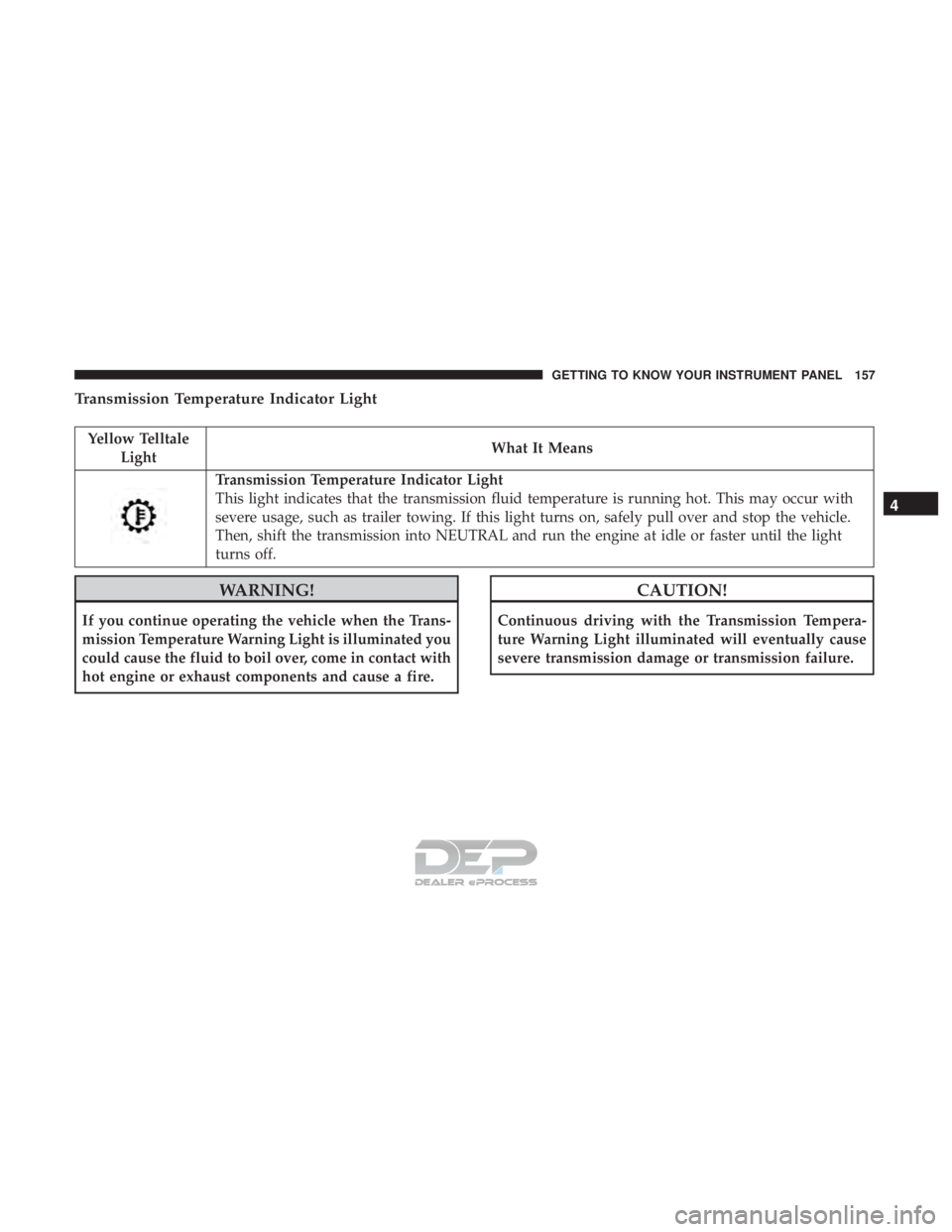

Transmission Temperature Indicator Light
Yellow TelltaleLight What It Means
Transmission Temperature Indicator Light
This light indicates that the transmission fluid temperature is running hot. This may occur with
severe usage, such as trailer towing. If this light turns on, safely pull over and stop the vehicle.
Then, shift the transmission into NEUTRAL and run the engine at idle or faster until the light
turns off.
CAUTION!
Continuous driving with the Transmission Tempera-
ture Warning Light illuminated will eventually cause
severe transmission damage or transmission failure.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 157

Yellow TelltaleLight What It Means

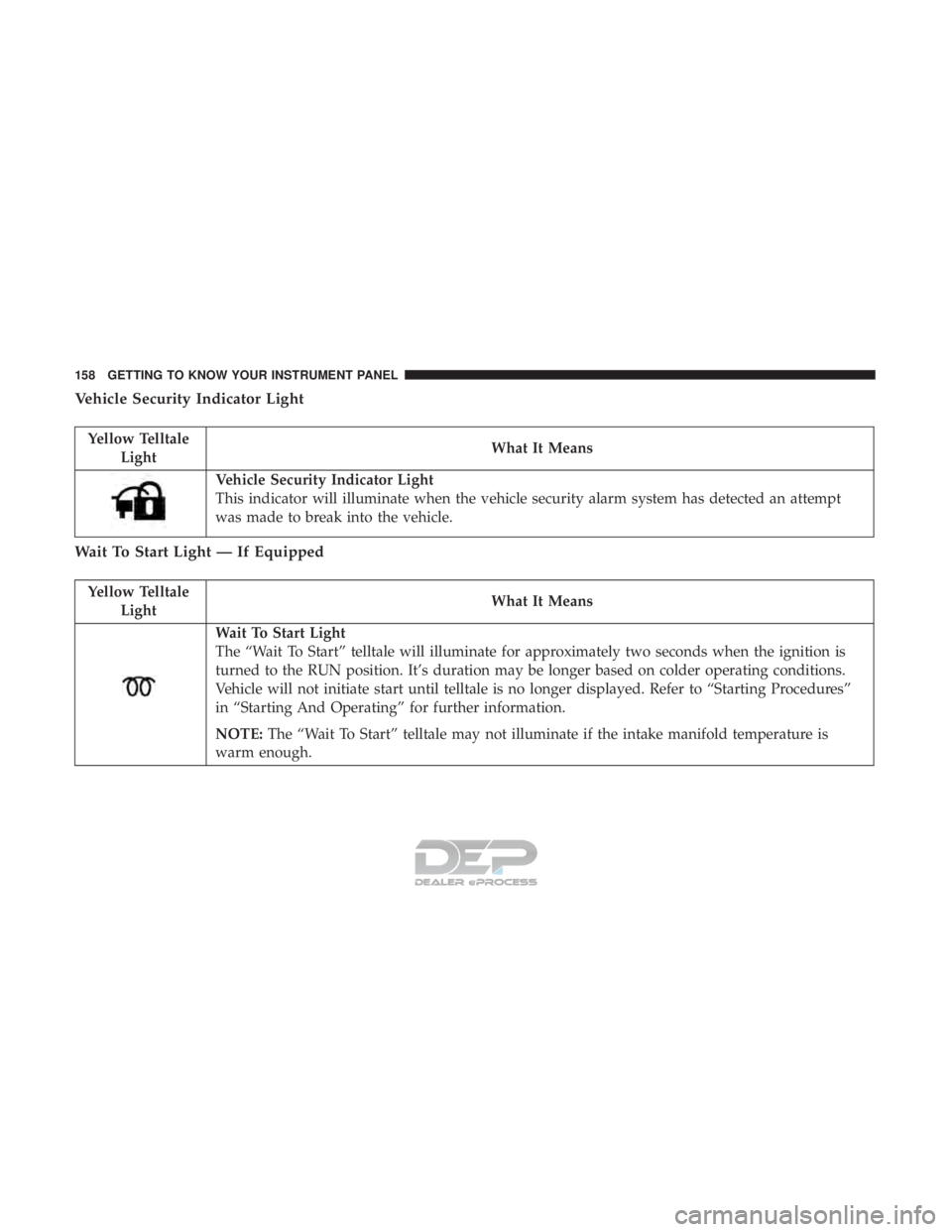

Vehicle Security Indicator Light
This indicator will illuminate when the vehicle security alarm system has detected an attempt
was made to break into the vehicle.
Wait To Start Light — If Equipped
Yellow Telltale
Light What It Means
Wait To Start Light
The “Wait To Start” telltale will illuminate for approximately two seconds when the ignition is
turned to the RUN position. It’s duration may be longer based on colder operating conditions.
Vehicle will not initiate start until telltale is no longer displayed. Refer to “Starting Procedures”
in “Starting And Operating” for further information.
NOTE:
The “Wait To Start” telltale may not illuminate if the intake manifold temperature is
warm enough.
