JEEP RENEGADE LATITUDE 2017 Owners Manual

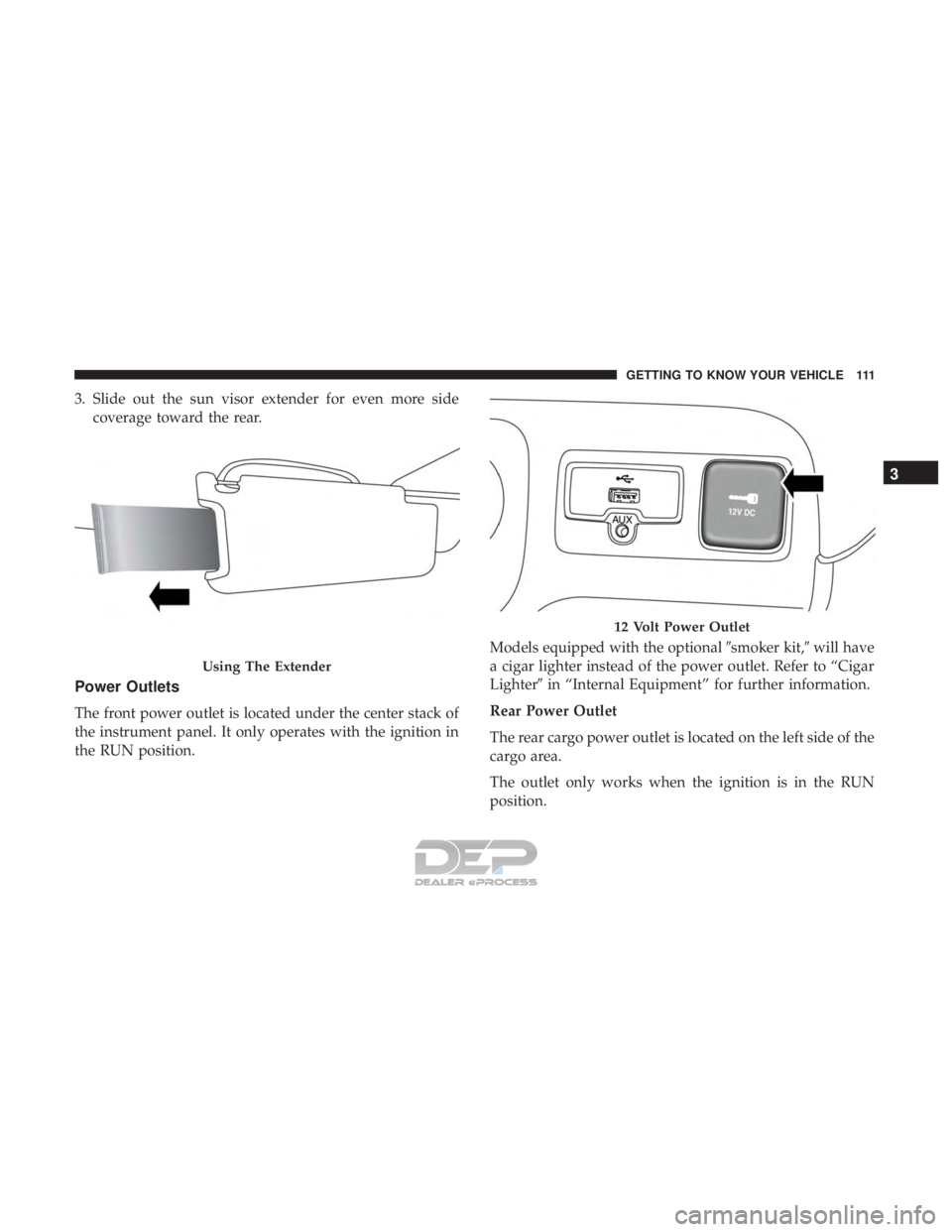

12 Volt Power Outlet
3
GETTING TO KNOW YOUR VEHICLE 111

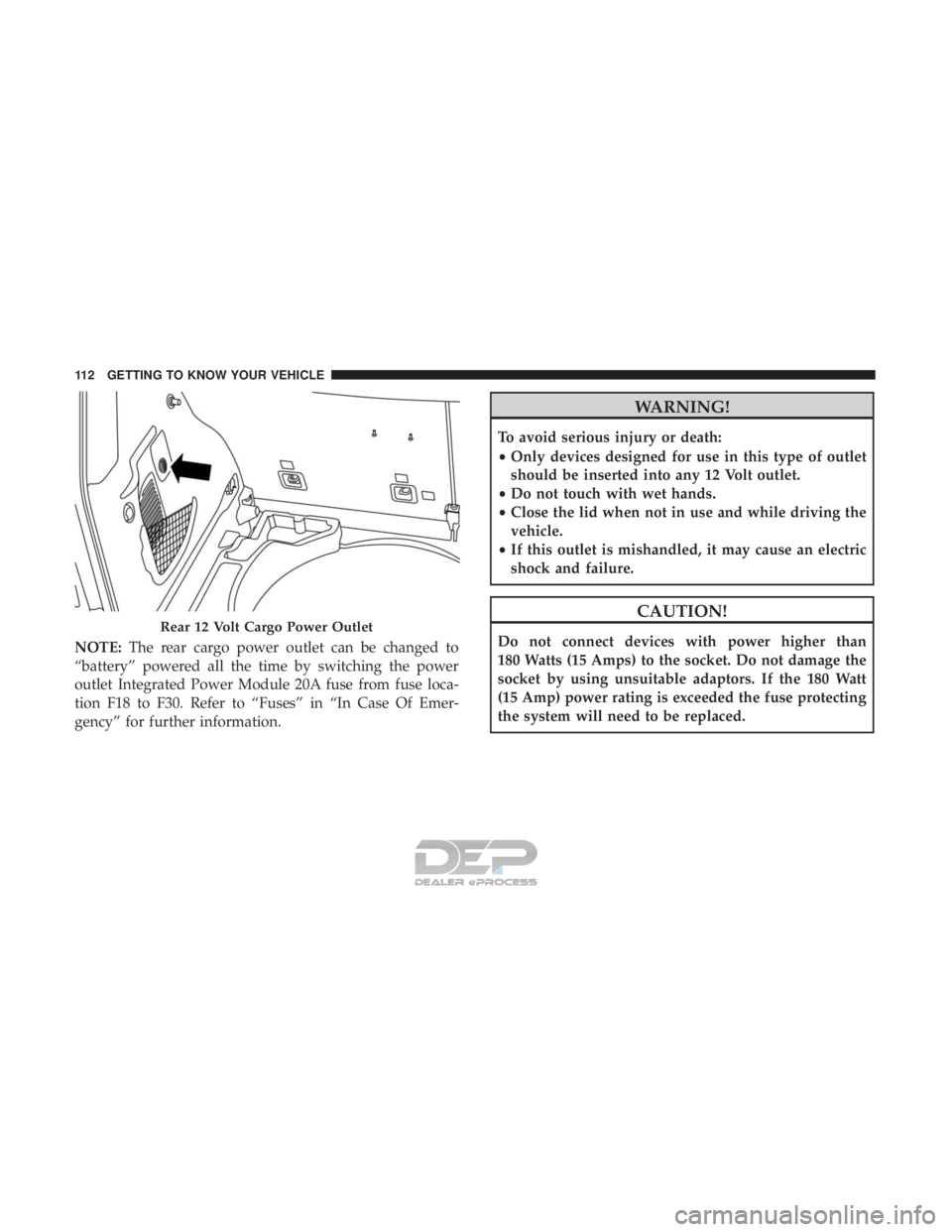

NOTE:The rear cargo power outlet can be changed to
“battery” powered all the time by switching the power
outlet Integrated Power Module 20A fuse from fuse loca-
tion F18 to F30. Refer to “Fuses” in “In Case Of Emer-
gency” for further information.
CAUTION!
Do not connect devices with power higher than
180 Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protecting
the system will need to be replaced.Rear 12 Volt Cargo Power Outlet
112 GETTING TO KNOW YOUR VEHICLE

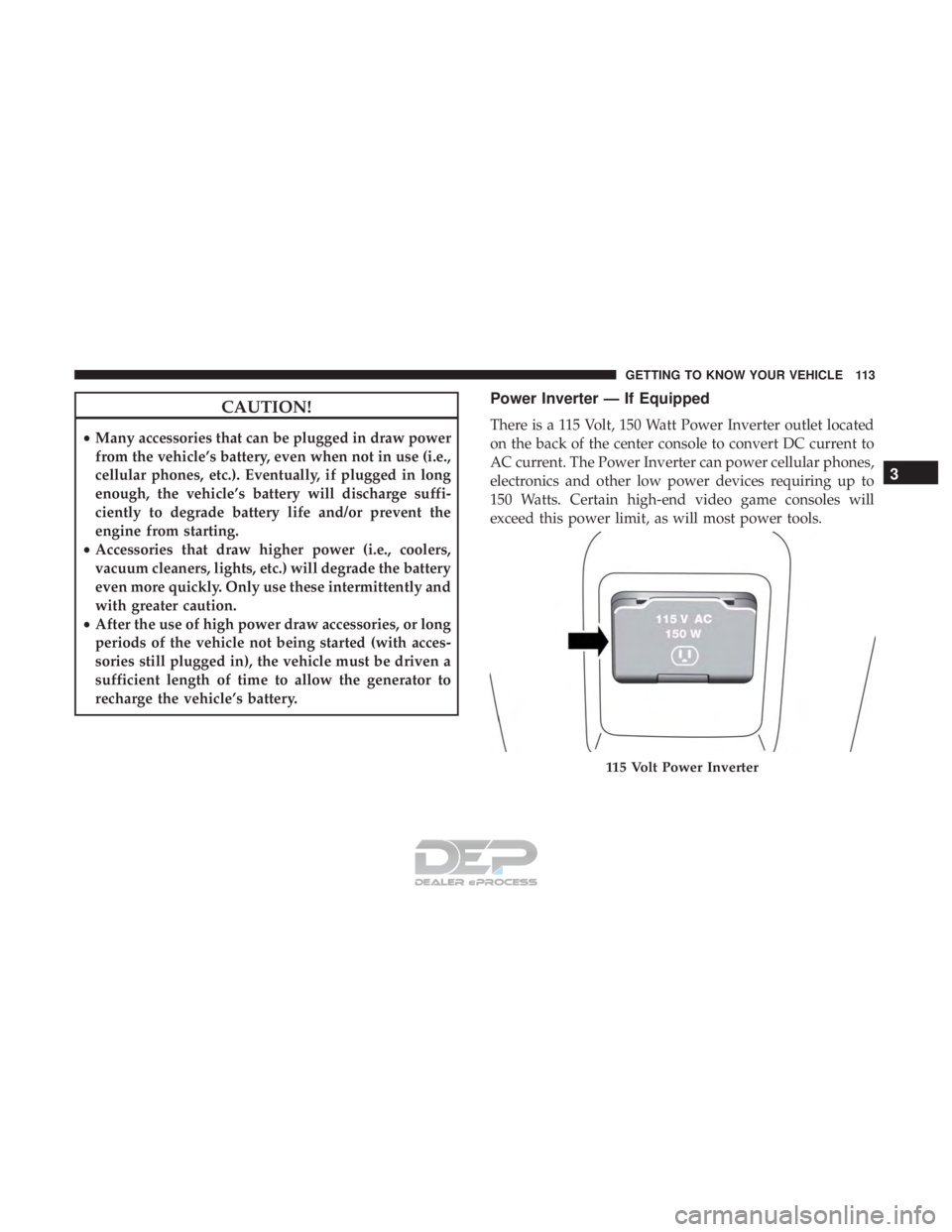

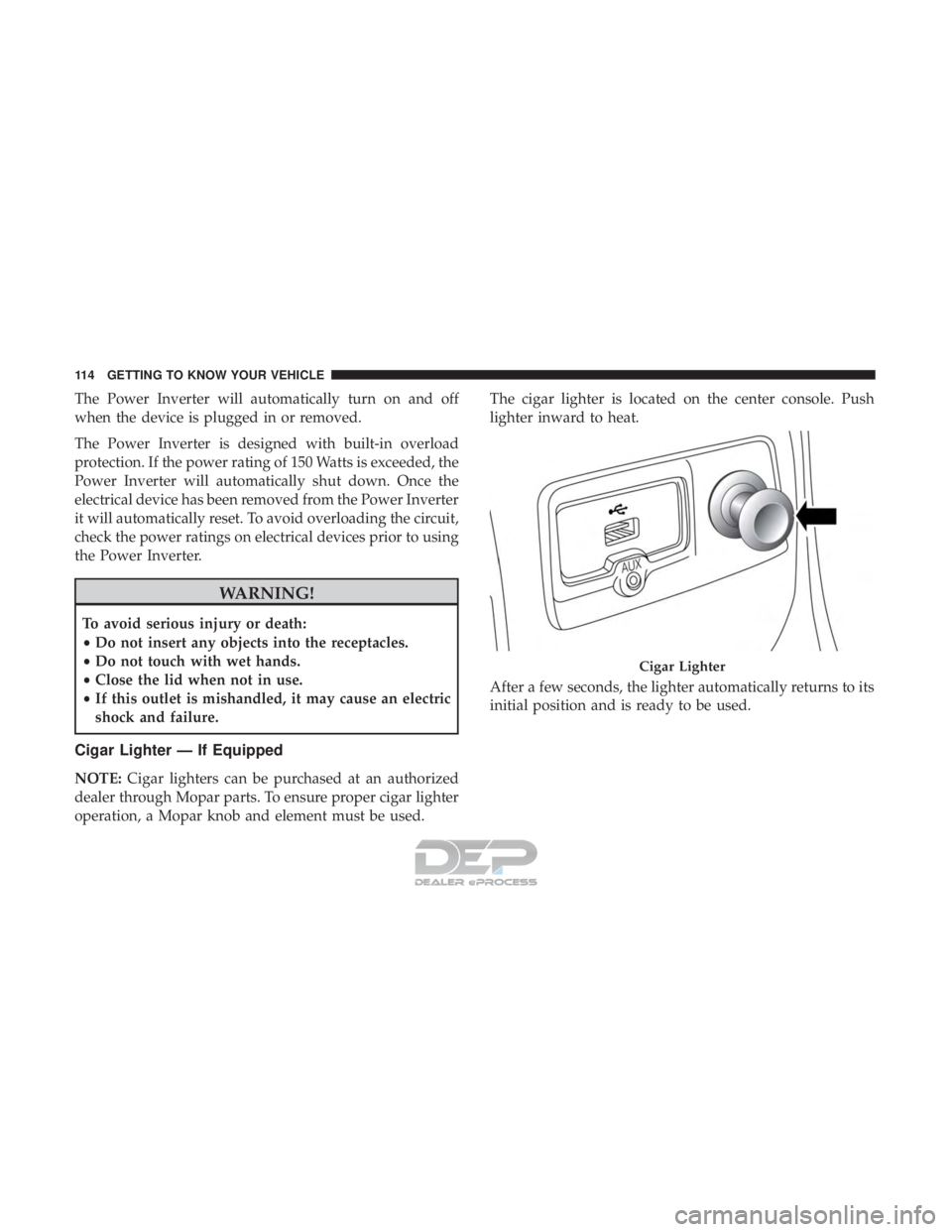

The Power Inverter will automatically turn on and off
when the device is plugged in or removed.
The Power Inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded, the
Power Inverter will automatically shut down. Once the
electrical device has been removed from the Power Inverter
it will automatically reset. To avoid overloading the circuit,
check the power ratings on electrical devices prior to using
the Power Inverter.

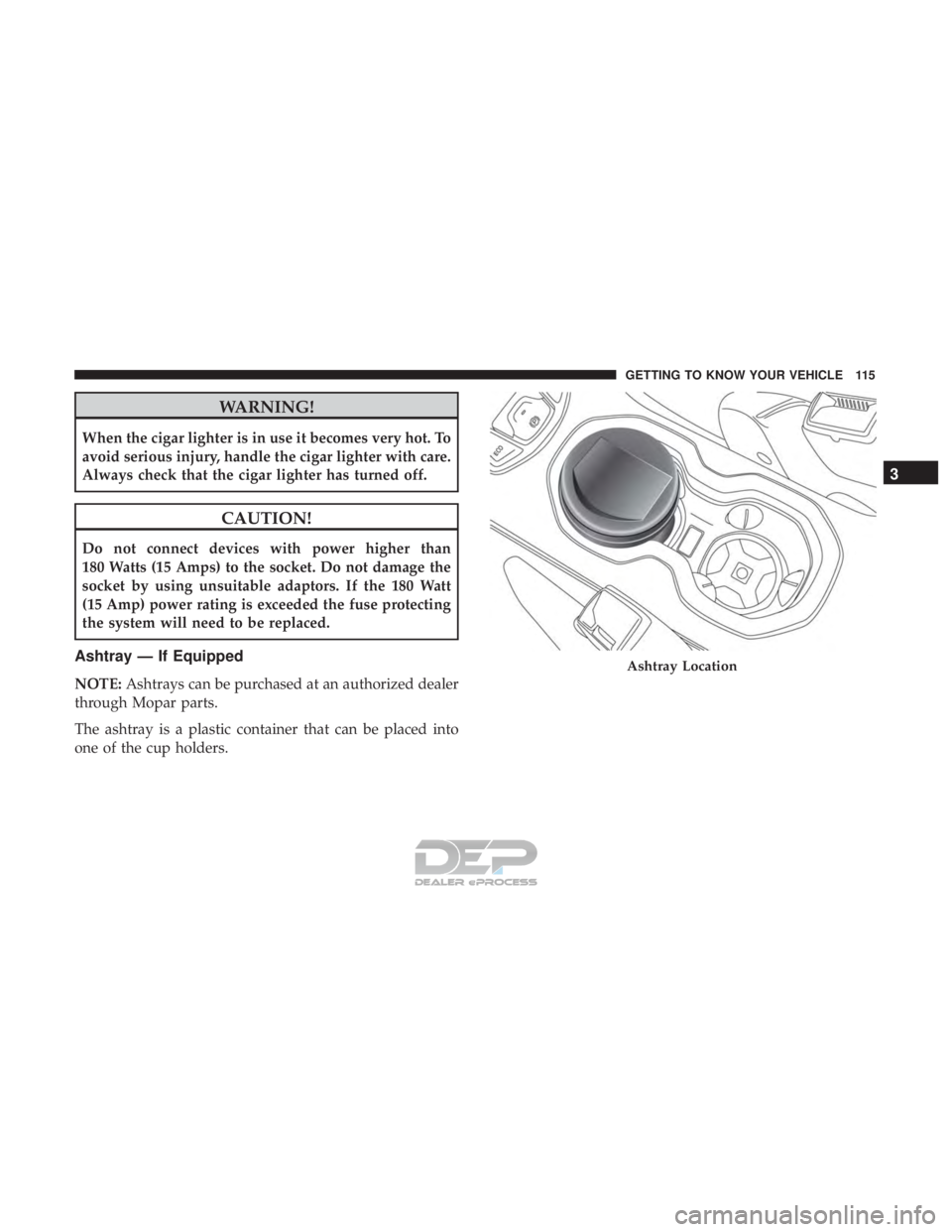

WARNING!
When the cigar lighter is in use it becomes very hot. To
avoid serious injury, handle the cigar lighter with care.
Always check that the cigar lighter has turned off.
CAUTION!
Do not connect devices with power higher than
180 Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protecting
the system will need to be replaced.
Ashtray — If Equipped
NOTE:Ashtrays can be purchased at an authorized dealer
through Mopar parts.
The ashtray is a plastic container that can be placed into
one of the cup holders.

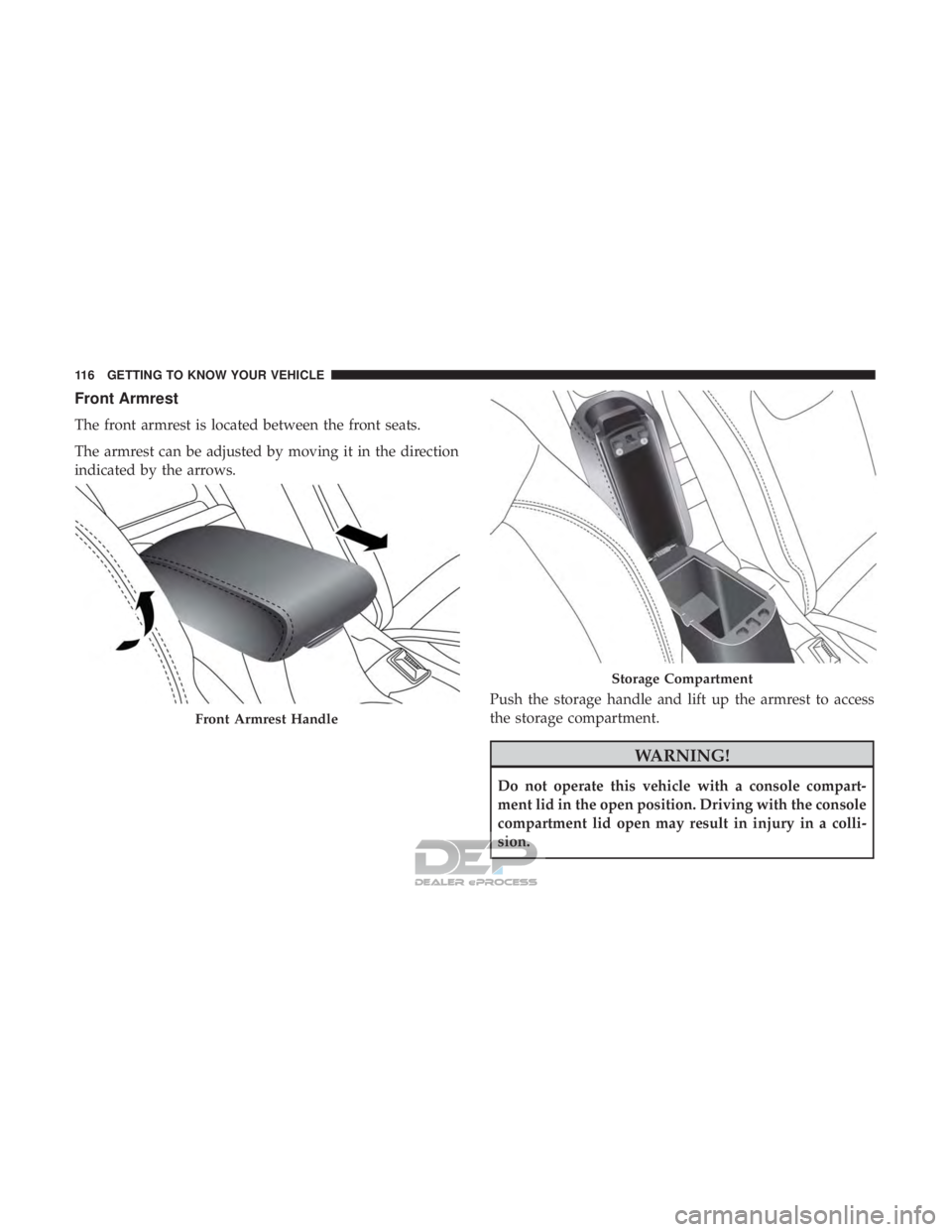

Front Armrest
The front armrest is located between the front seats.
The armrest can be adjusted by moving it in the direction
indicated by the arrows.Push the storage handle and lift up the armrest to access
the storage compartment.
Front Armrest Handle
Storage Compartment
116 GETTING TO KNOW YOUR VEHICLE

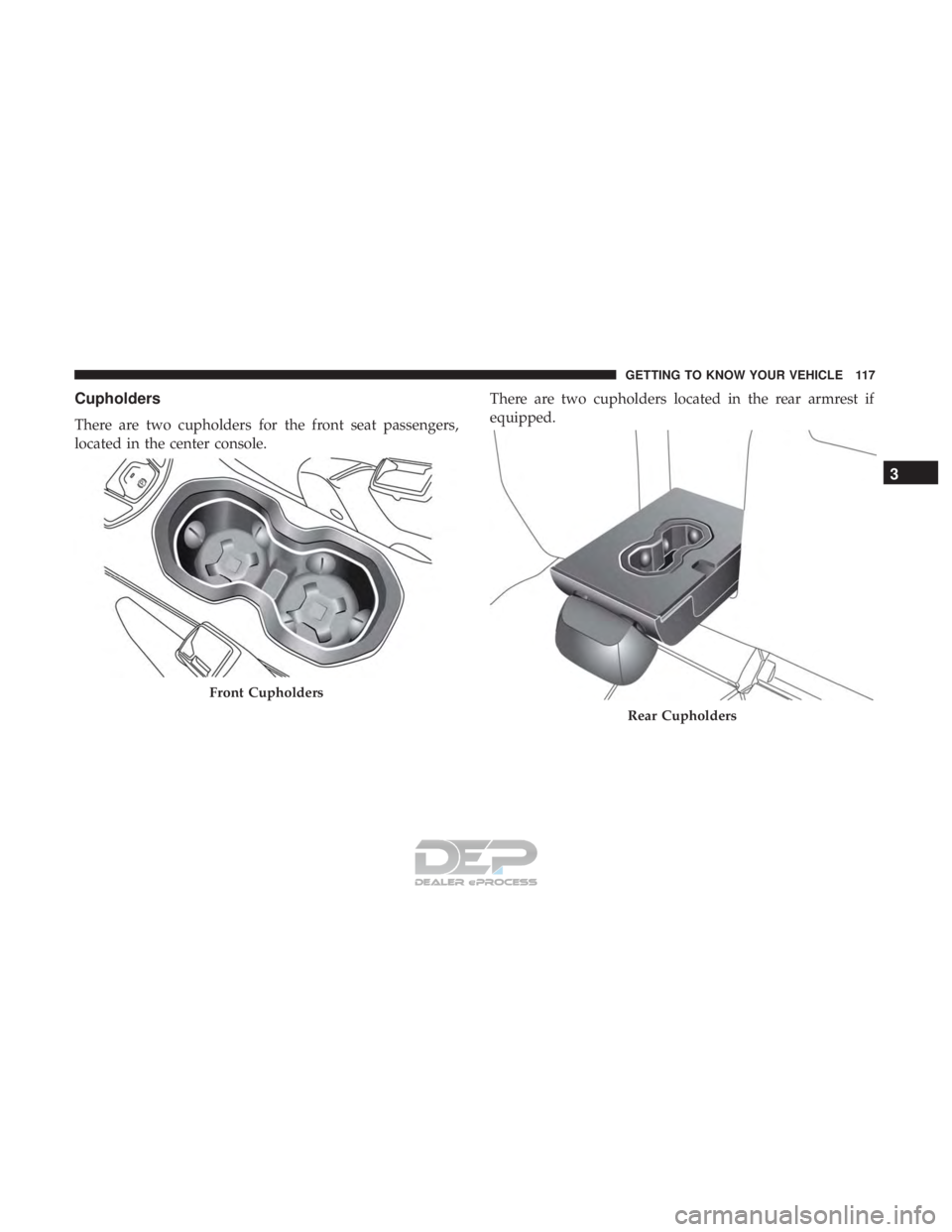

Rear Cupholders
3
GETTING TO KNOW YOUR VEHICLE 117
