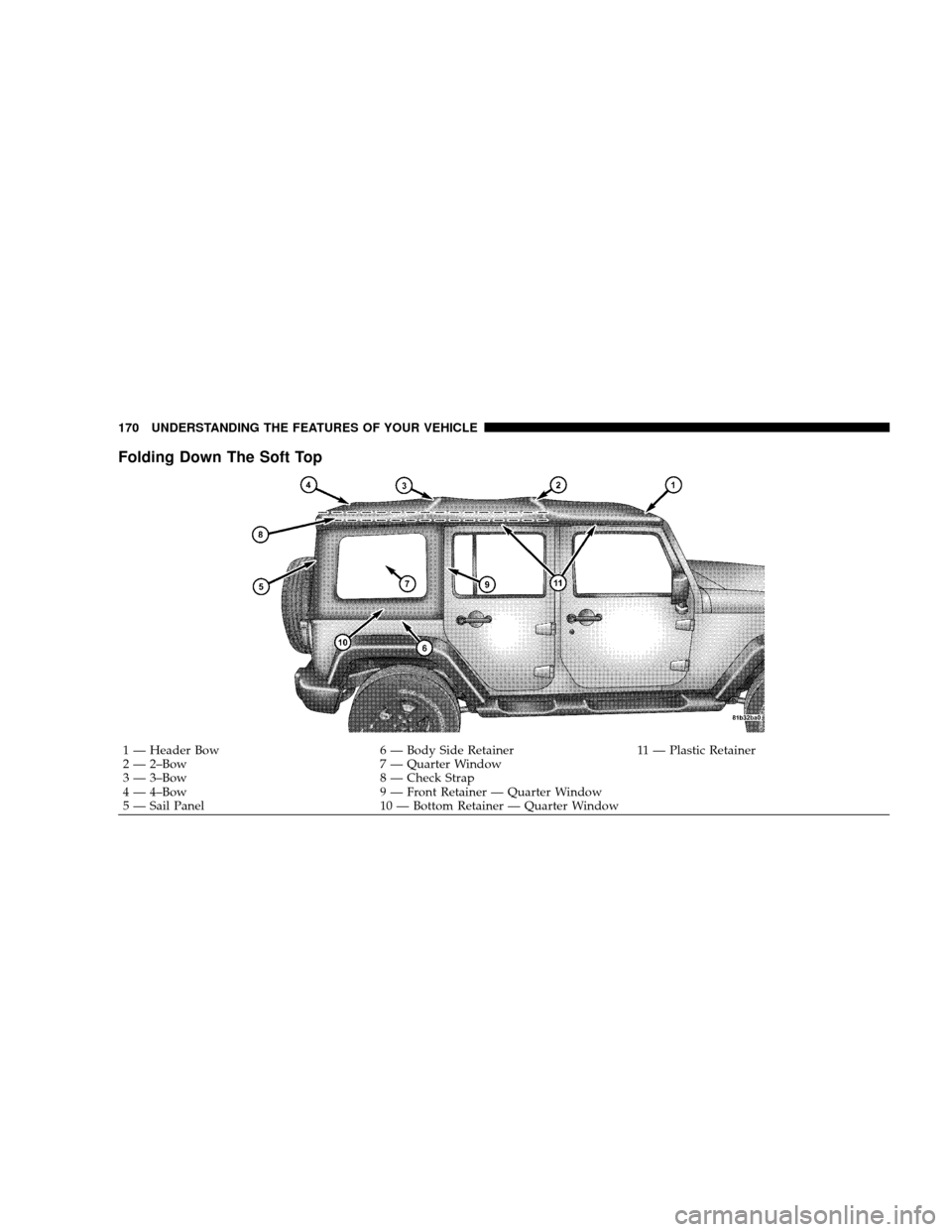

Folding Down The Soft Top
1 — Header Bow6 — Body Side Retainer11 — Plastic Retainer
2 — 2–Bow 7 — Quarter Window
3 — 3–Bow 8 — Check Strap
4 — 4–Bow 9 — Front Retainer — Quarter Window
5 — Sail Panel 10 — Bottom Retainer — Quarter Window
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

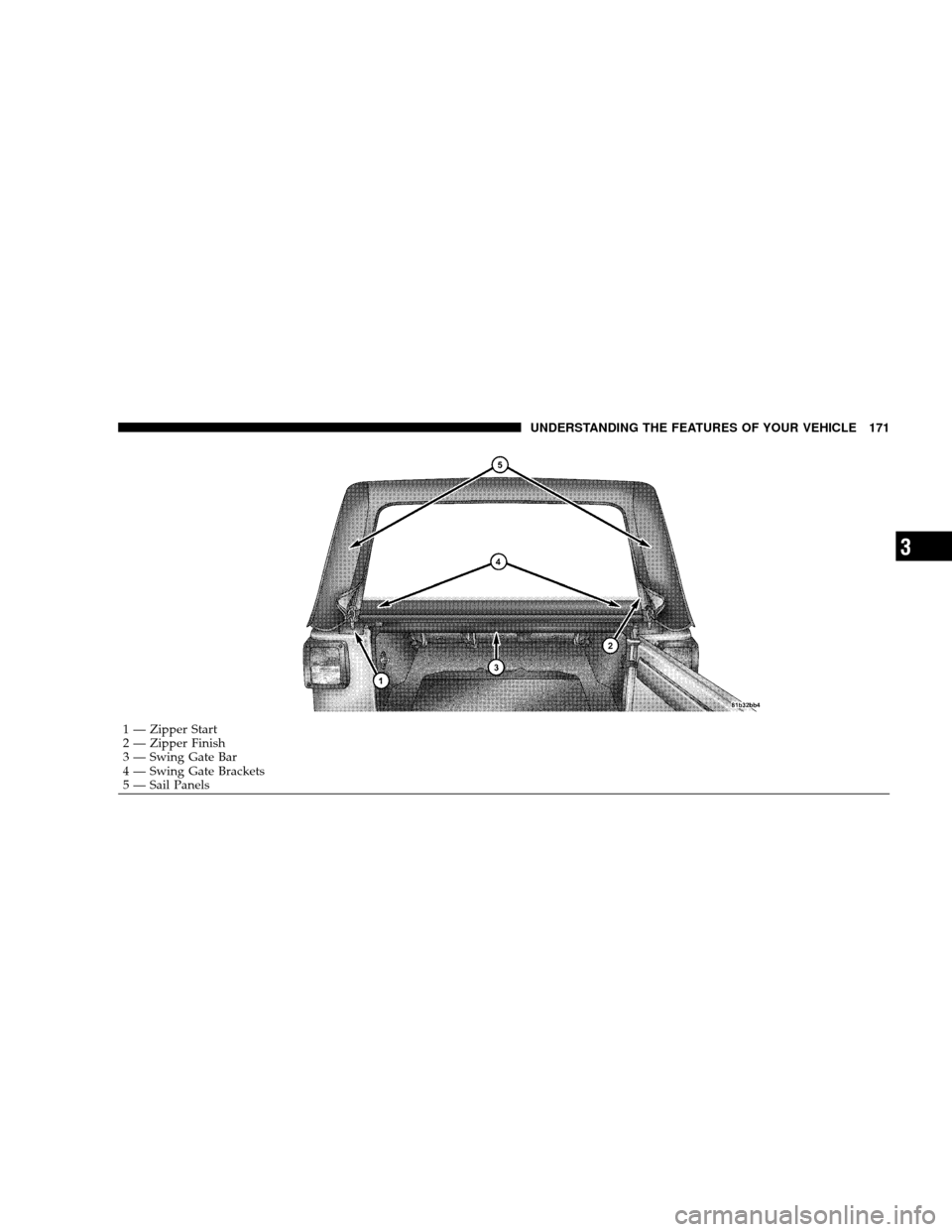

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail PanelsUNDERSTANDING THE FEATURES OF YOUR VEHICLE 171
3

NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.

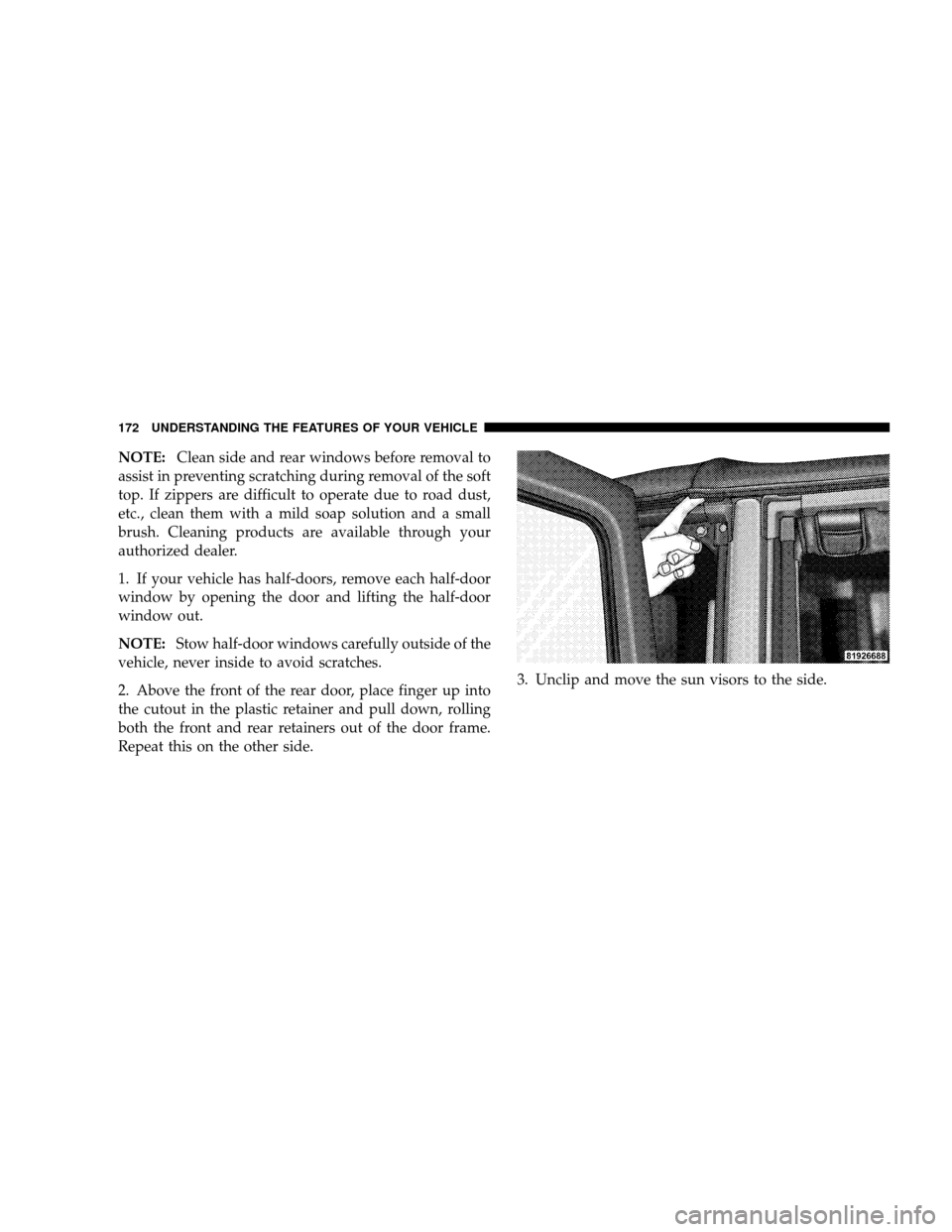

1. If your vehicle has half-doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE: Stow half-door windows carefully outside of the
vehicle, never inside to avoid scratches.
2. Above the front of the rear door, place finger up into
the cutout in the plastic retainer and pull down, rolling
both the front and rear retainers out of the door frame.
Repeat this on the other side. 3. Unclip and move the sun visors to the side.
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. Release the header latches and hooks from the loops
on the windshield frame.5. Open the swing gate.
6. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173
3

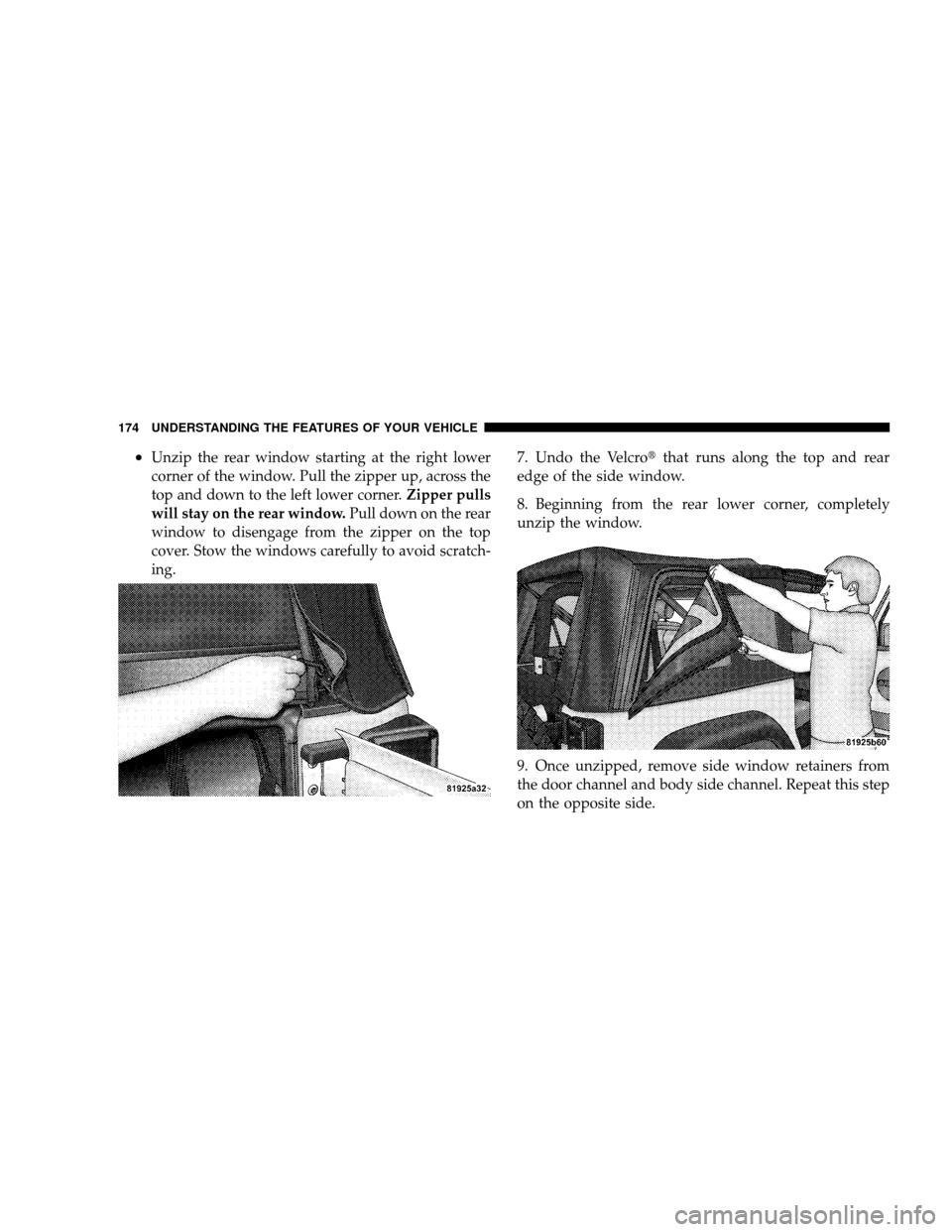

•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage from the zipper on the top
cover. Stow the windows carefully to avoid scratch-
ing. 7. Undo the Velcro
that runs along the top and rear
edge of the side window.
8. Beginning from the rear lower corner, completely
unzip the window.
9. Once unzipped, remove side window retainers from
the door channel and body side channel. Repeat this step
on the opposite side.
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

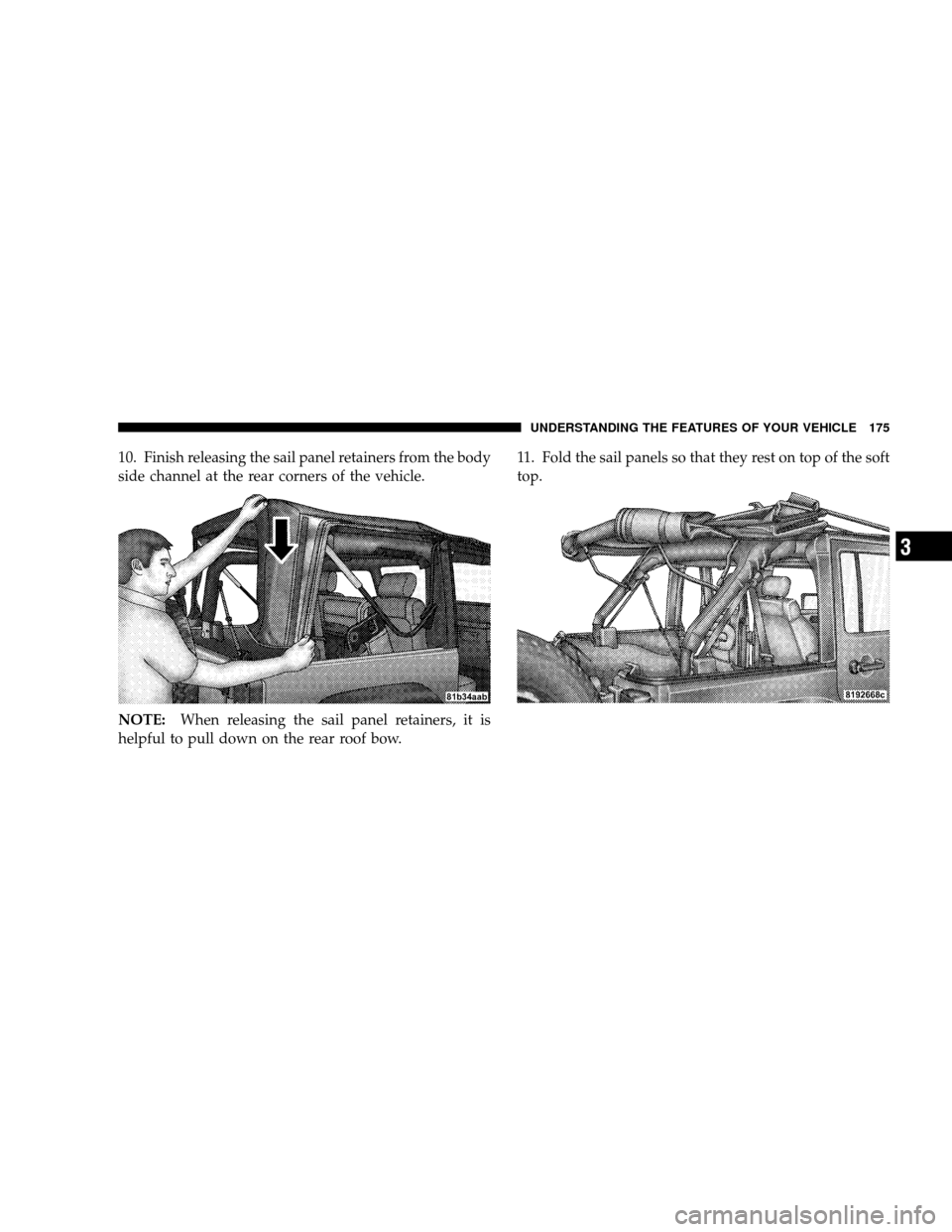

10. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.
NOTE:When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow. 11. Fold the sail panels so that they rest on top of the soft
top.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
3

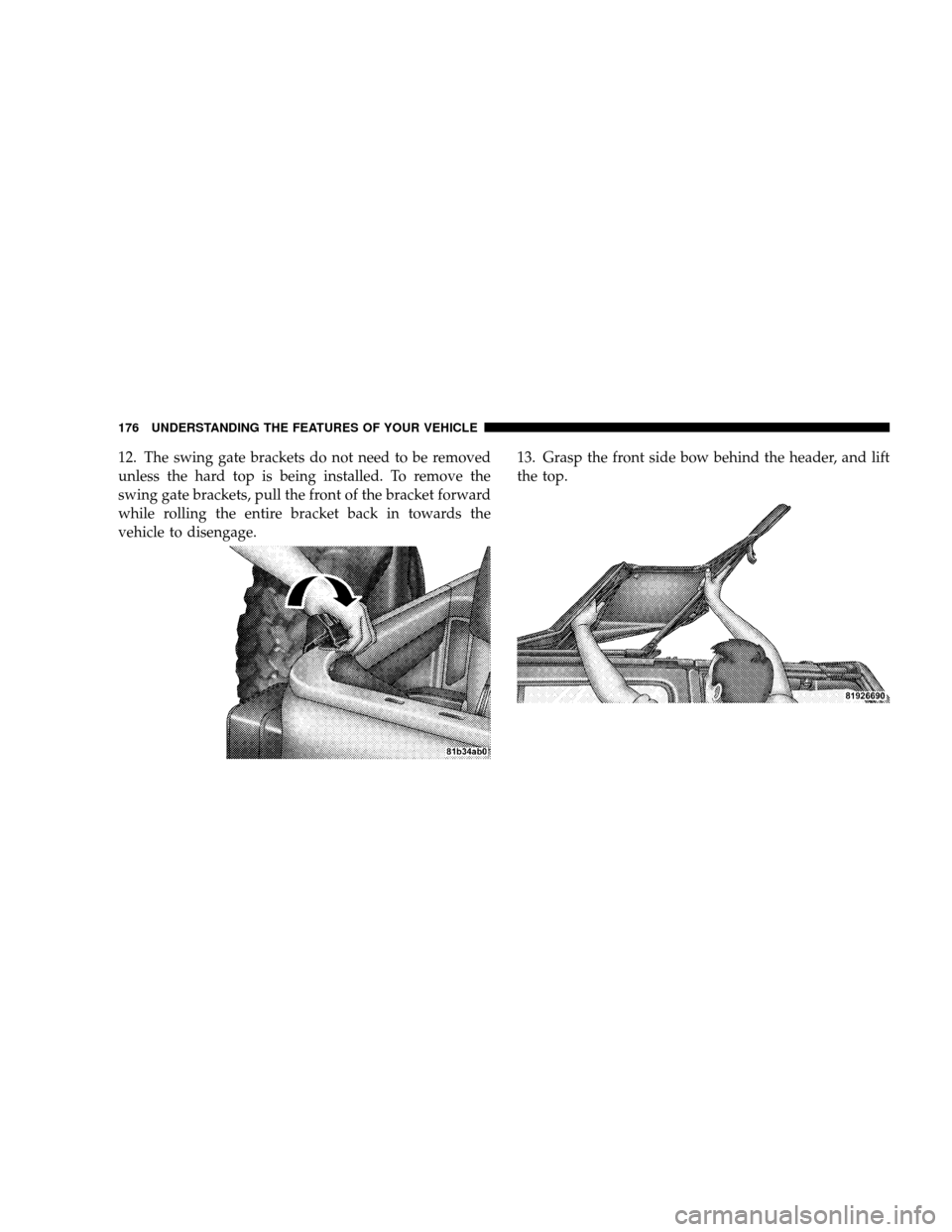

12. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket forward
while rolling the entire bracket back in towards the
vehicle to disengage.13. Grasp the front side bow behind the header, and lift
the top.
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

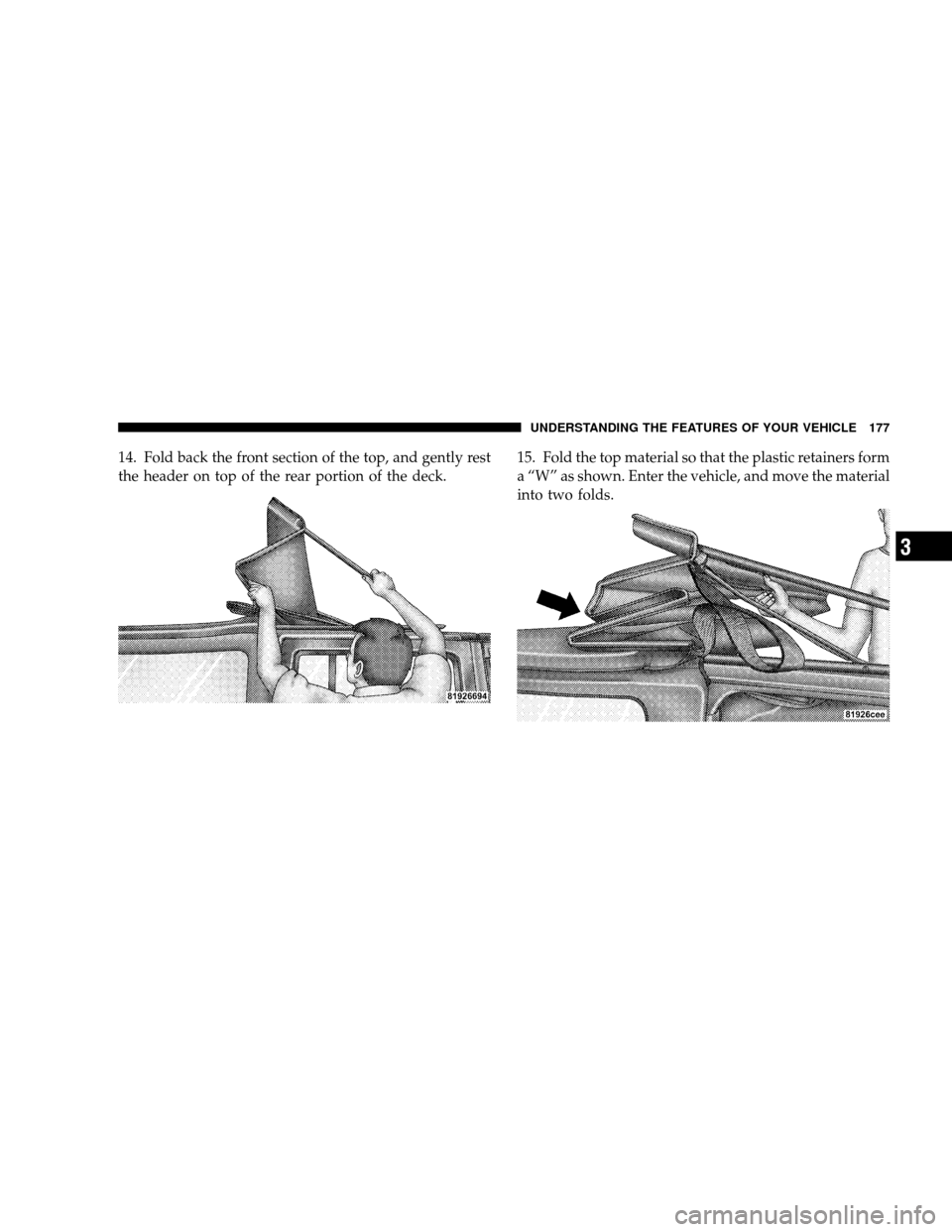

14. Fold back the front section of the top, and gently rest
the header on top of the rear portion of the deck.15. Fold the top material so that the plastic retainers form
a “W” as shown. Enter the vehicle, and move the material
into two folds.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177
3

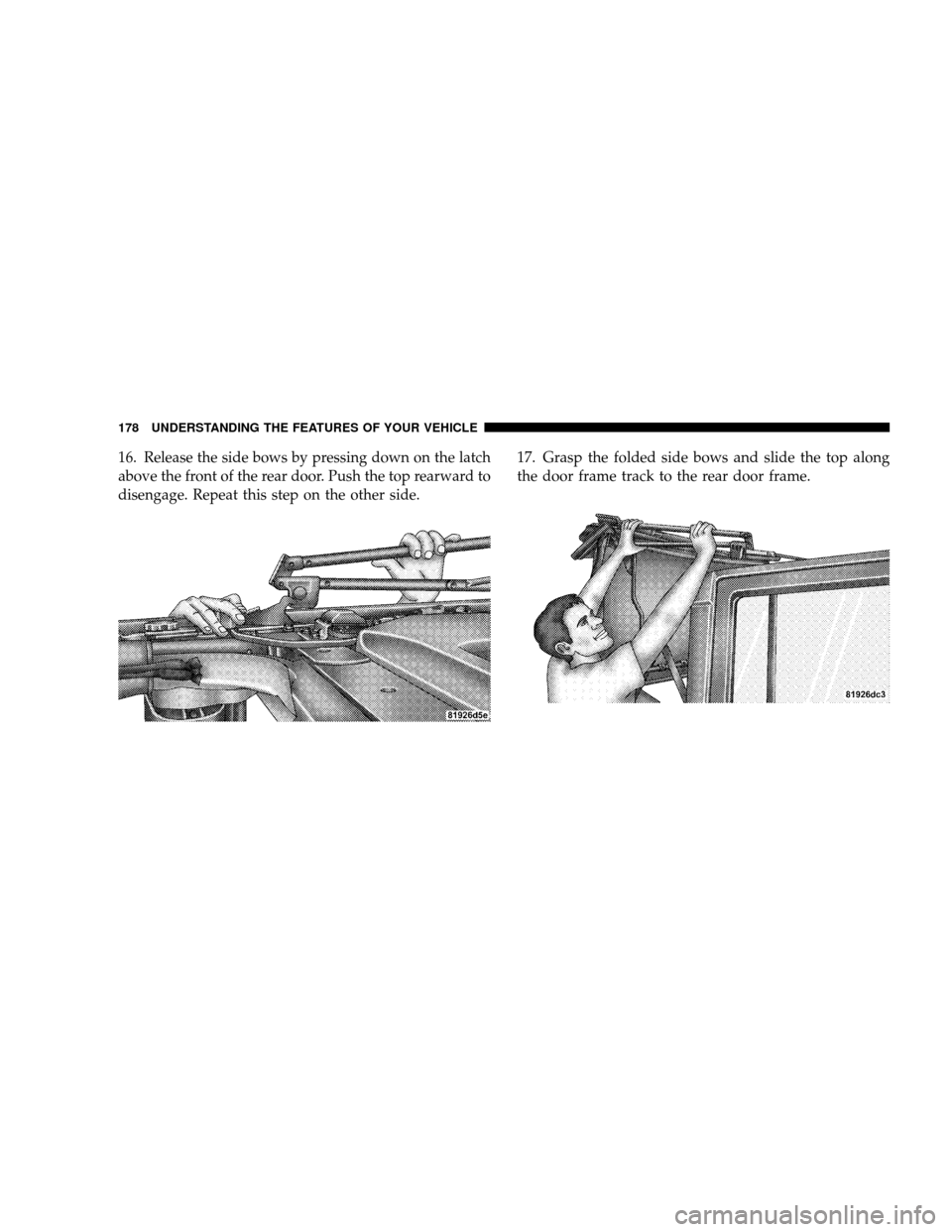

16. Release the side bows by pressing down on the latch
above the front of the rear door. Push the top rearward to
disengage. Repeat this step on the other side.17. Grasp the folded side bows and slide the top along
the door frame track to the rear door frame.
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

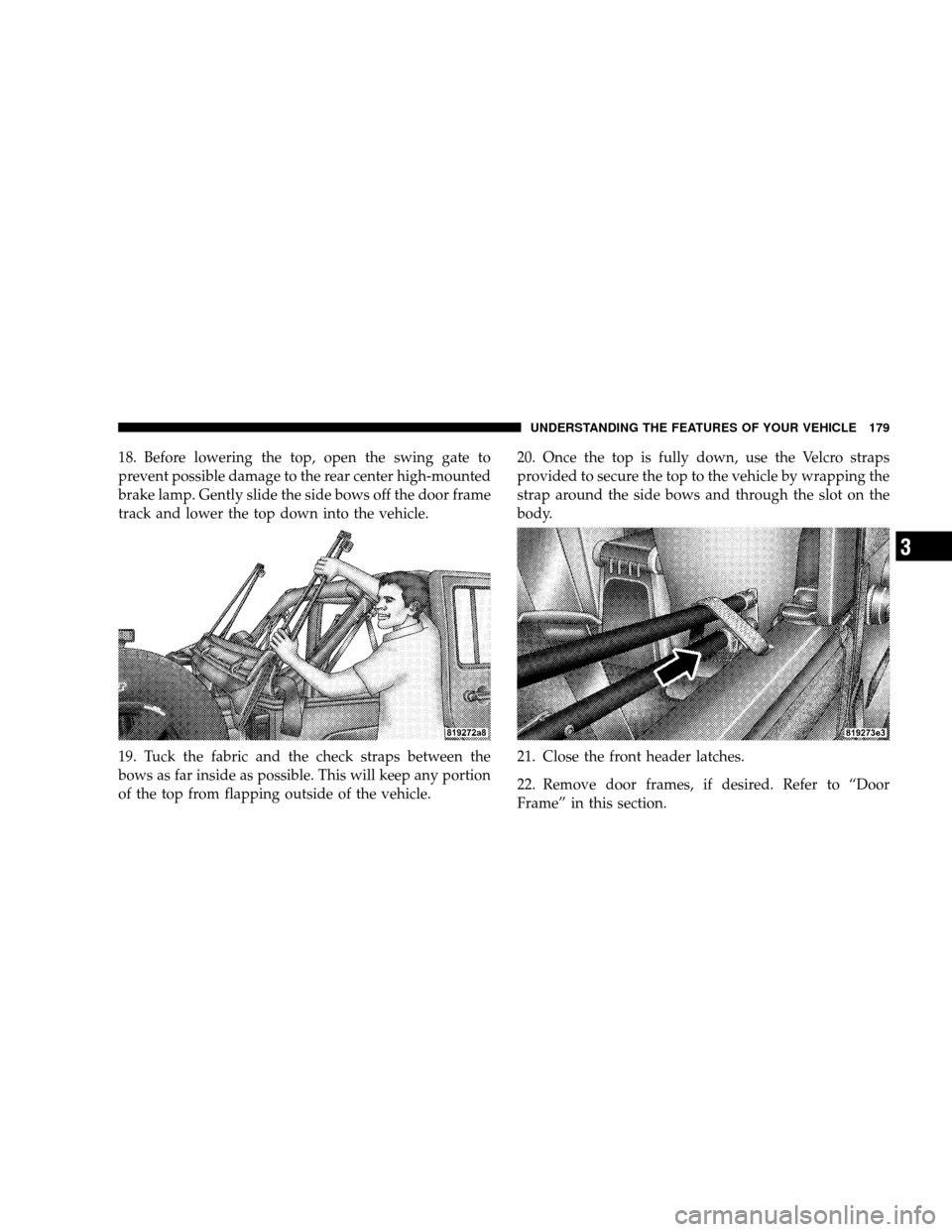

18. Before lowering the top, open the swing gate to
prevent possible damage to the rear center high-mounted
brake lamp. Gently slide the side bows off the door frame
track and lower the top down into the vehicle.
19. Tuck the fabric and the check straps between the
bows as far inside as possible. This will keep any portion
of the top from flapping outside of the vehicle.20. Once the top is fully down, use the Velcro straps
provided to secure the top to the vehicle by wrapping the
strap around the side bows and through the slot on the
body.
21. Close the front header latches.
22. Remove door frames, if desired. Refer to “Door
Frame” in this section.
