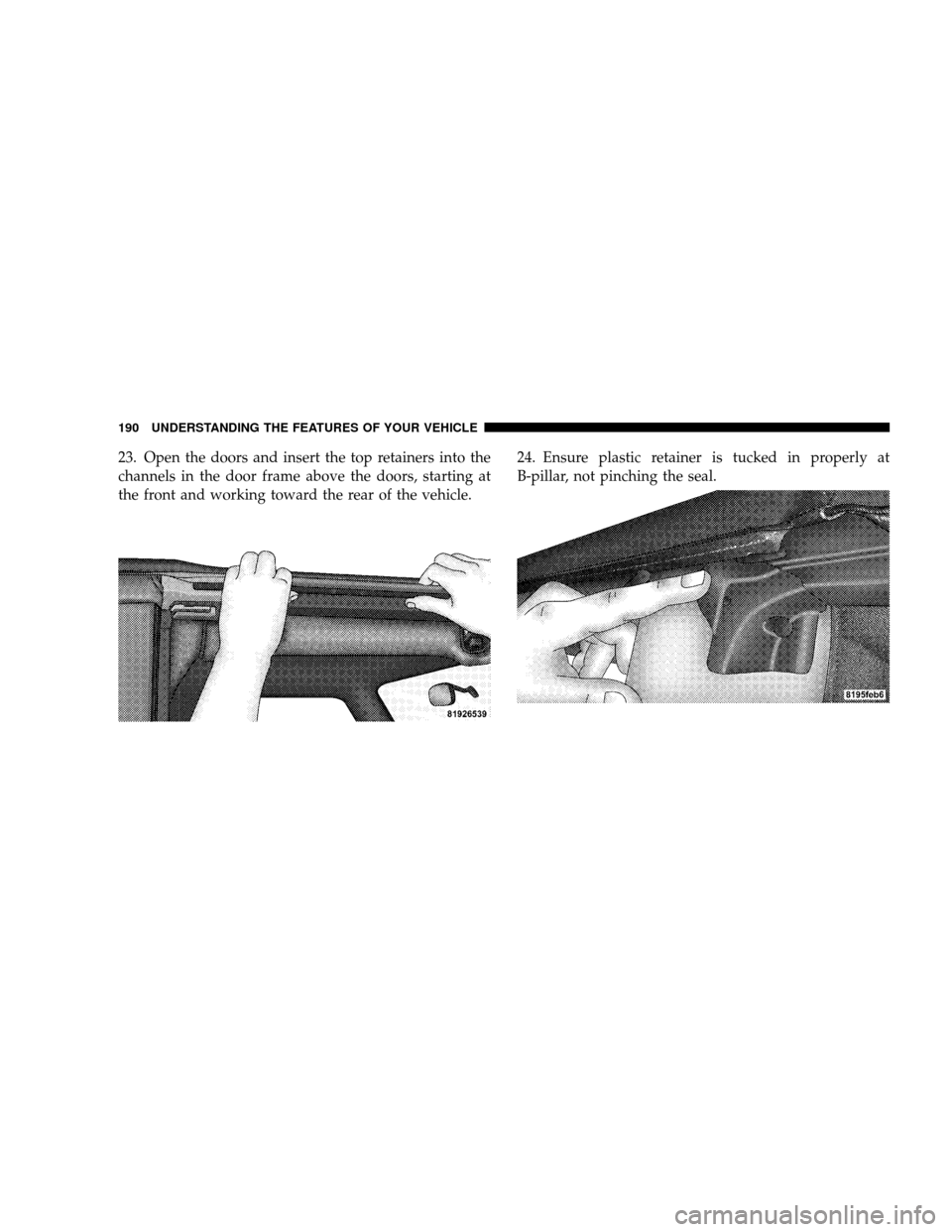

23. Open the doors and insert the top retainers into the
channels in the door frame above the doors, starting at
the front and working toward the rear of the vehicle.24. Ensure plastic retainer is tucked in properly at
B-pillar, not pinching the seal.
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

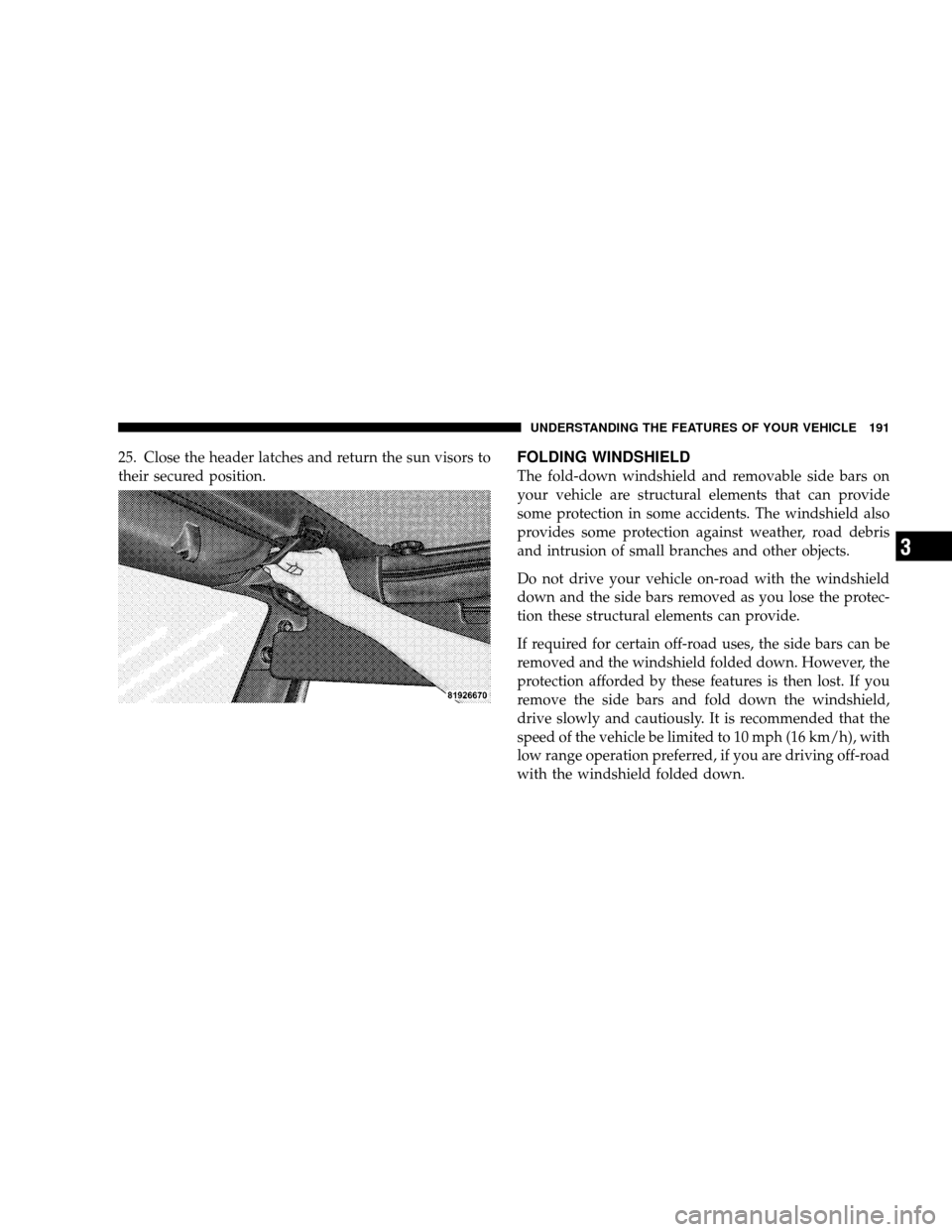

25. Close the header latches and return the sun visors to
their secured position.FOLDING WINDSHIELD
The fold-down windshield and removable side bars on
your vehicle are structural elements that can provide
some protection in some accidents. The windshield also
provides some protection against weather, road debris
and intrusion of small branches and other objects.
Do not drive your vehicle on-road with the windshield
down and the side bars removed as you lose the protec-
tion these structural elements can provide.
If required for certain off-road uses, the side bars can be
removed and the windshield folded down. However, the
protection afforded by these features is then lost. If you
remove the side bars and fold down the windshield,
drive slowly and cautiously. It is recommended that the
speed of the vehicle be limited to 10 mph (16 km/h), with
low range operation preferred, if you are driving off-road
with the windshield folded down.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191
3

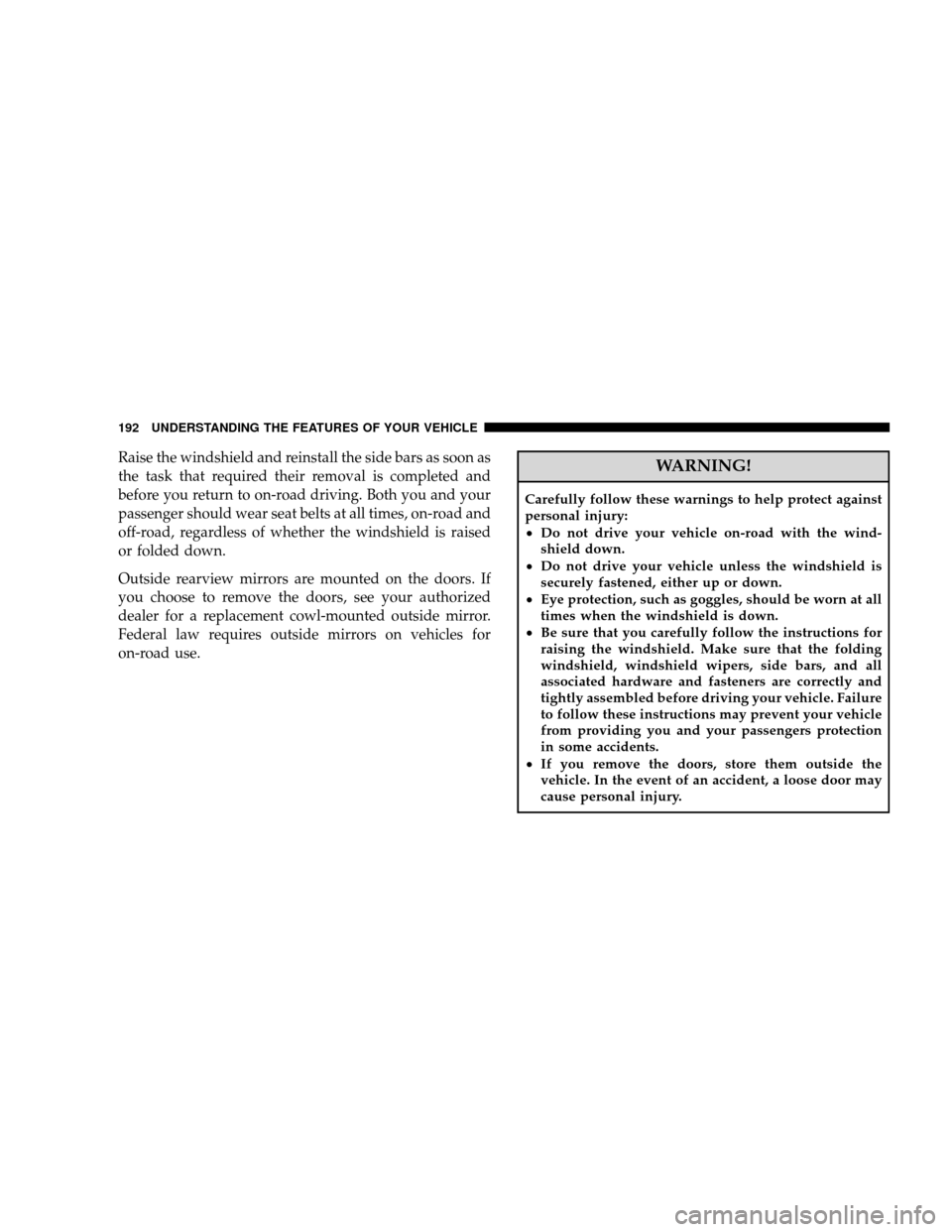

Raise the windshield and reinstall the side bars as soon as
the task that required their removal is completed and
before you return to on-road driving. Both you and your
passenger should wear seat belts at all times, on-road and
off-road, regardless of whether the windshield is raised
or folded down.
Outside rearview mirrors are mounted on the doors. If
you choose to remove the doors, see your authorized
dealer for a replacement cowl-mounted outside mirror.
Federal law requires outside mirrors on vehicles for
on-road use.WARNING!
Carefully follow these warnings to help protect against
personal injury:
•Do not drive your vehicle on-road with the wind-
shield down.
• Do not drive your vehicle unless the windshield is
securely fastened, either up or down.
• Eye protection, such as goggles, should be worn at all
times when the windshield is down.
• Be sure that you carefully follow the instructions for
raising the windshield. Make sure that the folding
windshield, windshield wipers, side bars, and all
associated hardware and fasteners are correctly and
tightly assembled before driving your vehicle. Failure
to follow these instructions may prevent your vehicle
from providing you and your passengers protection
in some accidents.
• If you remove the doors, store them outside the
vehicle. In the event of an accident, a loose door may
cause personal injury.
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

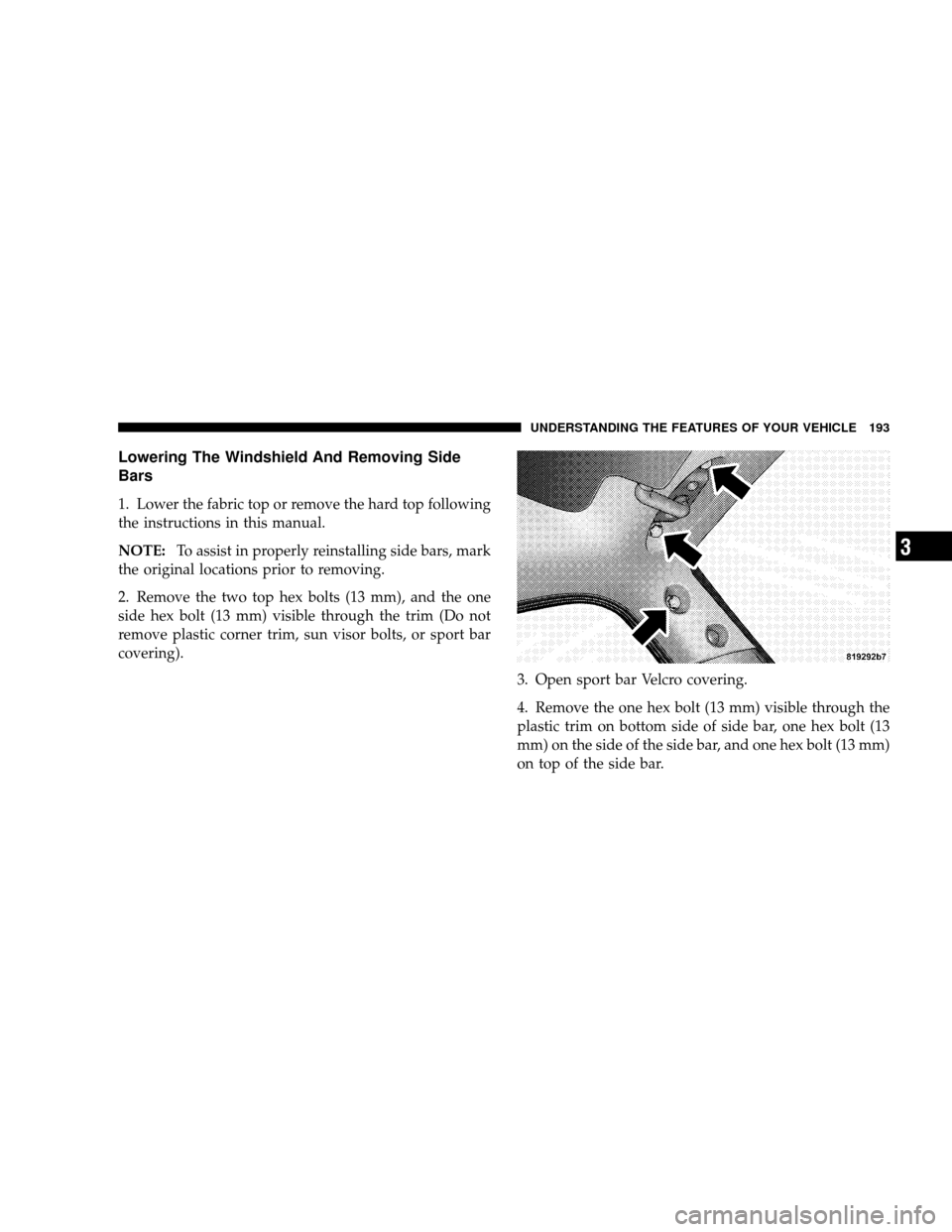

Lowering The Windshield And Removing Side
Bars
1. Lower the fabric top or remove the hard top following
the instructions in this manual.
NOTE:To assist in properly reinstalling side bars, mark
the original locations prior to removing.
2. Remove the two top hex bolts (13 mm), and the one
side hex bolt (13 mm) visible through the trim (Do not
remove plastic corner trim, sun visor bolts, or sport bar
covering).
3. Open sport bar Velcro covering.
4. Remove the one hex bolt (13 mm) visible through the
plastic trim on bottom side of side bar, one hex bolt (13
mm) on the side of the side bar, and one hex bolt (13 mm)
on top of the side bar.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193
3

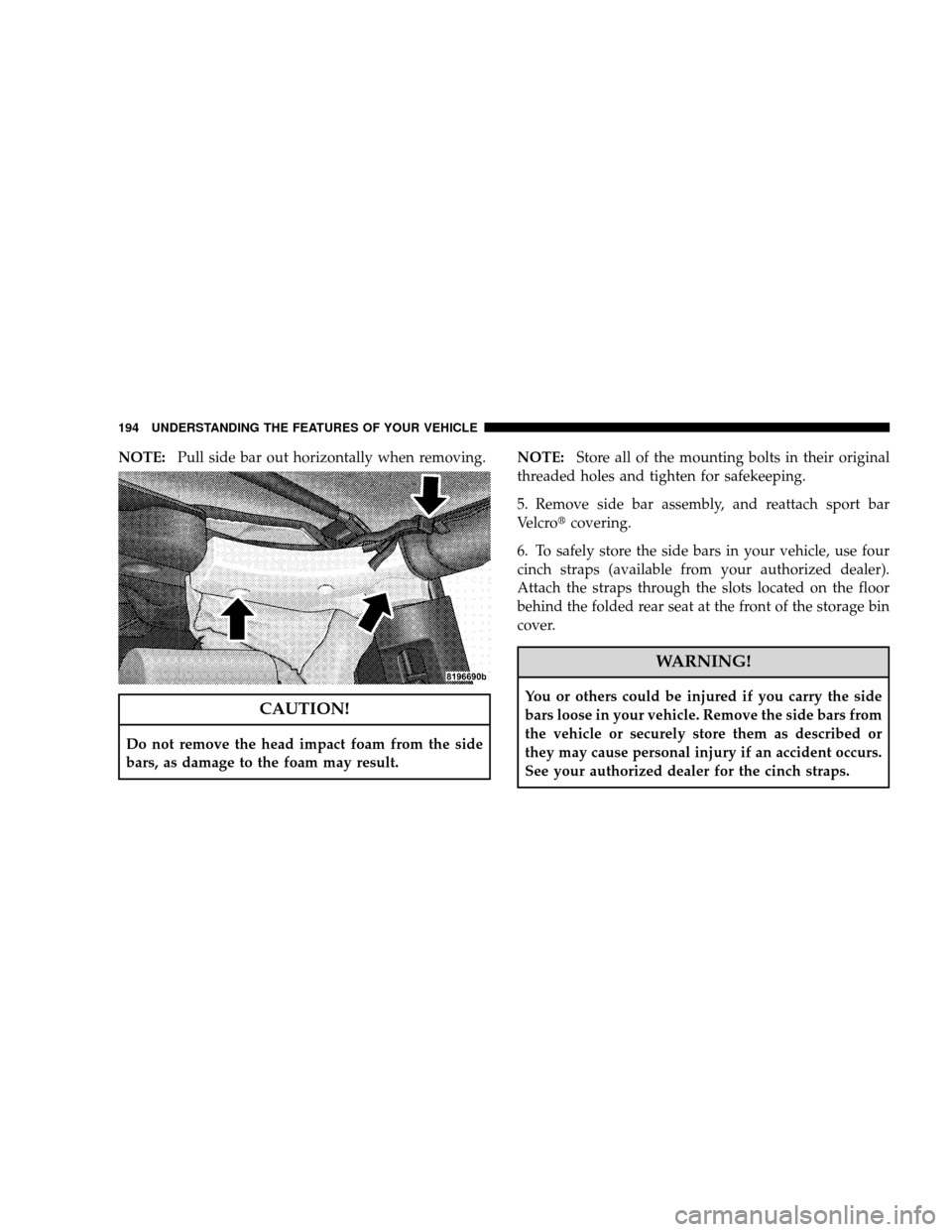

NOTE:Pull side bar out horizontally when removing.
CAUTION!
Do not remove the head impact foam from the side
bars, as damage to the foam may result. NOTE:
Store all of the mounting bolts in their original
threaded holes and tighten for safekeeping.
5. Remove side bar assembly, and reattach sport bar
Velcro covering.
6. To safely store the side bars in your vehicle, use four
cinch straps (available from your authorized dealer).
Attach the straps through the slots located on the floor
behind the folded rear seat at the front of the storage bin
cover.
WARNING!
You or others could be injured if you carry the side
bars loose in your vehicle. Remove the side bars from
the vehicle or securely store them as described or
they may cause personal injury if an accident occurs.
See your authorized dealer for the cinch straps.
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

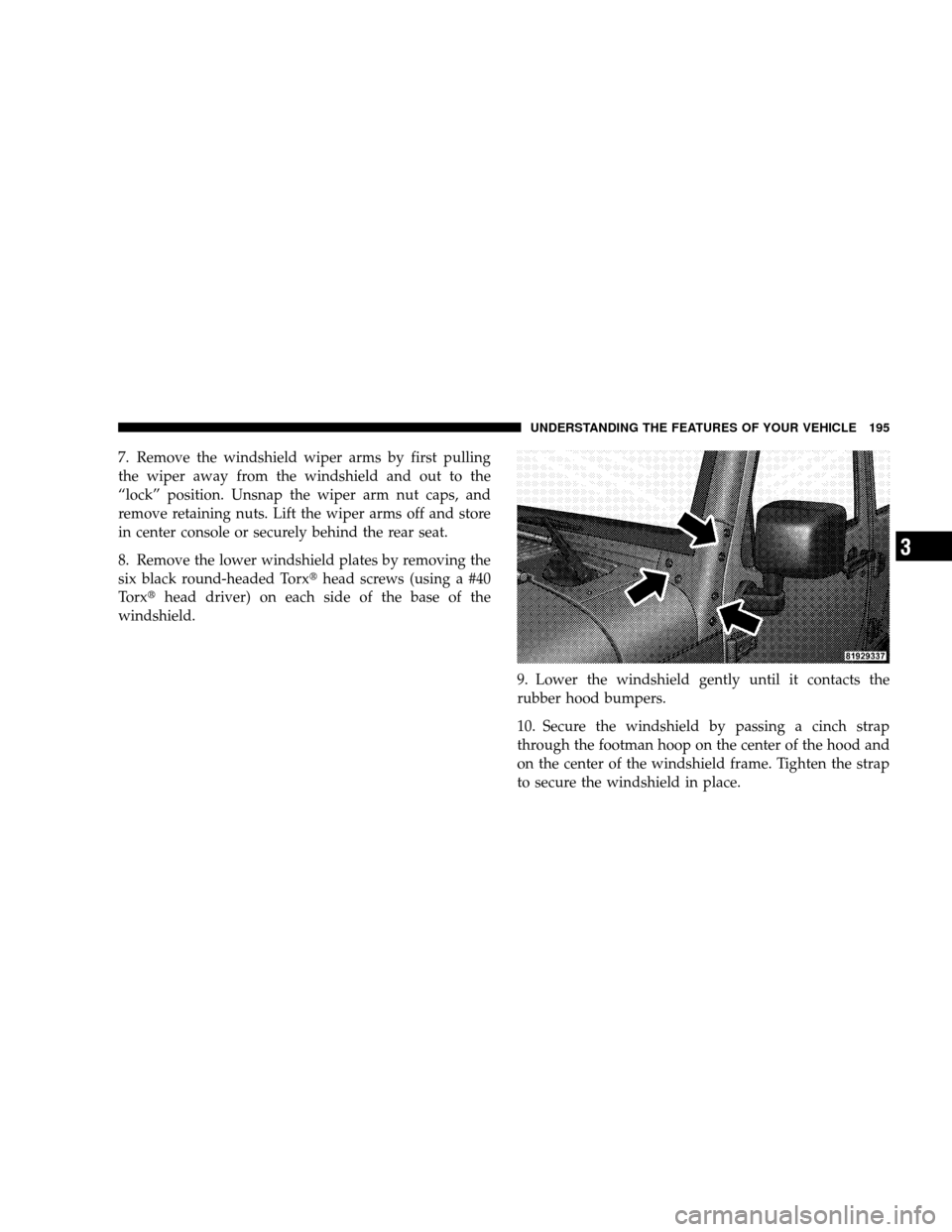

7. Remove the windshield wiper arms by first pulling
the wiper away from the windshield and out to the
“lock” position. Unsnap the wiper arm nut caps, and
remove retaining nuts. Lift the wiper arms off and store
in center console or securely behind the rear seat.
8. Remove the lower windshield plates by removing the
six black round-headed Torxhead screws (using a #40
Torx head driver) on each side of the base of the
windshield.
9. Lower the windshield gently until it contacts the
rubber hood bumpers.
10. Secure the windshield by passing a cinch strap
through the footman hoop on the center of the hood and
on the center of the windshield frame. Tighten the strap
to secure the windshield in place.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195
3

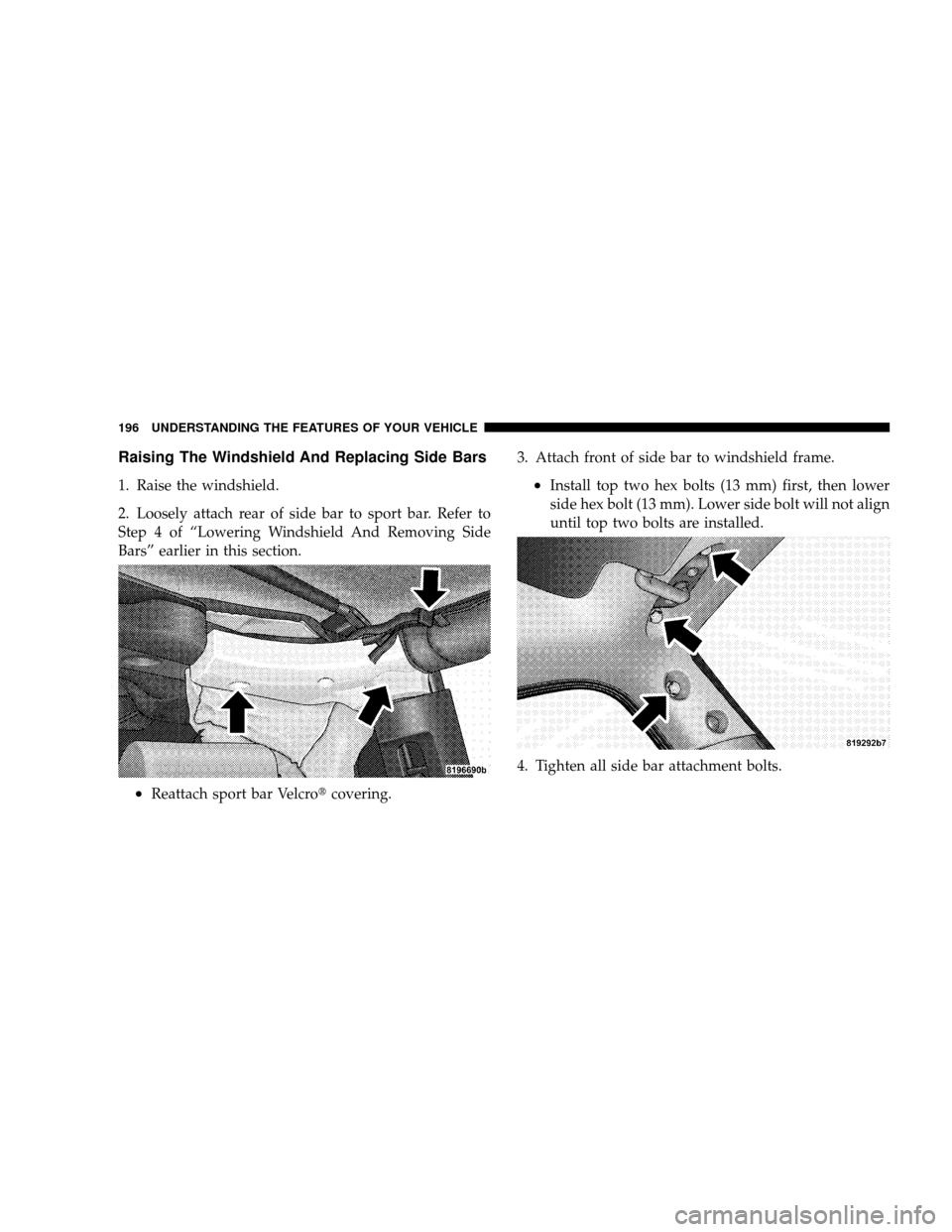

Raising The Windshield And Replacing Side Bars
1. Raise the windshield.
2. Loosely attach rear of side bar to sport bar. Refer to
Step 4 of “Lowering Windshield And Removing Side
Bars” earlier in this section.
•Reattach sport bar Velcrocovering. 3. Attach front of side bar to windshield frame.
•Install top two hex bolts (13 mm) first, then lower
side hex bolt (13 mm). Lower side bolt will not align
until top two bolts are installed.
4. Tighten all side bar attachment bolts.
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

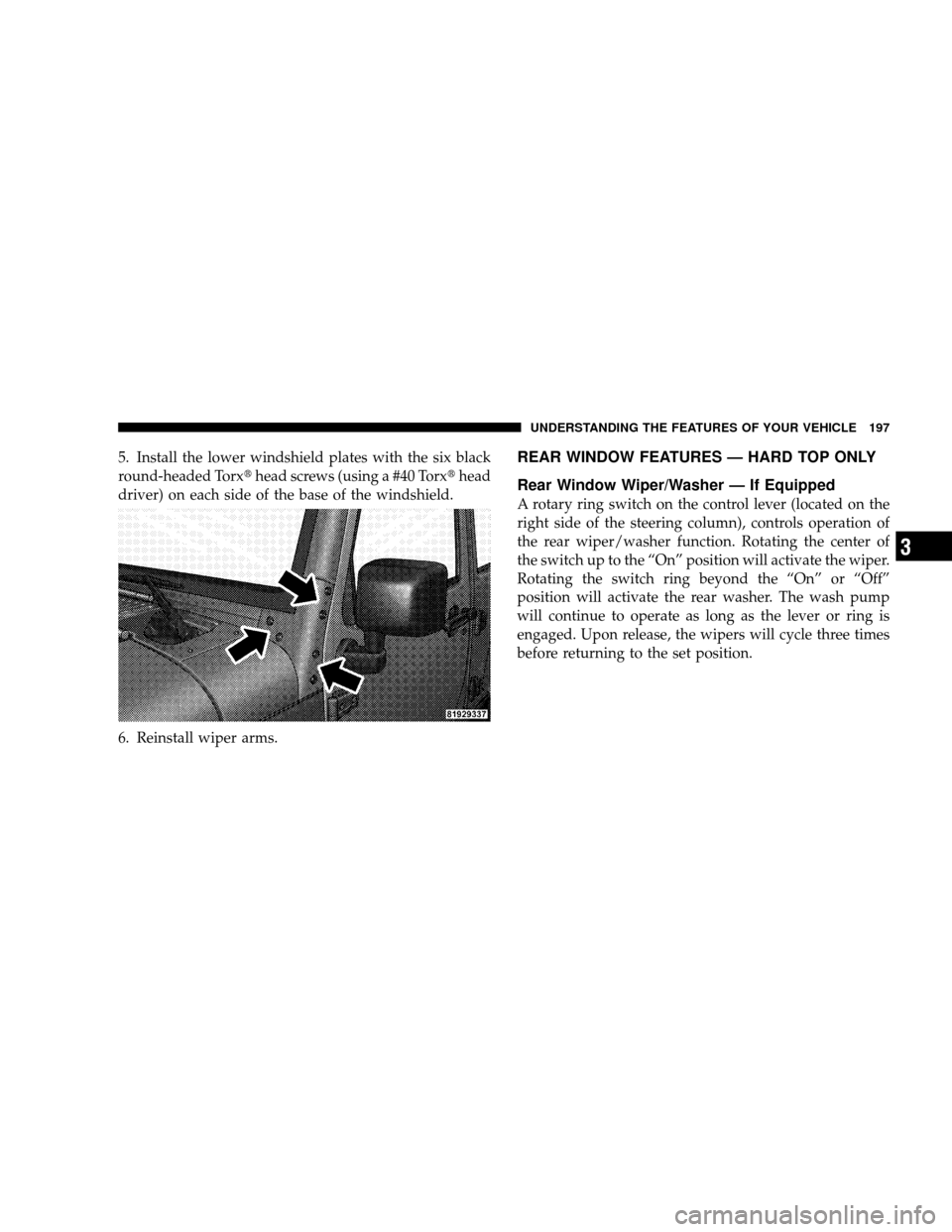

5. Install the lower windshield plates with the six black
round-headed Torxhead screws (using a #40 Torx head
driver) on each side of the base of the windshield.
6. Reinstall wiper arms.REAR WINDOW FEATURES — HARD TOP ONLY
Rear Window Wiper/Washer — If Equipped
A rotary ring switch on the control lever (located on the
right side of the steering column), controls operation of
the rear wiper/washer function. Rotating the center of
the switch up to the “On” position will activate the wiper.
Rotating the switch ring beyond the “On” or “Off”
position will activate the rear washer. The wash pump
will continue to operate as long as the lever or ring is
engaged. Upon release, the wipers will cycle three times
before returning to the set position.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197
3

If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “Park”
position. When the vehicle is restarted, the wiper will
resume function at whichever position the switch is set
at.
Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer is shared. It is located in the front of
the engine compartment, and should be checked for fluid
level at regular intervals. Fill the reservoir with wind-
shield washer solvent (not radiator antifreeze) and oper-
ate the system for a few seconds to flush out the residual
water.
Rear Window Defroster — If Equipped
The pushbutton is located on
the bottom right side of the
blower control knob. Press
this button to turn on the rear
window defroster. An amber
light shows that the defroster
is on.
Windshield Wiper/Washer Switch
198 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

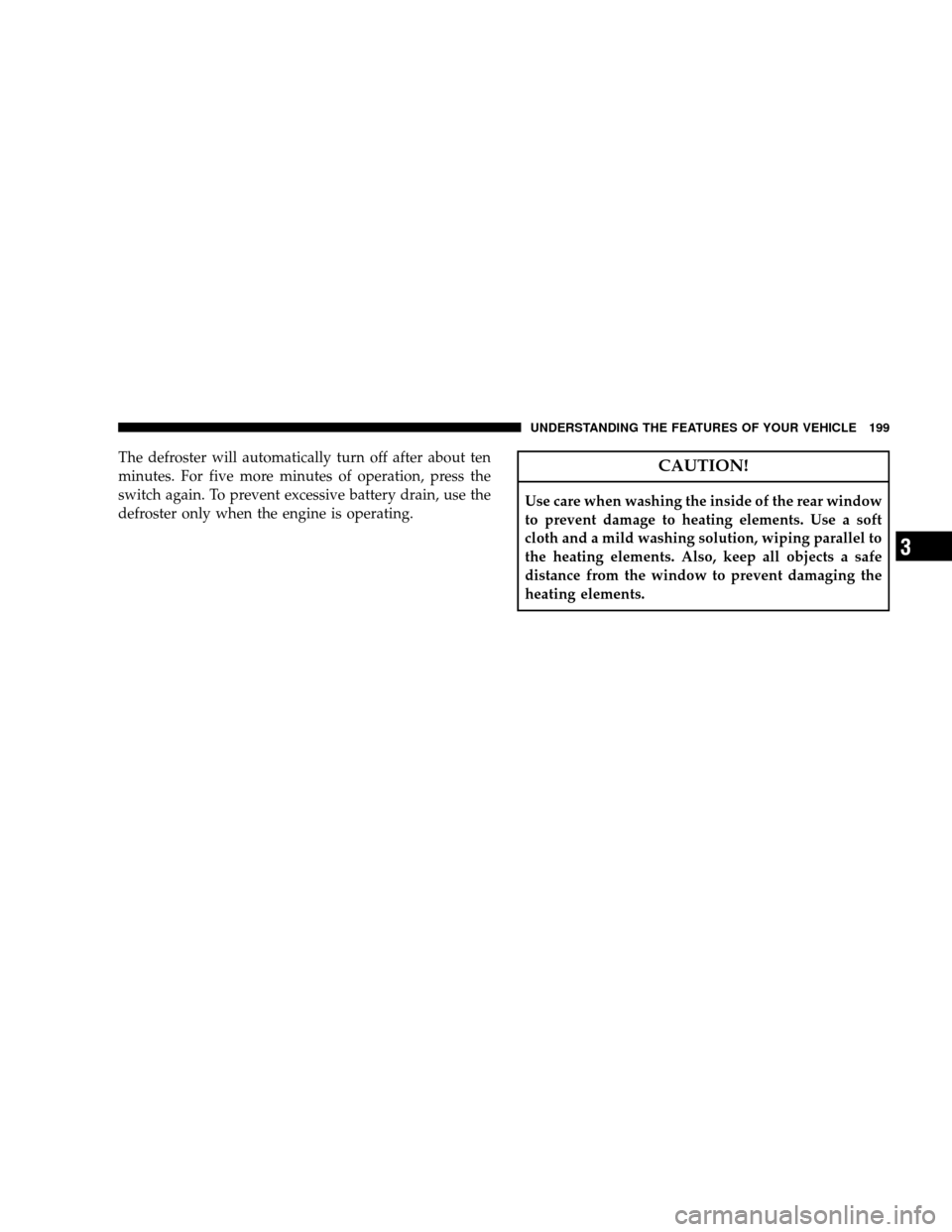

The defroster will automatically turn off after about ten
minutes. For five more minutes of operation, press the
switch again. To prevent excessive battery drain, use the
defroster only when the engine is operating.CAUTION!
Use care when washing the inside of the rear window
to prevent damage to heating elements. Use a soft
cloth and a mild washing solution, wiping parallel to
the heating elements. Also, keep all objects a safe
distance from the window to prevent damaging the
heating elements.
