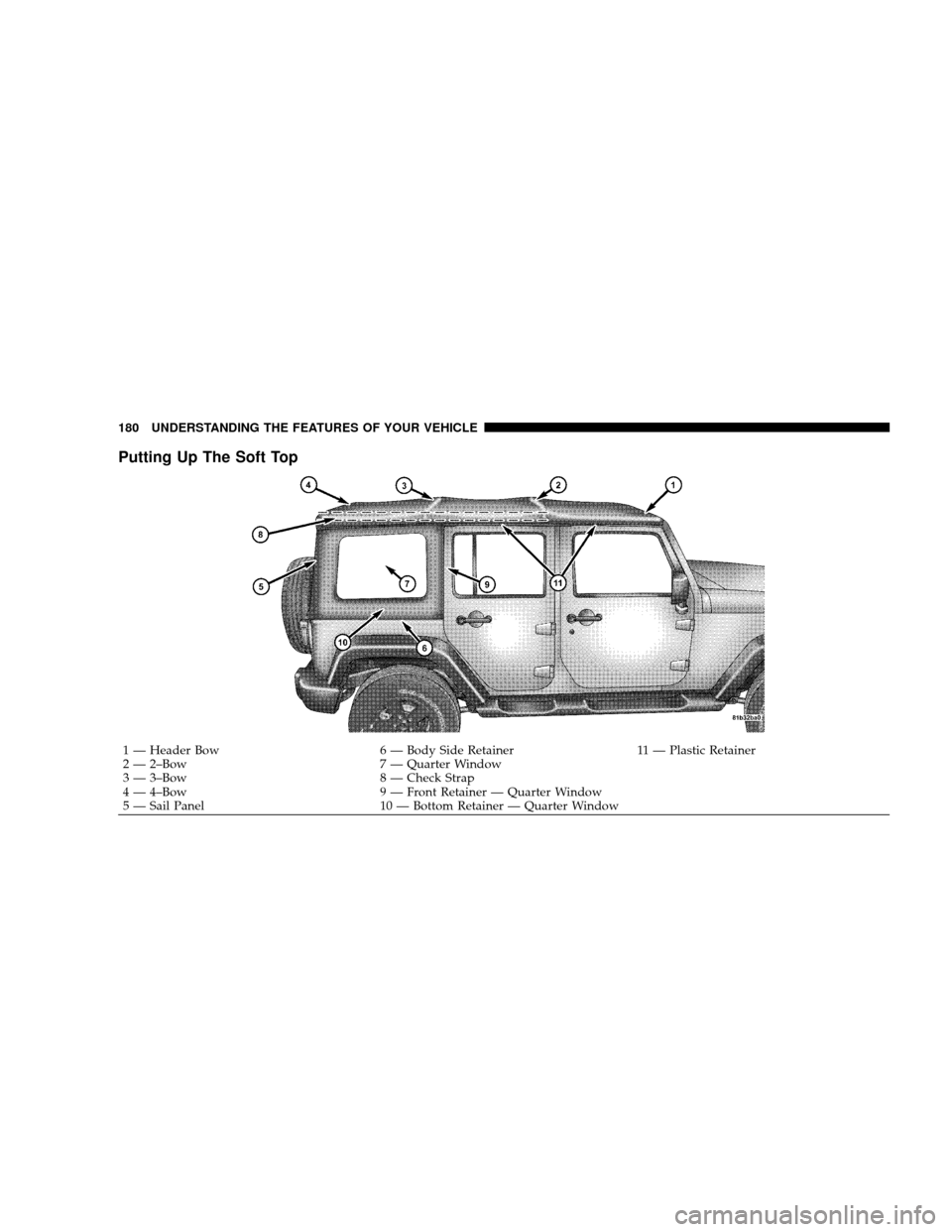

Putting Up The Soft Top
1 — Header Bow6 — Body Side Retainer11 — Plastic Retainer
2 — 2–Bow 7 — Quarter Window
3 — 3–Bow 8 — Check Strap
4 — 4–Bow 9 — Front Retainer — Quarter Window
5 — Sail Panel 10 — Bottom Retainer — Quarter Window
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

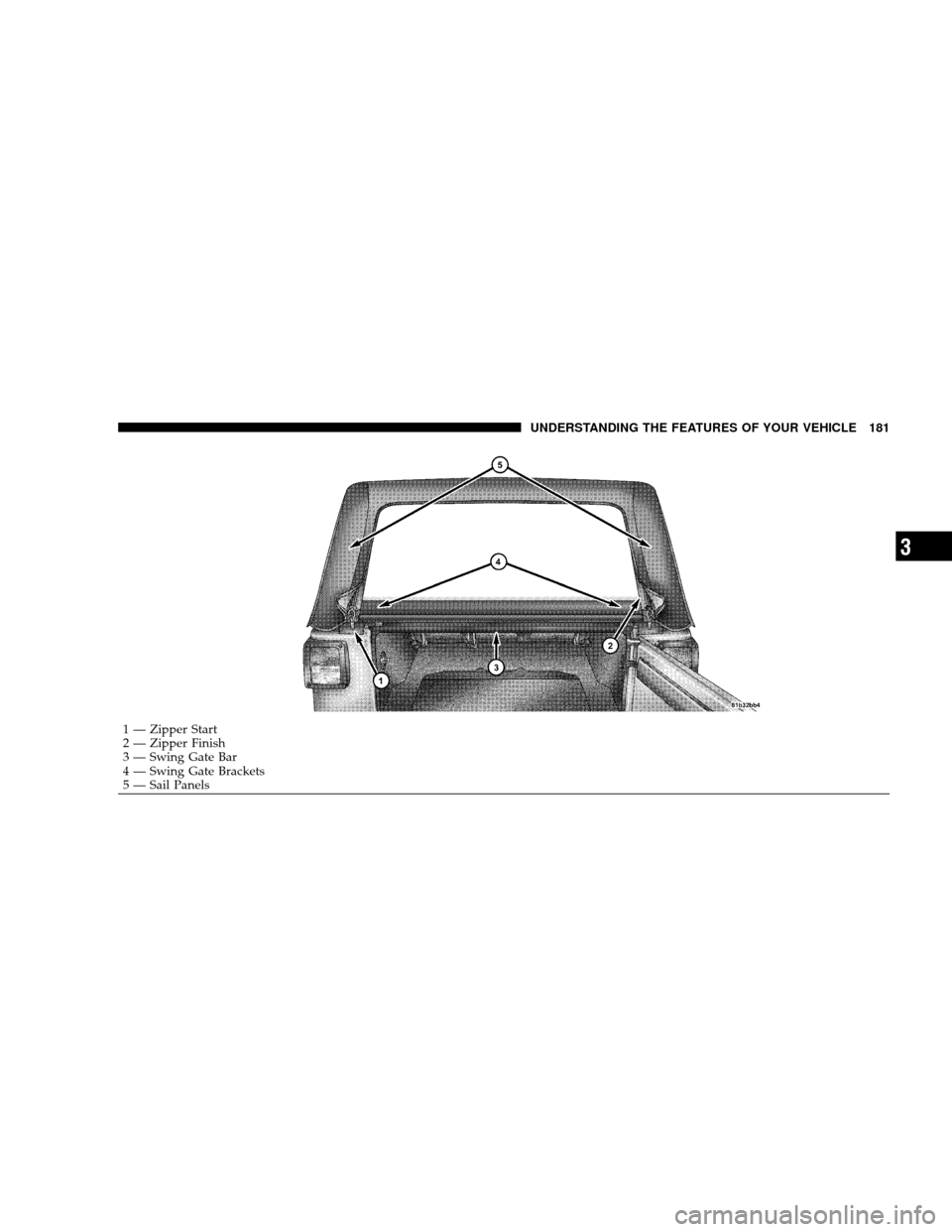

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail PanelsUNDERSTANDING THE FEATURES OF YOUR VEHICLE 181
3

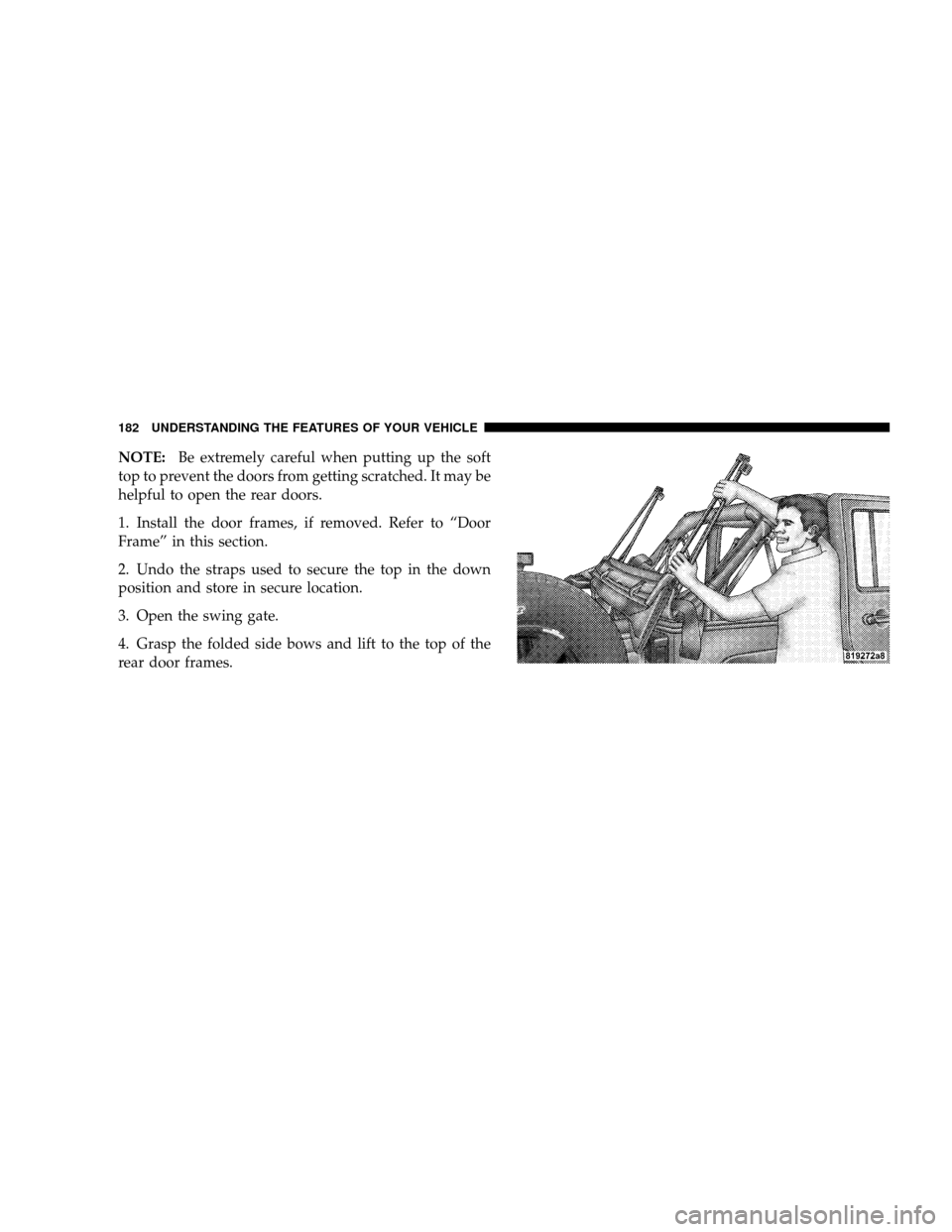

NOTE:Be extremely careful when putting up the soft
top to prevent the doors from getting scratched. It may be
helpful to open the rear doors.
1. Install the door frames, if removed. Refer to “Door
Frame” in this section.
2. Undo the straps used to secure the top in the down
position and store in secure location.
3. Open the swing gate.
4. Grasp the folded side bows and lift to the top of the
rear door frames.
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

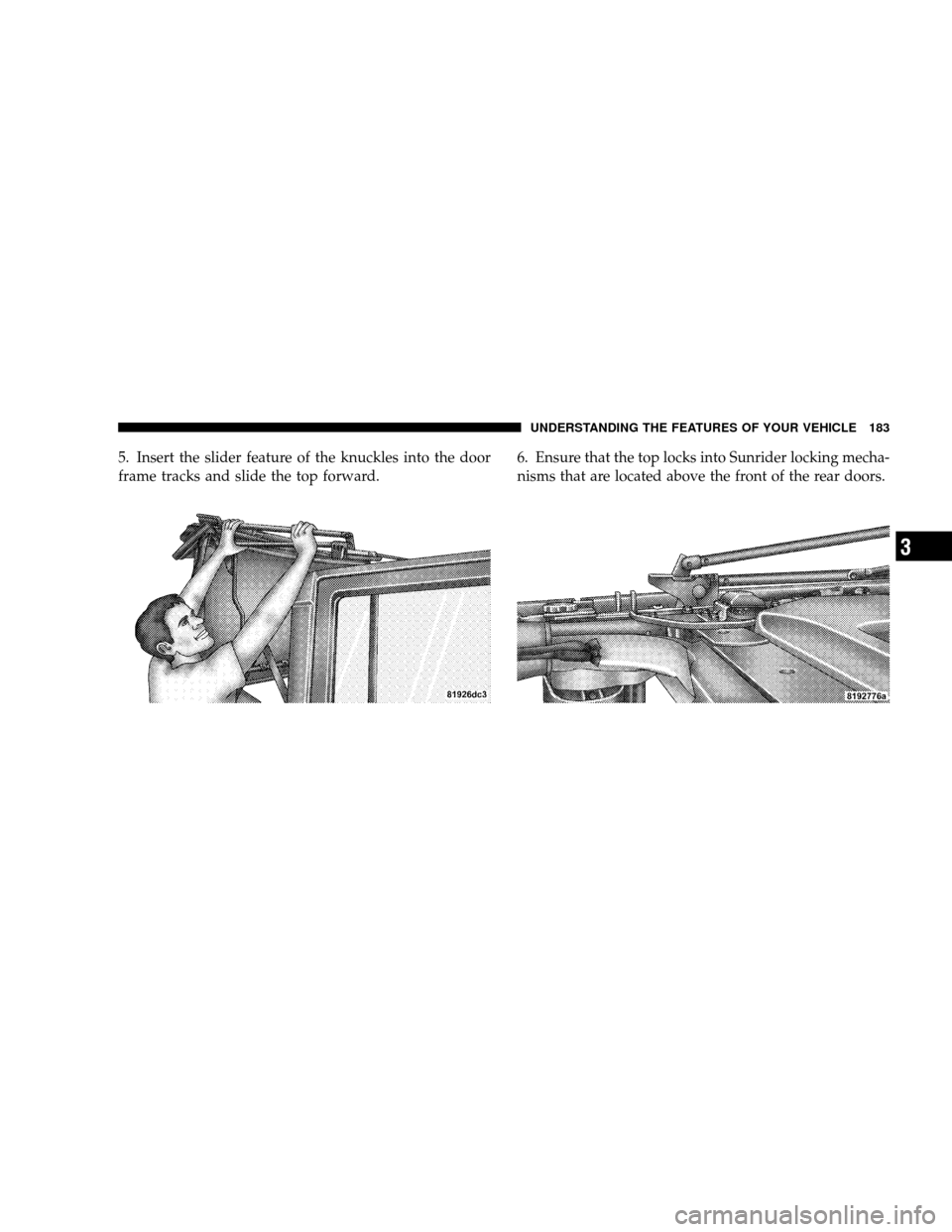

5. Insert the slider feature of the knuckles into the door
frame tracks and slide the top forward.6. Ensure that the top locks into Sunrider locking mecha-
nisms that are located above the front of the rear doors.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183
3

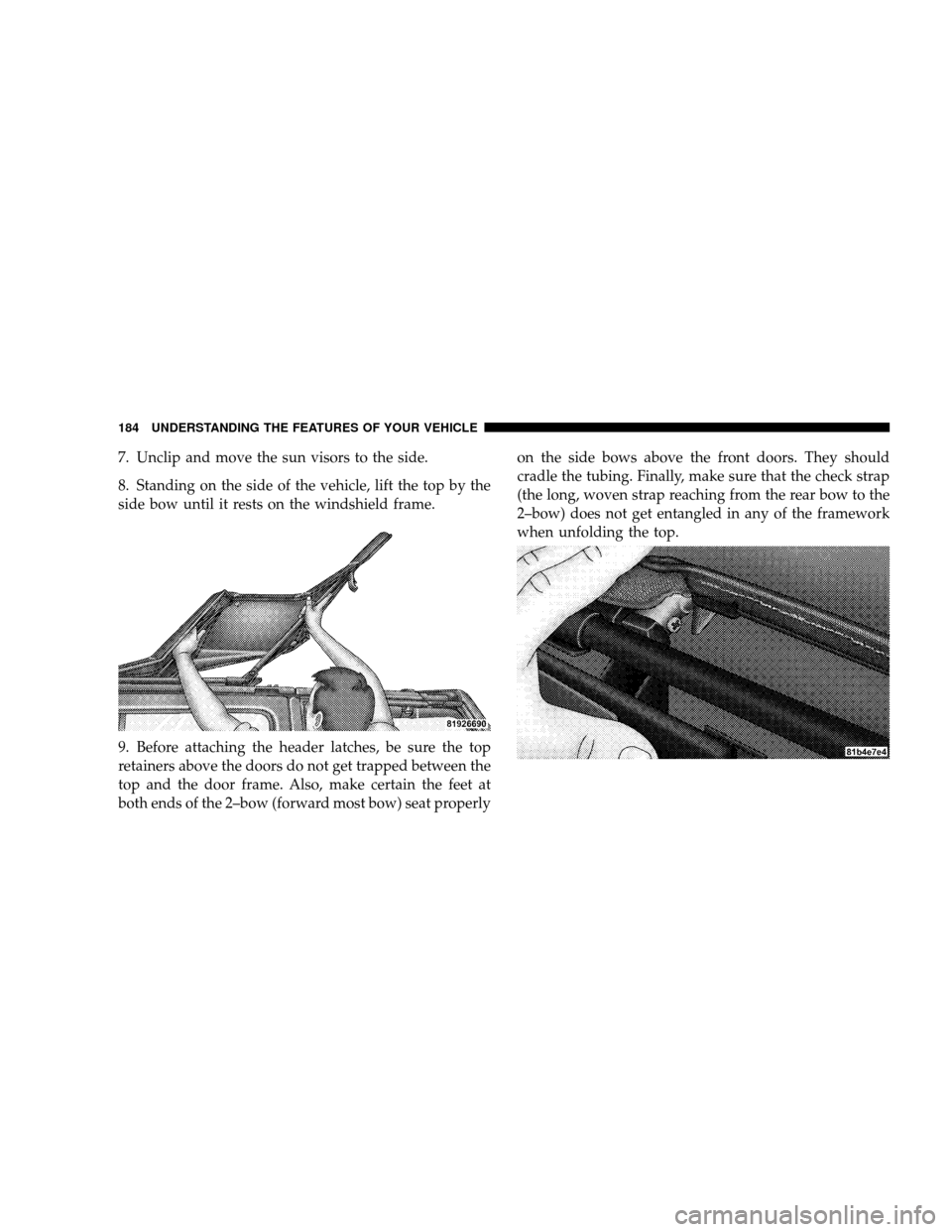

7. Unclip and move the sun visors to the side.
8. Standing on the side of the vehicle, lift the top by the
side bow until it rests on the windshield frame.
9. Before attaching the header latches, be sure the top
retainers above the doors do not get trapped between the
top and the door frame. Also, make certain the feet at
both ends of the 2–bow (forward most bow) seat properlyon the side bows above the front doors. They should
cradle the tubing. Finally, make sure that the check strap
(the long, woven strap reaching from the rear bow to the
2–bow) does not get entangled in any of the framework
when unfolding the top.
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

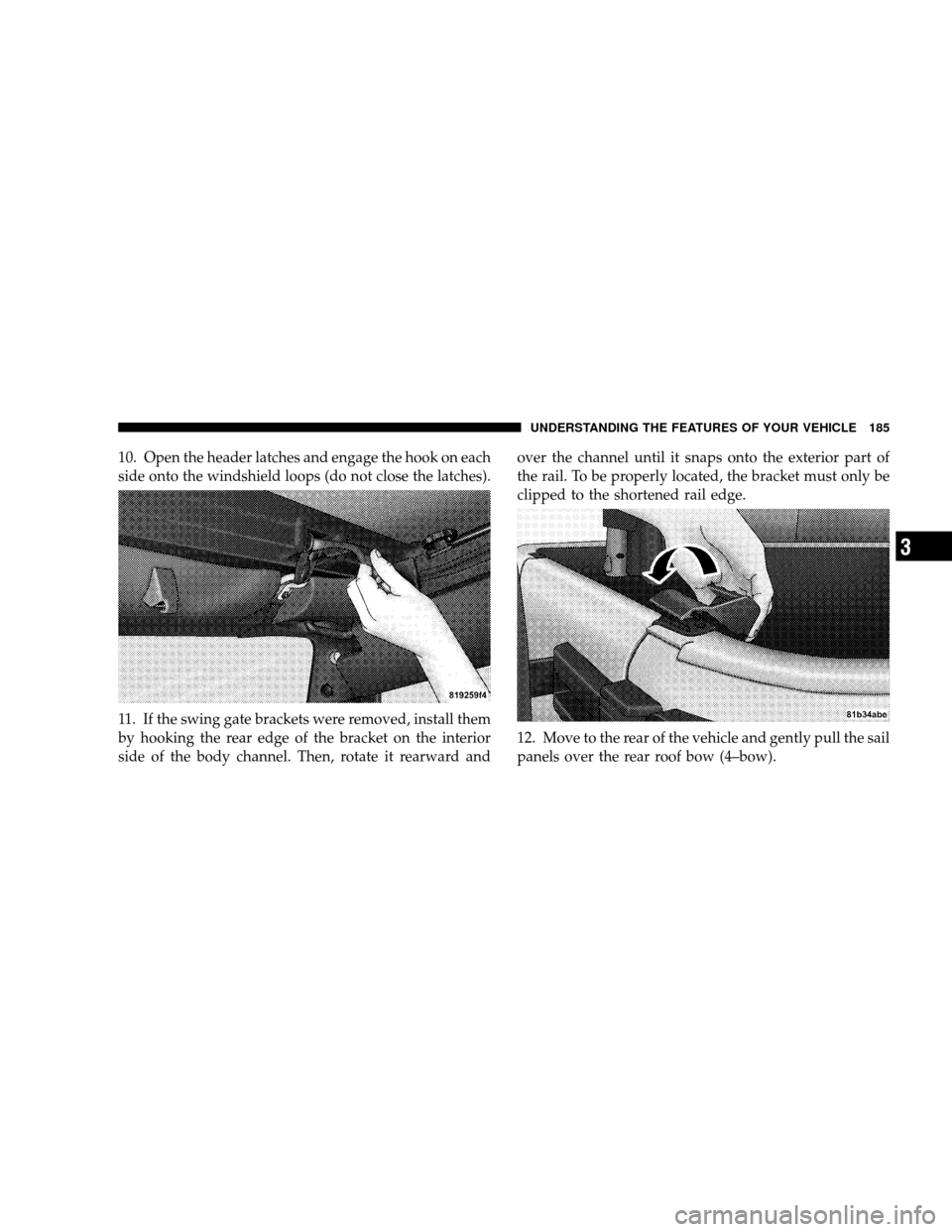

10. Open the header latches and engage the hook on each
side onto the windshield loops (do not close the latches).
11. If the swing gate brackets were removed, install them
by hooking the rear edge of the bracket on the interior
side of the body channel. Then, rotate it rearward andover the channel until it snaps onto the exterior part of
the rail. To be properly located, the bracket must only be
clipped to the shortened rail edge.
12. Move to the rear of the vehicle and gently pull the sail
panels over the rear roof bow (4–bow).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185
3

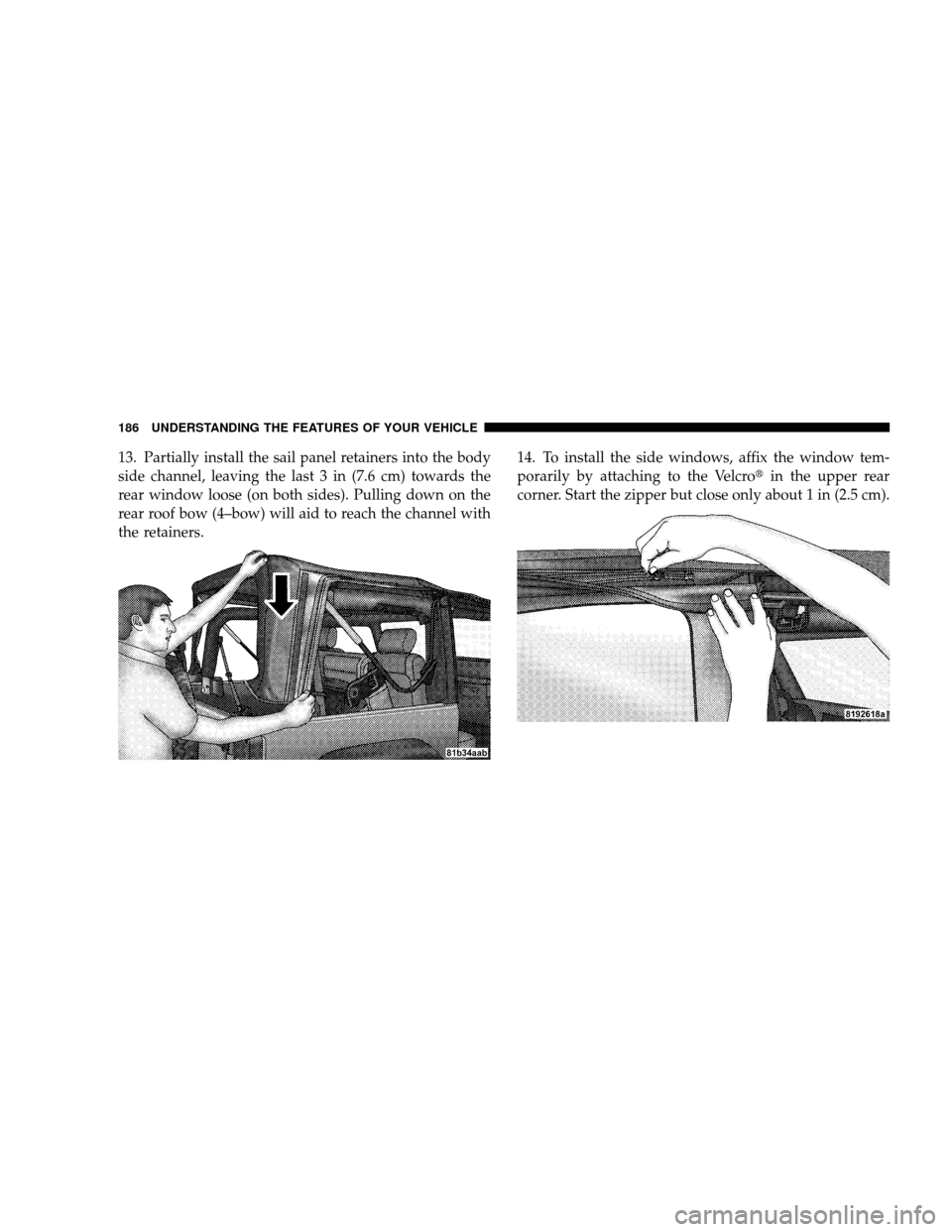

13. Partially install the sail panel retainers into the body
side channel, leaving the last 3 in (7.6 cm) towards the
rear window loose (on both sides). Pulling down on the
rear roof bow (4–bow) will aid to reach the channel with
the retainers.14. To install the side windows, affix the window tem-
porarily by attaching to the Velcro
in the upper rear
corner. Start the zipper but close only about 1 in (2.5 cm).
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

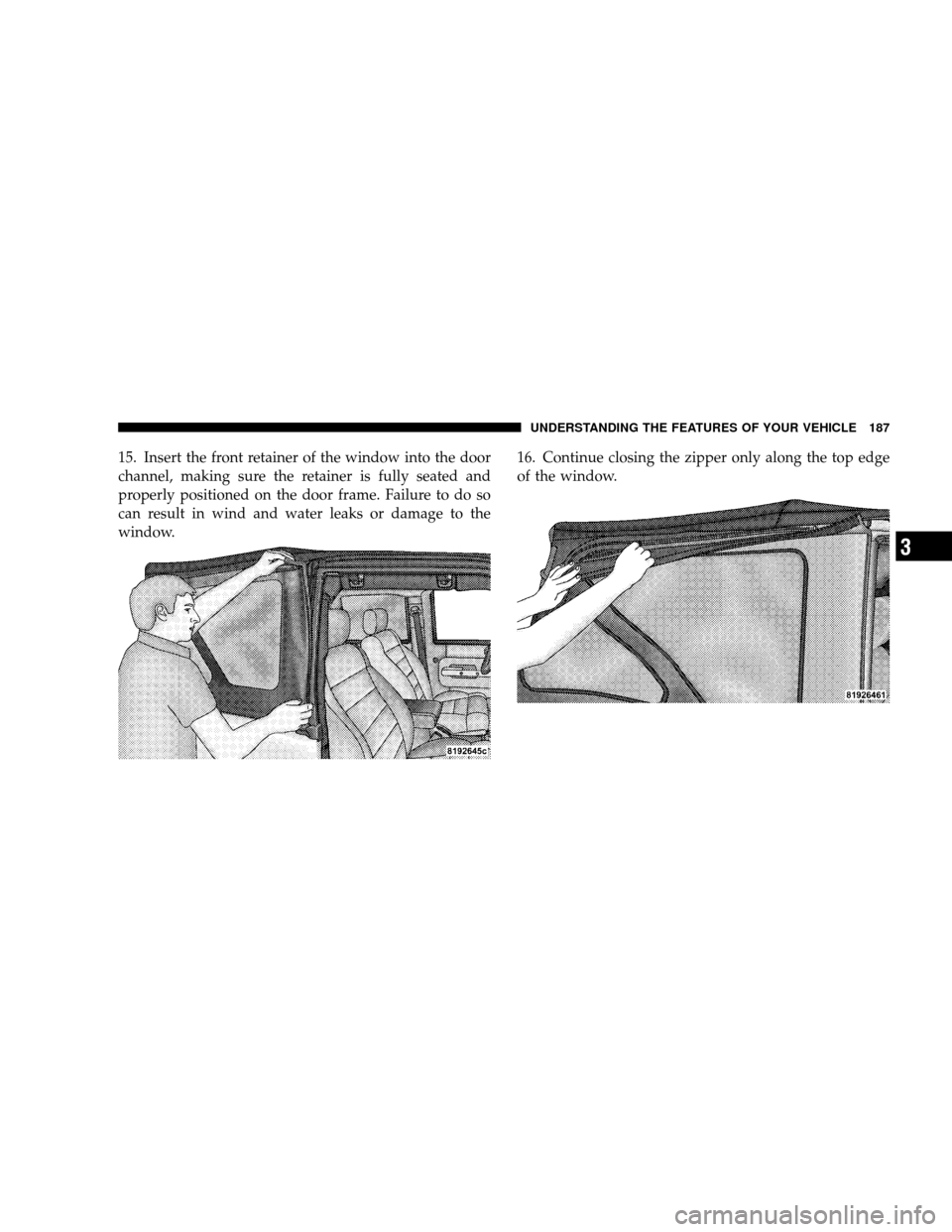

15. Insert the front retainer of the window into the door
channel, making sure the retainer is fully seated and
properly positioned on the door frame. Failure to do so
can result in wind and water leaks or damage to the
window.16. Continue closing the zipper only along the top edge
of the window.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187
3

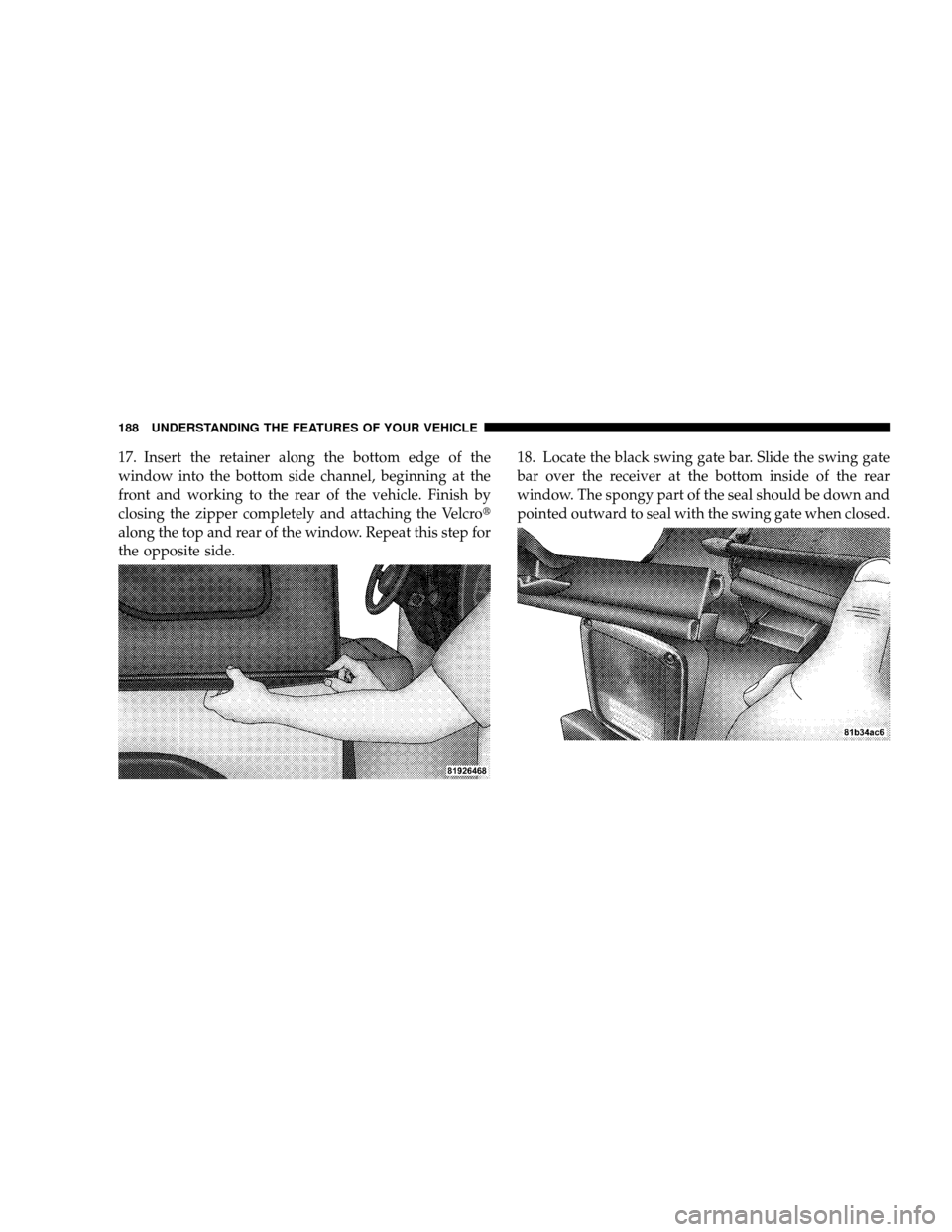

17. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at the
front and working to the rear of the vehicle. Finish by
closing the zipper completely and attaching the Velcro
along the top and rear of the window. Repeat this step for
the opposite side. 18. Locate the black swing gate bar. Slide the swing gate
bar over the receiver at the bottom inside of the rear
window. The spongy part of the seal should be down and
pointed outward to seal with the swing gate when closed.
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

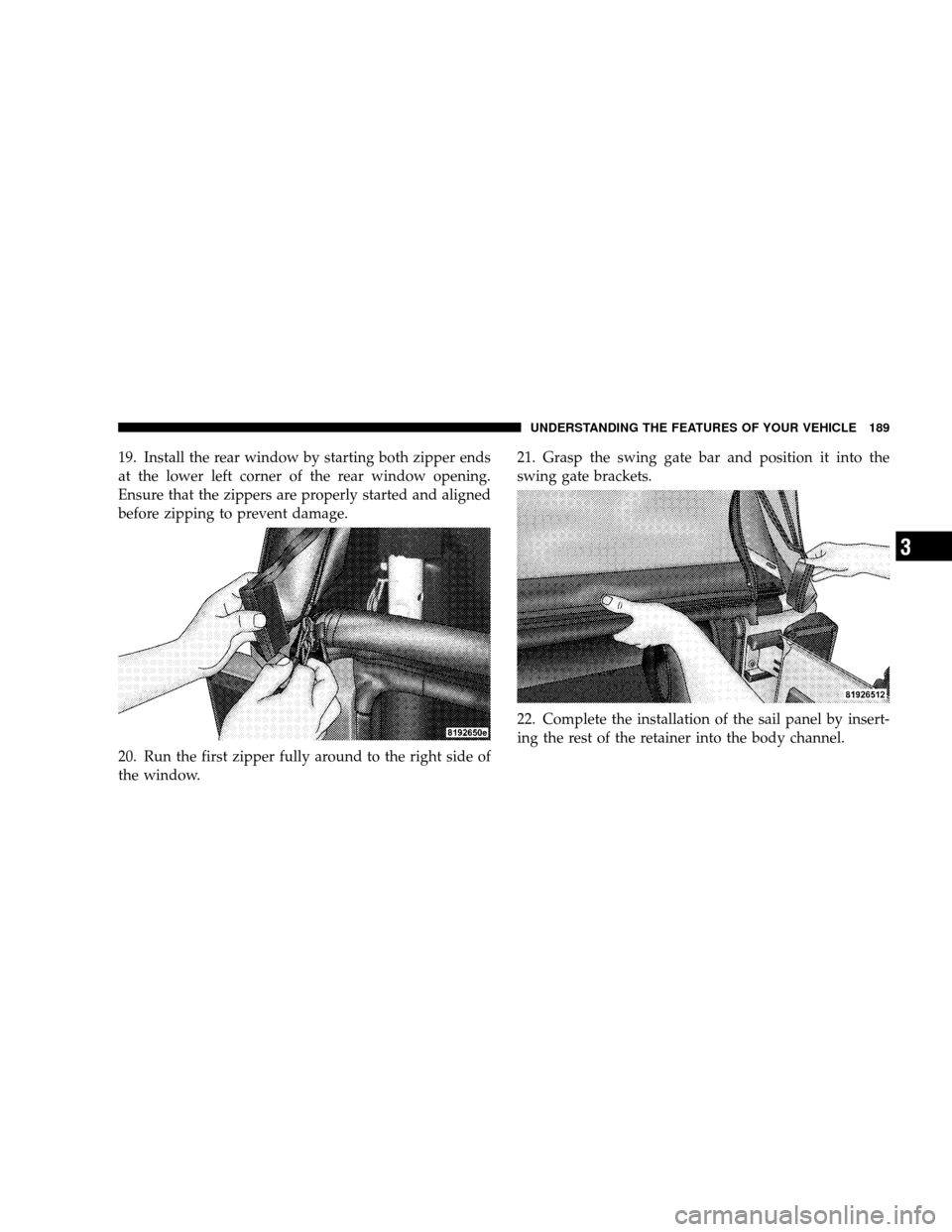

19. Install the rear window by starting both zipper ends
at the lower left corner of the rear window opening.
Ensure that the zippers are properly started and aligned
before zipping to prevent damage.
20. Run the first zipper fully around to the right side of
the window.21. Grasp the swing gate bar and position it into the
swing gate brackets.
22. Complete the installation of the sail panel by insert-
ing the rest of the retainer into the body channel.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189
