JEEP WRANGLER 2010 JK / 3.G Owners Manual

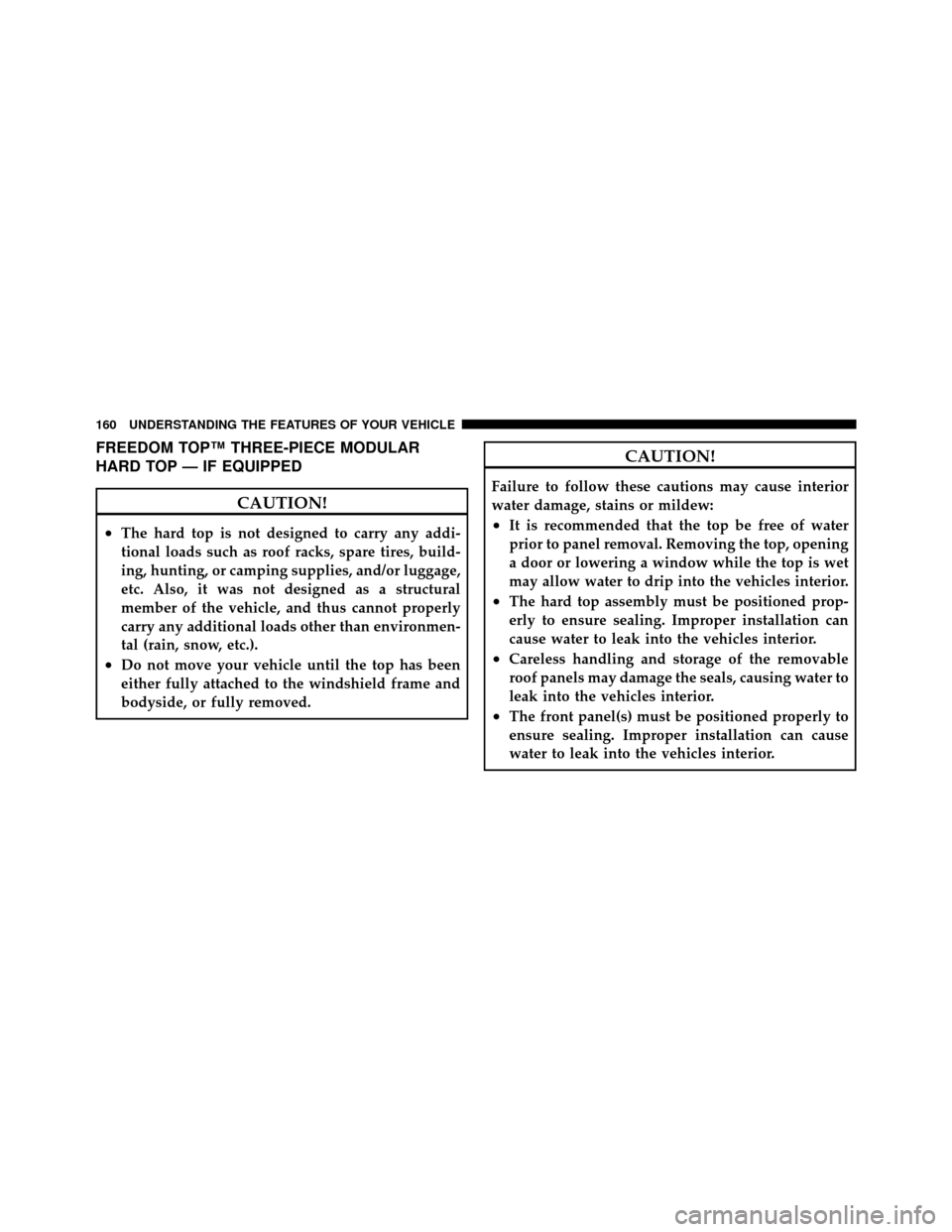

FREEDOM TOP™ THREE-PIECE MODULAR
HARD TOP — IF EQUIPPED
CAUTION!
•The hard top is not designed to carry any addi-
tional loads such as roof racks, spare tires, build-
ing, hunting, or camping supplies, and/or luggage,
etc. Also, it was not designed as a structural
member of the vehicle, and thus cannot properly
carry any additional loads other than environmen-
tal (rain, snow, etc.).
•Do not move your vehicle until the top has been
either fully attached to the windshield frame and
bodyside, or fully removed.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew:
•It is recommended that the top be free of water
prior to panel removal. Removing the top, opening
a door or lowering a window while the top is wet
may allow water to drip into the vehicles interior.
•The hard top assembly must be positioned prop-
erly to ensure sealing. Improper installation can
cause water to leak into the vehicles interior.
•Careless handling and storage of the removable
roof panels may damage the seals, causing water to
leak into the vehicles interior.
•The front panel(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicles interior.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

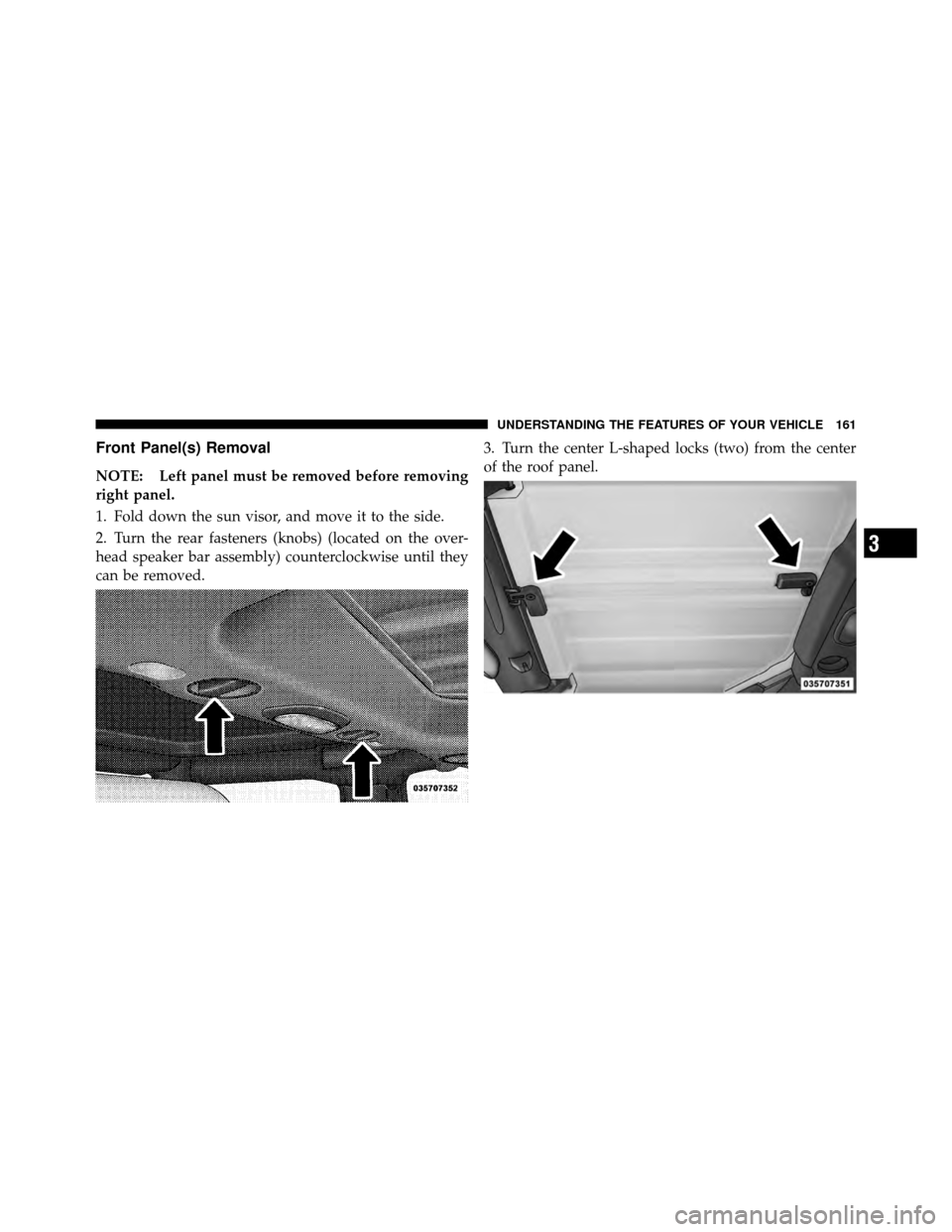

Front Panel(s) Removal
NOTE: Left panel must be removed before removing
right panel.
1. Fold down the sun visor, and move it to the side.
2. Turn the rear fasteners (knobs) (located on the over-
head speaker bar assembly) counterclockwise until they
can be removed.3. Turn the center L-shaped locks (two) from the center
of the roof panel.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161

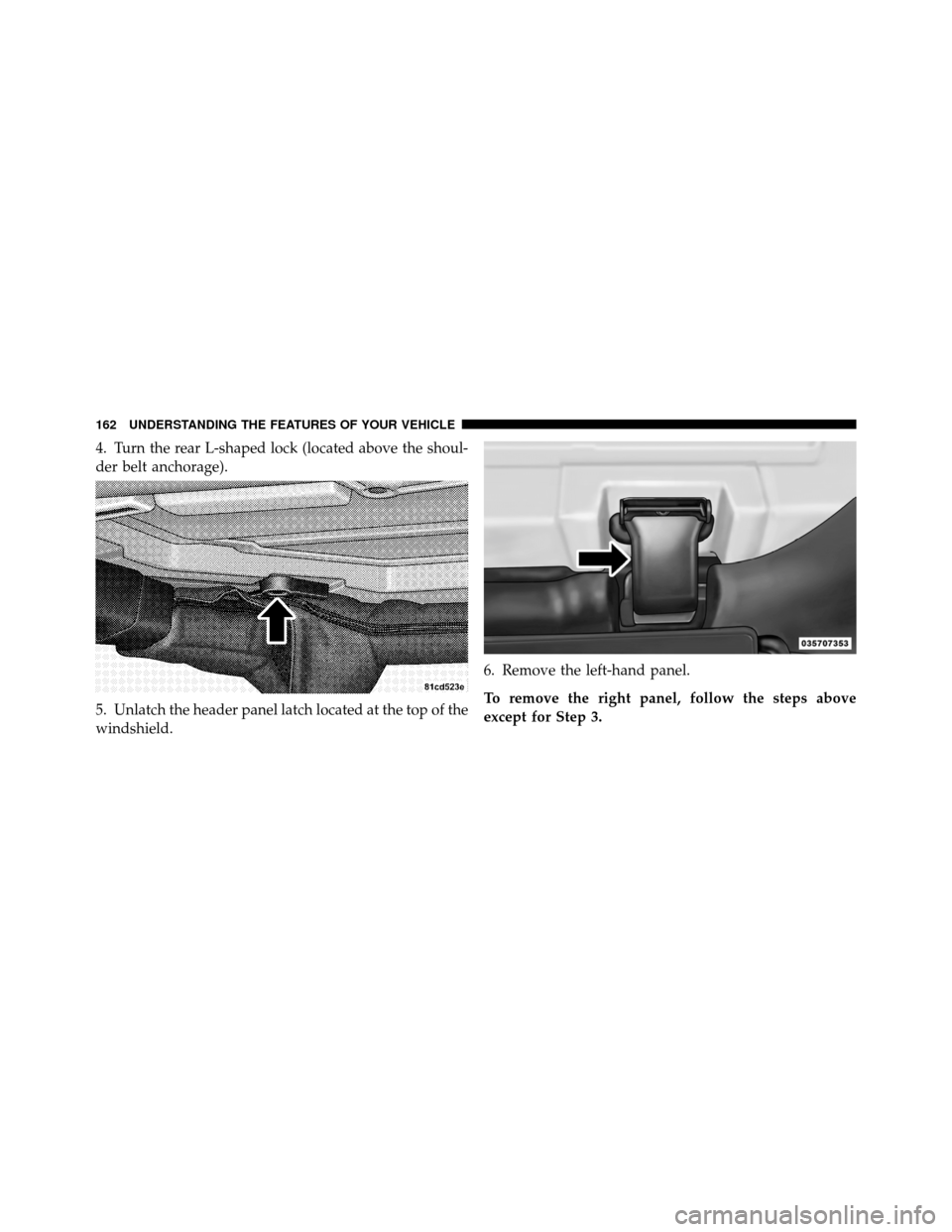

4. Turn the rear L-shaped lock (located above the shoul-
der belt anchorage).
5. Unlatch the header panel latch located at the top of the
windshield.6. Remove the left-hand panel.
To remove the right panel, follow the steps above
except for Step 3.
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

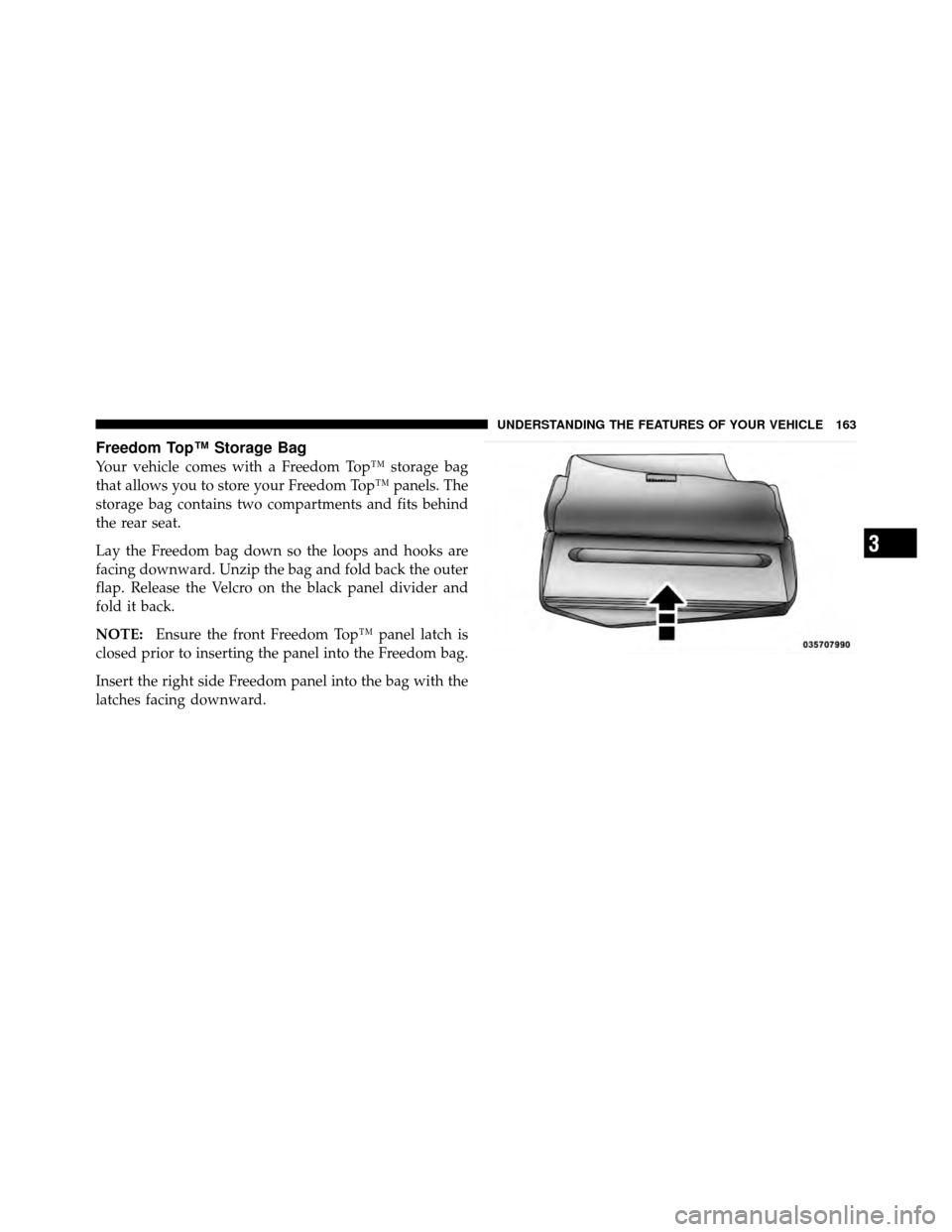

Freedom Top™ Storage Bag
Your vehicle comes with a Freedom Top™ storage bag
that allows you to store your Freedom Top™ panels. The
storage bag contains two compartments and fits behind
the rear seat.
Lay the Freedom bag down so the loops and hooks are
facing downward. Unzip the bag and fold back the outer
flap. Release the Velcro on the black panel divider and
fold it back.
NOTE:Ensure the front Freedom Top™ panel latch is
closed prior to inserting the panel into the Freedom bag.
Insert the right side Freedom panel into the bag with the
latches facing downward.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

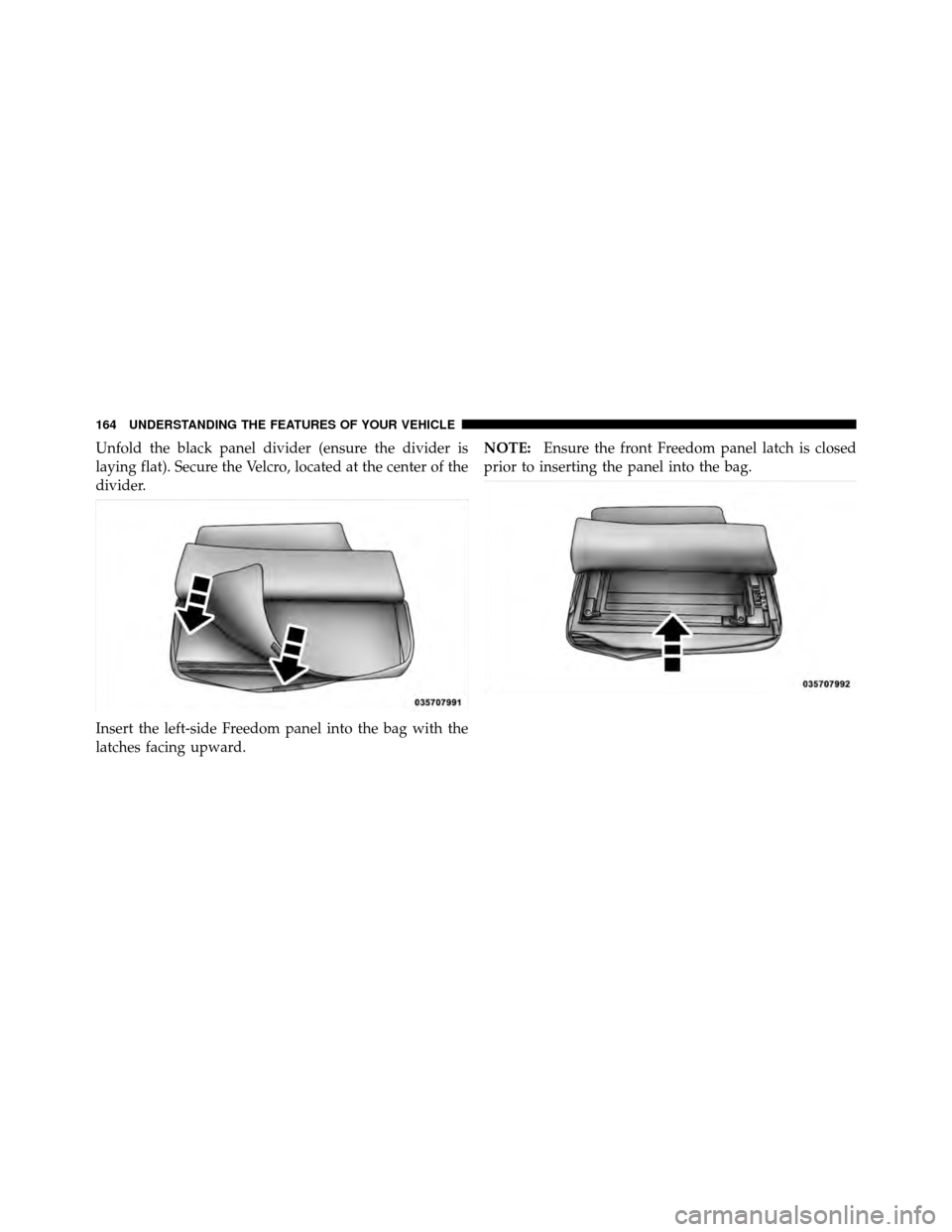

Unfold the black panel divider (ensure the divider is
laying flat). Secure the Velcro, located at the center of the
divider.
Insert the left-side Freedom panel into the bag with the
latches facing upward.NOTE:
Ensure the front Freedom panel latch is closed
prior to inserting the panel into the bag.
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

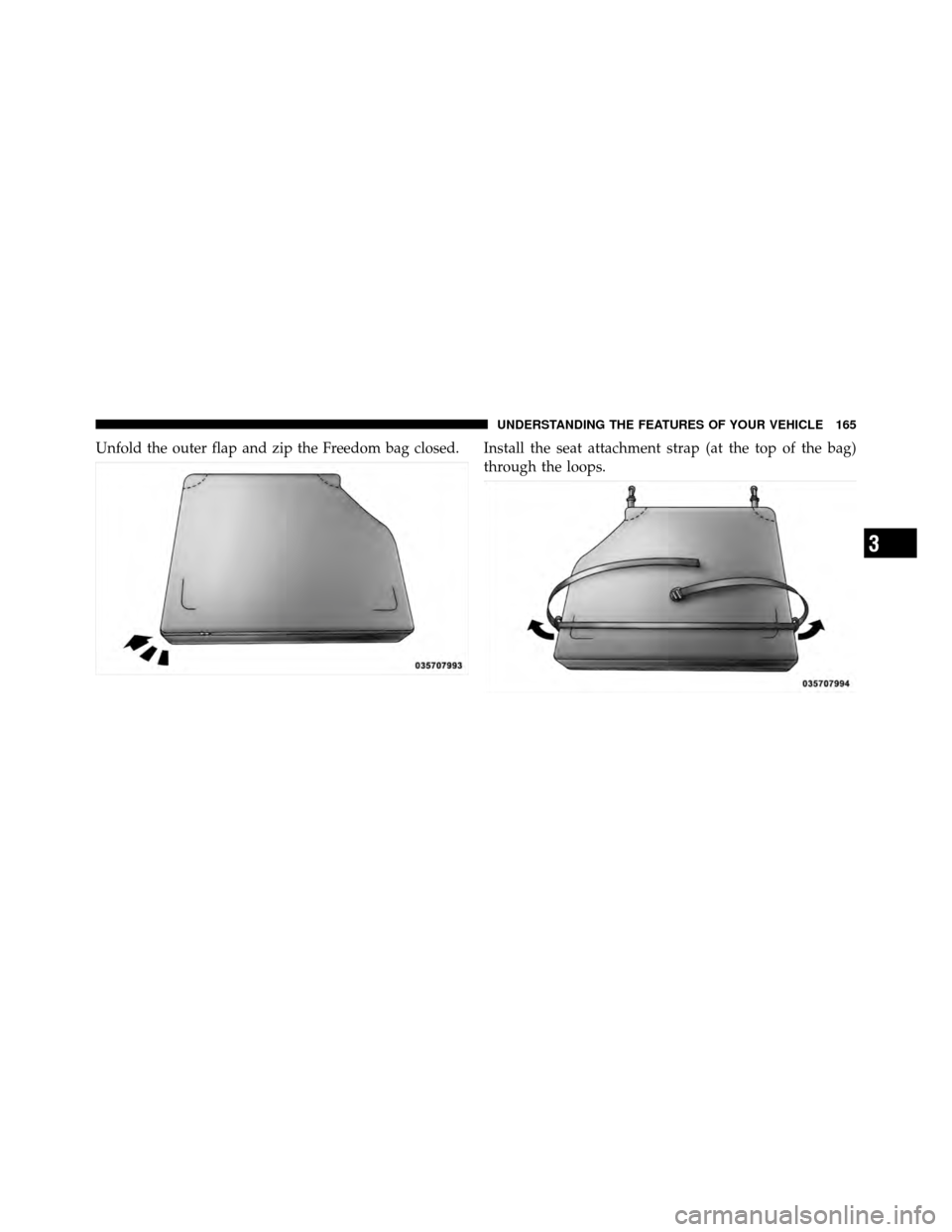

Unfold the outer flap and zip the Freedom bag closed. Install the seat attachment strap (at the top of the bag)through the loops.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165

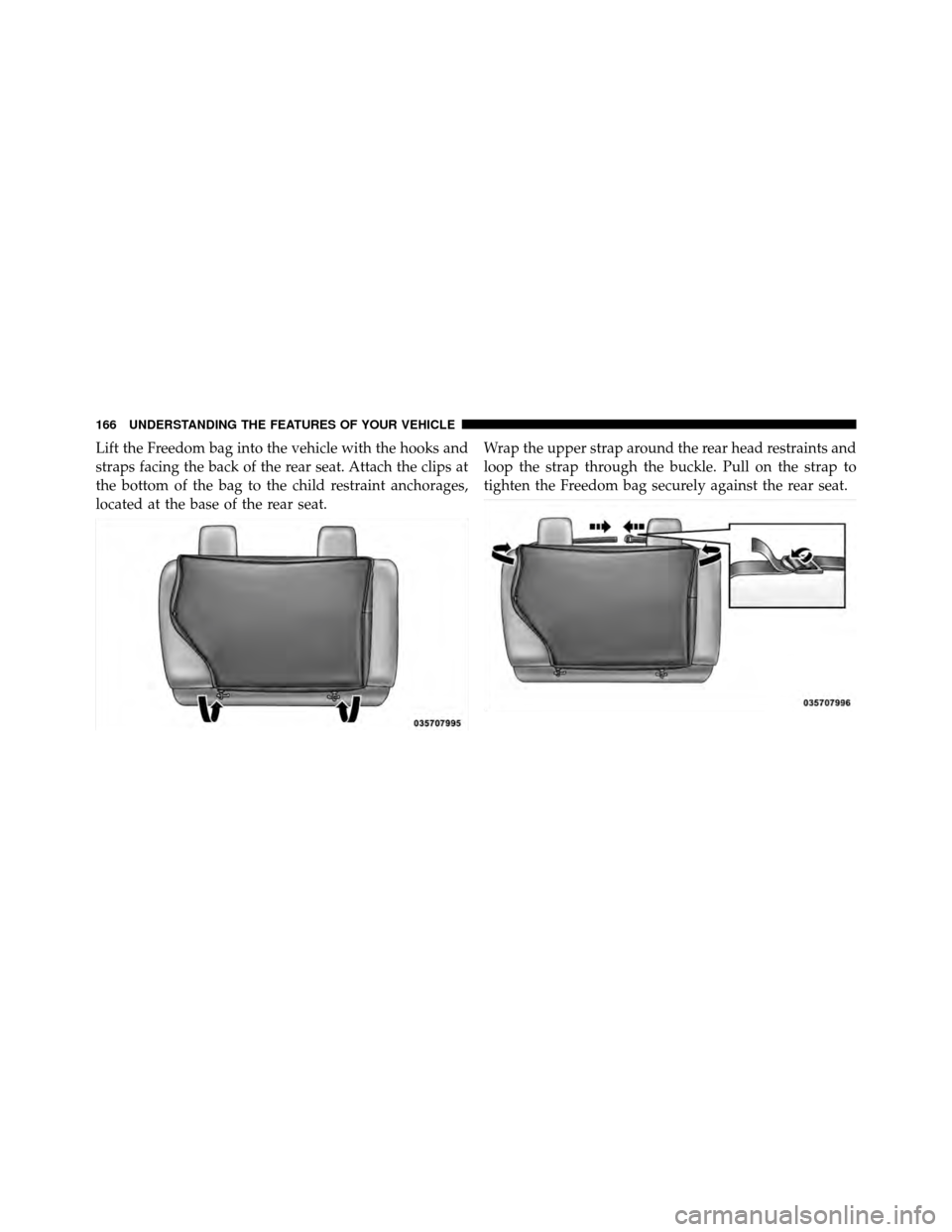

Lift the Freedom bag into the vehicle with the hooks and
straps facing the back of the rear seat. Attach the clips at
the bottom of the bag to the child restraint anchorages,
located at the base of the rear seat.Wrap the upper strap around the rear head restraints and
loop the strap through the buckle. Pull on the strap to
tighten the Freedom bag securely against the rear seat.
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

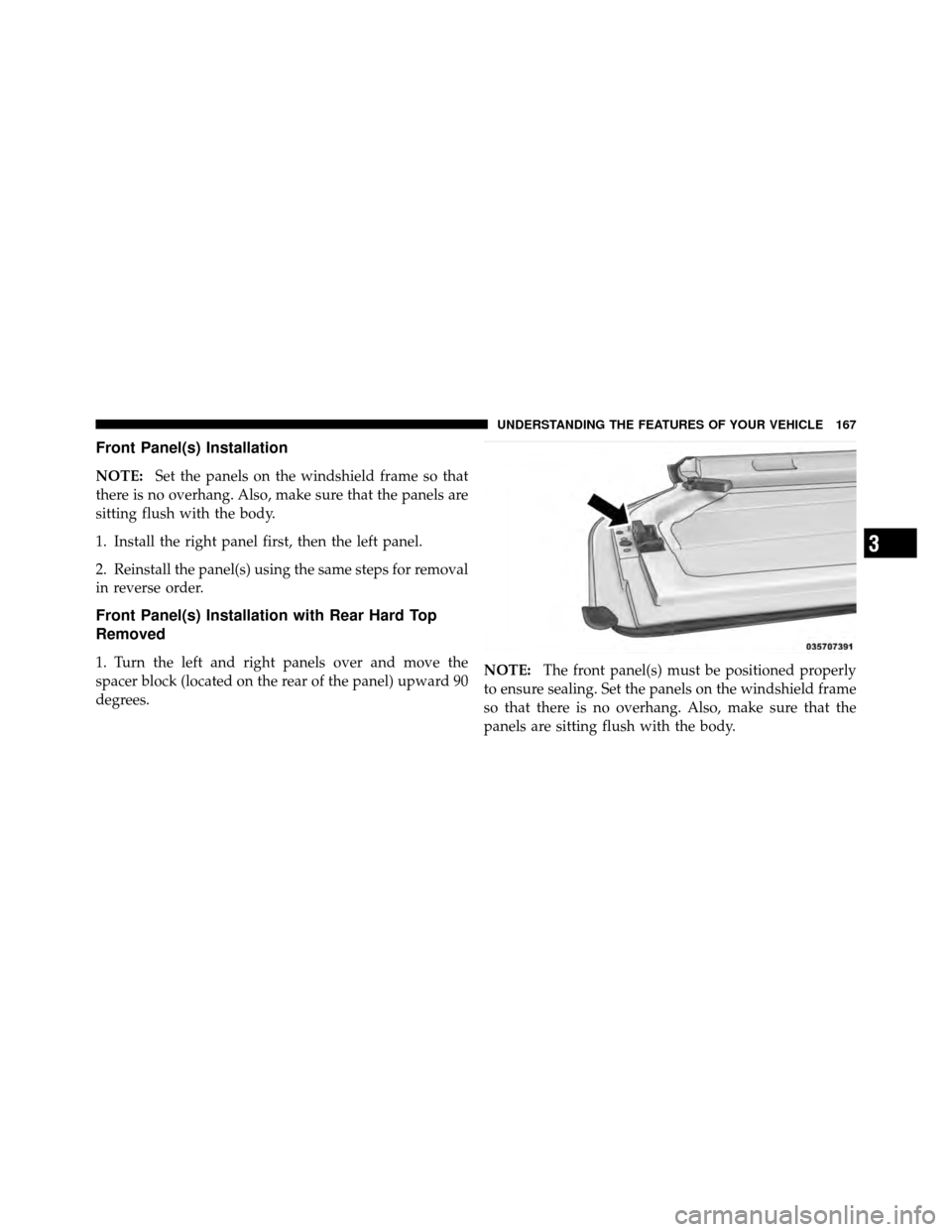

Front Panel(s) Installation
NOTE:Set the panels on the windshield frame so that
there is no overhang. Also, make sure that the panels are
sitting flush with the body.
1. Install the right panel first, then the left panel.
2. Reinstall the panel(s) using the same steps for removal
in reverse order.
Front Panel(s) Installation with Rear Hard Top
Removed
1. Turn the left and right panels over and move the
spacer block (located on the rear of the panel) upward 90
degrees. NOTE:
The front panel(s) must be positioned properly
to ensure sealing. Set the panels on the windshield frame
so that there is no overhang. Also, make sure that the
panels are sitting flush with the body.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167

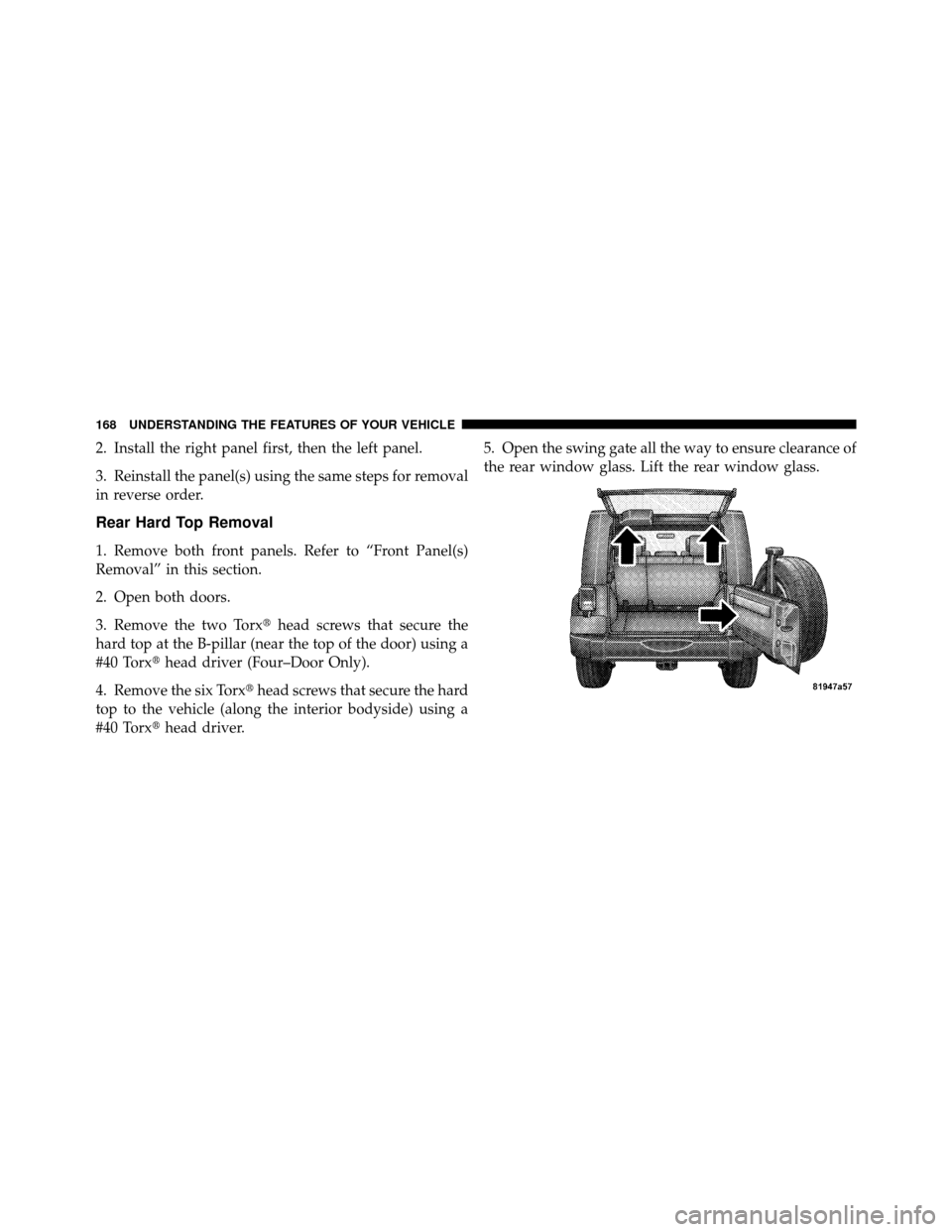

2. Install the right panel first, then the left panel.
3. Reinstall the panel(s) using the same steps for removal
in reverse order.
Rear Hard Top Removal
1. Remove both front panels. Refer to “Front Panel(s)
Removal” in this section.
2. Open both doors.
3. Remove the two Torxhead screws that secure the
hard top at the B-pillar (near the top of the door) using a
#40 Torx head driver (Four–Door Only).
4. Remove the six Torx head screws that secure the hard
top to the vehicle (along the interior bodyside) using a
#40 Torx head driver. 5. Open the swing gate all the way to ensure clearance of
the rear window glass. Lift the rear window glass.
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

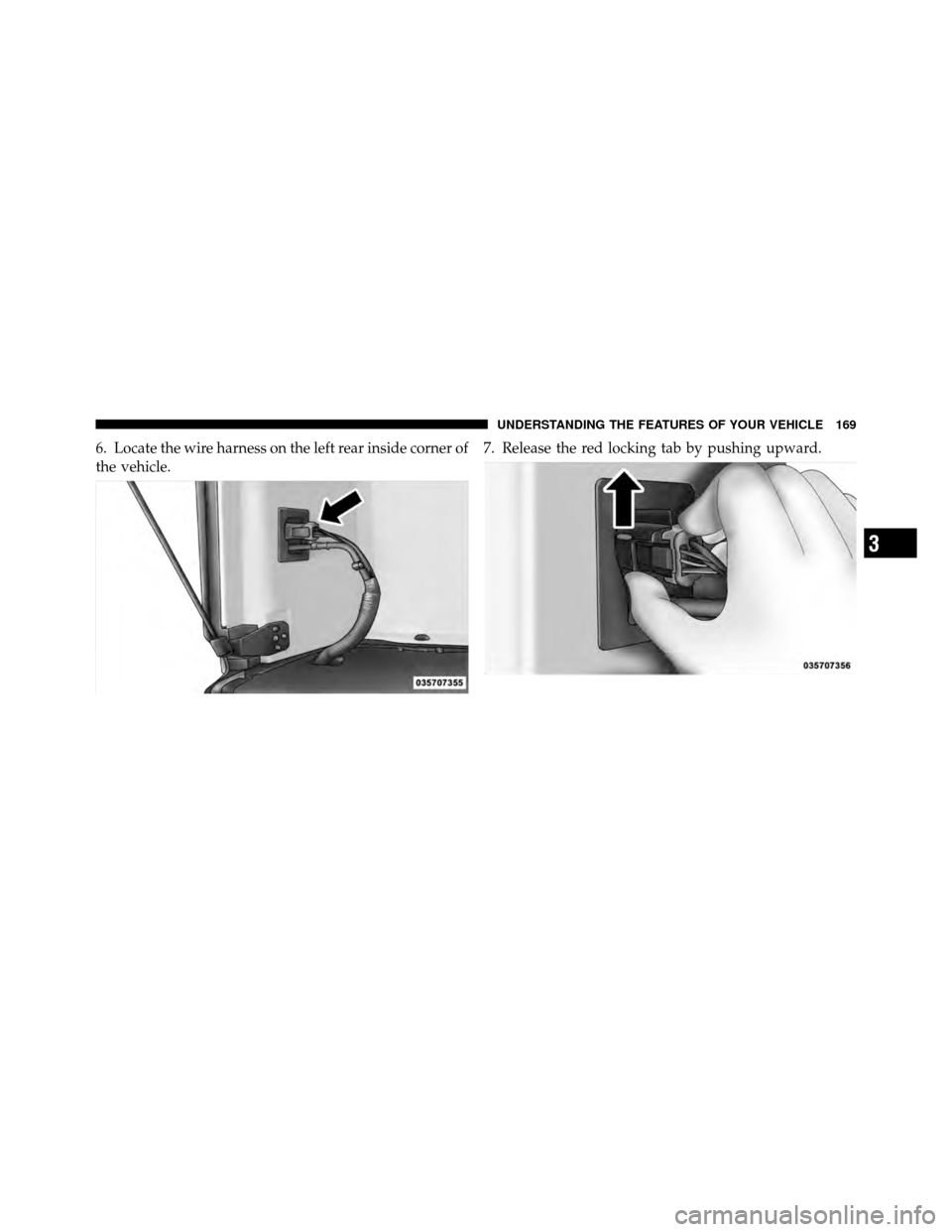

6. Locate the wire harness on the left rear inside corner of
the vehicle.7. Release the red locking tab by pushing upward.
3
