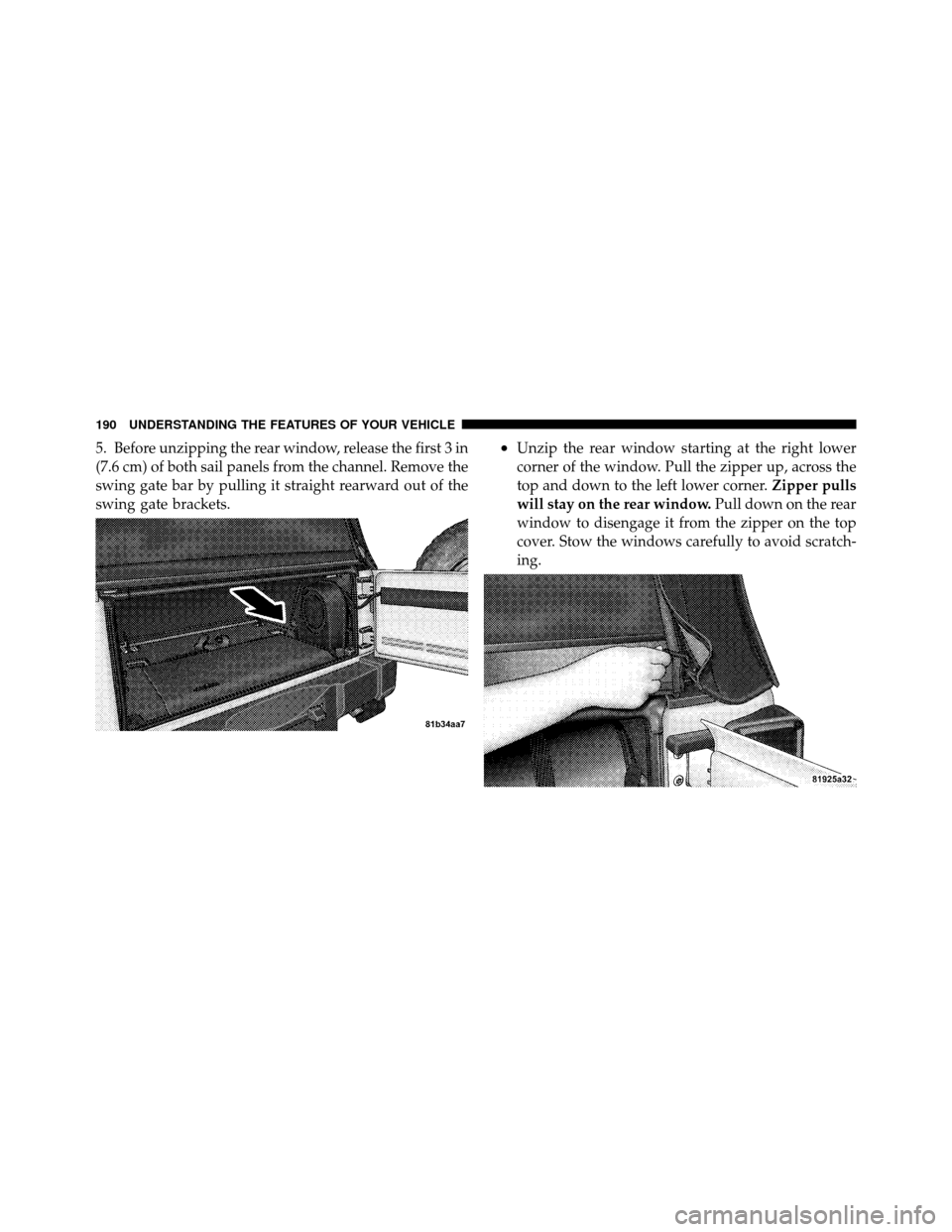

5. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage it from the zipper on the top
cover. Stow the windows carefully to avoid scratch-
ing.
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

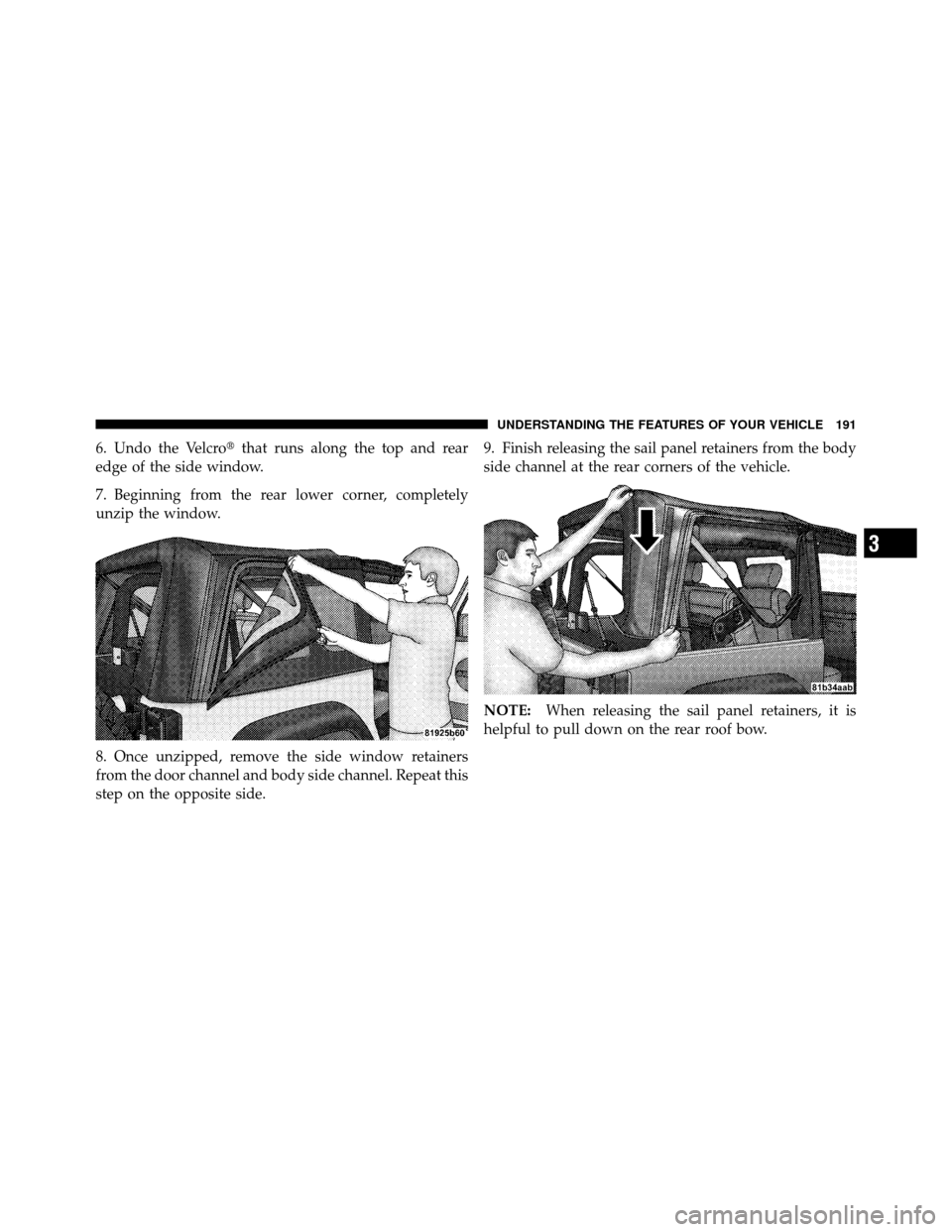

6. Undo the Velcrothat runs along the top and rear
edge of the side window.
7. Beginning from the rear lower corner, completely
unzip the window.
8. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat this
step on the opposite side. 9. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.
NOTE:
When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191

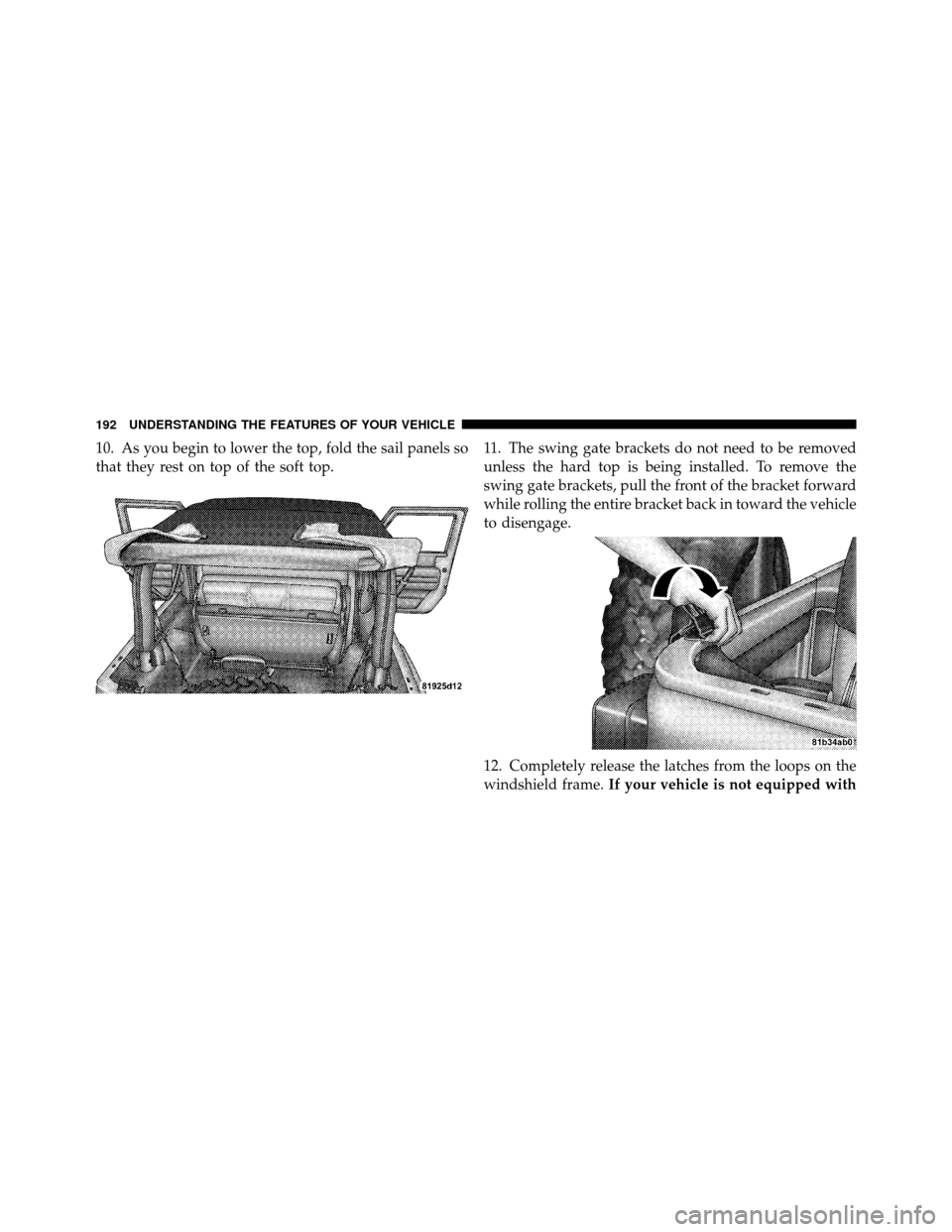

10. As you begin to lower the top, fold the sail panels so
that they rest on top of the soft top.11. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket forward
while rolling the entire bracket back in toward the vehicle
to disengage.
12. Completely release the latches from the loops on the
windshield frame.
If your vehicle is not equipped with
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

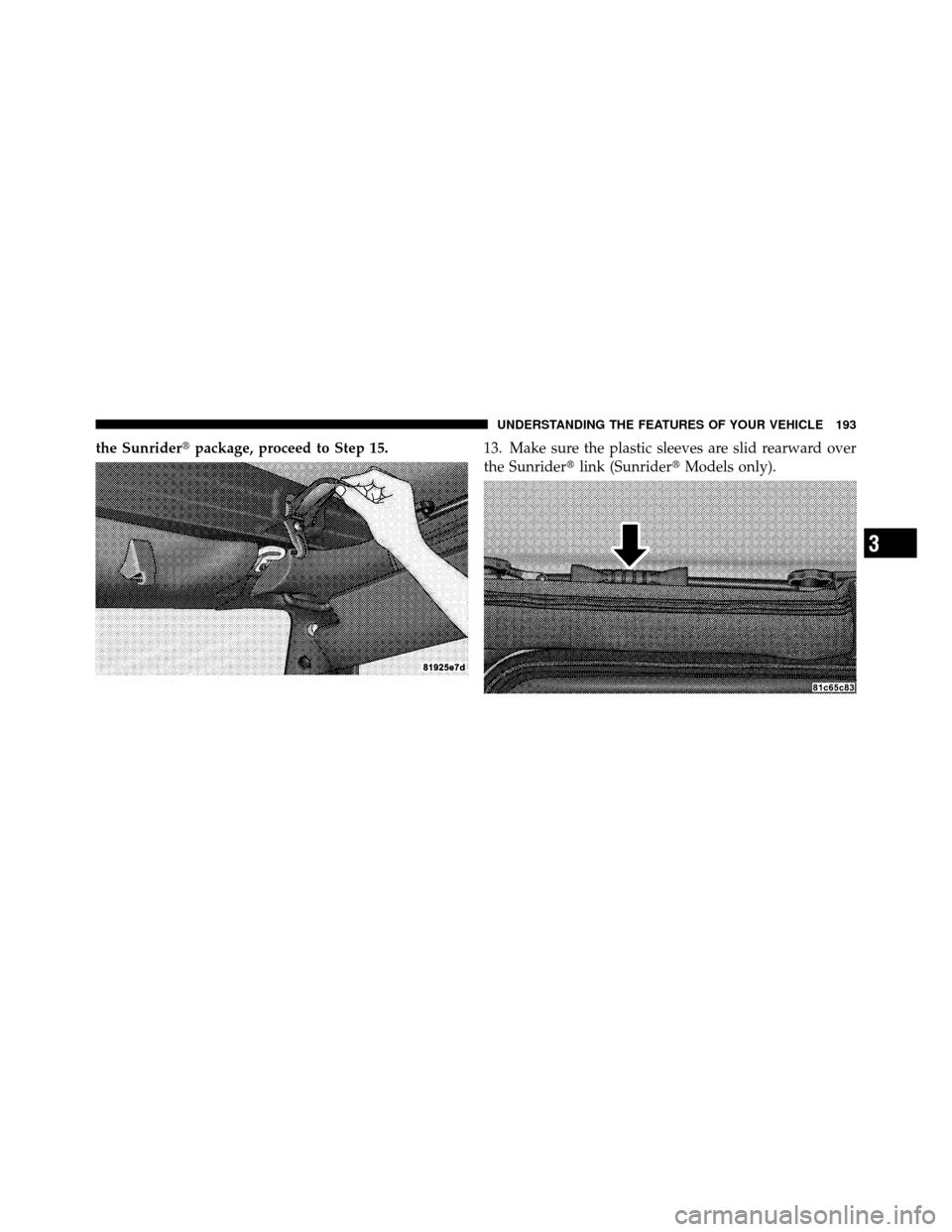

the Sunriderpackage, proceed to Step 15. 13. Make sure the plastic sleeves are slid rearward over
the Sunriderlink (Sunrider Models only).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193

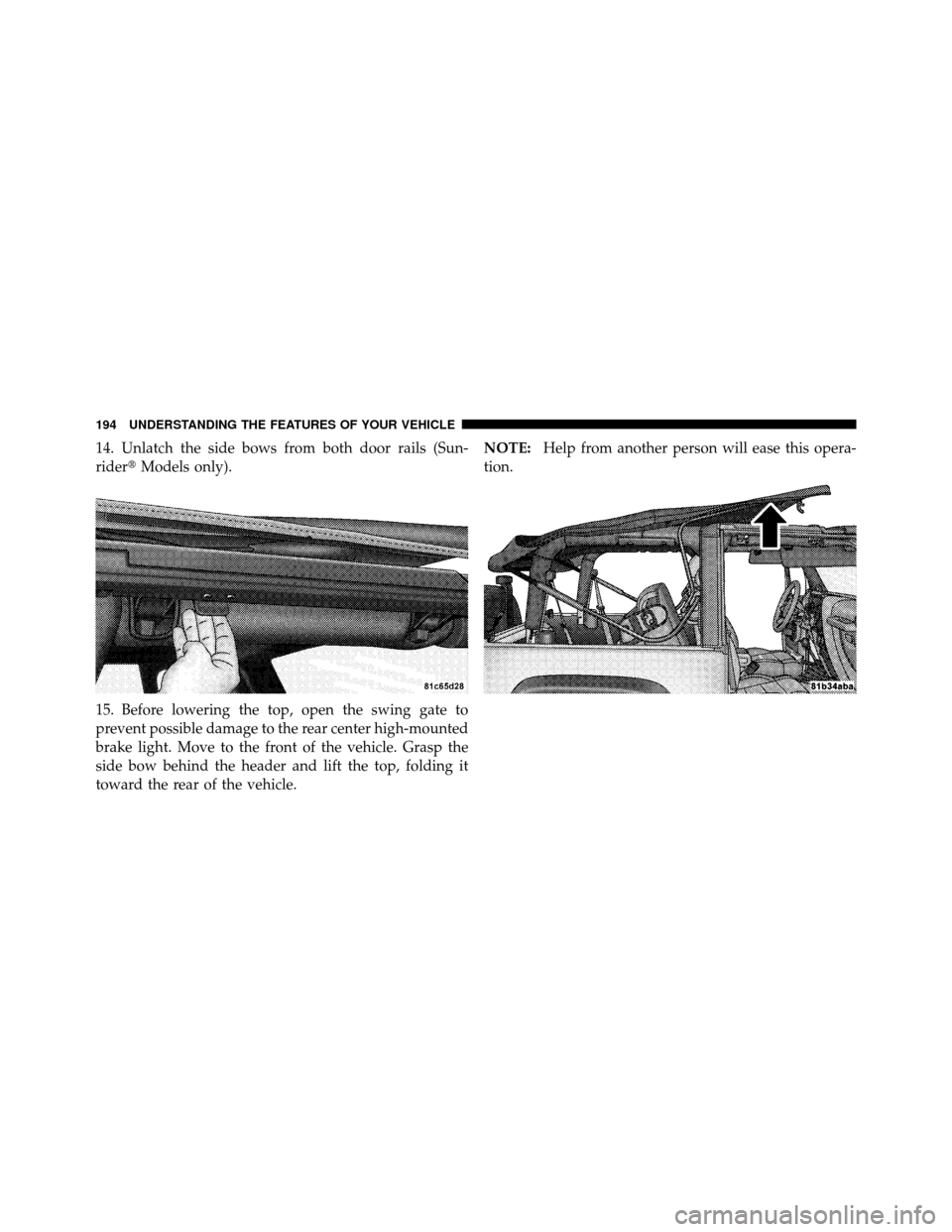

14. Unlatch the side bows from both door rails (Sun-
riderModels only).
15. Before lowering the top, open the swing gate to
prevent possible damage to the rear center high-mounted
brake light. Move to the front of the vehicle. Grasp the
side bow behind the header and lift the top, folding it
toward the rear of the vehicle. NOTE:
Help from another person will ease this opera-
tion.
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

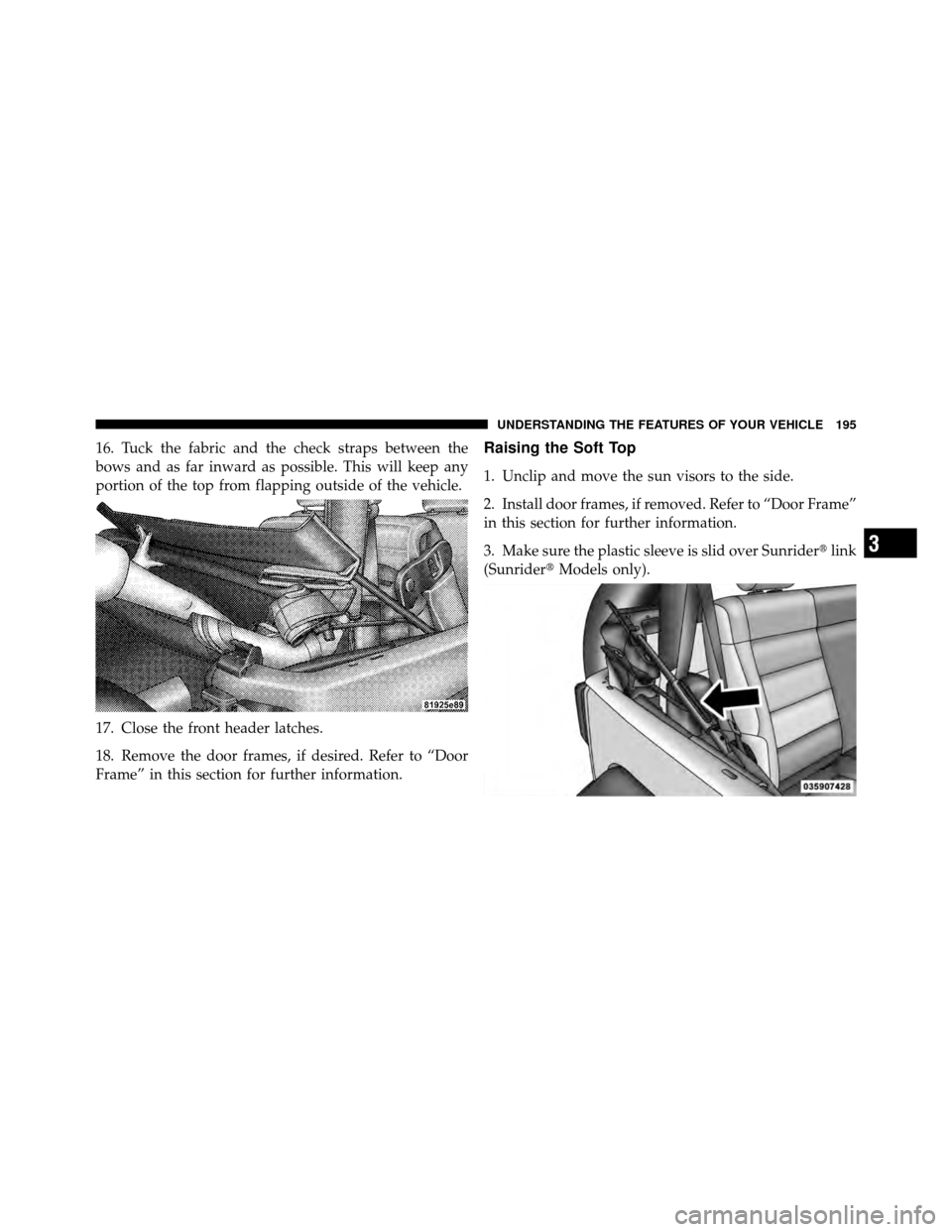

16. Tuck the fabric and the check straps between the
bows and as far inward as possible. This will keep any
portion of the top from flapping outside of the vehicle.
17. Close the front header latches.
18. Remove the door frames, if desired. Refer to “Door
Frame” in this section for further information.Raising the Soft Top
1. Unclip and move the sun visors to the side.
2. Install door frames, if removed. Refer to “Door Frame”
in this section for further information.
3. Make sure the plastic sleeve is slid over Sunriderlink
(Sunrider Models only).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195

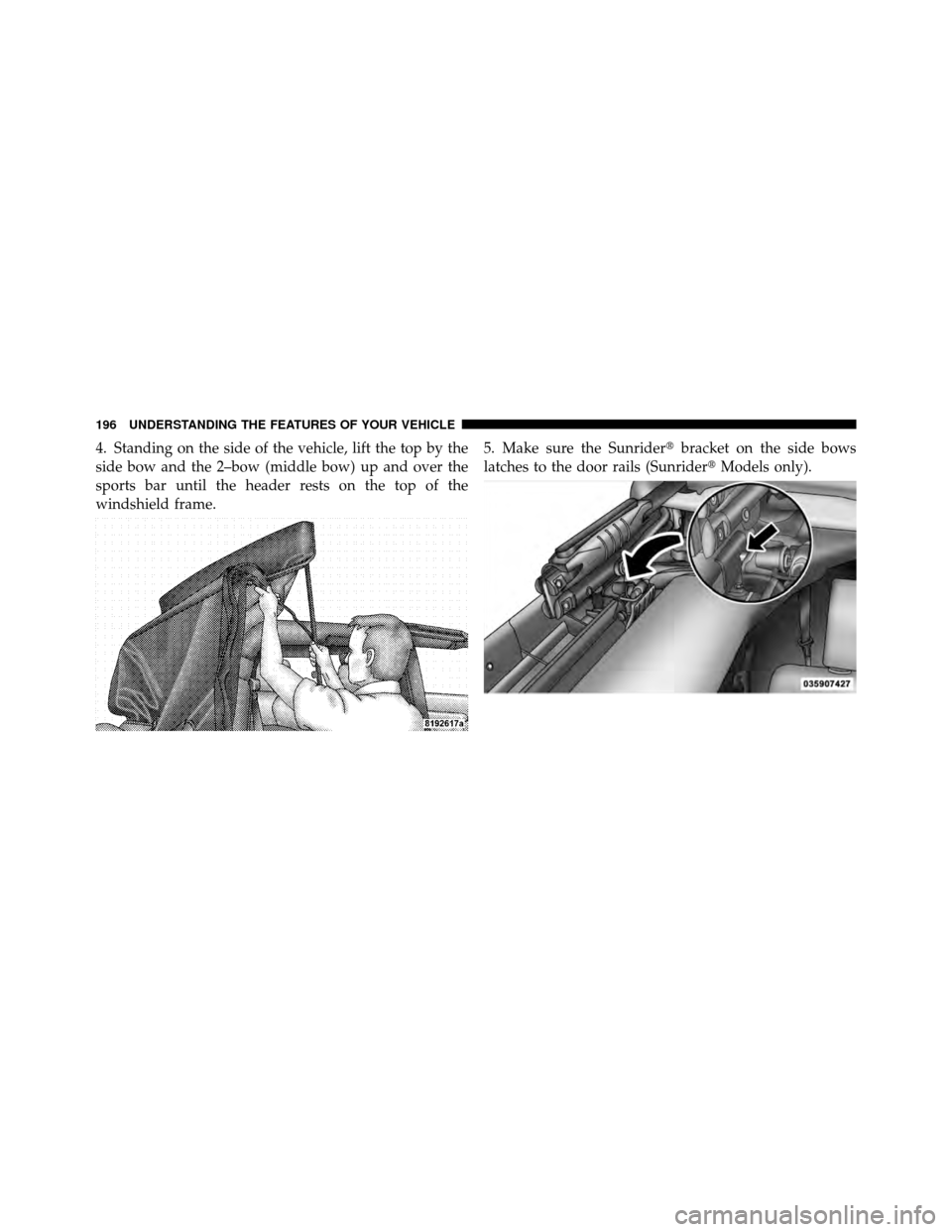

4. Standing on the side of the vehicle, lift the top by the
side bow and the 2–bow (middle bow) up and over the
sports bar until the header rests on the top of the
windshield frame.5. Make sure the Sunrider
bracket on the side bows
latches to the door rails (Sunrider Models only).
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

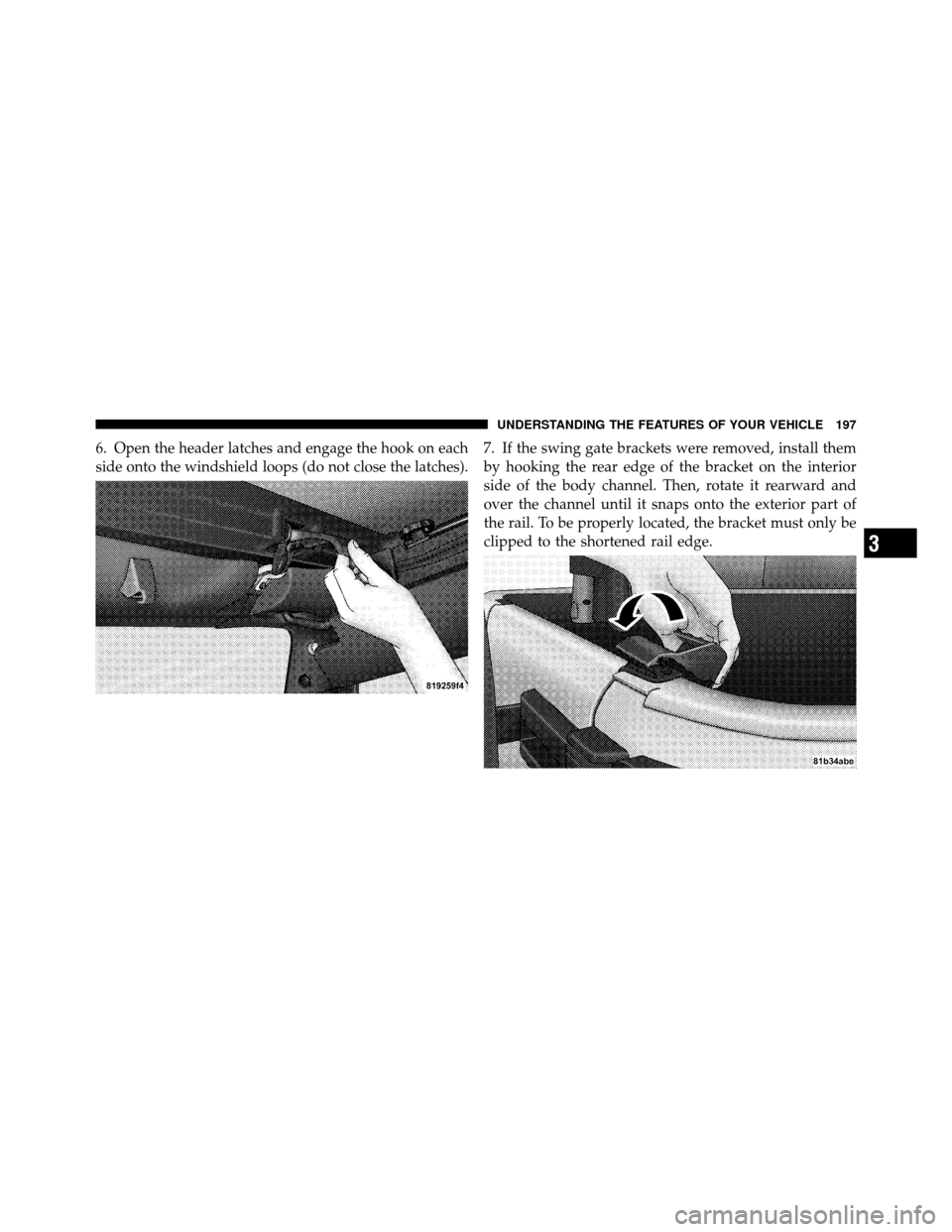

6. Open the header latches and engage the hook on each
side onto the windshield loops (do not close the latches).7. If the swing gate brackets were removed, install them
by hooking the rear edge of the bracket on the interior
side of the body channel. Then, rotate it rearward and
over the channel until it snaps onto the exterior part of
the rail. To be properly located, the bracket must only be
clipped to the shortened rail edge.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197

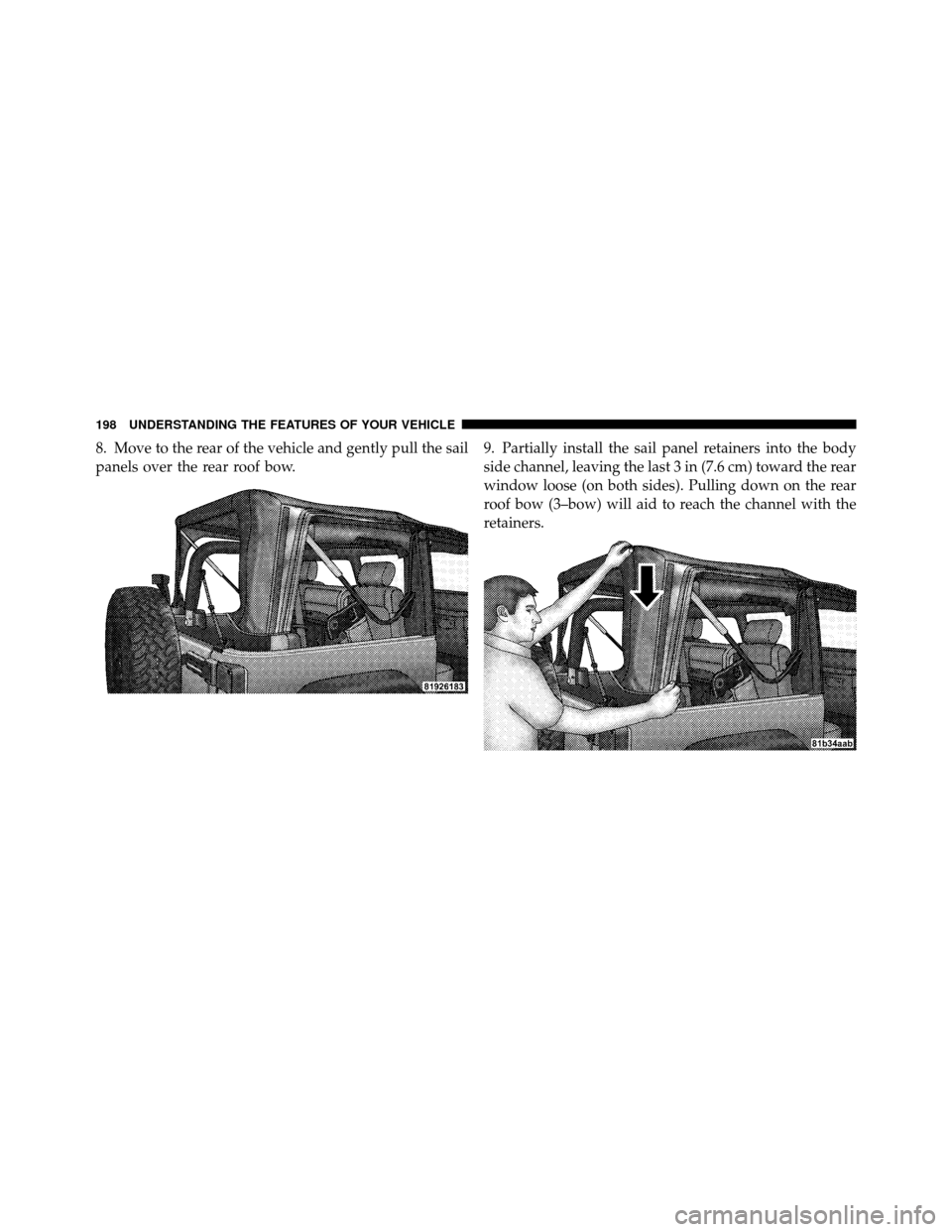

8. Move to the rear of the vehicle and gently pull the sail
panels over the rear roof bow.9. Partially install the sail panel retainers into the body
side channel, leaving the last 3 in (7.6 cm) toward the rear
window loose (on both sides). Pulling down on the rear
roof bow (3–bow) will aid to reach the channel with the
retainers.
198 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

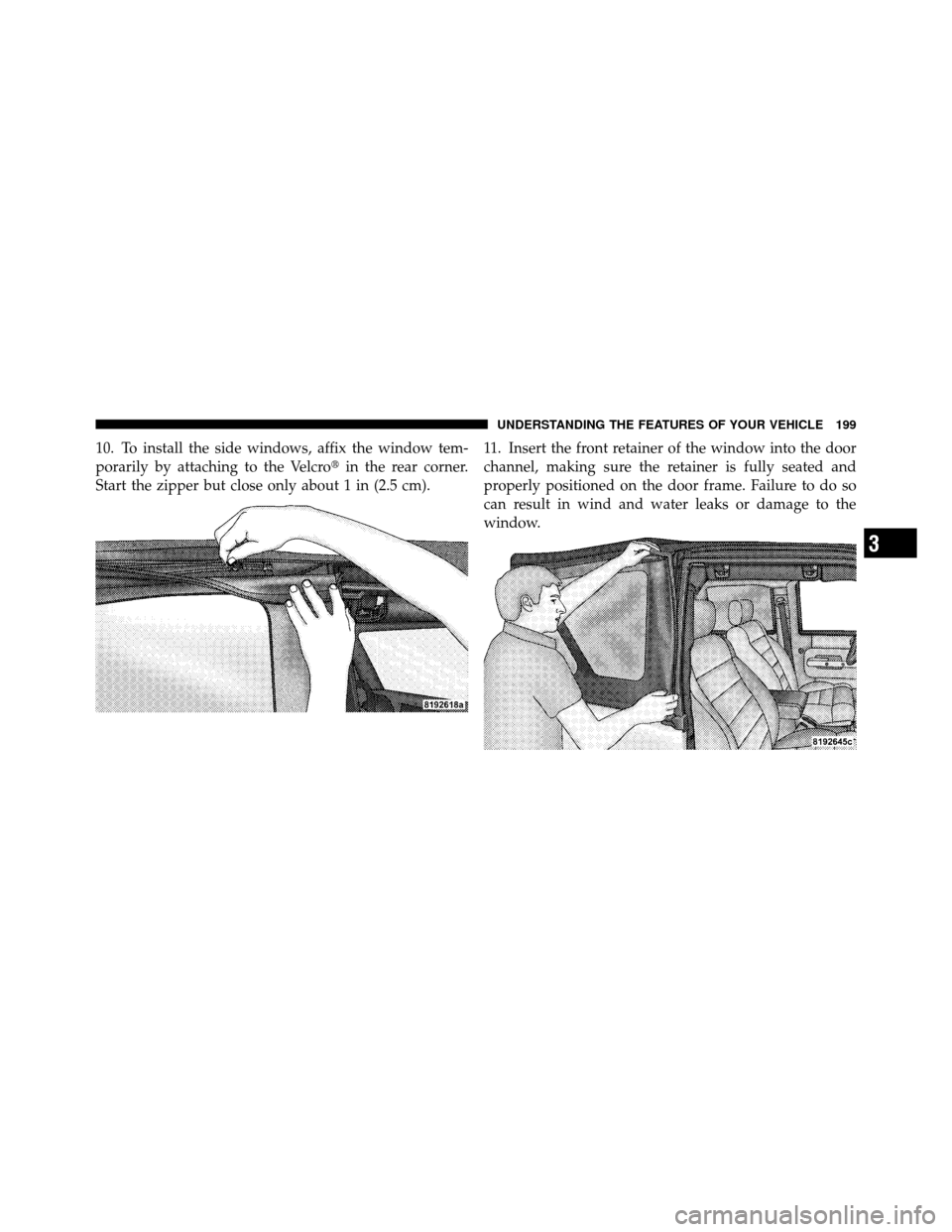

10. To install the side windows, affix the window tem-
porarily by attaching to the Velcroin the rear corner.
Start the zipper but close only about 1 in (2.5 cm). 11. Insert the front retainer of the window into the door
channel, making sure the retainer is fully seated and
properly positioned on the door frame. Failure to do so
can result in wind and water leaks or damage to the
window.
3
