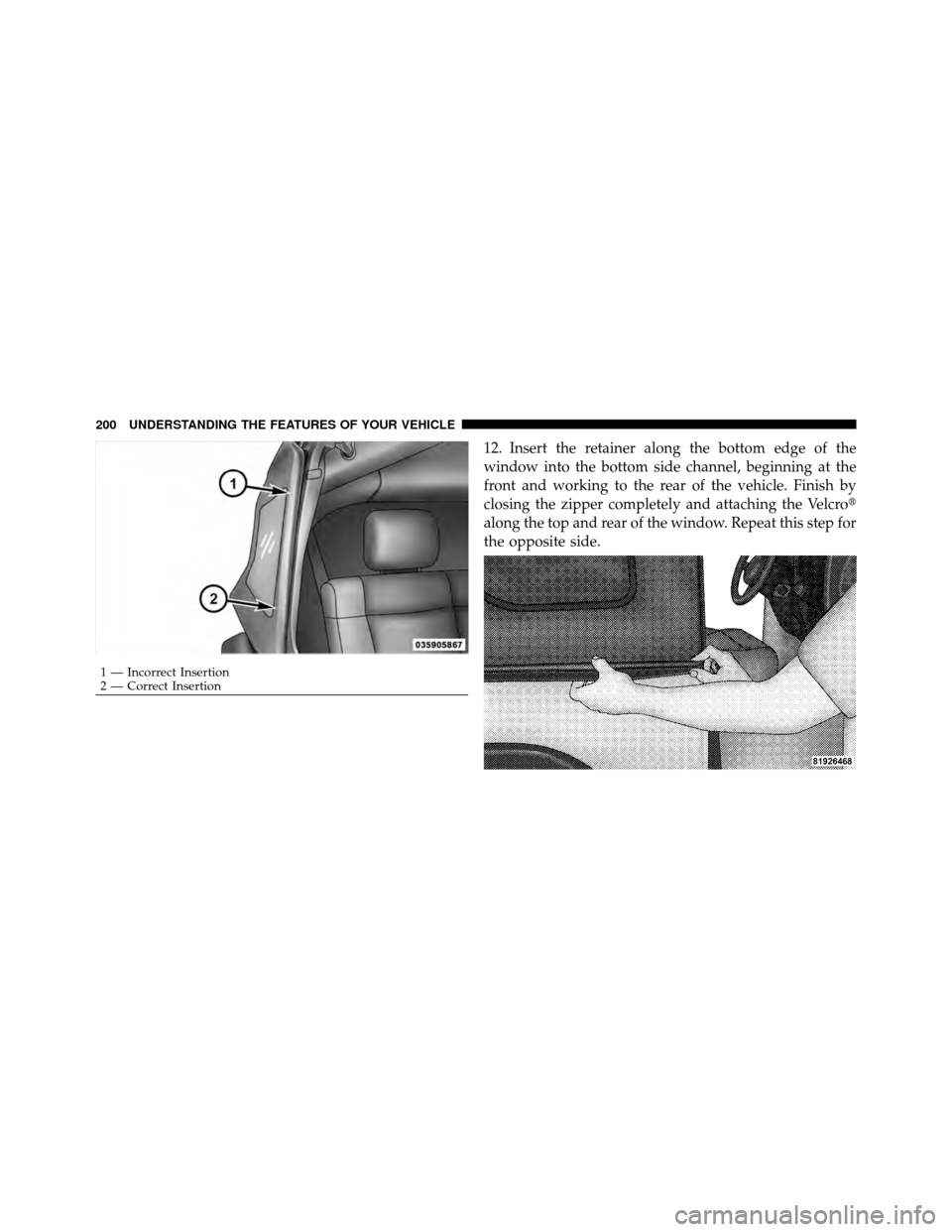

12. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at the
front and working to the rear of the vehicle. Finish by
closing the zipper completely and attaching the Velcro
along the top and rear of the window. Repeat this step for
the opposite side.
1 — Incorrect Insertion
2 — Correct Insertion
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

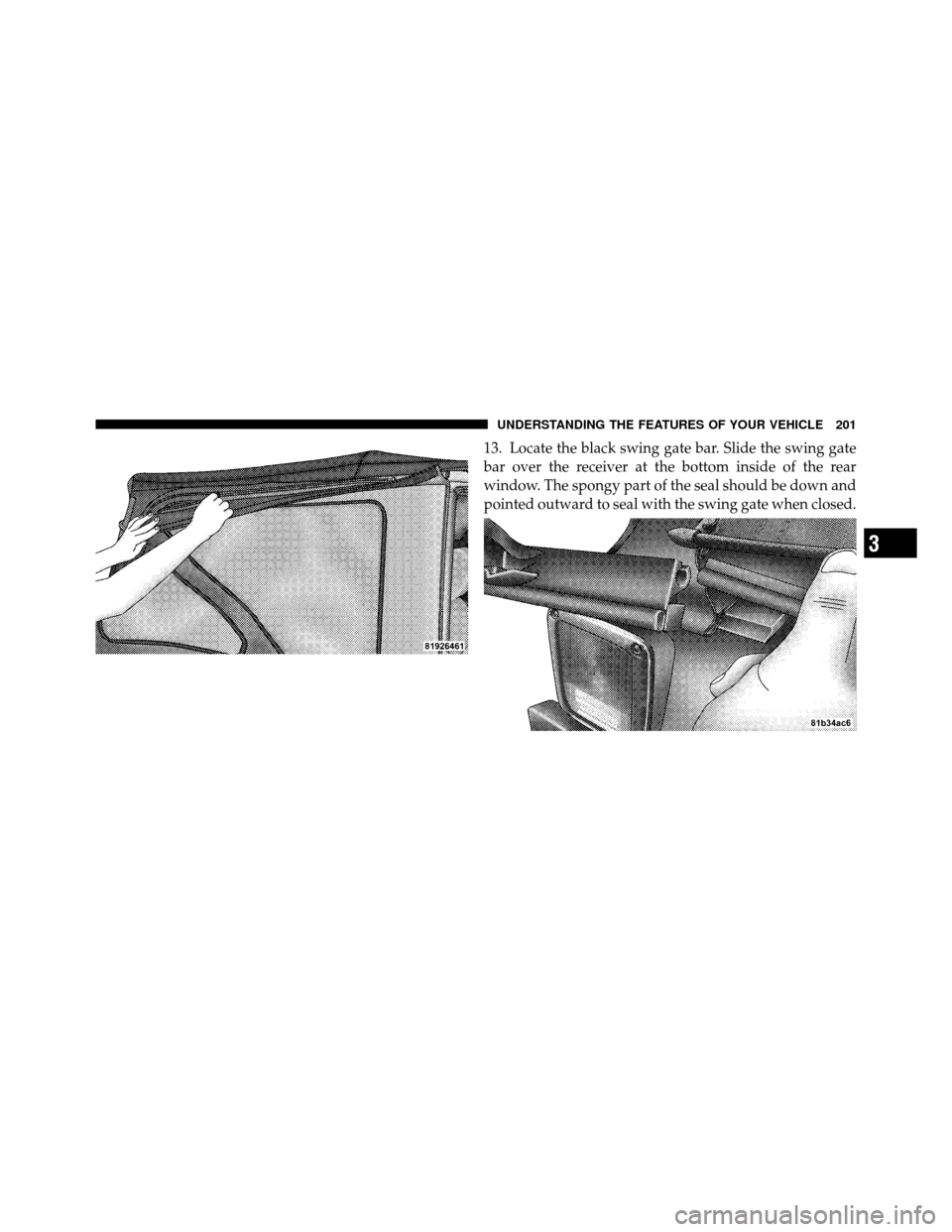

13. Locate the black swing gate bar. Slide the swing gate
bar over the receiver at the bottom inside of the rear
window. The spongy part of the seal should be down and
pointed outward to seal with the swing gate when closed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201

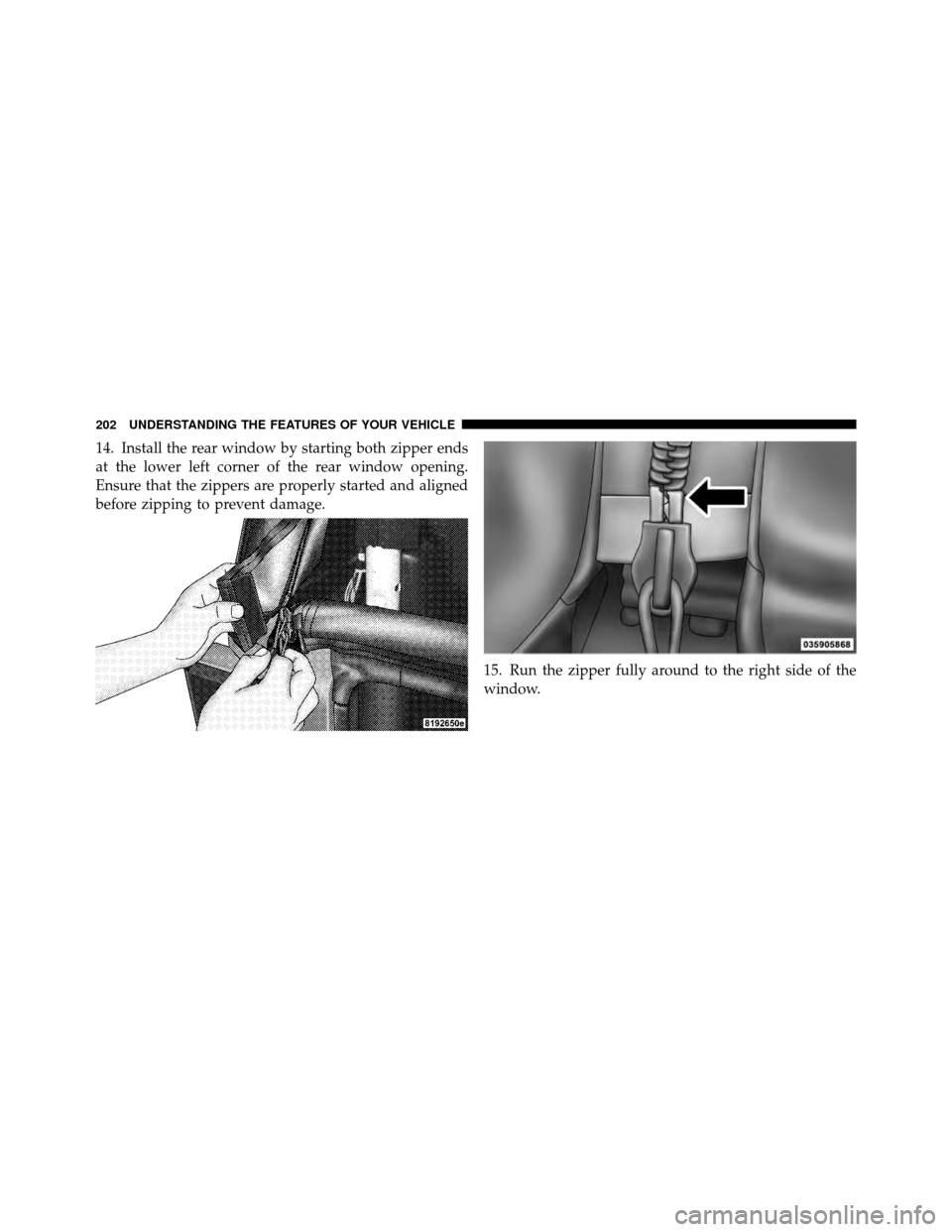

14. Install the rear window by starting both zipper ends
at the lower left corner of the rear window opening.
Ensure that the zippers are properly started and aligned
before zipping to prevent damage.15. Run the zipper fully around to the right side of the
window.
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

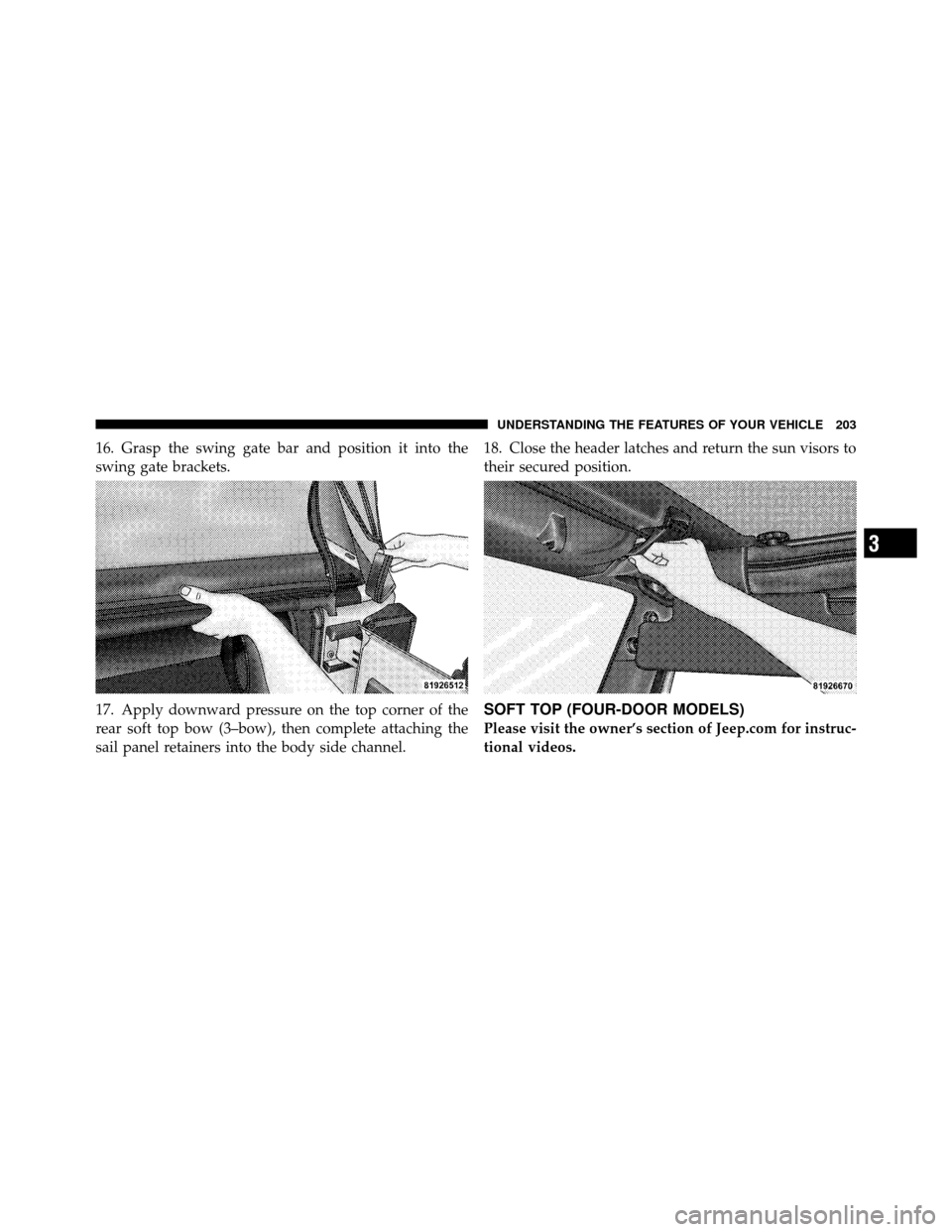

16. Grasp the swing gate bar and position it into the
swing gate brackets.
17. Apply downward pressure on the top corner of the
rear soft top bow (3–bow), then complete attaching the
sail panel retainers into the body side channel.18. Close the header latches and return the sun visors to
their secured position.
SOFT TOP (FOUR-DOOR MODELS)
Please visit the owner’s section of Jeep.com for instruc-
tional videos.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203

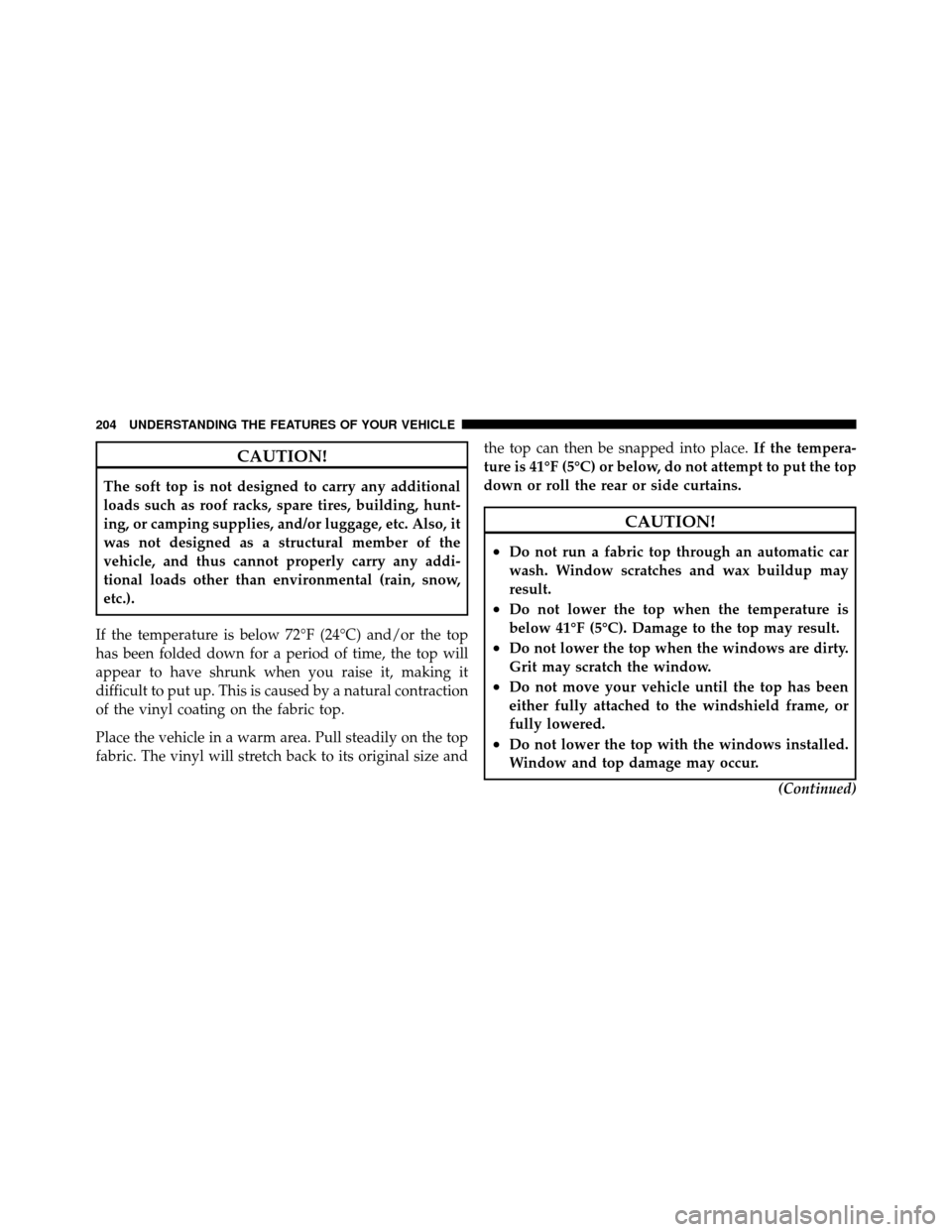

CAUTION!
The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunt-
ing, or camping supplies, and/or luggage, etc. Also, it
was not designed as a structural member of the
vehicle, and thus cannot properly carry any addi-
tional loads other than environmental (rain, snow,
etc.).
If the temperature is below 72°F (24°C) and/or the top
has been folded down for a period of time, the top will
appear to have shrunk when you raise it, making it
difficult to put up. This is caused by a natural contraction
of the vinyl coating on the fabric top.
Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and the top can then be snapped into place.
If the tempera-
ture is 41°F (5°C) or below, do not attempt to put the top
down or roll the rear or side curtains.
CAUTION!
•Do not run a fabric top through an automatic car
wash. Window scratches and wax buildup may
result.
•Do not lower the top when the temperature is
below 41°F (5°C). Damage to the top may result.
•Do not lower the top when the windows are dirty.
Grit may scratch the window.
•Do not move your vehicle until the top has been
either fully attached to the windshield frame, or
fully lowered.
•Do not lower the top with the windows installed.
Window and top damage may occur.
(Continued)
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

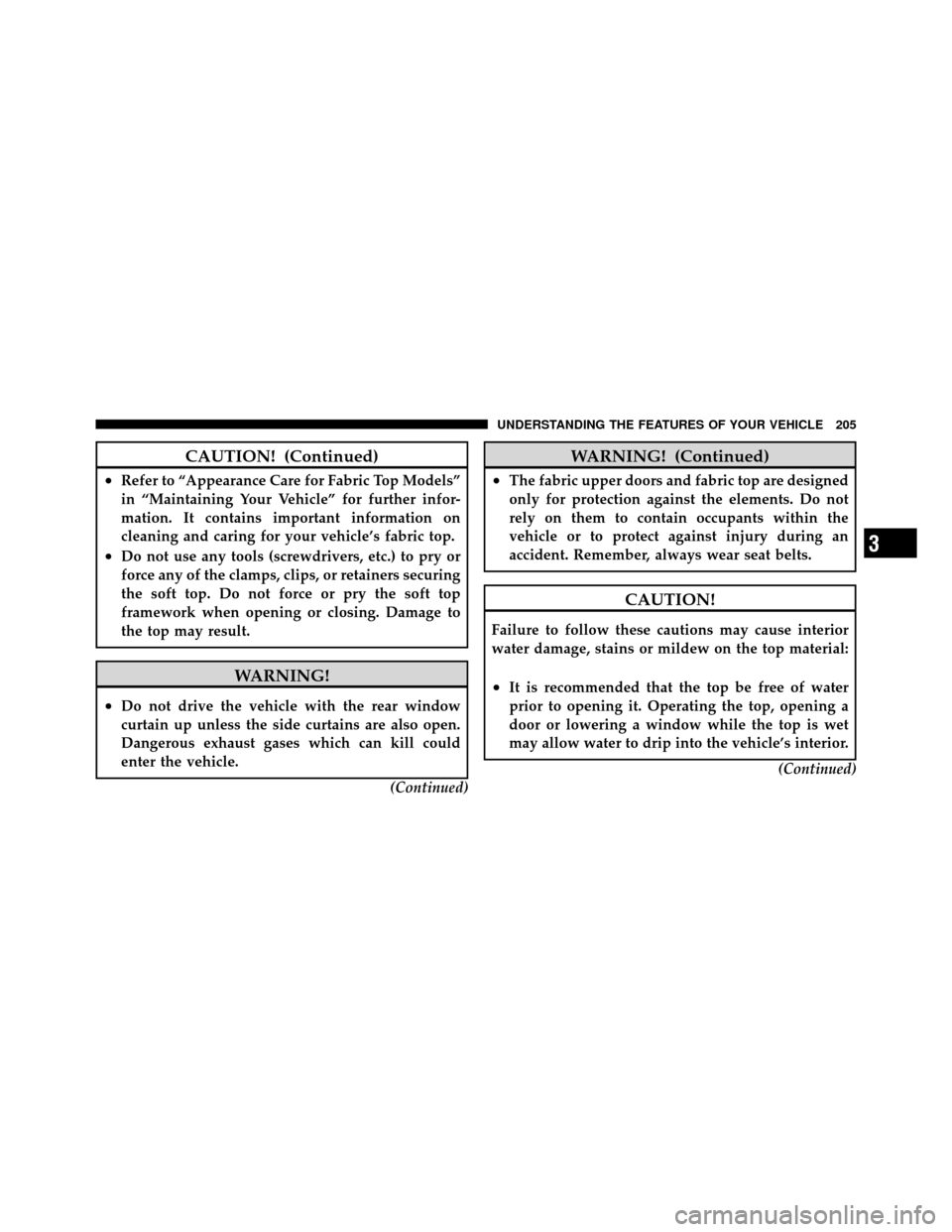

CAUTION! (Continued)
•Refer to “Appearance Care for Fabric Top Models”
in “Maintaining Your Vehicle” for further infor-
mation. It contains important information on
cleaning and caring for your vehicle’s fabric top.
•Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top
framework when opening or closing. Damage to
the top may result.
WARNING!
•Do not drive the vehicle with the rear window
curtain up unless the side curtains are also open.
Dangerous exhaust gases which can kill could
enter the vehicle.(Continued)
WARNING! (Continued)
•The fabric upper doors and fabric top are designed
only for protection against the elements. Do not
rely on them to contain occupants within the
vehicle or to protect against injury during an
accident. Remember, always wear seat belts.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205

CAUTION! (Continued)
•Careless handling and storage of the soft top may
damage the seals, causing water to leak into the
vehicle’s interior.
•The soft top must be positioned properly to ensure
sealing. Improper installation can cause water to
leak into the vehicle’s interior.

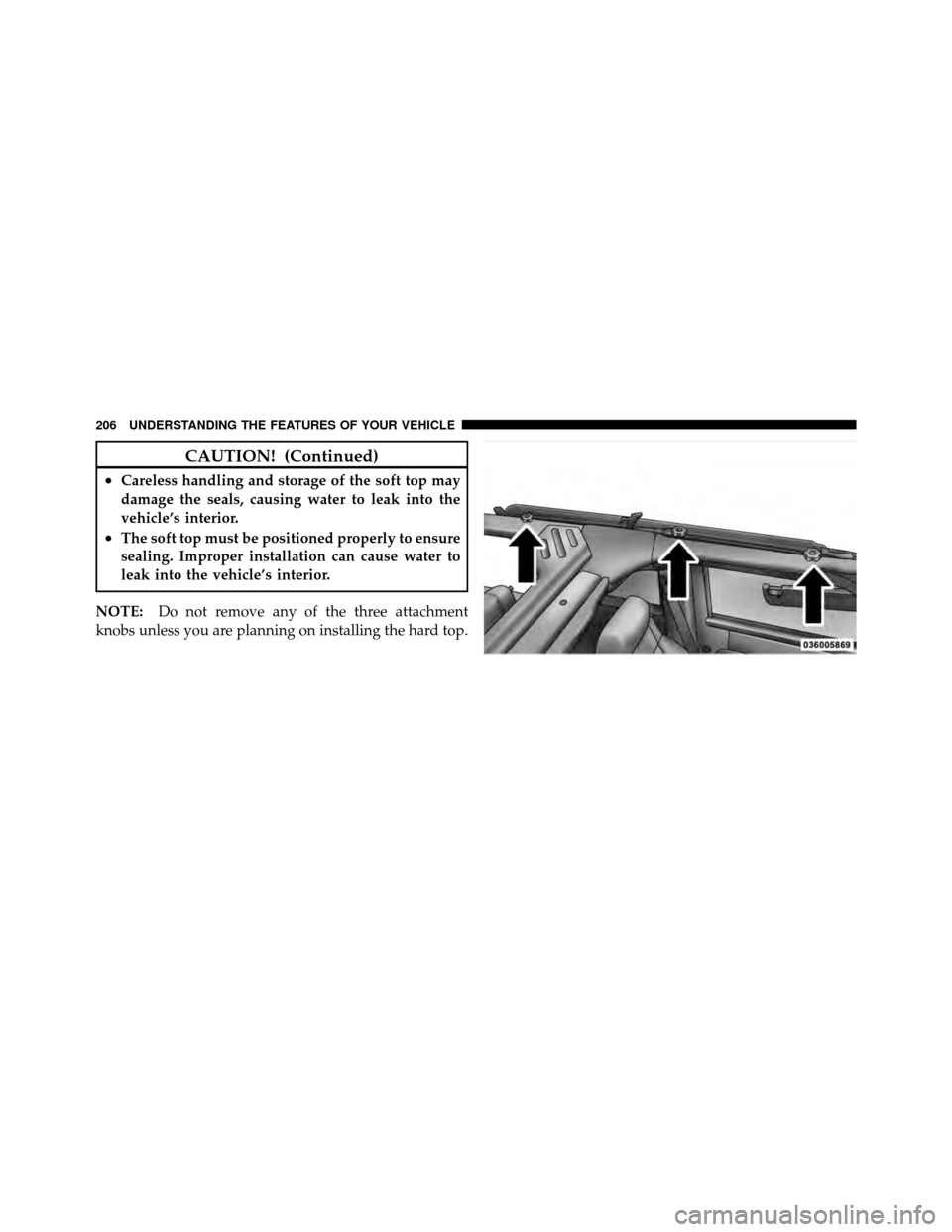

NOTE: Do not remove any of the three attachment
knobs unless you are planning on installing the hard top.
206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

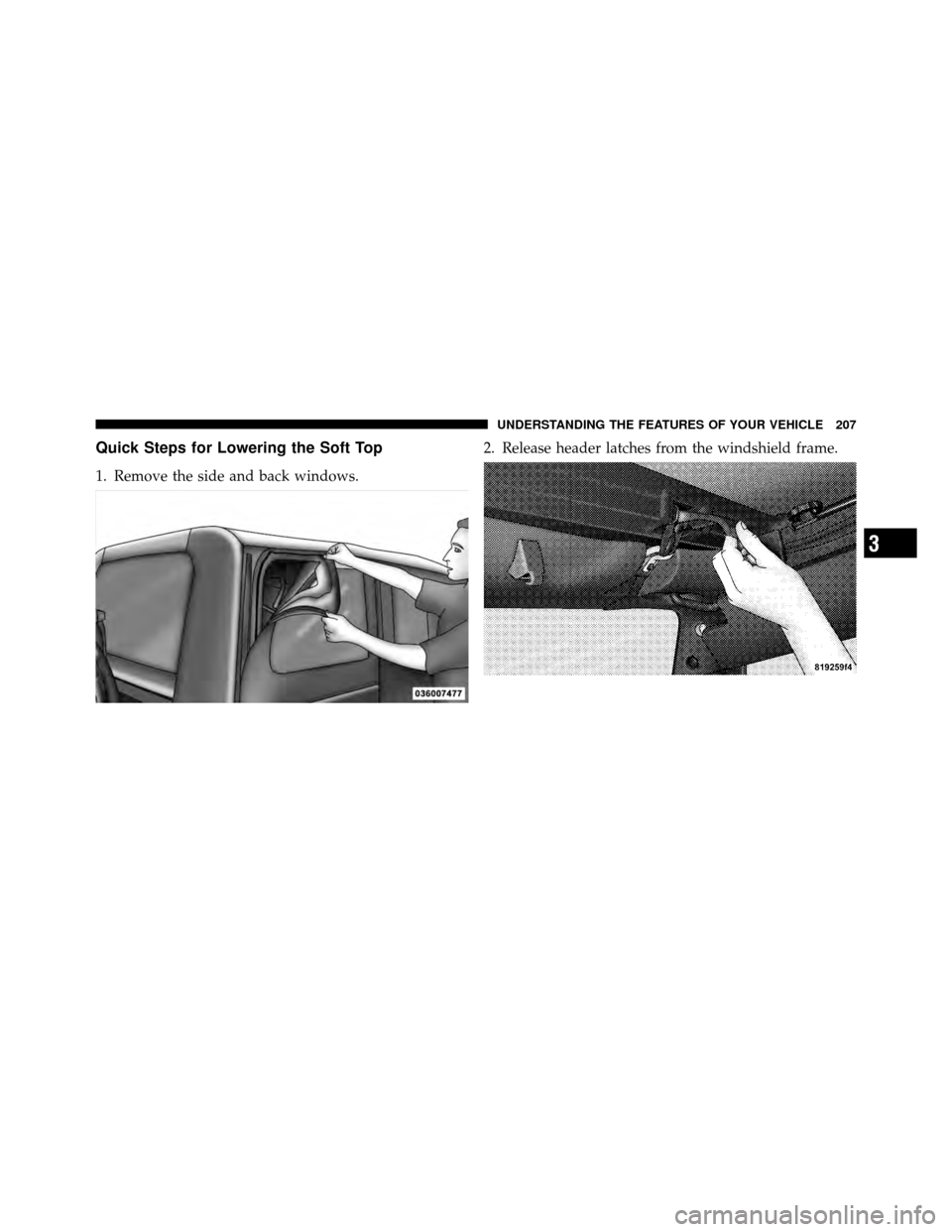

Quick Steps for Lowering the Soft Top
1. Remove the side and back windows.2. Release header latches from the windshield frame.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207

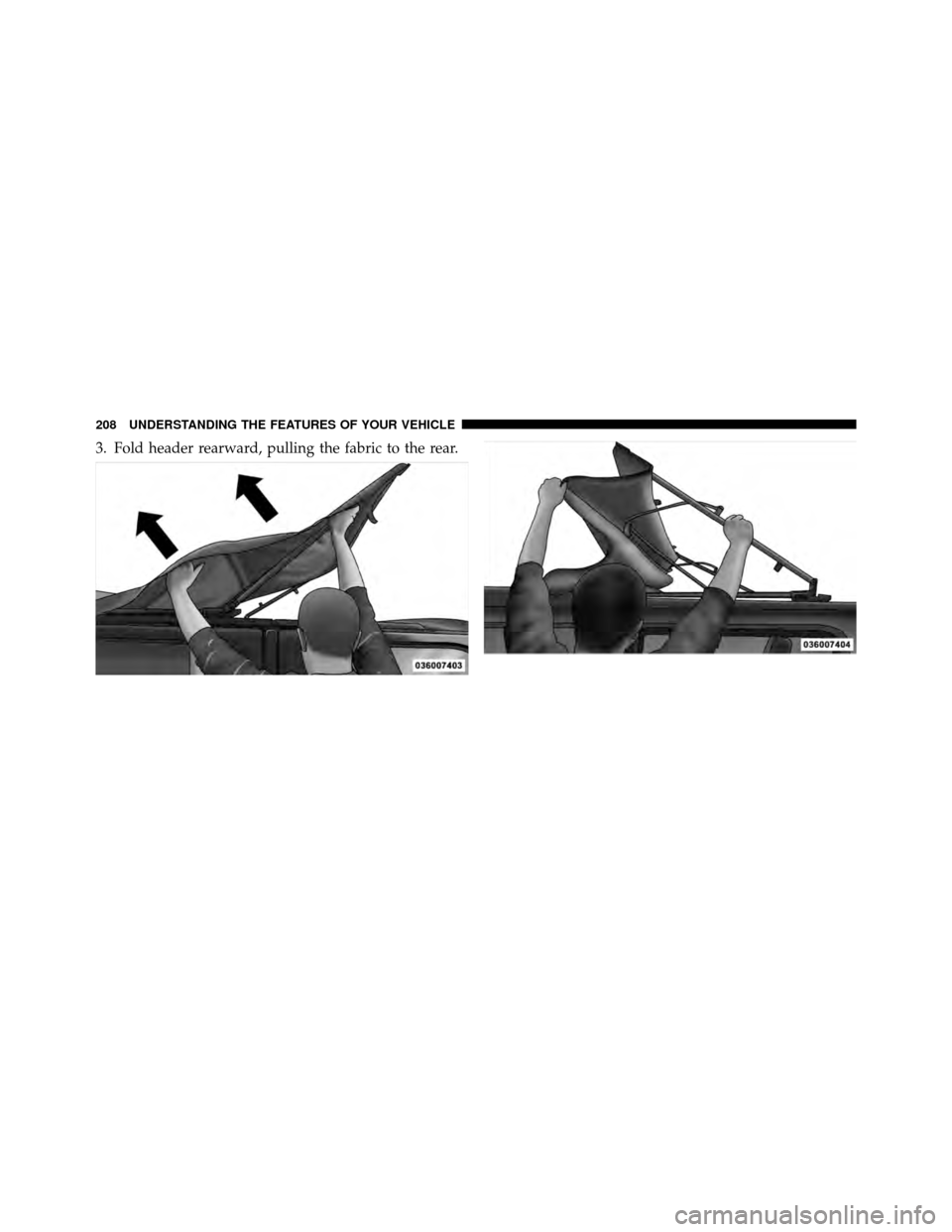

3. Fold header rearward, pulling the fabric to the rear.
208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

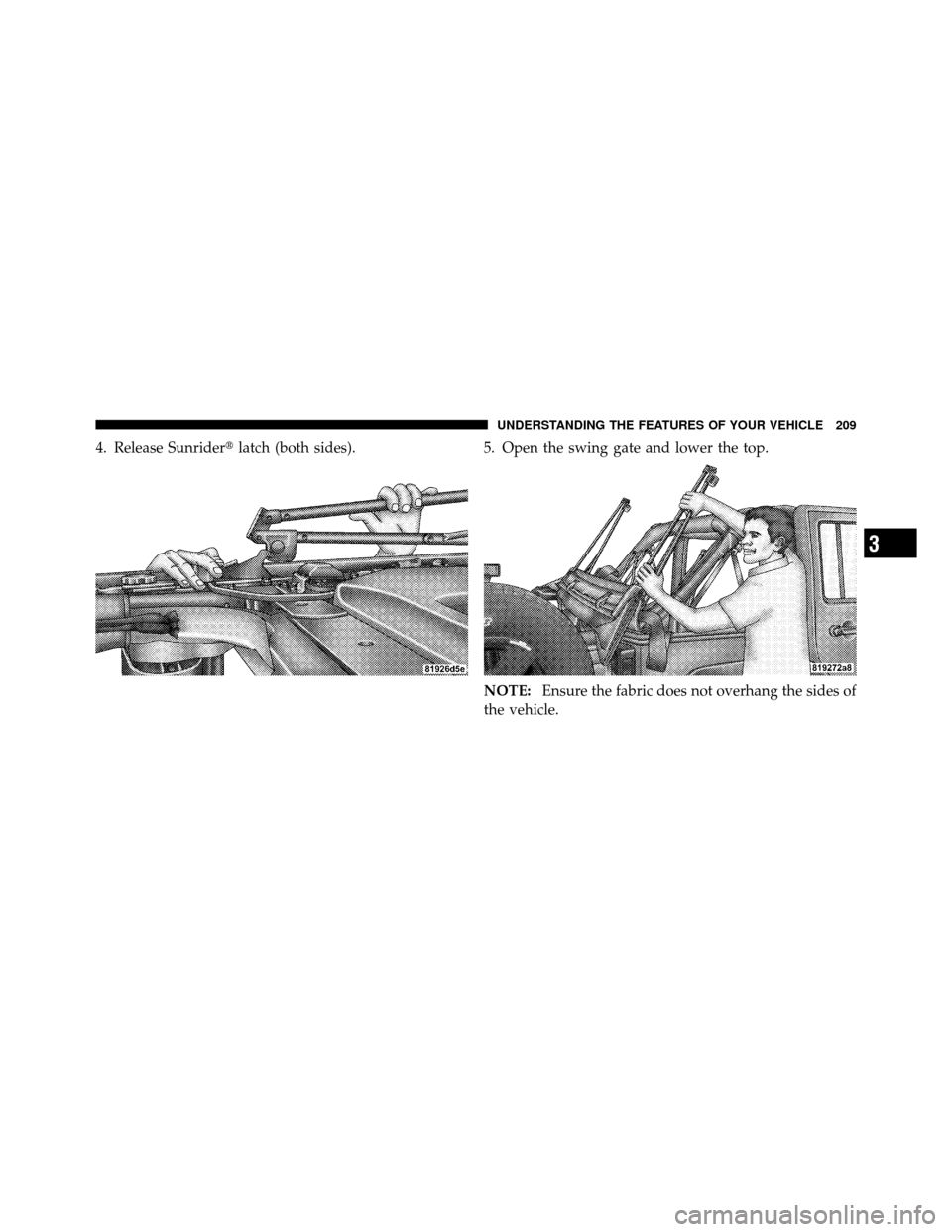

4. Release Sunriderlatch (both sides). 5. Open the swing gate and lower the top.
NOTE:Ensure the fabric does not overhang the sides of
the vehicle.
3
