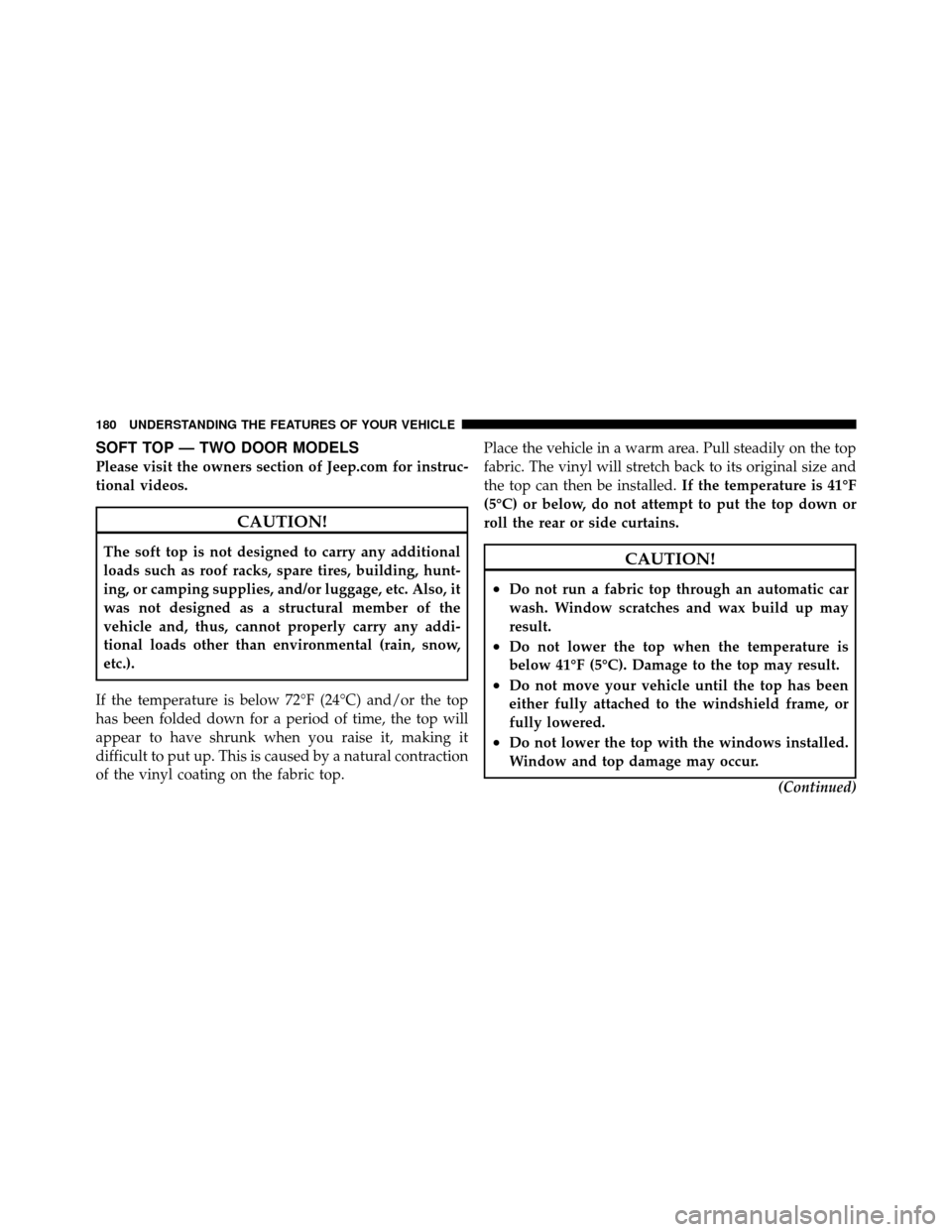

SOFT TOP — TWO DOOR MODELS
Please visit the owners section of Jeep.com for instruc-
tional videos.
CAUTION!
The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunt-
ing, or camping supplies, and/or luggage, etc. Also, it
was not designed as a structural member of the
vehicle and, thus, cannot properly carry any addi-
tional loads other than environmental (rain, snow,
etc.).
If the temperature is below 72°F (24°C) and/or the top
has been folded down for a period of time, the top will
appear to have shrunk when you raise it, making it
difficult to put up. This is caused by a natural contraction
of the vinyl coating on the fabric top. Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and
the top can then be installed.
If the temperature is 41°F
(5°C) or below, do not attempt to put the top down or
roll the rear or side curtains.CAUTION!
•Do not run a fabric top through an automatic car
wash. Window scratches and wax build up may
result.
•Do not lower the top when the temperature is
below 41°F (5°C). Damage to the top may result.
•Do not move your vehicle until the top has been
either fully attached to the windshield frame, or
fully lowered.
•Do not lower the top with the windows installed.
Window and top damage may occur.
(Continued)
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

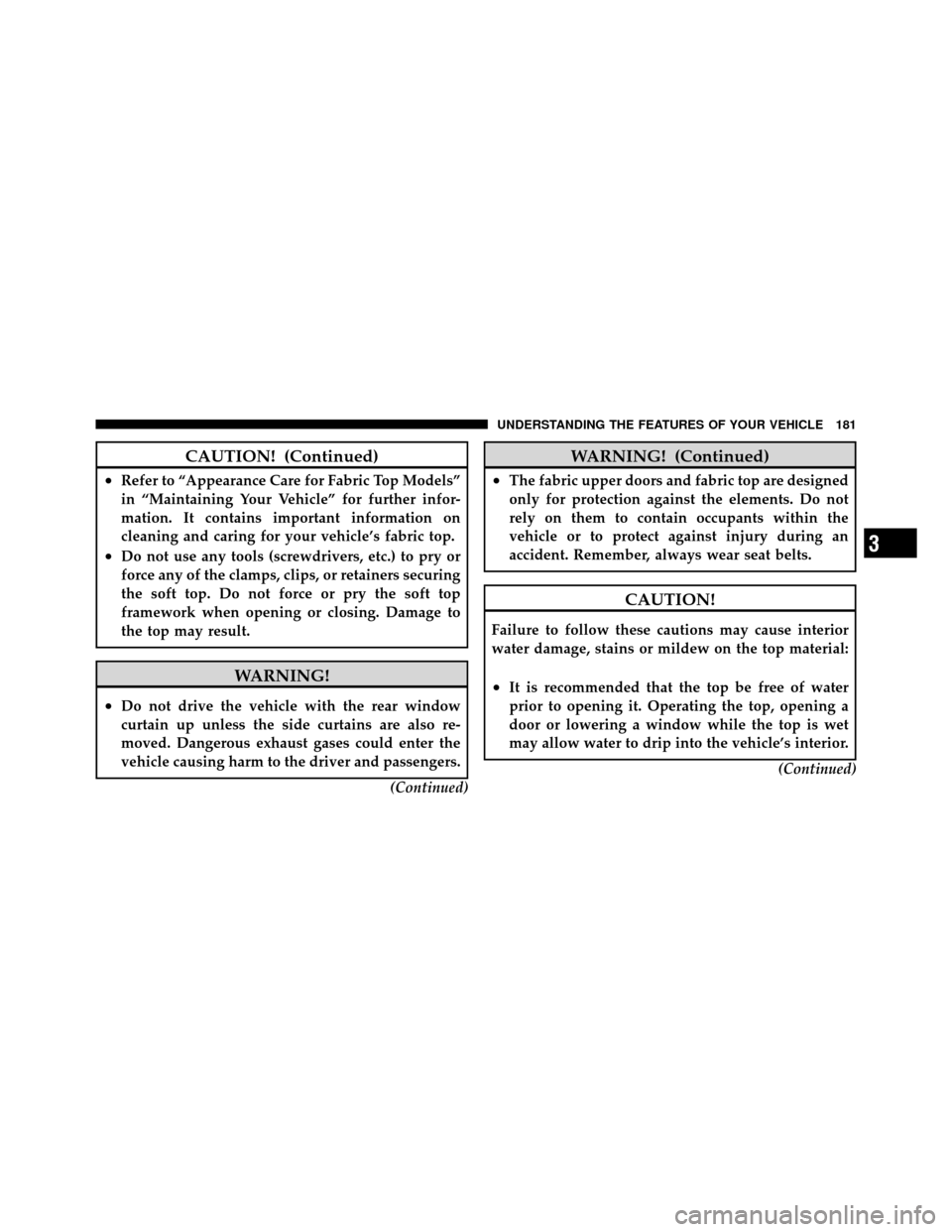

CAUTION! (Continued)
•Refer to “Appearance Care for Fabric Top Models”
in “Maintaining Your Vehicle” for further infor-
mation. It contains important information on
cleaning and caring for your vehicle’s fabric top.
•Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top
framework when opening or closing. Damage to
the top may result.
WARNING!
•Do not drive the vehicle with the rear window
curtain up unless the side curtains are also re-
moved. Dangerous exhaust gases could enter the
vehicle causing harm to the driver and passengers.(Continued)
WARNING! (Continued)
•The fabric upper doors and fabric top are designed
only for protection against the elements. Do not
rely on them to contain occupants within the
vehicle or to protect against injury during an
accident. Remember, always wear seat belts.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181

CAUTION! (Continued)
•Careless handling and storage of the soft top may
damage the seals, causing water to leak into the
vehicle’s interior.
•The soft top must be positioned properly to ensure
sealing. Improper installation can cause water to
leak into the vehicle’s interior.

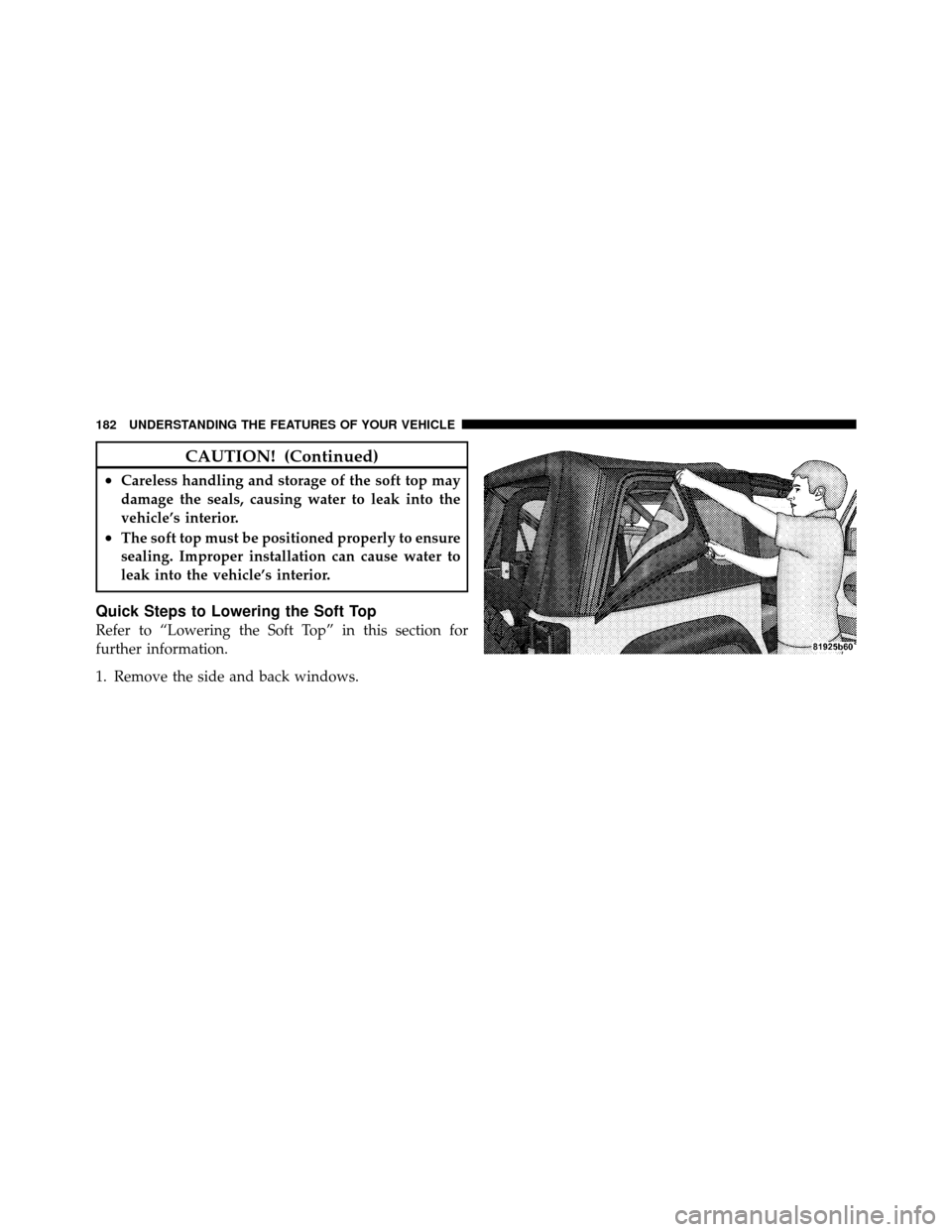

Quick Steps to Lowering the Soft Top
Refer to “Lowering the Soft Top” in this section for
further information.
1. Remove the side and back windows.
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

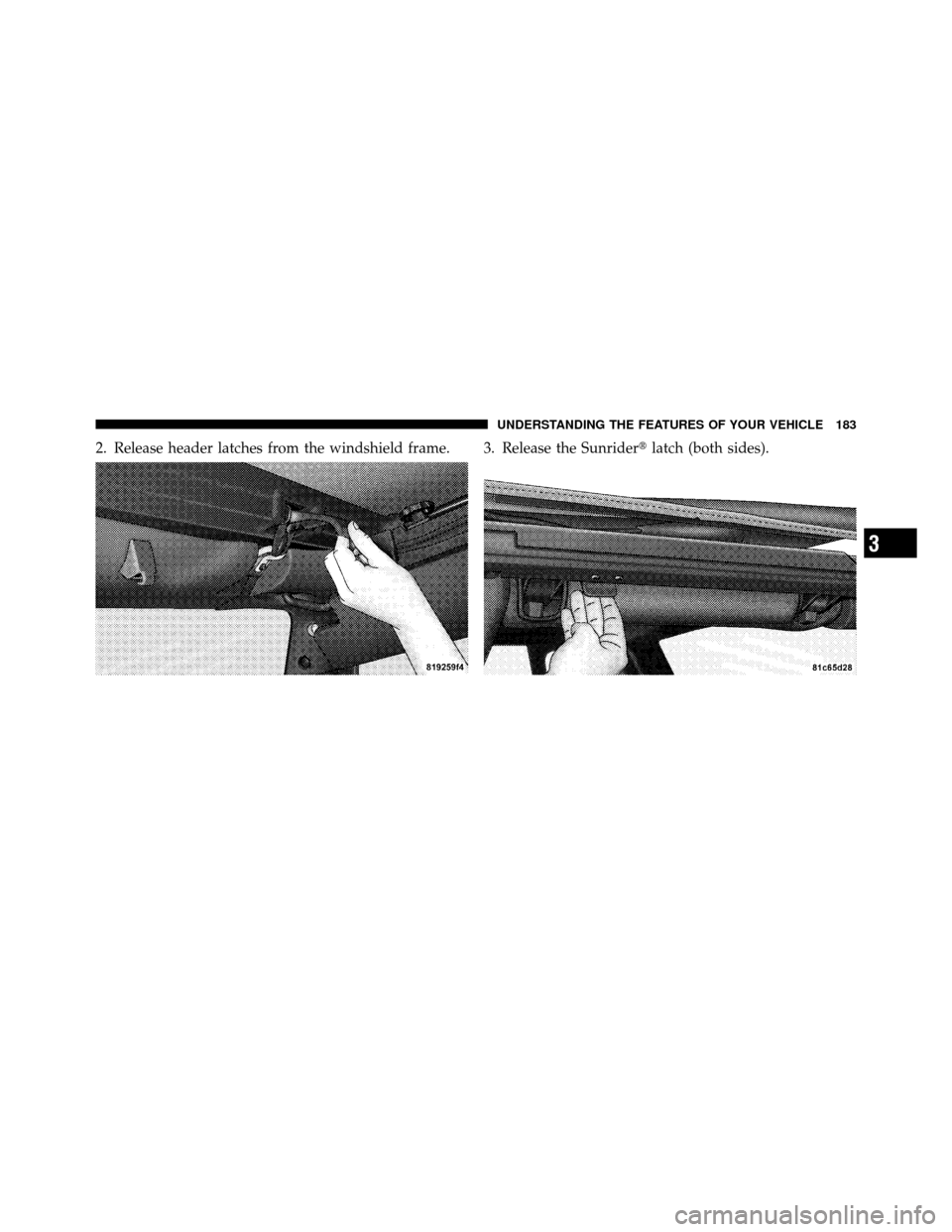

2. Release header latches from the windshield frame. 3. Release the Sunriderlatch (both sides).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183

4. Open the swing gate and lower the top.
NOTE:Ensure fabric does not overhang the sides of the
vehicle.Quick Steps to Raising the Soft Top
Refer to “Raising the Soft Top” in this section for further
information.
1. Open the swing gate and raise the top, engaging the
Sunrider latches (another person may be needed to help
with this operation).
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

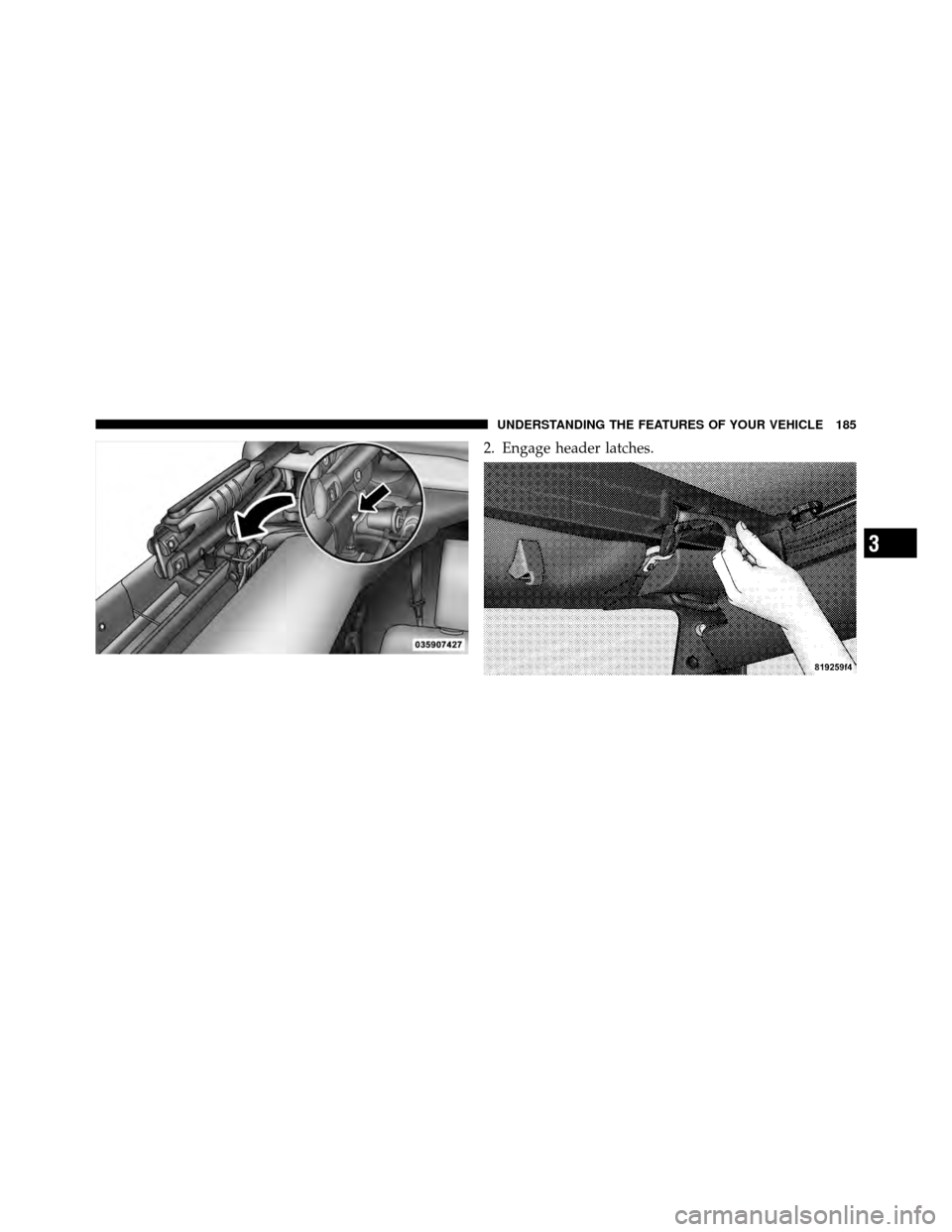

2. Engage header latches.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185

3. Install rear corner panels.4. Install side and back windows.
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

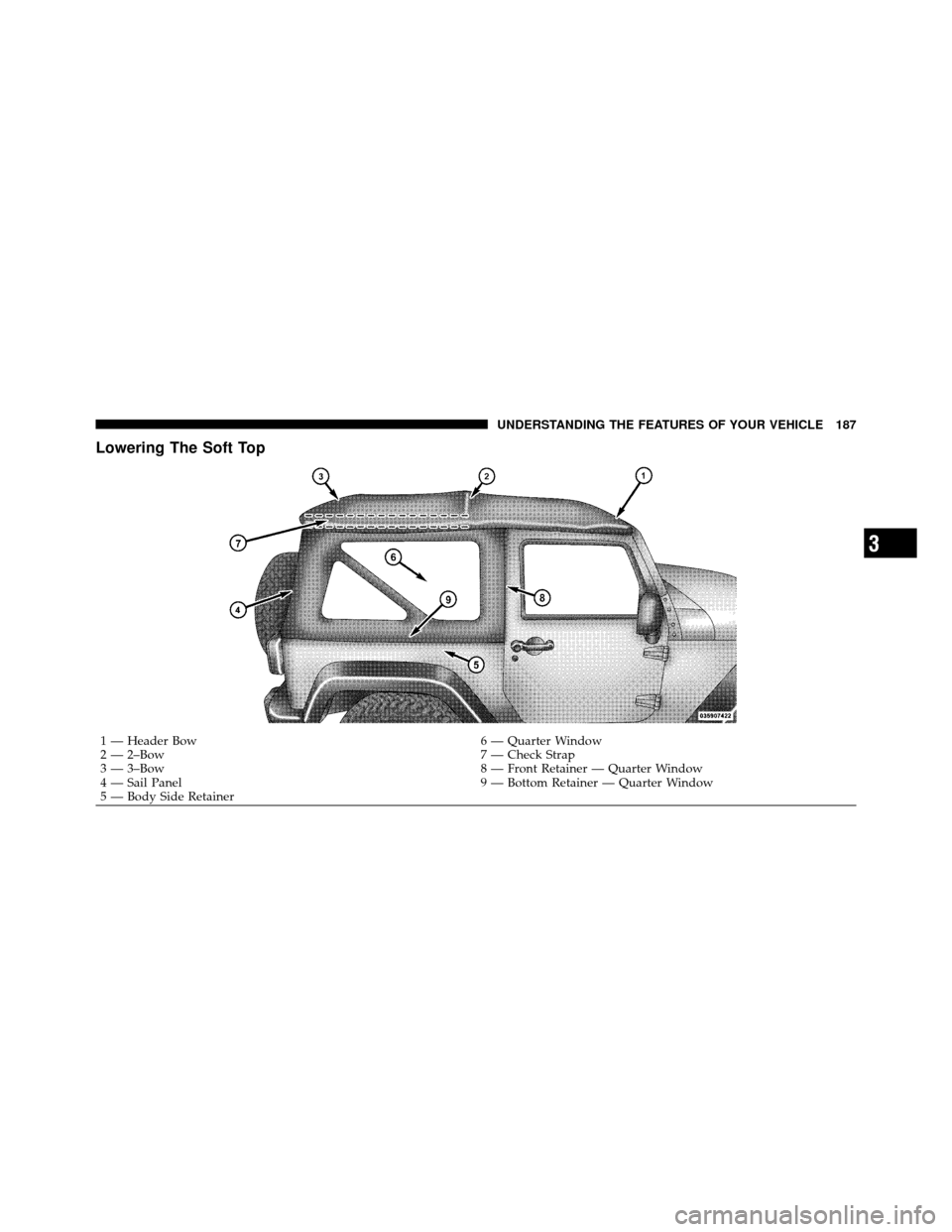

Lowering The Soft Top
1 — Header Bow6 — Quarter Window
2 — 2–Bow 7 — Check Strap
3 — 3–Bow 8 — Front Retainer — Quarter Window
4 — Sail Panel 9 — Bottom Retainer — Quarter Window
5 — Body Side Retainer
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187

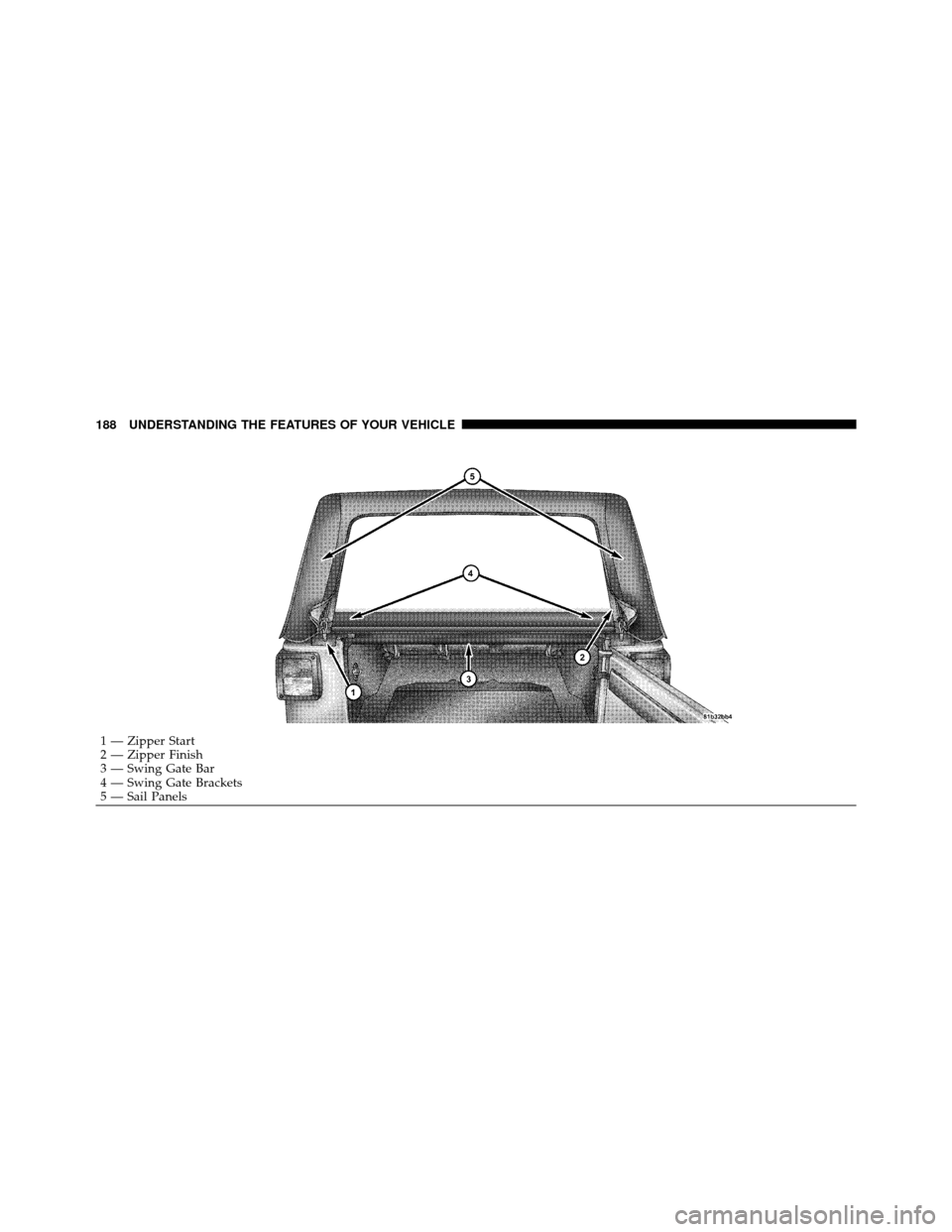

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

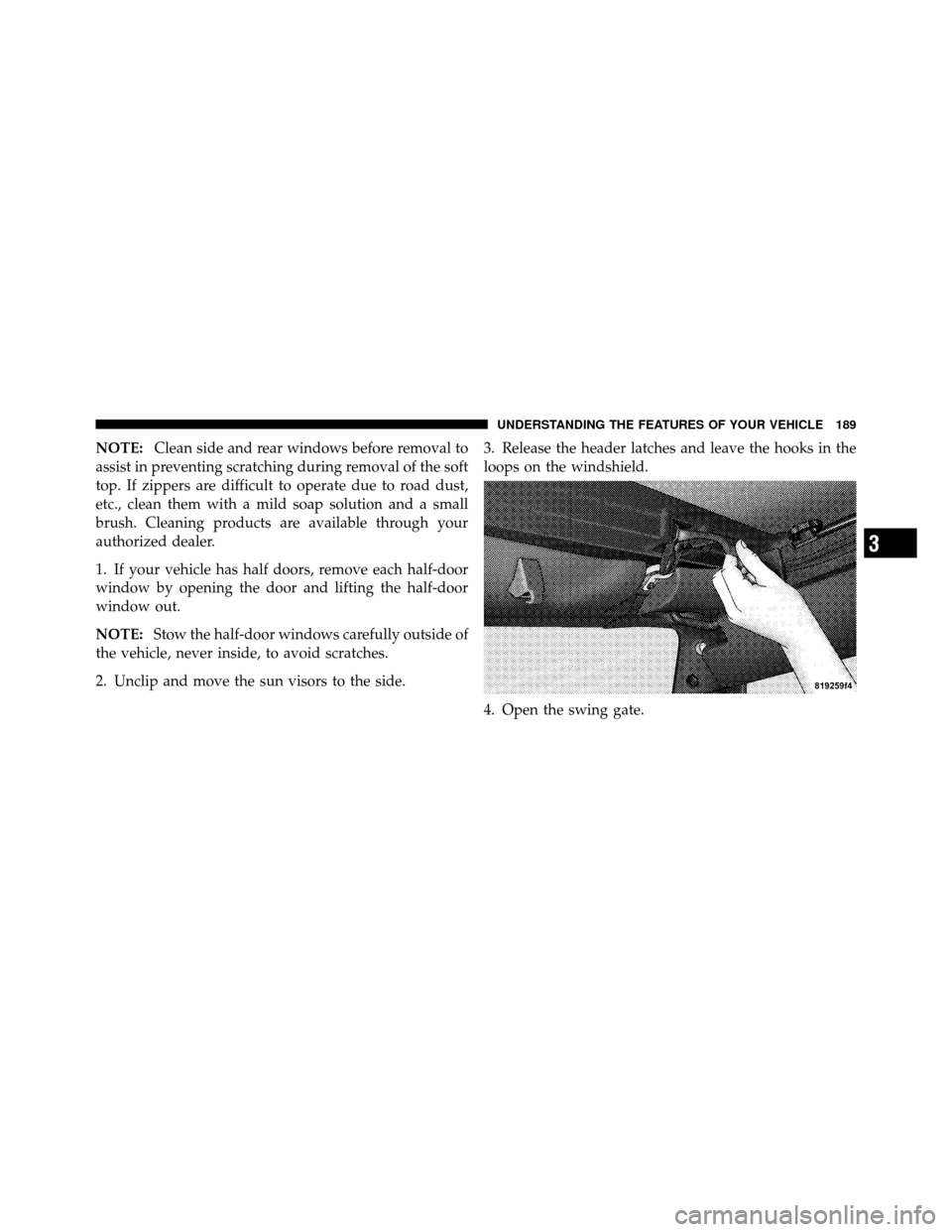

NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.
1. If your vehicle has half doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE: Stow the half-door windows carefully outside of
the vehicle, never inside, to avoid scratches.
2. Unclip and move the sun visors to the side. 3. Release the header latches and leave the hooks in the
loops on the windshield.
4. Open the swing gate.
3
