headlights JEEP WRANGLER 2010 Owners Manual

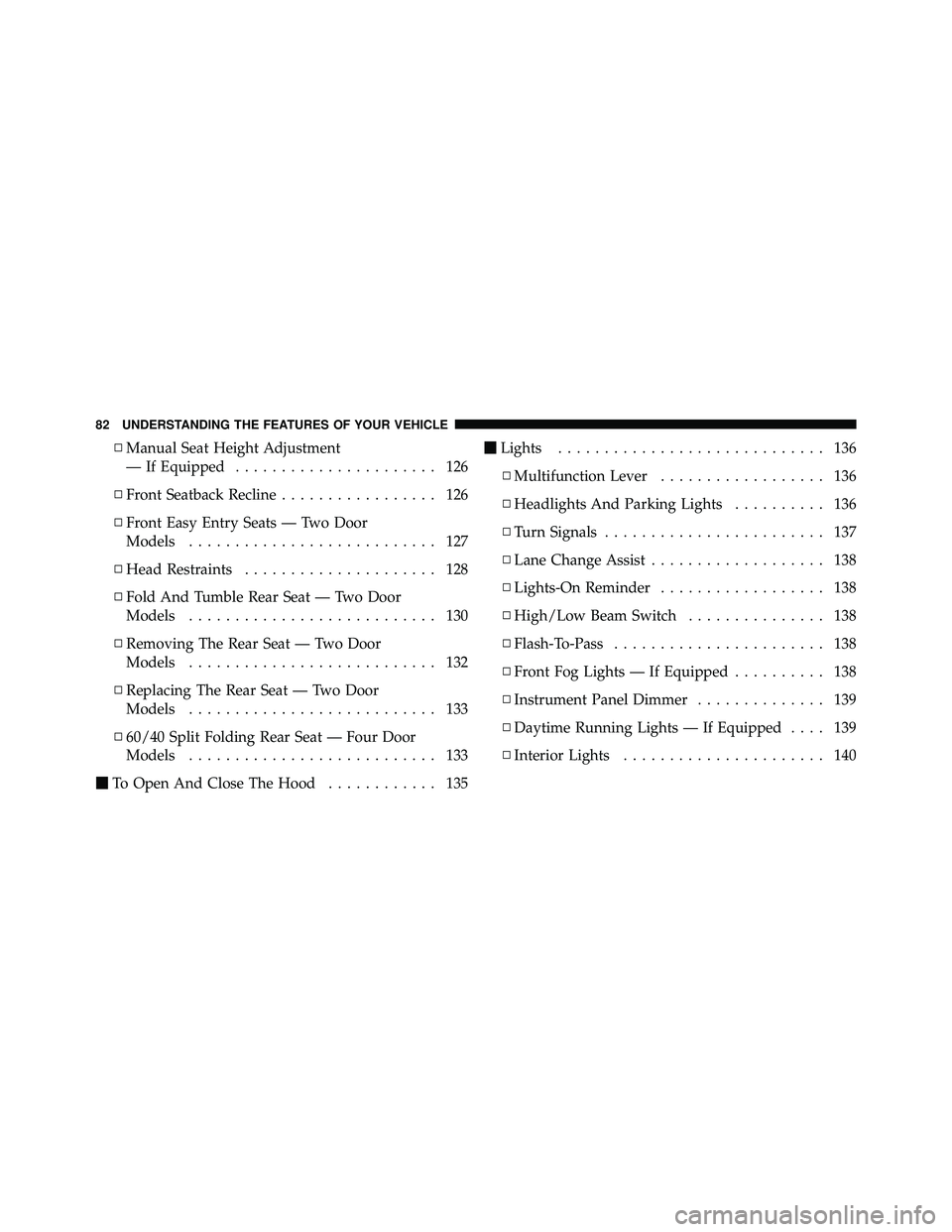

▫Manual Seat Height Adjustment
— If Equipped ...................... 126
▫ Front Seatback Recline ................. 126
▫ Front Easy Entry Seats — Two Door
Models ........................... 127
▫ Head Restraints ..................... 128
▫ Fold And Tumble Rear Seat — Two Door
Models ........................... 130
▫ Removing The Rear Seat — Two Door
Models ........................... 132
▫ Replacing The Rear Seat — Two Door
Models ........................... 133
▫ 60/40 Split Folding Rear Seat — Four Door
Models ........................... 133
 To Open And Close The Hood ............ 135
Lights ............................. 136
▫ Multifunction Lever .................. 136
▫ Headlights And Parking Lights .......... 136
▫ Turn Signals ........................ 137
▫ Lane Change Assist ................... 138
▫ Lights-On Reminder .................. 138
▫ High/Low Beam Switch ............... 138
▫ Flash-To-Pass ....................... 138
▫ Front Fog Lights — If Equipped .......... 138
▫ Instrument Panel Dimmer .............. 139
▫ Daytime Running Lights — If Equipped .... 139
▫ Interior Lights ...................... 140
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

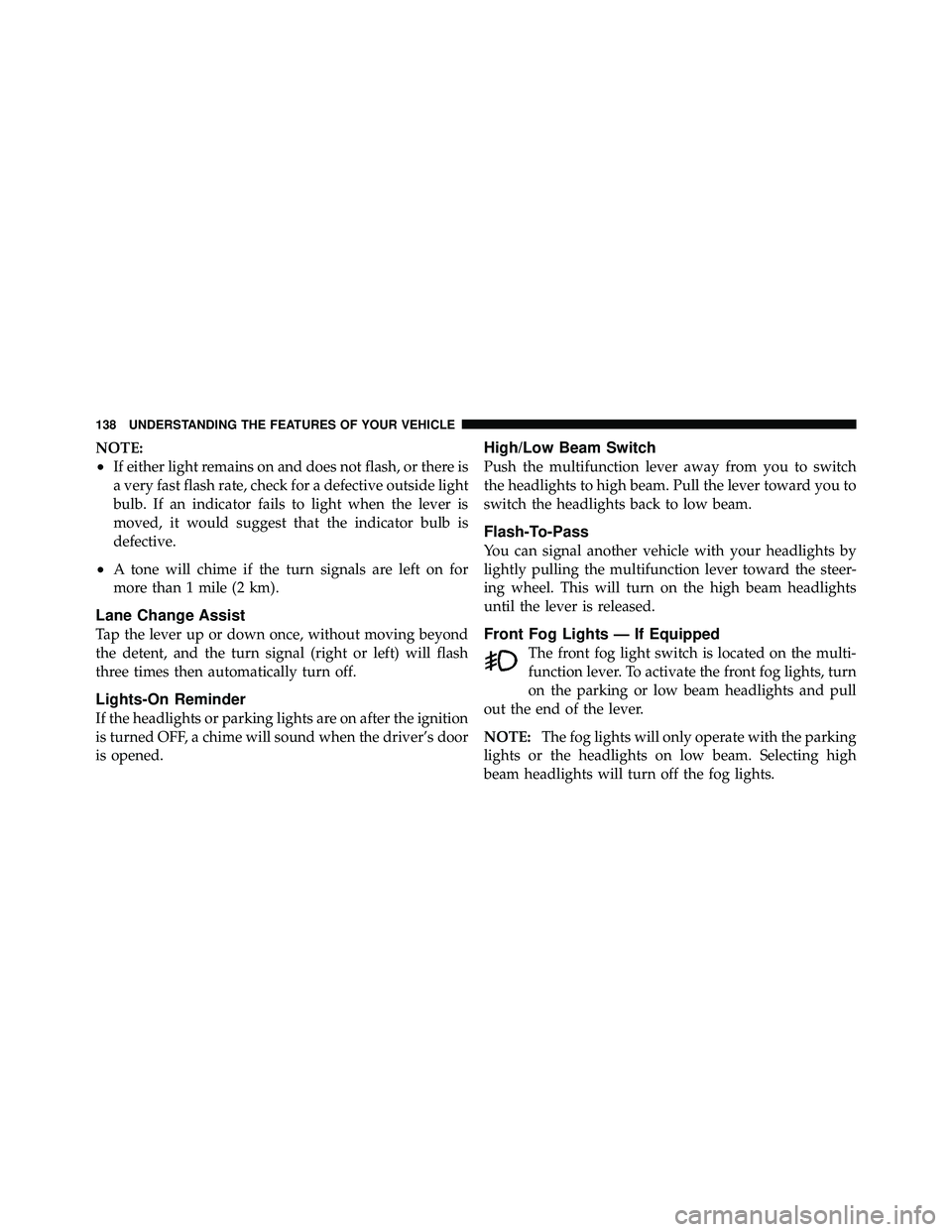

NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
•A tone will chime if the turn signals are left on for
more than 1 mile (2 km).
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound when the driver’s door
is opened.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will turn on the high beam headlights
until the lever is released.
Front Fog Lights — If Equipped
The front fog light switch is located on the multi-
function lever. To activate the front fog lights, turn
on the parking or low beam headlights and pull
out the end of the lever.
NOTE: The fog lights will only operate with the parking
lights or the headlights on low beam. Selecting high
beam headlights will turn off the fog lights.

Hands-Free Phone (Uconnect™).............. 88
HardTop ............................. 160
Hard Top, Modular ...................... 160
Hard Top Removal ....................... 168
Hazard Warning Flasher ................... 440
Head Restraints ......................... 128
Head Rests ............................ 128
Headlights Bulb Replacement ...................... 498
Dimmer Switch ....................... 138
Replacing ........................... 498
Switch .............................. 136
Heater ............................... 317
Heater, Engine Block ..................... 335
High Beam Indicator ..................... 247
Hill Start Assist ......................... 375
Hitches Trailer Towing ........................ 424
Holder, Cup ........................... 152 Hood Release
.......................... 135
Hydraulic Clutch Fluid .................... 480
Ignition ............................... 12
Key ................................ 12
Ignition Key Removal ..................... 12
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 14
Infant Restraint .......................... 62
Inflation Pressure Tires .................... 398
Inside Rearview Mirror .................... 86
Instrument Cluster ....................... 245
Instrument Panel and Controls .............. 244
Instrument Panel Lens Cleaning ............. 486
Integrated Power Module (Fuses) ............ 490
Interior Appearance Care .................. 485
Interior Lights .......................... 140
Intermittent Wipers (Delay Wipers) ........... 143
Introduction ............................. 4
542 INDEX

Electronic Throttle Control Warning......... 260
Engine Temperature Warning .............. 250
Exterior .............................. 79
Fog ............................. 138,499
Hazard Warning Flasher ................. 440
Headlight Switch ...................... 136
Headlights ........................... 498
High Beam .......................... 247
High Beam Indicator .................... 247
Instrument Cluster ..................... 136
Interior ............................. 140
Lights On Reminder .................... 138
Low Fuel ............................ 246
Oil Pressure .......................... 247
Passing ............................. 138
Rear Servicing ........................ 500
Rear Tail ............................ 500
Seat Belt Reminder ..................... 247
Security Alarm (Theft Alarm) .............. 250Service
............................. 498
Side Marker .......................... 500
Theft Alarm (Security Alarm) .............. 250
Tire Pressure Monitoring (TPMS) ........... 252
Turn Signal ................ 79,137,247,499,500
Voltage ............................. 246
Warning (Instrument Cluster Description) ..... 246
Loading Vehicle ......................... 418
Tires ............................... 393
Locking Axle ........................ 350,351
Locks Door ................................ 30
Power Door ........................... 31
Steering Wheel ......................... 13
Lower Anchors and Tether for CHildren
(LATCH) ............................ 67,69
Lubrication, Body ....................... 466
Maintenance Free Battery .................. 463
544 INDEX
