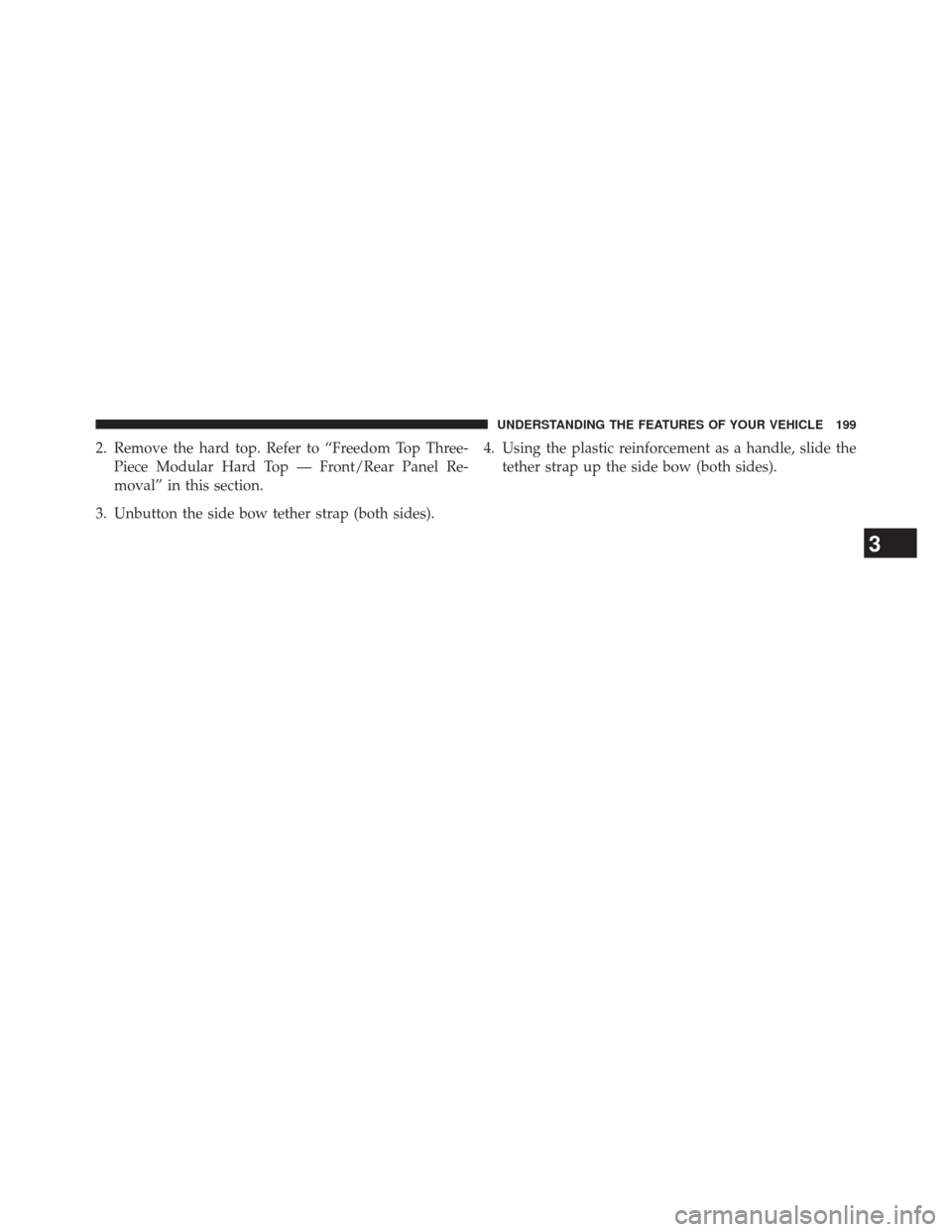

2. Remove the hard top. Refer to “Freedom Top Three-Piece Modular Hard Top — Front/Rear Panel Re-
moval” in this section.
3. Unbutton the side bow tether strap (both sides). 4. Using the plastic reinforcement as a handle, slide the
tether strap up the side bow (both sides).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199

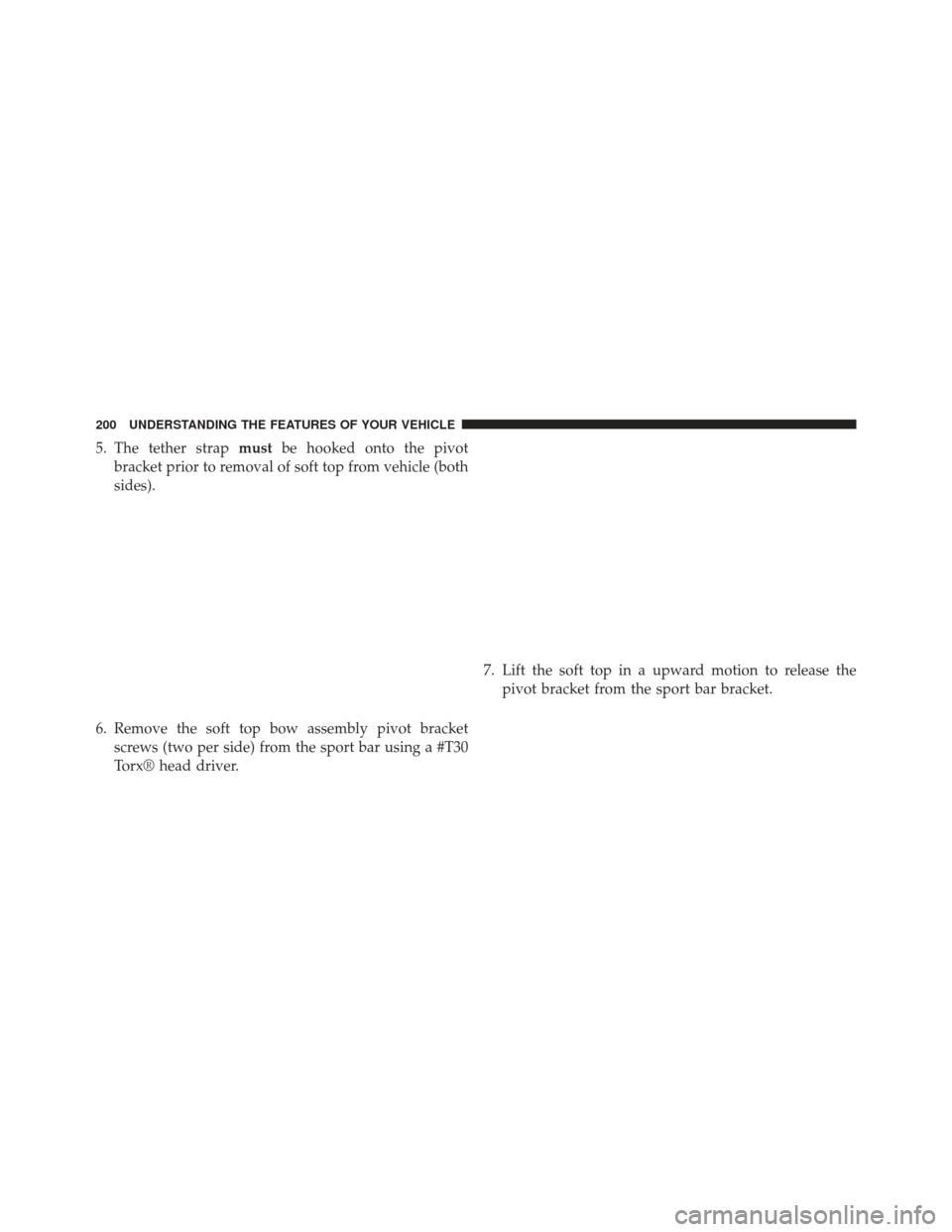

5. The tether strapmustbe hooked onto the pivot
bracket prior to removal of soft top from vehicle (both
sides).
6. Remove the soft top bow assembly pivot bracket screws (two per side) from the sport bar using a #T30
Torx® head driver. 7. Lift the soft top in a upward motion to release the
pivot bracket from the sport bar bracket.
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

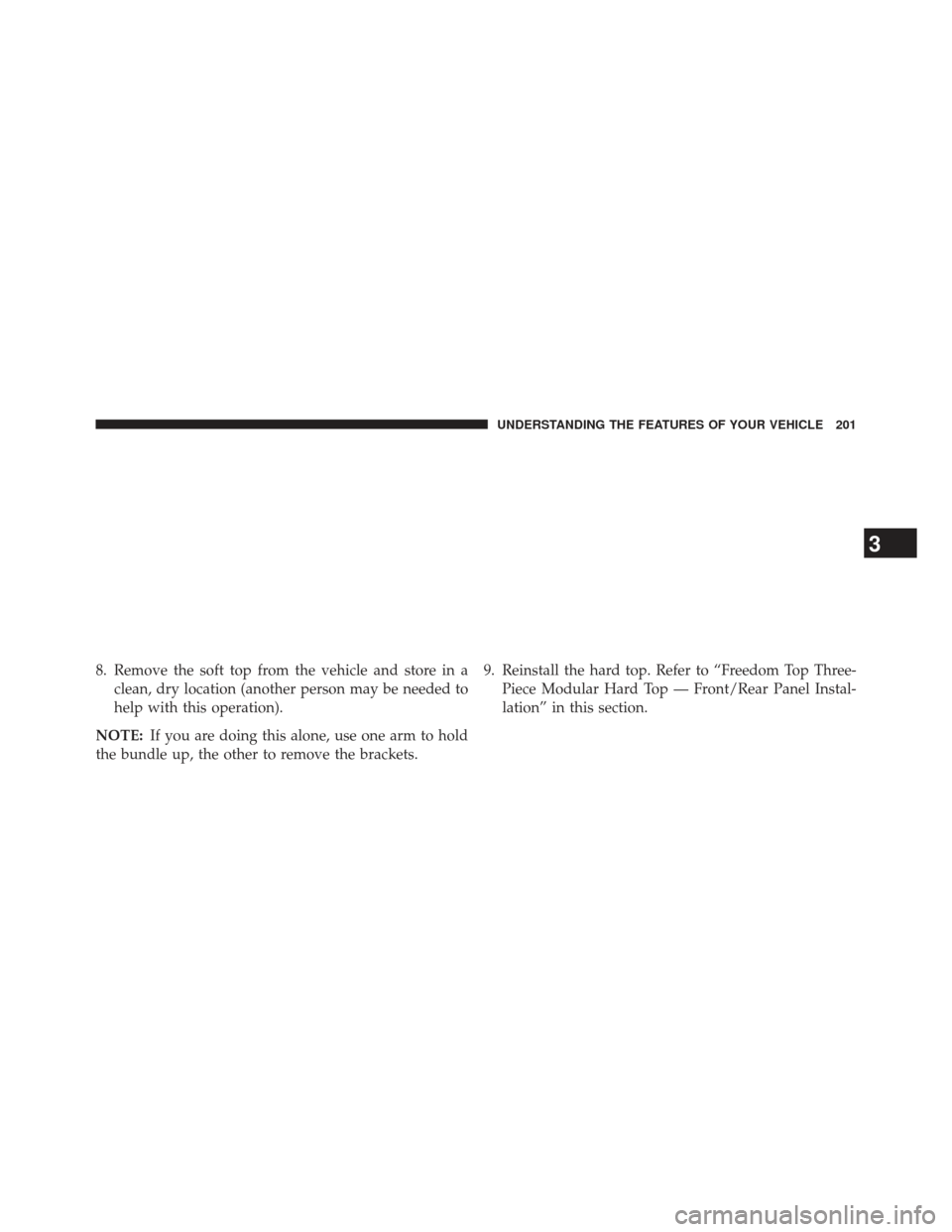

8. Remove the soft top from the vehicle and store in aclean, dry location (another person may be needed to
help with this operation).
NOTE: If you are doing this alone, use one arm to hold
the bundle up, the other to remove the brackets. 9. Reinstall the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Instal-
lation” in this section.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201

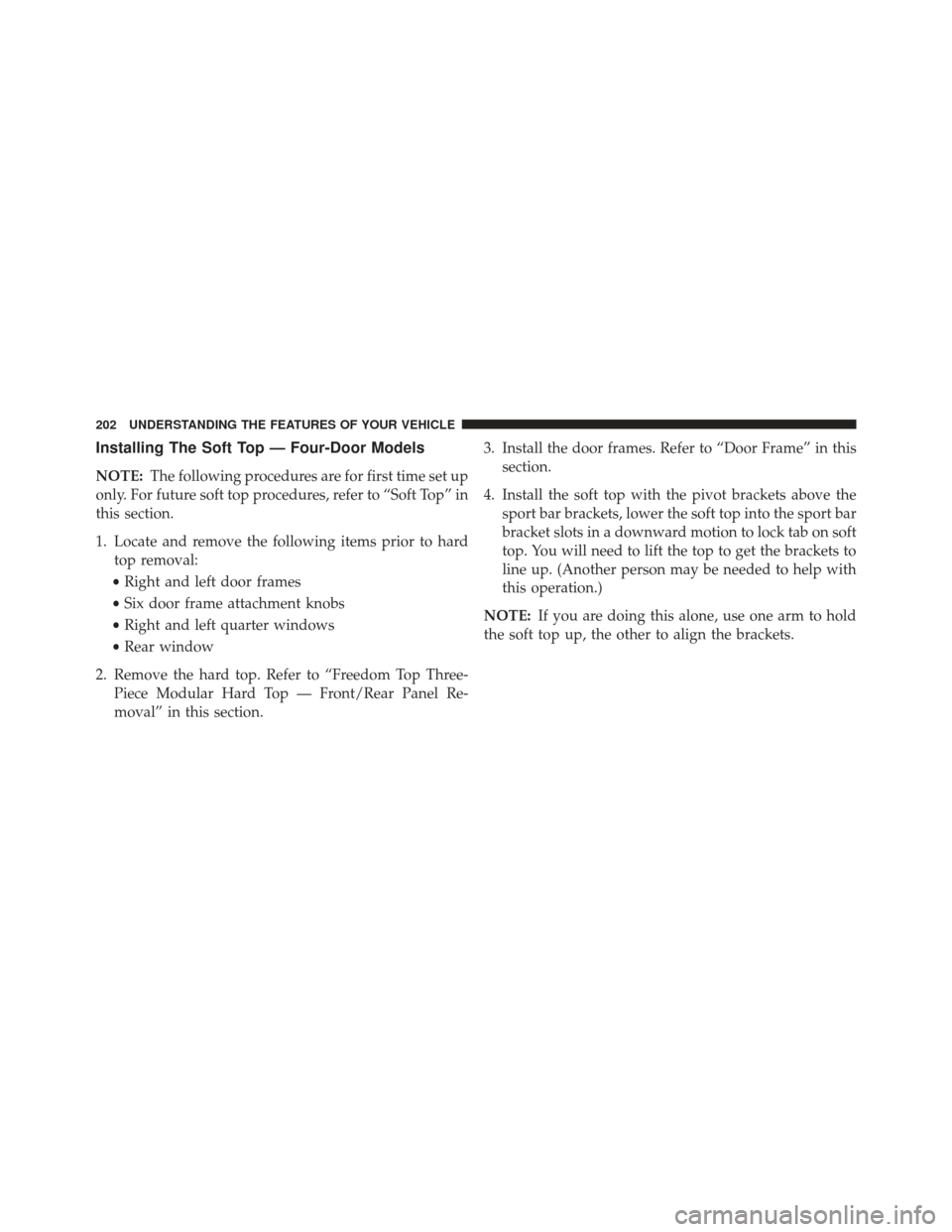

Installing The Soft Top — Four-Door Models
NOTE:The following procedures are for first time set up
only. For future soft top procedures, refer to “Soft Top” in
this section.
1. Locate and remove the following items prior to hard top removal:
• Right and left door frames
• Six door frame attachment knobs
• Right and left quarter windows
• Rear window
2. Remove the hard top. Refer to “Freedom Top Three- Piece Modular Hard Top — Front/Rear Panel Re-
moval” in this section. 3. Install the door frames. Refer to “Door Frame” in this
section.
4. Install the soft top with the pivot brackets above the sport bar brackets, lower the soft top into the sport bar
bracket slots in a downward motion to lock tab on soft
top. You will need to lift the top to get the brackets to
line up. (Another person may be needed to help with
this operation.)
NOTE: If you are doing this alone, use one arm to hold
the soft top up, the other to align the brackets.
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

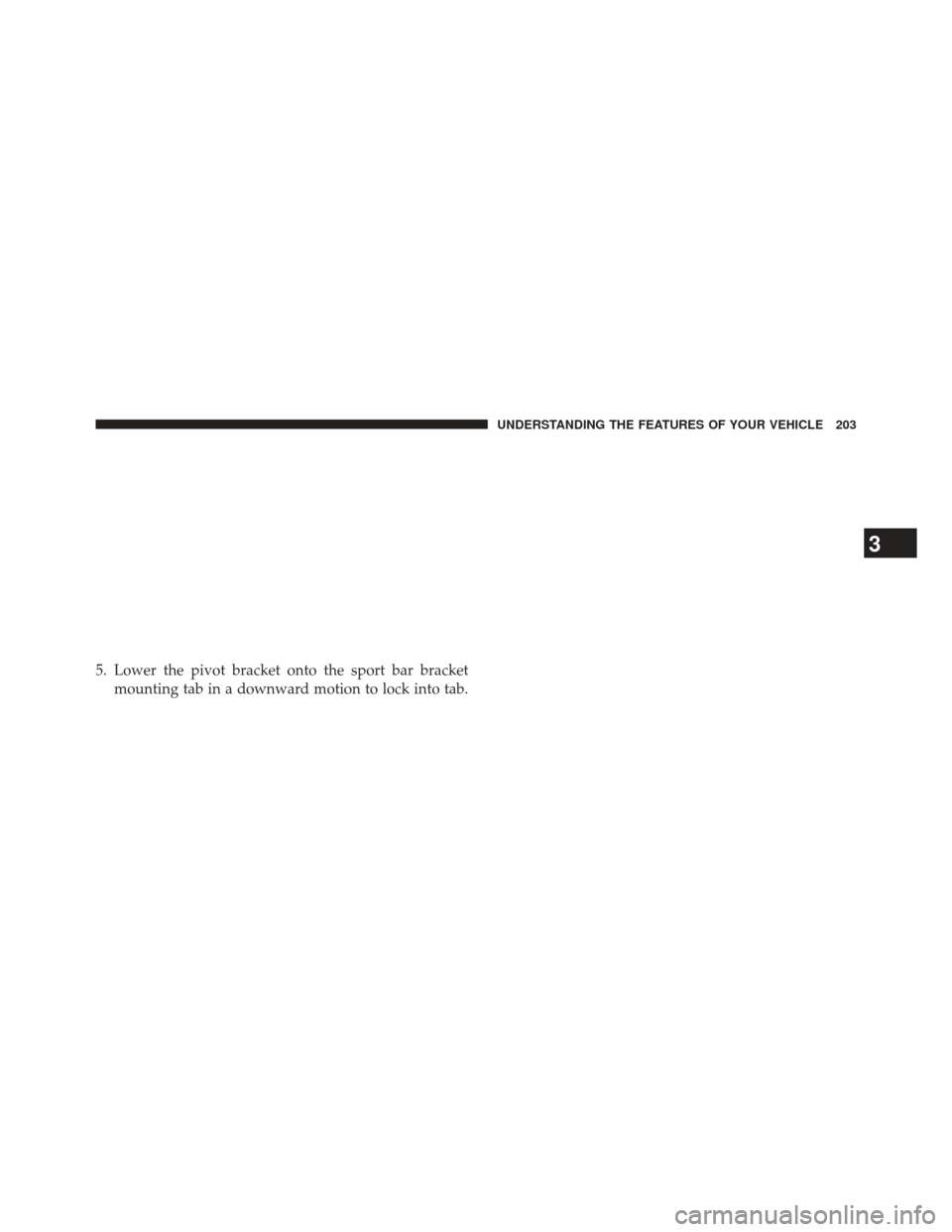

5. Lower the pivot bracket onto the sport bar bracketmounting tab in a downward motion to lock into tab.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203

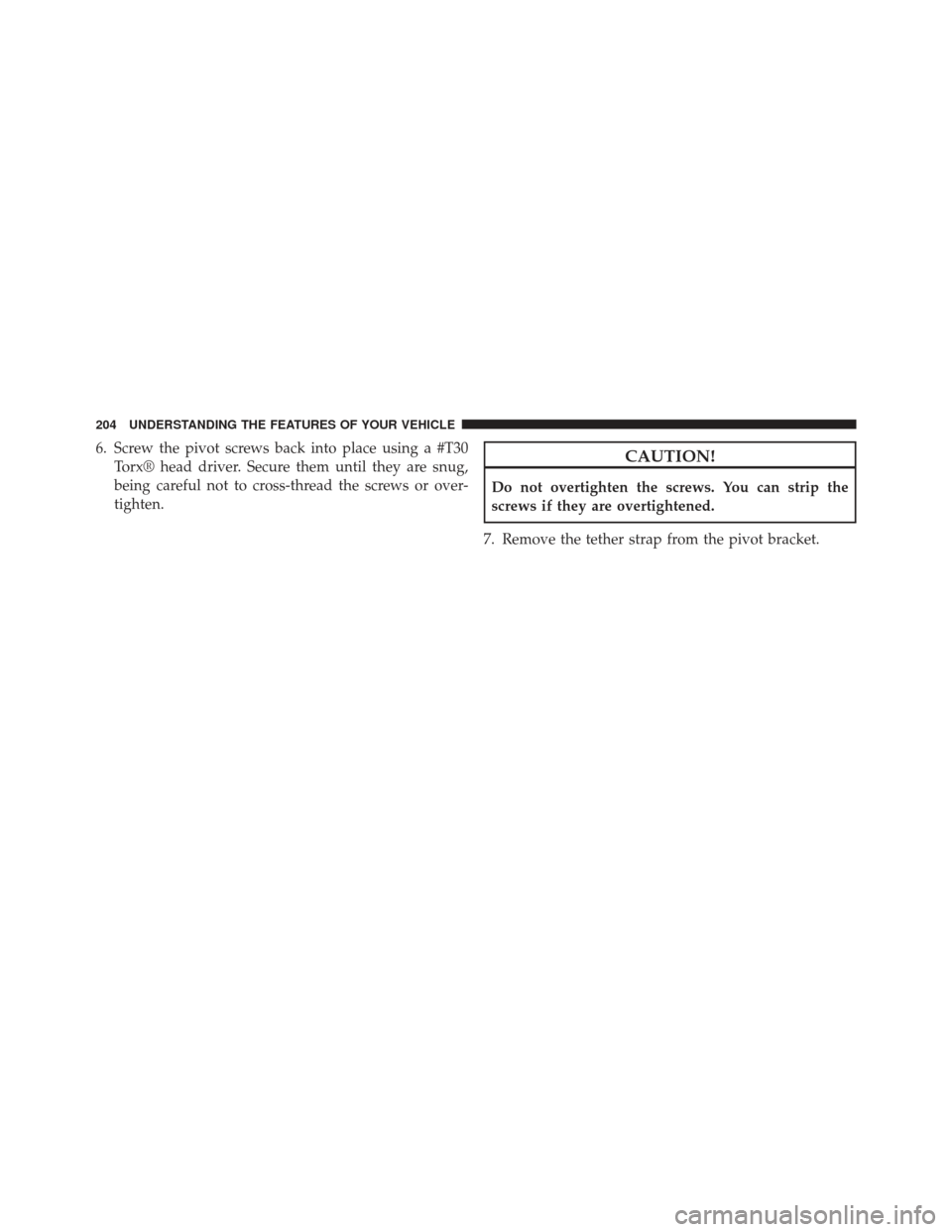

6. Screw the pivot screws back into place using a #T30Torx® head driver. Secure them until they are snug,
being careful not to cross-thread the screws or over-
tighten.CAUTION!
Do not overtighten the screws. You can strip the
screws if they are overtightened.
7. Remove the tether strap from the pivot bracket.
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

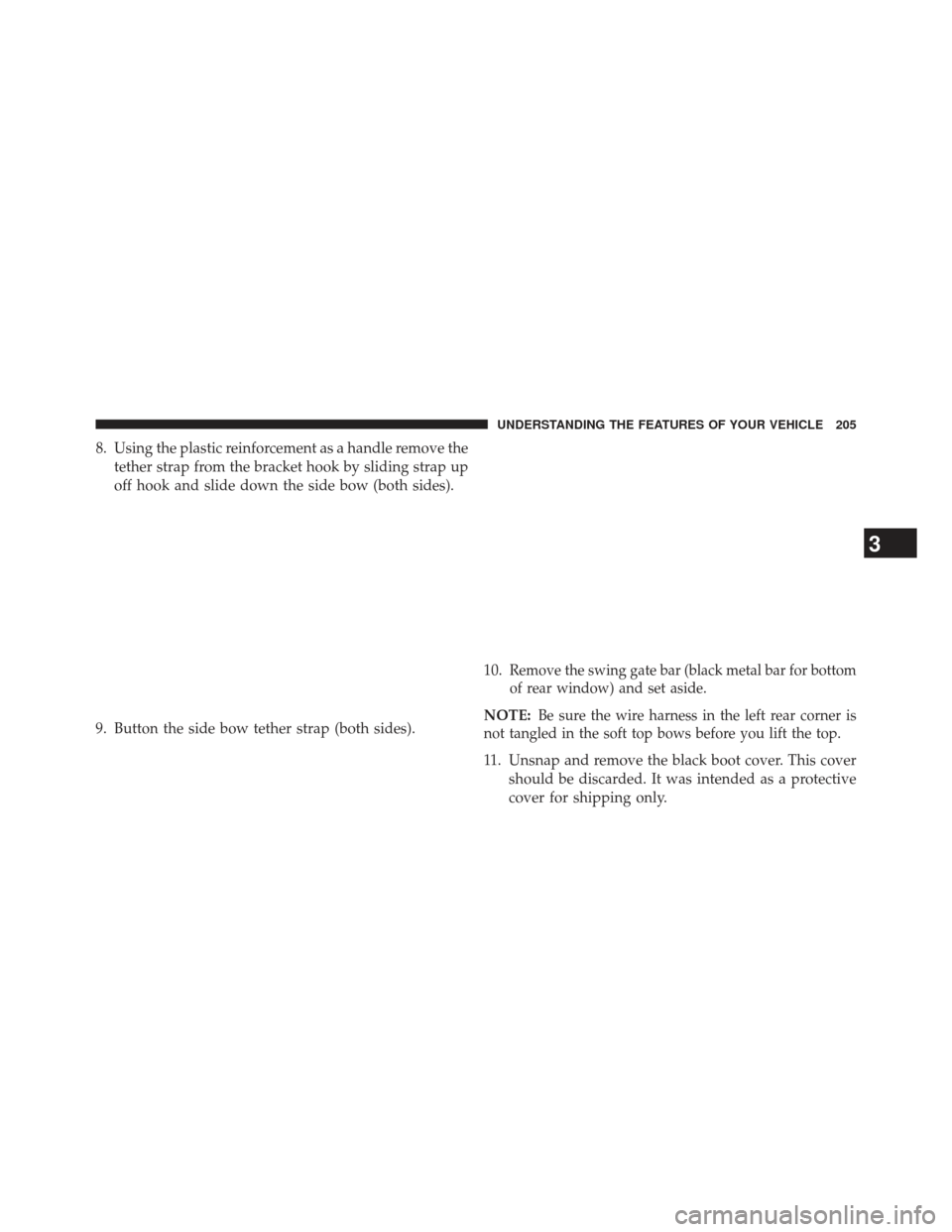

8. Using the plastic reinforcement as a handle remove thetether strap from the bracket hook by sliding strap up
off hook and slide down the side bow (both sides).
9. Button the side bow tether strap (both sides). 10.
Remove the swing gate bar (black metal bar for bottom
of rear window) and set aside.
NOTE:Be sure the wire harness in the left rear corner is
not tangled in the soft top bows before you lift the top.
11. Unsnap and remove the black boot cover. This cover
should be discarded. It was intended as a protective
cover for shipping only.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205

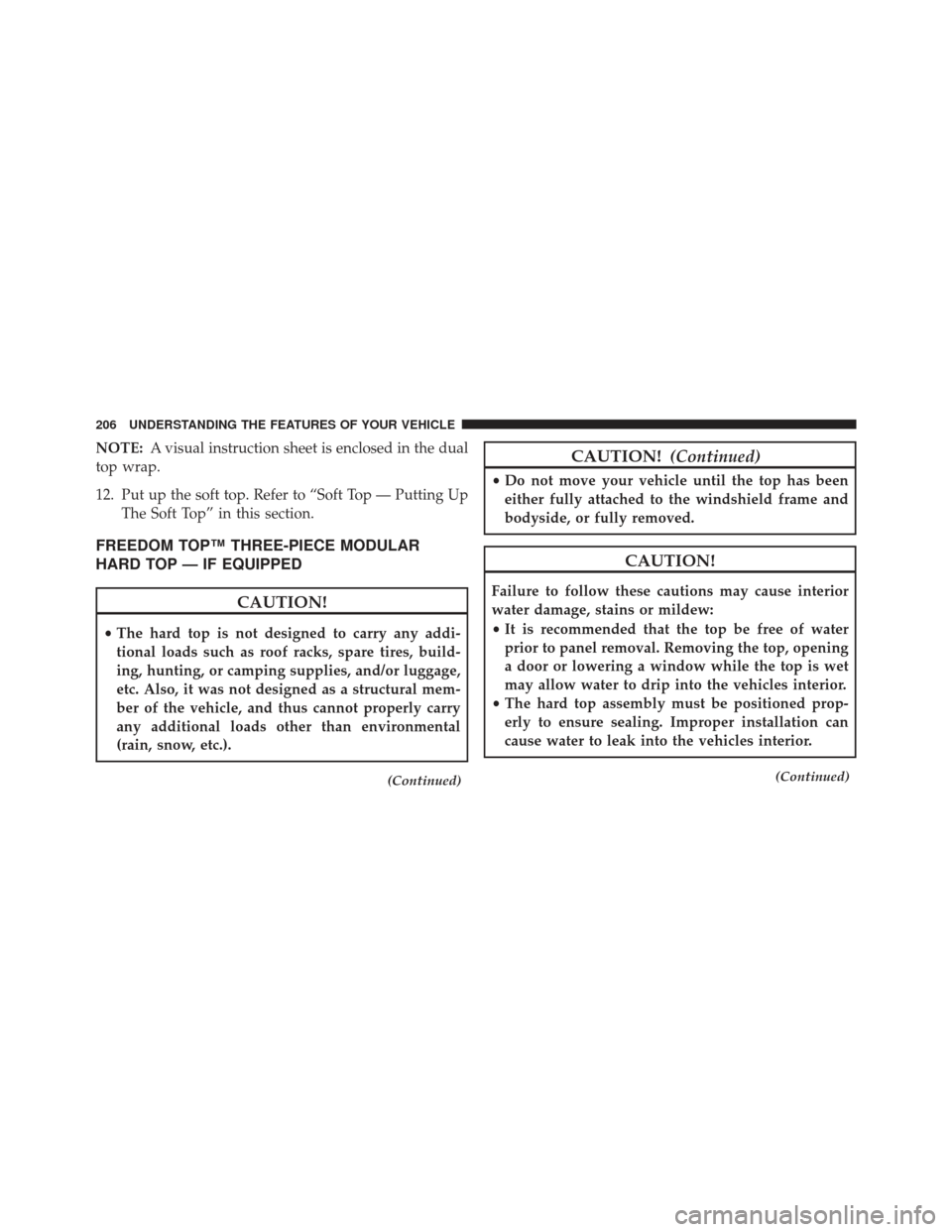

NOTE:A visual instruction sheet is enclosed in the dual
top wrap.
12. Put up the soft top. Refer to “Soft Top — Putting Up The Soft Top” in this section.
FREEDOM TOP™ THREE-PIECE MODULAR
HARD TOP — IF EQUIPPED
CAUTION!
•The hard top is not designed to carry any addi-
tional loads such as roof racks, spare tires, build-
ing, hunting, or camping supplies, and/or luggage,
etc. Also, it was not designed as a structural mem-
ber of the vehicle, and thus cannot properly carry
any additional loads other than environmental
(rain, snow, etc.).
(Continued)
CAUTION! (Continued)
•Do not move your vehicle until the top has been
either fully attached to the windshield frame and
bodyside, or fully removed.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew:
• It is recommended that the top be free of water
prior to panel removal. Removing the top, opening
a door or lowering a window while the top is wet
may allow water to drip into the vehicles interior.
• The hard top assembly must be positioned prop-
erly to ensure sealing. Improper installation can
cause water to leak into the vehicles interior.
(Continued)
206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

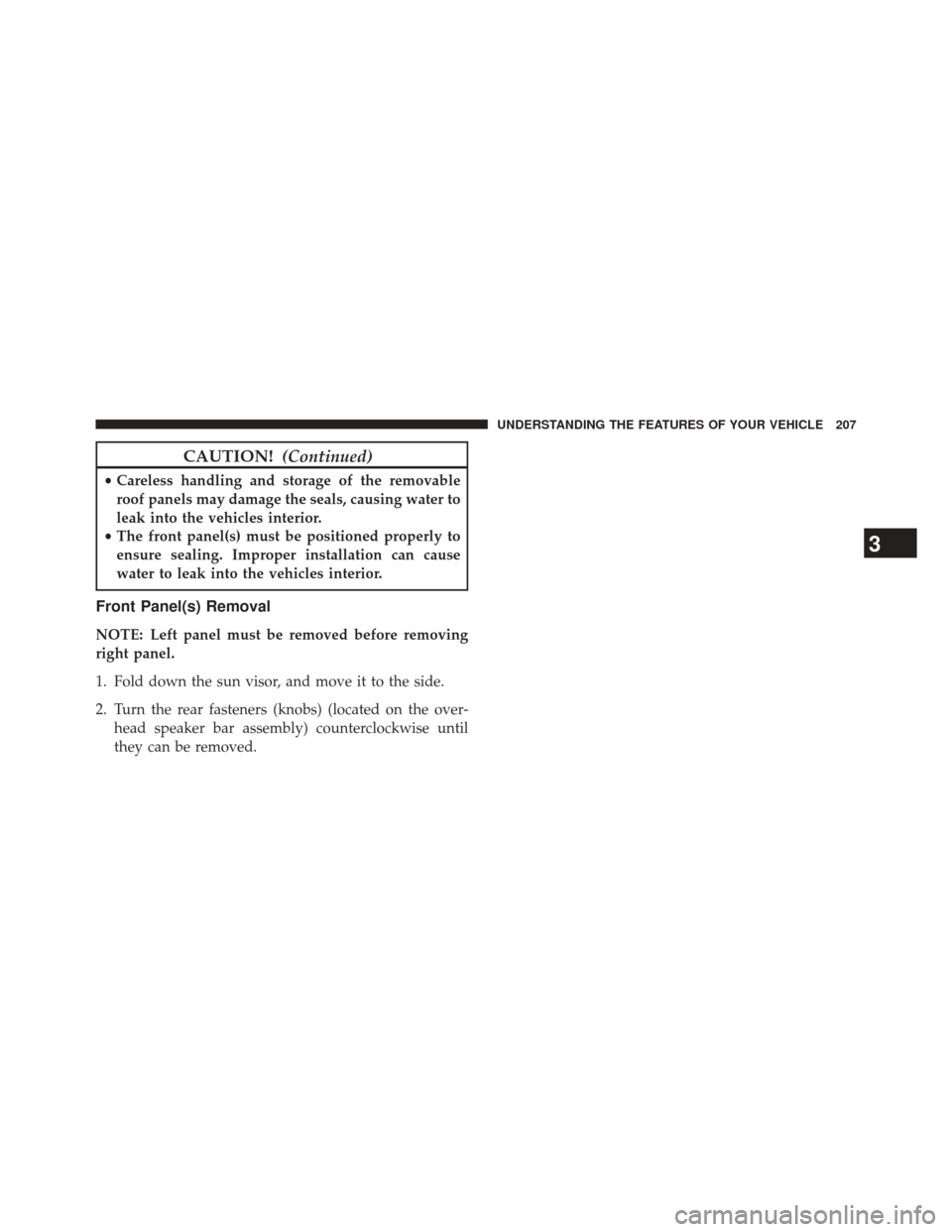

CAUTION!(Continued)
•Careless handling and storage of the removable
roof panels may damage the seals, causing water to
leak into the vehicles interior.
• The front panel(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicles interior.
Front Panel(s) Removal
NOTE: Left panel must be removed before removing
right panel.
1. Fold down the sun visor, and move it to the side.
2. Turn the rear fasteners (knobs) (located on the over- head speaker bar assembly) counterclockwise until
they can be removed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207

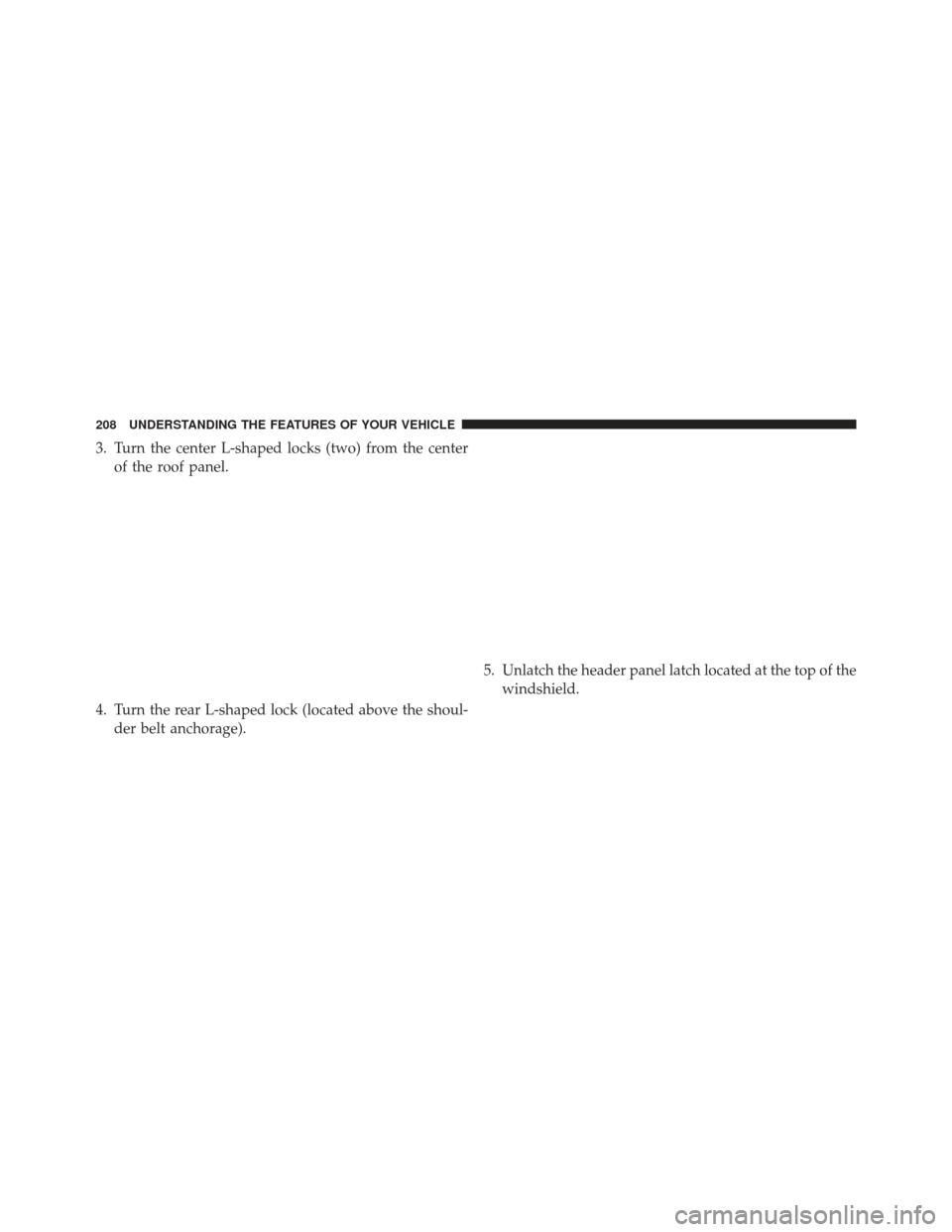

3. Turn the center L-shaped locks (two) from the centerof the roof panel.
4. Turn the rear L-shaped lock (located above the shoul- der belt anchorage). 5. Unlatch the header panel latch located at the top of the
windshield.
