9. Partially install the sail panel retainers into the bodyside channel, leaving the last 3 in (7.6 cm) toward the
rear window loose (on both sides). Pulling down on
the rear roof bow (3–bow) will aid to reach the channel
with the retainers. 10. To install the side windows, affix the window tem-
porarily by attaching to the Velcro® in the rear
corner. Start the zipper but close only about 1 in
(2.5 cm).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 249

11. Insert the front retainer of the window into the doorchannel, making sure the retainer is fully seated and
properly positioned on the door frame. Failure to do
so can result in wind and water leaks or damage to
the window.
1 — Incorrect Insertion
2 — Correct Insertion
250 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

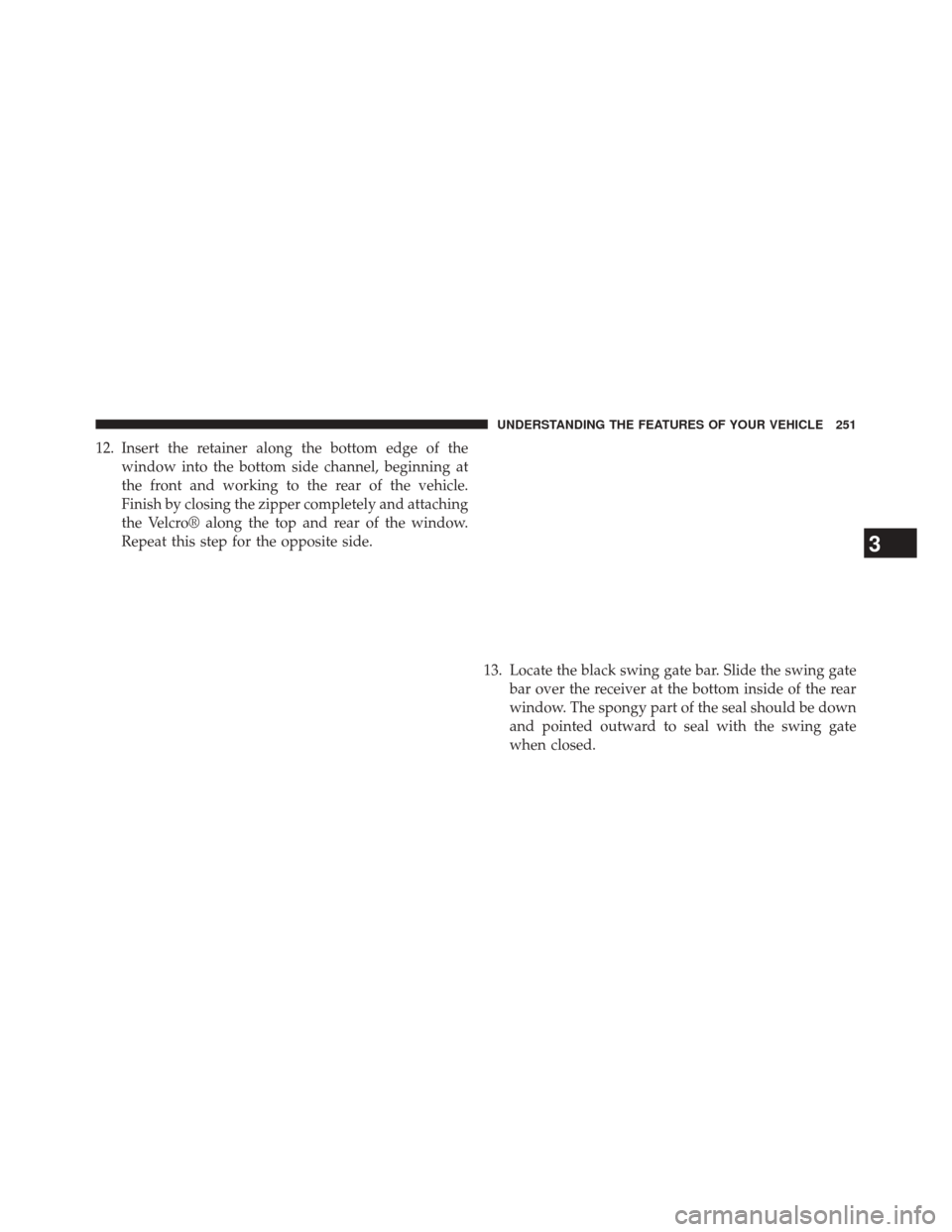

12. Insert the retainer along the bottom edge of thewindow into the bottom side channel, beginning at
the front and working to the rear of the vehicle.
Finish by closing the zipper completely and attaching
the Velcro® along the top and rear of the window.
Repeat this step for the opposite side.
13. Locate the black swing gate bar. Slide the swing gatebar over the receiver at the bottom inside of the rear
window. The spongy part of the seal should be down
and pointed outward to seal with the swing gate
when closed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 251

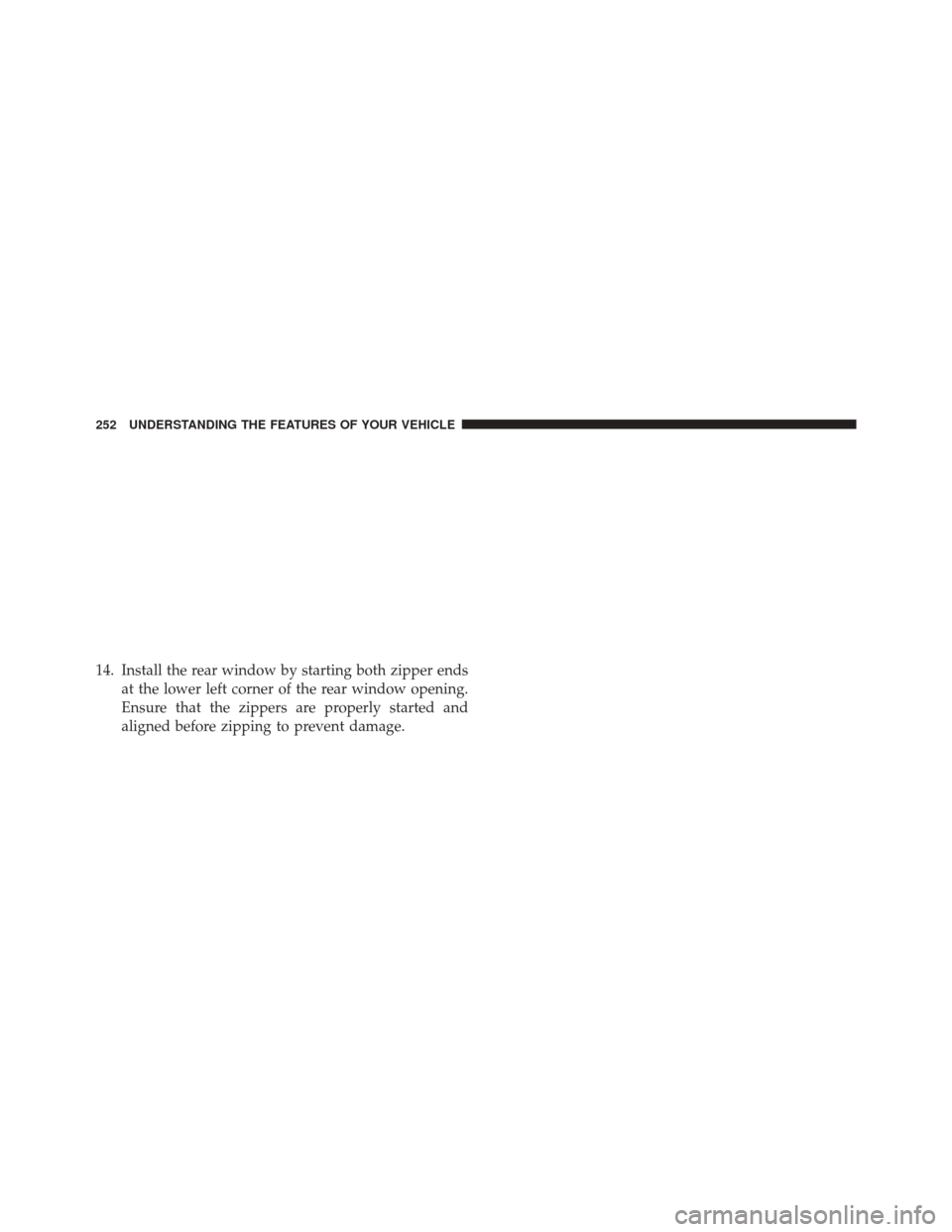

14. Install the rear window by starting both zipper endsat the lower left corner of the rear window opening.
Ensure that the zippers are properly started and
aligned before zipping to prevent damage.
252 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

15. Run the zipper fully around to the right side of thewindow.
16. Grasp the swing gate bar and position it into the swing gate brackets. 17. Insert the rear window retainer into the swing gate
bracket on both the left and right sides.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 253

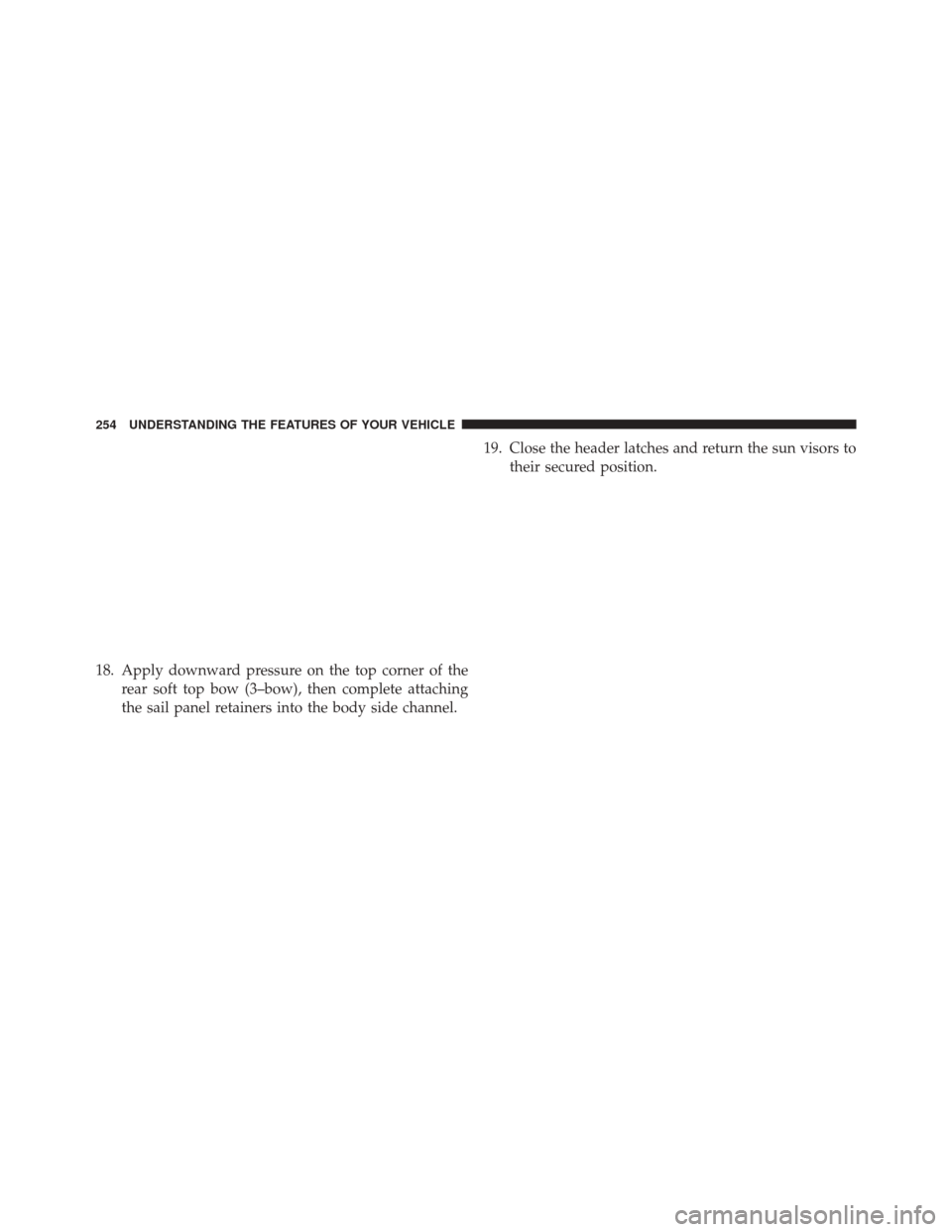

18. Apply downward pressure on the top corner of therear soft top bow (3–bow), then complete attaching
the sail panel retainers into the body side channel. 19. Close the header latches and return the sun visors to
their secured position.
254 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

SOFT TOP — FOUR-DOOR MODELS
Please visit the owners manual on your DVD for
instructional videos.
CAUTION!
The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunt-
ing, or camping supplies, and/or luggage, etc. Also, it
was not designed as a structural member of the
vehicle, and thus cannot properly carry any addi-
tional loads other than environmental (rain, snow,
etc.).
If the temperature is below 72°F (24°C) and/or the top
has been folded down for a period of time, the top will
appear to have shrunk when you raise it, making it
difficult to put up. This is caused by a natural contraction
of the vinyl coating on the fabric top. Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and
the top can then be snapped into place.
If the tempera-
ture is 41°F (5°C) or below, do not attempt to put the top
down or roll the rear or side curtains.CAUTION!
• Do not run a fabric top through an automatic car
wash. Window scratches and wax buildup may
result.
• Do not lower the top when the temperature is
below 41°F (5°C). Damage to the top may result.
• Do not lower the top when the windows are dirty.
Grit may scratch the window.
• Do not move your vehicle until the top has been
either fully attached to the windshield frame, or
fully lowered.
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 255

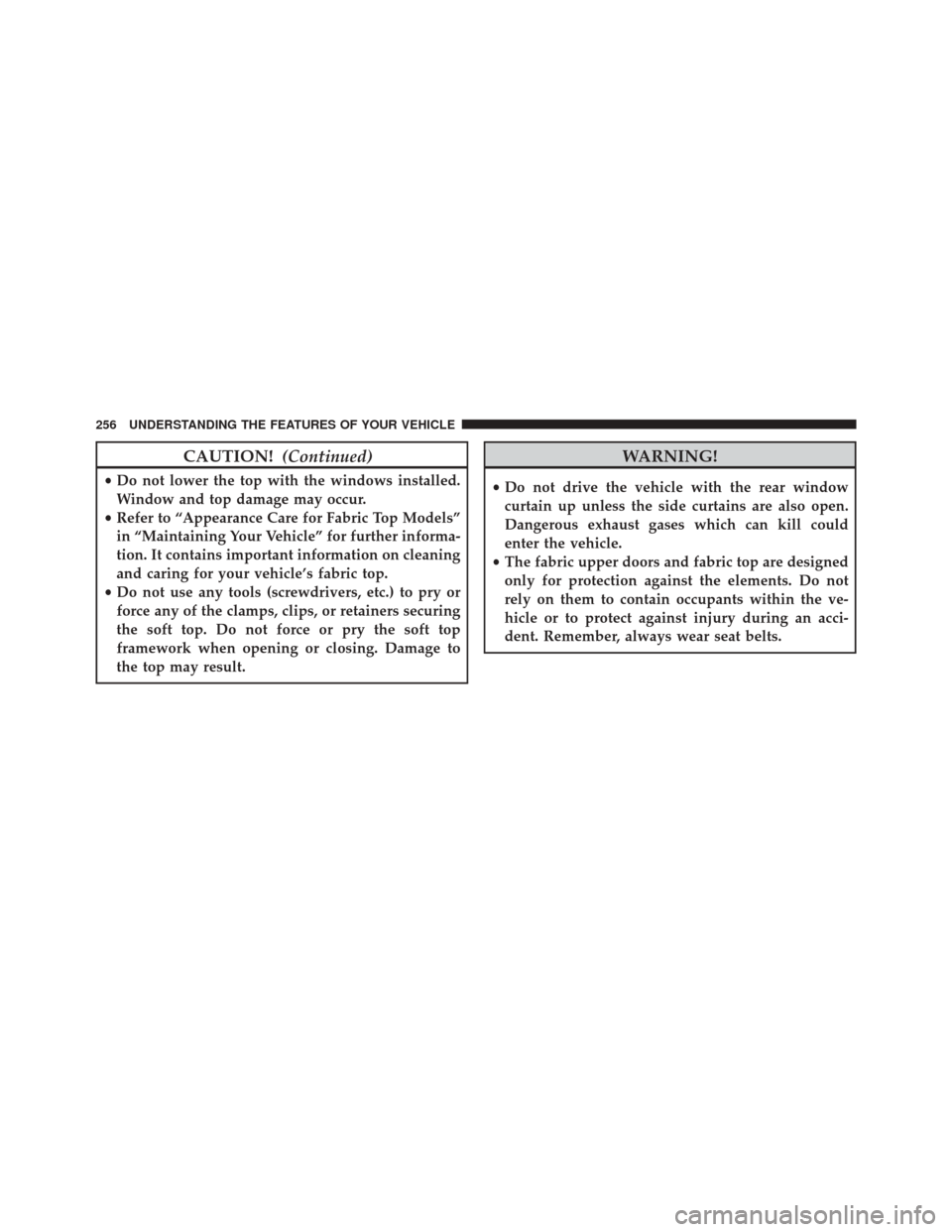

CAUTION!(Continued)
•Do not lower the top with the windows installed.
Window and top damage may occur.
• Refer to “Appearance Care for Fabric Top Models”
in “Maintaining Your Vehicle” for further informa-
tion. It contains important information on cleaning
and caring for your vehicle’s fabric top.
• Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top
framework when opening or closing. Damage to
the top may result.
WARNING!
• Do not drive the vehicle with the rear window
curtain up unless the side curtains are also open.
Dangerous exhaust gases which can kill could
enter the vehicle.
• The fabric upper doors and fabric top are designed
only for protection against the elements. Do not
rely on them to contain occupants within the ve-
hicle or to protect against injury during an acci-
dent. Remember, always wear seat belts.
256 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

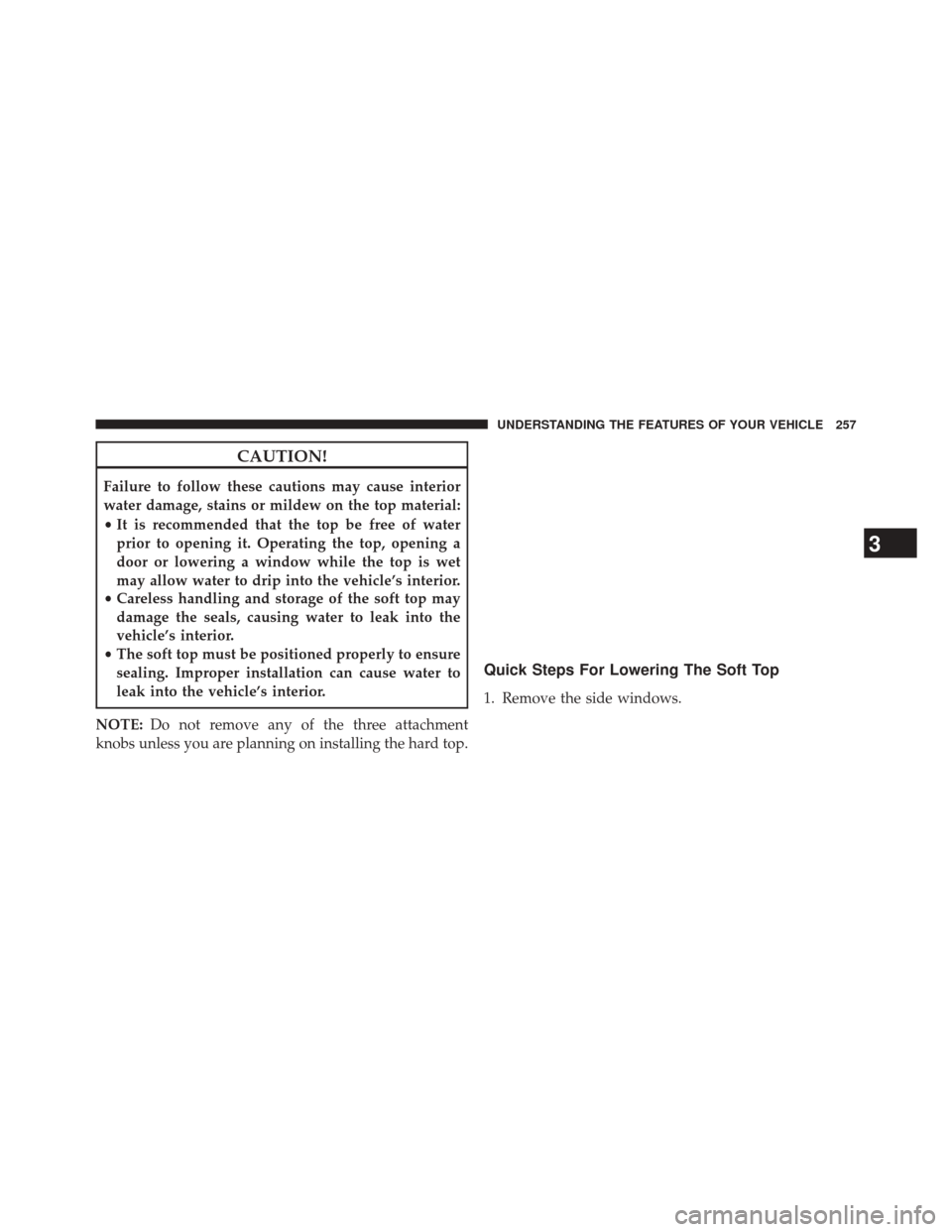

CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.
• Careless handling and storage of the soft top may
damage the seals, causing water to leak into the
vehicle’s interior.
• The soft top must be positioned properly to ensure
sealing. Improper installation can cause water to
leak into the vehicle’s interior.
NOTE: Do not remove any of the three attachment
knobs unless you are planning on installing the hard top.
Quick Steps For Lowering The Soft Top
1. Remove the side windows.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 257

2. Remove the back window.
NOTE:Start zipper from the right side to remove back
window. 3. Release header latches from the windshield frame.
