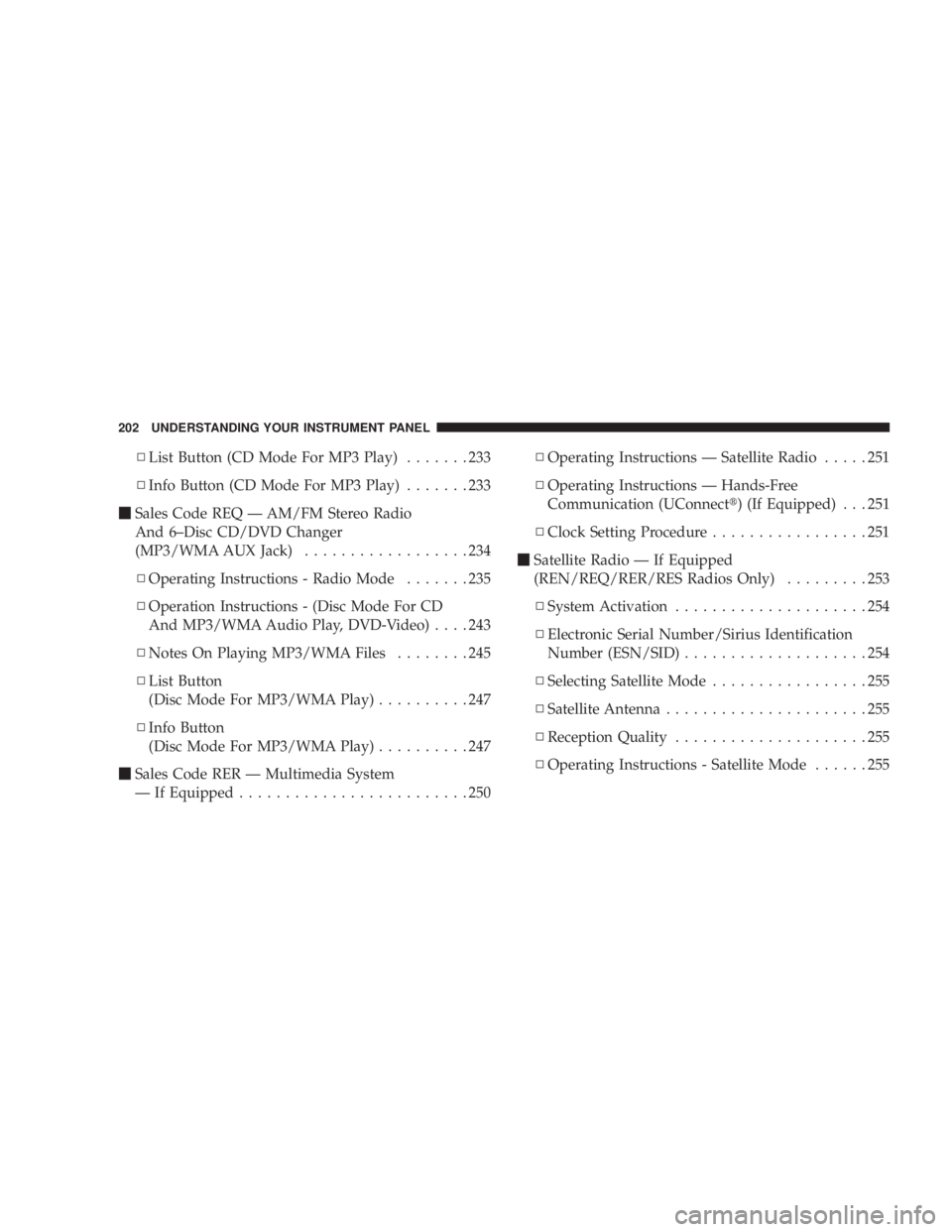

▫List Button (CD Mode For MP3 Play) .......233
▫ Info Button (CD Mode For MP3 Play) .......233
Sales Code REQ — AM/FM Stereo Radio
And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) ..................234
▫ Operating Instructions - Radio Mode .......235
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) ....243
▫ Notes On Playing MP3/WMA Files ........245
▫ List Button
(Disc Mode For MP3/WMA Play) ..........247
▫ Info Button
(Disc Mode For MP3/WMA Play) ..........247
Sales Code RER — Multimedia System
— If Equipped .........................250 ▫
Operating Instructions — Satellite Radio .....251
▫ Operating Instructions — Hands-Free
Communication (UConnect) (If Equipped) . . . 251
▫ Clock Setting Procedur e.................251
Satellite Radio — If Equipped
(REN/REQ/RER/RES Radios Only) .........253
▫ System Activation .....................254
▫ Electronic Serial Number/Sirius Identification
Number (ESN/SID) ....................254
▫ Selecting Satellite Mode .................255
▫ Satellite Antenna ......................255
▫ Reception Quality .....................255
▫ Operating Instructions - Satellite Mode ......255
202 UNDERSTANDING YOUR INSTRUMENT PANEL
INSTRUMENT CLUSTER DESCRIPTION
Your vehicle is equipped with the instrument cluster
described on the following pages.
1. Fuel Gauge
The pointer shows the level of fuel in the fuel tank.
NOTE:When the ignition switch is turned to OFF, the
fuel gauge, voltmeter, oil pressure and temperature
gauges may not show accurate readings. When the
engine is not running, turn the ignition switch to ON to
obtain accurate readings.
2. Charging System Warning Light This light shows the status of the electrical charg-
ing system. The light should come on for three
seconds when the ignition is first turned ON. If the light
comes back on immediately or comes on while driving, it
means that there is a problem with the charging system
or the battery is low. Also, a chime will sound if the light
comes back on. See your authorized dealer immediately. 3. Front Fog Light Indicator Light — If Equipped
This light shows when the front fog lights are on.
4. Low Fuel Warning Light When the fuel level reaches approximately 2.8 gal
(10.6L) this light will turn on and a single chime
will sound.
5. Speedometer
Indicates vehicle speed.
6. Front Axle Lock Indicator Light — If Equipped Indicates when the front axle lock has been
activated.

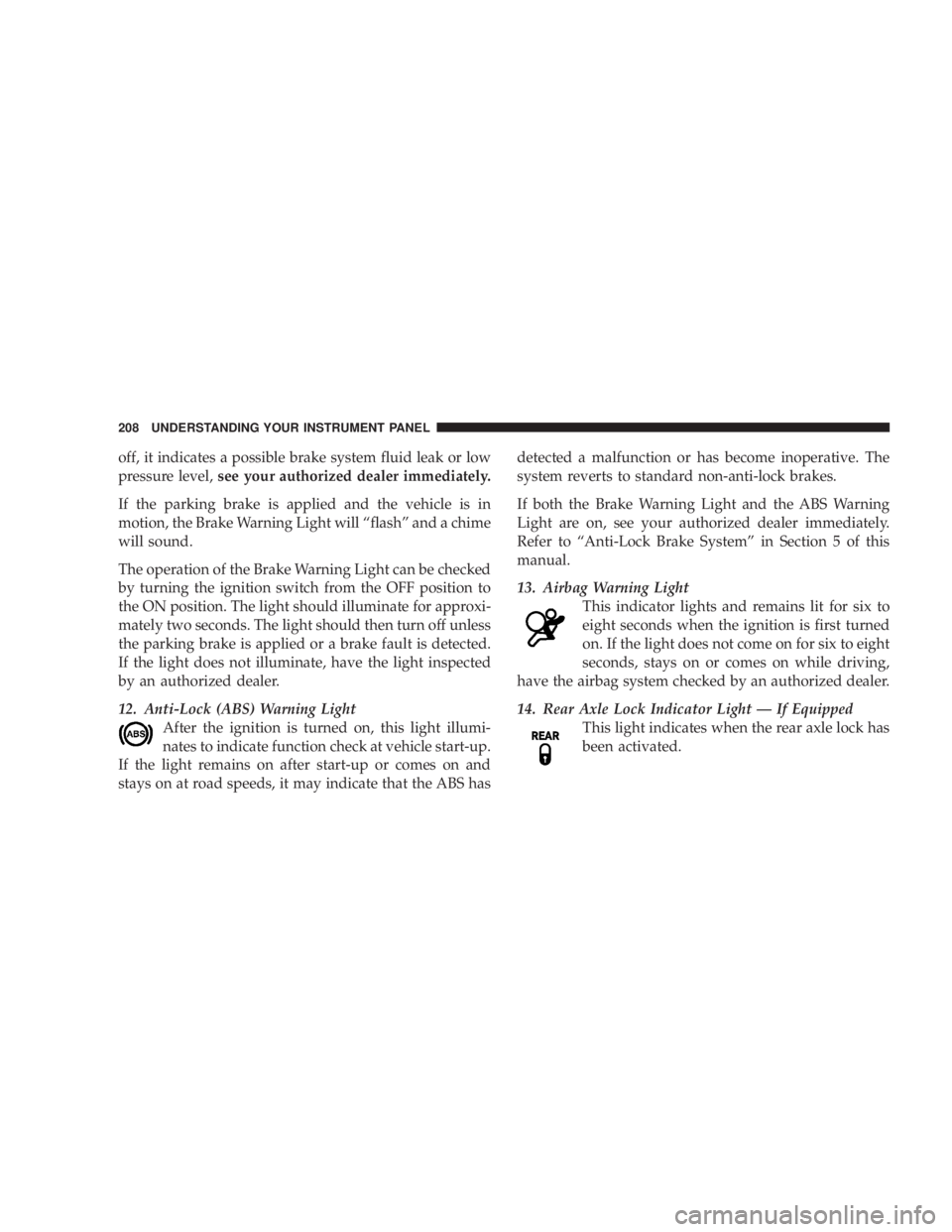

off, it indicates a possible brake system fluid leak or low
pressure level,see your authorized dealer immediately.
If the parking brake is applied and the vehicle is in
motion, the Brake Warning Light will “flash” and a chime
will sound.
The operation of the Brake Warning Light can be checked
by turning the ignition switch from the OFF position to
the ON position. The light should illuminate for approxi-
mately two seconds. The light should then turn off unless
the parking brake is applied or a brake fault is detected.
If the light does not illuminate, have the light inspected
by an authorized dealer.
12. Anti-Lock (ABS) Warning Light After the ignition is turned on, this light illumi-
nates to indicate function check at vehicle start-up.
If the light remains on after start-up or comes on and
stays on at road speeds, it may indicate that the ABS has detected a malfunction or has become inoperative. The
system reverts to standard non-anti-lock brakes.
If both the Brake Warning Light and the ABS Warning
Light are on, see your authorized dealer immediately.
Refer to “Anti-Lock Brake System” in Section 5 of this
manual.
13. Airbag Warning Light
This indicator lights and remains lit for six to
eight seconds when the ignition is first turned
on. If the light does not come on for six to eight
seconds, stays on or comes on while driving,
have the airbag system checked by an authorized dealer.
14. Rear Axle Lock Indicator Light — If Equipped This light indicates when the rear axle lock has
been activated.
