GETTING TO KNOW YOUR VEHICLE
18
DOORS
Keyless Enter-N-Go — Passive Entry (If
Equipped)
The Passive Entry system is a feature that
allows you to lock and unlock the vehicle’s
door(s) and swing gate without having to
push the key fob lock or unlock buttons.
NOTE:
Passive Entry may be programmed on/off.
Refer to “Uconnect Settings” in “Multi-
media” in the Owner’s Manual for further
information.
The key fob may not be detected by the
vehicle Passive Entry system if it is
located next to a mobile phone, laptop, or
other electronic device; these devices may
interfere with the key fob’s wireless signal
and prevent the Passive Entry system from
locking/unlocking the vehicle.
Passive Entry Unlock initiates illuminated
approach (Low Beams, License Plate
Lamp, Position Lamps) for whichever time
duration is set between 0, 30 (default), 60
or 90 seconds. Passive Entry Unlock also
initiates two flashes of the turn signal
lamps.
If wearing gloves on your hands, or if it has
been raining/snowing on the Passive Entry
door handle, the unlock sensitivity can be
affected, resulting in a slower response
time.
If the vehicle is unlocked by Passive Entry
and no door is opened within 60 seconds,
the vehicle will re-lock and if equipped
will arm the security alarm.
To Unlock From The Driver Side
With a valid Passive Entry key fob within 5 ft
(1.5 m) of the driver's door handle, grab the
front driver door handle to unlock the driver's
door automatically. Grab The Door Handle To Unlock

NOTE:
If “1st Press Of Key Fob Unlock” is
programmed all doors will unlock when you
grab hold of the front driver’s door handle. To
select between “Unlock Driver Door 1st Press”
and “Unlock All Doors 1st Press,” refer to
“Uconnect Settings” in “Multimedia” in the
Owner’s Manual for further information.

To Unlock From The Passenger Side
With a valid Passive Entry key fob within 5 ft
(1.5 m) of the passenger door handle, grab
the front passenger door handle to unlock all
doors and the swing gate automatically.
CAUTION!
Careless handling and storage of the
removable door panels may damage the
seals, causing water to leak into the
vehicle’s interior.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 18

19
NOTE:
All doors will unlock when the front
passenger door handle is grabbed regardless
of the driver’s door unlock preference setting
(“Unlock Driver Door 1st Press” or “Unlock
All Doors 1st Press”).
Preventing Inadvertent Locking Of Passive
Entry Key Fob In Vehicle (FOBIK-Safe)
To minimize the possibility of unintentionally
locking a Passive Entry key fob inside your
vehicle, the Passive Entry system is
equipped with an automatic door unlock
feature which will function only if the igni-
tion switch is in the OFF position.
FOBIK-Safe only executes in vehicles with
Passive Entry. There are three situations that
trigger a FOBIK-Safe search in any Passive
Entry vehicle:
A lock request is made by a valid Passive
Entry key fob while a door is open.
A lock request is made by the Passive
Entry door handle while a door is open.
A lock request is made by the door panel
switch while the door is open.
When any of these situations occur, after all
open doors are shut, the FOBIK-Safe search
will be executed. If it finds a Passive Entry key fob inside the car, the car will unlock and
alert the customer. If Passive Entry is
disabled using Uconnect System, the key
protection described in "Preventing Inadver
-
tent Locking of Passive Entry Key Fob in
Vehicle" remains active/functional.
NOTE:
The vehicle will only unlock the doors during
a FOBIK-Safe operation when a valid Passive
Entry key fob is detected inside the vehicle.
The vehicle will not unlock the doors when
any of the following conditions are true:
A second valid Passive Entry key fob is
detected outside of the vehicle (within 5ft
of a Passive Entry door handle).
The doors are manually locked using the
door lock knobs.
Three attempts are made to lock the doors
using the door panel switch and then close
the doors.
To Lock The Vehicle’s Doors And Swing Gate
With one of the vehicle’s Passive Entry key
fobs within 5 ft (1.5 m) of the driver or
passenger front door handles, pushing the
Passive Entry lock button will lock the
vehicle doors and the swing gate. Push The Door Handle Button To Lock
NOTE:
DO NOT grab the door handle, when pushing
the door handle lock button. This could
unlock the door(s).
DO NOT Grab The Door Handle When Locking
The vehicle doors can also be locked by
using the lock button located on the
vehicle’s interior door panel.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 19

GETTING TO KNOW YOUR VEHICLE
20
To Unlock/Enter The Swing Gate
The Swing Gate passive entry unlock feature
is built into the Swing Gate handle. With a
valid Passive Entry key fob within 5 ft
(1.5 m) of the Swing Gate handle, grab the
Swing Gate handle to unlock the Swing Gate
automatically, and pull the Swing Gate to
open.
NOTE:
If “Unlock All Doors 1st Press” is
programmed all doors and the swing gate will
unlock when you grab hold of the swing gate
handle. To select between “Unlock Driver
Door 1st Press” and “Unlock All Doors 1st
Press,” refer to “Uconnect Settings” in
“Multimedia” in the Owner’s Manual for
further information.Swing Gate Passive Entry Lock Button To Lock The Swing Gate
With a valid Passive Entry key fob within 5 ft
(1.5 m) of the Swing Gate handle, pushing
the Passive Entry lock button will lock the
vehicle doors and the swing gate.
NOTE:
Always take the key with you once a door or
the tailgate is locked to prevent locking the
key fob inside of the vehicle. If the key has
been locked inside of the vehicle, it can be
recovered using the second provided key fob.
NOTE:
After pushing the door handle button, you
must wait two seconds before you can lock
or unlock the doors, using any Passive
Entry door handle. This is done to allow
you to check if the vehicle is locked by
pulling the door handle without the
vehicle reacting and unlocking.
If Passive Entry is disabled using the
Uconnect system, the key protection
described in "Preventing Inadvertent
Locking of Passive Entry Key Fob in
Vehicle" remains active/functional.
The Passive Entry system will not operate
if the key fob battery is depleted.
Child-Protection Door Lock System —
Rear Doors
To provide a safer environment for small chil
-
dren riding in the rear seats, the rear doors
are equipped with a Child-Protection Door
Lock system.

To use the system, open each rear door, use a
flat blade screwdriver (or emergency key) and
rotate the dial to the lock or unlock position.

Child Protection Door Lock Function
NOTE:
When the child lock system is engaged,
the door can be opened only by using the
outside door handle even though the
inside door lock is in the unlocked
position.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 20

GETTING TO KNOW YOUR VEHICLE
46
Cabin Air Filter
The climate control system filters out dust
and pollen from the air. Contact an autho-
rized dealer to service your cabin air filter,
and to have it replaced when needed.
POWER WINDOWS — IF
EQUIPPED
The power window switches are located on
the instrument panel below the climate
controls. Push the switch downward to open
the window and upward to close the window.
The top left switch controls the left front
window and the top right switch controls the
right front window. Power Window Switches
NOTE:
The power window switches will remain
active for up to 10 minutes after ignition is
placed in the OFF position. Opening either
front door will cancel this feature. Four-Door Models
The lower left switch controls the left rear
passenger window, and the lower right switch
controls the right rear passenger window.
NOTE:
There are window switches located on the
rear of the center console for the rear
passenger windows in the four-door model.Auto-Down Feature
The driver door power window switch and the
passenger door power window switches have
an Auto-Down feature. Push the window
switch down, for a short period of time, and
release and the window will go down auto
-
matically.
To open the window part way, push the
window switch down briefly and release it
when you want the window to stop.
WARNING!

Never leave children unattended in a vehicle,
and do not let children play with power
windows. Do not leave the key fob in or near
the vehicle, or in a location accessible to
children. Occupants, particularly unattended
children, can become entrapped by the
windows while operating the power window
switches. Such entrapment may result in
serious injury or death.

1 — Passenger Side Front Window Switch
2 — Driver Side Front Window Switch
3 — Window Lockout Switch
4 — Driver Side Rear Window Switch
5 — Passenger Side Rear Window Switch
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 46

GETTING TO KNOW YOUR VEHICLE
54
(Continued)

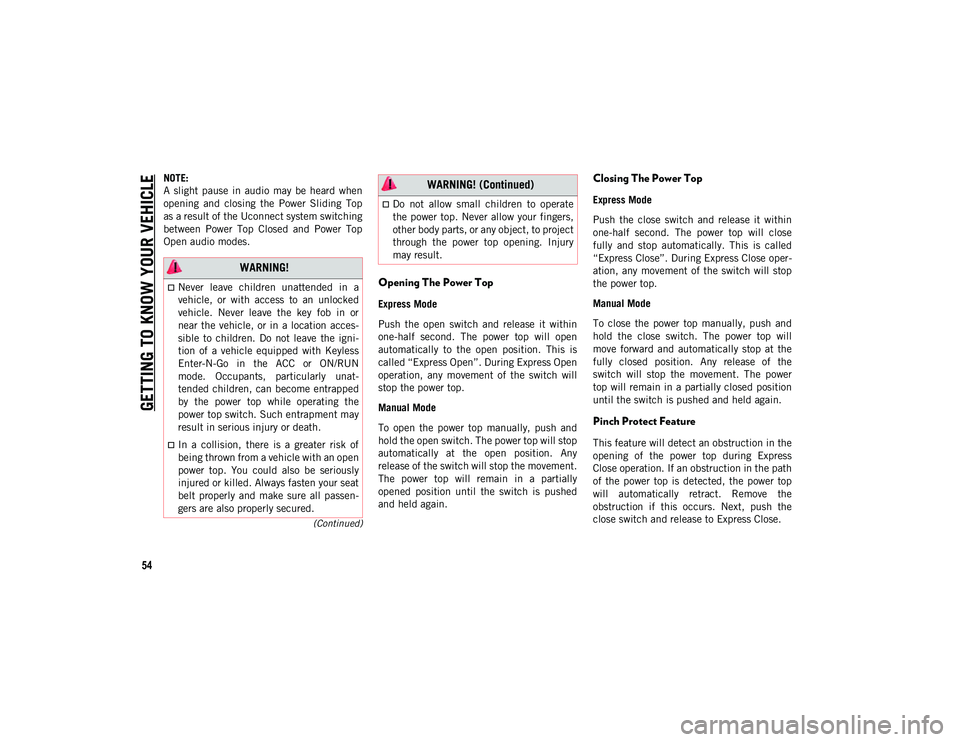

NOTE:
A slight pause in audio may be heard when
opening and closing the Power Sliding Top
as a result of the Uconnect system switching
between Power Top Closed and Power Top
Open audio modes.
Opening The Power Top
Express Mode
Push the open switch and release it within
one-half second. The power top will open
automatically to the open position. This is
called “Express Open”. During Express Open
operation, any movement of the switch will
stop the power top.
Manual Mode
To open the power top manually, push and
hold the open switch. The power top will stop
automatically at the open position. Any
release of the switch will stop the movement.
The power top will remain in a partially
opened position until the switch is pushed
and held again.
Closing The Power Top
Express Mode
Push the close switch and release it within
one-half second. The power top will close
fully and stop automatically. This is called
“Express Close”. During Express Close oper-
ation, any movement of the switch will stop
the power top.
Manual Mode
To close the power top manually, push and
hold the close switch. The power top will
move forward and automatically stop at the
fully closed position. Any release of the
switch will stop the movement. The power
top will remain in a partially closed position
until the switch is pushed and held again.
Pinch Protect Feature
This feature will detect an obstruction in the
opening of the power top during Express
Close operation. If an obstruction in the path
of the power top is detected, the power top
will automatically retract. Remove the
obstruction if this occurs. Next, push the
close switch and release to Express Close.
WARNING!
Never leave children unattended in a
vehicle, or with access to an unlocked
vehicle. Never leave the key fob in or
near the vehicle, or in a location acces-
sible to children. Do not leave the igni -
tion of a vehicle equipped with Keyless
Enter-N-Go in the ACC or ON/RUN
mode. Occupants, particularly unat -
tended children, can become entrapped
by the power top while operating the
power top switch. Such entrapment may
result in serious injury or death.
In a collision, there is a greater risk of
being thrown from a vehicle with an open
power top. You could also be seriously
injured or killed. Always fasten your seat
belt properly and make sure all passen -
gers are also properly secured.
Do not allow small children to operate
the power top. Never allow your fingers,
other body parts, or any object, to project
through the power top opening. Injury
may result.
WARNING! (Continued)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 54

55

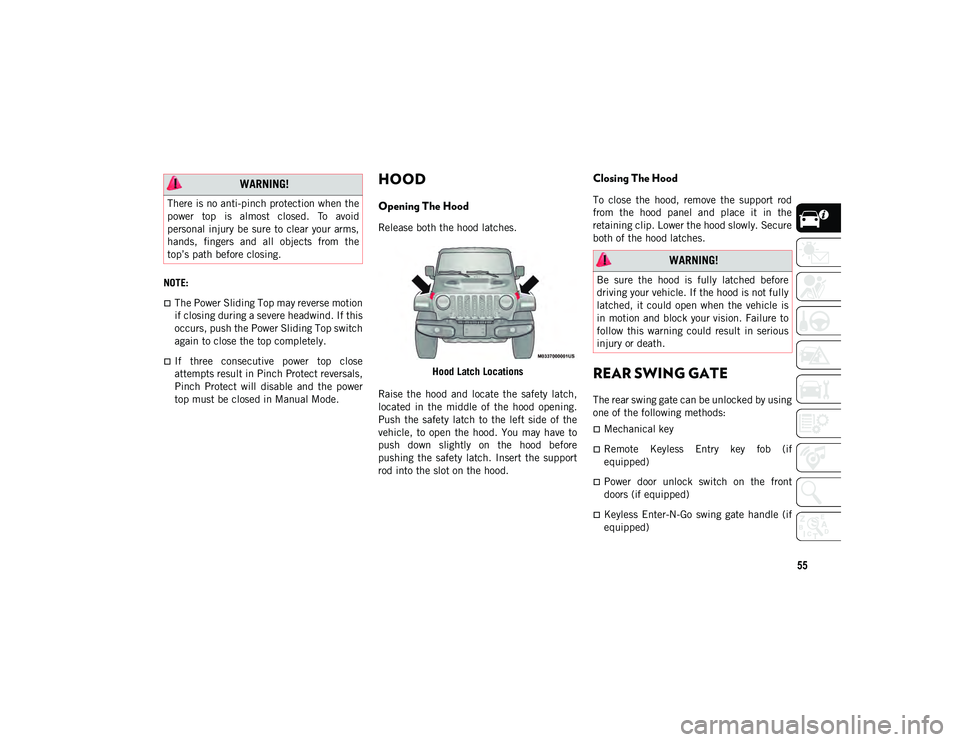

NOTE:
The Power Sliding Top may reverse motion
if closing during a severe headwind. If this
occurs, push the Power Sliding Top switch
again to close the top completely.
If three consecutive power top close
attempts result in Pinch Protect reversals,
Pinch Protect will disable and the power
top must be closed in Manual Mode.
HOOD
Opening The Hood
Release both the hood latches.Hood Latch Locations
Raise the hood and locate the safety latch,
located in the middle of the hood opening.
Push the safety latch to the left side of the
vehicle, to open the hood. You may have to
push down slightly on the hood before
pushing the safety latch. Insert the support
rod into the slot on the hood.
Closing The Hood
To close the hood, remove the support rod
from the hood panel and place it in the
retaining clip. Lower the hood slowly. Secure
both of the hood latches.
REAR SWING GATE
The rear swing gate can be unlocked by using
one of the following methods:
Mechanical key
Remote Keyless Entry key fob (if
equipped)
Power door unlock switch on the front
doors (if equipped)
Keyless Enter-N-Go swing gate handle (if
equipped)
WARNING!
There is no anti-pinch protection when the
power top is almost closed. To avoid
personal injury be sure to clear your arms,
hands, fingers and all objects from the
top’s path before closing.
WARNING!
Be sure the hood is fully latched before
driving your vehicle. If the hood is not fully
latched, it could open when the vehicle is
in motion and block your vision. Failure to
follow this warning could result in serious
injury or death.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 55

GETTING TO KNOW YOUR VEHICLE
58

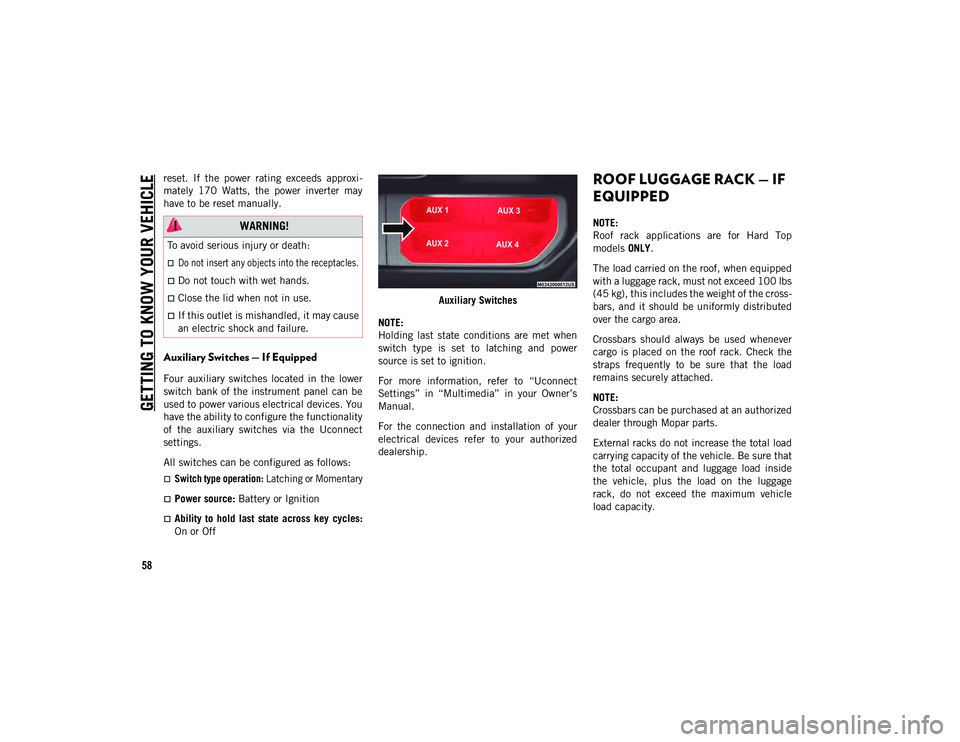

reset. If the power rating exceeds approxi-
mately 170 Watts, the power inverter may
have to be reset manually.
Auxiliary Switches — If Equipped
Four auxiliary switches located in the lower
switch bank of the instrument panel can be
used to power various electrical devices. You
have the ability to configure the functionality
of the auxiliary switches via the Uconnect
settings.
All switches can be configured as follows:

Switch type operation: Latching or Momentary

Power source: Battery or Ignition
Ability to hold last state across key cycles:
On or Off Auxiliary Switches
NOTE:
Holding last state conditions are met when
switch type is set to latching and power
source is set to ignition.
For more information, refer to “Uconnect
Settings” in “Multimedia” in your Owner’s
Manual.
For the connection and installation of your
electrical devices refer to your authorized
dealership.
ROOF LUGGAGE RACK — IF
EQUIPPED
NOTE:
Roof rack applications are for Hard Top
models ONLY.
The load carried on the roof, when equipped
with a luggage rack, must not exceed 100 lbs
(45 kg), this includes the weight of the cross -
bars, and it should be uniformly distributed
over the cargo area.
Crossbars should always be used whenever
cargo is placed on the roof rack. Check the
straps frequently to be sure that the load
remains securely attached.
NOTE:
Crossbars can be purchased at an authorized
dealer through Mopar parts.
External racks do not increase the total load
carrying capacity of the vehicle. Be sure that
the total occupant and luggage load inside
the vehicle, plus the load on the luggage
rack, do not exceed the maximum vehicle
load capacity. WARNING!
To avoid serious injury or death:

Do not insert any objects into the receptacles.

Do not touch with wet hands.
Close the lid when not in use.
If this outlet is mishandled, it may cause
an electric shock and failure.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 58

SAFETY
90
system determines that a forward collision is
probable, the driver will be provided with
audible and visual warnings as well as a
possible haptic warning in the form of a
brake jerk.
If the driver does not take action based upon
these progressive warnings, then the system
will provide a limited level of active braking
to help slow the vehicle and mitigate the
potential forward collision. If the driver
reacts to the warnings by braking and the
system determines that the driver intends to
avoid the collision by braking but has not
applied sufficient brake force, the system
will compensate and provide additional
brake force as required.
If a FCW with Mitigation event begins at a
speed below 32 mph (52 km/h), the system
may provide the maximum braking possible
to mitigate the potential forward collision. If
the Forward Collision Warning with Mitiga-
tion event stops the vehicle completely, the
system will hold the vehicle at standstill for
two seconds and then release the brakes. FCW Message

When the system determines a collision with
the vehicle in front of you is no longer probable,
the warning message will be deactivated.

NOTE:
The minimum speed for FCW activation is
3 mph (5 km/h).

The FCW alerts may be triggered on objects
other than vehicles such as guard rails or sign
posts based on the course prediction. This is
expected and is a part of normal FCW activa-
tion and functionality.

It is unsafe to test the FCW system. To prevent
such misuse of the system, after four Active
Braking events within a key cycle, the Active Braking portion of FCW will be deactivated
until the next Key Cycle.

The FCW system is intended for on-road
use only. If the vehicle is taken off-road,
the FCW system should be deactivated to
prevent unnecessary warnings to the
surroundings.
FCW may not react to irrelevant objects
such as overhead objects, ground reflec-
tions, objects not in the path of the
vehicle, stationary objects that are far
away, oncoming traffic, or leading vehicles
with the same or higher rate of speed.
FCW will be disabled like ACC, with the
unavailable screens.
WARNING!
Forward Collision Warning (FCW) is not
intended to avoid a collision on its own,
nor can FCW detect every type of potential
collision. The driver has the responsibility
to avoid a collision by controlling the
vehicle via braking and steering. Failure to
follow this warning could lead to serious
injury or death.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 90

SAFETY
116
(Continued)
NOTE:
After an accident, remember to cycle the
ignition to the STOP (OFF/LOCK) position
and remove the key from the ignition switch
to avoid draining the battery. Carefully check
the vehicle for fuel leaks in the engine
compartment and on the ground near the
engine compartment and fuel tank before
resetting the system and starting the engine.
If there are no fuel leaks or damage to the
vehicle electrical devices (e.g. headlights)
after an accident, reset the system by
following the procedure described below. If
you have any doubt, contact an authorized
dealer.
Enhanced Accident Response System Reset
Procedure
In order to reset the Enhanced Accident
Response System functions after an event,
the ignition switch must be changed from
ignition START or ON/RUN to ignition OFF.
Carefully check the vehicle for fuel leaks in
the engine compartment and on the ground
near the engine compartment and fuel tank
before resetting the system and starting the
engine.
Maintaining Your Air Bag System
WARNING!

Modifications to any part of the air bag
system could cause it to fail when you need
it. You could be injured if the air bag
system is not there to protect you. Do not
modify the components or wiring,
including adding any kind of badges or
stickers to the steering wheel hub trim
cover or the upper passenger side of the
instrument panel. Do not modify the front
bumper, vehicle body structure, or add
aftermarket side steps or running boards.

It is dangerous to try to repair any part of
the air bag system yourself. Be sure to
tell anyone who works on your vehicle
that it has an air bag system.
Do not attempt to modify any part of your
air bag system. The air bag may inflate
accidentally or may not function properly
if modifications are made. Take your
vehicle to an authorized dealer for any air
bag system service. If your seat,
including your trim cover and cushion,
needs to be serviced in any way
(including removal or loosening/
tightening of seat attachment bolts),
take the vehicle to an authorized dealer.
Only manufacturer approved seat
accessories may be used. If it is
necessary to modify the air bag system
for persons with disabilities, contact an
authorized dealer.
WARNING! (Continued)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 116

SAFETY
122
UNIVERSAL CHILD SEAT POSITION TABLE — 2 Door Seating Position
UNIVERSAL CHILD SEAT POSITION TABLE — 4 Door Seating Position
Key of letters used in the table above:
U = Suitable for “universal” category
restraints approved for use in this mass
group.
UF = Suitable for forward-facing
“universal” category restraints approved
for use in this mass group.
X = Seat position not suitable for children
in this mass group.If the head restraint interferes with the
installation of the child restraint system,
adjust the head restraint (if adjustable).
Mass Group
Front Passenger
Rear Outboard
Airbag ON Airbag OFF
Group 0 up to 10 kg XXU
Group 0+ up to 13 kg XXU
Group I 9 to 18 kg XXU
Group II 15 to 25 kg XXU
Group III 22 to 36 kg XXU
Mass Group Front Passenger
Rear OutboardRear Center
Airbag ON Airbag OFF
Group 0 up to 10 kg XUUFU/UF
Group 0+ up to 13 kg XUUFU/UF
Group I 9 to 18 kg XXUFU/UF
Group II 15 to 25 kg XXUFU/UF
Group III 22 to 36 kg XUUFU/UF
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 122
