IN CASE OF EMERGENCY
208
(Continued)
Four–Wheel Drive Models
The manufacturer recommends towing with
all wheels OFF the ground. Acceptable
methods are to tow the vehicle on a flatbed
or with one end of the vehicle raised and the
opposite end on a towing dolly.
If flatbed equipment is not available and the
transfer case is operable, the vehicle may be
towed (in the forward direction, with ALL
wheels on the ground), IF the transfer case is
in NEUTRAL (N) and the transmission is in
PARK (P). Refer to “Recreational Towing” in
“Starting And Operating” for detailed
instructions.
Without The Key Fob
Special care must be taken when the vehicle
is towed with the ignition in the OFF mode.
The only approved method of towing without
the key fob is with a flatbed truck. Proper
towing equipment is necessary to prevent
damage to the vehicle.
Tow Eye Usage
Your vehicle is equipped with a tow eye that
can be used to move a disabled vehicle.
When using a tow eye be sure to follow the
“Tow Eye Usage Precautions” and the
“Towing A Disabled Vehicle” instructions in
this section.
The tow eyes are mounted below the front
and rear bumpers.
Front Tow Eye Rear Tow Eye
Tow Eye Usage Precautions
CAUTION!
Front or rear wheel lifts must not be used
(if the remaining wheels are on the
ground). Internal damage to the trans-
mission or transfer case will occur if a
front or rear wheel lift is used when
towing.
Towing this vehicle in violation of the
above requirements can cause severe
transmission and/or transfer case
damage. Damage from improper towing
is not covered under the New Vehicle
Limited Warranty.
WARNING!
Stand clear of vehicles when pulling with
tow eyes.
Do not use a chain with a tow eye. Chains
may break, causing serious injury or
death.
Do not use a tow strap with a tow eye.
Tow straps may break or become disen -
gaged, causing serious injury or death.
Failure to follow proper tow eye usage
may cause components to break
resulting in serious injury or death.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 208

283

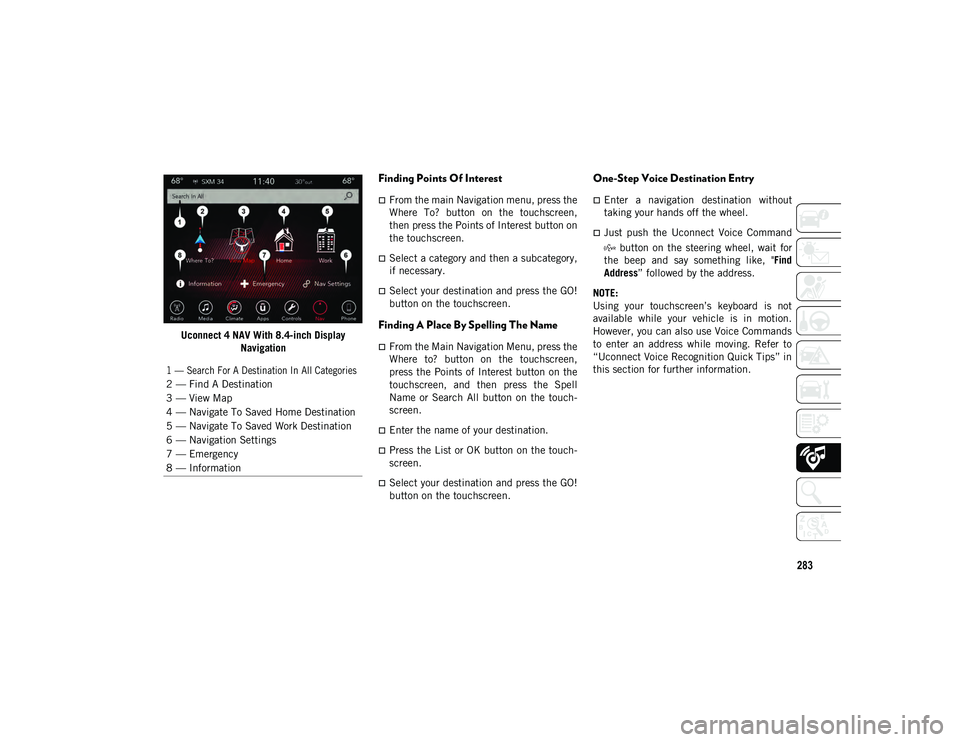

Uconnect 4 NAV With 8.4-inch DisplayNavigation
Finding Points Of Interest
From the main Navigation menu, press the
Where To? button on the touchscreen,
then press the Points of Interest button on
the touchscreen.
Select a category and then a subcategory,
if necessary.
Select your destination and press the GO!
button on the touchscreen.
Finding A Place By Spelling The Name
From the Main Navigation Menu, press the
Where to? button on the touchscreen,
press the Points of Interest button on the
touchscreen, and then press the Spell
Name or Search All button on the touch -
screen.
Enter the name of your destination.
Press the List or OK button on the touch -
screen.
Select your destination and press the GO!
button on the touchscreen.
One-Step Voice Destination Entry
Enter a navigation destination without
taking your hands off the wheel.
Just push the Uconnect Voice Command
button on the steering wheel, wait for
the beep and say something like, " Find
Address ” followed by the address.
NOTE:
Using your touchscreen’s keyboard is not
available while your vehicle is in motion.
However, you can also use Voice Commands
to enter an address while moving. Refer to
“Uconnect Voice Recognition Quick Tips” in
this section for further information.

1 — Search For A Destination In All Categories

2 — Find A Destination
3 — View Map
4 — Navigate To Saved Home Destination
5 — Navigate To Saved Work Destination
6 — Navigation Settings
7 — Emergency
8 — Information
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 283

MULTIMEDIA
290
Pair Your Android™ Device:Uconnect Device
To search for available devices on your Blue -
tooth®-enabled Android Device:
1. Push the Menu button.
2. Select “Settings”.
3. Select “Connections”. 4. Turn Bluetooth® setting to “On”.
Ensure the Bluetooth® feature is
enabled. Once enabled, the mobile
phone will begin to search for Bluetooth® connections.
5. Once your mobile phone finds the Uconnect system, select “Uconnect”.
You may be prompted by your mobile
phone to download the phonebook,
check “Do Not Ask Again” to automat -
ically download the phonebook. This is
so you can make calls by saying the name of your contact. Complete The Android™ Pairing Procedure:
Pairing Request
Confirm the passkey shown on the mobile
phone matches the passkey shown on the
Uconnect system then accept the
Bluetooth® pairing request.
NOTE:
Some mobile phones require the PIN to be
entered manually. Enter the PIN number
shown on the Uconnect screen.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 290

MULTIMEDIA
294
Helpful Tips And Common Questions To
Improve Bluetooth® Performance With
Your Uconnect System
Mobile Phone won’t reconnect to system after
pairing:
Set mobile phone to auto-connect or
trusted device in mobile phone
Bluetooth® settings (Blackberry®
devices).
Many mobile phones do not automatically
reconnect after being restarted (hard
reboot). Your mobile phone can still be
connected manually. Close all applica-
tions that may be operating (refer to
mobile phone manufacturer’s instruc-
tions), and follow “Pairing (Wirelessly
Connecting) Your Mobile Phone To The
Uconnect System”.
Perform a factory reset on your mobile
phone. Refer to your mobile phone manu -
facturer or cellular provider for instruc-
tions. This should only be done as a last
resort. Mobile Phone won’t pair to system:

Delete pairing history in mobile phone and
Uconnect system; usually found in
phone’s Bluetooth® connection settings.
Verify you are selecting “Uconnect” in the
discovered Bluetooth® devices on your
mobile phone.
If your vehicle system generates a pin
code the default is 0000.
Perform a hard reset in the mobile phone
by removing the battery (if removable —
see your mobile phone’s owner’s manual).
This should only be done as a last resort.
Mobile Phonebook didn’t download:
Check “Do not ask again”, then accept the
“phonebook download” request on your
mobile phone.
Up to 5,000 contact names with four
numbers per contact will transfer to the
Uconnect 4/4 NAV system phonebook.
Up to 2,000 contact names with six
numbers per contact will transfer to the
Uconnect 3 system phonebook. Can’t make a conference call:
Code-Division Multiple Access (CDMA)
carriers do not support conference calling.
Refer to your mobile phone owner’s
manual for further information.
Making calls while connected to AUX:
Plugging in your mobile phone to AUX
while connected to Bluetooth® will
disable Hands-Free Calling. Do not make
calls while your mobile phone is plugged
into the AUX jack.
UCONNECT VOICE
RECOGNITION QUICK TIPS
Introducing Uconnect
Start using Uconnect Voice Recognition (VR)
with these helpful quick tips. It provides the
key Voice Commands and tips you need to
know to control your Uconnect 3, Uconnect
4, or Uconnect 4/4 NAV system.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 294

317

(*) The Customer Service offers information and assistance on products, services, dealerships and 24H Roadside Assistance. It can be contacted from the main European countries by calling the Universal Toll Free Number. In case of problems, please use the Local Toll Free Number or the International Toll Number.

TAIWAN
Chrysler Taiwan Co. , LTD.
13th Floor Union Enterprise Plaza
1109 Min Sheng East Road, Section 3
Taipei Taiwan R.O.C.
Tel.: 080081581
Fax: 886225471871
TURKEY
Tofaş Türk Otomobil Fabrikasi A.S.
Büyükdere Cad, No:145 Tofa ş Han Zincirli-
kuyu
ISTAMBUL
Tel: (0212) 444 5337
Tel: (0212) 275 2960
Telefax: (0212) 275 0357
UKRAINE
PJSC “AUTOCAPITAL”
Chervonoarmiyska Str. 15/2
01004 Kyiv
Tel : +380 44 206 8888
+380 44 201 6060
Fax: +380 44 206 8889
UNITED KINGDOM
Jeep Customer Service*
Universal Toll Free Number Tel: 00 800
0 426 5337
Local Toll Free Number Tel: 0800
1692966
International Toll Number Tel: +39 02
444 12 045
Chrysler Customer Service*
Universal Toll Free Number Tel: 00 800
1692 1692
Local Toll Free Number Tel: 0800
1692169
International Toll Number Tel: +39 02
444 12046
Dodge Customer Service*
Universal Toll Free Number Tel: 00 800
36343 000
Local Toll Free Number Tel: 0800
1692956
International Toll Number Tel: Not
Available
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 317

322
INDEX
I
Ignition ............................................... 12Switch ............................................ 12
Installation.......................................... 51
Installing ............................................ 53
Instrument Cluster ............................... 61 Descriptions .................................... 74
Display ............................................ 60
Menu Items ..................................... 61
Instrument Panel Lens Cleaning .......... 246
Integrated Power Module (Fuses)......... 184
Interior Appearance Care .................... 245
Intermittent Wipers (Delay Wipers) ........ 35
Introduction .......................................... 1
Inverter Power.............................................. 57
J
Jack Location .................................... 193
Jack Operation .......................... 195 , 232
Jacking Instructions ........................... 195
Jump Starting ................................... 201 K
Key Fob
Arm The System .............................. 15
Disarm The System .......................... 15
Keyless Enter-N-Go.............................. 18 Passive Entry ................................... 18
Keys................................................... 11 Replacement ................................... 12
L
Lap/Shoulder Belts ............................ 100
Latches ............................................ 137 Hood .............................................. 55
Leaks, Fluid ...................................... 137
Leveling Headlights....................................... 34
Life Of Tires...................................... 235
Light Bulbs ................................137 , 179
Lights............................................... 137 Air Bag ............................ 65 , 105 , 136
Automatic Headlights ....................... 33
Brake Assist Warning........................ 82
Brake Warning ................................. 65
Bulb Replacement ..................179 , 181
Center Mounted Stop ..................... 183 Cruise ........................................74 , 76 Daytime Running ..............................32
Dimmer Switch, Headlight.................32
Electronic Stability Program (ESP)
Indicator ......................................67
Engine Temperature Warning .............67 Exterior.................................... 32 , 137
Fog ......................................... 72 , 182
Hazard Warning Flasher ..................179
Headlight Leveling ............................34
Headlights .....................................181
High Beam.......................................32
High Beam/Low Beam Select .............32 Hill Descent Control Indicator ............83Lights On Reminder ..........................34
Malfunction Indicator (Check Engine) .............................69
Park ................................................74
Passing............................................33 Rear Servicing ................................182
Rear Tail Lamps .............................182
Seat Belt Reminder .............. 67 , 74 , 75
Security Alarm .................................68
Service .................................. 179 , 181
Side Marker ...................................182
Tire Pressure Monitoring (TPMS) ........92
Traction Control................................82
Turn Signal ....................................137
Turn Signals..................... 74 , 181 , 182
Warning Instrument Cluster Descriptions ........................... 67 , 74
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 322

324
INDEX
Recreational Towing ........................... 176Shifting Into Transfer CaseNeutral (N)................................. 177
Shifting Out Of Transfer Case Neutral (N)................................. 178
Release, Hood ..................................... 55
Reminder, Seat Belt............................. 99
Remote Control Starting System ............................... 14
Remote Keyless Entry Arm The Alarm................................. 15
Disarm The Alarm ............................ 15
Remote Sound System (Radio)
Control ............................................. 279
Remote Starting System ....................... 14
Removable Doors ........................... 21 , 23
Front............................................... 21
Rear................................................ 23
Removable Top .........................47 , 51 , 53
Removal ............................................. 51
Removing............................................ 53
Replacement Bulbs ............................ 179
Replacement Keys ............................... 12
Replacement Tires ............................. 236
Restraints, Head .................................. 28
Roll Over Warning .................................. 2
Roof Type Carrier ................................. 58
Rotation, Tires ................................... 241 S
Safety Checks Inside Vehicle .............. 136
Safety Checks Outside Vehicle ............ 137
Safety Tips ....................................... 135
Safety, Exhaust Gas ........................... 135
Schedule, Maintenance...............210
, 216
Seat Belt Reminder ............................. 67
Seat Belts ....................................98 , 136
Adjustable Shoulder Belt ................ 103
Adjustable Upper Shoulder Anchorage ................................. 103
Adjustable Upper Shoulder Belt Anchorage ................................. 103
Energy Management Feature ........... 104
Front Seat ........................ 98 , 100 , 102
Inspection ..................................... 136
Lap/Shoulder Belt Operation ........... 102
Lap/Shoulder Belt Untwisting .......... 103
Lap/Shoulder Belts......................... 100
Operating Instructions .................... 102 Pregnant Women ........................... 104
Pretensioners................................. 104
Rear Seat ...................................... 100
Reminder ........................................ 99
Seat Belt Pretensioner .................... 104Seat Belt Reminder ......... 67 , 74 , 75 , 99
Untwisting Procedure ..................... 103
Seat Belts Maintenance ..................... 245 Seats ..................................................24
Adjustment ......................................24
Fold And Tumble Rear ......................27
Rear Folding ....................................24
Tilting .............................................24
Security Alarm ............................... 15 , 68
Arm The System ...............................15
Disarm The System ...........................15
Selection Of Coolant (Antifreeze) .........254
Sentry Key Replacement .......................12
Service Assistance .............................304
Shifting .............................................143 Automatic Transmission .......... 143 , 145
Transfer Case, Shifting Into Transfer Case Neutral (N).............177
Transfer Case, Shifting Out Of Transfer Case Neutral (N).............178
Shoulder Belts ...................................100
Signals, Turn ................74 , 137 , 181 , 182
Siri ...................................................300
Snow Chains (Tire Chains) ..................240
Snow Tires ........................................237
Soft Top ........................................ 47 , 53
Spare Tires ........................ 193 , 237 , 238
Spark Plugs .......................................254
Specifications Fuel (Gasoline) ...............................254
Oil ................................................254
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 324
