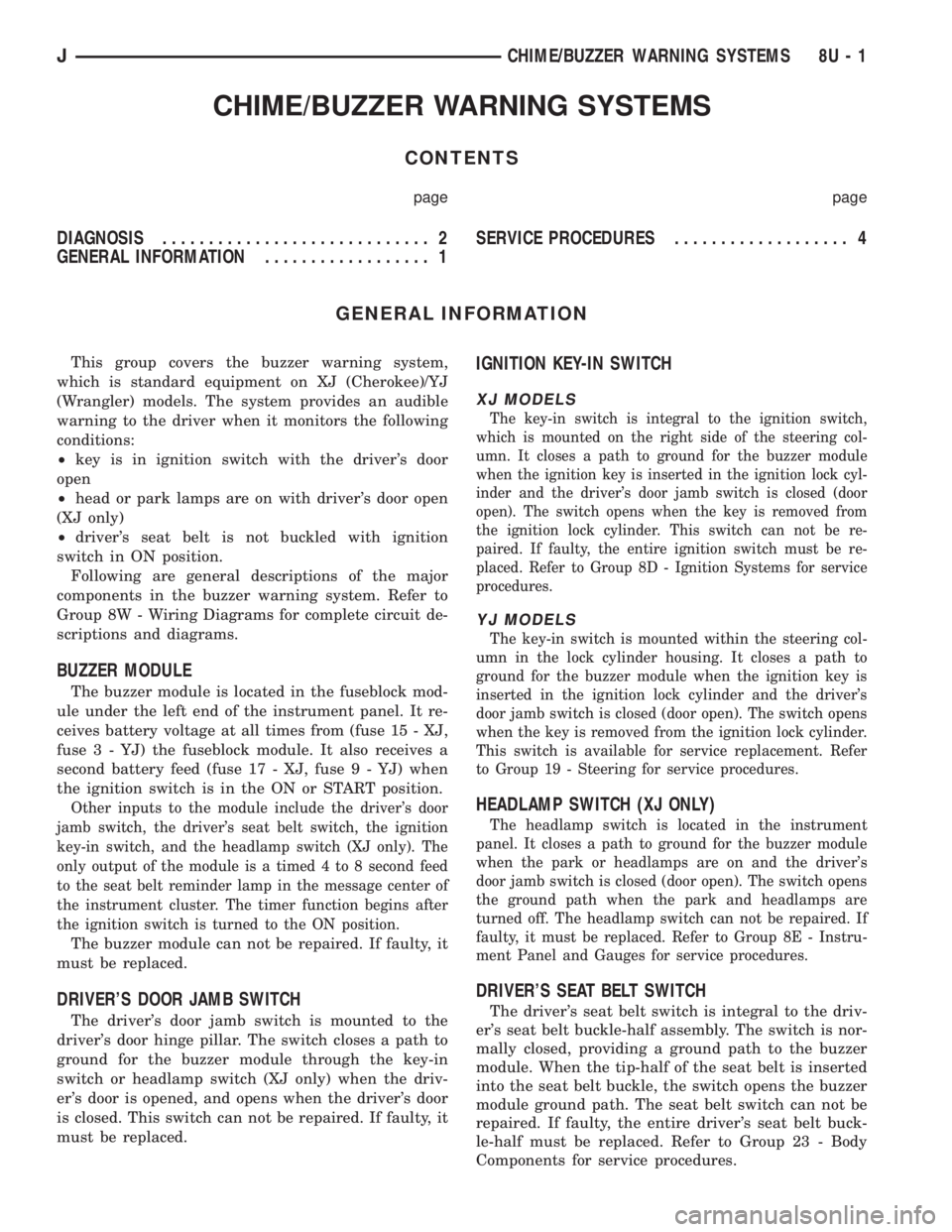

JEEP YJ 1995  Service And Repair Manual CHIME/BUZZER WARNING SYSTEMS
CONTENTS
page page
DIAGNOSIS............................. 2
GENERAL INFORMATION.................. 1SERVICE PROCEDURES................... 4
GENERAL INFORMATION
This group c

Page 532 of 2158

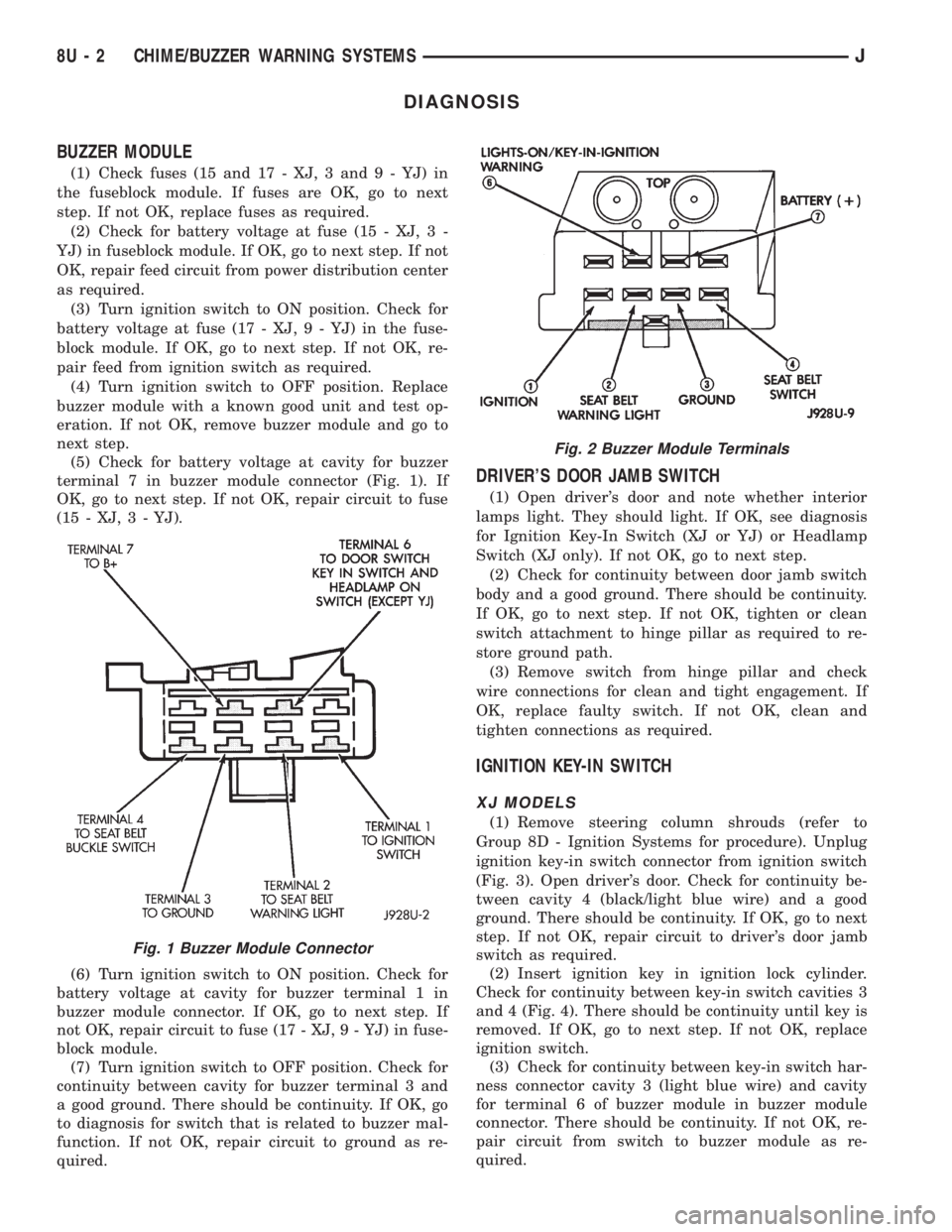

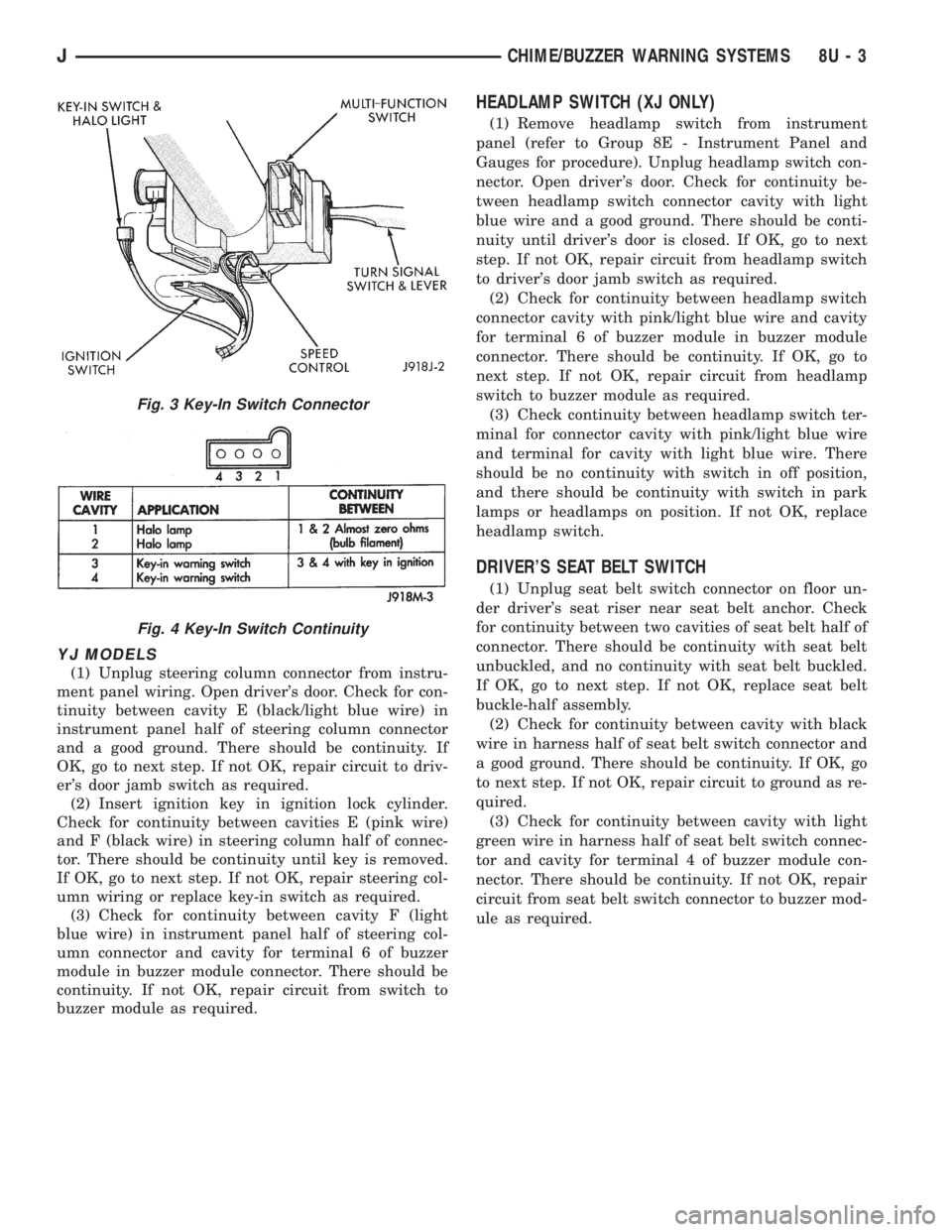

JEEP YJ 1995  Service And Repair Manual DIAGNOSIS
BUZZER MODULE
(1) Check fuses (15 and 17 - XJ, 3 and 9 - YJ) in
the fuseblock module. If fuses are OK, go to next
step. If not OK, replace fuses as required.
(2) Check for battery voltage at

Page 533 of 2158

JEEP YJ 1995  Service And Repair Manual YJ MODELS
(1) Unplug steering column connector from instru-
ment panel wiring. Open drivers door. Check for con-
tinuity between cavity E (black/light blue wire) in
instrument panel half of steering

Page 534 of 2158

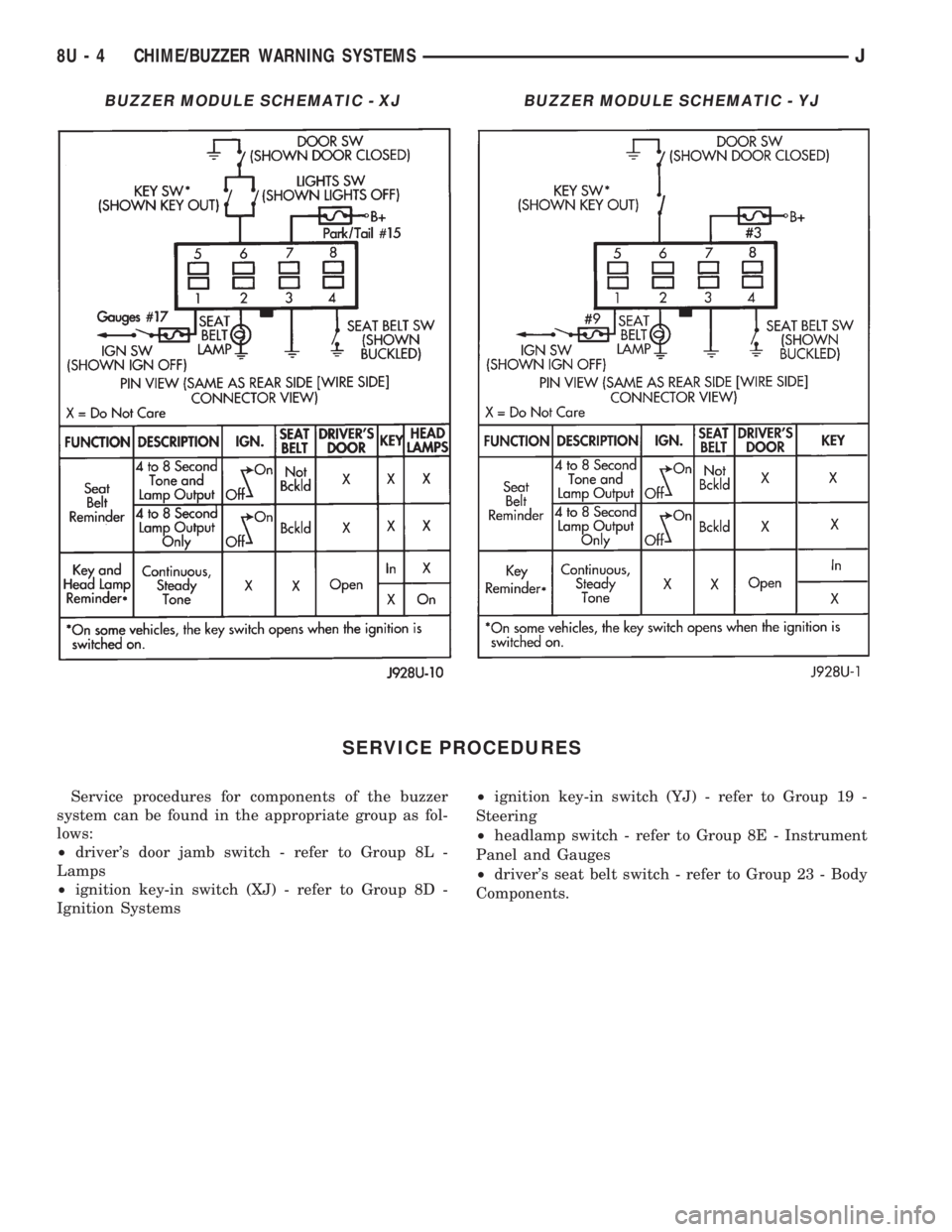

JEEP YJ 1995  Service And Repair Manual SERVICE PROCEDURES
Service procedures for components of the buzzer
system can be found in the appropriate group as fol-
lows:
²drivers door jamb switch - refer to Group 8L -
Lamps
²ignition key-in

Page 535 of 2158

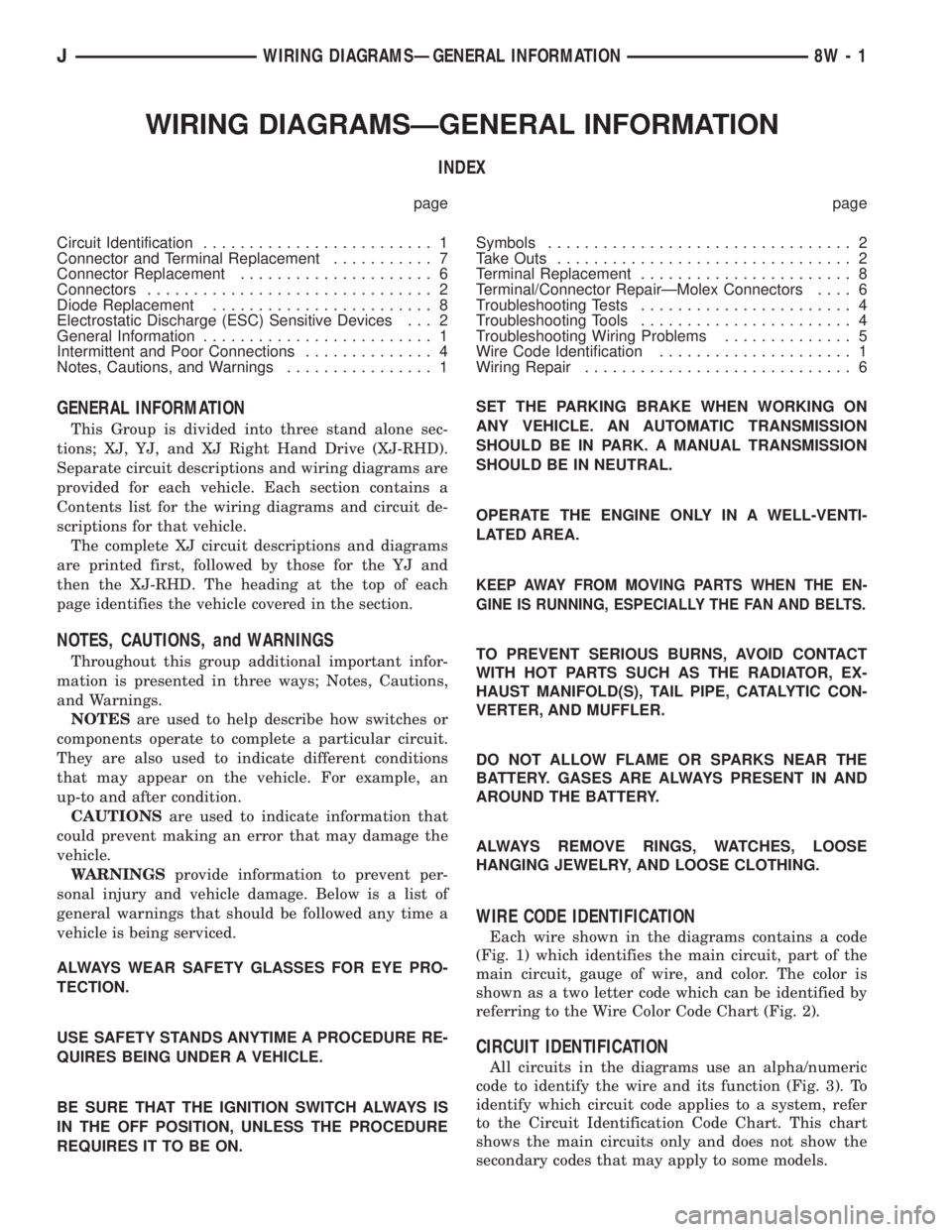

JEEP YJ 1995  Service And Repair Manual WIRING DIAGRAMSÐGENERAL INFORMATION
INDEX
page page
Circuit Identification......................... 1
Connector and Terminal Replacement........... 7
Connector Replacement..................... 6
Conn

Page 536 of 2158

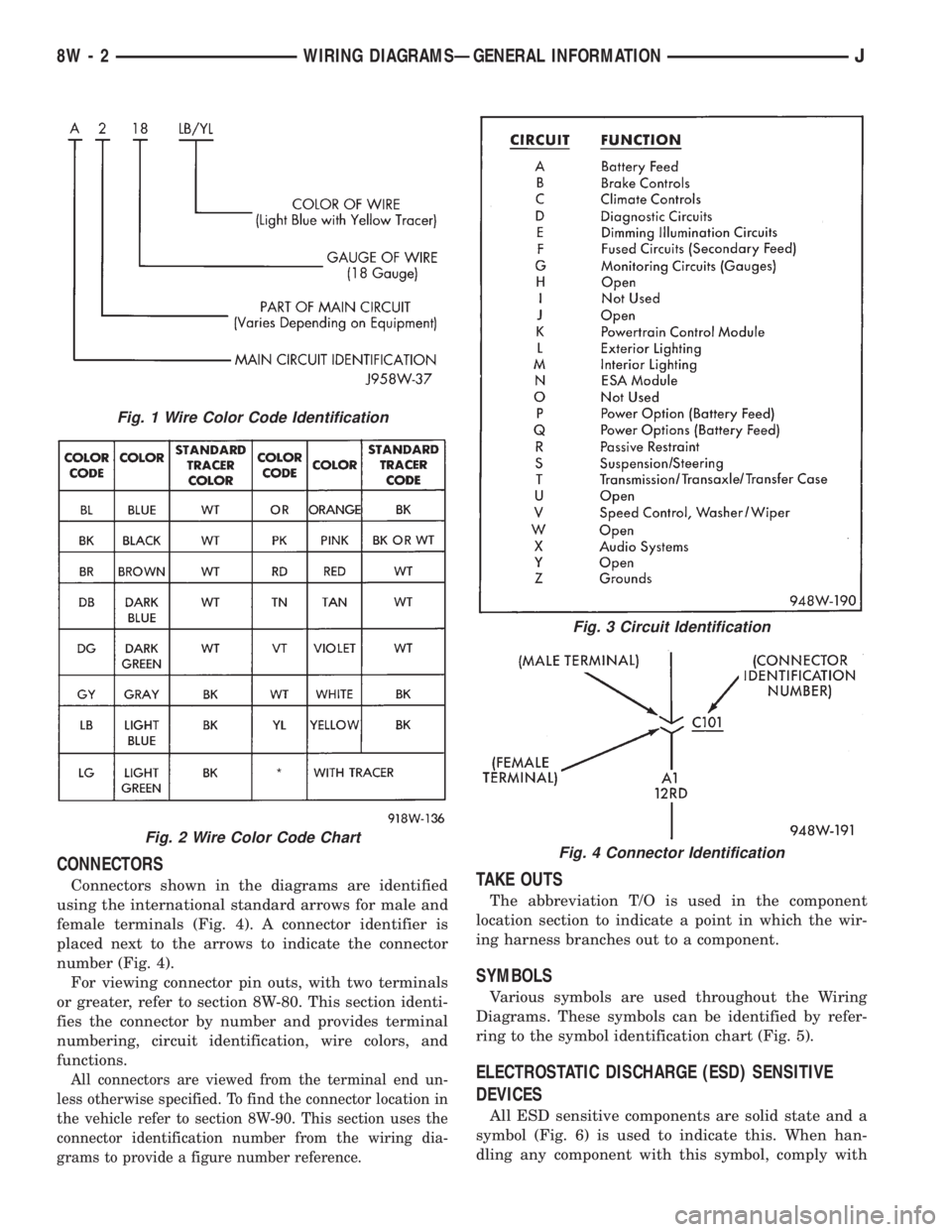

JEEP YJ 1995  Service And Repair Manual CONNECTORS
Connectors shown in the diagrams are identified
using the international standard arrows for male and
female terminals (Fig. 4). A connector identifier is
placed next to the arrows to indica

Page 537 of 2158

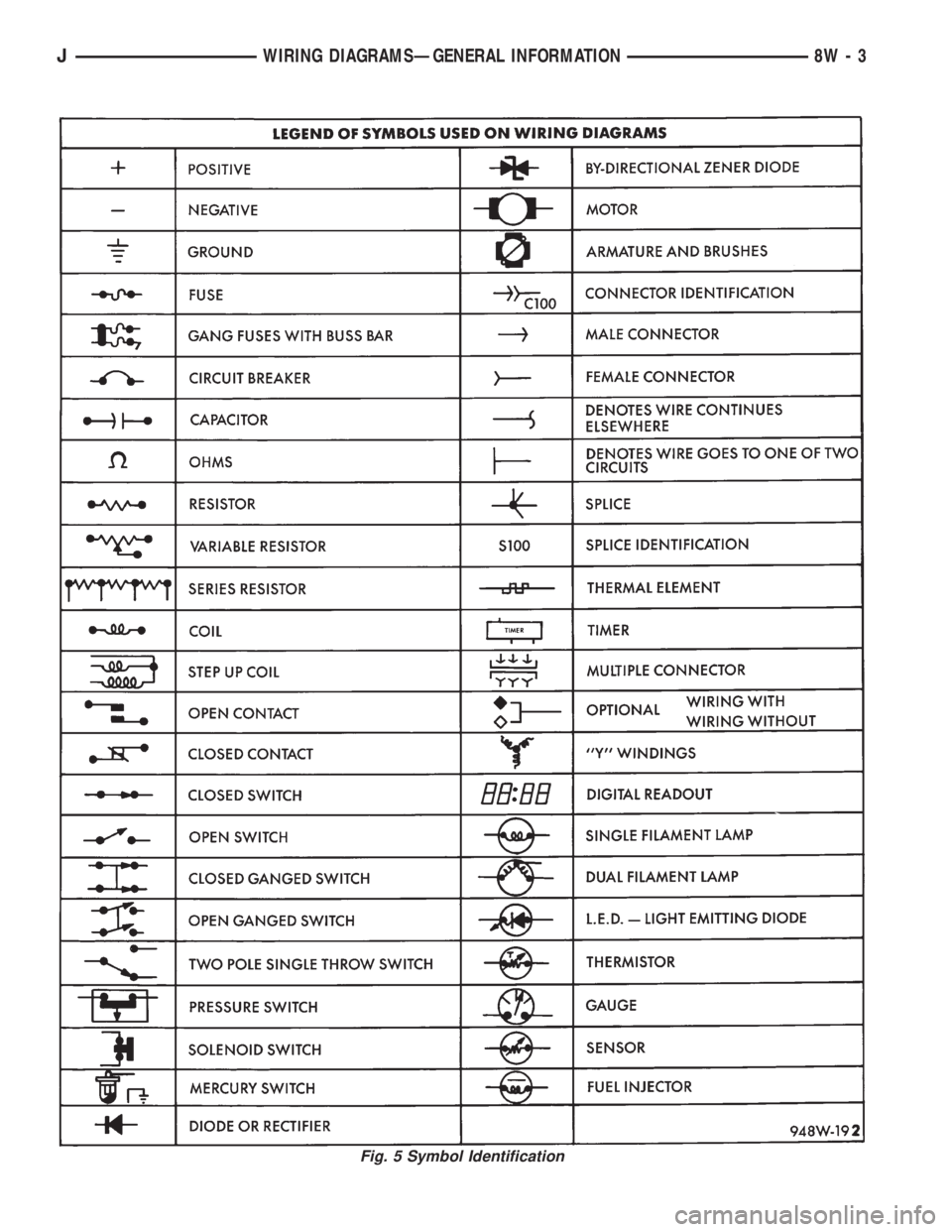

JEEP YJ 1995  Service And Repair Manual Fig. 5 Symbol Identification
JWIRING DIAGRAMSÐGENERAL INFORMATION 8W - 3

Page 538 of 2158

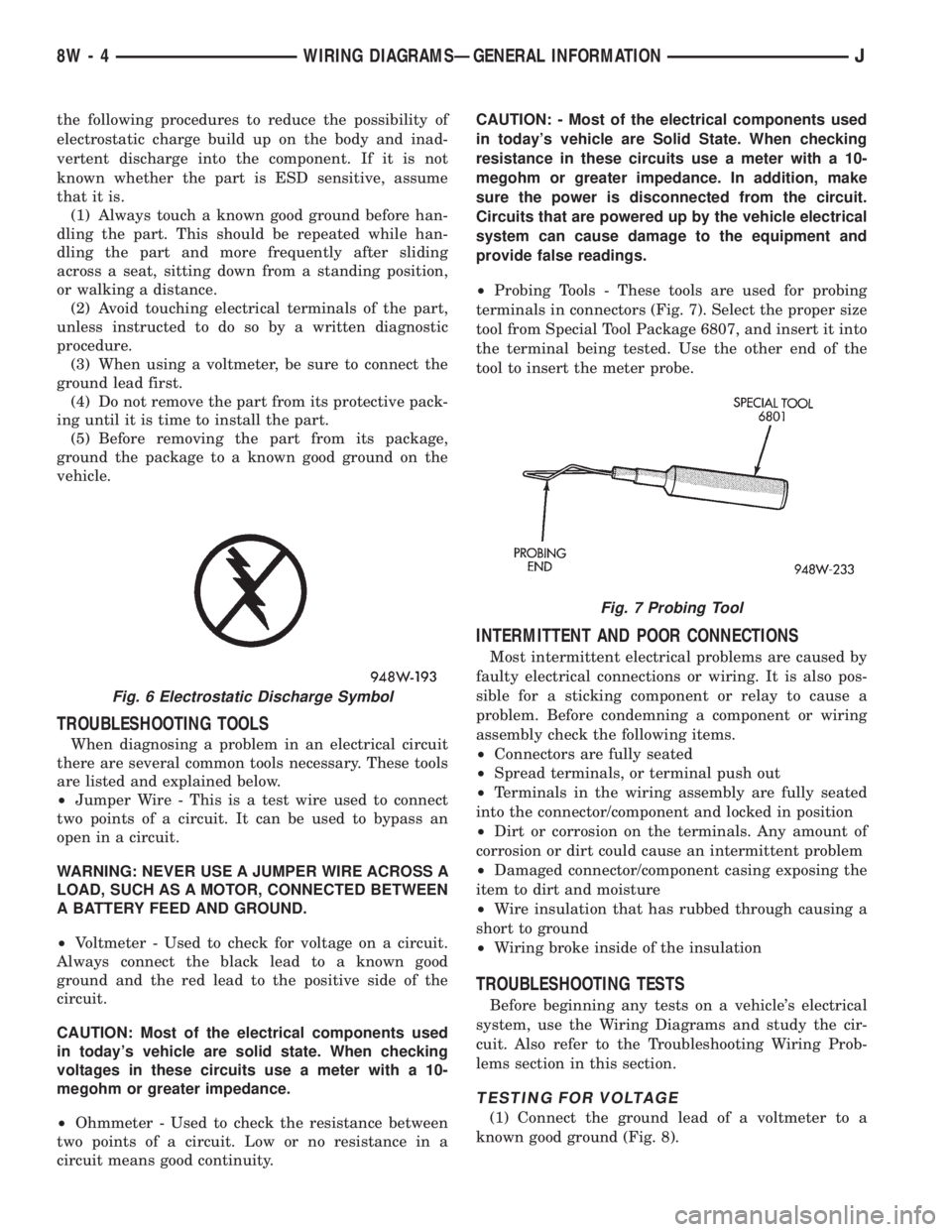

JEEP YJ 1995  Service And Repair Manual the following procedures to reduce the possibility of
electrostatic charge build up on the body and inad-
vertent discharge into the component. If it is not
known whether the part is ESD sensitive, as

Page 539 of 2158

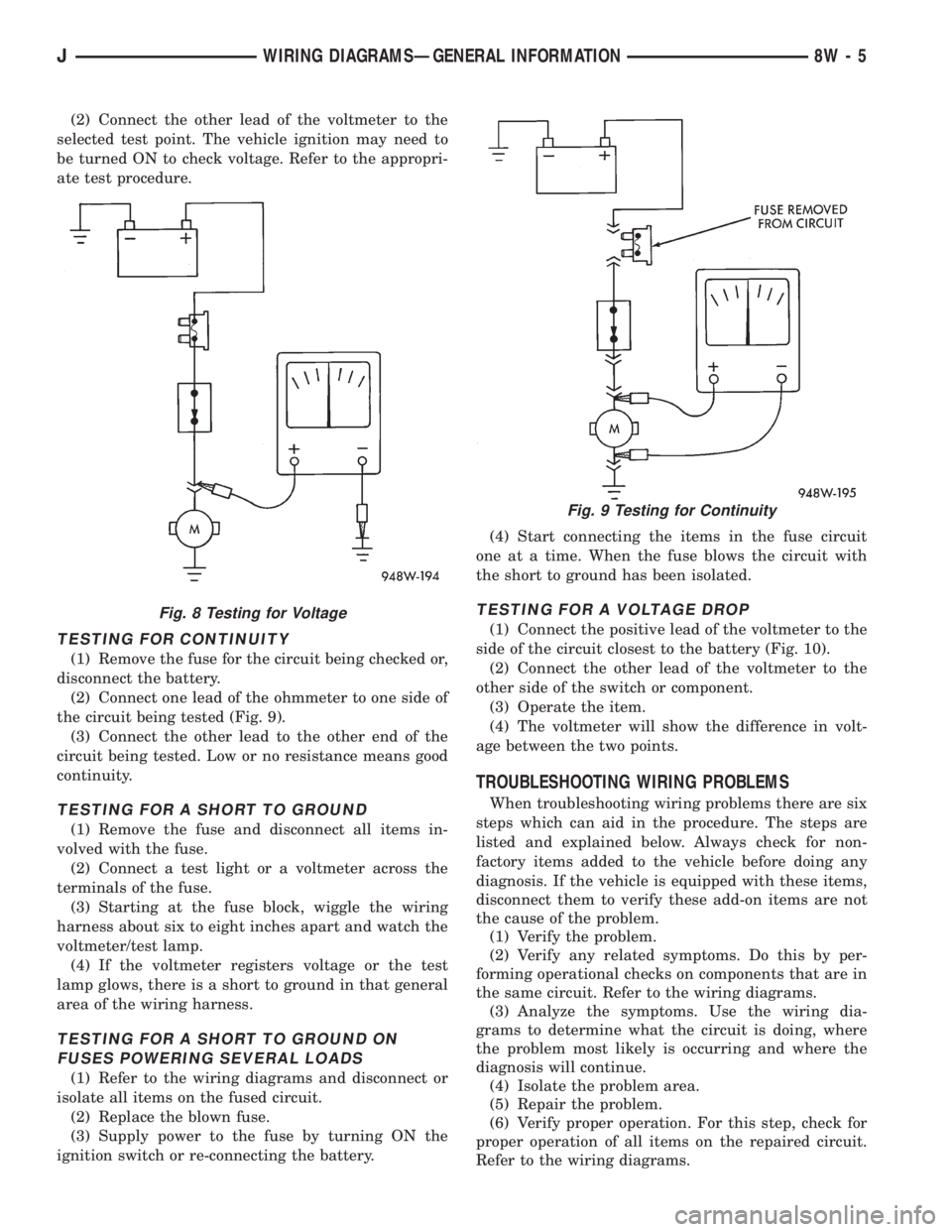

JEEP YJ 1995  Service And Repair Manual (2) Connect the other lead of the voltmeter to the
selected test point. The vehicle ignition may need to
be turned ON to check voltage. Refer to the appropri-
ate test procedure.
TESTING FOR CONTINUIT

Page 540 of 2158

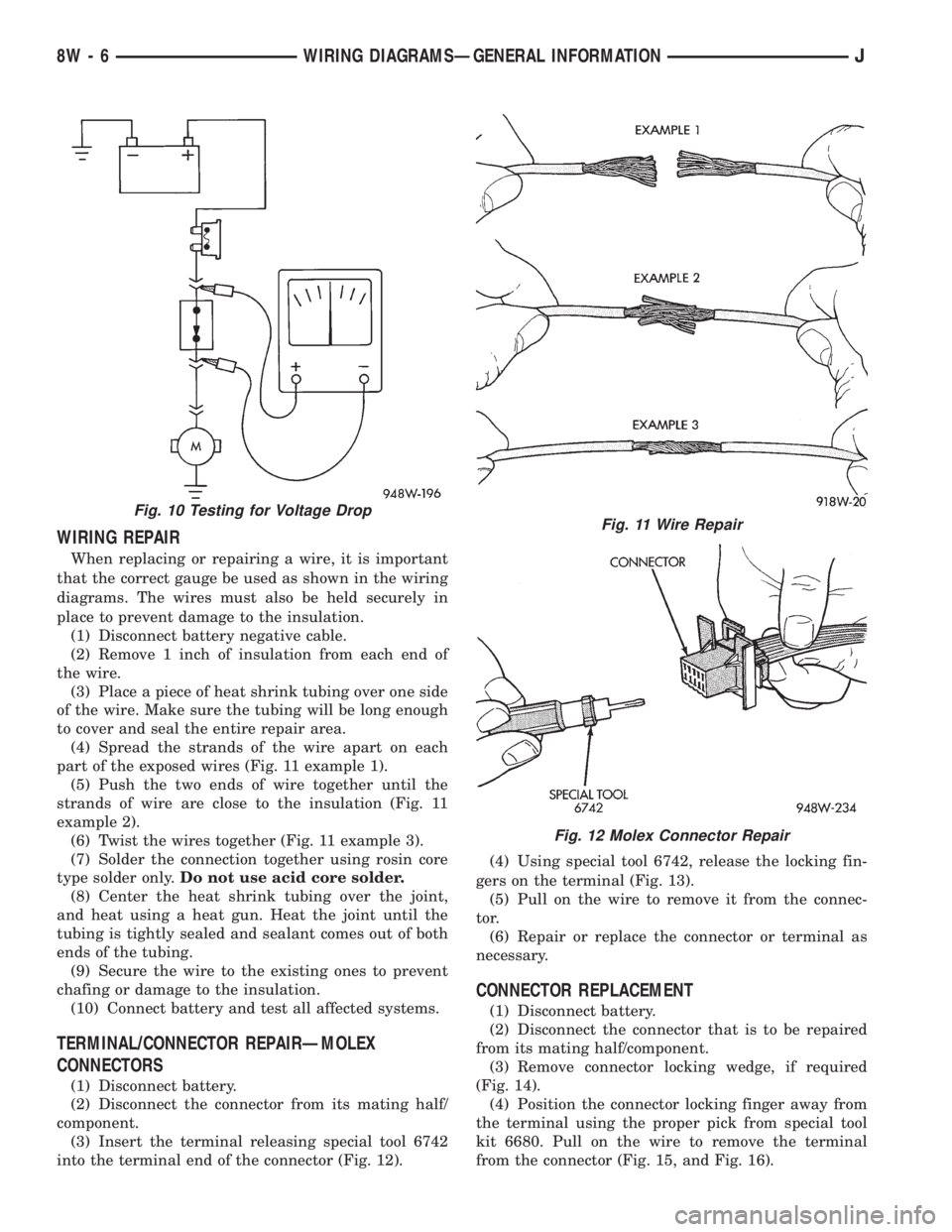

JEEP YJ 1995  Service And Repair Manual WIRING REPAIR
When replacing or repairing a wire, it is important
that the correct gauge be used as shown in the wiring
diagrams. The wires must also be held securely in
place to prevent damage to the
