KIA BORREGO 2017 Owners Manual

Features of your vehicle
22
4

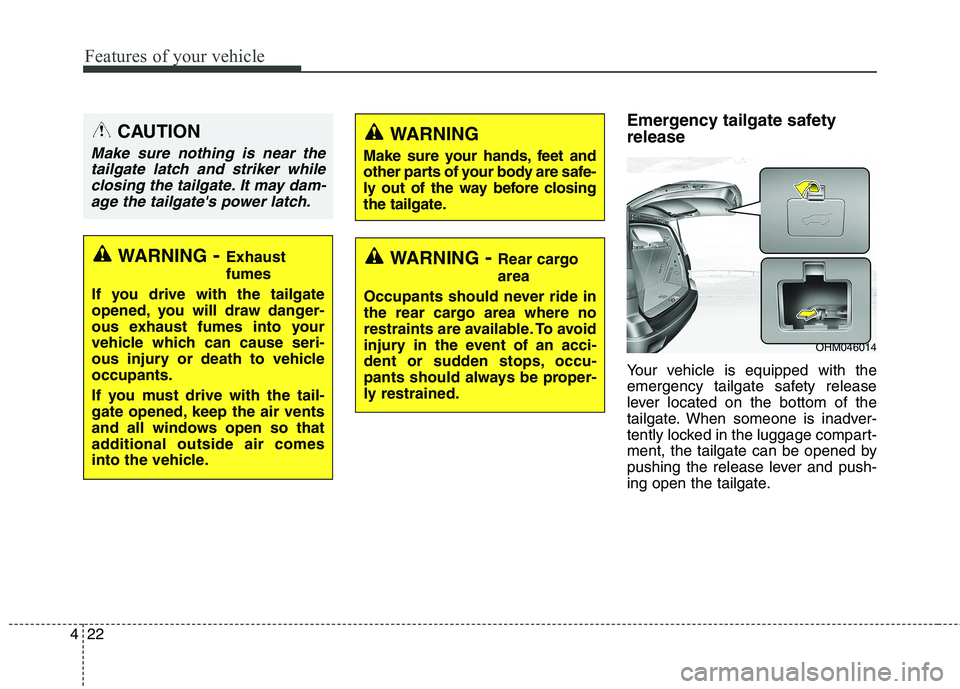

Emergency tailgate safety release
Your vehicle is equipped with the
emergency tailgate safety release
lever located on the bottom of the
tailgate. When someone is inadver-
tently locked in the luggage compart-
ment, the tailgate can be opened by
pushing the release lever and push-
ing open the tailgate.
OHM046014
WARNING - Rear cargo area
Occupants should never ride in
the rear cargo area where no
restraints are available. To avoid
injury in the event of an acci-
dent or sudden stops, occu-
pants should always be proper-
ly restrained.
WARNING
Make sure your hands, feet and
other parts of your body are safe-
ly out of the way before closing
the tailgate.
WARNING - Exhaust fumes
If you drive with the tailgate
opened, you will draw danger-
ous exhaust fumes into your
vehicle which can cause seri-
ous injury or death to vehicleoccupants.
If you must drive with the tail-
gate opened, keep the air vents
and all windows open so that
additional outside air comes
into the vehicle.
CAUTION
Make sure nothing is near the tailgate latch and striker whileclosing the tailgate. It may dam- age the tailgate's power latch.

423
Features of your vehicle

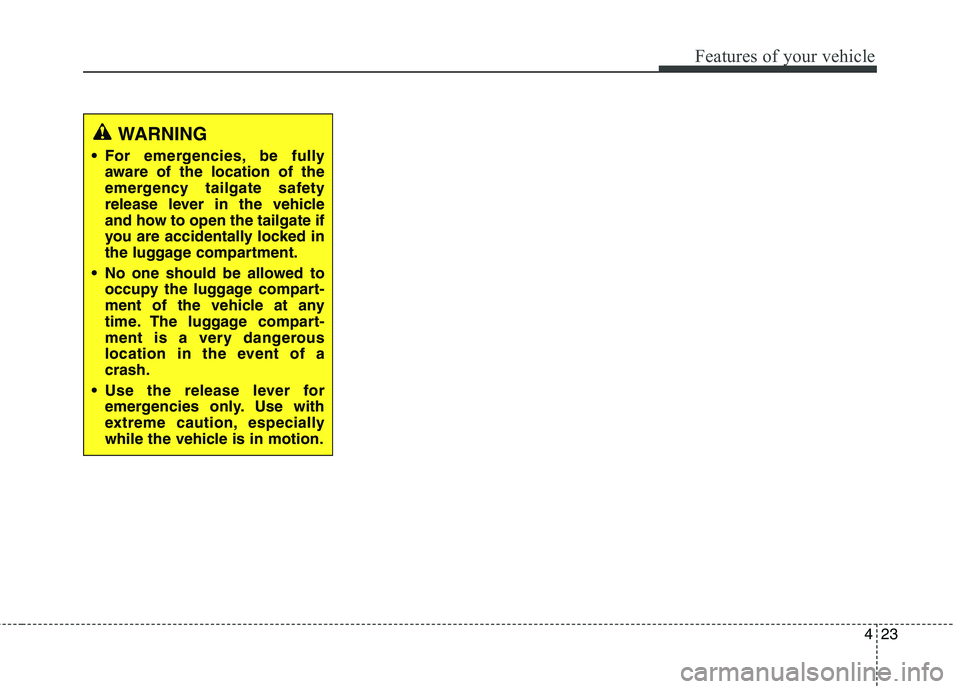

WARNING
For emergencies, be fully aware of the location of the
emergency tailgate safety
release lever in the vehicle
and how to open the tailgate if
you are accidentally locked in
the luggage compartment.
No one should be allowed to occupy the luggage compart-
ment of the vehicle at any
time. The luggage compart-
ment is a very dangerous
location in the event of acrash.
Use the release lever for emergencies only. Use with
extreme caution, especially
while the vehicle is in motion.

Features of your vehicle
24
4

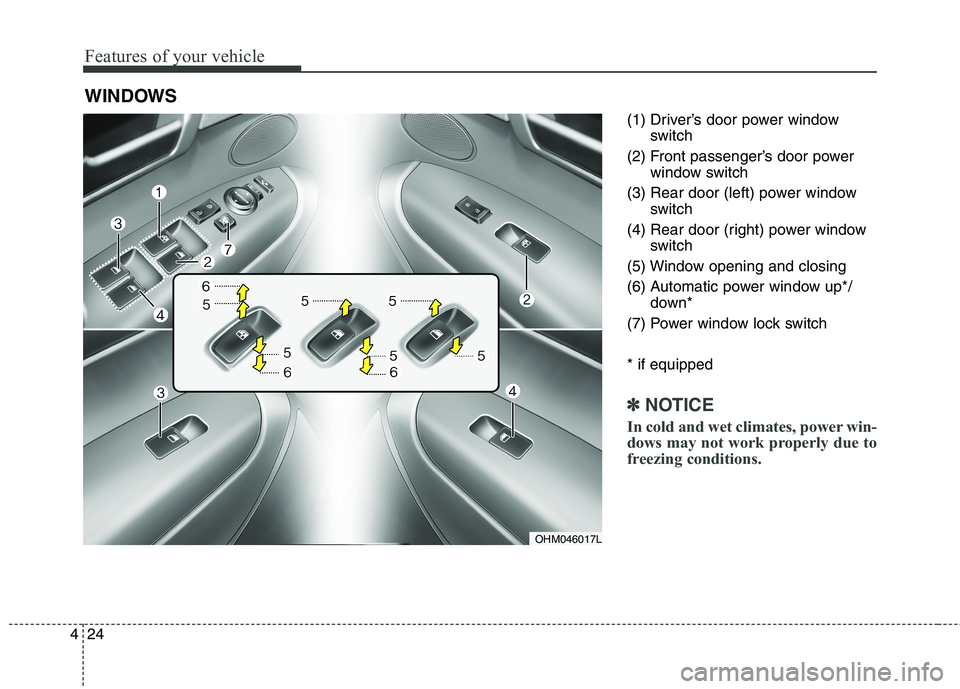

(1) Driver’s door power window
switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window up*/ down*
(7) Power window lock switch * if equipped
✽✽ NOTICE
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
WINDOWS
OHM046017L

425
Features of your vehicle

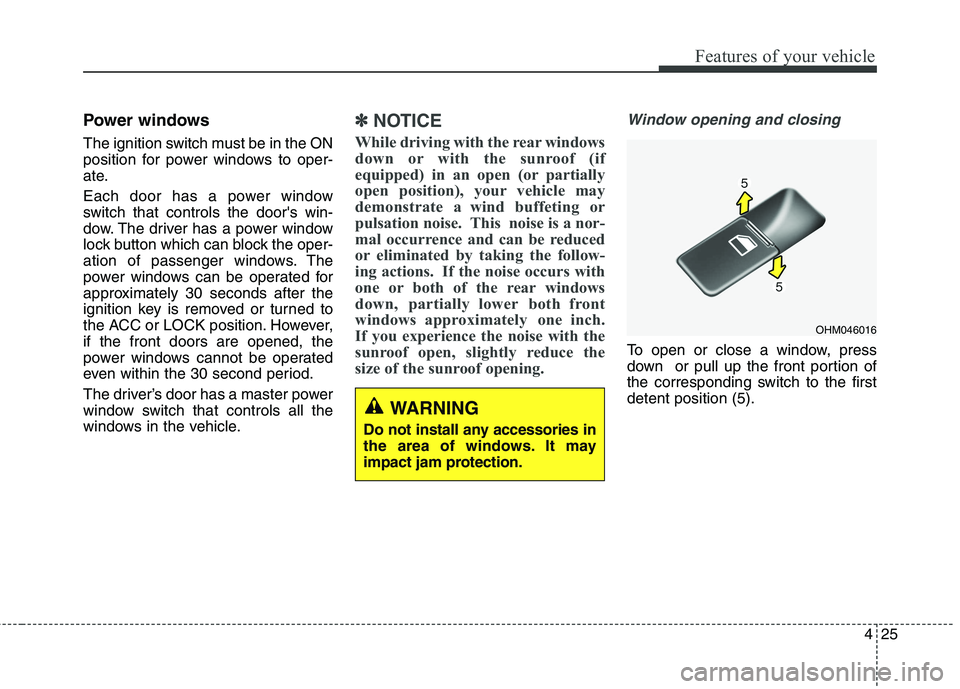

Power windows
The ignition switch must be in the ON
position for power windows to oper-
ate.
Each door has a power window
switch that controls the door's win-
dow. The driver has a power window
lock button which can block the oper-
ation of passenger windows. The
power windows can be operated for
approximately 30 seconds after the
ignition key is removed or turned to
the ACC or LOCK position. However,if the front doors are opened, the
power windows cannot be operated
even within the 30 second period.
The driver’s door has a master power
window switch that controls all the
windows in the vehicle.✽✽NOTICE
While driving with the rear windows
down or with the sunroof (if
equipped) in an open (or partially
open position), your vehicle may
demonstrate a wind buffeting or
pulsation noise. This noise is a nor-
mal occurrence and can be reduced
or eliminated by taking the follow-
ing actions. If the noise occurs with
one or both of the rear windows
down, partially lower both front
windows approximately one inch.
If you experience the noise with the
sunroof open, slightly reduce the
size of the sunroof opening. Window opening and closing
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the firstdetent position (5).
OHM046016
WARNING
Do not install any accessories in
the area of windows. It may
impact jam protection.

Features of your vehicle
26
4

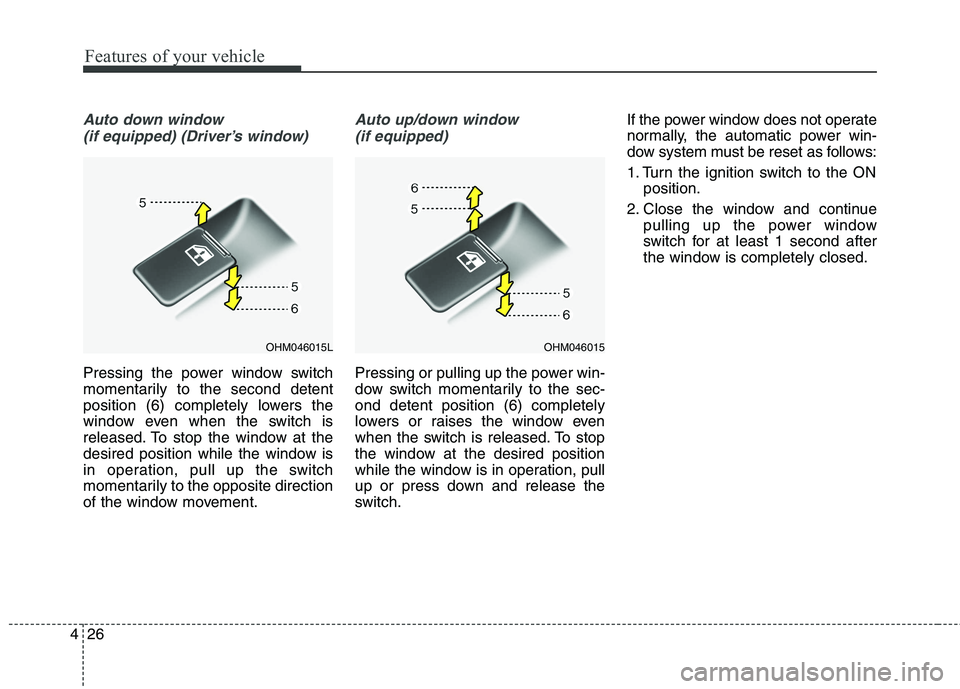

Auto down window
(if equipped) (Driver’s window)
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers the
window even when the switch is
released. To stop the window at the
desired position while the window is
in operation, pull up the switch
momentarily to the opposite direction
of the window movement.
Auto up/down window (if equipped)
Pressing or pulling up the power win-
dow switch momentarily to the sec-ond detent position (6) completely
lowers or raises the window even
when the switch is released. To stop
the window at the desired position
while the window is in operation, pull
up or press down and release the
switch. If the power window does not operate
normally, the automatic power win-
dow system must be reset as follows:
1. Turn the ignition switch to the ON
position.
2. Close the window and continue pulling up the power window
switch for at least 1 second after
the window is completely closed.
OHM046015LOHM046015

427
Features of your vehicle

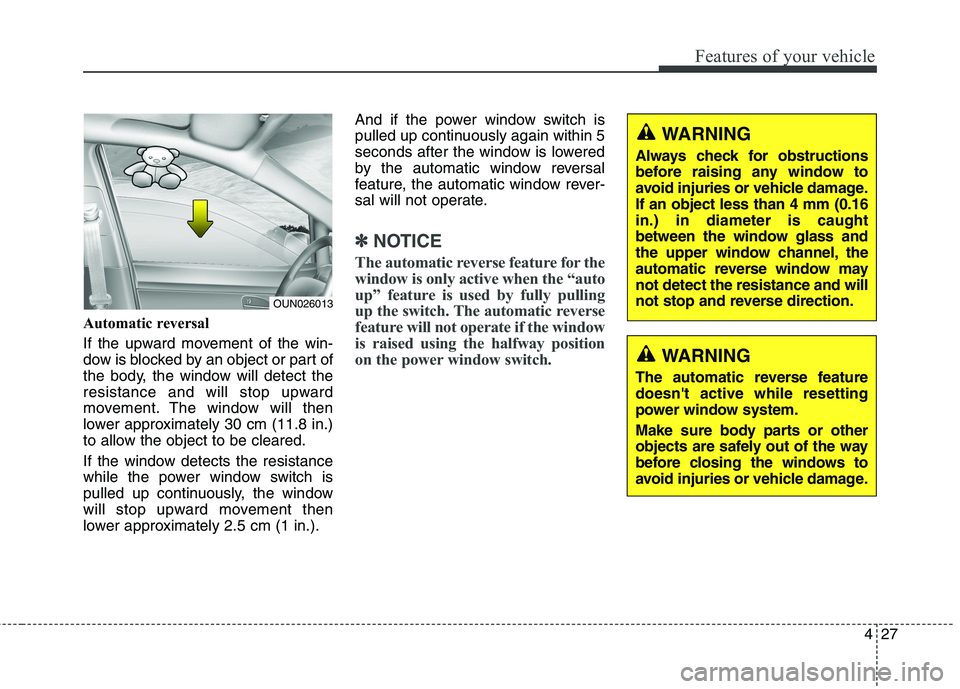

Automatic reversal
If the upward movement of the win-
dow is blocked by an object or part of
the body, the window will detect the
resistance and will stop upward
movement. The window will then
lower approximately 30 cm (11.8 in.)
to allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 2.5 cm (1 in.).And if the power window switch is
pulled up continuously again within 5
seconds after the window is lowered
by the automatic window reversal
feature, the automatic window rever-
sal will not operate.
✽✽
NOTICE
The automatic reverse feature for the
window is only active when the “auto
up” feature is used by fully pulling
up the switch. The automatic reverse
feature will not operate if the window
is raised using the halfway position
on the power window switch.
WARNING
Always check for obstructions
before raising any window to
avoid injuries or vehicle damage.If an object less than 4 mm (0.16in.) in diameter is caught
between the window glass and
the upper window channel, the
automatic reverse window maynot detect the resistance and will
not stop and reverse direction.
WARNING
The automatic reverse feature doesn't active while resetting
power window system.
Make sure body parts or other
objects are safely out of the way
before closing the windows to
avoid injuries or vehicle damage.
OUN026013

Features of your vehicle
28
4
Power window lock button
The driver can disable the power
window switches on the rear passen-
gers’ doors by pressing the power
window lock switch to the lock posi-tion (pressed).
When the power window lock switch is pressed :
The driver’s master control can
operate the front passenger’s power
window and the rear passengers’
power windows.
The front passenger’s control can operate the front passenger’s
power window. The rear passengers’ control can-
not operate the rear passengers’
power window.
If the window cannot be close because
it is blocked by objects, remove the
objects and close the window.
CAUTION
To prevent possible damageto the power window system,do not open or close two win- dows or more at the sametime. This will also ensure thelongevity of the fuse.
Never try to operate the main switch on the driver's doorand the individual door win-dow switch in opposite direc-tions at the same time. If this is done, the window will stop andcannot be opened or closed.
(Continued)
NEVER leave any child unat- tended in the vehicle. Even
very young children may inad-
vertently cause the vehicle to
move, entangle themselves in
the windows, or otherwise
injure themselves or others.
Always double check to make sure all arms, hands, headand other obstructions are
safely out of the way before
closing a window.
Do not allow children play with the power windows. Keep the
driver’s door power window
lock button in the LOCK posi-
tion (pressed). Serious injury
can result from unintentional
window operation by the child.
Do not extend heads or any limbs outside the window
while the vehicle is in motion.
WARNING - Windows
NEVER leave the keys in your vehicle with unsupervised
children, when the engine isrunning.
(Continued)
OHM046018

429
Features of your vehicle
Opening the hood
1. Pull the release lever to unlatchthe hood. The hood should pop
open slightly. 2. Go to the front of the vehicle, raise
the hood slightly, push the second-
ary latch (1) left side and lift thehood (2).
3. Raise the hood. It will completely rise by itself after it has been
raised about halfway. Closing the hood
1. Before closing the hood, check the
following:
partment must be correctly installed.
bustible material must be removed
from the engine compartment.
2. Lower the hood halfway and push down to securely lock in place.
hood is secure.
slight force, open the hood again
and close it more firmly.
HOOD
OHM048019
OHM046020L
WARNING
Open the hood after turning off
the engine on a flat surface,
shifting the shift lever to the
P(Park) position, and setting the
parking brake.

Features of your vehicle
30
4
WARNING
Always double check to be sure that the hood is firmly
latched before driving away. If
it is not latched, the hood
could open while the vehicle
is being driven, causing total
loss of visibility, which mightresult in an accident.
Do not move the vehicle with the hood raised. The view will
be blocked and the hood
could fall or be damaged.WARNING
Before closing the hood, ensure that all obstructions
are removed from the hood
opening. Closing the hoodwith an obstruction present in
the hood opening may result
in property damage or severe
personal injury.
Do not leave gloves, rags or any other combustible materi-
al in the engine compartment.
Doing so may cause a heat-
induced fire.

431
Features of your vehicle
Opening the fuel filler lid
The fuel filler lid must be opened
from inside the vehicle by pulling outthe fuel filler lid opener located on
the driver’s door.✽✽NOTICE
If the fuel filler lid does not open
because ice has formed around it,
tap lightly or push on the lid to break
the ice and release the lid. Do not pry
on the lid. If necessary, spray around
the lid with an approved de-icer fluid
(do not use radiator anti-freeze) or
move the vehicle to a warm place
and allow the ice to melt.
1. Stop the engine.
2. To open the fuel filler lid, pull the fuel filler lid opener up.
3. Pull open the fuel filler lid (1).
4. To remove the cap, turn the fuel filler cap (2) counterclockwise.
5. Refuel as needed.
FUEL FILLER LIDOHM048021N
OHM046022L
