KIA BORREGO 2017 User Guide

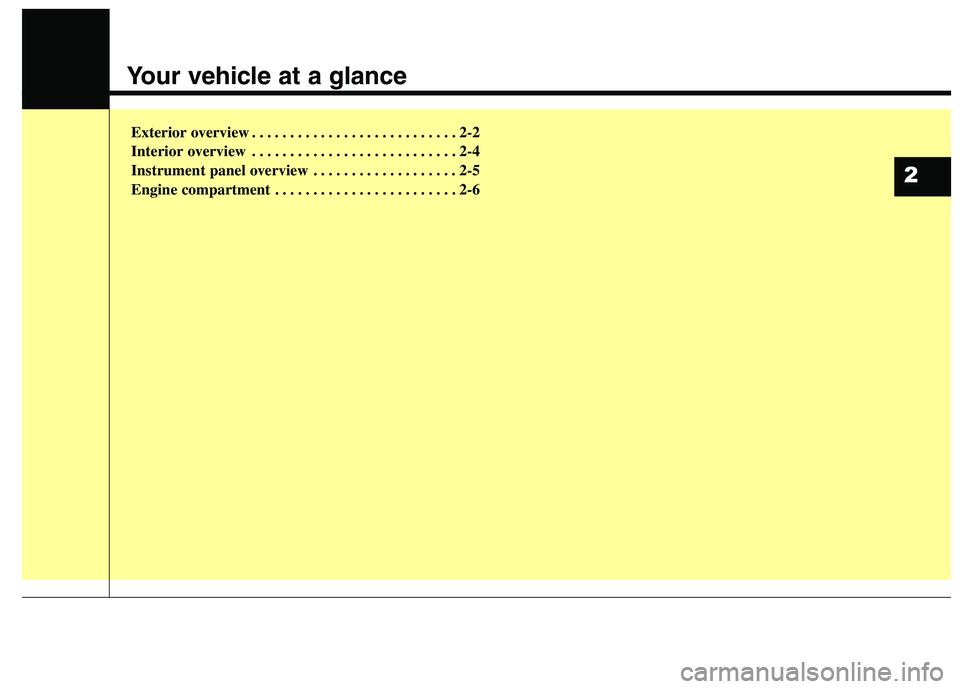

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2

Your vehicle at a glance
2
2

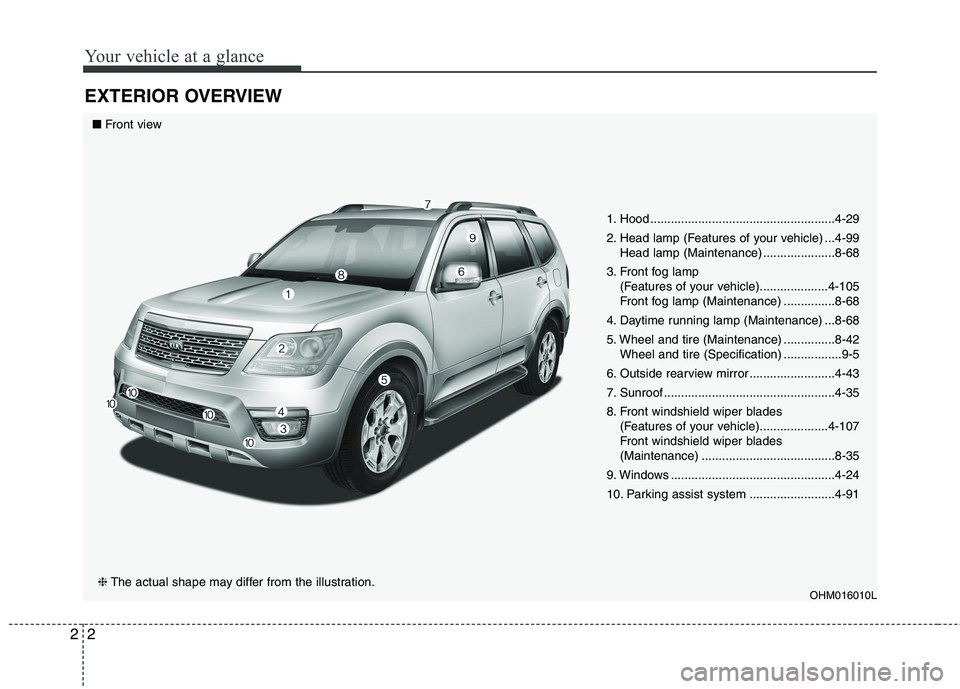

EXTERIOR OVERVIEW
1. Hood ......................................................4-29
2. Head lamp (Features of your vehicle) ...4-99
Head lamp (Maintenance) .....................8-68
3. Front fog lamp (Features of your vehicle)....................4-105
Front fog lamp (Maintenance) ...............8-68
4. Daytime running lamp (Maintenance) ...8-68
5. Wheel and tire (Maintenance) ...............8-42 Wheel and tire (Specification) .................9-5
6. Outside rearview mirror .........................4-43
7. Sunroof ..................................................4-35
8. Front windshield wiper blades (Features of your vehicle)....................4-107
Front windshield wiper blades
(Maintenance) .......................................8-35
9. Windows ................................................4-24
10. Parking assist system .........................4-91
OHM016010L
■Front view
❈ The actual shape may differ from the illustration.

23
Your vehicle at a glance

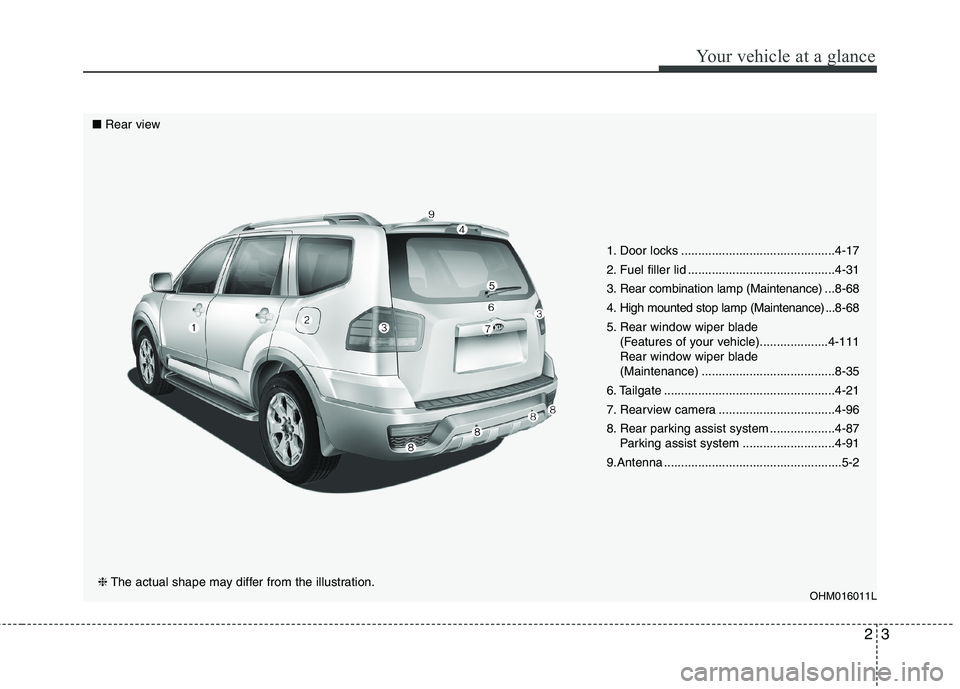

1. Door locks .............................................4-17
2. Fuel filler lid ...........................................4-31
3. Rear combination lamp (Maintenance) ...8-68
4. High mounted stop lamp (Maintenance) ... 8-68
5. Rear window wiper blade (Features of your vehicle)....................4-111
Rear window wiper blade
(Maintenance) .......................................8-35
6. Tailgate ..................................................4-21
7. Rearview camera ..................................4-96
8. Rear parking assist system ...................4-87 Parking assist system ...........................4-91
9.Antenna ....................................................5-2
OHM016011L
■Rear view
❈ The actual shape may differ from the illustration.

Your vehicle at a glance
4
2
INTERIOR OVERVIEW
1. Inside door handle.................................4-18
2. Power window switch ............................4-24
3. Central door lock switch ........................4-19
4. Power window lock button .....................4-28
5. Outside rearview mirror control .............4-44
6. Outside rearview mirror folding .............4-46
7 .Driver position memory system button ...3-9
8. Headlight leveling device .....................4-106
9. BSD On/Off button ................................6-63
10. LDWS On/Off button ...........................6-58
11. ESC off button .....................................6-40
12. ALS control switch ...............................6-49
13. 4WD transfer shift knob.......................6-25
14. Steering wheel ....................................4-39
15. Tilt and telescopic steering control lever/
button ..................................................4-40
16. Inner fuse panel ..................................8-53
17. Brake pedal .........................................6-34
18. Parking brake pedal ............................6-36
19. Hood release lever ..............................4-29
20. Seat .......................................................3-2
21. Fuel filler lid release lever ...................4-31
OHM016012L
❈The actual shape may differ from the illustration.

25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Driver’s front air bag ............................3-59
2. Horn.....................................................4-41
3. Instrument cluster ................................4-47
4. Wiper and washer control lever .........4-107
5. Ignition switch or Engine start/stop button ...............6-6, 6-10
6. Cruise control ......................................6-52
7. Hazard warning flasher .........................7-2
8. Auto Climate control system .............4-117
9. Shift lever.............................................6-16
10. Rear fog lamp On/Off button ...........4-105
11. Heated steering wheel button ...........4-40
12. Front seat warmer ...........................4-145 Front Seat ventilation.......................4-146
13. Parking assist system On/Off button .4-91
14. Surround view monitoring system On/Off button .....................................4-97
15. AUX, USB port ....................................5-4
16. Center console storage box ............4-138
17. Glove box ........................................4-139
18. Passenger’s front air bag ..................3-59
19. Steering wheel audio controls .............5-3
OHM016002L
❈The actual shape may differ from the illustration.

Your vehicle at a glance
6
2
ENGINE COMPARTMENT
OHM076070L
■■
Gasoline Engine (Lambda 3.8L) - MPI
❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir .................8-24
2. Engine oil filler cap..........................8-22
3. Brake fluid reservoir ........................8-27
4. Air cleaner .......................................8-31
5. Fuse box .........................................8-53
6. Negative battery terminal ................8-38
7. Positive battery terminal .................8-38
8. Radiator cap....................................8-24
9. Engine oil dipstick ...........................8-22
10. Power steering fluid reservoir .......8-28
11. Windshield washer fluid reservoir ...
8-29

27
Your vehicle at a glance
OHM076071L
■■Diesel Engine (3.0L)
❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir .................8-24
2. Engine oil filler cap..........................8-22
3. Brake fluid reservoir ........................8-27
4. Air cleaner .......................................8-31
5. Fuse box .........................................8-53
6. Negative battery terminal ................8-38
7. Positive battery terminal .................8-38
8. Radiator cap....................................8-24
9. Engine oil dipstick ...........................8-22
10. Power steering fluid reservoir .......8-28
11. Windshield washer fluid reservoir ...
8-29
12. Fuel Filter ......................................8-30

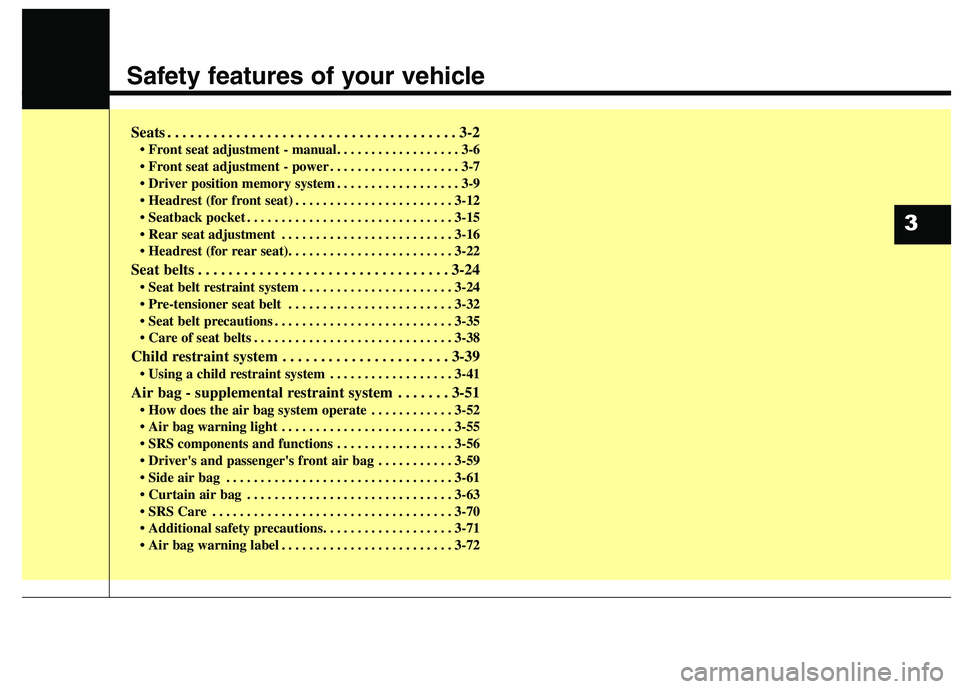

Safety features of your vehicle
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2• Front seat adjustment - manual. . . . . . . . . . . . . . . . . . 3-6
. . . . . . . . . . . . . . . . . . . 3-7
. . . . . . . . . . . . . . . . . . 3-9
. . . . . . . . . . . . . . . . . . . . . . . 3-12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
. . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24 . . . . . . . . . . . . . . . . . . . . . . 3-24
. . . . . . . . . . . . . . . . . . . . . . . . 3-32
. . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-39 . . . . . . . . . . . . . . . . . . 3-41
Air bag - supplemental restraint system . . . . . . . 3-51 . . . . . . . . . . . . 3-52
. . . . . . . . . . . . . . . . . . . . . . . . . 3-55
. . . . . . . . . . . . . . . . . 3-56
. . . . . . . . . . . 3-59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-70

. . . . . . . . . . . . . . . . . . . . . . . . . 3-72
3

Safety features of your vehicle
2
3
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)
(5) Driver position memory system*(6) Headrest
(7) Walk-in switch (passenger’s seat)* 2 nd
row seat
(8) Forward and backward
(9) Seatback angle and folding
(10) Walk-in seat lever*(11) Headrest
(12) Armrest 3 rd
row seat
(13) Seatback folding (14) Headrest
* : if equipped

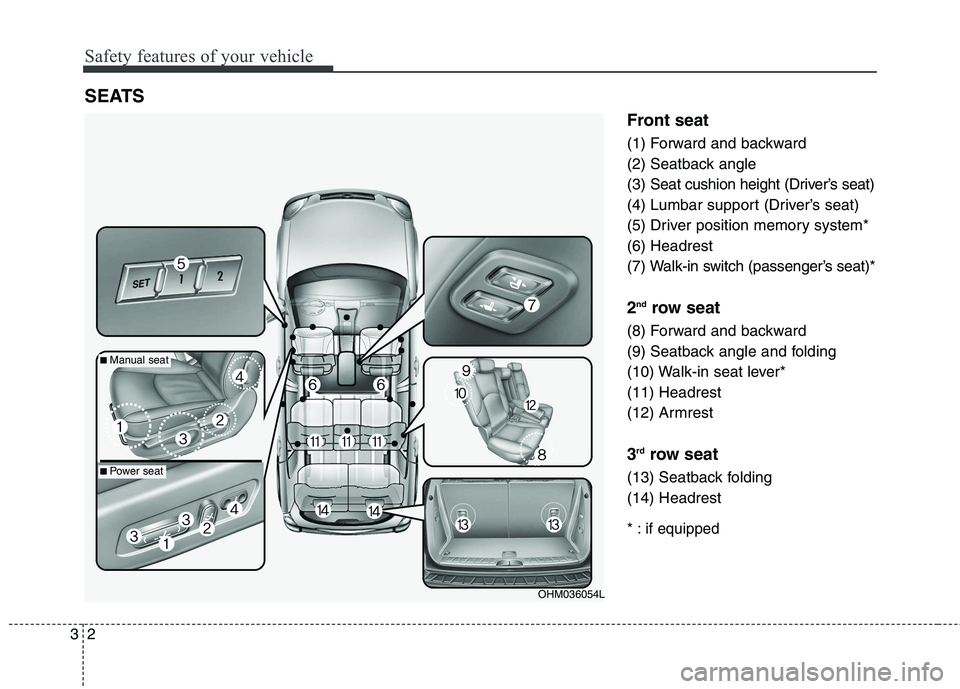

SEATS
OHM036054L
■ Manual seat
■Power seat

33
Safety features of your vehicle

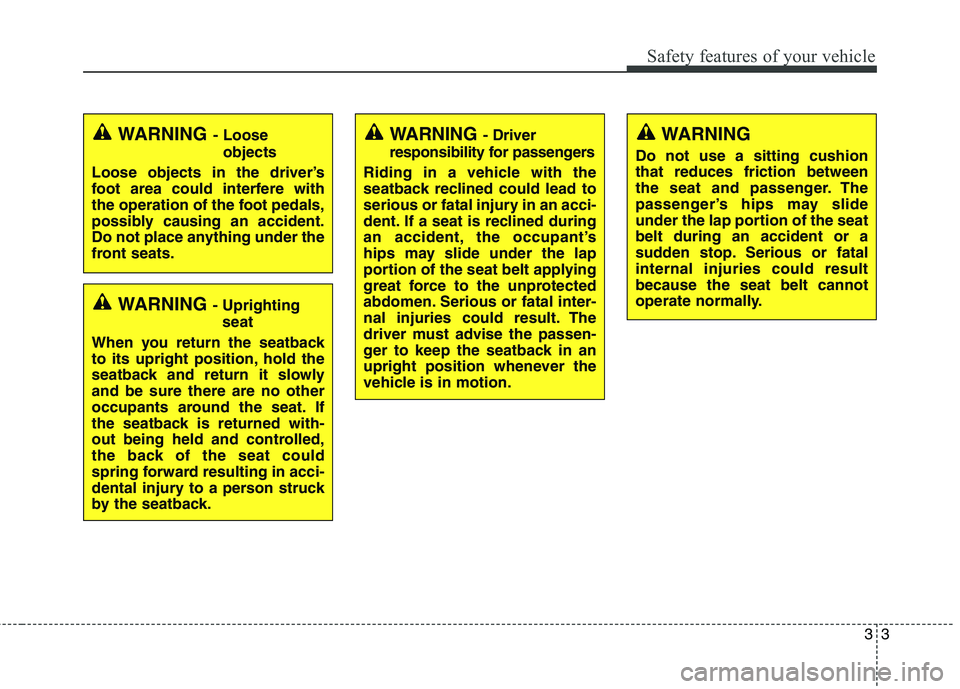

WARNING - Uprighting
seat
When you return the seatback
to its upright position, hold the
seatback and return it slowlyand be sure there are no other
occupants around the seat. If
the seatback is returned with-
out being held and controlled,
the back of the seat could
spring forward resulting in acci-
dental injury to a person struck
by the seatback.
WARNING - Loose
objects
Loose objects in the driver’s
foot area could interfere with
the operation of the foot pedals,
possibly causing an accident.
Do not place anything under the
front seats.WARNING - Driver
responsibility for passengers
Riding in a vehicle with the
seatback reclined could lead to
serious or fatal injury in an acci-
dent. If a seat is reclined during
an accident, the occupant’s
hips may slide under the lap
portion of the seat belt applying
great force to the unprotected
abdomen. Serious or fatal inter-
nal injuries could result. The
driver must advise the passen-
ger to keep the seatback in an
upright position whenever the
vehicle is in motion.WARNING
Do not use a sitting cushion that reduces friction between
the seat and passenger. The
passenger’s hips may slide
under the lap portion of the seatbelt during an accident or a
sudden stop. Serious or fatalinternal injuries could resultbecause the seat belt cannot
operate normally.
