Audio system
49
5
✽✽

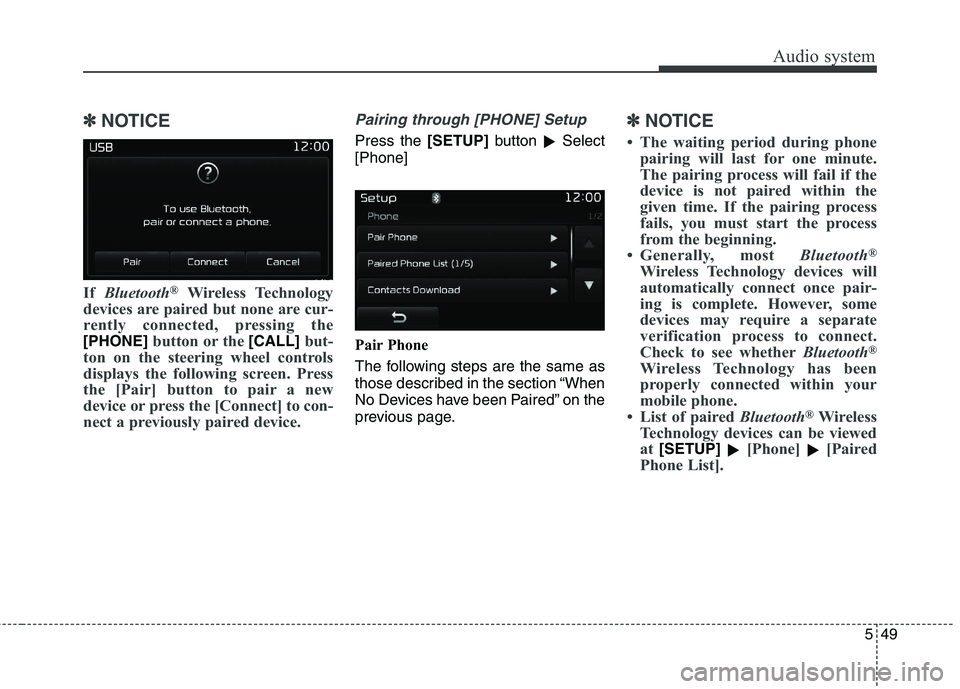

NOTICE
If Bluetooth ®
Wireless Technology
devices are paired but none are cur-
rently connected, pressing the
[PHONE]button or the [CALL]but-
ton on the steering wheel controls
displays the following screen. Press
the [Pair] button to pair a new
device or press the [Connect] to con-
nect a previously paired device.
Pairing through [PHONE] Setup
Press the [SETUP]button
Select
[Phone]
Pair Phone
The following steps are the same as
those described in the section “When
No Devices have been Paired” on the
previous page.
✽✽ NOTICE
 The waiting period during phone pairing will last for one minute.
The pairing process will fail if the
device is not paired within the
given time. If the pairing process
fails, you must start the process
from the beginning.
 Generally, most Bluetooth®
Wireless Technology devices will
automatically connect once pair-
ing is complete. However, some
devices may require a separate
verification process to connect.
Check to see whether Bluetooth®
Wireless Technology has been
properly connected within your
mobile phone.
 List of paired Bluetooth®
Wireless
Technology devices can be viewedat
[SETUP] [Phone][Paired
Phone List].

Audio system
550

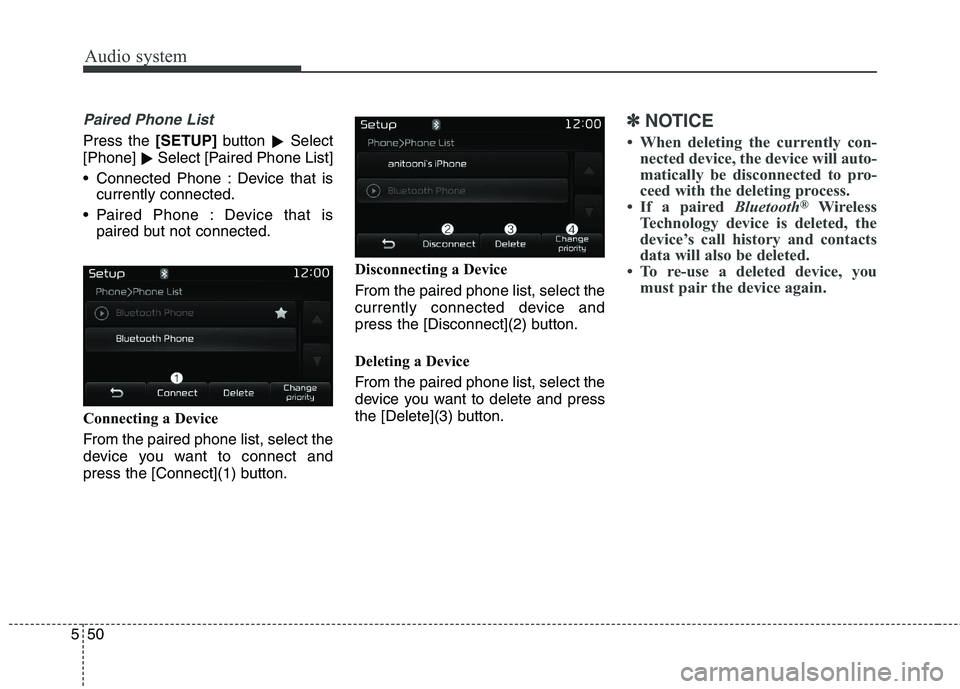

Paired Phone List
Press the [SETUP]button
Select
[Phone] Select [Paired Phone List]
Connected Phone : Device that is currently connected.
Paired Phone : Device that is paired but not connected.
Connecting a Device
From the paired phone list, select the
device you want to connect and
press the [Connect](1) button. Disconnecting a Device
From the paired phone list, select the
currently connected device and
press the [Disconnect](2) button.
Deleting a Device
From the paired phone list, select the
device you want to delete and press
the [Delete](3) button.
✽✽
NOTICE
 When deleting the currently con- nected device, the device will auto-
matically be disconnected to pro-
ceed with the deleting process.
 If a paired Bluetooth®
Wireless
Technology device is deleted, the
device’s call history and contacts
data will also be deleted.
 To re-use a deleted device, you must pair the device again.

Audio system
51
5

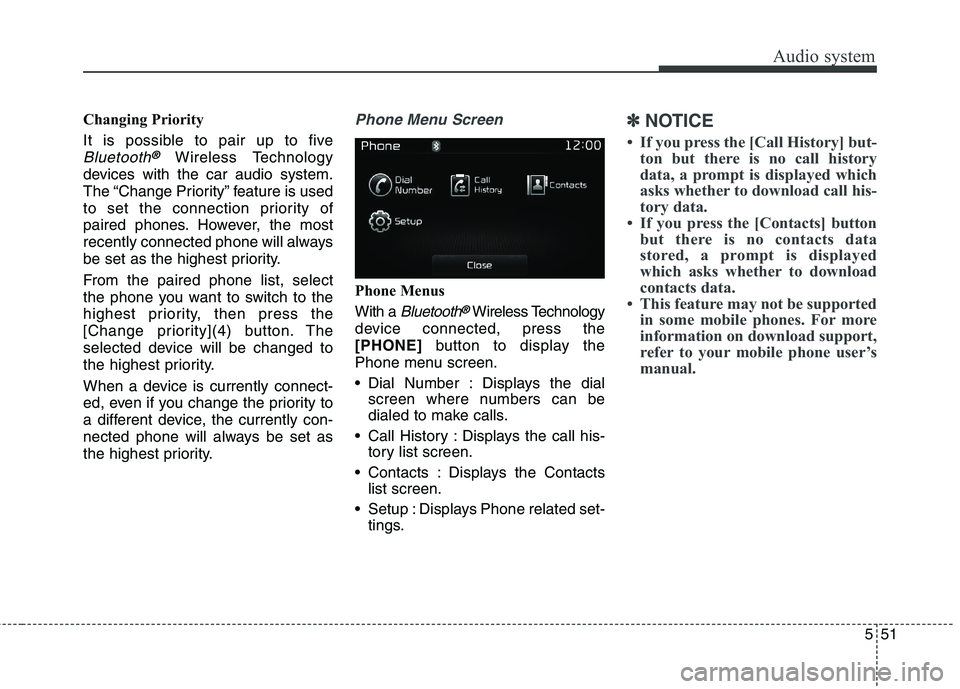

Changing Priority
It is possible to pair up to five
Bluetooth®Wireless Technology
devices with the car audio system.
The “Change Priority” feature is used
to set the connection priority of
paired phones. However, the most
recently connected phone will always
be set as the highest priority.
From the paired phone list, select
the phone you want to switch to the
highest priority, then press the
[Change priority](4) button. The
selected device will be changed to
the highest priority.
When a device is currently connect-
ed, even if you change the priority to
a different device, the currently con-
nected phone will always be set as
the highest priority.
Phone Menu Screen
Phone Menus With a
Bluetooth®Wireless Technology
device connected, press the [PHONE] button to display the
Phone menu screen.
Dial Number : Displays the dial screen where numbers can be
dialed to make calls.
Call History : Displays the call his- tory list screen.
Contacts : Displays the Contacts list screen.
Setup : Displays Phone related set- tings.
✽✽ NOTICE
 If you press the [Call History] but- ton but there is no call history
data, a prompt is displayed which
asks whether to download call his-
tory data.
 If you press the [Contacts] button but there is no contacts data
stored, a prompt is displayed
which asks whether to download
contacts data.
 This feature may not be supported in some mobile phones. For more
information on download support,
refer to your mobile phone user’s
manual.

Audio system

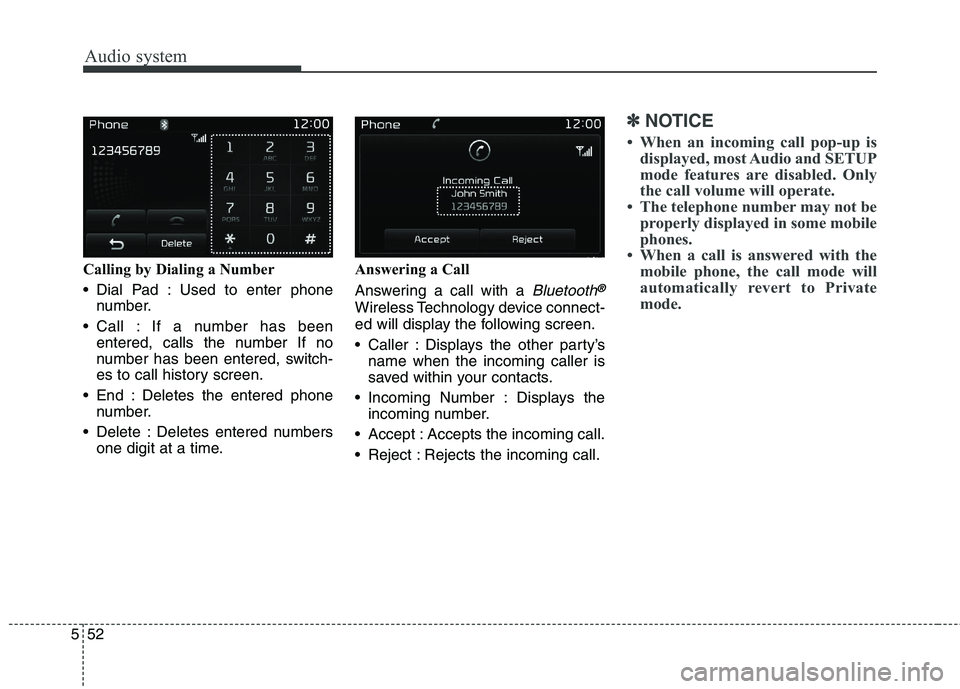

552Calling by Dialing a Number
Dial Pad : Used to enter phone
number.
Call : If a number has been entered, calls the number If no
number has been entered, switch-
es to call history screen.
End : Deletes the entered phone number.
Delete : Deletes entered numbers one digit at a time. Answering a Call
Answering a call with a
Bluetooth®
Wireless Technology device connect-
ed will display the following screen.
Caller : Displays the other party’s
name when the incoming caller is
saved within your contacts.
Incoming Number : Displays the incoming number.
Accept : Accepts the incoming call.
Reject : Rejects the incoming call.
✽✽ NOTICE
 When an incoming call pop-up is displayed, most Audio and SETUP
mode features are disabled. Only
the call volume will operate.
 The telephone number may not be properly displayed in some mobile
phones.
 When a call is answered with the mobile phone, the call mode will
automatically revert to Private
mode.

Audio system
53
5

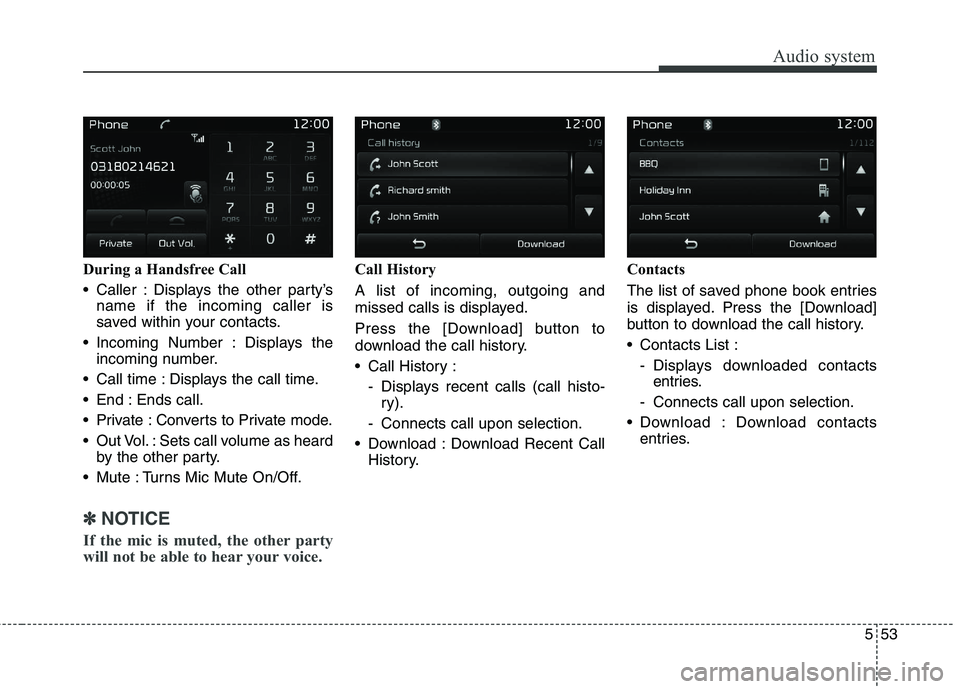

During a Handsfree Call
Caller : Displays the other party’s
name if the incoming caller is
saved within your contacts.
Incoming Number : Displays the incoming number.
Call time : Displays the call time.
End : Ends call.
Private : Converts to Private mode.
Out Vol. : Sets call volume as heard by the other party.
Mute : Turns Mic Mute On/Off.
✽✽ NOTICE
If the mic is muted, the other party
will not be able to hear your voice.
Call History A list of incoming, outgoing and
missed calls is displayed.
Press the [Download] button to
download the call history.
Call History : - Displays recent calls (call histo-ry).
- Connects call upon selection.
Download : Download Recent Call History. Contacts
The list of saved phone book entries
is displayed. Press the [Download]
button to download the call history.
Contacts List :
- Displays downloaded contactsentries.
- Connects call upon selection.
Download : Download contacts entries.

Audio system
554
✽✽NOTICE
 Up to 1,000 contacts entries can be copied into car contacts.
 Upon downloading contacts data, previously saved contacts data will
be deleted.
 Downloading is not possible if the contacts download feature is
turned off within the Bluetooth®
Wireless Technology device. Also,
some devices may require device
authorization upon attempting to
download. If downloading cannot
be normally conducted, check the
Bluetooth ®
Wireless Technology
device setting or the screen state.
 Caller ID information will not be displayed for unsaved callers.
 The download feature may not be supported in some mobile phones.
Check to see that the Bluetooth®
Wireless Technology device sup-
ports the download feature.

Audio system
55
5

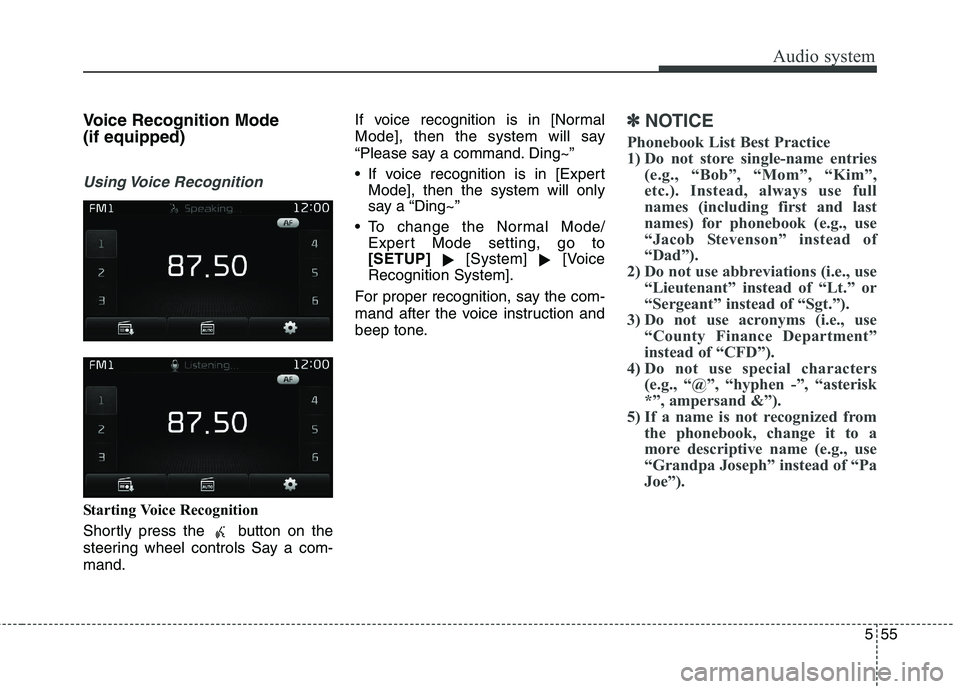

Voice Recognition Mode (if equipped)
Using Voice Recognition
Starting Voice Recognition
Shortly press the button on the
steering wheel controls Say a com-mand. If voice recognition is in [Normal
Mode], then the system will say
“Please say a command. Ding~”
If voice recognition is in [Expert
Mode], then the system will only
say a “Ding~”
To change the Normal Mode/ Expert Mode setting, go to[SETUP] [System]
[Voice
Recognition System].
For proper recognition, say the com-
mand after the voice instruction and
beep tone.
✽✽ NOTICE
Phonebook List Best Practice
1) Do not store single-name entries (e.g., “Bob”, “Mom”, “Kim”,
etc.). Instead, always use full
names (including first and last
names) for phonebook (e.g., use
“Jacob Stevenson” instead of
“Dad”).
2) Do not use abbreviations (i.e., use “Lieutenant” instead of “Lt.” or
“Sergeant” instead of “Sgt.”).
3) Do not use acronyms (i.e., use “County Finance Department”
instead of “CFD”).
4) Do not use special characters (e.g., “@”, “hyphen -”, “asterisk
*”, ampersand &”).
5) If a name is not recognized from the phonebook, change it to a
more descriptive name (e.g., use
“Grandpa Joseph” instead of “Pa
Joe”).

Audio system

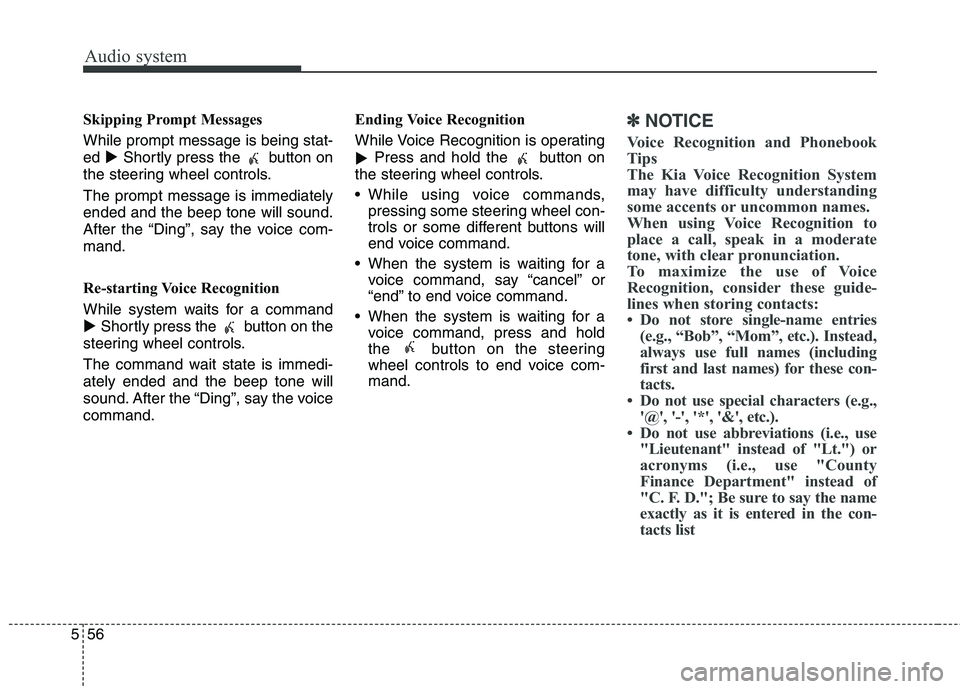

556Skipping Prompt Messages While prompt message is being stat- ed
Shortly press the button on
the steering wheel controls. The prompt message is immediately ended and the beep tone will sound.
After the “Ding”, say the voice com-mand.
Re-starting Voice Recognition
While system waits for a command
Shortly press the button on the
steering wheel controls.
The command wait state is immedi- ately ended and the beep tone will
sound. After the “Ding”, say the voicecommand. Ending Voice Recognition
While Voice Recognition is operating

Press and hold the button on
the steering wheel controls.
While using voice commands, pressing some steering wheel con-
trols or some different buttons will
end voice command.
When the system is waiting for a voice command, say “cancel” or
“end” to end voice command.
When the system is waiting for a voice command, press and hold
the button on the steering
wheel controls to end voice com-mand.
✽✽ NOTICE
Voice Recognition and Phonebook
Tips
The Kia Voice Recognition System
may have difficulty understanding
some accents or uncommon names.
When using Voice Recognition to
place a call, speak in a moderate
tone, with clear pronunciation.
To maximize the use of Voice
Recognition, consider these guide-
lines when storing contacts:
 Do not store single-name entries (e.g., “Bob”, “Mom”, etc.). Instead,
always use full names (including
first and last names) for these con-
tacts.
 Do not use special characters (e.g., '@', '-', '*', '&', etc.).
 Do not use abbreviations (i.e., use "Lieutenant" instead of "Lt.") or
acronyms (i.e., use "County
Finance Department" instead of
"C. F. D."; Be sure to say the name
exactly as it is entered in the con-
tacts list

Audio system
57
5

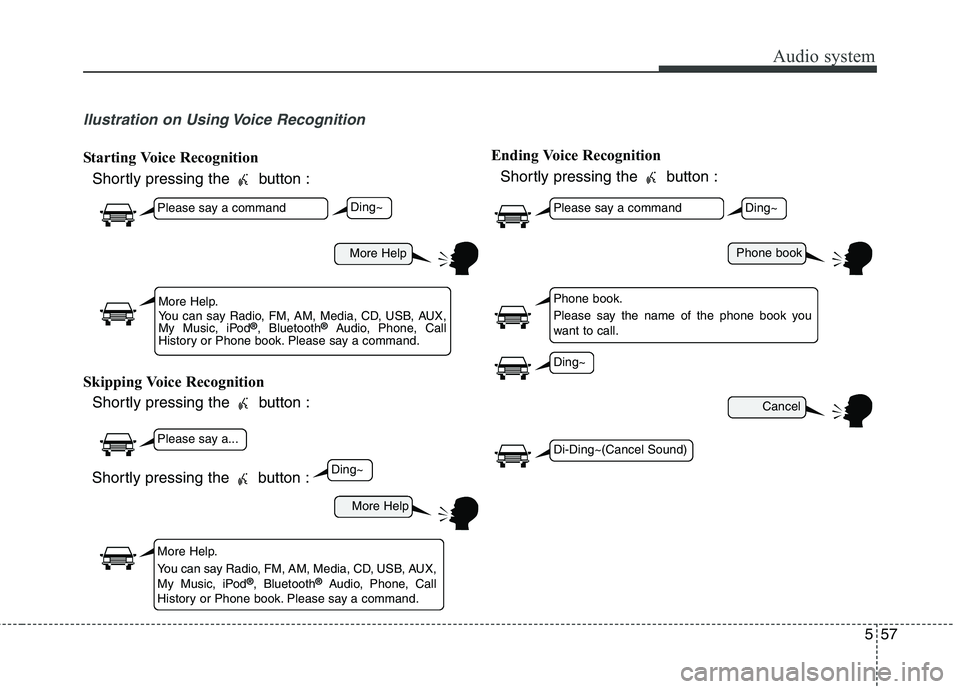

llustration on Using Voice Recognition
Starting Voice Recognition
Shortly pressing the button :
Skipping Voice Recognition Shortly pressing the button : Ending Voice Recognition
Shortly pressing the button :
More Help
More Help
Please say a command
Please say a...
More Help.
You can say Radio, FM, AM, Media, CD, USB, AUX,
My Music, iPod ®
, Bluetooth ®
Audio, Phone, Call
History or Phone book. Please say a command.
More Help.
You can say Radio, FM, AM, Media, CD, USB, AUX,
My Music, iPod ®
, Bluetooth ®
Audio, Phone, Call
History or Phone book. Please say a command.
Ding~
Ding~
Shortly pressing the button :
Phone book
Cancel
Please say a command
Phone book.
Please say the name of the phone book you
want to call.
Ding~
Di-Ding~(Cancel Sound)
Ding~

Audio system
558

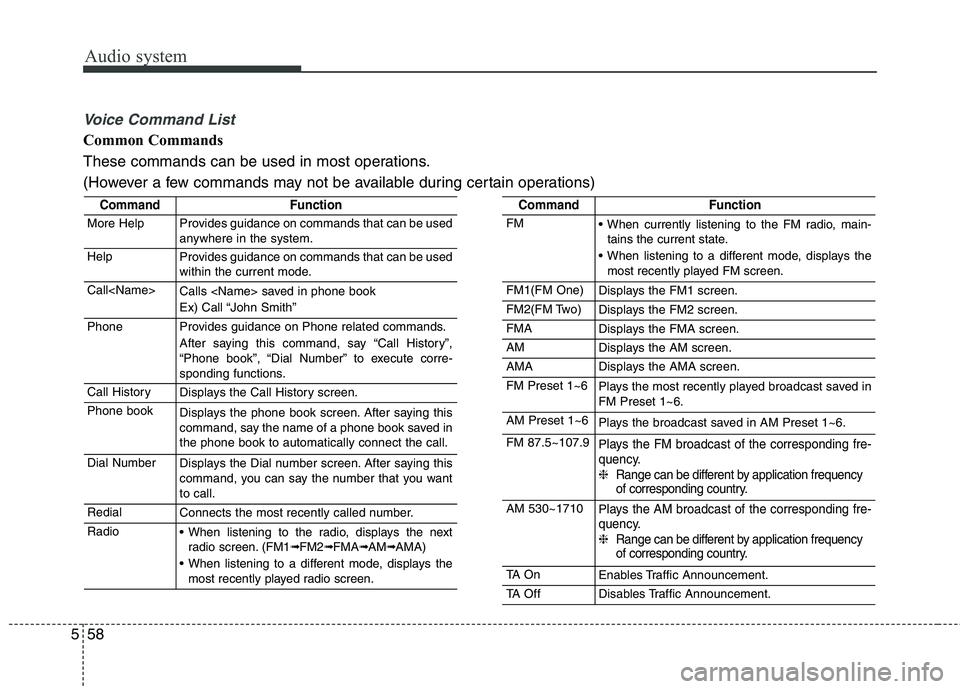

Voice Command List
Common Commands
These commands can be used in most operations.
(However a few commands may not be available during certain operations)
CommandFunction
More HelpProvides guidance on commands that can be used
anywhere in the system.
HelpProvides guidance on commands that can be used
within the current mode.
CallCalls saved in phone book
Ex) Call “John Smith”
PhoneProvides guidance on Phone related commands.
After saying this command, say “Call History”,
“Phone book”, “Dial Number” to execute corre-
sponding functions.
Call HistoryDisplays the Call History screen.
Phone bookDisplays the phone book screen. After saying this
command, say the name of a phone book saved inthe phone book to automatically connect the call.
Dial NumberDisplays the Dial number screen. After saying this
command, you can say the number that you wantto call.
RedialConnects the most recently called number.
Radio When listening to the radio, displays the nextradio screen. (FM1➟FM2➟FMA➟AM➟AMA)
When listening to a different mode, displays the most recently played radio screen.
CommandFunction
FM When currently listening to the FM radio, main-tains the current state.
When listening to a different mode, displays the most recently played FM screen.
FM1(FM One)Displays the FM1 screen.
FM2(FM Two)Displays the FM2 screen.
FMADisplays the FMA screen.
AMDisplays the AM screen.
AMADisplays the AMA screen.
FM Preset 1~6Plays the most recently played broadcast saved in FM Preset 1~6.
AM Preset 1~6Plays the broadcast saved in AM Preset 1~6.
FM 87.5~107.9Plays the FM broadcast of the corresponding fre-
quency. ❈ Range can be different by application frequency
of corresponding country.
AM 530~1710Plays the AM broadcast of the corresponding fre-
quency. ❈ Range can be different by application frequency
of corresponding country.
TA O nEnables Traffic Announcement.
TA OffDisables Traffic Announcement.
