KIA BORREGO 2017 Owners Manual

Audio system
19
5
✽✽

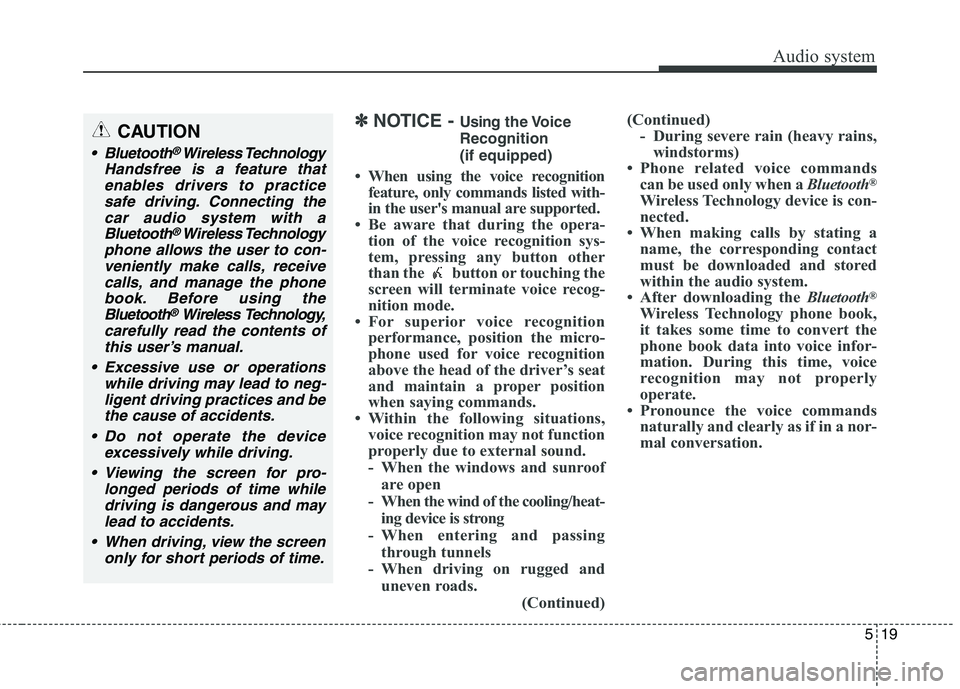

NOTICE - Usingthe Voice
Recognition (if equipped)
 When using the voice recognition feature, only commands listed with-
in the user's manual are supported.
 Be aware that during the opera- tion of the voice recognition sys-
tem, pressing any button other
than the button or touching the
screen will terminate voice recog-
nition mode.
 For superior voice recognition performance, position the micro-
phone used for voice recognition
above the head of the driver’s seat
and maintain a proper position
when saying commands.
 Within the following situations, voice recognition may not function
properly due to external sound.
- When the windows and sunroof
are open
- When the wind of the cooling/heat- ing device is strong
- When entering and passing through tunnels
- When driving on rugged and uneven roads. (Continued)(Continued)
- During severe rain (heavy rains,windstorms)
 Phone related voice commands can be used only when a Bluetooth®
Wireless Technology device is con-
nected.
 When making calls by stating a name, the corresponding contact
must be downloaded and stored
within the audio system.
 After downloading the Bluetooth®
Wireless Technology phone book,
it takes some time to convert the
phone book data into voice infor-
mation. During this time, voice
recognition may not properly
operate.
 Pronounce the voice commands naturally and clearly as if in a nor-
mal conversation.CAUTION
Bluetooth®Wireless Technology
Handsfree is a feature that enables drivers to practicesafe driving. Connecting the car audio system with aBluetooth
®Wireless Technology
phone allows the user to con- veniently make calls, receivecalls, and manage the phone book. Before using theBluetooth
®Wireless Technology,
carefully read the contents of this user’s manual.
Excessive use or operations while driving may lead to neg-ligent driving practices and bethe cause of accidents.
Do not operate the device excessively while driving.
Viewing the screen for pro- longed periods of time whiledriving is dangerous and may lead to accidents.
When driving, view the screen only for short periods of time.

Audio system

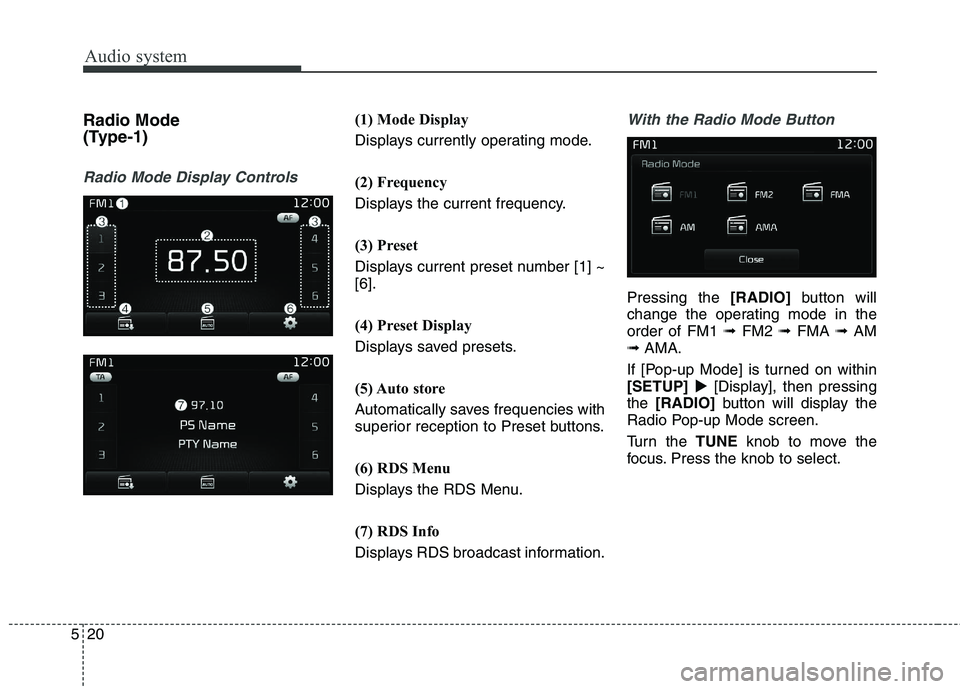

520Radio Mode
(Type-1)
Radio Mode Display Controls
(1) Mode Display
Displays currently operating mode.
(2) Frequency
Displays the current frequency.
(3) Preset
Displays current preset number [1] ~ [6].
(4) Preset Display
Displays saved presets.
(5) Auto store
Automatically saves frequencies with
superior reception to Preset buttons.
(6) RDS Menu
Displays the RDS Menu.
(7) RDS Info
Displays RDS broadcast information.With the Radio Mode Button
Pressing the
[RADIO]button will
change the operating mode in the order of FM1 ➟FM2 ➟FMA ➟AM
➟ AMA.
If [Pop-up Mode] is turned on within[SETUP] [Display], then pressing
the [RADIO] button will display the
Radio Pop-up Mode screen.
Turn the TUNEknob to move the
focus. Press the knob to select.

Audio system
21
5

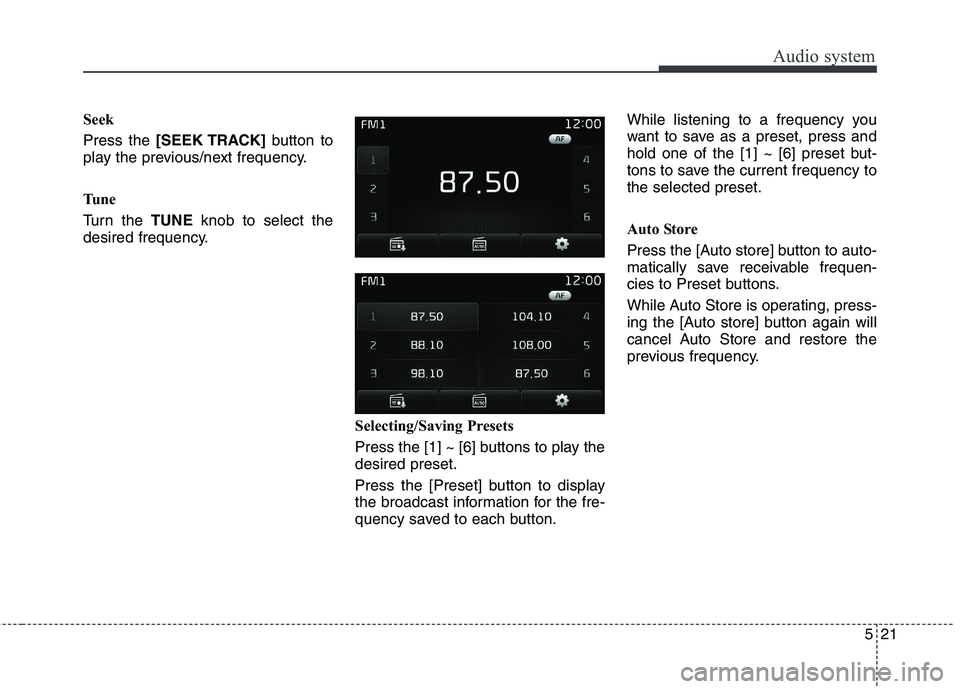

Seek Press the [SEEK TRACK] button to
play the previous/next frequency.
Tu n e
Turn the TUNEknob to select the
desired frequency.
Selecting/Saving Presets
Press the [1] ~ [6] buttons to play the desired preset.
Press the [Preset] button to display
the broadcast information for the fre-
quency saved to each button.While listening to a frequency you
want to save as a preset, press and
hold one of the [1] ~ [6] preset but-
tons to save the current frequency tothe selected preset.
Auto Store
Press the [Auto store] button to auto-
matically save receivable frequen-
cies to Preset buttons.
While Auto Store is operating, press-
ing the [Auto store] button again will
cancel Auto Store and restore the
previous frequency.

Audio system

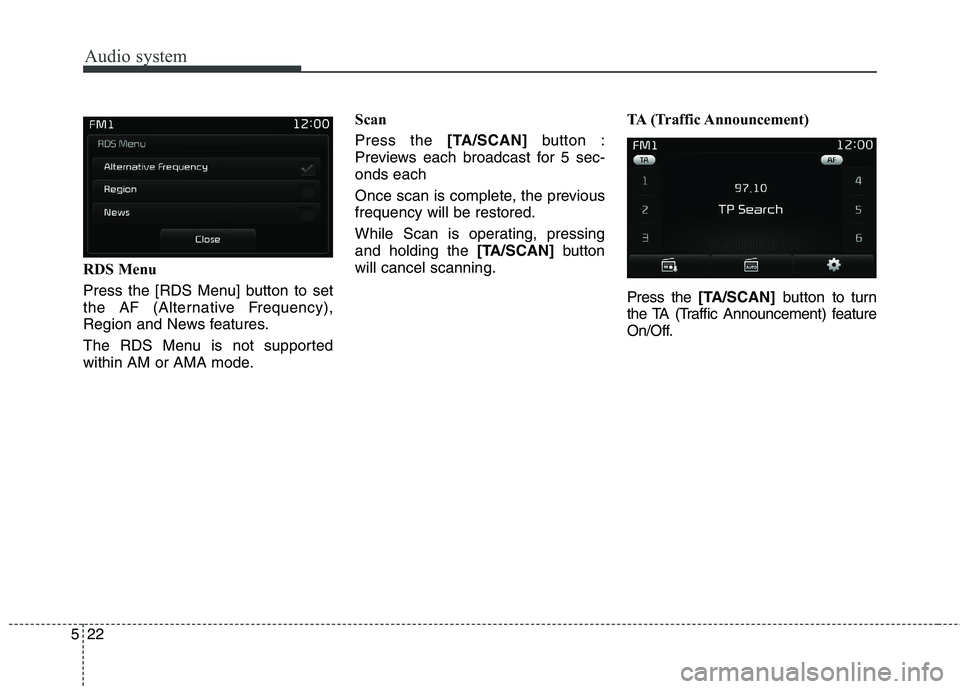

522RDS Menu
Press the [RDS Menu] button to set
the AF (Alternative Frequency),
Region and News features.
The RDS Menu is not supported
within AM or AMA mode.
Scan Press the
[TA/SCAN] button :
Previews each broadcast for 5 sec- onds each
Once scan is complete, the previous frequency will be restored.
While Scan is operating, pressing and holding the [TA/SCAN]button
will cancel scanning. TA (Traffic Announcement) Press the
[TA/SCAN] button to turn
the TA (Traffic Announcement) feature
On/Off.

Audio system
23
5

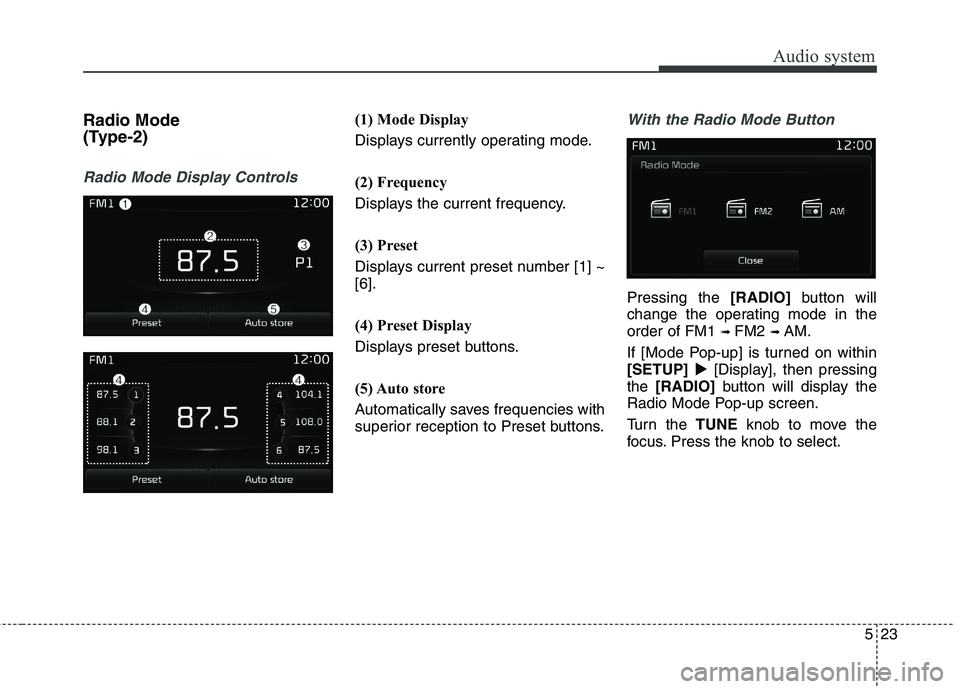

Radio Mode
(Type-2)
Radio Mode Display Controls
(1) Mode Display
Displays currently operating mode.
(2) Frequency
Displays the current frequency.
(3) Preset
Displays current preset number [1] ~ [6].
(4) Preset Display
Displays preset buttons.
(5) Auto store
Automatically saves frequencies with
superior reception to Preset buttons.With the Radio Mode Button
Pressing the [RADIO]button will
change the operating mode in the order of FM1 ➟ FM2 ➟ AM.
If [Mode Pop-up] is turned on within[SETUP] [Display], then pressing
the [RADIO] button will display the
Radio Mode Pop-up screen.
Turn the TUNEknob to move the
focus. Press the knob to select.

Audio system

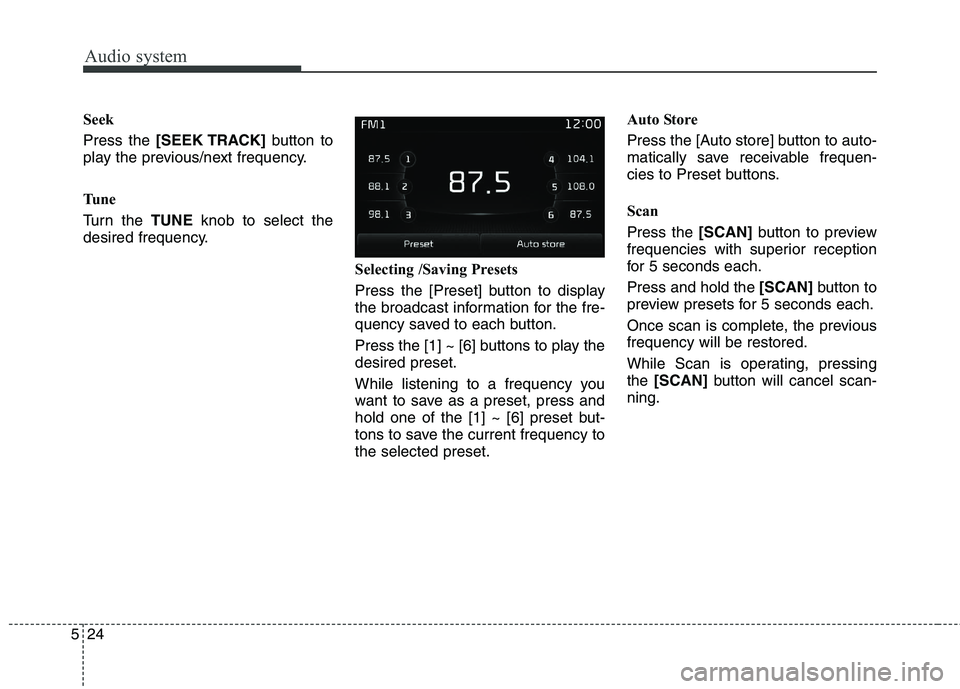

524Seek Press the
[SEEK TRACK] button to
play the previous/next frequency.
Tu n e
Turn the TUNEknob to select the
desired frequency.
Selecting /Saving Presets
Press the [Preset] button to display
the broadcast information for the fre-
quency saved to each button.
Press the [1] ~ [6] buttons to play the desired preset.
While listening to a frequency you
want to save as a preset, press and
hold one of the [1] ~ [6] preset but-
tons to save the current frequency tothe selected preset.Auto Store
Press the [Auto store] button to auto-
matically save receivable frequen-
cies to Preset buttons.
Scan Press the
[SCAN]button to preview
frequencies with superior reception
for 5 seconds each. Press and hold the [SCAN]button to
preview presets for 5 seconds each.
Once scan is complete, the previous frequency will be restored.
While Scan is operating, pressing the [SCAN] button will cancel scan-
ning.

Audio system
25
5

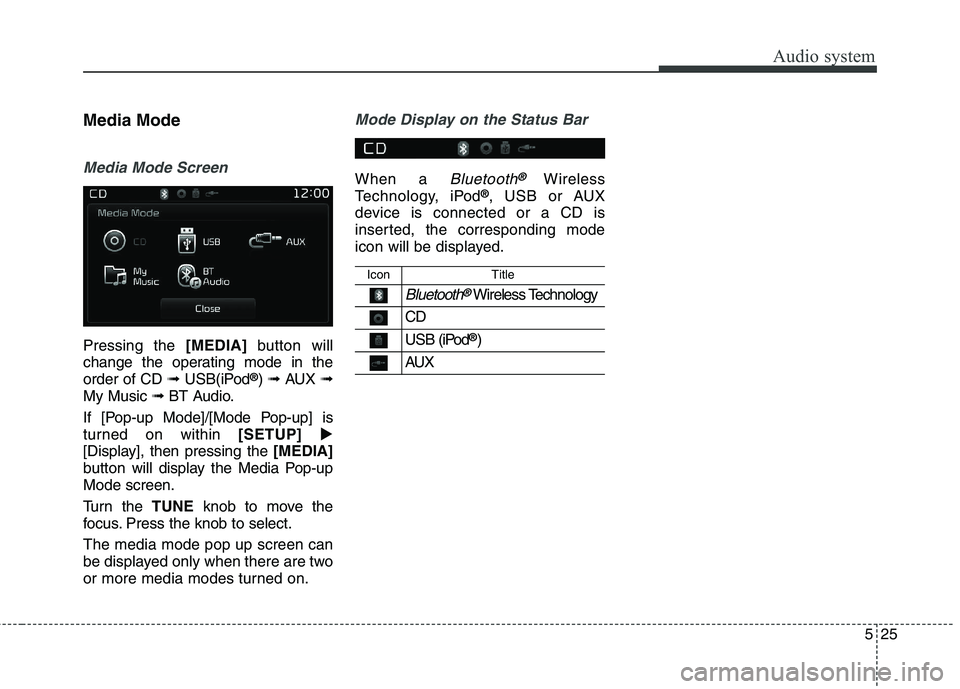

Media Mode
Media Mode Screen
Pressing the [MEDIA]buttonwill
change the operating mode in the order of CD ➟ USB(iPod ®
) ➟ AUX ➟
My Music ➟BT Audio.
If [Pop-up Mode]/[Mode Pop-up] is
turned on within [SETUP]
[Display], then pressing the [MEDIA]
button will display the Media Pop-up
Mode screen.
Turn the TUNEknob to move the
focus. Press the knob to select.The media mode pop up screen can
be displayed only when there are two
or more media modes turned on.
Mode Display on the Status Bar
When a Bluetooth®Wireless
Technology, iPod ®
, USB or AUX
device is connected or a CD is
inserted, the corresponding mode
icon will be displayed.
IconTitle
Bluetooth®Wireless Technology
CD
USB (iPod ®
)
AUX

Audio system

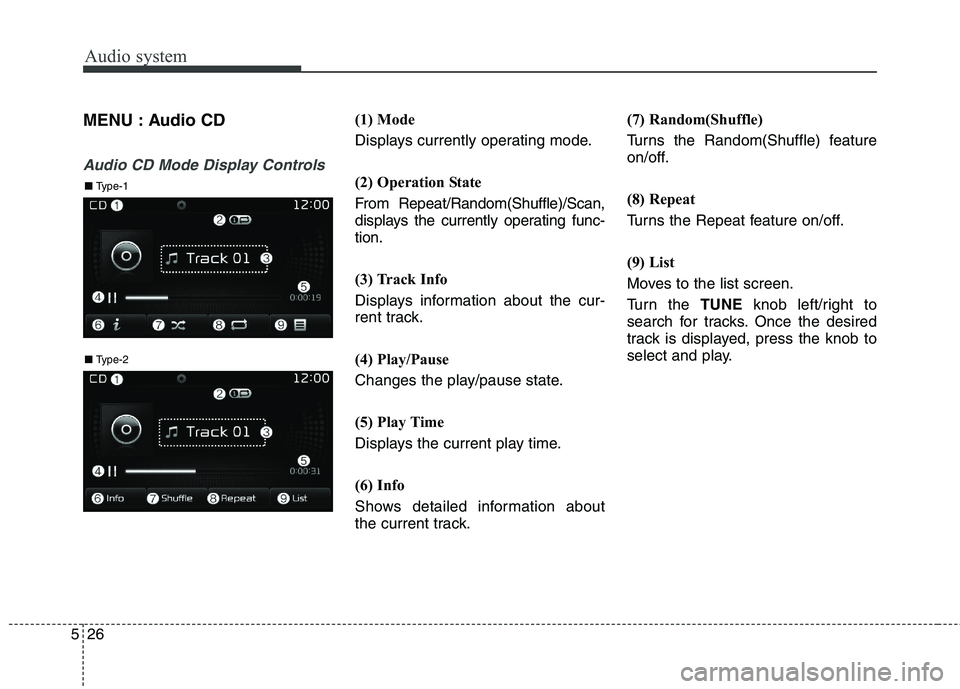

526MENU : Audio CD
Audio CD Mode Display Controls
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random(Shuffle)/Scan,
displays the currently operating func-tion.
(3) Track Info
Displays information about the cur-
rent track.
(4) Play/Pause
Changes the play/pause state.
(5) Play Time
Displays the current play time.
(6) Info
Shows detailed information about
the current track.
(7) Random(Shuffle)
Turns the Random(Shuffle) feature
on/off.
(8) Repeat
Turns the Repeat feature on/off.
(9) List
Moves to the list screen.
Turn the
TUNE knob left/right to
search for tracks. Once the desired
track is displayed, press the knob to
select and play.
■ Type-2
■ Type-1

Audio system
27
5

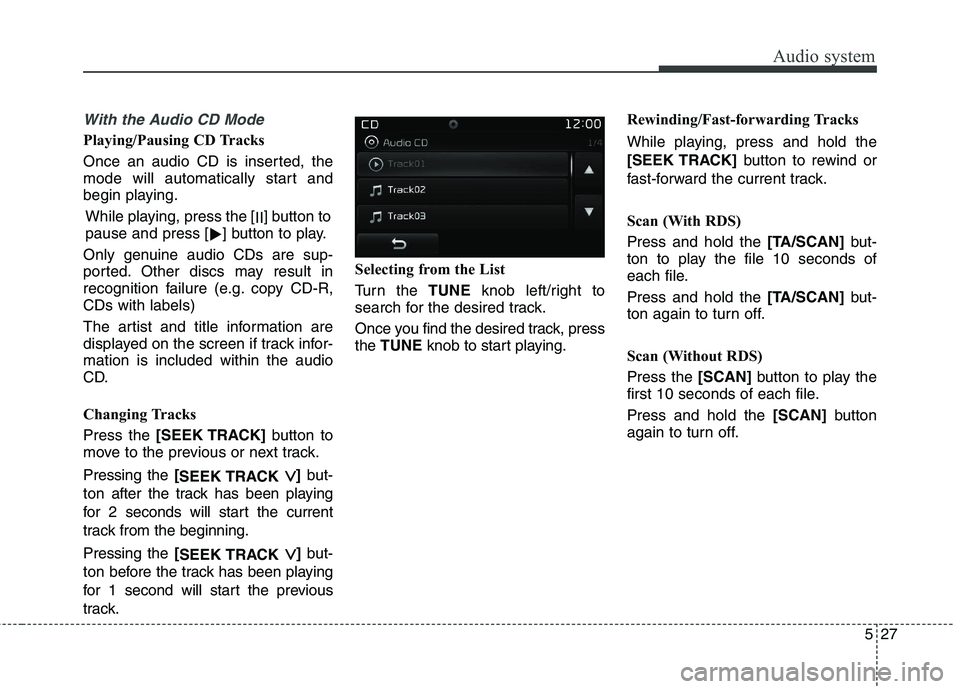

With the Audio CD Mode
Playing/Pausing CD Tracks
Once an audio CD is inserted, the
mode will automatically start and
begin playing.
While playing, press the [ II] button to
pause and press [ ] button to play.
Only genuine audio CDs are sup-
ported. Other discs may result in
recognition failure (e.g. copy CD-R,CDs with labels)
The artist and title information are
displayed on the screen if track infor-mation is included within the audio
CD.
Changing Tracks Press the [SEEK TRACK] button to
move to the previous or next track. Pressing the [
SEEK TRACK
] but-
ton after the track has been playing
for 2 seconds will start the current
track from the beginning. Pressing the [
SEEK TRACK
] but-
ton before the track has been playing
for 1 second will start the previous
track. Selecting from the List
Turn the
TUNEknob left/right to
search for the desired track.
Once you find the desired track, press the TUNE knob to start playing. Rewinding/Fast-forwarding Tracks
While playing, press and hold the
[SEEK TRACK]
button to rewind or
fast-forward the current track.
Scan (With RDS) Press and hold the [TA/SCAN]but-
ton to play the file 10 seconds of
each file. Press and hold the [TA/SCAN]but-
ton again to turn off.
Scan (Without RDS) Press the [SCAN]button to play the
first 10 seconds of each file.Press and hold the [SCAN]button
again to turn off.

Audio system

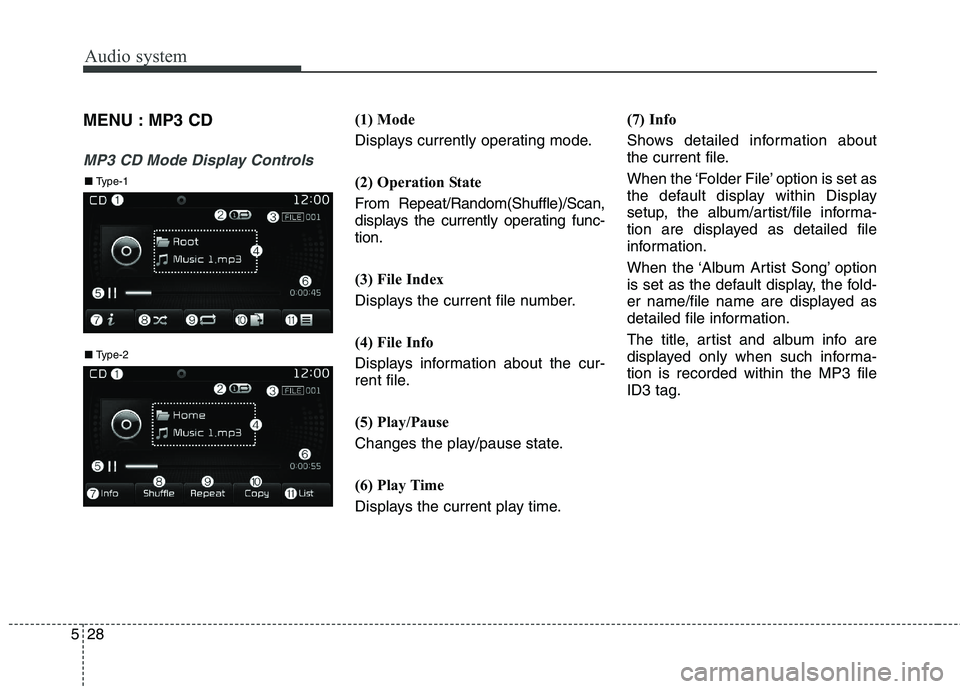

528MENU : MP3 CD
MP3 CD Mode Display Controls
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random(Shuffle)/Scan,
displays the currently operating func-tion.
(3) File Index
Displays the current file number.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.
(7) Info
Shows detailed information about
the current file.
When the ‘Folder File’ option is set as
the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file
information.
When the ‘Album Artist Song’ option
is set as the default display, the fold-
er name/file name are displayed as
detailed file information.
The title, artist and album info are
displayed only when such informa-tion is recorded within the MP3 fileID3 tag.
■
Type-2
■ Type-1
