Page 11 of 415
23
Your vehicle at a glance
9. Door ......................................................4-17
10. Fuel filler lid ........................................4-29
11. Rear combination lamp
12. Trunk lid ..............................................4-21
13. High mounted stop lamp
14. Rear window defroster......................4-112
15. Rear parking assist system ................4-90
16. Antenna ............................................4-140
17. Rearview camera................................4-94
OVG013002L

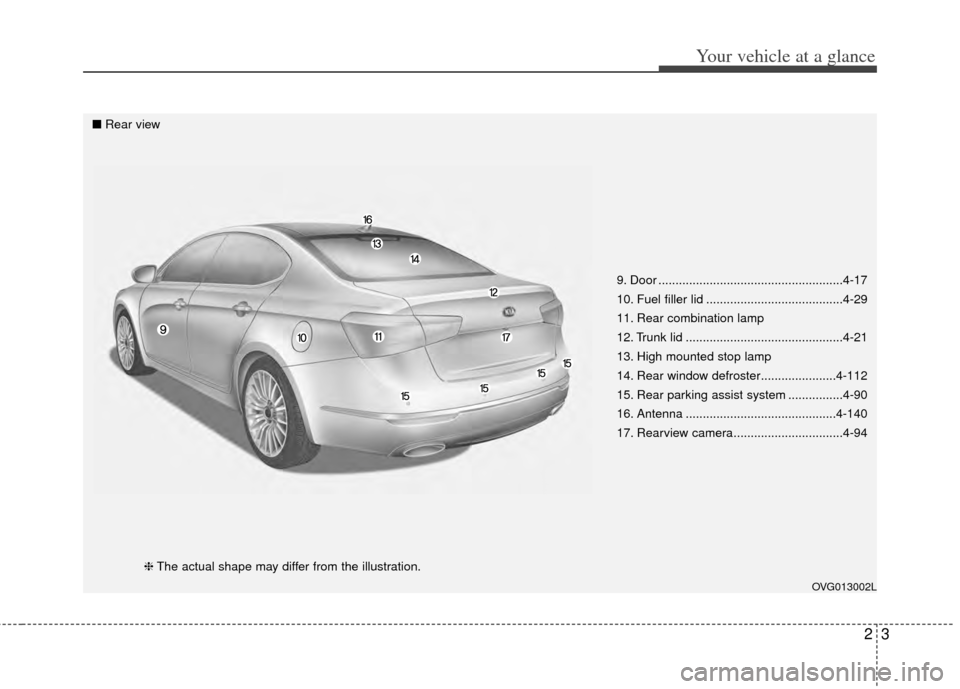

■Rear view
❈The actual shape may differ from the illustration.
Page 12 of 415
Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Door lock/unlock button.........................4-17
2. Central door lock switch ........................4-19
3. Power window switches ........................4-23
4. Power window lock button .....................4-26
5. Outside rearview mirror control switch..4-49
6. Outside rearview mirror folding switch ..4-50
7. Driver's position memory system ............3-7
8. Hood release lever ................................4-27
9. Fuel filler lid release button ...................4-29
10. Trunk lid release button .......................4-21
11. Fuse box .............................................7-61
12. Steering wheel ....................................4-37
13. Steering wheel tilt control....................4-38
14. Instrument panel illumination controlswitch ..................................................4-52
15. BSD On/OFF button............................5-59
16. LDWS On/OFF button .........................5-55
17. ESC OFF button .................................5-30
18. Seat .......................................................3-2
OVG013003N❈ The actual shape may differ from the illustration.
Page 13 of 415
25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster .................................4-52
2. Horn ......................................................4-39
3. Driver's front air bag .............................3-43
4. Light control/Turn signals ......................4-97
5. Wiper/Washer .....................................4-104
6. Cruise control .......................................5-37
7. Steering wheel audio control ..............4-141
8. Ignition switch or ENGINE START/STOPbutton ......................................................5-5
9. Hazard warning flasher switch ......4-96, 6-2
10. Clock .................................................4-136
11. Climate control system .....................4-113
12. Shift lever ............................................5-10
13. Passenger's front air bag ....................3-43
14. Glove box ..........................................4-130
15. Electric parking brake switch (EPB) ...5-19
16. Brake pedal.........................................5-16
17. Seat warmer/Air ventilation switch.....................................4-133, 4-134
18. AUTO HOLD control button ................5-25
19. Heated steering wheel button.............4-39
20. Rear curtain folding button ...............4-139
OVG013004N
❈ The actual shape may differ from the illustration.
Page 14 of 415
Your vehicle at a glance
62
ENGINE COMPARTMENT
OHG011004A
The actual engine compartment in the vehicle may differ from the illustration.
1. Engine oil dipstick .....................7-29
2. Engine oil filler cap ....................7-29
3. Engine coolant reservoir ...........7-31
4. Radiator cap ..............................7-32
5. Brake fluid reservoir ..................7-34
6. Windshield washer fluidreservoir.....................................7-35
7. Air cleaner .................................7-37
8.
Positive battery terminal...........7-43
9. Negative battery terminal .........7-43
10. Fuse box .................................7-61
■ ■3.3L Engine
Page 15 of 415
Safety features of your vehicle
Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 3-2
• Front seat adjustment - power . . . . . . . . . . . . . . . . . . . 3-4
. . . . . . . . . . . . . . . . . . 3-7
. . . . . . . . . . . . . . . . . . . . . . . . 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
. . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13\
. . . . . . . . . . . . . . . . . . . . . . 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-24
. . . . . . . . . . . . . . . . . . 3-25
. . . . . . . . . . . . . . . . . . . . . . . . . 3-28
. . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Air bag - supplemental restraint system . . . . . . . 3-31
. . . . . . . . . . . . . . . . . . . . . . 3-32
passenger's seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
. . . . . . . . . . . . . . . . . . . . . . . . . 3-34
. . . . . . . . . . . . . . . . . 3-35
. . . . . . . . . . . . . . 3-37
. . . . . . . . . . . 3-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
of the air bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
53
. . . . . . . . . . . . . . . . . . . . . . . . . 3-54
3
Page 16 of 415
Safety features of your vehicle
23
Driver’s seat
(1) Seat adjustment, forward / back-ward
(2) Seatback recliner
(3) Seat adjustment, height
(4) Lumbar support
(5) Cushion extension*
(6) Headrest
(7) Driver position memory system
Front passenger’s seat
(8) Seat adjustment, forward / back-
ward
(9) Seatback recliner
(10) Headrest
Rear seat
(11) Armrest
(12) Ski through
(13) Headrest
* : if equipped
SEAT
OVG033001N
Page 17 of 415
33
Safety features of your vehicle
WARNING - Uprighting
seat
Do not press the release lever
on a manual seatback without
holding and controlling the
seatback. The seatback will
spring upright possibly impact-
ing you or other passengers.
WARNING- Loose
objects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the dri-
ver's foot area could interfere
with the operation of the foot
pedals.WARNING- Driver respon-
sibility for passengers
The driver must advise the pas-
senger to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the restraint system's ability to
restrain will be greatly reduced.WARNING- Seat cushion
Occupants should never sit on
seat cushions. The passenger's
hips may slide under the lap
portion of the seat belt during
an accident or a sudden stop.
1KMN3662
Page 18 of 415
Safety features of your vehicle
43
Front seat adjustment - power
The front seat can be adjusted by
using the control switch located on
the outside of the seat cushion.
Before driving, adjust the seat to the
proper position so as to easily con-
trol the steering wheel, pedals and
switches on the instrument panel.WARNING- Seat adjustment
Do not adjust the seat while wearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.
WARNING
The power seat is operable with
the ignition OFF.
Therefore, children should never
be left unatteded in the vehicle.
WARNING- Driver’s seat
Never attempt to adjust the seat while the vehicle is mov-
ing. This could result in loss
of control of your vehicle.
Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in a serious or
fatal injury in a sudden stop
or collision.
Sit as far back as possible from the steering wheel while
still maintaining comfortable
control of your vehicle. A dis-
tance of at least 10" from your
chest to the steering wheel is
recommended. Failure to do
so could result in air bag infla-
tion injuries to the driver.
Page 19 of 415
35
Safety features of your vehicle
Forward and backward
Push the control switch forward or
backward to move the seat to the
desired position. Release the switch
once the seat reaches the desired
position.
Seatback angle
Push the control switch forward or
backward to move the seatback to
the desired angle. Release the
switch once the seat reaches the
desired position.
CAUTION
The power seat is driven by anelectric motor. Stop operatingonce the adjustment is com-pleted, excessive operationmay damage the electricalequipment.
When in operation, the power seat consumes a large amountof electrical power. To preventunnecessary charging systemdrain, don’t adjust the powerseat longer than necessarywhile the engine is not running.
Do not operate two or more power seat control switches atthe same time. Doing so mayresult in power seat motor orelectrical component malfunc-tion.
OVG039006OVG039007
Page 20 of 415
Safety features of your vehicle
63
Seat cushion height (for driver's side)
Pull the front portion of the control
switch up to raise or down to lower
the front part of the seat cushion. Pull
the rear portion of the control switch
up to raise or down to lower the rear
part of the seat cushion. Release the
switch once the seat reaches the
desired position.
Lumbar support (for driver’s seat)
The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the driver's
seat. Press the front portion of the
switch to increase support, or the
rear portion of the switch to decrease
support.
Cushion extension (for driver's seat, if equipped)
Press the front portion of the switch
to raise the cushion extension, or the
rear portion of the switch to lower it.
Release the switch once the cushion
extension reaches the desired posi-
tion.
OVG039009OVG039008OVG039010
