KIA CADENZA 2016 Features and Functions Guide
Manufacturer: KIA, Model Year: 2016, Model line: CADENZA, Model: KIA CADENZA 2016Pages: 46, PDF Size: 4.97 MB
Page 31 of 46
29
Seat Warmers and Ventilated Seats Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www. KuTechVideo s.c om/vg13/2015
(Buttons located below Gear Shift)
(Buttons located below Gear Shift)
Seat Warmers / Ventilated Seats*
Seat Warmers
•Press right side of button once for high setting (3
LEDs lit)
•Press button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and
again to turn OFF
Ventilated Seats
•Press left side of button once for high setting (3
LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and
again to turn OFF
Seat Warmers / Ventilated Seats*
Warming ( Yellow LED)
Ventilating (Blue LED)
Seat Warmers only*
•Press button once for high setting (2 LEDs lit)
•Press button twice for low setting (1 LED lit)
•Press button a third time to turn OFF
With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature .
QUICK TIP
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
CENTER PANEL
Page 32 of 46
30
SeatbackLumbar
Seat forward/backwardSeat Cushion
A
Cushion Extension

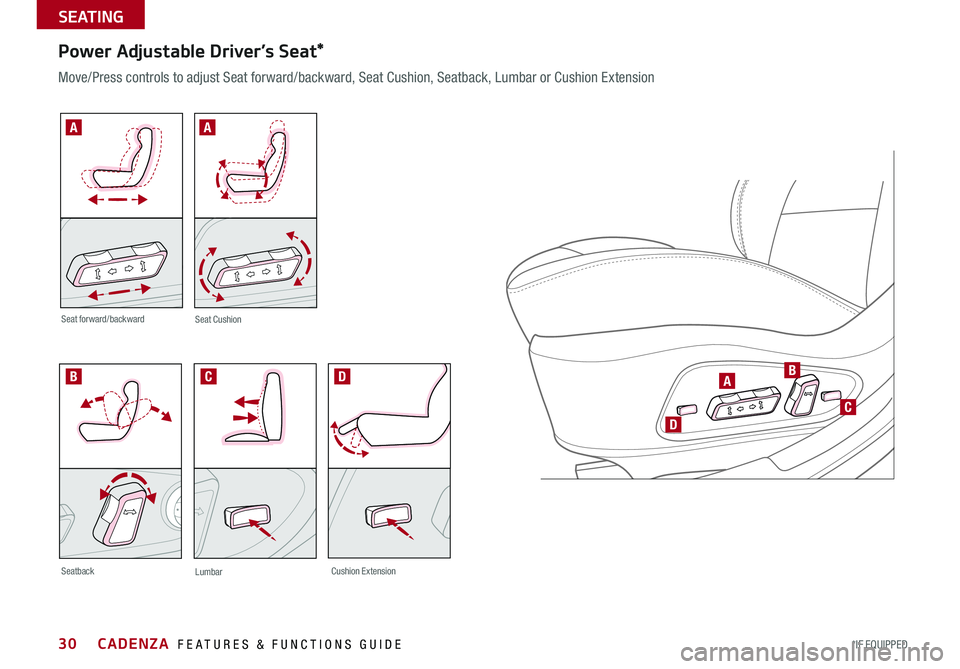

Power Adjustable Driver’s Seat*
Move/Press controls to adjust Seat forward/backward, Seat Cushion, Seatback, Lumbar or Cushion Extension
A
D
B
C
AA
BCD
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
SEATING
Page 33 of 46
31
To raise headrest: Pull headrest up .
To lower headrest: Press lock A, then press the headrest down .
Front Seat Headrest Adjustment
To adjust headrest forward: Pull headrest forward at an angle .
To adjust headrest back: Pull forward at a slight angle to the
farthest position and release . Then pull forward to desired position .
Driver Position Memory System*
The integrated system stores into memory the position
of the Driver’s Seat, Outside Rearview Mirrors and the
Steering Wheel .
To store positions into memory, first place the Gear
Shift into P (Park) while the ENGINE START/STOP
button is in the ON position . Then:
1 . Adjust the Driver’s Seat, Outside Mirrors and the
Steering Wheel
2 . Press the Memory button B on the control panel .
System will beep once
3 . Press one of the memory buttons C within 5
seconds . The system will beep twice when memory
has been stored
M
1
2
(Buttons located on Driver's Door Panel)
A
B
C
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
SEATING
Page 34 of 46
32
A Press to lock All Doors
B Press to unlock Driver’s Door . Press twice in 4 seconds to unlock All Doors
C Press and hold for more than 1 second to unlock Trunk and manually open
REMINDERS:
•Trunk lid will partially open . To fully open, lift up manually
•The Trunk unlocks when the Smart Key is within close proximity of the vehicle
D Press and hold more than 1 second for Panic Alarm . To turn off Alarm, press any button
E Press to release Mechanical Key (Button on reverse side of fob)
Smart Key
REMINDERS:
•Remote button configuration may vary depending on vehicle options
• The Smart Key’s signal can be blocked by the normal operation of a cell phone or smartphone . To help prevent this, store each device separately
Engine Start/Stop Button & Smart Key Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www. KuTechVideo s.c om/vg13/2015
Driver’s Door Lock/Unlock button G:
To unlock door(s):
•Press button once to unlock
Driver’s door
•Press again within 4 seconds
to unlock all doors
To lock all doors - Press again to lock all doors
If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the ENGINE START/STOP button (Lock button side closest) and press to start engine .
QUICK TIP
A
B
C
D
F
E
G
UnlockLock
Mechanical Key F:
Use to unlock /lock Driver’s Door
1 . Remove door handle keyhole cover with Mechanical Key
by pressing up into slot as shown
2 . Insert Mechanical Key and turn right to Unlock Driver’s
Door . Turn twice within 4 seconds to Unlock all doors
3 . Insert Mechanical Key and turn left to Lock
Driver’s Door
4 . Return keyhole cover to it's original position
Use to lock glove box and to turn Child Safety Locks
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES
Page 35 of 46
33
How to Sync Transmitter with HomeLink®
If programming for the first time, begin with Step 1 (repeating this step will
delete all information) .
To program non-rolling and rolling code garage door openers and other devices:
1 . Press and hold the left A and center D buttons simultaneously until the
indicator light C begins to flash (to reprogram buttons, skip this step)
2 . Press and hold the desired button A, B or D and hold the button on the
transmitter while it is approximately 1 to 3 inches away from the mirror .
The HomeLink® Indicator light C will flash rapidly once the frequency
signal has been successfully programmed
To finish programming rolling code garage door openers, complete these steps:
3 . Locate the “learn” or “smart” button on the garage door’s motor head
unit . Press and release the button and complete Step 4 within 30 seconds
4 . Firmly press and release the programmed HomeLink® button up to three times
Operating HomeLink®:
Press one of the programmed HomeLink® buttons .
Erasing programmed buttons:
Press and hold the left A and center D buttons simultaneously for
approximately 20 seconds, and then release both buttons within 30 seconds .
REMINDER: Mirror indicator light C will illuminate when automatic dimming is ON .
If your garage door opener was manufactured in 2011 or later, and you’re unable to program your vehicle’s HomeLink® system, you may need to purchase a HomeLink Repeater Kit. For more information, go to www.HomeLink.com or call (800) 355-3515.
The HomeLink® / Auto-Dimming Rearview Mirror is designed to reduce
glare from a vehicle’s headlights located in the rear and also connect up
to three electronic transmitters into one location .
HomeLink® with Auto-Dimming Rearview Mirror
A HomeLink® button
B HomeLink® button
C Indicator light
D HomeLink® button
E Glare detection sensor
F Automatic dimming ON/OFF
G Compass control button
•You can reprogram a single HomeLink® button by repeating Step 2 •Erasing programmed buttons will delete all trained transmitters
QUICK TIPS
ABCDEFG
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES
Page 36 of 46
34
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the ENGINE START/
STOP button is OFF .
Map/Room Lamp Operation
Press the lens A to turn the Map Lamp ON/OFF . This light produces a spot beam for
convenient use as a map lamp or as a personal lamp for the driver or the front passenger .
The Map Lamp turns ON when any door is opened or the ignition is turned OFF . When all
doors are locked or the ignition is ON, the Map Lamp will turn OFF immediately .
ON position B – When in ON position, the Map and Room Lamps remain ON until switched
again to turn OFF .
DOOR position C – When in DOOR position and a door is opened, or doors are unlocked
from the Smart Key, the Map and Room Lamps turn ON for approximately 30 seconds .
OFF position D - When in OFF position, all interior lights are OFF .
Room Lamp - Press the lens E to turn the Room Lamp ON/OFF .
REMINDER: When Room Lamp lens is pressed ON it will remain ON, even when the Map Lamp switch is in the OFF position .
•When doors are unlocked by the Smart Key*, the lamp turns ON for approximately 30 seconds •If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage •Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
AA
B
C
D
E
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES
Page 37 of 46
35
Sunvisor
Use the Sunvisor to shield direct light through the front or side
windows . Slide the Sunvisor out and adjust as needed .
REMINDERS:
•Sunvisor may not shield all direct light
•The Sunvisor may impair visibility if not adjusted properly
REMINDER: Sunshade needs to remain OPEN while Sunroof is open and vehicle is moving .
Panoramic Sunroof Operation*
The Sunroof and Sunshade operation is controlled through a multidirectional
switch/lever A . The ignition needs to be in the ON position to operate the
sunroof/sunshade .
Slide the Sunshade and Sunroof:
• Auto Open: Slide lever backward to the farthest position and release
• Auto Close: Slide the lever forward to the farthest position and release
Slide the Sunshade:
• Auto Open: Slide the lever partially backward to the first detent position
• Auto Close: Slide the lever forward to the farthest position
Slide the Sunroof (with Sunshade open):
• Open: Slide the lever backward and release
• Auto Close: Slide the lever forward to the first detent position or pull the
lever downward
Tilt the Sunroof:
• Raise: Push lever upward
• Lower: Pull lever downward
• Auto Close Sunroof and Sunshade: Slide the lever forward to the
farthest position
To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control lever in any direction .
QUICK TIP
A
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES
Page 38 of 46
36
Warning! Check yo ur sur roun dings for safe\fy
Rear-Camera Display
The Rear-Camera Display system is not a safety device . It is a supplemental
system that displays the view behind the vehicle through the Navigation
screen while the vehicle is in Reverse .
The Rear-Camera Display activates when the:
• ENGINE START/STOP button is in the ON position (Green Light)
• Gear Shift Lever is in the R (Reverse) position
REMINDERS:
• The Rear-Camera Display is not a substitute for proper and safe backing-up procedures . The Rear-Camera Display may not display every object behind the vehicle . Always drive safely and use caution when backing up
•While camera is active, only the volume controls on the Audio System can be operated
REMINDERS:
•If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
• When more than two objects are sensed at the same time, the closest one will be recognized first
• The Back-Up Warning System is not a substitute for proper and safe backing-up procedures . Always drive safely and use caution when backing up . The Back-Up Warning System may not detect every object behind the vehicle
The Back-Up Warning System is not a safety device . The Back-Up
Warning System is a supplemental system that assists the driver by
chiming if any object is detected within the sensing area to the rear
and side of the vehicle when backing up . When the ignition is ON, the
system is activated .
Back-Up Warning System (Rear Parking
Assist System)*
Rear-camera
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
CADENZA FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
Page 39 of 46
37
Located underneath the Trunk lid . With Trunk unlocked, press
the Trunk Release button A and pull the Trunk lid up by the
handle to open .
Trunk Release Button
( Trunk Release Button)
CLICK!
Fuel Cap/Malfunction Indicator
(Check Engine Light)
Tighten for ONE CLICK
to prevent Malfunction
Indicator from
illuminating .
REMINDER: The Fuel Filler Door Release button is located on the driver’s button panel, left of the Steering Wheel .
One-Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www. KuTechVideo s.c om/vg13/2015
Child Safety Locks
Located on the rear edge of the rear passenger
doors, turn the Child Safety Lock to the lock
position to disable the inner door handles from
opening the rear doors .
REMINDER: Child Safety Lock is located on rear passenger’s door jamb .
•The Trunk must be unlocked before it can be opened by the Trunk Release Button •Smart Key* - The Trunk unlocks automatically, and can then be opened manually, when the Smart Key fob* is within close proximity to the vehicle
QUICK TIPS
A
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES
Page 40 of 46
38
Opening the Hood:
1 . Pull the Hood Release Lever A to unlatch the Hood
2 . In the front of the vehicle, lift the Hood slightly, push the secondary Latch B to the left inside of the Hood’s center and lift the Hood
Hood Release Lever and Latch
(Lever located near floor below Driver's Panel)
A
B
Closing the Hood:
Lower the Hood about halfway and then press down to securely lock in place .
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES
