Climate Control Auto Function
1 Press AUTO to select Full Auto Operation - The Auto setting
automatically controls the airflow modes, fan speeds, air intake
and air conditioning according to the temperature setting selected
2 Set desired Temperature
3 Press SYNC to select Sync Temperature Control Operation which
synchronizes the passenger’s temperature to the driver’s setting
Front windshield defroster button
Automatic climate control button
REMINDERS:
•
Pressing any button during AUTO operation will deactivate the AUTO function and switch to manual mode, except for DUAL Temperature Control
•
When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
•Warm air may flow in through vents if Recirculated Air button is not pressed ON (LED lit)
Air Flow Modes
To select Air Flow Modes, press the MODE button to cycle
through to desired mode:
Face-Level
Bi-Level
F lo o r- L evel
Floor/Defrost-Level
CLIM AT EMODE A/C
SYNCAUTO
FRONTREAR
OFF
Automatic Climate Control
SYNC temperature control
Mode selection buttonOFF button
Recirculated Air ON/OFF button
Fan speed control buttons
Rear window defroster button
Climate information screen selection button
Air conditioning button
Defog Inside Windshield:
1 Set Fan Speed to desired position
2 Set desired Temperature
3 Press the Front Defrost button
Defrost Outside Windshield:
1 Set Fan Speed to the highest position
2 Set Temperature to Hot
3 Press the Front Defrost button
•Defrost Mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster performance •During Auto Operation, the A /C indicator will NOT illuminate The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidity •Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
(Type B shown)
Your Automatic Climate Control system may differ from those in the illustrations. See your Owner’s Manual for more details
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
CENTER PANEL
Page 32 of 58
30
Paddle Shifters*
Paddle Shifters are operable when the shift lever is in the D
position or in Sport mode
Paddle Shifting: Pull the [+] or [-] paddle shifter once to shift up
or down one gear
REMINDERS:
•
The Paddle Shifters can be operated when the vehicle speed is more than 6 mph
•
When in Sport mode, pulling the left and right paddle shifters at the same time will NOT shift gears
Automatic Gear Shift with Sportmatic® Shifting
P: Park
R: Reverse
N: Neutral
D: Drive
[+]: Sport Mode Upshift
[–]: Sport Mode Downshift
Sport Mode: To enter Sport mode, move shift lever from D to left gate
To shift while in Sport mode, move shift lever up [+] to upshift or down [–]
to downshift
P
R
N
D
P R
N
D
P
R
N
DSHIFTLOCK RELEASE
CANCEL CRUISE
RES
SET
VOL
VOL
MUTEMODE
CANCELCRUISE
RES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SETVOL
VOL
MUTEMODE
CANCELCRUISERES
SETVOL
VOL
MUTEMODE
To view these videos on your mobile device, snap these QR Codes or visit the listed websites
Refer to page 2 for more information
Sportmatic® Shifting Video
Paddle Shifters Video
QR CODES
www. KuTechVideo s.c om/yg13/2017
www. KuTechVideo s.c om/yg13/2017
•Press brake pedal and depress release button to move gearshift from N to P, N to R or from P to any gear •Sport mode downshifts are made automatically when the vehicle slows down When the vehicle stops, 1st gear is automatically selected
QUICK TIPS
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
CENTER PANEL
Page 33 of 58
31
Auto-Hold*
Auto-Hold temporarily maintains the vehicle
at a standstill even if the brake pedal is
released Auto-Hold can be turned ON/OFF
using the AUTO HOLD switch B on the
driver’s panel Before Auto-Hold will operate,
the driver’s door, engine hood and trunk
must be closed, and the driver’s seat belt
must be fastened
The Auto-Hold indicator has four states:
White: Standby - With vehicle at a standstill,
and AUTO HOLD switch B turned ON, the
indicator will illuminate white While driving
the vehicle (vehicle is not at a standstill), the
Auto-Hold indicator will remain white
Green: Engaged - When coming to a
complete stop by depressing the brake
pedal, the Auto-Hold indicator changes from
white to green
OFF (not illuminated) - The indicator will turn OFF when the AUTO HOLD
switch B is manually turned OFF or when the EPB is manually turned ON
Yellow: Malfunction - When the indicator is illuminated yellow, there may
be a system malfunction Take your vehicle to a local Kia dealer
Electric Parking Brake*
The Electric Parking Brake (EPB) system utilizes
an electric motor to engage the parking brake
Applying the Parking Brake
Depress the brake pedal and pull up the EPB
switch A Ensure that the indicator light is
illuminated on the instrument cluster
Releasing the Parking Brake
The EPB will automatically release when the shifter is placed in Reverse
or Drive
To release EPB manually, depress the brake pedal, then press the EPB
switch A, with the ignition switch in the ON position Ensure that the
indicator light i s O F F
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•
The EPB should not be operated while the vehicle is moving, unless there is an emergency situation
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
Electric Parking Brake Video
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www. KuTechVideo s.c om/yg13/2017
(Buttons located below Gear Shift)
•When leaving your keys with parking lot attendants or valet, make sure to inform them how to operate the EPB •If parked on a steep incline, pull up the EPB switch for more than 3 seconds for a firmer EPB application •Pull up and hold EPB switch again to increase brake pressure if parked on a decline or incline
QUICK TIPS
DRIVE
MODEAUTO HOLD
A
B
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
CENTER PANEL
Page 34 of 58
32
Comfort
ECOSMART
Sport
DRIVEMODEAUTO HOLD
DRIVE MODE
SMART
ECO
Drive Mode Integrated Control System*
The Drive Mode Integrated Control System* and the Smart Mode automatically select the optimum driving mode among ECO,
NORMAL and SPORT modes by detecting and learning the driver’s driving style, such as the use of the accelerator pedal
and the steering wheel, in real time To cycle through the different Drive Modes A, press the DRIVE MODE button B The
Instrument Cluster will display the current mode selected C
Wireless Smartphone Charging System
Charge a compatible mobile phone wirelessly by placing it on the tray D at the
front of the console, near the USB/Aux ports and the charging indicator, while the
ignition is on
REMINDERS:
• The smartphone must be a compatible phone with QI function available
• Avoid placing other metal items in the bin while charging as to not impede the charging area
• This vehicle is equipped with wireless charging technology which allows for a device to be charged using inductive charging, however, device compatibility varies See your owner’s manual for more detailed information and the back page for legal disclaimers
• Inductive charging systems are less ef ficient than conventional charging through cable As a result, higher device operating temperatures may be experienced during use
• Charging Performance: Device position on the wireless charging system can affect charging performance Other factors that may affect the charging rate includes foreign objects, such as coins or pens, and phone case thickness
Drive Mode Integrated Control System Video
To view these videos on your mobile device, snap the QR Codes or visit the listed website
Refer to page 2 for more information
Wireless Smartphone Charging System Video
QR CODE
www. KuTechVideo s.c om/yg13/2017
www. KuTechVideo s.c om/yg13/2017
B
C
•
•For best results, place smartphone on the center of the charging pad •If wireless charging does not work, move smartphone around the pad until the charging indicator turns amber Avoid placing other metal items in the bin while charging as to not impede the charging area
QUICK TIPS
A
D
Charging Indicator
(Button located below Gear Shift)
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
CENTER PANEL
Page 35 of 58
33
Heated Steering Wheel*
Press Heated Steering Wheel button A to turn ON/OFF Steering Wheel
Heater, while the Engine Start /Stop button is in the ON position Steering
Wheel Heater will turn off automatically in 30 minutes, or when button is
pressed again to deactivate
Power Rear Sunshade*
Press the Power Rear Sunshade button B to raise/lower sunshade, while
the Engine Start /Stop button is in the ACC/ON position
(Buttons located below Gear Shift)
•If ignition is turned OFF, then ON again within 30 minutes of Steering Wheel Heater being turned ON, the system will remain in the ON position •System does NOT turn off when ignition is cycled To turn off system, press the Heated Steering Wheel button
QUICK TIPS
1 The Power Rear Sunshade will lower when the Gear Shift is moved into the R (Reverse) position
2
Then when the Gear Shift is moved into D (Drive) and vehicle’s traveling more than 12 mph, the Power Rear Sunshade will unfold automatically
QUICK TIPSDRIVE
MODEAUTO HOLD
A
(Buttons located below Gear Shift)
B
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
CENTER PANEL
Page 36 of 58
34
(Buttons located below Gear Shift)
Ventilating (Blue LED)
Seat Warmers and Ventilated Seats Video To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www. KuTechVideo s.c om/yg13/2017
Seat Warmers / Ventilated Seats*
Seat Warmers
•Press top of button once for high setting (3 LEDs lit)
•Press button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and
again to turn OFF
Ventilated Seats
•Press bottom of button once for high setting
(3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and
again to turn OFF
Warming
( Yellow LED)
Seat Warmers / Ventilated Seats*
Seat Warmers only*
•Press button once for high setting (3 LEDs lit)
•Press button twice for medium setting (2 LED lit)
•Press a third time for low setting (1 LED lit) and again to
turn OFF
•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature •System turns OFF when ignition is cycled To turn system ON again, press the Heated Steering Wheel button
QUICK TIPS
(Buttons located below Gear Shift)
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
CENTER PANEL
Page 37 of 58
35

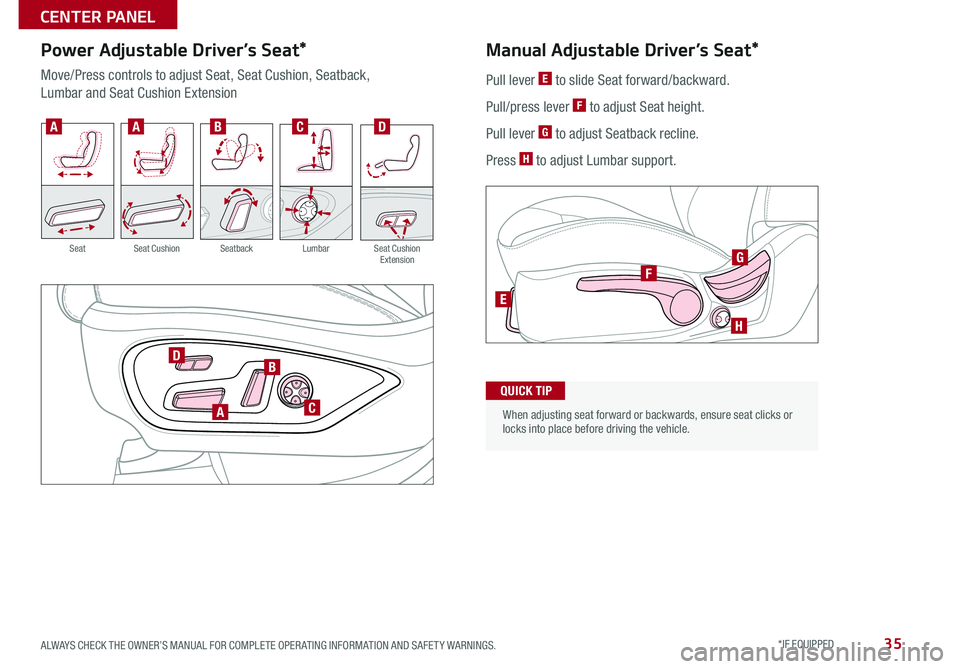

Power Adjustable Driver’s Seat*
Move/Press controls to adjust Seat, Seat Cushion, Seatback,
Lumbar and Seat Cushion Extension
A
B
C
D
AABCD
SeatbackLumbarSeat Cushion ExtensionSeatSeat Cushion
Pull lever E to slide Seat forward/backward
Pull/press lever F to adjust Seat height
Pull lever G to adjust Seatback recline
Press H to adjust Lumbar support
Manual Adjustable Driver’s Seat*
H
E
FG
When adjusting seat forward or backwards, ensure seat clicks or locks into place before driving the vehicle
QUICK TIP
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
CENTER PANEL
Page 38 of 58
36
Front Seat Headrest Adjustment
To raise headrest: Pull headrest up
To lower headrest: Press lock A, then press the headrest down
Driver Position Memory System*
The integrated system stores into memory the position
of the Driver’s Seat, Outside Rearview Mirrors and the
Steering Wheel
To store positions into memory, first place the Gear
Shift into P (Park) while the Engine Start /Stop button
is in the ON position Then:
1 Adjust the Driver’s Seat, Outside Mirrors and the
Steering Wheel
2 Press the SET button B on the control panel
System will beep once
3 Press one of the memory buttons C within 5
seconds The system will beep twice when memory
has been stored
(Buttons located on Driver's Door Panel)
A
B
C
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
SEATING
Page 39 of 58
37
Smart Key
A Press to lock All Doors
B Press to unlock Driver’s Door Press twice in 4 seconds to unlock All Doors
C Press and hold for more than 1 second to unlock Trunk and manually open
REMINDERS:
•Trunk lid will partially open To fully open, lift up manually
•The Trunk unlocks when the Smart Key is within close proximity of the vehicle
D Press and hold more than 1 second for Panic Alarm To turn off Alarm, press any button
E Press to release Mechanical Key (Button on reverse side of fob)
REMINDERS:
•Remote button configuration may vary depending on vehicle options
•
The Smart Key’s signal can be blocked by the normal operation of a cell phone or smartphone To help prevent this, store each device separately
Engine Start/Stop Button & Smart Key Video To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www. KuTechVideo s.c om/yg13/2017
Driver’s Door Lock/Unlock button G:
To unlock door(s):
•Press button once to unlock
Driver’s door
•Press again within 4 seconds to
unlock all doors
To lock all doors - Press again to lock all doors
If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the ENGINE START/STOP button (Lock button side closest) and press to start engine
QUICK TIP
A
B
C
D
F
E
G
Lock
Mechanical Key F:
Use to unlock /lock Driver’s Door
1 Remove door handle keyhole cover with Mechanical Key
by pressing up into slot as shown
2 Insert Mechanical Key and turn right to Unlock Driver’s
Door Turn twice within 4 seconds to Unlock all doors
3 Insert Mechanical Key and turn left to Lock
Driver’s Door
4 Return keyhole cover to its original position
Use to lock and unlock the glove box
Unlock
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES
Page 40 of 58
38
How to Sync Transmitter with HomeLink®
If programming for the first time, begin with Step 1 (repeating this step will
delete all information)
To program non-rolling and rolling code garage door openers and other devices:
1 Press and hold the left A and center D buttons simultaneously until the
indicator light C begins to flash (to reprogram buttons, skip this step)
2 Press and hold the desired button A, B or D and hold the button on the
transmitter while it is approximately 1 to 3 inches away from the mirror
The HomeLink® Indicator light C will flash rapidly once the frequency
signal has been successfully programmed
To finish programming rolling code garage door openers, complete these steps:
1 Locate the “learn” or “smart” button on the garage door’s motor head
unit Press and release the button and complete Step 4 within 30 seconds
2 Firmly press and release the programmed HomeLink® button up to three times
Operating HomeLink®:
Press one of the programmed HomeLink® buttons
Erasing programmed buttons:
Press and hold the left A and center D buttons simultaneously for
approximately 20 seconds, and then release both buttons within 30 seconds
If your garage door opener was manufactured in 2011 or later, and you’re unable to program your vehicle’s HomeLink® system, you may need to purchase a HomeLink Repeater Kit. For more information, go to www.HomeLink.com or call (800) 355-3515.
The HomeLink® / Auto-Dimming Rearview Mirror is designed to reduce
glare from a vehicle’s headlights located in the rear and also connect up
to three electronic transmitters into one location
REMINDER: Mirror indicator light C will illuminate when automatic dimming is ON
HomeLink® with Auto-Dimming Rearview Mirror
A HomeLink® button
B HomeLink® button
C Indicator light
D HomeLink® button
E Glare detection sensor
F Automatic dimming ON/OFF
G Compass control button
•You can reprogram a single HomeLink® button by repeating Step 2 •Erasing programmed buttons will delete all trained transmitters
QUICK TIPS
ABCDEFG
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES
