KIA CADENZA 2017 Features and Functions Guide

49
37,500 miles
PERFORM:
•Add fuel additive1 (Every 7,500 miles)
•Rotate tires
REPLACE:
•Engine oil and filter (Every 7,500 miles)
INSPECT*:
•Air cleaner filter
•Battery condition
•Vacuum Hose
Normal Maintenance Schedule (Continued)
45,000 miles
PERFORM:
•Add fuel additive1 (Every 7,500 miles)
•Rotate tires
REPLACE:
•Climate control air filter (for evaporator and blower unit)
•Engine oil and filter (Every 7,500 miles)
INSPECT*:
•Air cleaner filter
•Air conditioning refrigerant
•Drive shaft and boots
•Battery condition
•Brake hoses and lines
•Front brake disc/pads and calipers
•Rear brake disc/pads
•Exhaust pipe and muffler
•Steering gear box, linkage & boots/ lower arm ball joint, upper arm ball joint
•Suspension mounting bolts
•Vacuum hose *And, if necessary, adjust, correct, clean or replace 1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives
*And, if necessary, adjust, correct, clean or replace1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
MAINTENANCE

50
52,500 miles
PERFORM:
•Add fuel additive1
(Every 7,500 miles)
•Rotate tires
REPLACE:
•Engine oil and filter
(Every 7,500 miles)
INSPECT*:
•Air cleaner filter
•Battery condition
•Vacuum Hose
*And, if necessary, adjust, correct, clean or replace 1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives
60,000 miles
PERFORM:
•Add fuel additive1 (Every 7,500 miles)
•Rotate tires
REPLACE:
•Air cleaner filter
•Climate control air filter (for evaporator and blower unit)
•Engine oil and filter (Every 7,500 miles)
INSPECT*:
•Air conditioning refrigerant
•Drive belt2 (First, 60,000 miles, after every
15,000 miles)
•Drive shafts and boots
•Fuel filter3
•Fuel line, fuel hoses and connections
•Fuel tank air filter**3
•Valve clearance4
•Vapor hose and fuel filler cap
•Battery condition
•Brake fluid
•Brake hoses and lines
•Exhaust pipe and muffler
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Parking brake
•Steering gear box, linkage & boots/ lower arm
ball joint, upper arm ball joint
•Suspension mounting bolts
•Vacuum hose
*And, if necessary, adjust, correct, clean or replace * *If equipped 1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives 2 The drive belt should be replaced when cracks occur or tension is reduced excessively 3 Fuel filter & fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc , replace the fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details 4 Inspect for excessive tappet noise and/or engine vibration and adjust if necessary
Normal Maintenance Schedule (Continued)
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
MAINTENANCE

51ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED

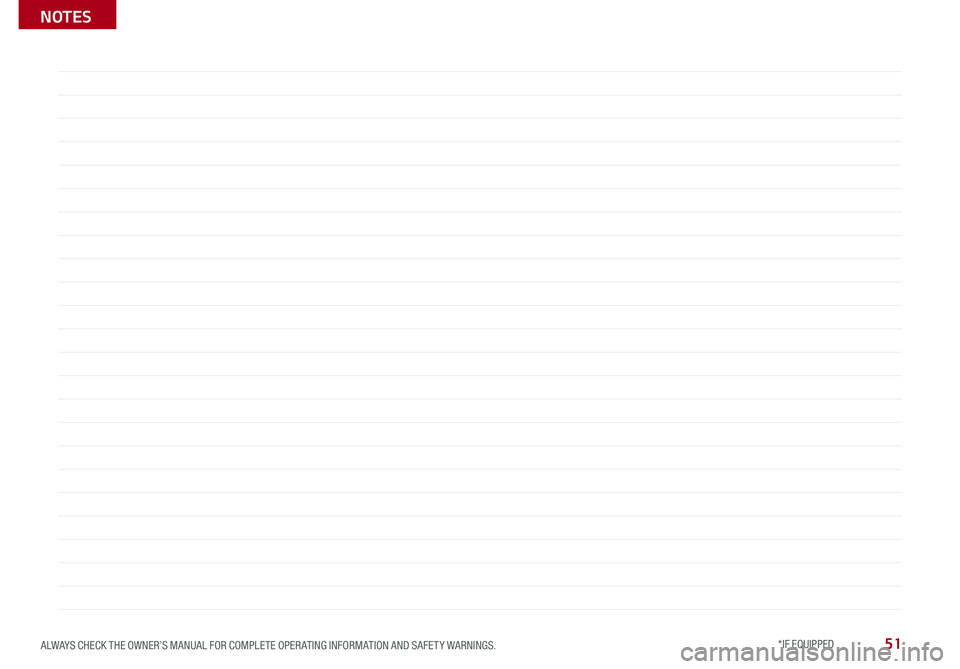

NOTES

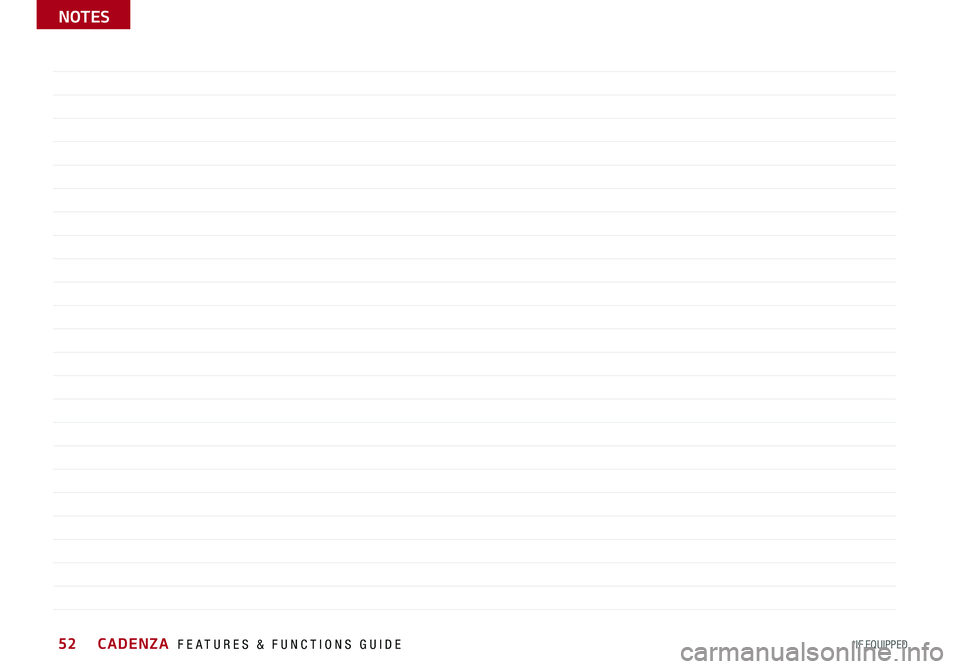

CADENZA FEATURES & FUNCTIONS GUIDE52*IF EQUIPPED
NOTES

LEGAL DISCLAIMERSSales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Airbags: For maximum protection, always wear your seat belt.Android Auto™: Android Auto is a trademark of Google, Inc. Android™ is a registered trademark of Google, Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.Apple CarPlay®: Apple CarPlay® a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.Apps: All information contained herein was based upon the latest available information at the time of appstore registration. Descriptions are believed to be correct, and Kia makes every effort to ensure accuracy, however, accuracy cannot be guaranteed. From time to time, Kia may need to update or make changes to the vehicle features and other vehicle information reported in this app. Kia, by the publication and dissemination of this material, does not create any warranties, either express or implied, to any Kia products. Contact your local Kia dealer for the most current information.Autonomous Emergency Braking System (AEB) / Forward Collision Warning System: These systems are not substitutes for safe driving, and may not detect all objects in front of vehicle. Always drive safely and use caution.Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.Driver Assist Features - Blind Spot Detection (BSD) with Lane Change Assist, Rear Cross Traffic Alert (RCTA), Lane Departure Warning System, Rear-Camera Display: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds o\
r 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.Google Play™ Store is a trademark of Google, Inc. © 2012 Google Inc. All rights reserved. Google and the Google Logo are registered trademarks of Google Inc.Head-Up Display (HUD): Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.HomeLink®: Homelink® is a registered trademark of Gentex CorporationiPod® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately, and connectivity requires the Kia accessory cable.Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
Pandora® internet radio: Pandora® is a registered trademark of Pandora Media, Inc.Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.Seat belts: For maximum protection, always wear your seatbelt.Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on t\
he NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2016 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.Power Trunk / Smart Trunk*: Driving with the trunk open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.Sportmatic® is a registered trademark of Kia Motors America.Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while\
driving.Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.UVO eServices: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.UVO eServices app: App uses your smartphone data service. Normal cellular service rates will apply.UVO eServices with Premium Navigation: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.

CADENZA
CUSTOMER DELIVERY CHECKLIST
(continued)
KEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System ( TPMS) – page 5 Blind Spot Detection (BSD)* – page 11 Lane Departure Warning System (LDWS)* – page 12 Engine Start /Stop Button – page 15 Surround View Monitoring (SVM) System* – page 27 Clock Setup – page 28 Electric Parking Brake (EPB) / Auto-Hold* – page 31
Seat Warmers / Ventilated Seats* – page 34 Smart Key – page 37 HomeLink
® with Auto-Dimming Rearview Mirror – page 38
Panoramic Sunroof Operation* – page 40 Sunvisor – page 40 Rear-Camera Display* – page 41 Passenger Airbag Off Indicator – page 45Demonstrate the following with the customer
*if equipped
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours and Customer 360° Care Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up ASCC / Cruise Control – pages 22 and 23

Demonstrate operation
UVO eServices with
Premium
Navigation
System*–

page 26.
For further operational information, refer to the
Car Multimedia System User’s Manual
UVO eServices
System*– page 25

For further operational information, refer to the Car Multimedia System User’s Manual Bluetooth
® Wireless Technology – pages 20-21

Demonstrate operation
Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
MODE
CRUISECANCEL
RES
OKSET
CD-IN
DISP
PWRPUSHVOL TUNE
FILE
DEST
SEEK TRACK
MEDIA
FM/AM
PHONE S AT
MAP
VOICE
ROUTE
MAP
CD-IN
DISP
PWRPUSHVOL TUNE
FILE
DEST
SEEK TRACK
MEDIA
FM/AM
PHONE S AT
UVO
ROUTE
N AV
UVO
CD-IN
DISP
PWRPUSHVOL TUNE
FILETUNE
DEST
SEEK
TRACK PHONE
MAP
VOICE UVO
SETUP
SEEK
MEDIA
RADIO
MEDIA
FM/AM
PHONE S AT
MAP
VOICE
ROUTE
MAP
CD-IN
DISP
PWRPUSHVOL TUNE
FILE
DEST
SEEK TRACK
MEDIA
FM/AM
PHONE S AT
UVO
ROUTE
VOL
POWERPUSH
FILETUNE
TRACK
APPS/ UVOSETUP
SEEK
MEDIA PHONE
RADIO
VOLPOWERPUSH
B luetooth®
N AV
UVO
CD-IN
DISP
PWRPUSHVOL TUNE
FILE
DEST
SEEK TRACK
MEDIA
FM/AM
PHONE S AT
MAP
VOICE
ROUTE
MAP
CD-IN
DISP
PWRPUSHVOL TUNE
FILE
DEST
SEEK TRACK
MEDIA
FM/AM
PHONE S AT
UVO
ROUTE
N AV
UVO
CD-IN
DISP
PWRPUSHVOL TUNE
FILETUNE
DEST
SEEK
TRACK PHONE
MAP
VOICE UVO
SETUP
SEEK
MEDIA
RADIO
MEDIA
FM/AM
PHONE S AT
MAP
VOICE
ROUTE
MAP
CD-IN
DISP
PWRPUSHVOL TUNE
FILE
DEST
SEEK TRACK
MEDIA
FM/AM
PHONE S AT
UVO
ROUTE
VOL
POWERPUSH
FILETUNE
TRACK
APPS/ UVOSETUP
SEEK
MEDIA PHONE
RADIO
VOLPOWERPUSH
B luetooth®
N AV
UVO

Air Conditioning / Automatic Climate Control - page 29
– Demonstrate Air Flow Modes, Defog and Defrosting
Windshield Fan Speed
Windshield Wipers & Washers
– page 19
*IF EQUIPPED
Front Seat Headrest Adjustment
– page 36

Automatic*
CADENZA
CUSTOMER DELIVERY CHECKLIST
Owner

*IF EQUIPPED
© 2016 Kia Motors America, Inc. All rights reserved.
Part Number: UC170-PS-004
Consumer - Roadside Assistance: 1-800-333-4KIA (4542)
