brakes KIA CADENZA 2017 Features and Functions Guide

9
Electronic Stability Control (ESC)
The ESC system is designed to help stabilize the vehicle during cornering
maneuvers It is a good idea to keep the ESC turned on for daily driving
whenever possible
Press ESC button A to turn Traction Control OFF/ON
To turn OFF both the Traction Control and Stability Control, press and
hold for more than 3 seconds Press again to turn ON
(Button panel located left of Steering Wheel)
Hill-Start Assist Control (HAC)
HAC helps prevent the vehicle from rolling backwards when accelerating
from a stop while on a steep incline The HAC automatically activates
whether the ESC is OFF or ON but does NOT activate when the ESC
has malfunctioned
REMINDER: The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
REMINDERS:
•ESC is active by default at vehicle start-up When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
For more information on Electronic Stability Control (ESC) and its specific features and operations, please refer to your Owner’s Manual.
When HAC is active (e g , during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator
QUICK TIP
A
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
DRIVER'S PANEL

10

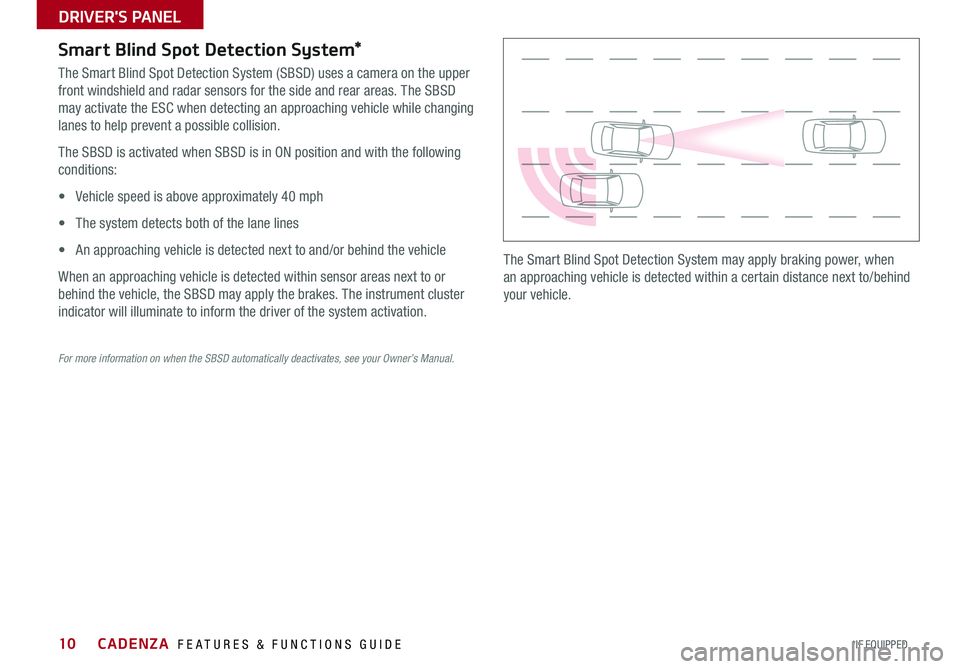

Smart Blind Spot Detection System*
The Smart Blind Spot Detection System (SBSD) uses a camera on the upper
front windshield and radar sensors for the side and rear areas The SBSD
may activate the ESC when detecting an approaching vehicle while changing
lanes to help prevent a possible collision
The SBSD is activated when SBSD is in ON position and with the following
conditions:
• Vehicle speed is above approximately 40 mph
• The system detects both of the lane lines
• An approaching vehicle is detected next to and/or behind the vehicle
When an approaching vehicle is detected within sensor areas next to or
behind the vehicle, the SBSD may apply the brakes The instrument cluster
indicator will illuminate to inform the driver of the system activation
For more information on when the SBSD automatically deactivates, see your Owner’s Manual.
The Smart Blind Spot Detection System may apply braking power, when
an approaching vehicle is detected within a certain distance next to/behind
your vehicle
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
DRIVER'S PANEL

47ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
MAINTENANCE
7,500 miles
PERFORM:
•Add fuel additive1 (Every 7,500 miles)
•Rotate tires
REPLACE:
•Engine oil and filter (Every 7,500 miles)
INSPECT*:
•Air cleaner filter
•Battery condition
•Vacuum hose
Normal Maintenance Schedule
When your vehicle requires service, remember that your dealer knows your vehicle best Your dealer has factory-trained technicians, recommended special tools,
genuine Kia replacement parts and is dedicated to your complete satisfaction For expert advice and quality service, see your authorized Kia dealer
•
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO eServices account by logging into your UVO App or your account on MyUVO com (See UVO eServices Setup, page 24)
QUICK TIP
15,000 miles
PERFORM:
•Add fuel additive1 (Every 7,500 miles)
•Rotate tires
REPLACE:
•Climate control air filter (for evaporator and blower unit)
•Engine oil and filter (Every 7,500 miles)
INSPECT*:
•Air cleaner filter
•Air conditioning refrigerant
•Drive shafts and boots
•Battery condition
•Brake hoses and lines
•Front disc brakes/pads, calipers
•Rear brake disc/pads
•Exhaust pipe and muffler
•Steering gear box, linkage & boots/ lower
arm ball joint, upper arm ball joint
•Suspension mounting bolts
•Vacuum Hose
*And, if necessary, adjust, correct, clean or replace 1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives
*And, if necessary, adjust, correct, clean or replace 1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives
