KIA Carens 2014 3.G Owner's Manual

Specifications & Consumer information
48

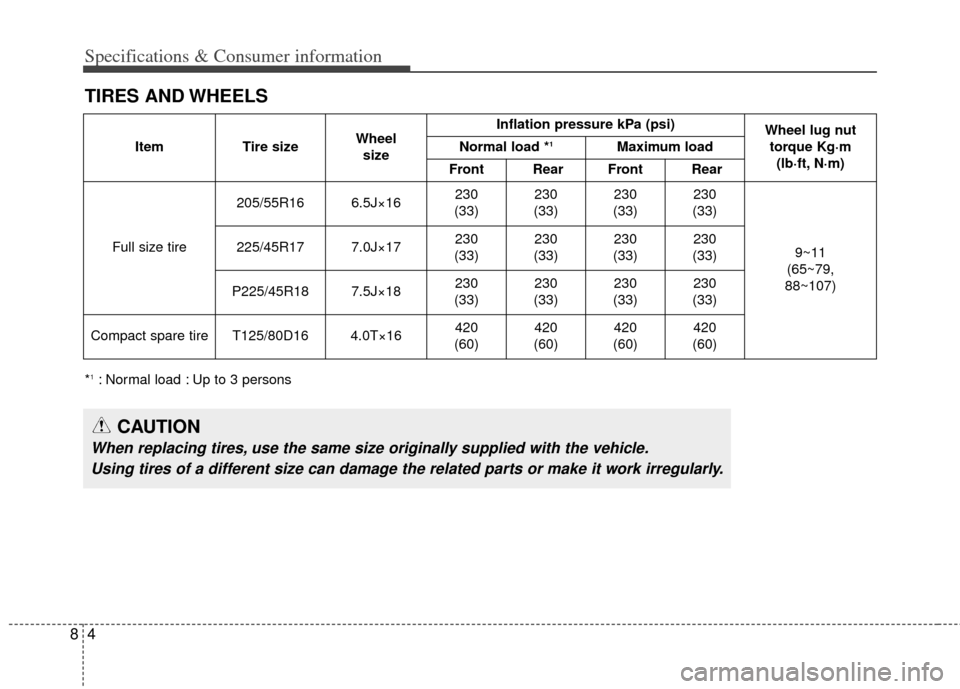

TIRES AND WHEELS
ItemTire sizeWheelsizeInflation pressure kPa (psi)Wheel lug nuttorque Kg·m (lb·ft, N·m)
Normal load *1Maximum load
FrontRear FrontRear
Full size tire
205/55R166.5J×16230
(33)230
(33)230
(33)230
(33)
9~11
(65~79,
88~107)225/45R177.0J×17230
(33)230
(33)230
(33)230
(33)
P225/45R187.5J×18230
(33)230
(33)230
(33)230
(33)
Compact spare tireT125/80D164.0T×16420
(60)420
(60)420
(60)420
(60)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
*1: Normal load : Up to 3 persons

85
Specifications & Consumer information

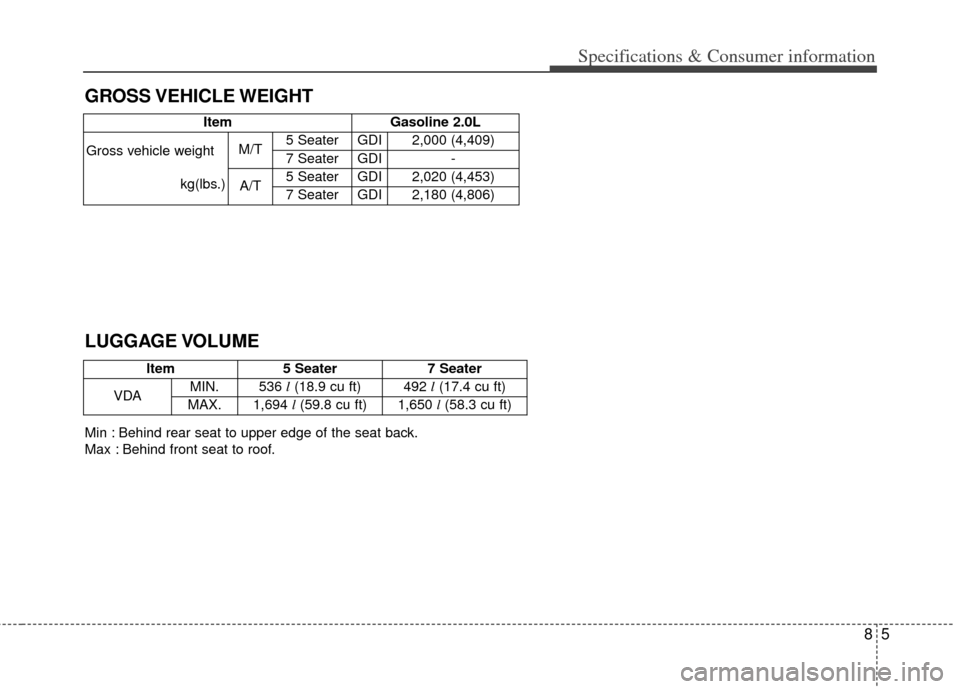

GROSS VEHICLE WEIGHT
ItemGasoline 2.0L
Gross vehicle weight
kg(lbs.)M/T
5 Seater GDI 2,000 (4,409)
7 Seater GDI -
A/T 5 Seater GDI 2,020 (4,453)
7 Seater GDI 2,180 (4,806)
LUGGAGE VOLUME
ltem
5 Seater 7 Seater
VDA MIN.
536
l(18.9 cu ft) 492 l (17.4 cu ft)
MAX. 1,694
l(59.8 cu ft) 1,650 l (58.3 cu ft)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.

Specifications & Consumer information
68

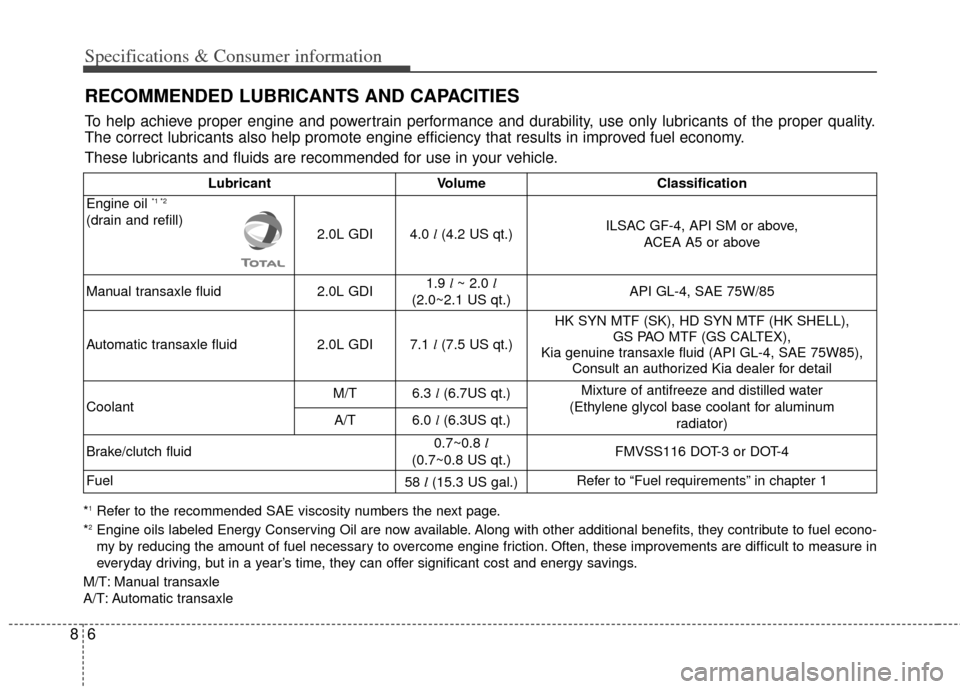

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolume Classification
Engine oil
*1 *2
(drain and refill) 2.0L GDI4.0
l(4.2 US qt.) ILSAC GF-4, API SM or above,
ACEA A5 or above
Manual transaxle fluid 2.0L GDI 1.9
l ~ 2.0 l
(2.0~2.1 US qt.) API GL-4, SAE 75W/85
Automatic transaxle fluid 2.0L GDI7.1
l(7.5 US qt.)
HK SYN MTF (SK), HD SYN MTF (HK SHELL),
GS PAO MTF (GS CALTEX),
Kia genuine transaxle fluid (API GL-4, SAE 75W85), Consult an authorized Kia dealer for detail
Coolant M/T
6.3
l(6.7US qt.) Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
A/T6.0l(6.3US qt.)
Brake/clutch fluid 0.7~0.8
l
(0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel58
l (15.3 US gal.)Refer to “Fuel requirements” in chapter 1
*1Refer to the recommended SAE viscosity numbers the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo -
my by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
M/T: Manual transaxle
A/T: Automatic transaxle

87
Specifications & Consumer information
Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be
damaged.Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operation (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
10W-30
5W-20, 5W-30
*1For better fuel economy, it is recommended to use the
engine oil of a viscosity grade SAE 5W-20 (API SM / ILSAC
GF-4). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil vis-
cosity chart.

Specifications & Consumer information
88
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attatched on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
ORP082001
■
Frame number
ORP082002
■VIN label (if equipped)
ORP082004

89
Specifications & Consumer information
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The engine number is stamped on
the engine block as shown in the
drawing.

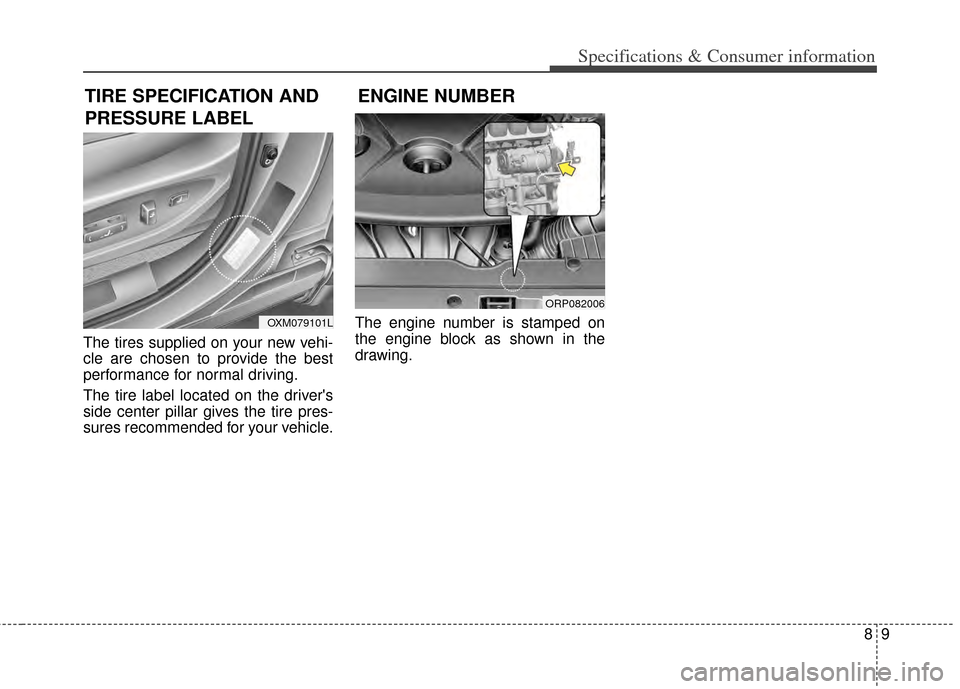

TIRE SPECIFICATION AND
PRESSURE LABEL
ORP082006
ENGINE NUMBER
OXM079101L
