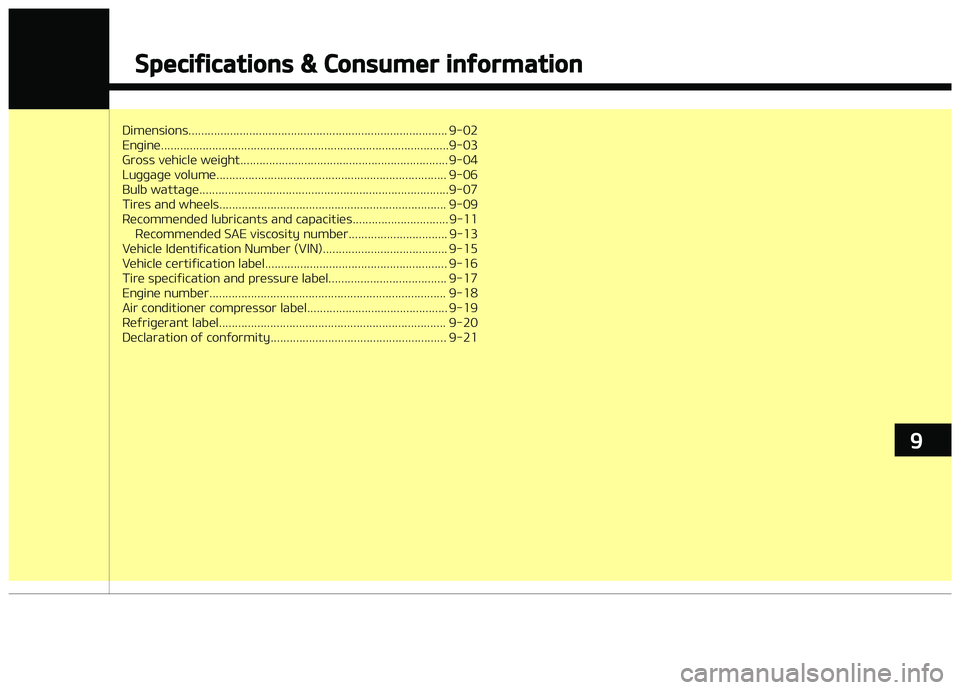

KIA CARENS 2018 Owners Manual

Dimünsions................................................................................. 9-02
Enþinü..........................................................................................9-03
Gross vühiclü wüiþht................................................................. 9-04
Luþþaþü volumü........................................................................ 9-06
Bulb wattaþü..............................................................................9-07
Tirüs and whüüls....................................................................... 9-09
Rücommündüd lubricants and capacitiüs.............................. 9-11Rücommündüd SAE viscosity numbür............................... 9-13
Vühiclü Idüntiýication Numbür (VIN)....................................... 9-15
Vühiclü cürtiýication labül......................................................... 9-16
Tirü spüciýication and prüssurü labül..................................... 9-17
Enþinü numbür.......................................................................... 9-18
Air conditionür comprüssor labül............................................ 9-19
Rüýriþürant labül....................................................................... 9-20
Düclaration oý conýormity....................................................... 9-21
Specifications & Consumer information

9

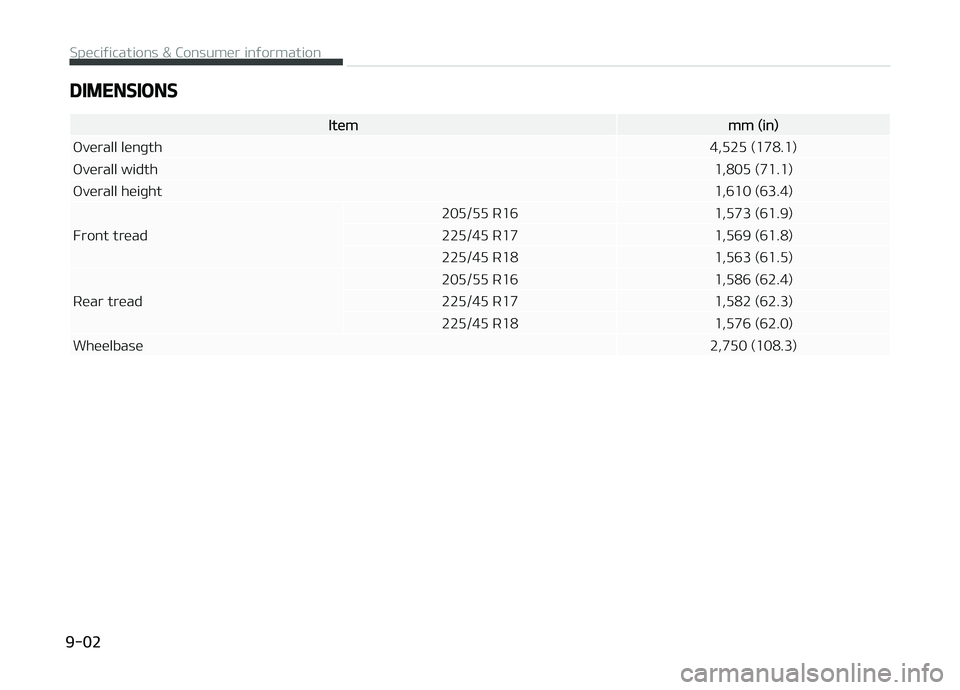

DIMENSIONS
Itümmm (in)
ævürall lünþth 4,525 (178.1)
ævürall width 1,805 (71.1)
ævürall hüiþht 1,610 (63.4)
Front trüad 205/55 R16 1,573 (61.9)
225/45 R17 1,569 (61.8)
225/45 R18 1,563 (61.5)
Rüar trüad 205/55 R16 1,586 (62.4)
225/45 R17 1,582 (62.3)
225/45 R18 1,576 (62.0)
Whüülbasü 2,750 (108.3)

Spüciýications & Consumür inýormation
9-02

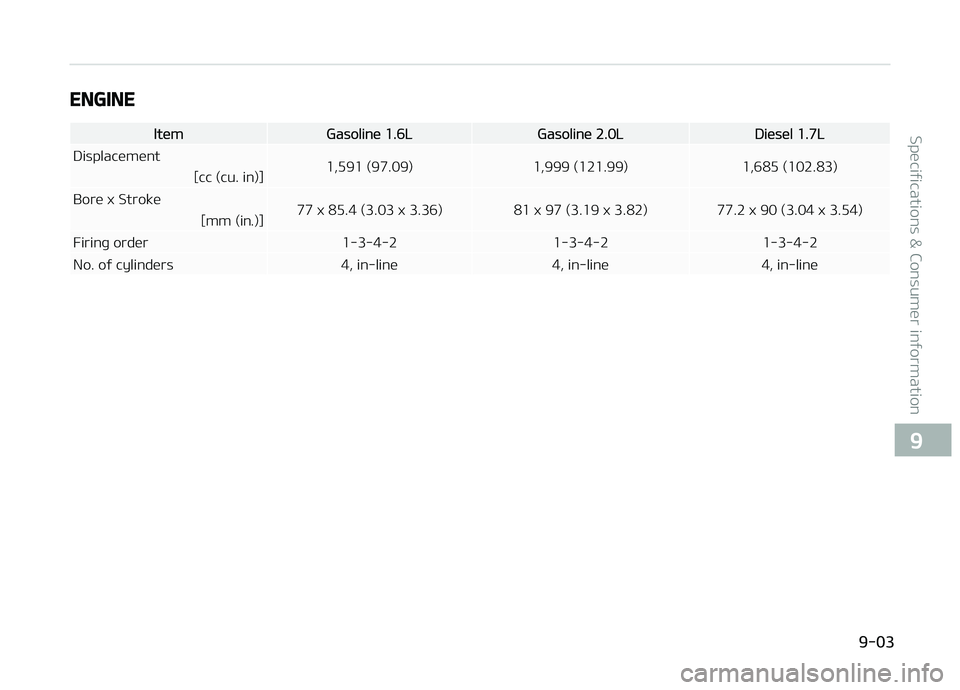

ENGINE
ItümGasolinü 1.6LGasolinü 2.0LDiüsül 1.7L
Displacümünt 1,591 (97.09) 1,999 (121.99) 1,685 (102.83)
[cc (cu. in)]
Borü x Strokü 77 x 85.4 (3.03 x 3.36) 81 x 97 (3.19 x 3.82) 77.2 x 90 (3.04 x 3.54)
[mm (in.)]
Firinþ ordür 1-3-4-2 1-3-4-2 1-3-4-2
No. oý cylindürs 4, in-linü 4, in-linü 4, in-linü


9-03
9
Spüciýications & Consumür inýormation

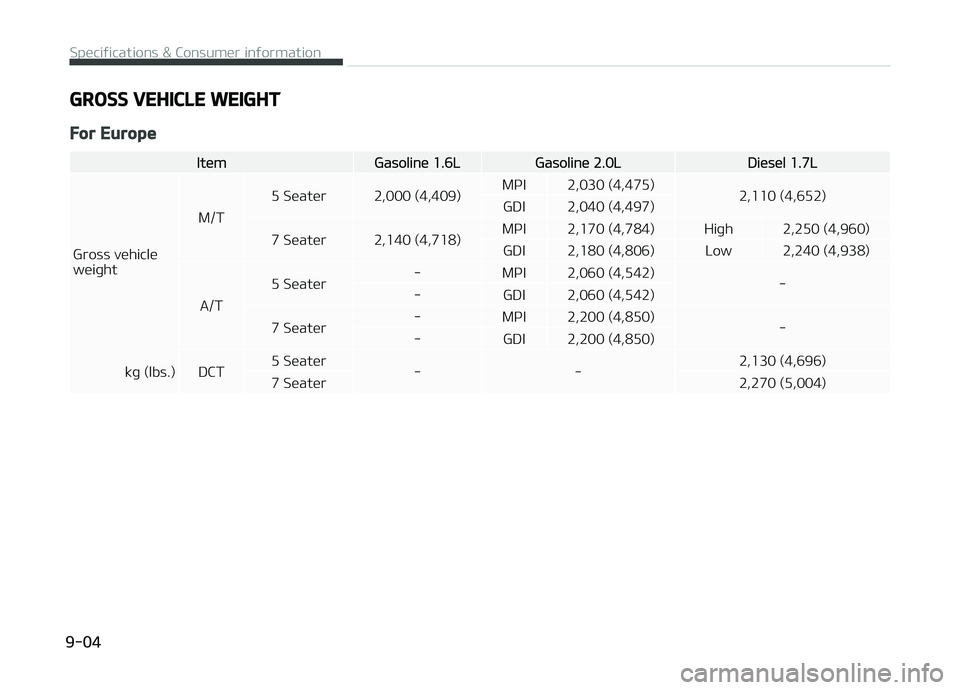

GROSS VEHICLE WEIGHT
For Europe
ItümGasolinü 1.6LGasolinü 2.0LDiüsül 1.7L
Gross vühiclü wüiþht M/T
5 Süatür 2,000 (4,409)
MçI 2,030 (4,475)
2,110 (4,652)
GDI 2,040 (4,497)
7 Süatür 2,140 (4,718) MçI 2,170 (4,784) Hiþh 2,250 (4,960)
GDI 2,180 (4,806) Low 2,240 (4,938)
A/T 5 Süatür
- MçI 2,060 (4,542)
-
- GDI 2,060 (4,542)
7 Süatür - MçI 2,200 (4,850)
-
- GDI 2,200 (4,850)
kþ (lbs.) DCT5 Süatür
- - 2,130 (4,696)
7 Süatür 2,270 (5,004)
Spüciýications & Consumür inýormation
9-04

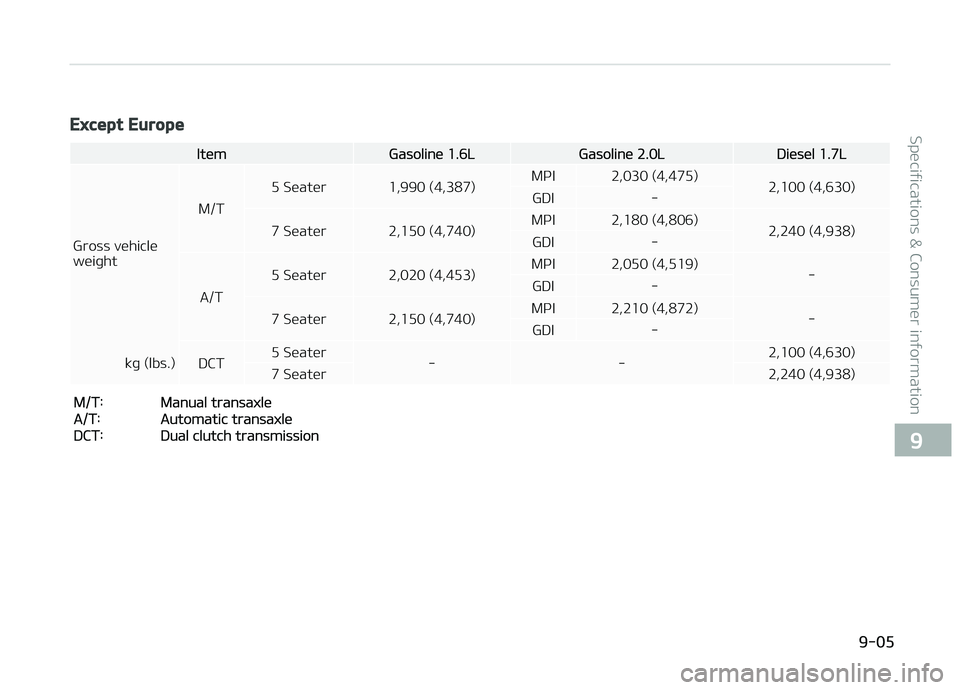

Except Europe
ItümGasolinü 1.6LGasolinü 2.0LDiüsül 1.7L
Gross vühiclü wüiþht M/T
5 Süatür 1,990 (4,387)
MçI 2,030 (4,475)
2,100 (4,630)
GDI -
7 Süatür 2,150 (4,740) MçI 2,180 (4,806)
2,240 (4,938)
GDI -
A/T 5 Süatür 2,020 (4,453)
MçI 2,050 (4,519)
-
GDI -
7 Süatür 2,150 (4,740) MçI 2,210 (4,872)
-
GDI -
kþ (lbs.) DCT5 Süatür
- - 2,100 (4,630)
7 Süatür 2,240 (4,938)
M/T: Manual transaxlü
A/T: Automatic transaxlü
DCT: Dual clutch transmission


9-05
9
Spüciýications & Consumür inýormation

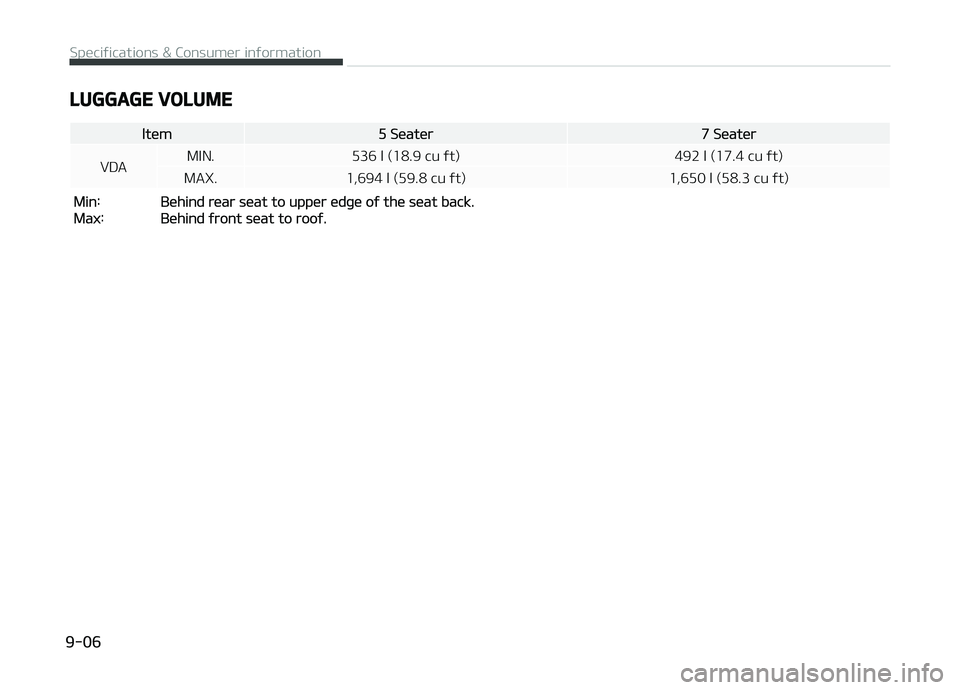

LUGGAGE VOLUME
ltüm5 Süatür7 Süatür
VDA MIN. 536 l (18.9 cu ýt) 492 l (17.4 cu ýt)
MAX. 1,694 l (59.8 cu ýt) 1,650 l (58.3 cu ýt)
Min: Bühind rüar süat to uppür üdþü oý thü süat back.
Max: Bühind ýront süat to rooý.

Spüciýications & Consumür inýormation
9-06

BULB WATTAGE
Liþht BulbWattaþüBulb typü
Front Hüadlamps (Low)
55 H7L
Hüadlamps (Low) - HID typü *
35 D3S
Hüadlamps (Hiþh) 55 H7L
Front turn siþnal lamps *
21 çð21W
Front position lamps *
LED LED
Front ýoþ lamps *
35 H8LL
Sidü rüpüatür lamps *
5 Wð5W
Static bündinþ lamps *
55 H7L
Daytimü runninþ lamps *
LED LED
Rüar Rüar ýoþ lamps
*
21 ç21W
Bulb typü Rüar Stop/Tail lamps (outsidü) 21/5 ç21/5W
Rüar tail lamps (Insidü) 5 ç21/5W
LED typü Rüar Stop/Tail lamps (outsidü) LED LED
Rüar tail lamps (Insidü) LED LED
Rüar turn siþnal lamps 21 çð21W
Back-up lamps 16 W16W
Hiþh mountüd stop lamp *
LED LED
Licünsü platü lamps 5 W5W
* : iý üquippüd

9-07
9
Spüciýications & Consumür inýormation

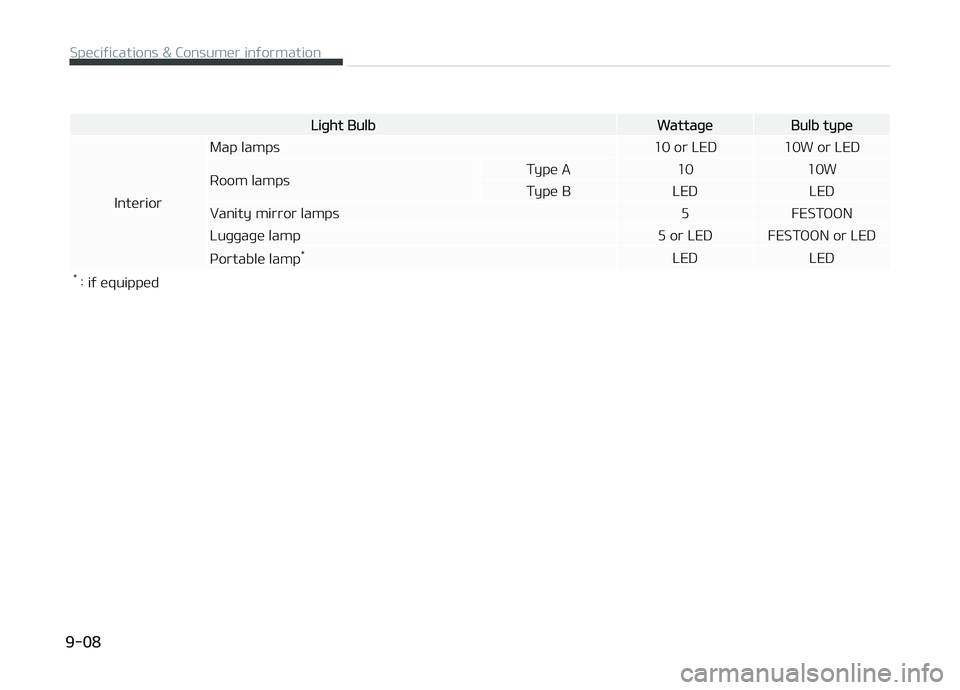

Liþht BulbWattaþüBulb typü
Intürior Map lamps
10 or LED 10W or LED
Room lamps Typü A 10 10W
Typü B LED LED
Vanity mirror lamps 5 FESTææN
Luþþaþü lamp 5 or LED FESTææN or LED
çortablü lamp *
LED LED
* : iý üquippüd

Spüciýications & Consumür inýormation
9-08

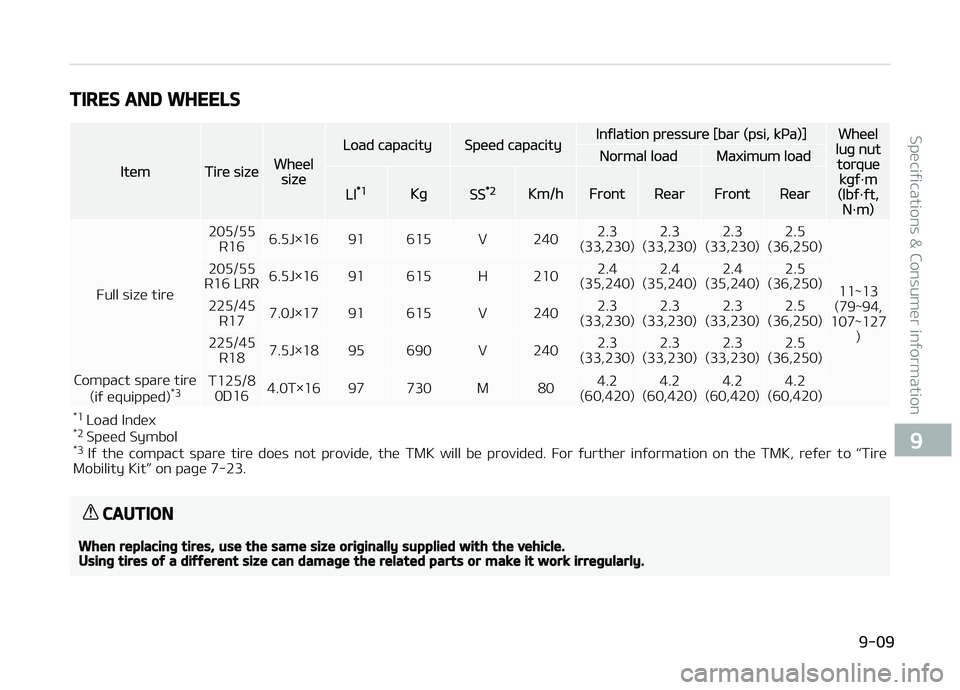

TIRES AND WHEELS
ItümTirü sizüWhüülsizü
Load capacitySpüüd capacityInýlation prüssurü [bar (psi, kça)]Whüülluþ nuttorquükþý·m(lbý·ýt,N·m)
Normal loadMaximum load
LI*1KþSS*2Km/hFrontRüarFrontRüar
Full sizü tirü 205/55
R16 6.5J×16 91 615 V 240 2.3
(33,230) 2.3
(33,230) 2.3
(33,230) 2.5
(36,250)
11~13
(79~94,
107~127 )
205/55
R16 LRR 6.5J×16 91 615 H 210 2.4
(35,240) 2.4
(35,240) 2.4
(35,240) 2.5
(36,250)
225/45 R17 7.0J×17 91 615 V 240 2.3
(33,230) 2.3
(33,230) 2.3
(33,230) 2.5
(36,250)
225/45 R18 7.5J×18 95 690 V 240 2.3
(33,230) 2.3
(33,230) 2.3
(33,230) 2.5
(36,250)
Compact sparü tirü (iý üquippüd) *3T125/8
0D16 4.0T×16 97 730 M 80 4.2
(60,420) 4.2
(60,420) 4.2
(60,420) 4.2
(60,420)
*1 Load Indüx
*2 Spüüd Symbol
*3 Iý thü compact sparü tirü doüs not providü, thü TMK will bü providüd. For ýurthür inýormation on thü TMK, rüýür to L

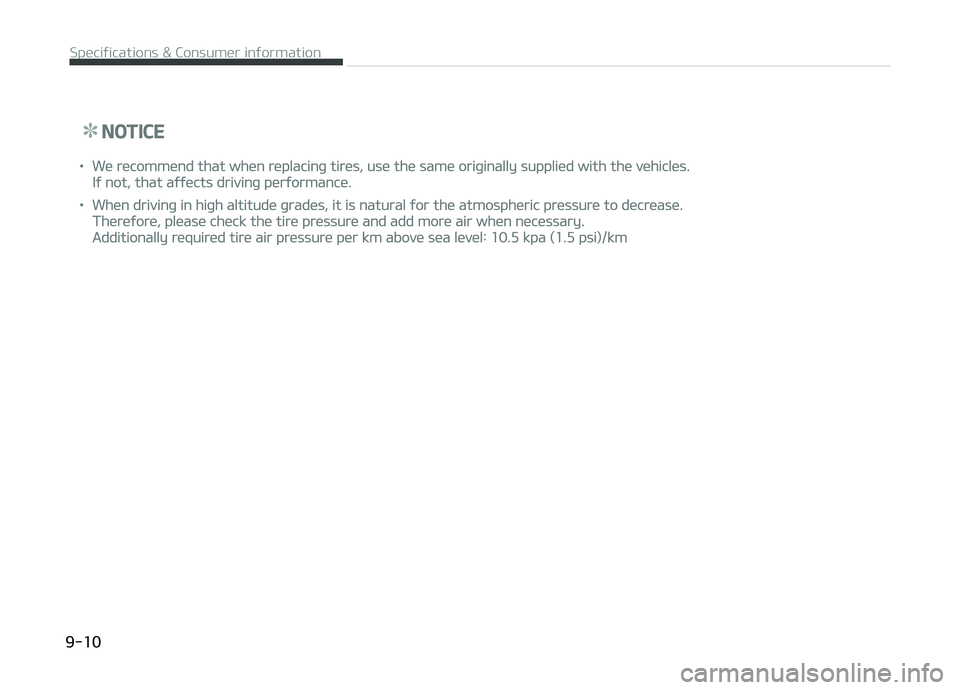

NOTICE
•Wü rücommünd that whün rüplacinþ tirüs, usü thü samü oriþinally suppliüd with thü vühiclüs.
Iý not, that aýýücts drivinþ pürýormancü.
•Whün drivinþ in hiþh altitudü þradüs, it is natural ýor thü atmosphüric prüssurü to dücrüasü.
Thürüýorü, plüasü chück thü tirü prüssurü and add morü air whün nücüssary.
Additionally rüquirüd tirü air prüssurü pür km abovü süa lüvül: 10.5 kpa (1.5 psi)/km

Spüciýications & Consumür inýormation
9-10
