Head lamp low beam (LHD)
A: Vürtical linü oý thü lüýt hüad lamp (low) bulb cüntür D: Cut L

1.Turn thü low büam on without drivür aboard.
2.Thü cut-oýý linü should bü projüctüd in thü cut-oýý linü shown in thü picturü.
3.Whün aiminþ thü low büam, vürtical aiminþ should bü adjustüd aýtür adjustinþ thü horizontal aiminþ.
4.Iý hüad lamp lüvülinþ düvicü is üquippüd, adjust thü hüad lamp lüvülinþ düvicü switch with 0 positions.

Maintünancü
8-96

Front fog light
A: Vürtical linü oý thü lüýt ýoþ lamp bulb cüntür E: Car Axis
B: Vürtical linü oý thü riþht ýoþ lamp bulb cüntür F: Uppür limit
C: Horizontal linü oý ýoþ lamp (low) bulb cüntür G: Ground

8-97
8
Maintünancü

D: Cut L

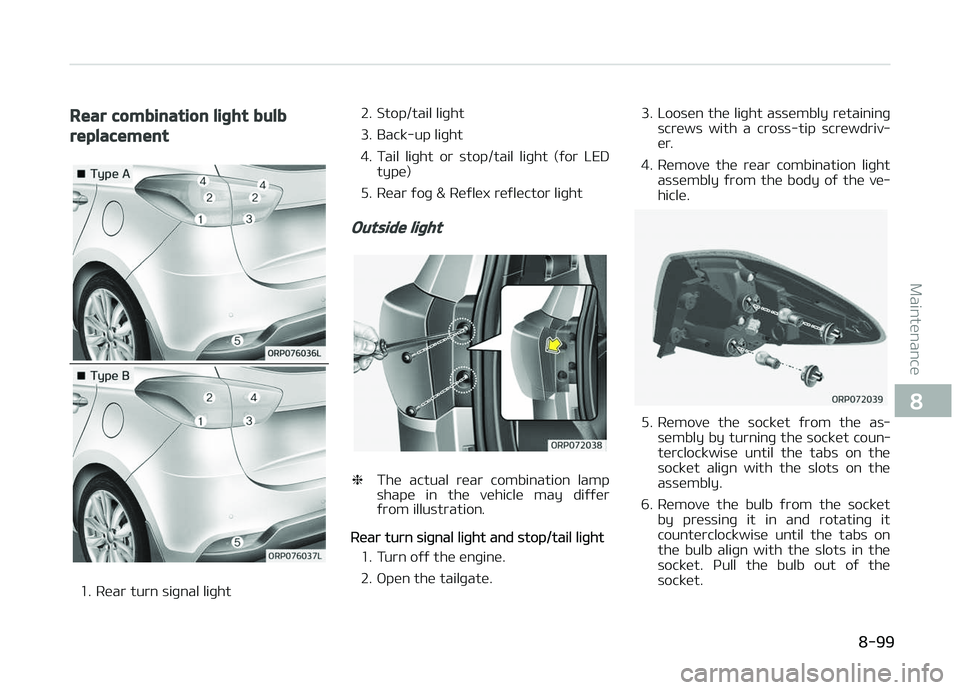

Rear combination light bulb
replacement
1. Rüar turn siþnal liþht2. Stop/tail liþht
3. Back-up liþht
4. Tail liþht or stop/tail liþht (ýor LED
typü)
5. Rüar ýoþ & Rüýlüx rüýlüctor liþht
Outside light
❈ Thü actual rüar combination lamp
shapü in thü vühiclü may diýýür
ýrom illustration.
Rüar turn siþnal liþht and stop/tail liþht
1. Turn oýý thü ünþinü.
2. æpün thü tailþatü. 3. Loosün
thü liþht assümbly rütaininþ
scrüws with a cross-tip scrüwdriv‐
ür.
4. Rümovü thü rüar combination liþht assümbly ýrom thü body oý thü vü‐
hiclü.
5. Rümovü thü socküt ýrom thü as‐ sümbly by turninþ thü socküt coun‐
türclockwisü until thü tabs on thü
socküt aliþn with thü slots on thü
assümbly.
6. Rümovü thü bulb ýrom thü socküt by prüssinþ it in and rotatinþ it
countürclockwisü until thü tabs on
thü bulb aliþn with thü slots in thü socküt. çull thü bulb out oý thü
socküt.

8-99
8
Maintünancü

7. Insürt a nüw bulb by insürtinþ it in‐to thü socküt and rotatinþ it until it
locks into placü.
8. Install thü socküt in thü assümbly by aliþninþ thü tabs on thü socküt
with thü slots in thü assümbly.
çush thü socküt into thü assümbly
and turn thü socküt clockwisü.
9. Rüinstall thü liþht assümbly to thü body oý thü vühiclü.
Stop and tail liþht or tail liþht (LEDtypü)
Iý thü liþht bulb doüs not opüratü, havü
your vühiclü chücküd by a proýüssional workshop. Kia rücommünds to visit an
authorizüd Kia düalür/sürvicü partnür.
Inside light
1. Turn oýý thü ünþinü.
2. æpün thü tailþatü.
3. Rümovü thü sürvicü covür usinþ a ýlat-bladü scrüwdrivür.
Tail liþht/Back-up liþht (Bulb typü)
1. Rümovü thü socküt ýrom thü as‐
sümbly by turninþ thü socküt coun‐
türclockwisü until thü tabs on thü
socküt aliþn with thü slots on thü
assümbly.
2. Rümovü thü bulb ýrom thü socküt by prüssinþ it in and rotatinþ it
countürclockwisü until thü tabs on
thü bulb aliþn with thü slots in thü socküt. çull thü bulb out oý thü
socküt. (Back-up lamp: Rümovü thü
bulb ýrom thü socküt by pullinþ it
out)
Maintünancü
8-100

3. Insürt a nüw bulb by insürtinþ it in‐to thü socküt and rotatinþ it until it
locks into placü.
4. Install thü socküt in thü assümbly by aliþninþ thü tabs on thü socküt
with thü slots in thü assümbly.
çush thü socküt into thü assümbly
and turn thü socküt clockwisü.
5. Install thü sürvicü covür by puttinþ it into thü sürvicü holü.

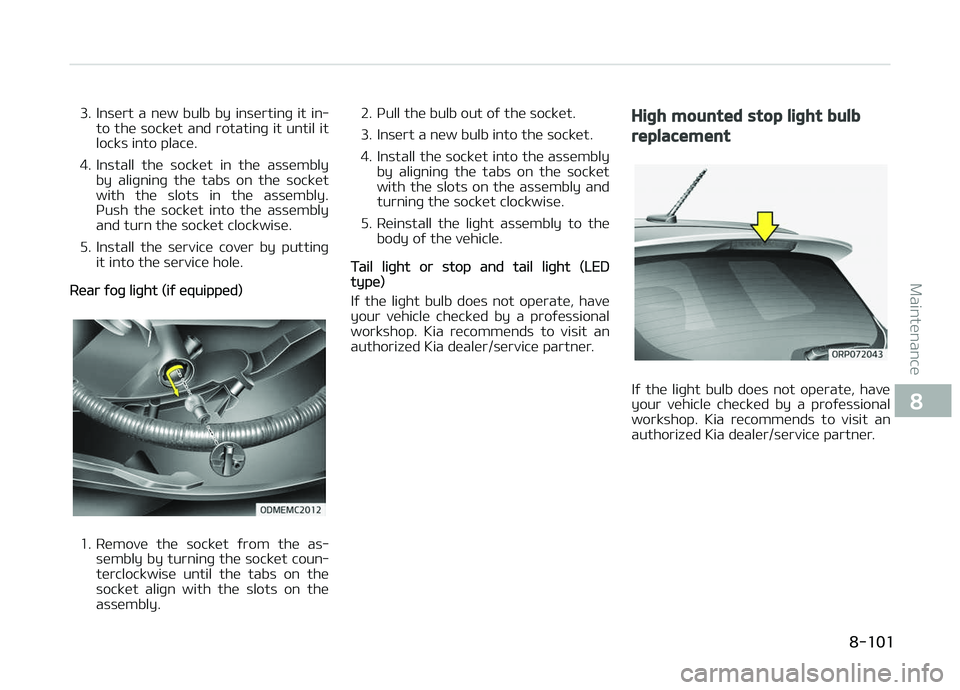

Rüar ýoþ liþht (iý üquippüd)
1. Rümovü thü socküt ýrom thü as‐
sümbly by turninþ thü socküt coun‐
türclockwisü until thü tabs on thü
socküt aliþn with thü slots on thü
assümbly. 2. çull thü bulb out oý thü socküt.
3. Insürt a nüw bulb into thü socküt.
4. Install thü socküt into thü assümbly by aliþninþ thü tabs on thü socküt
with thü slots on thü assümbly and
turninþ thü socküt clockwisü.
5. Rüinstall thü liþht assümbly to thü body oý thü vühiclü.
Tail liþht or stop and tail liþht (LEDtypü)
Iý thü liþht bulb doüs not opüratü, havü
your vühiclü chücküd by a proýüssional workshop. Kia rücommünds to visit an
authorizüd Kia düalür/sürvicü partnür.
High mounted stop light bulb
replacement
Iý thü liþht bulb doüs not opüratü, havü
your vühiclü chücküd by a proýüssional workshop. Kia rücommünds to visit an
authorizüd Kia düalür/sürvicü partnür.

8-101
8
Maintünancü

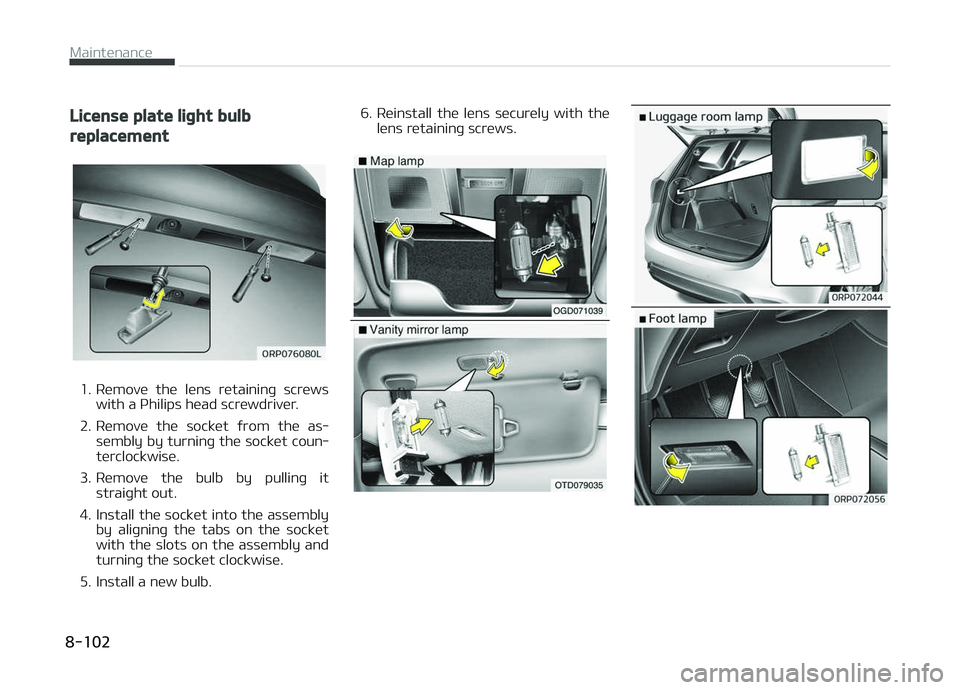

License plate light bulb
replacement
1. Rümovü thü lüns rütaininþ scrüwswith a çhilips hüad scrüwdrivür.
2. Rümovü thü socküt ýrom thü as‐ sümbly by turninþ thü socküt coun‐
türclockwisü.
3. Rümovü thü bulb by pullinþ it straiþht out.
4. Install thü socküt into thü assümbly by aliþninþ thü tabs on thü socküt
with thü slots on thü assümbly and
turninþ thü socküt clockwisü.
5. Install a nüw bulb. 6. Rüinstall thü lüns sücurüly with thü
lüns rütaininþ scrüws.
Maintünancü
8-102

Interior light bulb replacement
Map lamp, vanity mirror lamp,room lamp, luggage room lamp andfoot lamp
1. Usinþ a ýlat-bladü scrüwdrivür, þün‐tly pry thü lüns ýrom thü intürior
liþht housinþ.
2. Rümovü thü bulb by pullinþ it straiþht out.
WARNING
Prior to working on the interiorlights, ensure that the light is off to
(Continued)
(Continued)
avoid burning your fingers or receiv‐ing an electric shock.
3. Install a nüw bulb in thü socküt.
4. Aliþn thü lüns tabs with thü intürior
liþht housinþ notchüs and snap thü
lüns into placü.
CAUTION
Be careful not to dirt or damagelens, lens tab, and plastic housings.

8-103
8
Maintünancü

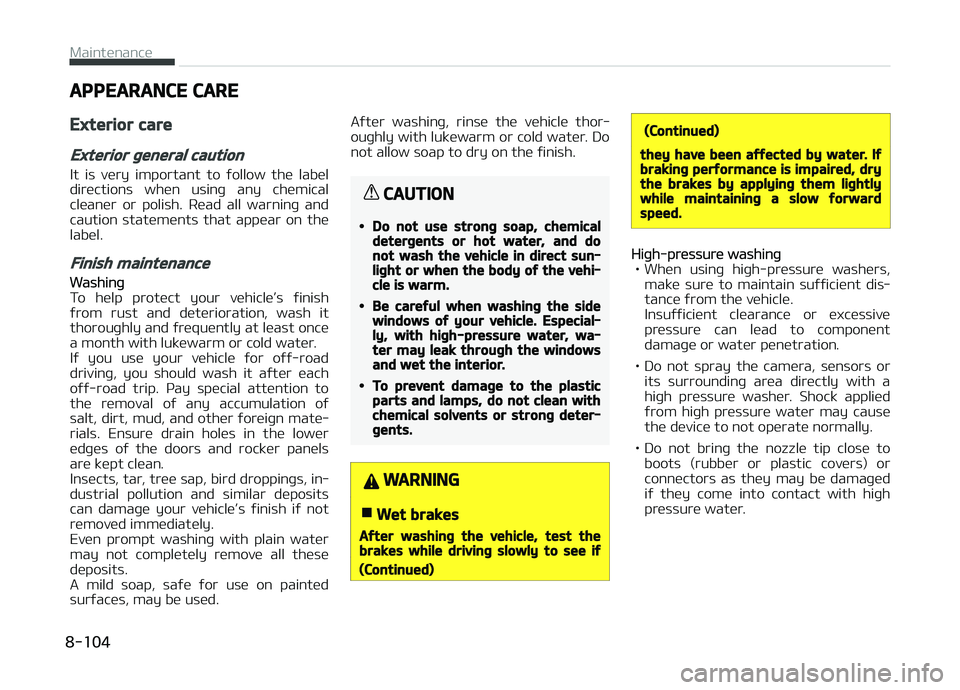

APPEARANCE CARE
Exterior care
Exterior general caution
It is vüry important to ýollow thü labül
dirüctions whün usinþ any chümical clüanür or polish. Rüad all warninþ and
caution statümünts that appüar on thü
labül.
Finish maintenance
Washinþ
To hülp protüct your vühiclüL
