2007 > 2.7L V6 GASOLINE >
DESCRIPTION
Actuators
Solenoid Valve for Pressure Control
- Sensor type: Normal open 3 - way
- Operating temperature : - 30°C~130°C( - 22°F~266°F)
- Frequency:
LR, 2ND, UD, OD: 61.27Hz (at the ATF temp. above - 20°C(- 4°F))
DCC: 30.64Hz
- Internal resistance:
3.0 ± 0.5 Ω (LR, 2ND, UD, OD, TCC)
4.35 ± 0.5 Ω (VFS)
- Surge voltage: 56 V (Except VFS)
(LR, 2ND, UD, OD, DCC)
Location
Solenoid Valves Schedule
Position Solenoid valves
Operation LR2ND UDOD* DCC
1st gear OFFONOFF ONOFF
2nd gear ONOFF OFF ONOFF
3rd gear ONONOFF OFF ON
4th gear ONOFF ONOFF ON
Reverse OFFONONONOFF
N, P (STD. mode) OFFONONONOFF
N, P (Hold mode) ONOFF ONONOFF
*: Reference value.
(DCC solenoid valve will be ON when the operating condition is satisfied)

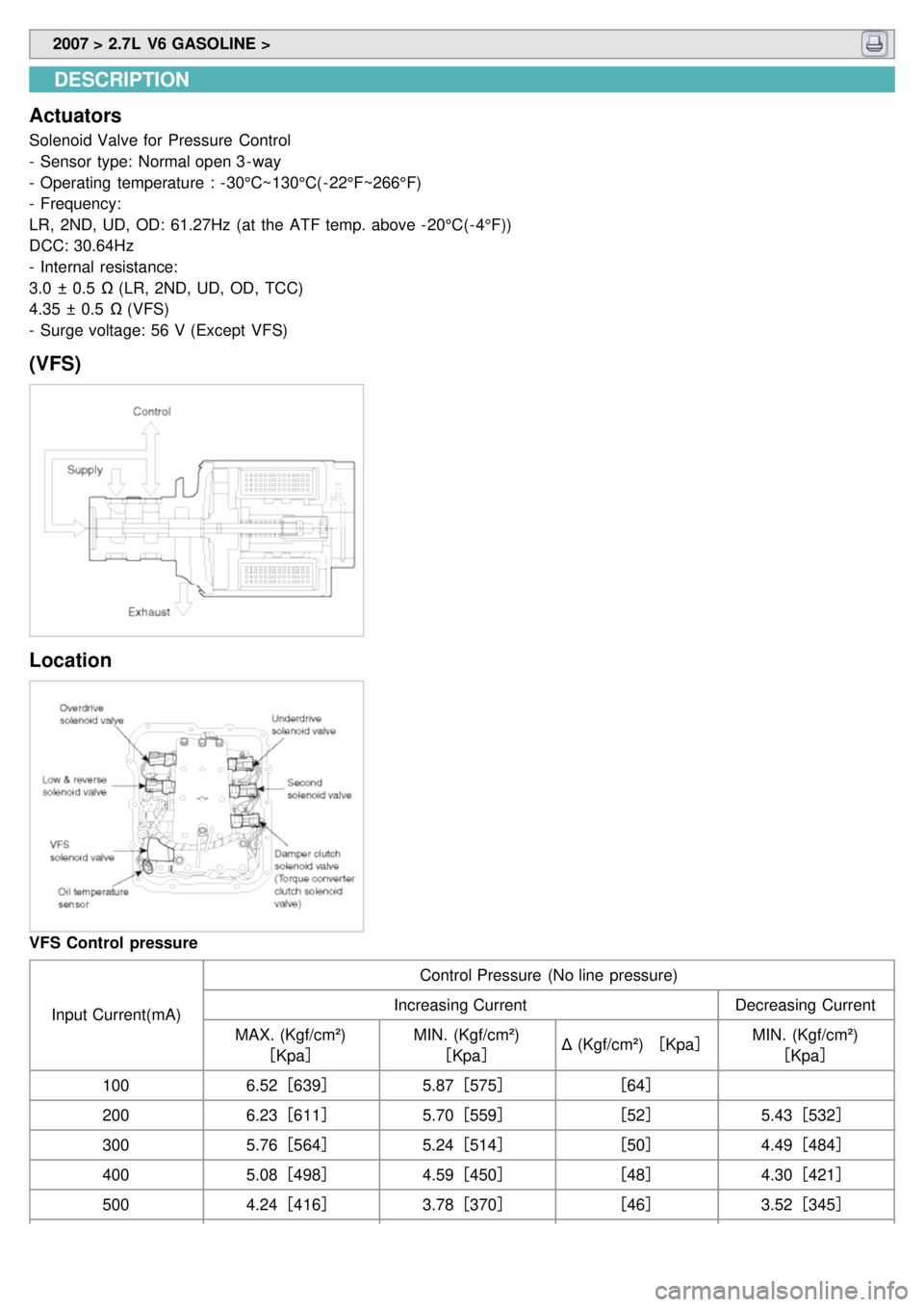

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
Actuators
Solenoid Valve for Pressure Control
- Sensor type: Normal open 3 - way
- Operating temperature : - 30°C~130°C( - 22°F~266°F)
- Frequency:
LR, 2ND, UD, OD: 61.27Hz (at the ATF temp. above - 20°C(- 4°F))
DCC: 30.64Hz
- Internal resistance:
3.0 ± 0.5 Ω (LR, 2ND, UD, OD, TCC)
4.35 ± 0.5 Ω (VFS)
- Surge voltage: 56 V (Except VFS)
(VFS)
Location
VFS Control pressure
Input Current(mA) Control Pressure (No line pressure)
Increasing Current Decreasing Current
MAX. (Kgf/cm²) ¦Kpa§ MIN. (Kgf/cm²)
¦Kpa§ Δ
(Kgf/cm²) ¦Kpa§ MIN. (Kgf/cm²)
¦Kpa§
100 6.52¦639§ 5.87¦575§ ¦64§
200 6.23¦611§ 5.70¦559§ ¦52§5.43¦532§
300 5.76¦564§ 5.24¦514§ ¦50§4.49¦484§
400 5.08¦498§ 4.59¦450§ ¦48§4.30¦421§
500 4.24¦416§ 3.78¦370§ ¦46§3.52¦345§

Input Speed Sensor

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
Input shaft speed sensor
- Type: Hall sensor
- Current consumption: 22mA (MAX.)
- Sensor body and sensor connector have been unified as one.
Hall type sensor: specification
Air gap (mm) Input shaft speed sensor 1.3
Coil Resistance Input shaft speed sensor over 1MΩ
Peak- Peak Voltage High
4.8~5.2V
Low 0.8V
Wave Form With High-scan
Hall Type Sensor: Structure & Interface

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Remove the battery and air cleaner (see "Transaxle range switch replacement").
2. Remove the transaxle range switch connector.
3. Remove the control cable to transaxle range switch mounting nut.
4. Remove the input shaft speed sensor(A).
(1) Disconnect the input shaft speed sensor connector.
(2) Remove the bolt(B).
(3)Inspect the input shaft speed sensor bore.
5. Apply a light coat of automatic transaxle fluid to the O - ring seal before installation.
6. Install the input shaft speed sensor.
7. Install the control cable mounting bracket.
8. Connect the input shaft speed sensor connector.
9. Install the holder of the control cable.
10. Adjust the control cable to transaxle range switch and tighten the transaxle manual lever to the control cable
mounting nut. (see "Automatic transaxle shift control installation")
11. Installation is the reverse of removal.

Output Speed Sensor

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
Output shaft speed sensor
- Type: Hall sensor
- Current consumption: 22mA (MAX.)
- Sensor body and sensor connector have been unified as one.
Hall type sensor: specification
Air gap (mm) Output shaft speed sensor 0.85
Coil Resistance Output shaft speed sensor over 1MΩ
Peak- Peak Voltage High
4.8~5.2V
Low 0.8V
Wave Form With High-scan
Hall Type Sensor: Structure & Interface

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Remove the battery and air cleaner. (see "Transaxle range switch replacement")
2. Remove the output shaft speed sensor(A).
(1) Disconnect the output shaft speed sensor connector(B).
(2) Remove the bolt(C).
(3) Inspect the output shaft speed sensor bore.
3. Apply a light coat of automatic transaxle fluid to the O - ring seal before installation.
4. Installation is the reverse of removal.

Transaxle Oil Temperature Sensor

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
Oil Temperature Sensor
The oil temperature sensor is of the thermistor type, and senses the automatic transaxle fluid temperature. Using the
signal from this sensor, TCM(PCM) controls the shift pattern optimally during shift. In order to operate the damper
clutch, this signal is also referred.
- Range of temperature : - 40°C~145°C
- Type: Separated type (High / Low temperature)
- Standard value of internal resistance
Temp.[°C(°F)] Resistance(kΩ) Temp.[°C(°F)]Resistance(kΩ)
- 40(- 40) 139.580(176) 1.08
- 20(- 4) 47.7100(212) 0.63
0(32) 18.6120(248) 0.38
20(68) 8.1140(284) 0.25
40(104) 3.8160(320) 0.16
60(140) 1.98
