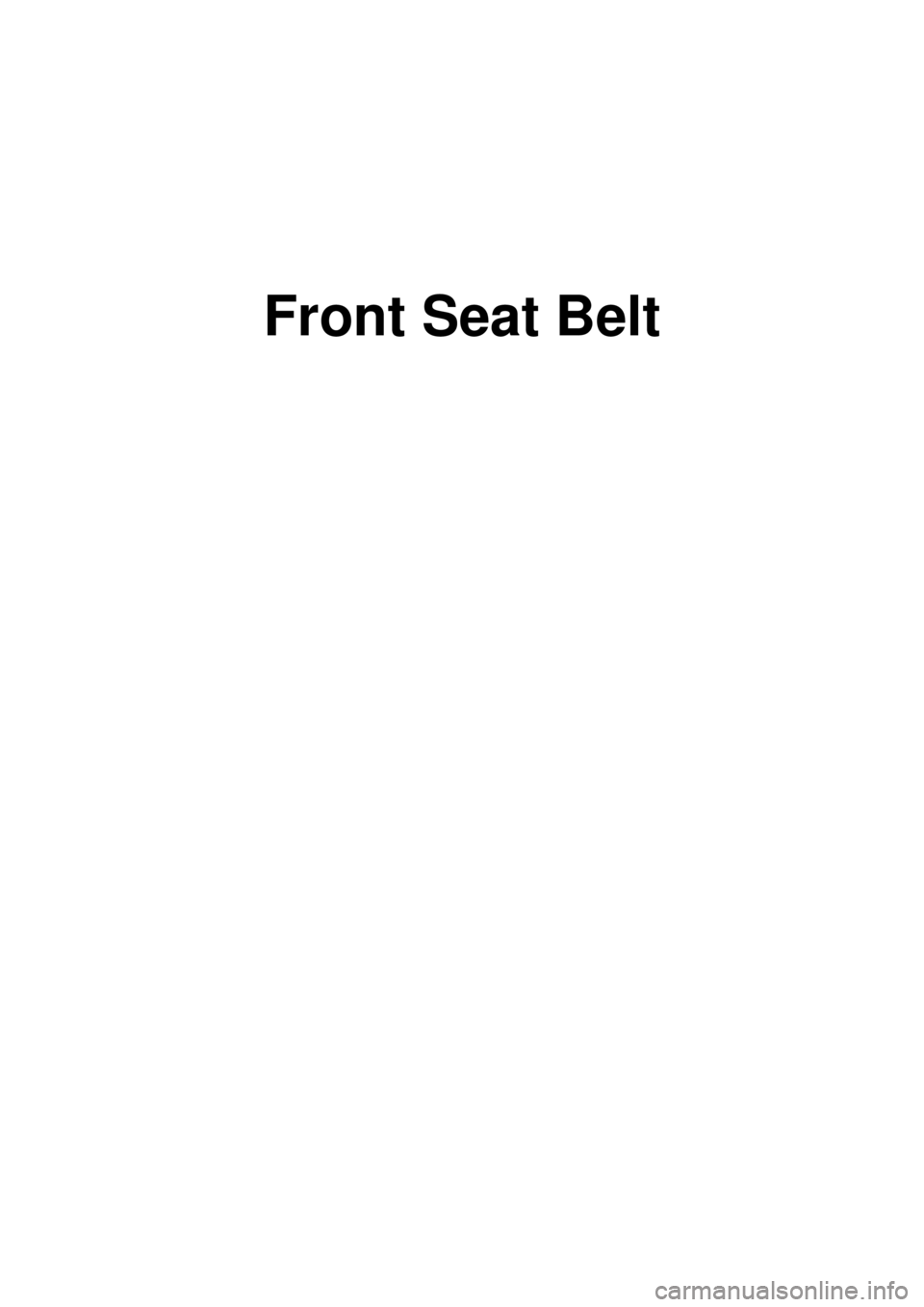

Front Seat Belt

Page 1142 of 1575

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

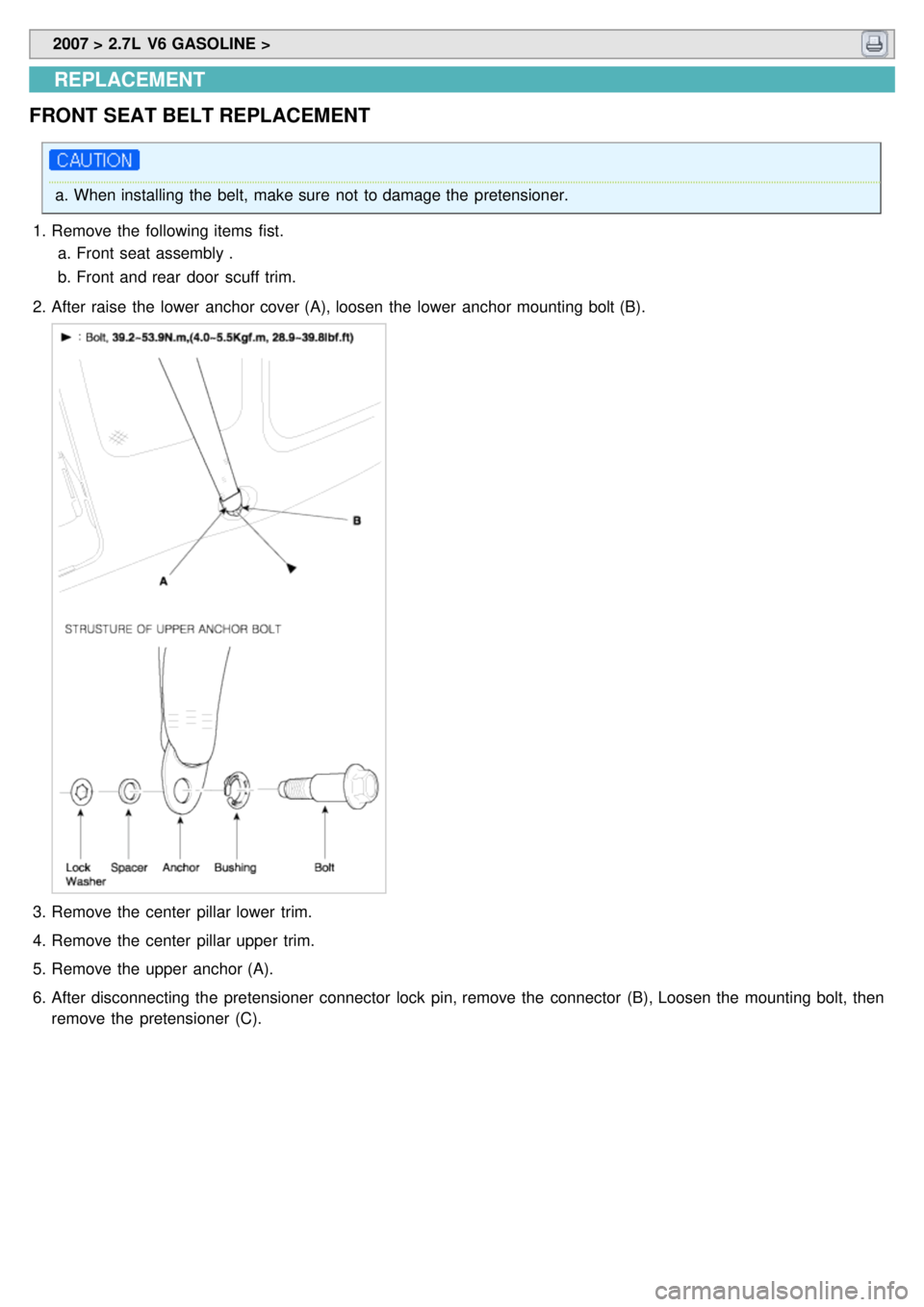

FRONT SEAT BELT REPLACEMENT
a. When installing the belt, make sure not to damage the pretensioner.
1. Remove the following items fist.
a. Front seat assembly .
b. Front and rear door scuff trim.
2. After raise the lower anchor cover (A), loosen the lower anchor mounting bolt (B).
3.Remove the center pillar lower trim.
4. Remove the center pillar upper trim.
5. Remove the upper anchor (A).
6. After disconnecting the pretensioner connector lock pin, remove the connector (B), Loosen the mounting bolt, then
remove the pretensioner (C).

Page 1143 of 1575

KIA CARNIVAL 2007 Workshop Manual 7.Installation is the reverse of removal.

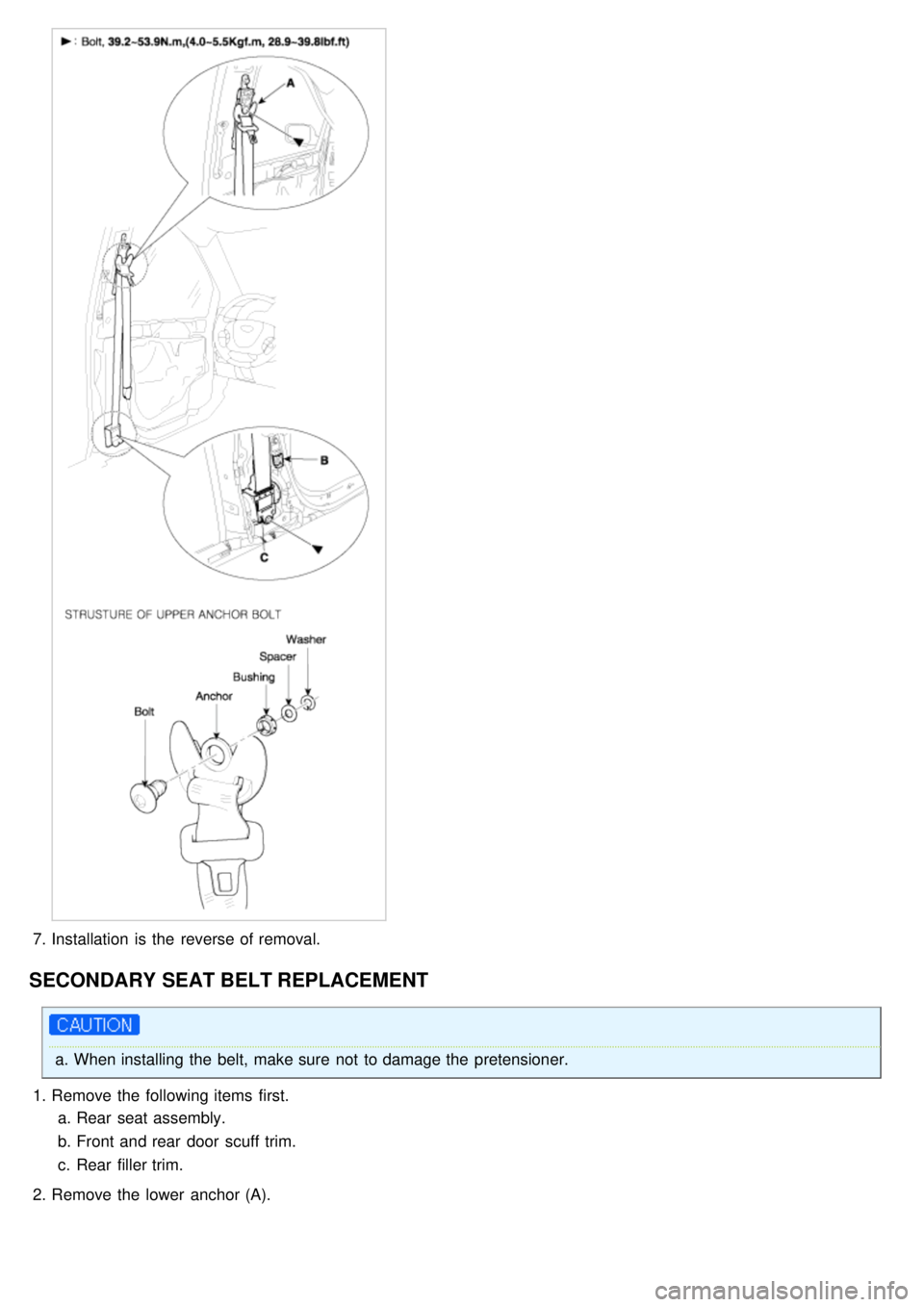

SECONDARY SEAT BELT REPLACEMENT
a.When installing the belt, make sure not to damage the pretensioner.
1. Remove the following items first.
a. Rear se

7.Installation is the reverse of removal.
SECONDARY SEAT BELT REPLACEMENT
a.When installing the belt, make sure not to damage the pretensioner.
1. Remove the following items first.
a. Rear seat assembly.
b. Front and rear door scuff trim.
c. Rear filler trim.
2. Remove the lower anchor (A).

Page 1144 of 1575

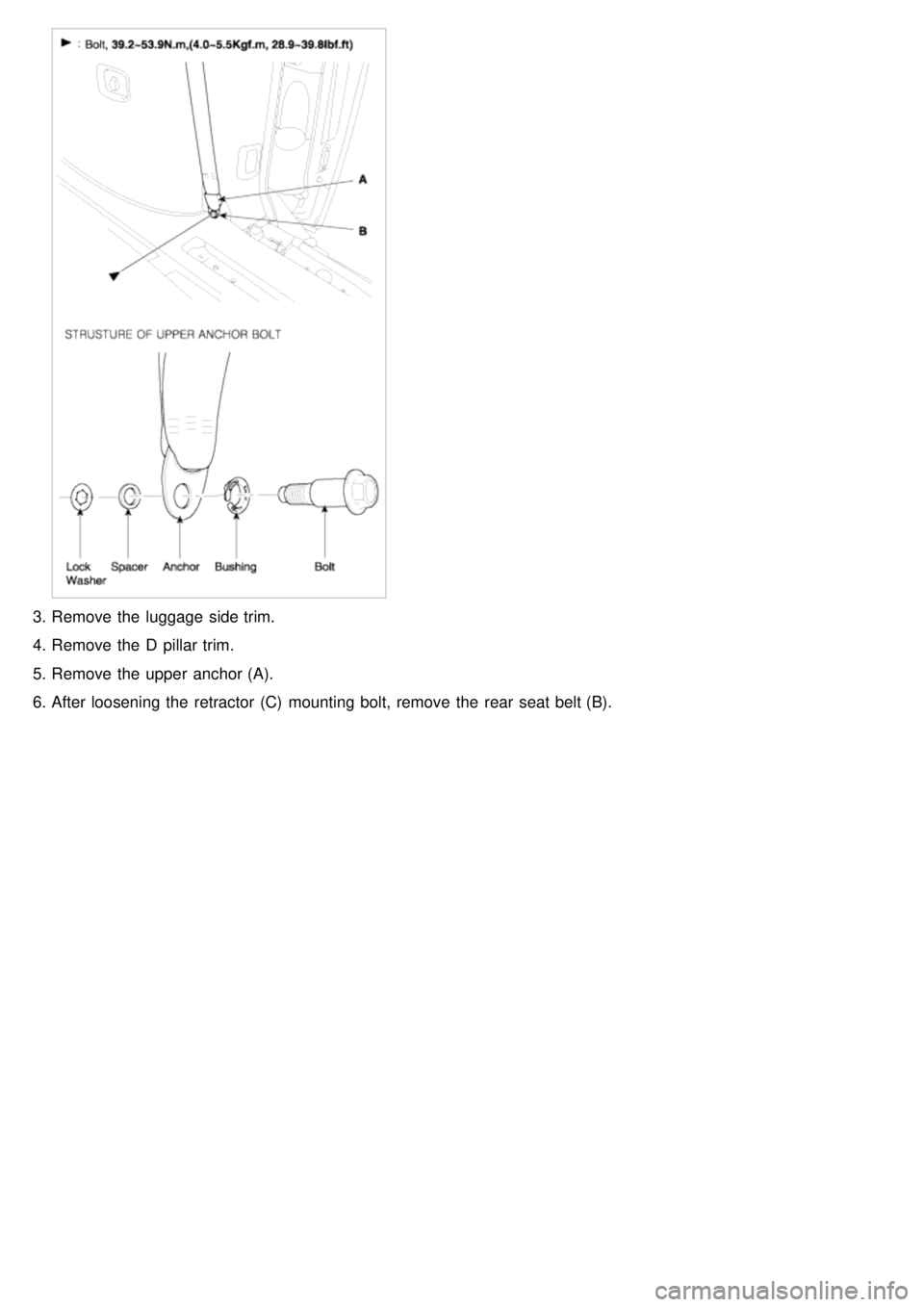

KIA CARNIVAL 2007 Workshop Manual 3.Remove the luggage side trim.
4. Remove the D pillar trim.
5. Remove the upper anchor (A).
6. After loosening the retractor (C) mounting bolt, remove the rear seat belt (B).

3.Remove the luggage side trim.
4. Remove the D pillar trim.
5. Remove the upper anchor (A).
6. After loosening the retractor (C) mounting bolt, remove the rear seat belt (B).

Page 1145 of 1575

KIA CARNIVAL 2007 Workshop Manual 7.Installation is the reverse of removal.

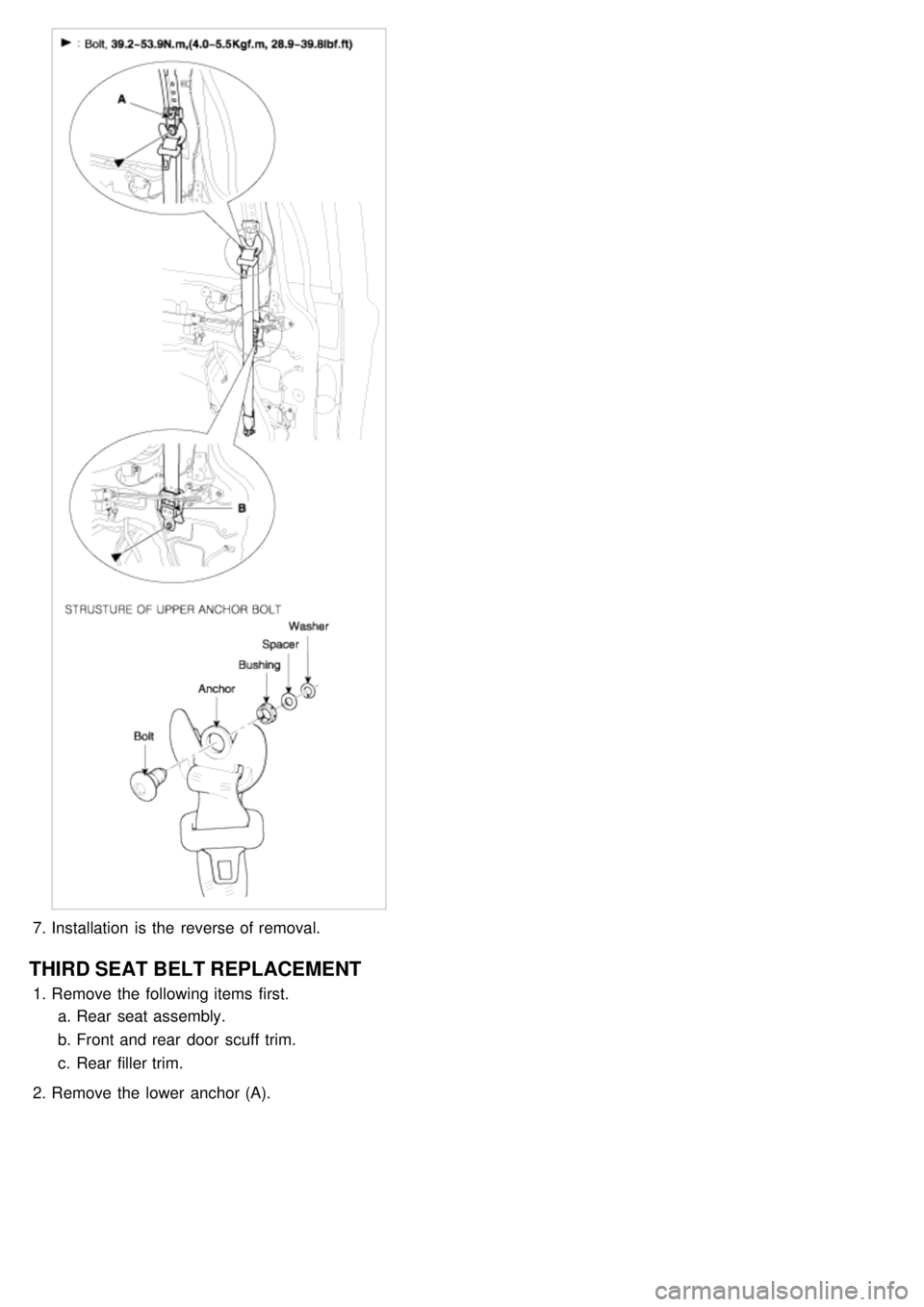

THIRD SEAT BELT REPLACEMENT
1.Remove the following items first.
a. Rear seat assembly.
b. Front and rear door scuff trim.
c. Rear filler trim.
2. Remo

7.Installation is the reverse of removal.
THIRD SEAT BELT REPLACEMENT
1.Remove the following items first.
a. Rear seat assembly.
b. Front and rear door scuff trim.
c. Rear filler trim.
2. Remove the lower anchor (A).

Page 1146 of 1575

KIA CARNIVAL 2007 Workshop Manual 3.Remove the luggage side trim.
4. Remove the C pillar trim.
5. Remove the upper anchor (A).
6. After loosening the retractor (C) mounting bolt, remove the rear seat belt (B).
7.Installation

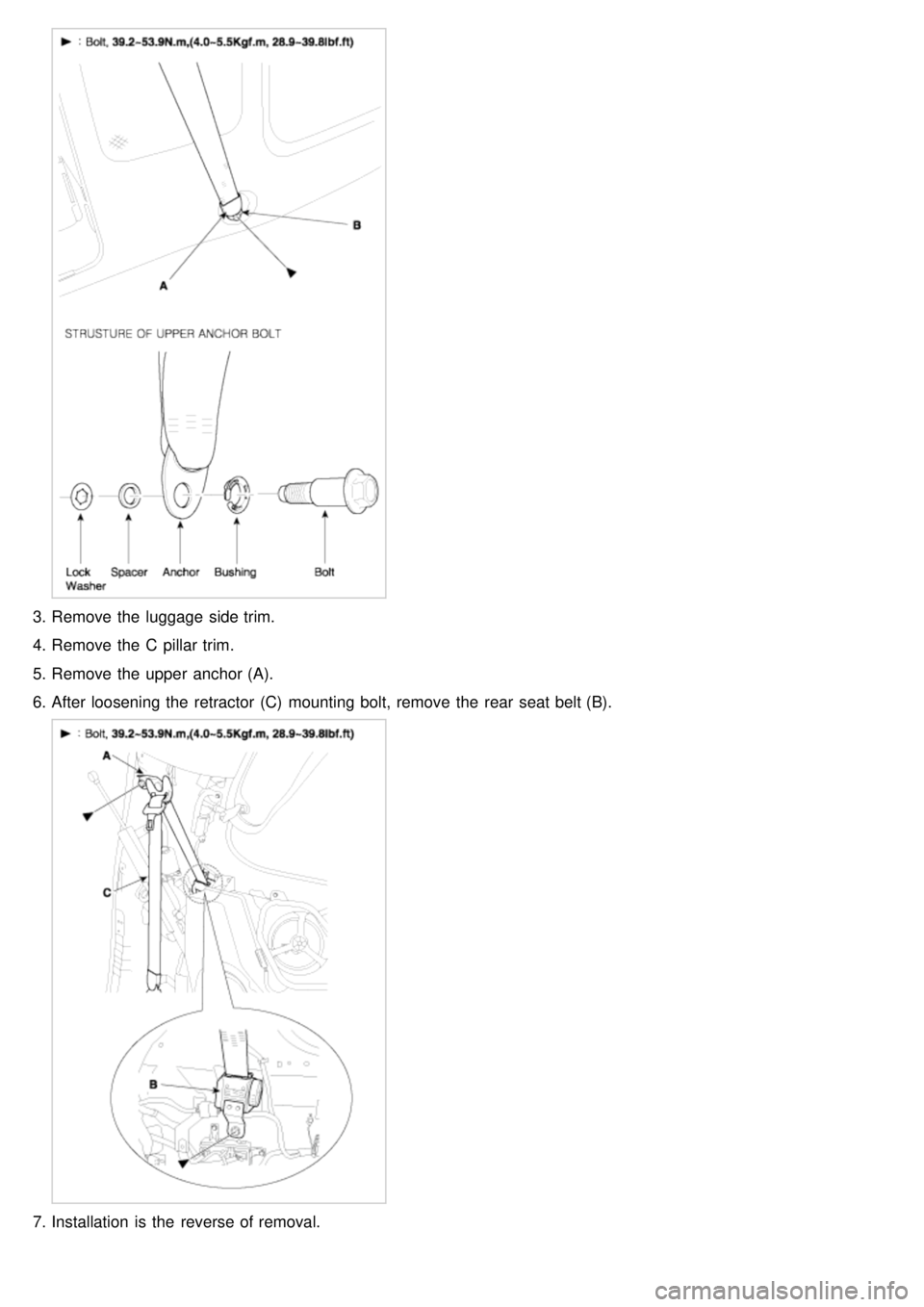

3.Remove the luggage side trim.
4. Remove the C pillar trim.
5. Remove the upper anchor (A).
6. After loosening the retractor (C) mounting bolt, remove the rear seat belt (B).
7.Installation is the reverse of removal.

Page 1147 of 1575

KIA CARNIVAL 2007 Workshop Manual FRONT SEAT BELT BUCKLE REPLACEMENT
1.Remove the following items first.
a. Front seat assembly.
b. Recliner cover.
2. Remove the seat belt buckle (A).
3.Installation is the reverse of removal.
SE

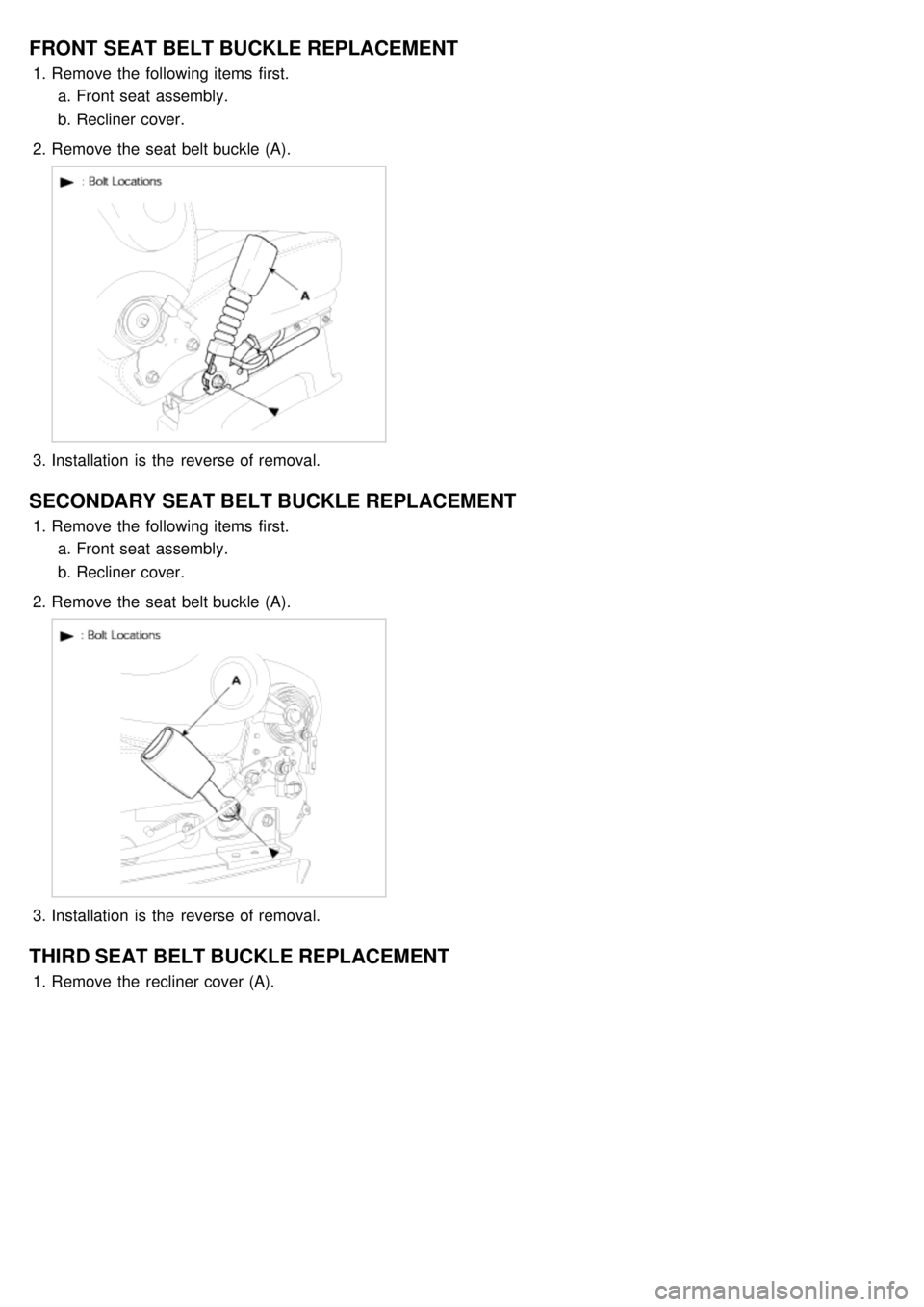

FRONT SEAT BELT BUCKLE REPLACEMENT
1.Remove the following items first.
a. Front seat assembly.
b. Recliner cover.
2. Remove the seat belt buckle (A).
3.Installation is the reverse of removal.
SECONDARY SEAT BELT BUCKLE REPLACEMENT
1.Remove the following items first.
a. Front seat assembly.
b. Recliner cover.
2. Remove the seat belt buckle (A).
3.Installation is the reverse of removal.
THIRD SEAT BELT BUCKLE REPLACEMENT
1.Remove the recliner cover (A).

Page 1148 of 1575

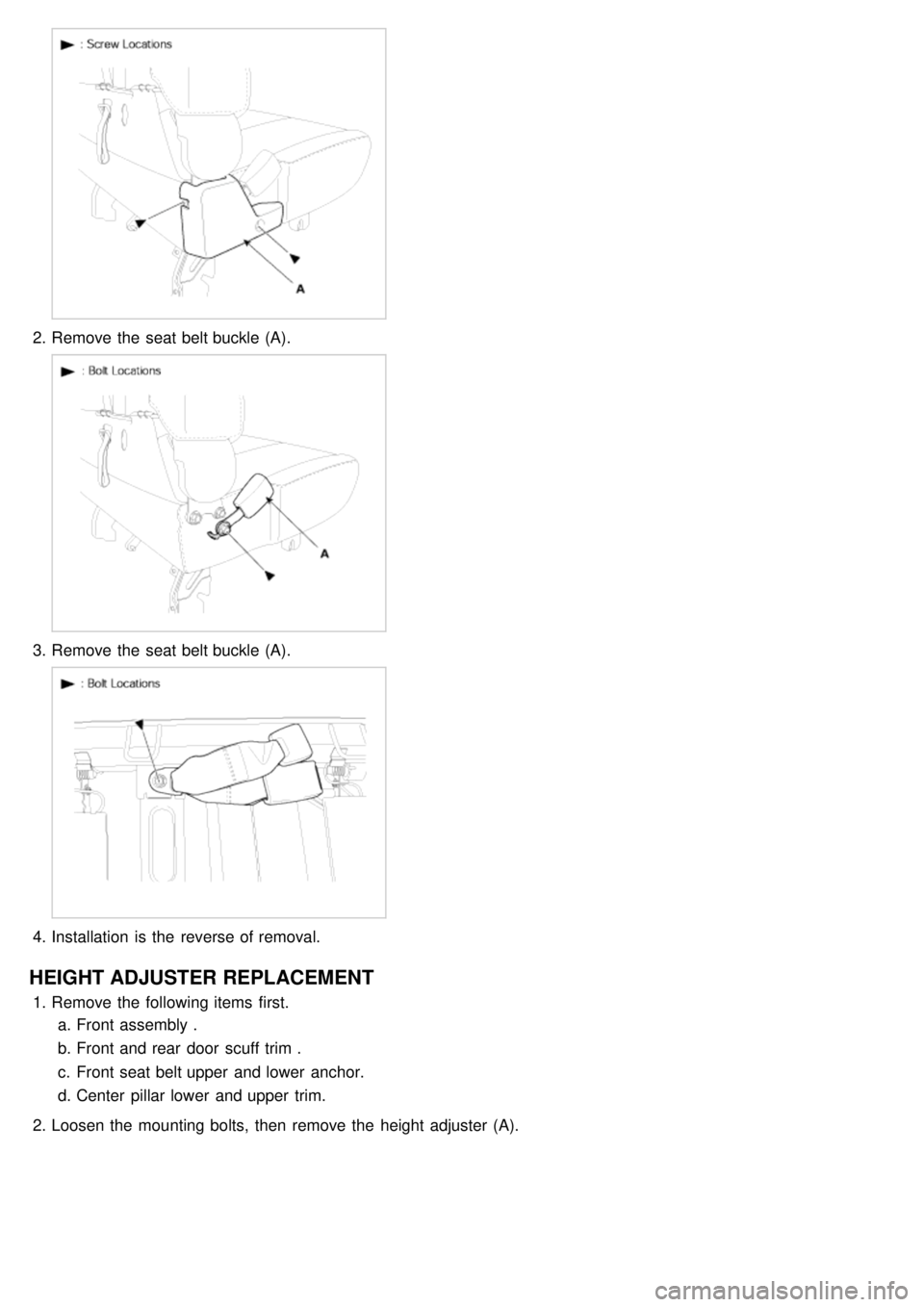

KIA CARNIVAL 2007 Workshop Manual 2.Remove the seat belt buckle (A).
3.Remove the seat belt buckle (A).
4.Installation is the reverse of removal.
HEIGHT ADJUSTER REPLACEMENT
1.Remove the following items first.
a. Front assembly

2.Remove the seat belt buckle (A).
3.Remove the seat belt buckle (A).
4.Installation is the reverse of removal.
HEIGHT ADJUSTER REPLACEMENT
1.Remove the following items first.
a. Front assembly .
b. Front and rear door scuff trim .
c. Front seat belt upper and lower anchor.
d. Center pillar lower and upper trim.

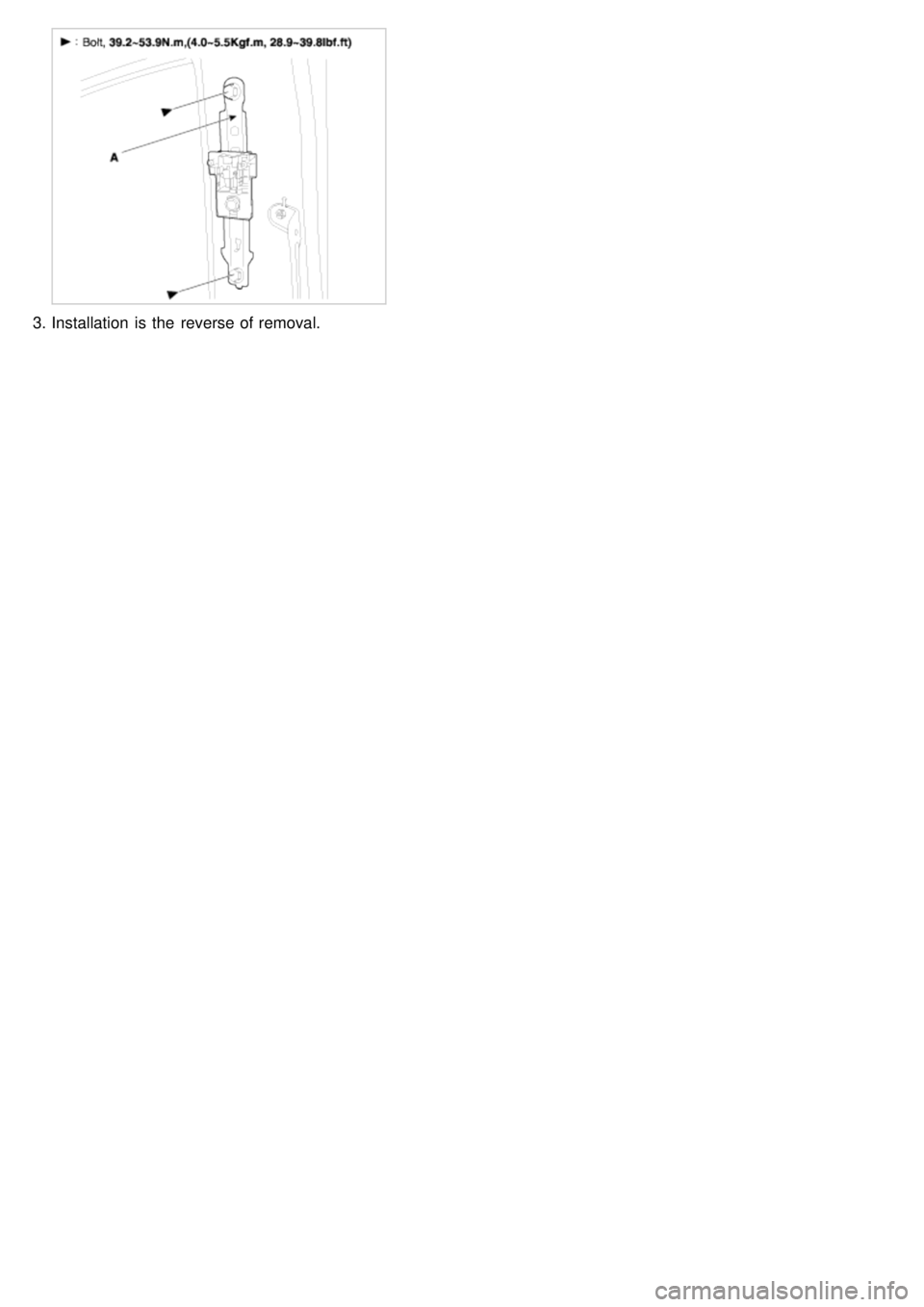

2. Loosen the mounting bolts, then remove the height adjuster (A).
