KIA CARNIVAL 2007 Workshop Manual

Audio Unit

2007 > 2.7L V6 GASOLINE >

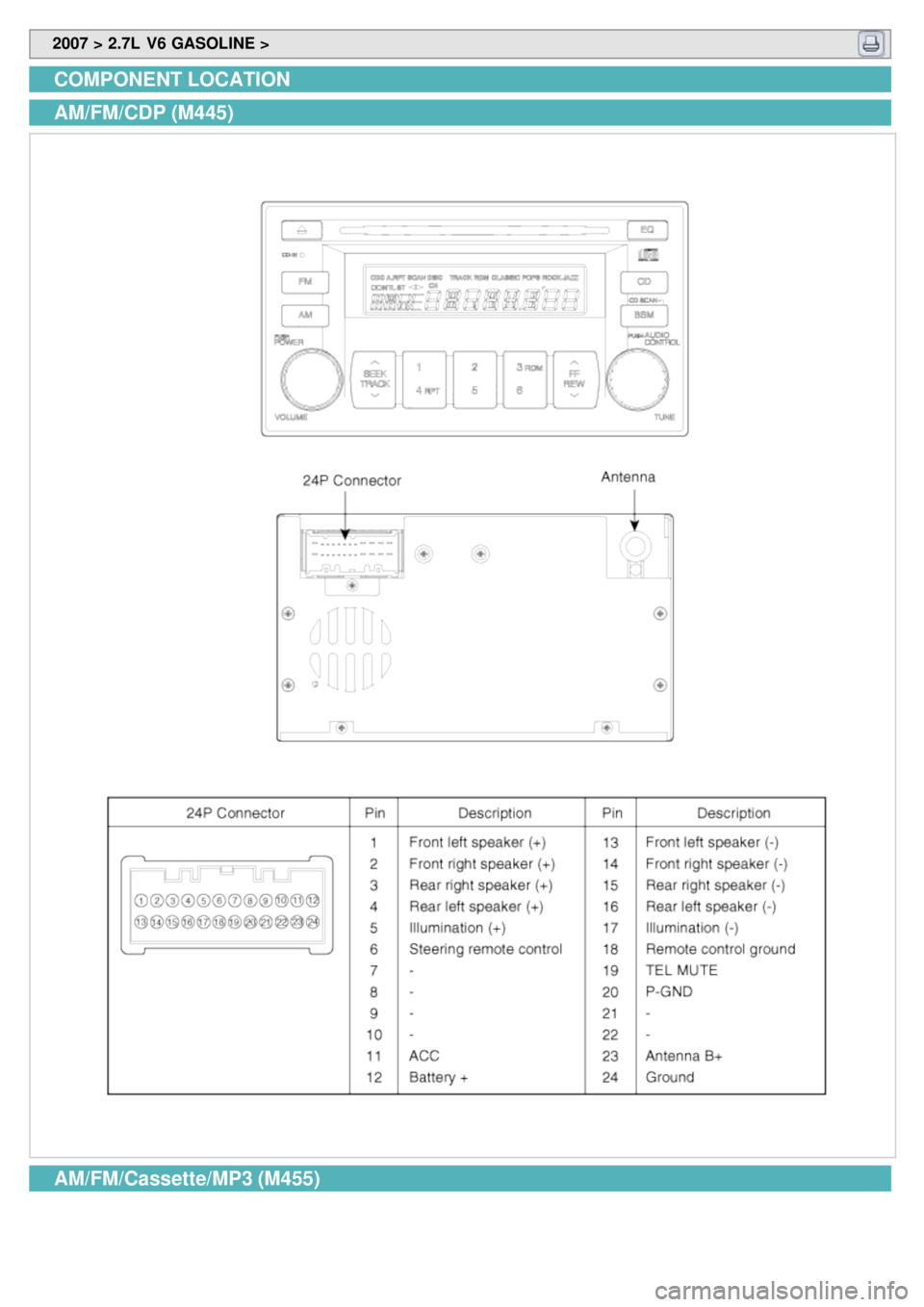

COMPONENT LOCATION
AM/FM/CDP (M445)

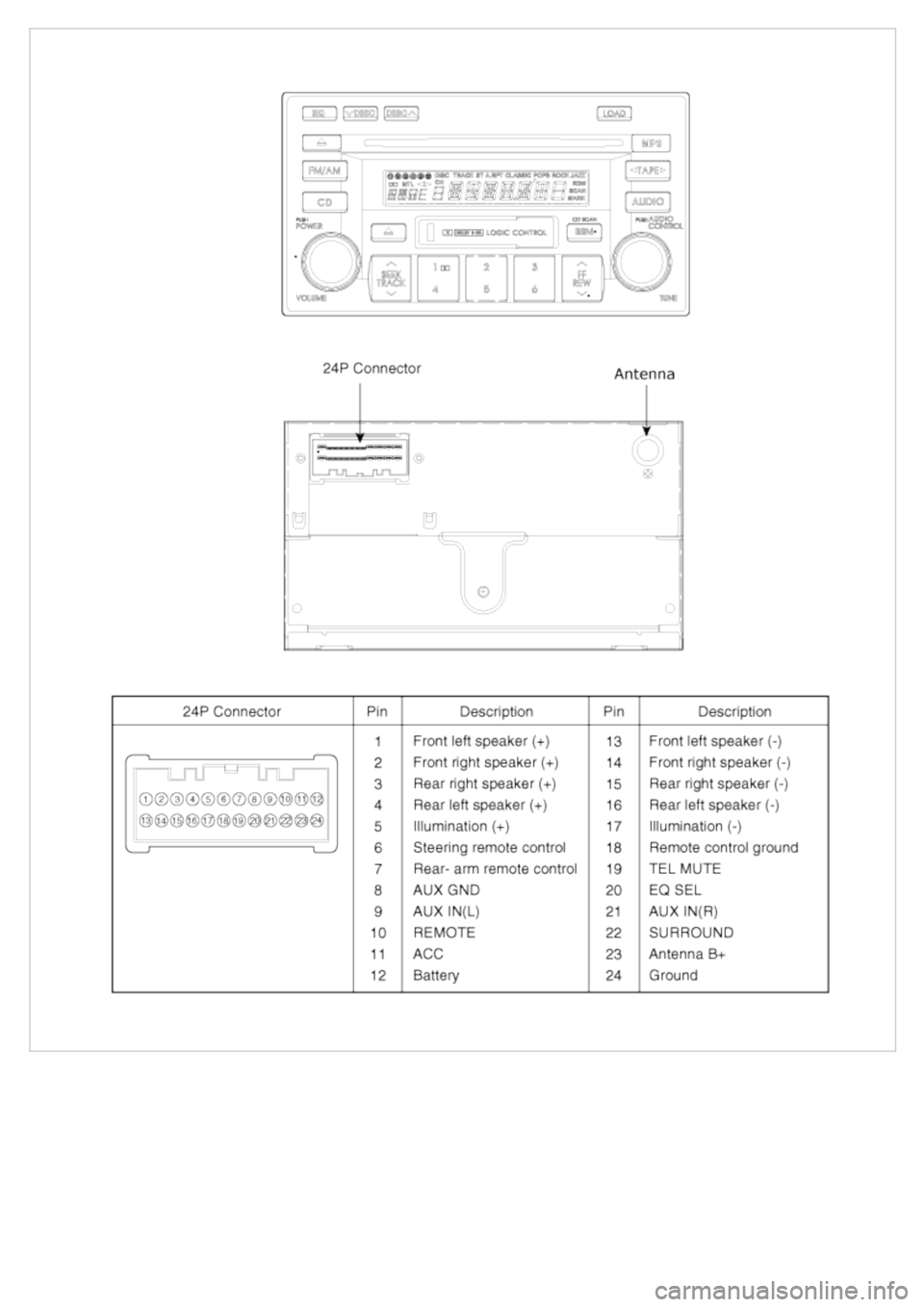

AM/FM/Cassette/MP3 (M455)

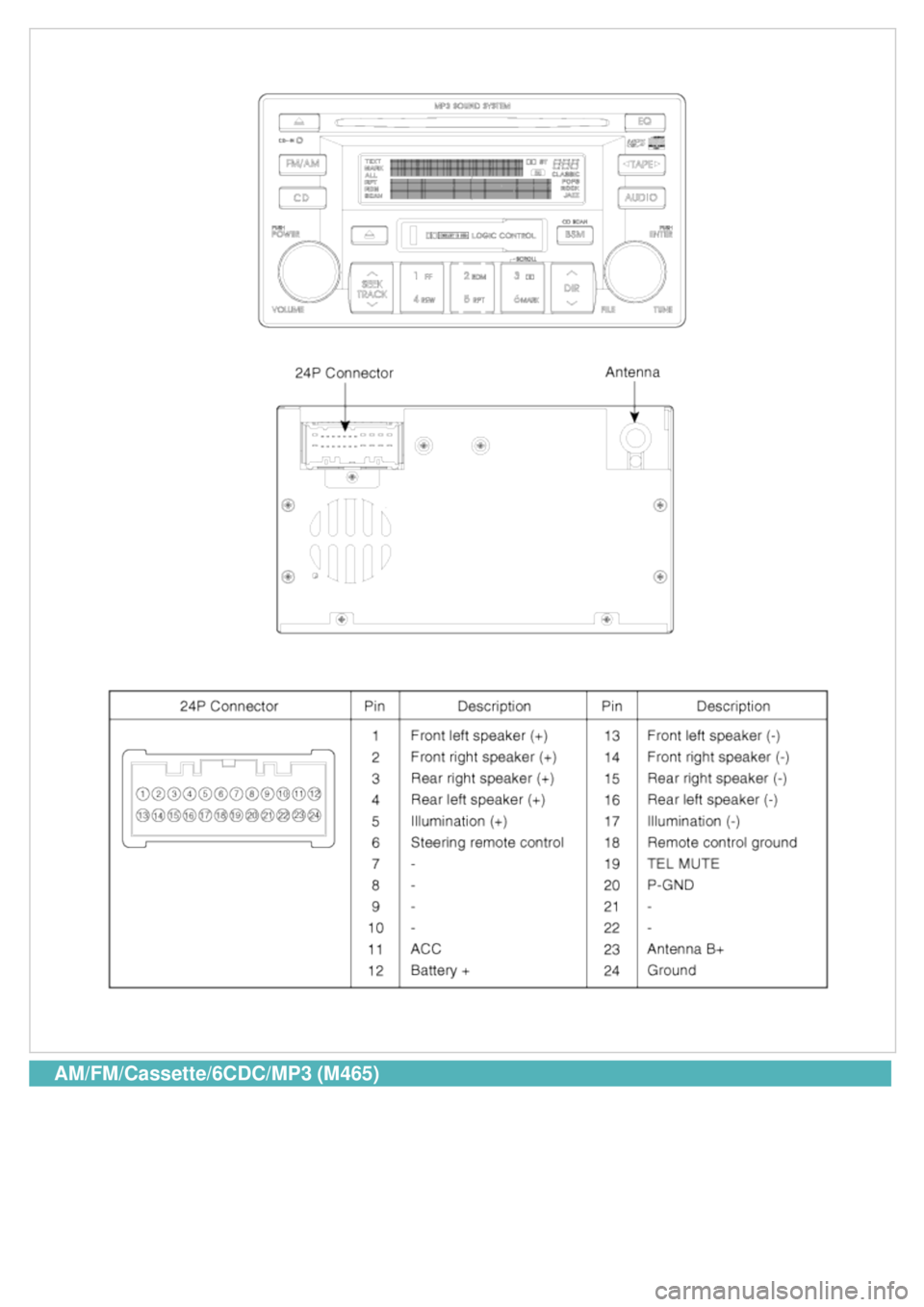

AM/FM/Cassette/6CDC/MP3 (M465)

2007 > 2.7L V6 GASOLINE >

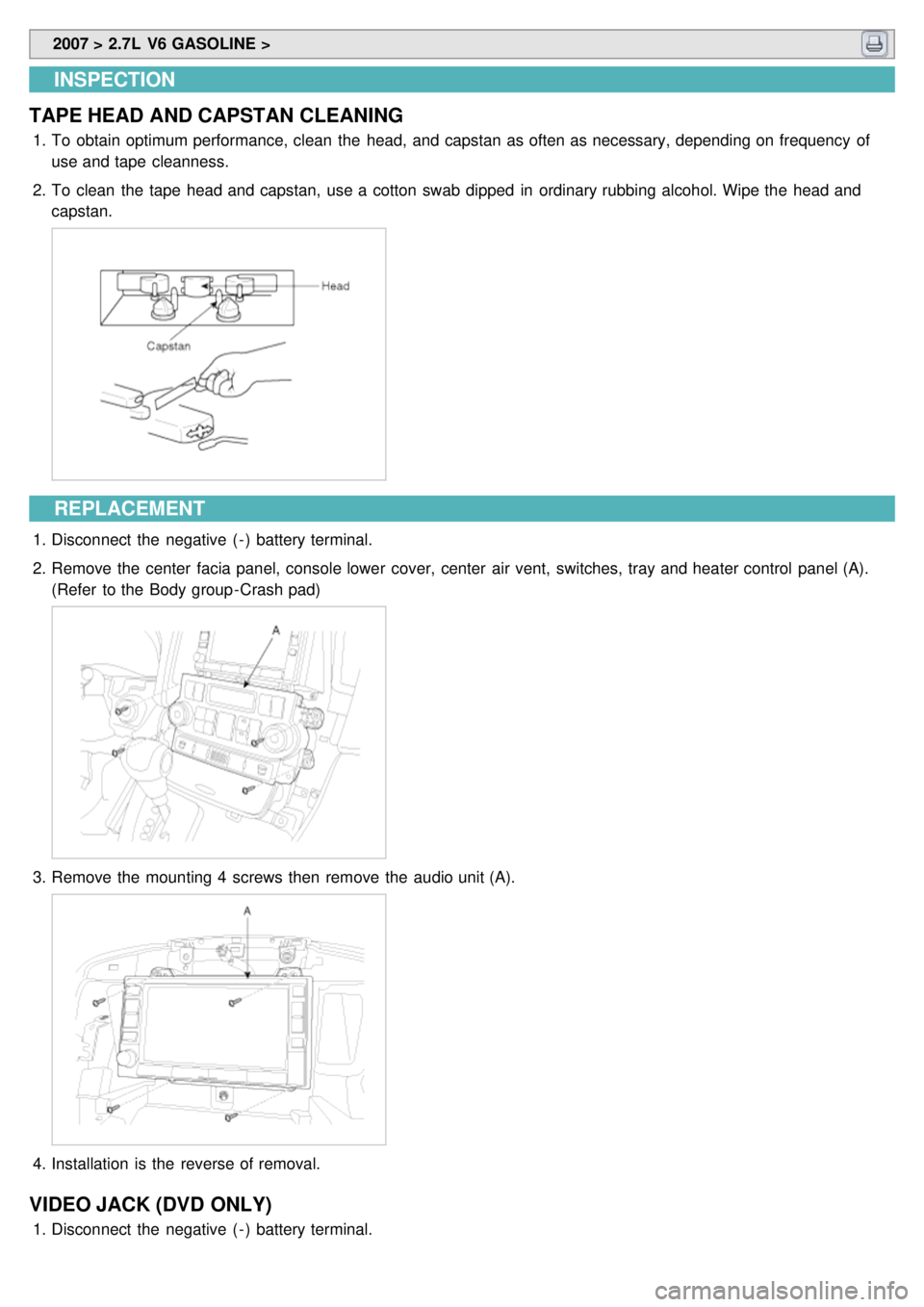

INSPECTION
TAPE HEAD AND CAPSTAN CLEANING
1. To obtain optimum performance, clean the head, and capstan as often as necessary, depending on frequency of
use and tape cleanness.
2. To clean the tape head and capstan, use a cotton swab dipped in ordinary rubbing alcohol. Wipe the head and
capstan.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the center facia panel, console lower cover, center air vent, switches, tray and heater control panel (A).
(Refer to the Body group - Crash pad)
3.Remove the mounting 4 screws then remove the audio unit (A).
4.Installation is the reverse of removal.
VIDEO JACK (DVD ONLY)
1.Disconnect the negative ( - ) battery terminal.

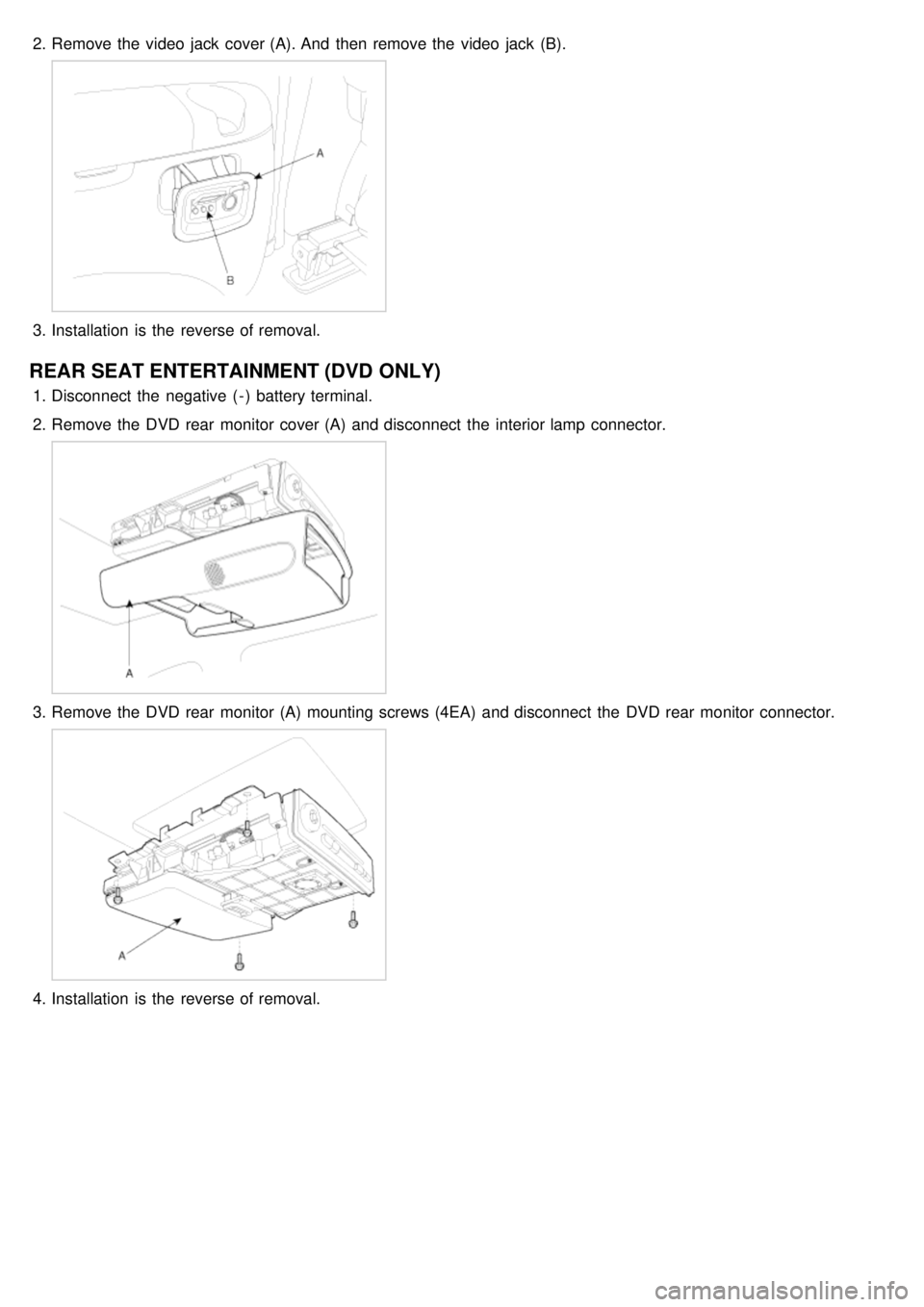

2.Remove the video jack cover (A). And then remove the video jack (B).
3.Installation is the reverse of removal.
REAR SEAT ENTERTAINMENT (DVD ONLY)
1.Disconnect the negative ( - ) battery terminal.
2. Remove the DVD rear monitor cover (A) and disconnect the interior lamp connector.
3.Remove the DVD rear monitor (A) mounting screws (4EA) and disconnect the DVD rear monitor connector.
4.Installation is the reverse of removal.

Speakers

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

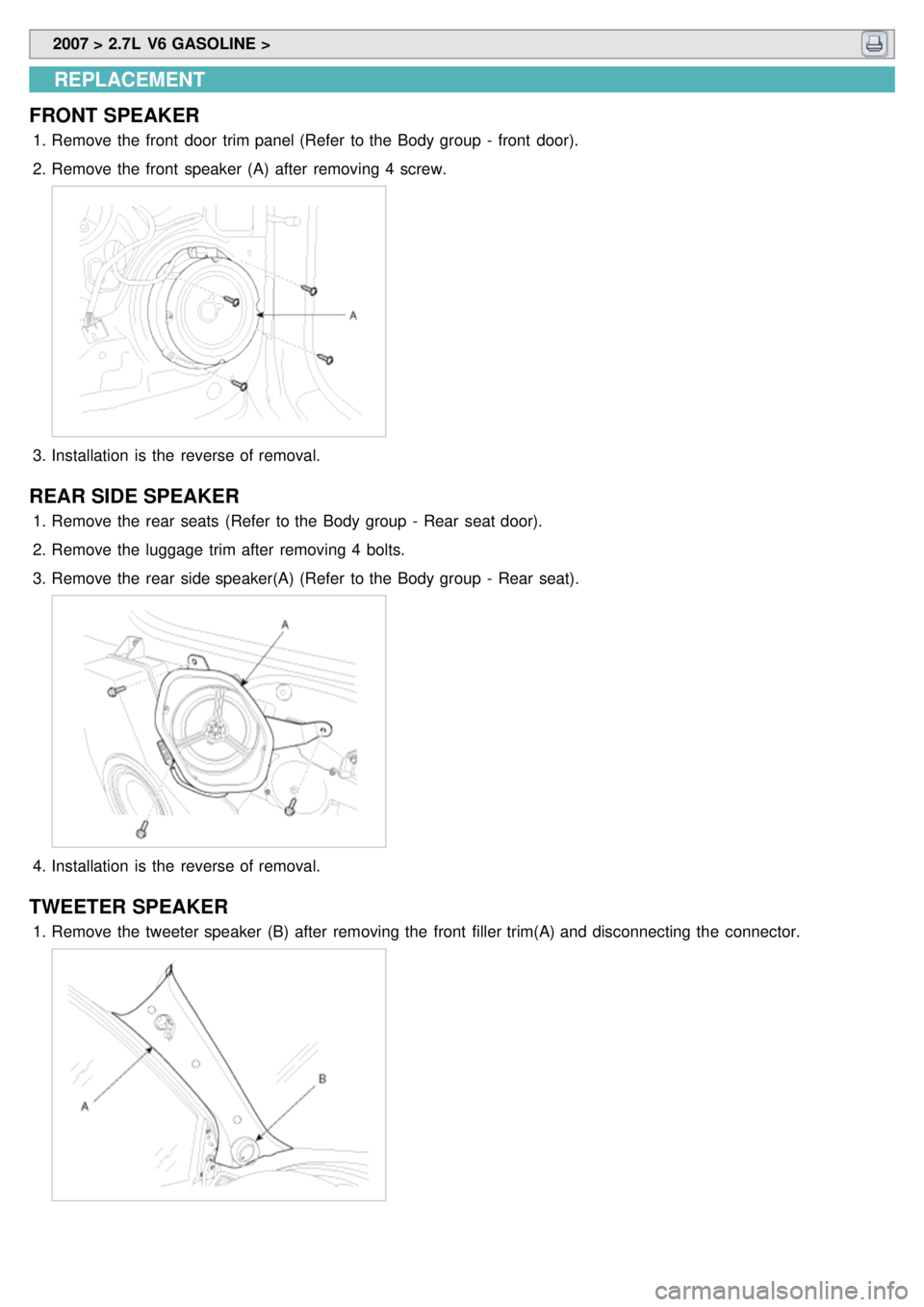

FRONT SPEAKER
1. Remove the front door trim panel (Refer to the Body group - front door).
2. Remove the front speaker (A) after removing 4 screw.
3.Installation is the reverse of removal.
REAR SIDE SPEAKER
1.Remove the rear seats (Refer to the Body group - Rear seat door).
2. Remove the luggage trim after removing 4 bolts.
3. Remove the rear side speaker(A) (Refer to the Body group - Rear seat).
4.Installation is the reverse of removal.
TWEETER SPEAKER
1.Remove the tweeter speaker (B) after removing the front filler trim(A) and disconnecting the connector.

2.Installation is the reverse of removal.

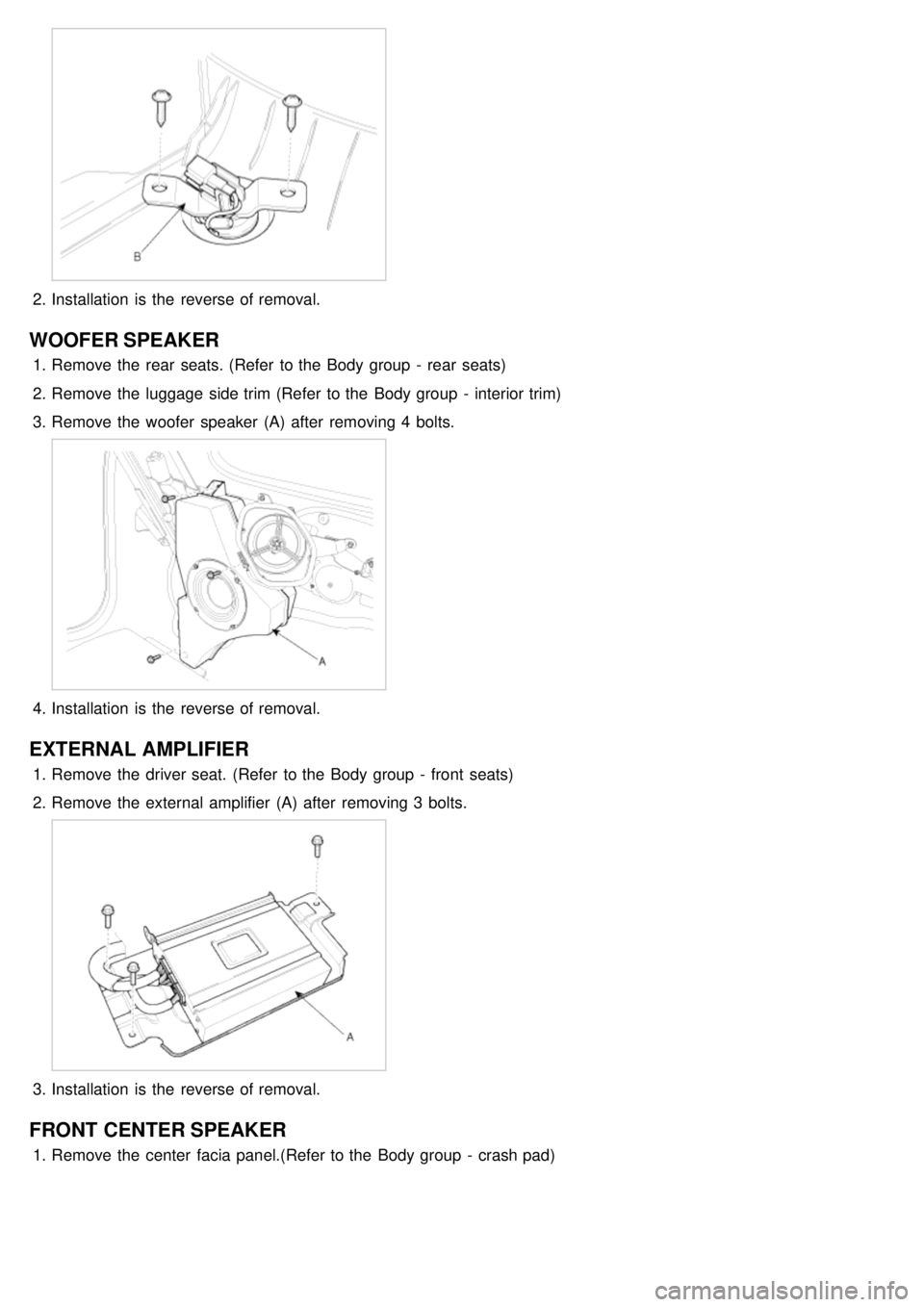

WOOFER SPEAKER
1.Remove the rear seats. (Refer to the Body group - rear seats)
2. Remove the luggage side trim (Refer to the Body group - interior trim)
3. Remove the woofer speaker (A) after removing 4 bolts.
4.Installation is the reverse of removal.
EXTERNAL AMPLIFIER
1.Remove the driver seat. (Refer to the Body group - front seats)
2. Remove the external amplifier (A) after removing 3 bolts.
3.Installation is the reverse of removal.
FRONT CENTER SPEAKER
1.Remove the center facia panel.(Refer to the Body group - crash pad)

2.Installation is the reverse of removal.

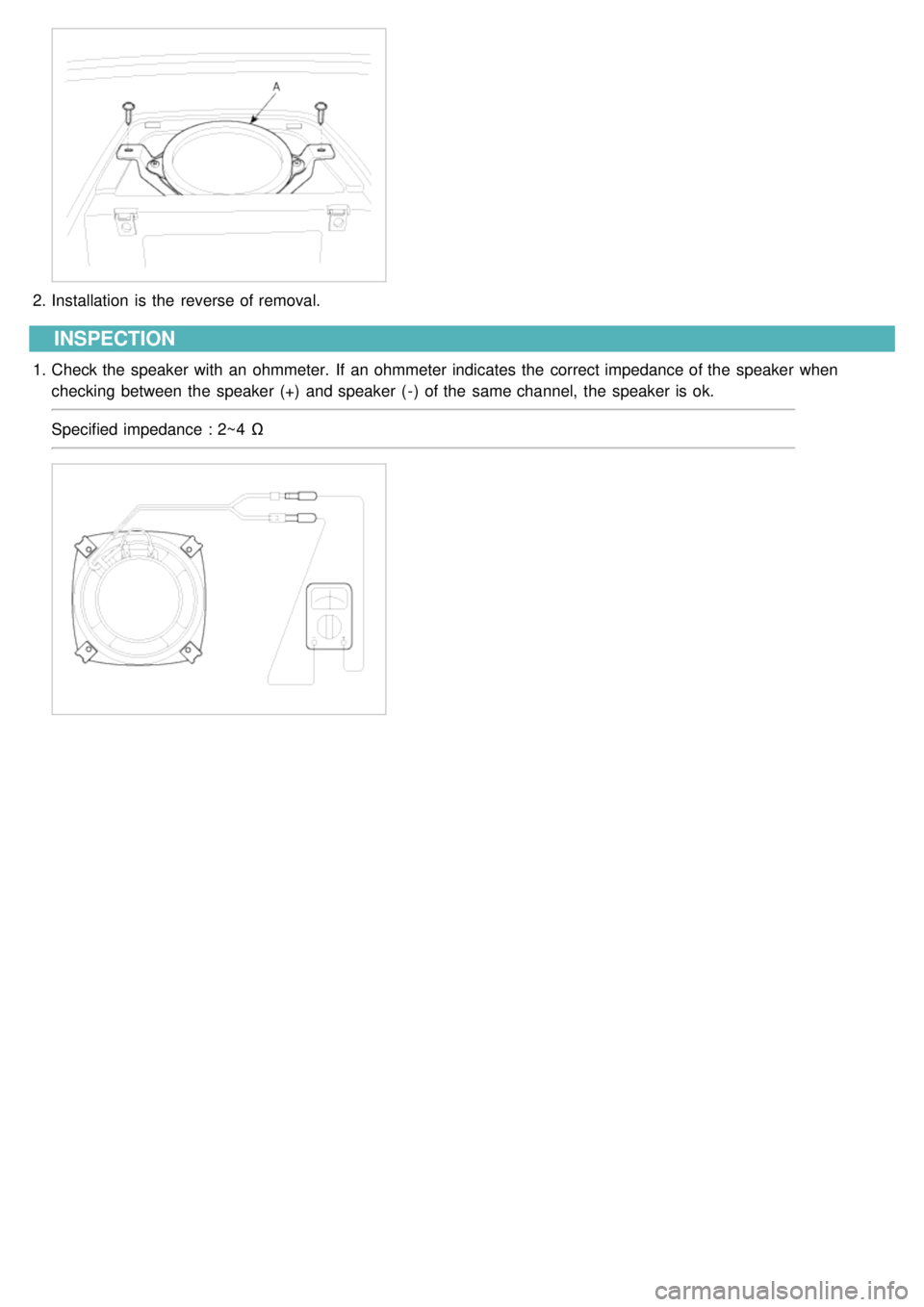

INSPECTION
1.Check the speaker with an ohmmeter. If an ohmmeter indicates the correct impedance of the speaker when
checking between the speaker (+) and speaker ( - ) of the same channel, the speaker is ok.
Specified impedance : 2~4 Ω
